More '79, '80 Trek 930 questions

This bike had extremely limited production. And it provides an extremely twitchy ride. Are these two factoids related to one another? Did the twitchiness get worked out with the release of the 950?
And while we're here, I'm collecting serial numbers. I want to see how many I can find, and maybe try and figure out the meaning of the last three characters.
TIA
__________________
one general tip for when the exact hub cone is not readily available. discovered that the curvature of the bearing surface on the shimano 600 was a pretty good "skeleton key" for many applications. it would sometimes require a small change in ball size to make everything come out correctly.
seedsbelize is offline
Old 08-19-18, 03:37 PM
  #2
nesteel
Senior Member

Join Date: Feb 2014
Location: Midwest
Posts: 1,837

Bikes: See the signature....

Mentioned: 62 Post(s)
Tagged: 0 Thread(s)
Quoted: 408 Post(s)
Likes: 0
Liked 19 Times in 13 Posts
I never found it to be remotely twitchy. Compared to the 957 and 770 I own, the ride was more relaxed and forgiving.
__________________
My bikes: '81 Trek 957, '83 Trek 720, '85 Trek 500, '85 Trek 770, '81 Merckx, , '85 Centurion Cinelli, '85 Raleigh Portage, '92 RB-2, '09 Bianchi
nesteel is offline
Old 08-19-18, 06:55 PM
  #3
seedsbelize
necessary illusions
Thread Starter

seedsbelize's Avatar

Join Date: Nov 2010
Location: Tixkokob, Yucatán, México
Posts: 11,609
Mentioned: 100 Post(s)
Tagged: 1 Thread(s)
Quoted: 4874 Post(s)
Liked 61 Times in 46 Posts
I have read, elsewhere, of folks having trouble with it. Would a shorter wheelbase make it less so? What I'm finding is that if I'm not giving the road ahead my full attention, I'm asking for trouble. I'm gonna take the Paramount out for a few days. It has a longer top tube and a shorter stem, and I've never had any issue with it.
__________________
one general tip for when the exact hub cone is not readily available. discovered that the curvature of the bearing surface on the shimano 600 was a pretty good "skeleton key" for many applications. it would sometimes require a small change in ball size to make everything come out correctly.
seedsbelize is offline
Old 08-19-18, 07:47 PM
  #4
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 20,558

Bikes: Several, mostly not name brands.

Mentioned: 114 Post(s)
Tagged: 0 Thread(s)
Quoted: 1773 Post(s)
Liked 106 Times in 79 Posts
The Trek 930 was designed as a criterium frame with quick handling. I suspect what you're experiencing is working as designed.
JohnDThompson is offline
Old 08-19-18, 08:03 PM
  #5
seedsbelize
necessary illusions
Thread Starter

seedsbelize's Avatar

Join Date: Nov 2010
Location: Tixkokob, Yucatán, México
Posts: 11,609
Mentioned: 100 Post(s)
Tagged: 1 Thread(s)
Quoted: 4874 Post(s)
Liked 61 Times in 46 Posts
I was wondering about that. If I was in a race, and had to pay attention all the time, it would be just fine. If I'm out by myself, and I glance to the side to see what that guy is doing over there, I have problems. Nonetheless, I'm going to check some things, and change some things and see what happens.
__________________
one general tip for when the exact hub cone is not readily available. discovered that the curvature of the bearing surface on the shimano 600 was a pretty good "skeleton key" for many applications. it would sometimes require a small change in ball size to make everything come out correctly.
seedsbelize is offline
Old 08-19-18, 08:35 PM
  #6
RiddleOfSteel
Lugged, Dura-Ace Glory

RiddleOfSteel's Avatar

Join Date: Mar 2015
Location: Seattle, WA
Posts: 2,640

Bikes: '87 Schwinn Prologue - '74 Schwinn Paramount P15 - '8X Davidson Impulse - '88 Land Shark Road Shark - '85 Specialized Allez SE - '81 Univega Gran Premio - '92? Bushnell Track Bike

Mentioned: 158 Post(s)
Tagged: 0 Thread(s)
Quoted: 838 Post(s)
Liked 58 Times in 48 Posts
Yeah, my Guerciotti is very alert and often "curious" as to what I may be looking at other than the road in front of me. Head tube angle is at 76.5° and calculated trail is around 31-32mm, so it certainly behaves as designed. I think part of me is just happy an American bicycle company of that era that wasn't a custom shop made a frameset as quick as that. I agree though, it's one that you'll have to be ready to ride--grab the bull by the horns and all of that. Your other Schwinns are wonderful rides with '"aware" but not twitchy nor sluggish steering.

Looking at the geometry charts for 1978.5, the HTA and STA are 73° and the trail comes out to 45mm. 45mm is...well, it's quick. My '85 Peloton is at 44-45mm of trail, I know the feeling.Looking again, at the 25.5" (my size), man, get me one of those with that nice deep 77mm BB drop!
RiddleOfSteel is offline
Old 08-19-18, 08:42 PM
  #7
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 11,502

Bikes: 1977 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 1769 Post(s)
Liked 93 Times in 74 Posts
Originally Posted by seedsbelize View Post
This bike had extremely limited production. And it provides an extremely twitchy ride. Are these two factoids related to one another? Did the twitchiness get worked out with the release of the 950?
And while we're here, I'm collecting serial numbers. I want to see how many I can find, and maybe try and figure out the meaning of the last three characters.
TIA

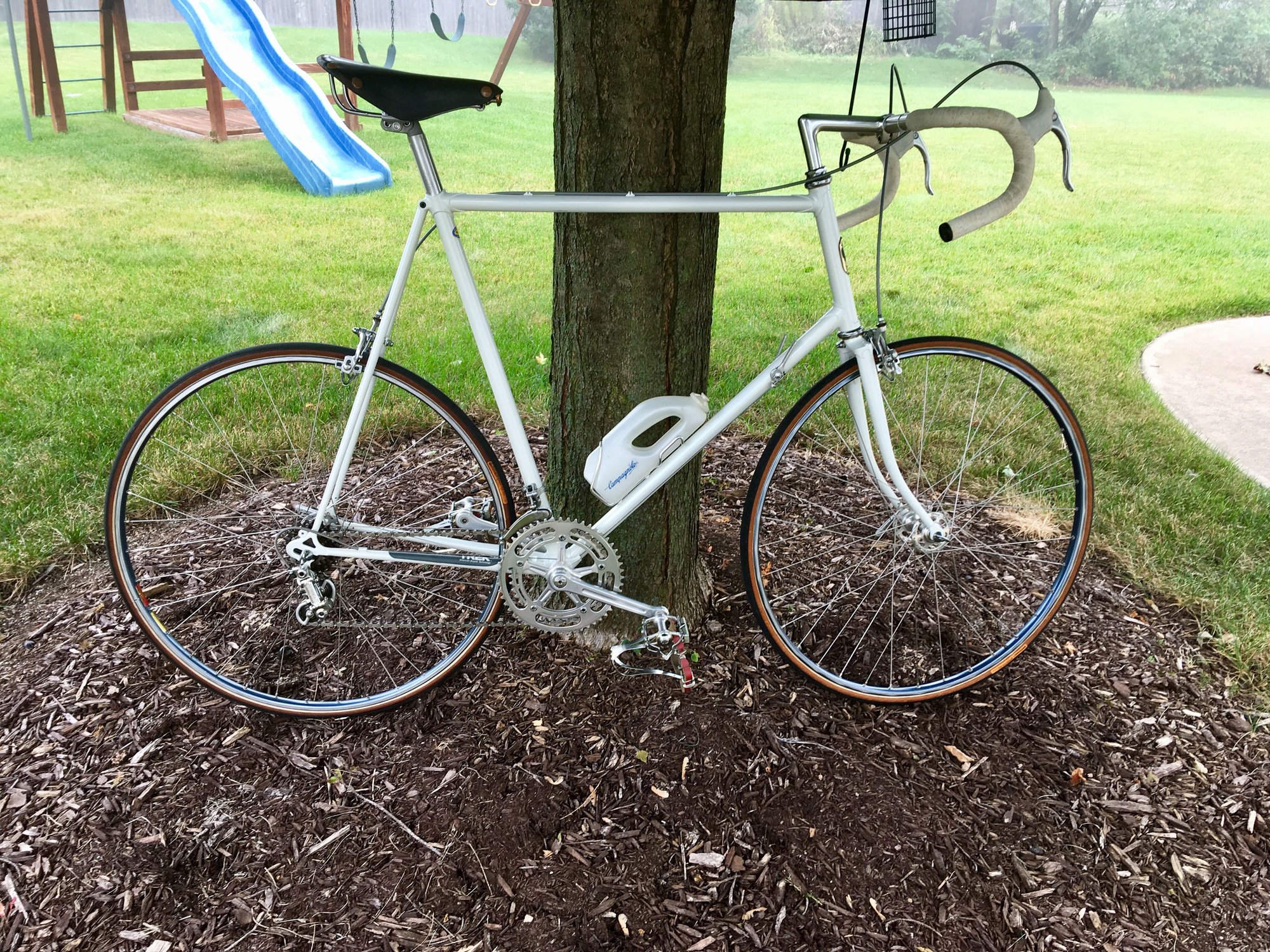

I have a 78 730- it's built to the same geometry and dimensions as the 930, but made of 531 instead of SL/SP.

I think it's a nice riding bike- interestingly enough, my '86 Trek 400 Elance sport touring has a more aggressive geometry than the 730 "race" bike. Even my 620 and 720 touring bikes have steeper angles to the tubes. The 730/930 geometry is essentially the same as the concurrent touring bike, with shorter chainstays, a little more BB drop and a little less fork rake- the head tube and seat tube angles are the same.

I love the "give" and "float" that this bike has. Again, most of my bikes are not "go fast" bikes- but this one is, it's so much lighter and it does feel nimble. It's interesting to try to determine the smoothness int the ride as combining the compliance of the frame and the mass of the bike.
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin’ huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Old 08-19-18, 08:52 PM
  #8
nesteel
Senior Member

Join Date: Feb 2014
Location: Midwest
Posts: 1,837

Bikes: See the signature....

Mentioned: 62 Post(s)
Tagged: 0 Thread(s)
Quoted: 408 Post(s)
Likes: 0
Liked 19 Times in 13 Posts
Originally Posted by seedsbelize View Post
I have read, elsewhere, of folks having trouble with it. Would a shorter wheelbase make it less so? What I'm finding is that if I'm not giving the road ahead my full attention, I'm asking for trouble. I'm gonna take the Paramount out for a few days. It has a longer top tube and a shorter stem, and I've never had any issue with it.
As a data point, I always used a 130mm stem, and a 44cm width bar with that frameset.
__________________
My bikes: '81 Trek 957, '83 Trek 720, '85 Trek 500, '85 Trek 770, '81 Merckx, , '85 Centurion Cinelli, '85 Raleigh Portage, '92 RB-2, '09 Bianchi
nesteel is offline
Old 08-19-18, 08:54 PM
  #9
seedsbelize
necessary illusions
Thread Starter

seedsbelize's Avatar

Join Date: Nov 2010
Location: Tixkokob, Yucatán, México
Posts: 11,609
Mentioned: 100 Post(s)
Tagged: 1 Thread(s)
Quoted: 4874 Post(s)
Liked 61 Times in 46 Posts
Originally Posted by The Golden Boy View Post
I have a 78 730- it's built to the same geometry and dimensions as the 930, but made of 531 instead of SL/SP.

I think it's a nice riding bike- interestingly enough, my '86 Trek 400 Elance sport touring has a more aggressive geometry than the 730 "race" bike. Even my 620 and 720 touring bikes have steeper angles to the tubes. The 730/930 geometry is essentially the same as the concurrent touring bike, with shorter chainstays, a little more BB drop and a little less fork rake- the head tube and seat tube angles are the same.

I love the "give" and "float" that this bike has. Again, most of my bikes are not "go fast" bikes- but this one is, it's so much lighter and it does feel nimble. It's interesting to try to determine the smoothness int the ride as combining the compliance of the frame and the mass of the bike.
I'm running aero levers on it, and have had issues with the cable housing interfering with a freely rotating steerer. I'm going to put some non-aero levers on it and see if it helps. I suspect it will. This is the only thing about it I'm less than satisfied with. It;s a great riding, fast bike. I might also check the rear wheel dish. I'm learning a lot from this bike.
__________________
one general tip for when the exact hub cone is not readily available. discovered that the curvature of the bearing surface on the shimano 600 was a pretty good "skeleton key" for many applications. it would sometimes require a small change in ball size to make everything come out correctly.
seedsbelize is offline
Old 08-19-18, 08:57 PM
  #10
seedsbelize
necessary illusions
Thread Starter

seedsbelize's Avatar

Join Date: Nov 2010
Location: Tixkokob, Yucatán, México
Posts: 11,609
Mentioned: 100 Post(s)
Tagged: 1 Thread(s)
Quoted: 4874 Post(s)
Liked 61 Times in 46 Posts
Originally Posted by nesteel View Post
As a data point, I always used a 130mm stem, and a 44cm width bar with that frameset.
I'm using a 90 mm stem and 44 cm bars.
__________________
one general tip for when the exact hub cone is not readily available. discovered that the curvature of the bearing surface on the shimano 600 was a pretty good "skeleton key" for many applications. it would sometimes require a small change in ball size to make everything come out correctly.
seedsbelize is offline
Old 08-19-18, 09:32 PM
  #11
jeirvine
Senior Member

jeirvine's Avatar

Join Date: Sep 2011
Location: Bethesda/Baltimore MD
Posts: 3,250

Bikes: '72 Moto Grand Record, '72 Gitane tandem, '72 Raleigh Super Course, '73 Raleigh Gran Sport, '73 and '76 Colnagos Super, '76 Fiorelli Coppi, '78 Raleigh SBDU Team Pro, '78 Trek 930, '81 Holdsworth Special 650B, '86 Masi GC, '87 Panasonic DX5000

Mentioned: 44 Post(s)
Tagged: 0 Thread(s)
Quoted: 455 Post(s)
Likes: 0
Liked 29 Times in 19 Posts
My '78 930 is not at all twitchy. I haven't measured the angles.
__________________
The man who dies with the most toys…is dead. - Rootboy
jeirvine is offline
Old 08-20-18, 07:11 AM
  #12
seedsbelize
necessary illusions
Thread Starter

seedsbelize's Avatar

Join Date: Nov 2010
Location: Tixkokob, Yucatán, México
Posts: 11,609
Mentioned: 100 Post(s)
Tagged: 1 Thread(s)
Quoted: 4874 Post(s)
Liked 61 Times in 46 Posts
Originally Posted by jeirvine View Post
My '78 930 is not at all twitchy. I haven't measured the angles.
Serial number please.
__________________
one general tip for when the exact hub cone is not readily available. discovered that the curvature of the bearing surface on the shimano 600 was a pretty good "skeleton key" for many applications. it would sometimes require a small change in ball size to make everything come out correctly.
seedsbelize is offline
Old 08-20-18, 07:16 AM
  #13
tkamd73
Senior Member

Join Date: Dec 2015
Location: Menomonee Falls, WI
Posts: 497

Bikes: 1984 Schwinn Supersport, 1988 Trek 400t, 1977 Trek TX900, 1982 Bianchi Champione del Mondo, 1988 Trek 400 Elance, 1978 Raleigh Supercourse, 1991 PDG Paramount OS

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 165 Post(s)
Liked 20 Times in 20 Posts
My 77 900 is quite the relaxing cruiser, wouldn’t consider it twitchy at all. Tim
tkamd73 is offline
Old 08-20-18, 07:19 AM
  #14
jeirvine
Senior Member

jeirvine's Avatar

Join Date: Sep 2011
Location: Bethesda/Baltimore MD
Posts: 3,250

Bikes: '72 Moto Grand Record, '72 Gitane tandem, '72 Raleigh Super Course, '73 Raleigh Gran Sport, '73 and '76 Colnagos Super, '76 Fiorelli Coppi, '78 Raleigh SBDU Team Pro, '78 Trek 930, '81 Holdsworth Special 650B, '86 Masi GC, '87 Panasonic DX5000

Mentioned: 44 Post(s)
Tagged: 0 Thread(s)
Quoted: 455 Post(s)
Likes: 0
Liked 29 Times in 19 Posts
Originally Posted by seedsbelize View Post
Serial number please.
Just PM'd you.
__________________
The man who dies with the most toys…is dead. - Rootboy
jeirvine is offline
Old 08-20-18, 10:53 AM
  #15
seedsbelize
necessary illusions
Thread Starter

seedsbelize's Avatar

Join Date: Nov 2010
Location: Tixkokob, Yucatán, México
Posts: 11,609
Mentioned: 100 Post(s)
Tagged: 1 Thread(s)
Quoted: 4874 Post(s)
Liked 61 Times in 46 Posts
I loosened the headset just a touch. But I already had the other bike ready to go. I'll try it out this afternoon or tomorrow morning.
__________________
one general tip for when the exact hub cone is not readily available. discovered that the curvature of the bearing surface on the shimano 600 was a pretty good "skeleton key" for many applications. it would sometimes require a small change in ball size to make everything come out correctly.
seedsbelize is offline
Old 08-20-18, 11:15 AM
  #16
dailycommute
Senior Member

dailycommute's Avatar

Join Date: Apr 2010
Location: RiverRoad, ME
Posts: 769
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 62 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Might check the frame alignment, or use a long straight edge to compare front to rear rim spot to spot on both sides. like you said may be rear wheel dish. Adjusting the headset is good too as it can affect the twitch factor. Never ridden a 930 but generally a proper race frameset is quite stable, esp on bombing descents.
dailycommute is offline
Old 08-20-18, 04:37 PM
  #17
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 11,502

Bikes: 1977 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 1769 Post(s)
Liked 93 Times in 74 Posts
Originally Posted by tkamd73 View Post
My 77 900 is quite the relaxing cruiser, wouldn’t consider it twitchy at all. Tim
"Cruiser" isn't exactly a word I'd appropriate to this style of bike.

I mean, I understand you don't mean that it's like a beach cruiser- but "cruiser" makes me think Eldorado, this is more like 64-67 Mustang- light and sporty.
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin’ huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Old 08-20-18, 08:40 PM
  #18
cyclophilia
Senior Member

Join Date: Apr 2014
Location: Desert Southwest
Posts: 63
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Please do check the frame alignment, then as a separate step the fork alignment, and then the wheel dish both front and rear to eliminate these potentially distracting variables from your perception of the road feel.
cyclophilia is offline
Old 08-21-18, 10:50 AM
  #19
seedsbelize
necessary illusions
Thread Starter

seedsbelize's Avatar

Join Date: Nov 2010
Location: Tixkokob, Yucatán, México
Posts: 11,609
Mentioned: 100 Post(s)
Tagged: 1 Thread(s)
Quoted: 4874 Post(s)
Liked 61 Times in 46 Posts
Success!! The headset was the culprit. Just a hair too tight--a very small hair. Thanks for all the tips and insights. I learned a lot during this process.
I'm not ready to ride 'no hands', but if I were so inclined, I likely could.
__________________
one general tip for when the exact hub cone is not readily available. discovered that the curvature of the bearing surface on the shimano 600 was a pretty good "skeleton key" for many applications. it would sometimes require a small change in ball size to make everything come out correctly.
seedsbelize is offline
Old 08-21-18, 11:04 AM
  #20
Barrettscv
Have bike, will travel

Barrettscv's Avatar

Join Date: Feb 2006
Location: Lake Geneva, WI
Posts: 12,058

Bikes: Ridley Helium SLX, Canyon Endurance SL, De Rosa Professional, Eddy Merckx Corsa Extra, Schwinn Paramount (1 painted, 1 chrome), Peugeot PX10, Serotta Nova X, Simoncini Cyclocross Special, Raleigh Roker, Pedal Force CG2 and CX2

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 740 Post(s)
Liked 41 Times in 26 Posts
Originally Posted by JohnDThompson View Post
The Trek 930 was designed as a criterium frame with quick handling. I suspect what you're experiencing is working as designed.
This /\. Mine was a 25 inch but felt aggressive and rode stiffly with Columbus SP tubing.
__________________
When I ride my bike I feel free and happy and strong. I'm liberated from the usual nonsense of day to day life. Solid, dependable, silent, my bike is my horse, my fighter jet, my island, my friend. Together we will conquer that hill and thereafter the world.
Barrettscv is offline
Old 08-21-18, 11:23 AM
  #21
tkamd73
Senior Member

Join Date: Dec 2015
Location: Menomonee Falls, WI
Posts: 497

Bikes: 1984 Schwinn Supersport, 1988 Trek 400t, 1977 Trek TX900, 1982 Bianchi Champione del Mondo, 1988 Trek 400 Elance, 1978 Raleigh Supercourse, 1991 PDG Paramount OS

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 165 Post(s)
Liked 20 Times in 20 Posts
Originally Posted by The Golden Boy View Post
"Cruiser" isn't exactly a word I'd appropriate to this style of bike.

I mean, I understand you don't mean that it's like a beach cruiser- but "cruiser" makes me think Eldorado, this is more like 64-67 Mustang- light and sporty.
No, not like an Eldorado, but definitely not an early mustang either. You ever drive one of those in stock form, handles like crap, not even equipped with rack and pinion steering. Basically just a Ford falcon with a pretty skin. Guess my 900 feels less sporty because of the 26” frame. actually a little too tall for me, 25” would be ideal. Also 180mm crank arms, P.O. was quite a bit taller then me. Would probably feel more sporty if it still had the arc n ciel tubular rims too. Love the bike though, once up to speed it just goes. Considering the Bullit movie with Steve McQueen, it would be more like the Charger, then the Mustang.
tkamd73 is offline
Old 08-21-18, 12:03 PM
  #22
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 11,502

Bikes: 1977 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 1769 Post(s)
Liked 93 Times in 74 Posts
Originally Posted by tkamd73 View Post


No, not like an Eldorado, but definitely not an early mustang either. You ever drive one of those in stock form, handles like crap, not even equipped with rack and pinion steering. Basically just a Ford falcon with a pretty skin. Guess my 900 feels less sporty because of the 26” frame. actually a little too tall for me, 25” would be ideal. Also 180mm crank arms, P.O. was quite a bit taller then me. Would probably feel more sporty if it still had the arc n ciel tubular rims too. Love the bike though, once up to speed it just goes. Considering the Bullit movie with Steve McQueen, it would be more like the Charger, then the Mustang.
I’ve driven a fairly stock 65- much smaller feeling than 67 Camaro or 68 Firebird. Those GM cars just feel bigger. I’ve ridden in a 68 Mustang- and it just all around felt bigger than I remember the 65.

Did you get to the big car show in Waukesha last weekend? It was slick.
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin’ huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Old 08-21-18, 12:12 PM
  #23
tkamd73
Senior Member

Join Date: Dec 2015
Location: Menomonee Falls, WI
Posts: 497

Bikes: 1984 Schwinn Supersport, 1988 Trek 400t, 1977 Trek TX900, 1982 Bianchi Champione del Mondo, 1988 Trek 400 Elance, 1978 Raleigh Supercourse, 1991 PDG Paramount OS

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 165 Post(s)
Liked 20 Times in 20 Posts
Nope missed it, spent the weekend taking my kids back to KU, starting their junior year. Heard it was a pretty good show, from some fellow gear heads.
tkamd73 is offline
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
cantdrv55
Road Cycling
60
06-29-19 04:23 PM
mgrayland
Touring
0
04-27-09 05:52 AM
Kyle90
Advocacy & Safety
32
07-26-05 03:22 PM
blwyn
General Cycling Discussion
11
12-13-02 08:55 PM

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
