Axle doesn't fit rear dropouts? (Photo)

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Axle doesn't fit rear dropouts? (Photo)

Old 08-27-18, 05:40 PM
  #1
bicybike
Member
Thread Starter

Join Date: Aug 2018
Posts: 32
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Axle doesn't fit rear dropouts? (Photo)

Hi!

So I've got a 1981 Univega Specialissima that I got cold set to 130mm OLD. Today my wheels arrived. The front fits fine in the fork (in fact there's lots of clearance all around the axle, to the point of making me a bit nervous). But in the back, the Shimano 105 hub just bangs against the edge of the dropout and won't go in, even when I split pretty significant pressure. Am I doing something wrong? Do I need to strip off the previous owner's powder coat? (And how would I do that?)

Thanks!

Thanks!

bicybike is offline
Old 08-27-18, 06:32 PM
  #2
P!N20
Senior Member

P!N20's Avatar

Join Date: Aug 2010
Posts: 293
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 115 Post(s)
Does the non drive side fit? What model 105 hubs are they?
P!N20 is offline
Old 08-27-18, 06:42 PM
  #3
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 6,370

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 66 Post(s)
Tagged: 0 Thread(s)
Quoted: 470 Post(s)
You need to do some gentle work with a file, making sure you don't remove a bunch of metal from the top of the slot since the top of the slot rests on the axle and thus holds wheel alignment in line with the vertical plane.
dddd is offline
Old 08-27-18, 06:56 PM
  #4
artclone
Senior Member

Join Date: Aug 2013
Location: San Francisco
Posts: 1,239

Bikes: '68 Raleigh Suberbe, '92 (German) Centurion Equipe, '85 Schwinn Peloton, 1983ish Zunow Road Racer project, '69 Squanch Super Tourer, 1980 Bianchi Super Corsa, '82 Austro-Daimler Vent Noir, '89 Miyata 914 project, 1982ish Bianchi Rallye

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 281 Post(s)
Originally Posted by dddd View Post
You need to do some gentle work with a file, making sure you don't remove a bunch of metal from the top of the slot since the top of the slot rests on the axle and thus holds wheel alignment in line with the vertical plane.
Agreed. Is it just thick powdercoating? If so you might not need to file off metal.
artclone is offline
Old 08-27-18, 09:07 PM
  #5
bicybike
Member
Thread Starter

Join Date: Aug 2018
Posts: 32
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)

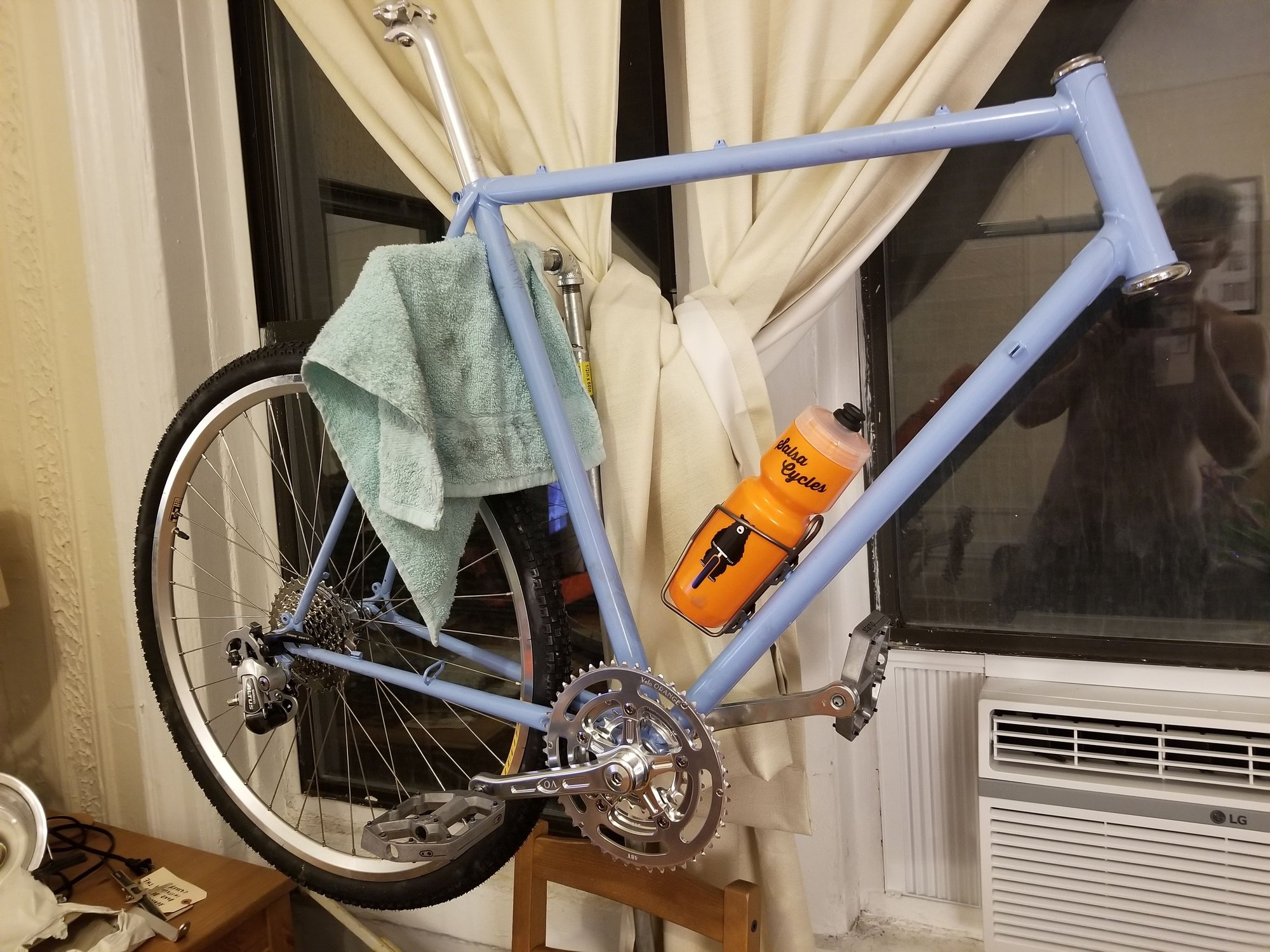

Update:

I took a gentle nail file to the powdercoat and now it fits! Didn't even get all the way through to metal.

Relatedly: I can confirm that a 1981 Univega Specialissima/Miyata 1000 cold-set to 130mm will fit 650b Surly Knard 41mms (measured width closer to 39mm on Velocity Dyad rims) with plenty of clearance
bicybike is offline
Old 08-27-18, 09:49 PM
  #6
deux jambes
Senior Member

deux jambes's Avatar

Join Date: Jul 2018
Location: Eugene, OR
Posts: 824
Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 299 Post(s)
Glad to hear you fit the hub without any headache! Looks like a great build youíve got going on. And now, step closer eh?

Iím interested in that plumbing pipe repair stand. If you wouldnít mind, Iíd love to see a clear photo of it!
deux jambes is offline
Old 08-27-18, 11:23 PM
  #7
bicybike
Member
Thread Starter

Join Date: Aug 2018
Posts: 32
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Originally Posted by deux jambes View Post
Glad to hear you fit the hub without any headache! Looks like a great build youíve got going on. And now, step closer eh?

Iím interested in that plumbing pipe repair stand. If you wouldnít mind, Iíd love to see a clear photo of it!
Haha it's just this instructables assembly: https://www.instructables.com/id/DIY...-Repair-Stand/

Unfortunately I can't recommend it. Ended up being fairly pricey to assemble for minimal payoff. The clamp scratched the powder coat so now I just have the bike kind of lashed to the thing with rubber bands.

I'll take a clearer photo in a couple days once I have the bike down from there
bicybike is offline
Old 08-28-18, 12:00 PM
  #8
deux jambes
Senior Member

deux jambes's Avatar

Join Date: Jul 2018
Location: Eugene, OR
Posts: 824
Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 299 Post(s)
Originally Posted by bicybike View Post
Haha it's just this instructables assembly: https://www.instructables.com/id/DIY...-Repair-Stand/

Unfortunately I can't recommend it. Ended up being fairly pricey to assemble for minimal payoff. The clamp scratched the powder coat so now I just have the bike kind of lashed to the thing with rubber bands.
Ah, so not really worth building! I appreciate your honesty about it.

I have a good stand, but was thinking itíd be helpful to have another for times when I need to get two bikes off of the ground. Going off of your report, Iíll hold out for a deal on something manufactured.

Btw, I hope you keep us updated on your project!
deux jambes is offline
Old 08-28-18, 12:54 PM
  #9
bicybike
Member
Thread Starter

Join Date: Aug 2018
Posts: 32
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Originally Posted by deux jambes View Post

Ah, so not really worth building! I appreciate your honesty about it.

I have a good stand, but was thinking itíd be helpful to have another for times when I need to get two bikes off of the ground. Going off of your report, Iíll hold out for a deal on something manufactured.

Btw, I hope you keep us updated on your project!
Will do! Right now all that's really left to get it running is to bang out the headset cups and press in the new ones (currently delayed in the post) and install the cockpit/cabling.

Currently deciding between my Nitto Noodle and a Soma Portola I picked up for the handlebars. I don't love the awkward brake angle/limited bag room on the Portola, but I'm worried the Noodle won't offer enough leverage for the very occasional singletrack along some of the routes I've got planned. Once my Sinewave beacon arrives I'll be all set for some truly off the grid gravel touring on this 37-year-old frame, even if the components list is a bit sacrilegious for vintage purists.
bicybike is offline
Old 08-28-18, 01:17 PM
  #10
beicster
Senior Member

Join Date: Jan 2017
Location: Berea, KY
Posts: 558
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 139 Post(s)
I love that color.
