Should I trust this welded on derailleur hanger?
09-05-18, 09:57 AM
#1
Senior Member
Thread Starter
Join Date: Jun 2018
Posts: 755
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 213 Post(s)
Likes: 0
Liked 6 Times
in
5 Posts
Should I trust this welded on derailleur hanger?
So I picked up this super course for the cranks but really enjoyed it before I took it apart. I am intending to repaint it, regrease it and put it back in service. I'm unsure if I'm going IGH or cassete for the build. The bike shifted well and it has some nice suntour power shifters I've regreased. It had a 3x suntour VX derailur on the front and I have a suntour vx for the back 5 speeds I can use to replace the crappy plastic shimano tourney it had on it.
The question if have today is about the rear derailur hanger. I know that Super Courses did not come with a derailur mount and I received it with a claw on derailur attached to the shimano tourney.
After taking it off though I discovered this welded on derailur hanger.
It looks pretty rough, home job for sure. It feels solid with no flex, but I dont know if I should trust it if I choose to go the cassete route.
I know ugly doesn't always equal breakable, and that pretty doesnt always mean sturdy, but this thing is gnarly.
thoughts?
The question if have today is about the rear derailur hanger. I know that Super Courses did not come with a derailur mount and I received it with a claw on derailur attached to the shimano tourney.
After taking it off though I discovered this welded on derailur hanger.
It looks pretty rough, home job for sure. It feels solid with no flex, but I dont know if I should trust it if I choose to go the cassete route.
I know ugly doesn't always equal breakable, and that pretty doesnt always mean sturdy, but this thing is gnarly.
thoughts?
09-05-18, 10:01 AM
#2
feros ferio
Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 21,307
Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;
Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 1252 Post(s)
Liked 936 Times
in
625 Posts
Pretty ugly brazing job, but if it is solid and true, it should work just fine, and it is a nice upgrade from a bolt-on claw. If it were mine, I would grind it down a bit with my Dremel tool to improve its appearance.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
09-05-18, 10:07 AM
#3
Senior Member
Thread Starter
Join Date: Jun 2018
Posts: 755
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 213 Post(s)
Likes: 0
Liked 6 Times
in
5 Posts
Pretty true by my eye, but I've got bad eyes for this haha
Seems solid. And my thoughts exactly. I've had bad luck with tire slippage on a prev claw on setup.
I certiantly wouldnt mind grinding it down a bit. I was just unsure how much tension gets put on a rear derailur.
09-05-18, 10:38 AM
#4
Bad example
You live in Portland, don’t you, Buellster? Take it to Gugie tomcheck it out and clean it.
__________________
Keeping Seattle’s bike shops in business since 1978
Keeping Seattle’s bike shops in business since 1978
09-05-18, 10:58 AM
#5
Senior Member
Thread Starter
Join Date: Jun 2018
Posts: 755
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 213 Post(s)
Likes: 0
Liked 6 Times
in
5 Posts
Originally Posted by Aubergine
You live in Portland, don’t you, Buellster? Take it to Gugie tomcheck it out and clean it.
I'm unfamiliar with who that is?
09-05-18, 11:12 AM
#8
Senior Member
Thread Starter
Join Date: Jun 2018
Posts: 755
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 213 Post(s)
Likes: 0
Liked 6 Times
in
5 Posts

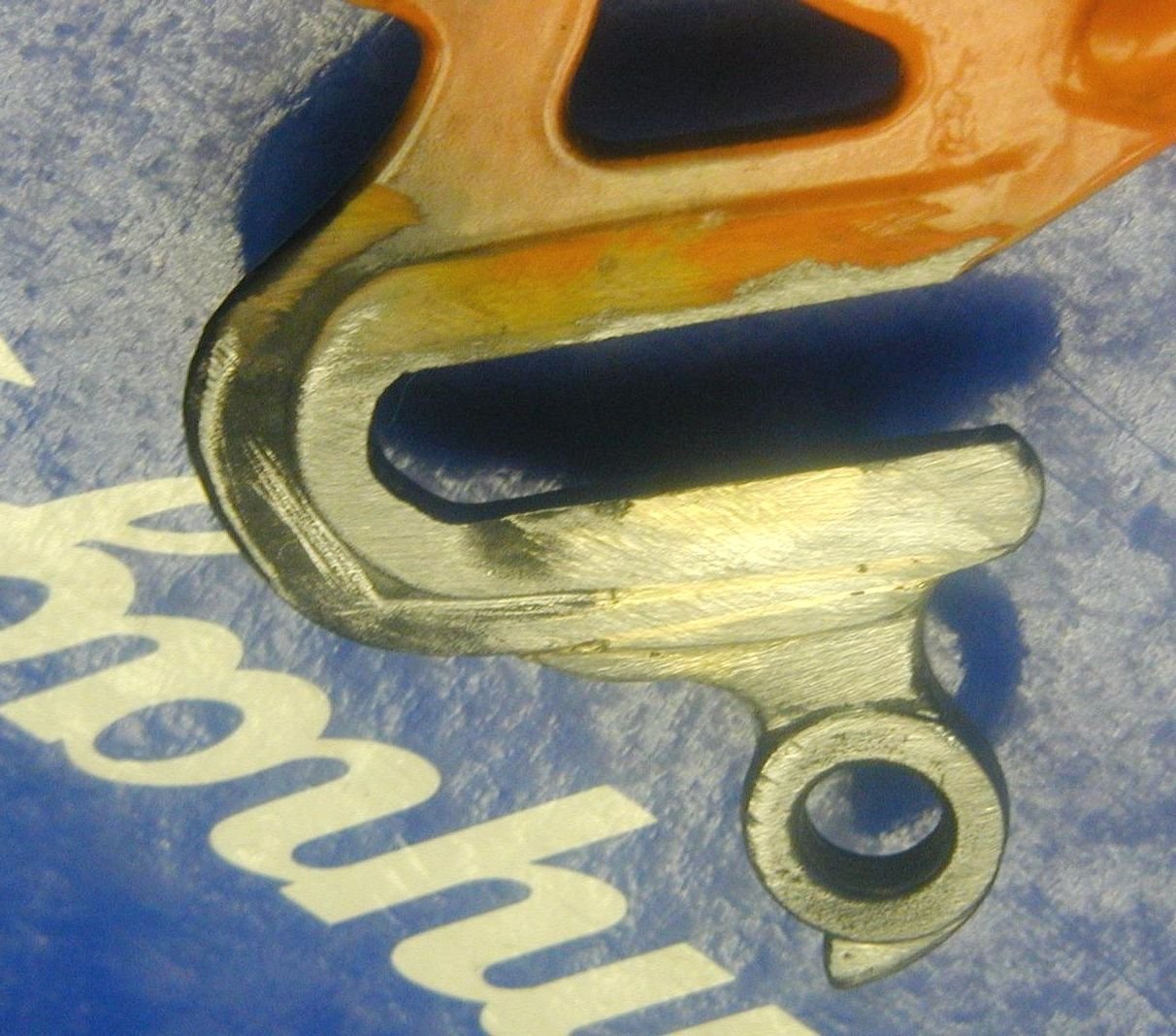

I had a hand grinder around and cleaned it up with a sanding disc. Still a bit lumpy but it's a cleaner look if anything.
It'll be behind the derailur so I'm feeling like this is good enough.
It'll be behind the derailur so I'm feeling like this is good enough.
09-05-18, 11:37 AM
#9
Bike Butcher of Portland
Join Date: Jul 2014
Location: Portland, OR
Posts: 11,062
Bikes: It's complicated.
Mentioned: 1229 Post(s)
Tagged: 0 Thread(s)
Quoted: 4337 Post(s)
Liked 4,450 Times
in
1,884 Posts
@Buellster,
That was a common modifcation several decades ago. Campagnolo even made a part for it (article 80/1). They were typically brazed, not welded on. I've done a few of these to repair ones that had been hacked off. I clean them up with files, not dremels, but you did a fine job there. As you noted, it's a "hidden" part, so even without cleanup hardly anyone notices. Your photo from behind shows that it appears to be parallel with the dropout, so you're good to go.
I typically cut the derailleur hanger off of a set of dropouts to do the job, as the Campag part has become a unicorn in our modern world.
I'm in SW Portland, actually just outside city limits in the Garden Home area. @Andy_K and I ride fairly regularly together, if you PM me an email address I'd be happy to invite you next time we're headed out. We've got a good number active BF C&V people in Oregon and Washington that get together for rides as well.
That was a common modifcation several decades ago. Campagnolo even made a part for it (article 80/1). They were typically brazed, not welded on. I've done a few of these to repair ones that had been hacked off. I clean them up with files, not dremels, but you did a fine job there. As you noted, it's a "hidden" part, so even without cleanup hardly anyone notices. Your photo from behind shows that it appears to be parallel with the dropout, so you're good to go.
I typically cut the derailleur hanger off of a set of dropouts to do the job, as the Campag part has become a unicorn in our modern world.
I'm in SW Portland, actually just outside city limits in the Garden Home area. @Andy_K and I ride fairly regularly together, if you PM me an email address I'd be happy to invite you next time we're headed out. We've got a good number active BF C&V people in Oregon and Washington that get together for rides as well.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
Last edited by gugie; 12-29-20 at 10:30 AM.
09-05-18, 01:16 PM
#10
Senior Member
Thread Starter
Join Date: Jun 2018
Posts: 755
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 213 Post(s)
Likes: 0
Liked 6 Times
in
5 Posts
Originally Posted by gugie
@Buellster,
That was a common modifcation several decades ago. Campagnolo even made a part for it (article 80/1). They were typically brazed, not welded on. I've done a few of these to repair ones that had been hacked off. I clean them up with files, not dremels, but you did a fine job there. As you noted, it's a "hidden" part, so even without cleanup hardly anyone notices. Your photo from behind shows that it appears to be parallel with the dropout, so you're good to go.
I typically cut the derailleur hanger off of an set of dropouts to do the job, as the Campag part has become a unicorn in our modern world.
I'm in SW Portland, actually just outside city limits in the Garden Home area. @Andy_K and I ride fairly regularly together, if you PM me an email address I'd be happy to invite you next time we're headed out. We've got a good number active BF C&V people in Oregon and Washington that get together for rides as well.
That was a common modifcation several decades ago. Campagnolo even made a part for it (article 80/1). They were typically brazed, not welded on. I've done a few of these to repair ones that had been hacked off. I clean them up with files, not dremels, but you did a fine job there. As you noted, it's a "hidden" part, so even without cleanup hardly anyone notices. Your photo from behind shows that it appears to be parallel with the dropout, so you're good to go.
I typically cut the derailleur hanger off of an set of dropouts to do the job, as the Campag part has become a unicorn in our modern world.
I'm in SW Portland, actually just outside city limits in the Garden Home area. @Andy_K and I ride fairly regularly together, if you PM me an email address I'd be happy to invite you next time we're headed out. We've got a good number active BF C&V people in Oregon and Washington that get together for rides as well.
Thanks!
09-05-18, 05:15 PM
#11
Senior Member
Another thread about this same thing today. That stay end is massive. Surprised you don't need a special license--register as a deadly weapon and all that. Looks like the hanger was done without messing up the chrome, too.
09-05-18, 05:20 PM
#12
Senior Member
Originally Posted by gugie
@Buellster,
That was a common modifcation several decades ago. Campagnolo even made a part for it (article 80/1). They were typically brazed, not welded on. I've done a few of these to repair ones that had been hacked off. I clean them up with files, not dremels, but you did a fine job there. As you noted, it's a "hidden" part, so even without cleanup hardly anyone notices. Your photo from behind shows that it appears to be parallel with the dropout, so you're good to go.
I typically cut the derailleur hanger off of an set of dropouts to do the job, as the Campag part has become a unicorn in our modern world.
.
That was a common modifcation several decades ago. Campagnolo even made a part for it (article 80/1). They were typically brazed, not welded on. I've done a few of these to repair ones that had been hacked off. I clean them up with files, not dremels, but you did a fine job there. As you noted, it's a "hidden" part, so even without cleanup hardly anyone notices. Your photo from behind shows that it appears to be parallel with the dropout, so you're good to go.
I typically cut the derailleur hanger off of an set of dropouts to do the job, as the Campag part has become a unicorn in our modern world.
.
Likes For desconhecido:
09-05-18, 05:35 PM
#13
Senior Member
Join Date: Jan 2017
Location: Berea, KY
Posts: 1,043
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 326 Post(s)
Liked 216 Times
in
146 Posts
This is very interesting to know. I might seek out someone to braze something on my Super Course.
__________________
Andy
Andy
09-06-18, 01:37 AM
#14
Senior Member
Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 11,389
Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 196? Torpado Professional, 2000 Marinoni Piuma
Mentioned: 204 Post(s)
Tagged: 0 Thread(s)
Quoted: 1287 Post(s)
Likes: 0
Liked 1,439 Times
in
806 Posts
I would not trust that poor modification! The drop is too thin and flexible to handle the leverage that welded on drop creates. The modification, in my opinion, does absolutely nothing to improve the looks or appearance of the bike. Nor will it improve shifting performance.
__________________
"98% of the bikes I buy are projects".
"98% of the bikes I buy are projects".
09-06-18, 02:06 AM
#15
Senior Member
Join Date: Mar 2008
Posts: 8,688
Mentioned: 46 Post(s)
Tagged: 0 Thread(s)
Quoted: 1074 Post(s)
Liked 292 Times
in
219 Posts
Originally Posted by randyjawa
I would not trust that poor modification! The drop is too thin and flexible to handle the leverage that welded on drop creates.
09-06-18, 03:08 AM
#16
verktyg
Join Date: Jul 2006
Location: SF Bay Area
Posts: 4,008
Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth
Mentioned: 202 Post(s)
Tagged: 0 Thread(s)
Quoted: 1020 Post(s)
Liked 1,159 Times
in
625 Posts
Brazed On Derailleur Hanger
Looks like an ugly but satisfactory braze job. The forces on the hanger are not going to be any higher than they would be on a claw style derailleur attachment. If there is any flex, a thin support plate could be added.
Campy and Zeus stamped steel dropouts aren't much thicker.
Job done by Yellow Jersey in WI.
Thin track dropouts with a derailleur hanger brazed on.
verktyg
Campy and Zeus stamped steel dropouts aren't much thicker.
Job done by Yellow Jersey in WI.
Thin track dropouts with a derailleur hanger brazed on.
verktyg
__________________
Don't believe everything you think! History is written by those who weren't there....
Chas. ;-)
Don't believe everything you think! History is written by those who weren't there....
Chas. ;-)
09-06-18, 05:10 AM
#17
Senior Member
FWIW I took my 1974 Crescent frame to my "local guy", Peter Dreesens. This Crescent has Suntour GS dropouts but the hanger had been removed by someone in the dark past. Peter had a Campy hanger (one of the unicorns Gugie mentioned???) that he prepped and silver brazed into place. During that project I learned that were numerous dimensions used for the distance between the center of the axle slot and the center of the hanger hole. No standard. RD manufacturers would specify. IIRC, I asked Peter to use 26mm to reflect the spec for my Suntour Cyclone RD.
The repair was a thing of beauty and, with the Cyclone, has worked a charm for a couple of thousand miles now. I'm real glad I had that done vs using a claw.
What is different about silver brazing as opposed to other types?
The repair was a thing of beauty and, with the Cyclone, has worked a charm for a couple of thousand miles now. I'm real glad I had that done vs using a claw.
What is different about silver brazing as opposed to other types?
09-06-18, 05:53 AM
#18
Senior Member
Join Date: Mar 2008
Posts: 8,688
Mentioned: 46 Post(s)
Tagged: 0 Thread(s)
Quoted: 1074 Post(s)
Liked 292 Times
in
219 Posts
Originally Posted by Prowler
What is different about silver brazing as opposed to other types?
- will it "wet" on the pieces to be joined?
- is it strong enough?
- what temperature does it need?
- how much will it flow vs puddle?
- what does it cost?
- toxicity of material - rarely an issue for a bicycle repair - and agressiveness of flux
Silver brazing tends to wet well, flow well, be more expensive and can be done at the lower end of the temperature and strength scale. Since it's kinda flowy, parts need to fit well with a fairly small gap.
09-06-18, 06:12 AM
#19
Old fart
Join Date: Nov 2004
Location: Appleton WI
Posts: 24,207
Bikes: Several, mostly not name brands.
Mentioned: 148 Post(s)
Tagged: 0 Thread(s)
Quoted: 3246 Post(s)
Liked 2,650 Times
in
1,541 Posts
Originally Posted by Prowler
What is different about silver brazing as opposed to other types?
09-06-18, 07:36 AM
#21
Senior Member
Thread Starter
Join Date: Jun 2018
Posts: 755
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 213 Post(s)
Likes: 0
Liked 6 Times
in
5 Posts
Originally Posted by Prowler
FWIW I took my 1974 Crescent frame...
How does yours ride?
I only need two people to say they ride well and then I can allow myself to buy a $25 frame set and feel the wrath of swiss fittings as I try and put it together haha
09-06-18, 08:09 AM
#22
Senior Member
Originally Posted by Buellster
I hear a lot of smack talked of the crescent frames here at BF, but I just love the look of that pepita orange with the checkered flag!
How does yours ride?
I only need two people to say they ride well and then I can allow myself to buy a $25 frame set and feel the wrath of swiss fittings as I try and put it together haha
How does yours ride?
I only need two people to say they ride well and then I can allow myself to buy a $25 frame set and feel the wrath of swiss fittings as I try and put it together haha
09-06-18, 09:49 AM
#23
Senior Member
Thread Starter
Join Date: Jun 2018
Posts: 755
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 213 Post(s)
Likes: 0
Liked 6 Times
in
5 Posts
Originally Posted by jrbz
Here's one. I had a 60cm 1971 Crescent 319, Reynolds 531, that I rode from 1972-1993 before it got crunched by a taxi. It rode very well for many thousands of kilometers. It took me a couple of low speed spills to get used to the toe overlap, but I'm a slow learner.
wouldnt be for a bit as I have other projects, but they come up for real cheap here in pdx pretty regular.
09-06-18, 03:01 PM
#24
aka Tom Reingold
Join Date: Jan 2009
Location: New York, NY, USA
Posts: 40,234
Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem
Mentioned: 498 Post(s)
Tagged: 0 Thread(s)
Quoted: 7046 Post(s)
Liked 1,880 Times
in
1,137 Posts
Originally Posted by desconhecido
Another thread about this same thing today. That stay end is massive. Surprised you don't need a special license--register as a deadly weapon and all that. Looks like the hanger was done without messing up the chrome, too.
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog
“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author
Please email me rather than PM'ing me. Thanks.
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog
“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author
Please email me rather than PM'ing me. Thanks.
09-06-18, 06:41 PM
#25
Senior Member
Originally Posted by JohnDThompson
Silver brazing is done at lower temperature than brass, but requires tighter tolerances. This isn't much of a concern for a derailleur hanger, so I suspect silver may have been used to minimize heat damage to adjacent chrome or paint.
