Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Olmo info

Old 09-08-18, 01:03 PM
  #1
trainman999
Senior Member
Thread Starter

Join Date: May 2016
Posts: 214

Bikes: 83 Schwinn Superior, 86 Paramount,86 Madison,87 Cimeron,86 Nishiki Linear

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Olmo info

Anyone id the year or model of this Olmo?
trainman999 is offline
Old 09-08-18, 01:45 PM
  #2
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,838
Mentioned: 431 Post(s)
Tagged: 1 Thread(s)
Quoted: 2479 Post(s)
Likes: 0
Liked 63 Times in 59 Posts
The Portacatena dropout in conjunction with cable routing over the BB shell and other features, suggests very early 1980s. This is too late for the Columbus decal style but too early for fade paint .Consequently, it is almost certainly a repaint. The components suggest an SL grade frame but the lack of chrome, unless it has been painted over, suggests it may be a tre-tubi SL or Aelle grade frame. The bottom line is you'll have verify the seat post size and whether or not it has a Columbus steerer tube, to determine the actual grade and model of the frame.
T-Mar is offline
Old 09-08-18, 02:41 PM
  #3
trainman999
Senior Member
Thread Starter

Join Date: May 2016
Posts: 214

Bikes: 83 Schwinn Superior, 86 Paramount,86 Madison,87 Cimeron,86 Nishiki Linear

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Thanks T-Mar I'll check the seat post size and the steerer when it gets here Tuesday
trainman999 is offline
Old 09-08-18, 04:19 PM
  #4
onyerleft
Senior Member

onyerleft's Avatar

Join Date: Jan 2018
Posts: 367

Bikes: All of your bicycles are belong to me

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 220 Post(s)
Likes: 0
Liked 4 Times in 3 Posts
Originally Posted by T-Mar View Post
The Portacatena dropout in conjunction with cable routing over the BB shell and other features, suggests very early 1980s. This is too late for the Columbus decal style but too early for fade paint .Consequently, it is almost certainly a repaint.
I would place it mid-late 1980s. I doubt that it's a repaint, as Olmo was a production bike and kind of a poor man's Bianchi (albeit still a nice bike -- it's Italian after all), on which people usually didn't usually spend unnecessary bucks. But after all is said, pinpointing the precise date is agony.... Olmo agony....
onyerleft is offline
Old 09-08-18, 04:27 PM
  #5
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 4,028

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands, Gordon, Fuso/Moulton, Bornstein, Paisley, Paramounts, 3rensho, Moto TC, Raleigh Pro's, Marinoni, 1960 Cinelli SC, 1980 Bianchi SC and more

Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 1110 Post(s)
Liked 53 Times in 40 Posts
Originally Posted by trainman999 View Post
Anyone id the year or model of this Olmo?
Very nice!
Both good ones without a doubt.
merziac is offline
Old 09-10-18, 12:28 PM
  #6
MiloFrance
Not riding enough

MiloFrance's Avatar

Join Date: Aug 2014
Location: Capestang, France
Posts: 1,155

Bikes: Lots of French, some British and a couple of Italian

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 171 Post(s)
Liked 2 Times in 2 Posts
15 mins searching for images of OLMOs and nothing remotely like that paintjob comes up. I'd bet on a repaint. Would they have used a nice panto'd fork crown on Aelle Tretubi?
__________________
I'm on holiday whenever I ride my bike
MiloFrance is offline
Old 09-10-18, 01:11 PM
  #7
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,838
Mentioned: 431 Post(s)
Tagged: 1 Thread(s)
Quoted: 2479 Post(s)
Likes: 0
Liked 63 Times in 59 Posts
Originally Posted by MiloFrance View Post
15 mins searching for images of OLMOs and nothing remotely like that paintjob comes up. I'd bet on a repaint. Would they have used a nice panto'd fork crown on Aelle Tretubi?

Yes, in the early 1980s they used an embossed fork crown and stay caps on all models, even the Olympic/Sprint/Super Sprint (Columbus Aelle) and Super Gentleman (Columbus Zeta).
T-Mar is offline
Old 09-10-18, 01:34 PM
  #8
Peter_B
Senior Moment

Peter_B's Avatar

Join Date: Dec 2007
Location: San Diego, California
Posts: 443
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by onyerleft View Post
I would place it mid-late 1980s.....
Derailleur cable routing over the BB shell seems to have continued for some years with Olmos. Olmo #7939 has brazed Campagnolo bottom bracket derailleur cable guides. If Olmo serial numbers are sequential (and they may not be), and given various datings on previously numbered Olmos, I would guess that Olmo #7939 is 1986+. I'm not saying that the Olmo in original post is 1986+ but that Olmos with over-BB cable routing are not restricted to the early 1980s

See http://www.peterbrueggeman.com/cr/ca...s/olmo-ssn.htm

Last edited by Peter_B; 09-10-18 at 01:41 PM. Reason: removal of one word
Peter_B is offline
Old 09-10-18, 01:39 PM
  #9
Mr. 66
Senior Member

Mr. 66's Avatar

Join Date: Aug 2015
Posts: 828
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 224 Post(s)
Likes: 0
Liked 12 Times in 11 Posts

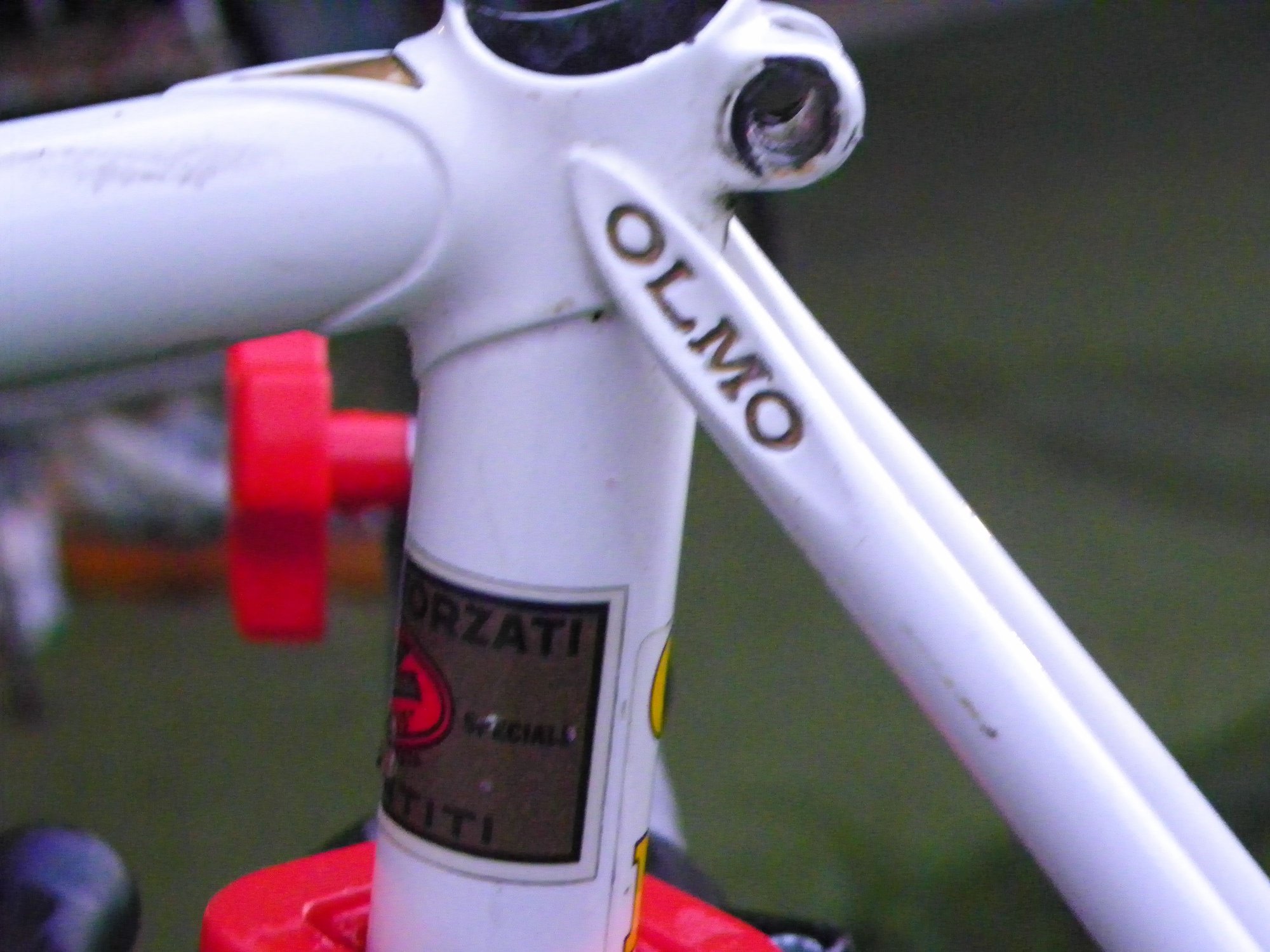

This one is '86, think yours is older then mine and repainted based on the cable routing.
Mr. 66 is offline
Old 09-20-18, 01:02 AM
  #10
trainman999
Senior Member
Thread Starter

Join Date: May 2016
Posts: 214

Bikes: 83 Schwinn Superior, 86 Paramount,86 Madison,87 Cimeron,86 Nishiki Linear

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Likes: 0
Liked 2 Times in 2 Posts

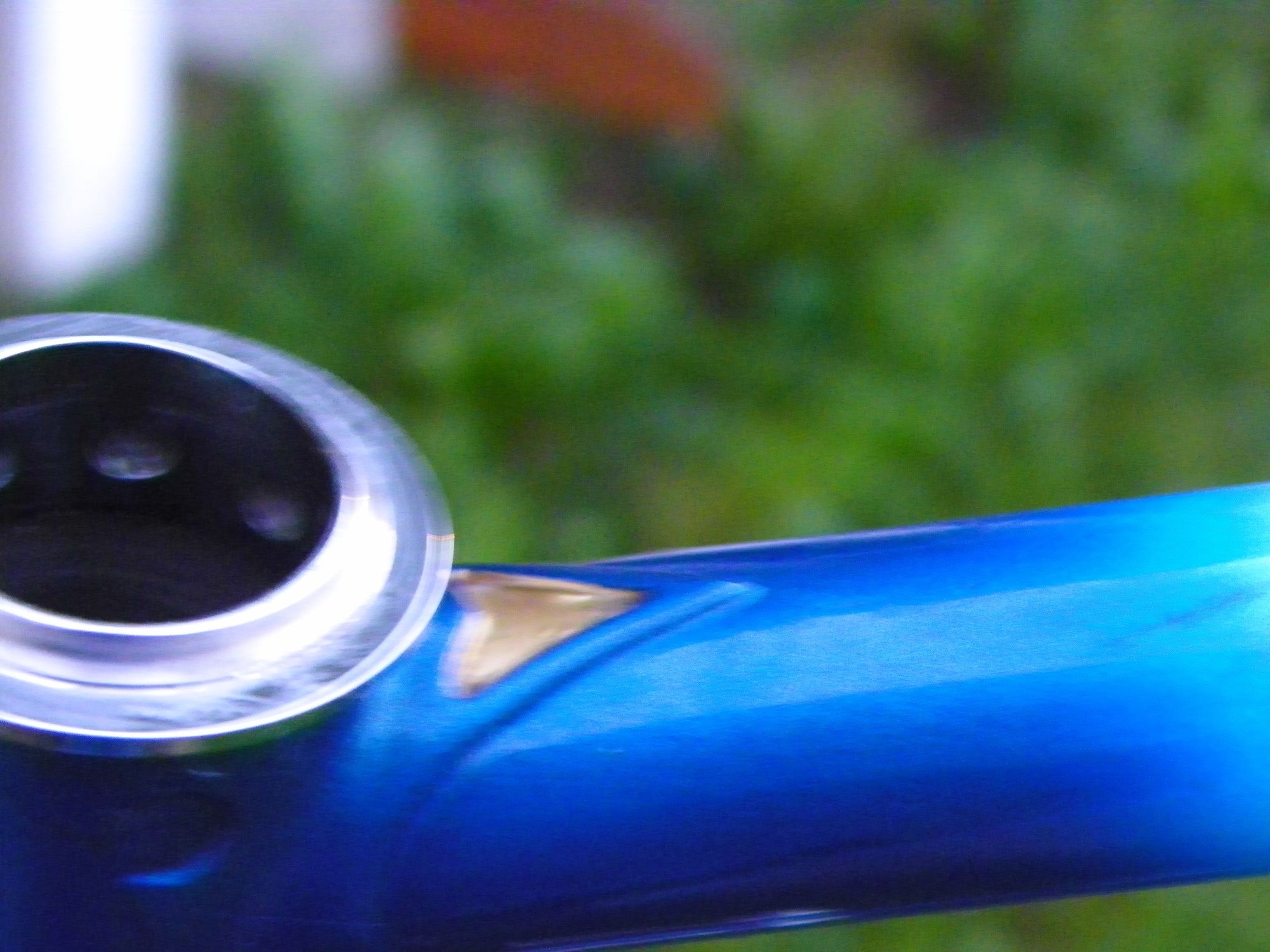

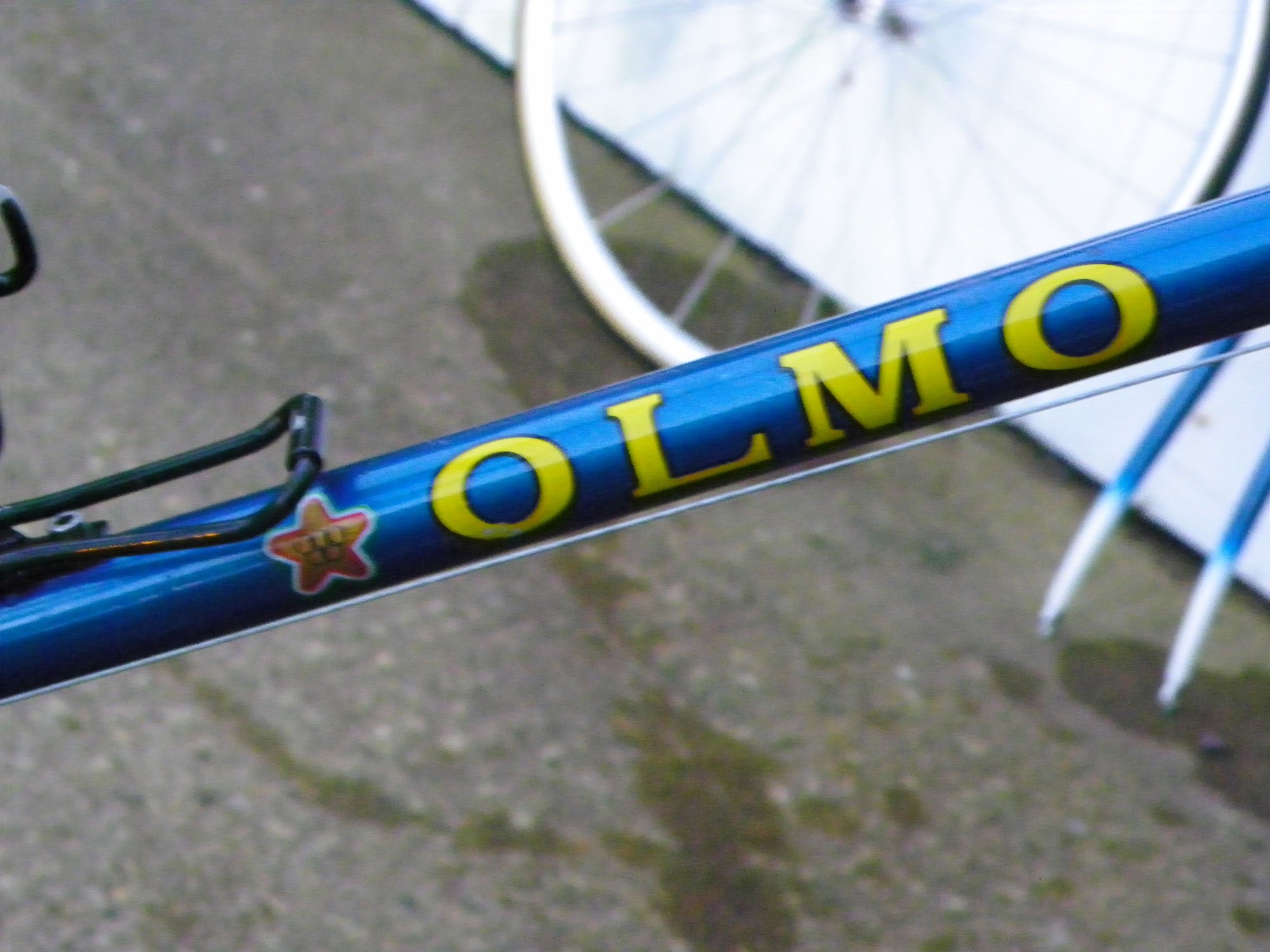

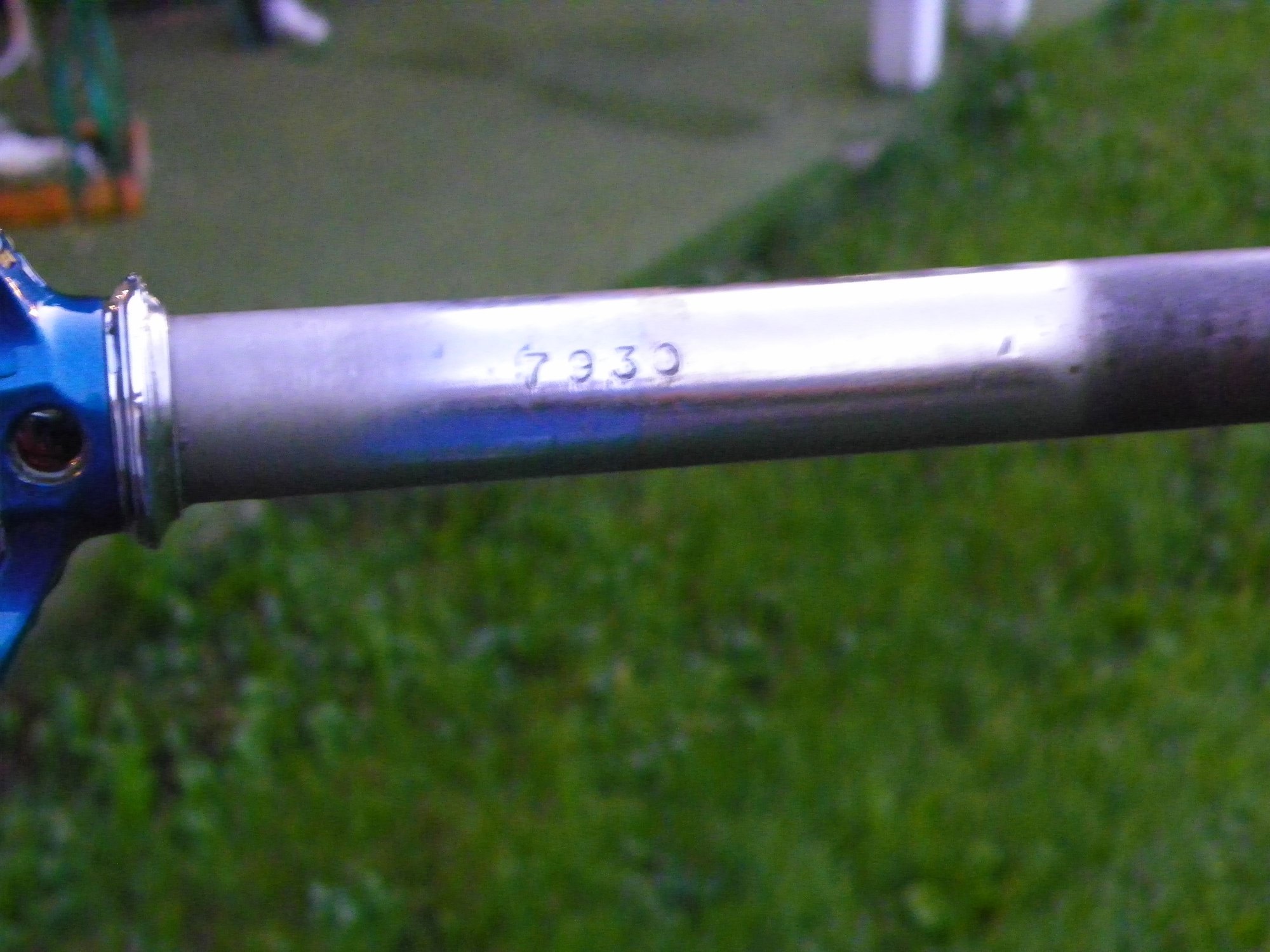

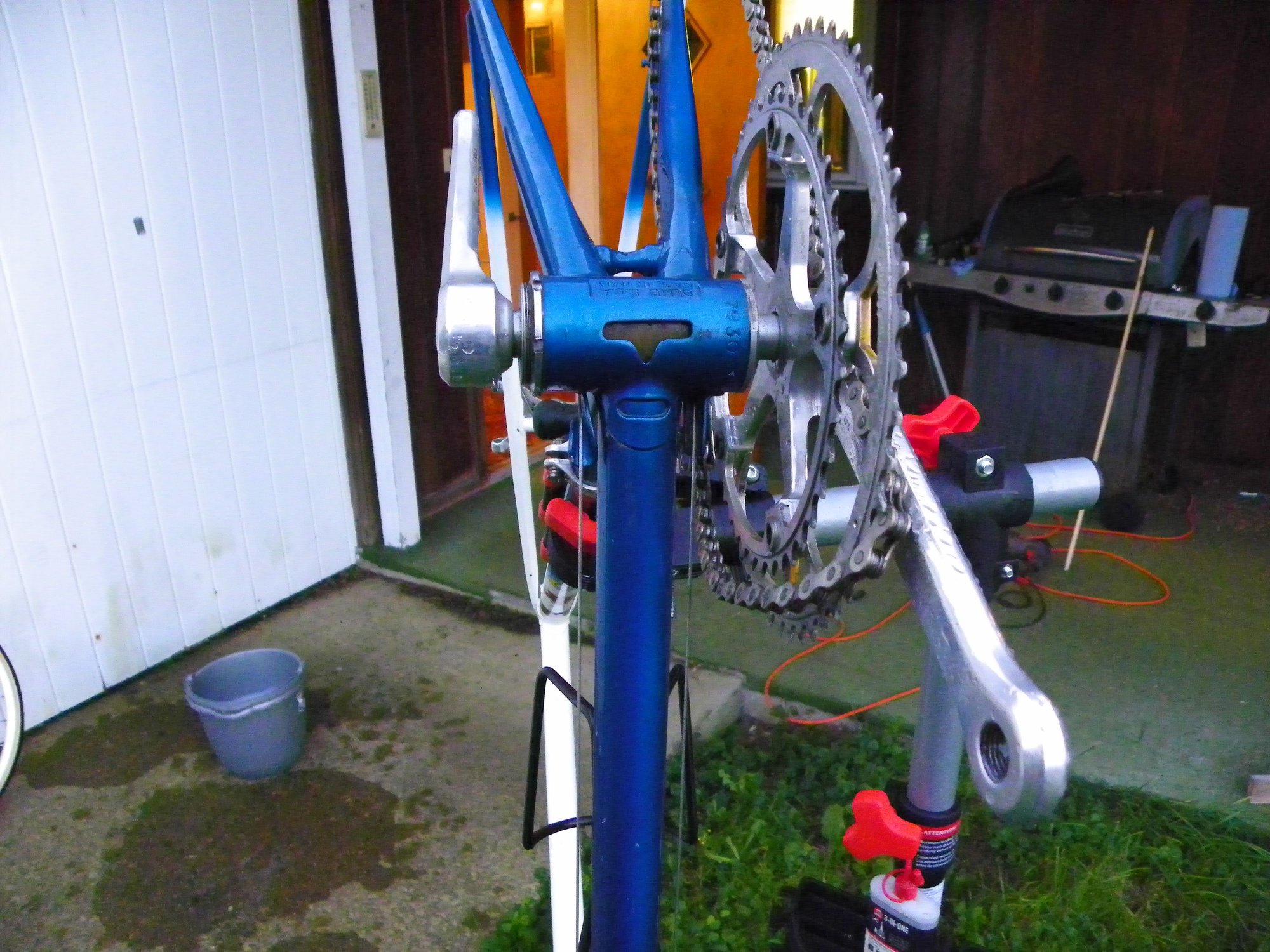

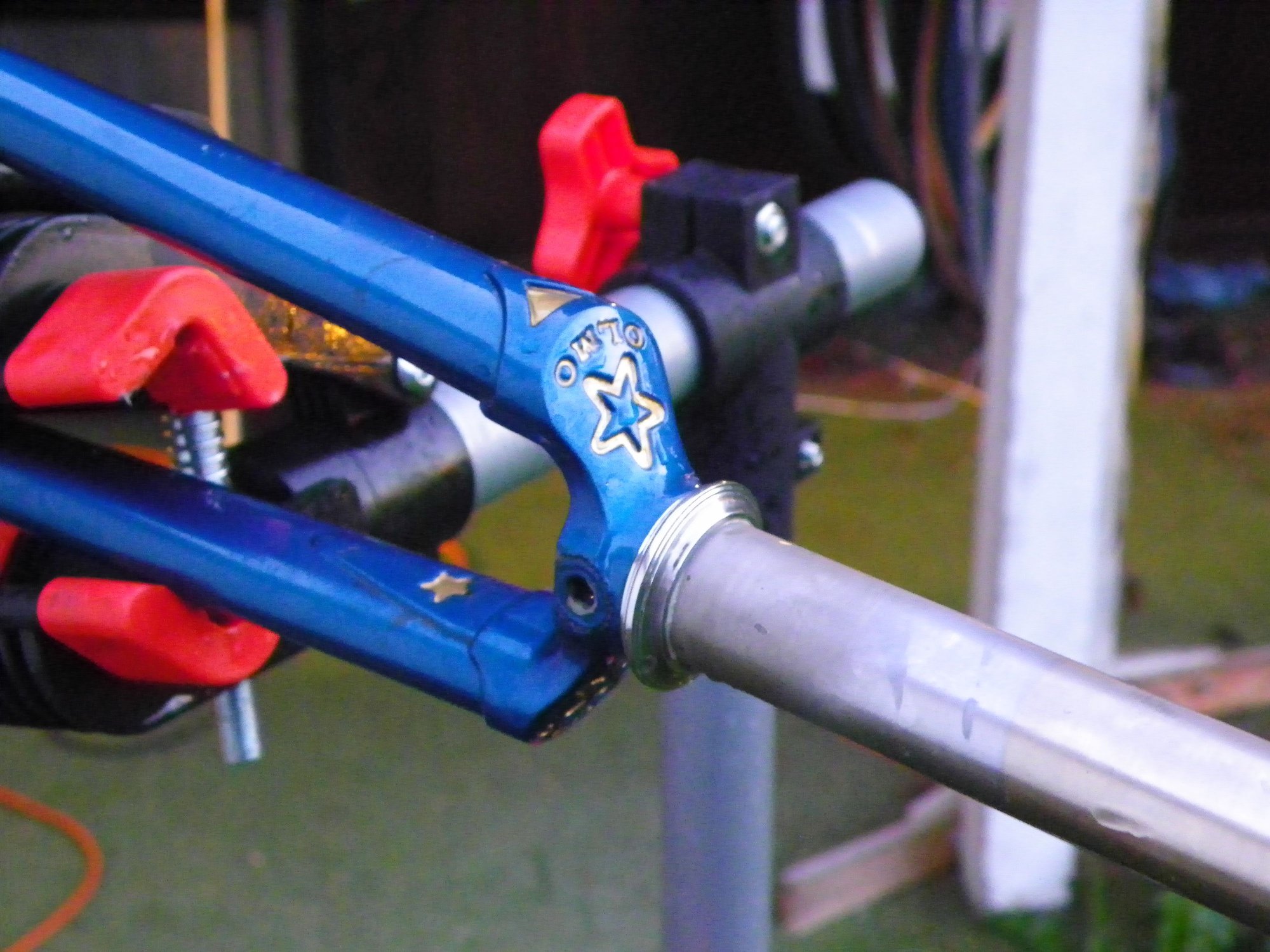

Finally had time to work on this bike. seat tube is 27.0 a post measuring 27.11 goes in but 27 .2 will not. Steerer is Columbus and rifled. It has been repainted and had chrome socks or maby a chrome fork. here are more pictures








trainman999 is offline
Old 09-20-18, 07:16 AM
  #11
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,838
Mentioned: 431 Post(s)
Tagged: 1 Thread(s)
Quoted: 2479 Post(s)
Likes: 0
Liked 63 Times in 59 Posts
The 27.0mm seat post suggests an SP seat tube, while the presence of a Columbus steeerer suggests the full SP tubeset. However, extant literature from the mid-1980s indicates Olmo migrated from SL to SP on frames over 60 cm. This one does not look that large, so maybe it's SL with a slightly pinched or distorted seat tube?

Regarding the model, my leading candidate would be one of the Competition C variants from the very late 1970s to early 1980s. It clearly has the Portacatena dropout and is therefore no older than a 1978 model. On the modern end, Olmo debuted a new SL model, the Firenze, for the 1985 mode year. The extant introductory literature for that model shows it having a pump peg, dual bottle bosses, a brazed-on front derailleur mount, cable routed under the bottom bracket shell and Olmo branded dropouts. Your frameset has none of these features. Consequently, I believe it frameset to be pre-1985.

The bicycle has obviously be frankenbiked to a degree but the Campagnolo components could be OEM, in which case the date codes may provide some clues. There should be a patent date on the rear derailleur's upper pivot housing and date codes on the back of the crankarms. There are also date codes on the back of Campagnolo hub locknuts but I strongly suspect the wheels are replacements based on the aero rims and non-Campagnolo skewers. The brakes, appear to be the 1978-1983 version of Record.

BTW, the inner chainring appears to have been mounted backwards, unless it is an inexpensive replacement which does not have recesses for the mounting nuts.
T-Mar is offline
Old 09-20-18, 05:33 PM
  #12
trainman999
Senior Member
Thread Starter

Join Date: May 2016
Posts: 214

Bikes: 83 Schwinn Superior, 86 Paramount,86 Madison,87 Cimeron,86 Nishiki Linear

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
frame is a 60cm weighs 2230 grams, fork weighs 770 grams does this sound right for a SP frame? Rear derailleur pat date 84, front and rear hubs lock nuts stamped 11, I am guessing thease are 1985. Crank is 3 in a circle should be 1983. rear break record ,front super record. inner chain ring a Sugino. You are right it has been frankenbiked
T -Mar does your knowledge extend back to 1900 parts and frames? Have a late 1800 early 1900 bike trying to find out about.
trainman999 is offline
Old 09-21-18, 05:06 AM
  #13
plonz
Senior Member

plonz's Avatar

Join Date: Mar 2015
Location: Northampton, MA
Posts: 1,898
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 374 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by trainman999 View Post
frame is a 60cm weighs 2230 grams, fork weighs 770 grams does this sound right for a SP frame?
Thatís probably right. Closest I have is my SL Schwinn Circuit. I think SL is one step up/lighter or maybe I have that backwards? The bare 59cm frame weighs in at 2150 and fork at 816. The fork is Tange chromoly.

A couple additional data points:

My 57cm Olmo is full Cromor. Frame weighs 2118 grams and the fork 757 grams.

My 57cm Raleigh 531c frame and fork is a half pound lighter than both.
plonz is offline
Old 09-22-18, 09:16 AM
  #14
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,838
Mentioned: 431 Post(s)
Tagged: 1 Thread(s)
Quoted: 2479 Post(s)
Likes: 0
Liked 63 Times in 59 Posts
Originally Posted by trainman999 View Post
frame is a 60cm weighs 2230 grams, fork weighs 770 grams does this sound right for a SP frame? Rear derailleur pat date 84, front and rear hubs lock nuts stamped 11, I am guessing thease are 1985. Crank is 3 in a circle should be 1983. rear break record ,front super record. inner chain ring a Sugino. You are right it has been frankenbiked

T -Mar does your knowledge extend back to 1900 parts and frames? Have a late 1800 early 1900 bike trying to find out about.

If these components were OEM, I wouldn't expect a 2 year variation in date codes. The rear derailleur and crankarms might be OEM but I don't have a high level of confidence. .


Regarding weight, I consider it the least reliable parameter for determining a tubeset. Selection of fittings can cause more variation in weight than stepping up or down a tubeset. Unless I have a valid comparison using another model of known tubing from the same manufacturer and using the same fittings, I tend to dismiss the weight as an identifier.


While I'm most familiar with 1970s-1980s bicycles, I do have some familiarity with TOC bicycles and would be interested in seeing the pictures. Private message me with a link to some pictures.
T-Mar is offline
