How to remove stuck dropout screw?

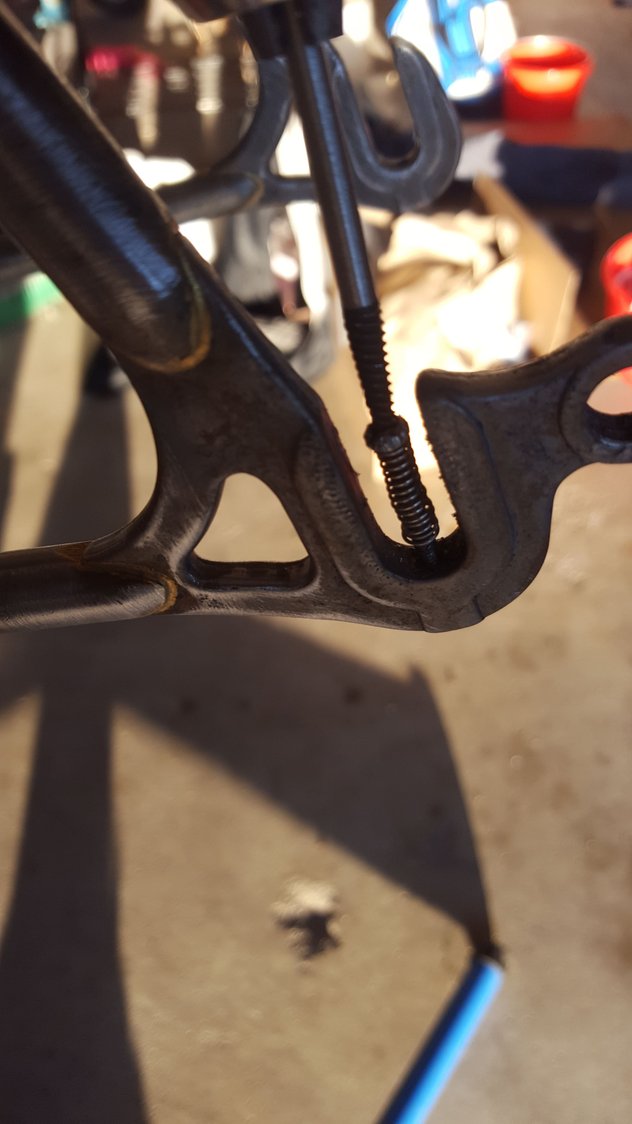

It was an already mangled and bent screw. I thought i had bent it back enough to remove, but it's stripped at the head.
ideas?
mstateglfr is online now
Old 09-19-18, 06:50 PM
  #2
nesteel
Senior Member

Join Date: Feb 2014
Location: Midwest
Posts: 2,043

Bikes: See the signature....

Mentioned: 72 Post(s)
Tagged: 0 Thread(s)
Quoted: 505 Post(s)
Liked 100 Times in 71 Posts
Needle nosed vise grips and patience.
__________________
My bikes: '81 Trek 957, '83 Trek 720, '85 Trek 500, '85 Trek 770, '81 Merckx, '85 Centurion Cinelli, '85 Raleigh Portage, '92 RB-2, '09 Bianchi
nesteel is offline
Old 09-19-18, 07:10 PM
  #3
bwilli88
Senior Member

bwilli88's Avatar

Join Date: Jan 2013
Location: Kampong Cham, Cambodia but I have quite a few in Lancaster, PA
Posts: 2,592

Bikes: Bikes in USA; 73 Raleigh Supercourse dingle speed, 74 Raleigh Grand Prix SS, 78 Raleigh Supercourse, 83 Centurion Pro-Tour, 82 Raleigh RRA.

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 663 Post(s)
Liked 347 Times in 221 Posts
I used a pair of medical grade forceps. Why medical grade, they are much stronger and have a hardened set of teeth embedded in the jaws. The teeth while finer are also stronger.
bwilli88 is online now
Old 09-19-18, 07:24 PM
  #4
mstateglfr
Sunshine
Thread Starter

mstateglfr's Avatar

Join Date: Aug 2014
Location: Des Moines, IA
Posts: 12,335

Bikes: '18 class built steel roadbike, '19 Fairlight Secan, '88 Schwinn Premis , Black Mountain Cycles Monstercross V4, '89 Novara Trionfo

Mentioned: 97 Post(s)
Tagged: 0 Thread(s)
Quoted: 5049 Post(s)
Liked 2,370 Times in 1,389 Posts
Hadn't thought of needle vice grips. Regular needle pliers weren't able to clamp hard enough. Ill take a look at needle vice grips to see if They would fit in the dropout slot.

and definitely hadnt thought of medical forceps. Never used em so I have 0 idea on clamping power. Interesting suggestion.
mstateglfr is online now
Old 09-19-18, 08:47 PM
  #5
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 7,468

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 1535 Post(s)
Liked 1,045 Times in 717 Posts
Grind it flush on the backside then cut a good slot in the head and use a screwdriver
dedhed is offline
Old 09-19-18, 09:00 PM
  #6
Colnago Mixte
Senior Member

Join Date: Sep 2017
Location: Center of Central CA
Posts: 1,671
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 897 Post(s)
Likes: 0
Liked 5 Times in 4 Posts
^^ Sounds like the best solution so far. I'm having the same problem too, so this is a very timely thread for me. Thanks!


I'm assuming you mean cut the slot with a dremel? That's some hard steel to cut through.
Colnago Mixte is offline
Old 09-19-18, 09:06 PM
  #7
Lascauxcaveman
Senior Member

Lascauxcaveman's Avatar

Join Date: Nov 2011
Location: Port Angeles, WA
Posts: 7,897

Bikes: A green one, "Ragleigh," or something.

Mentioned: 181 Post(s)
Tagged: 0 Thread(s)
Quoted: 1577 Post(s)
Liked 465 Times in 273 Posts
Originally Posted by nesteel View Post
Needle nosed vise grips and patience.
I tried that on a drop out screw that was somehow bent on both the back and front side. It ended up snapping off anyway. I am well and truly 4ked, I think
__________________
● 1971 Grandis SL ● 1972 Lambert Grand Prix frankenbike ● 1972 Raleigh Super Course fixie ● 1973 Nishiki Semi-Pro ● 1980 Apollo "Legnano" ● 1984 Peugeot Vagabond ● 1985 Shogun Prairie Breaker ● 1986 Merckx Super Corsa ● 1987 Schwinn Tempo ● 1988 Schwinn Voyageur ● 1989 Trek 400 ● 1989 Bottechia Team ADR replica ● 1990 Cannondale ST600 ● 1993 Technium RT600 ● 1996 Kona Lava Dome ●
Lascauxcaveman is offline
Old 09-19-18, 09:23 PM
  #8
jeirvine
Senior Member

jeirvine's Avatar

Join Date: Sep 2011
Location: Bethesda/Baltimore MD
Posts: 3,668

Bikes: '72 Moto Grand Record, '72 Gitane tandem, '72 Raleigh Super Course, '73 Raleigh Gran Sport, '73 and '76 Colnagos Super, '76 Fiorelli Coppi, '78 Raleigh SBDU Team Pro, '78 Trek 930, '81 Holdsworth Special 650B, '86 Masi GC, '87 Panasonic DX5000

Mentioned: 57 Post(s)
Tagged: 0 Thread(s)
Quoted: 642 Post(s)
Liked 233 Times in 145 Posts
I successfully drilled one of those out of a '76 Colnago frame not too long ago. I used these and these:



__________________
The man who dies with the most toys…is dead. - Rootboy
jeirvine is offline
Old 09-19-18, 09:54 PM
  #9
obrentharris
Senior Member

obrentharris's Avatar

Join Date: May 2012
Location: Point Reyes Station, California
Posts: 3,356

Bikes: Indeed!

Mentioned: 68 Post(s)
Tagged: 0 Thread(s)
Quoted: 952 Post(s)
Liked 965 Times in 404 Posts
Soak in penetrating oil before applying the vice-grips: If the other half twists off you have made your job much harder and will have to resort to the kind of delicate surgery described by jeirvine.
Brent
obrentharris is offline
Old 09-19-18, 10:41 PM
  #10
gugie
Dilberteur at large

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 9,055

Bikes: It's complicated.

Mentioned: 990 Post(s)
Tagged: 0 Thread(s)
Quoted: 3179 Post(s)
Liked 1,418 Times in 723 Posts
Try everything you can to remove it, lots of good ideas here. If it ends up stuck, you can drill it out if you're careful with an undersized bit, then tap it out. I've had to do that a couple of times.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 09-20-18, 07:01 AM
  #11
eom
Eccentric Old Man

eom's Avatar

Join Date: Jan 2014
Location: BelleVegas, IL
Posts: 652

Bikes: 1986 Trek 520 Cirrus, 1979 Schwinn Traveler III, Trek T100, 1995 Trek 970, Fuji America

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 202 Post(s)
Likes: 0
Liked 70 Times in 38 Posts
Originally Posted by jeirvine View Post
I successfully drilled one of those out of a '76 Colnago frame not too long ago. I used these and these:



You make house calls?
__________________
Email please, thatbikedude at yahoo dot com
PMs are a pain.
eom
eom is offline
Old 09-20-18, 07:58 AM
  #12
jeirvine
Senior Member

jeirvine's Avatar

Join Date: Sep 2011
Location: Bethesda/Baltimore MD
Posts: 3,668

Bikes: '72 Moto Grand Record, '72 Gitane tandem, '72 Raleigh Super Course, '73 Raleigh Gran Sport, '73 and '76 Colnagos Super, '76 Fiorelli Coppi, '78 Raleigh SBDU Team Pro, '78 Trek 930, '81 Holdsworth Special 650B, '86 Masi GC, '87 Panasonic DX5000

Mentioned: 57 Post(s)
Tagged: 0 Thread(s)
Quoted: 642 Post(s)
Liked 233 Times in 145 Posts
Originally Posted by gugie View Post
Try everything you can to remove it, lots of good ideas here. If it ends up stuck, you can drill it out if you're careful with an undersized bit, then tap it out. I've had to do that a couple of times.
In my experience, while drilling it out, it starts to turn when you're about halfway through. I've also done frozen derailleur stop screws, etc. It's actually kind of fun. And yes: penetrating oil regardless of your method.
__________________
The man who dies with the most toys…is dead. - Rootboy
jeirvine is offline
Old 09-20-18, 08:36 AM
  #13
rumrunn6
Senior Member

rumrunn6's Avatar

Join Date: Jul 2008
Location: 25 miles northwest of Boston
Posts: 24,862

Bikes: Bottecchia Sprint, GT Timberline 29r

Mentioned: 103 Post(s)
Tagged: 0 Thread(s)
Quoted: 3724 Post(s)
Liked 854 Times in 593 Posts
have someone weld a nut to the top of the screw, then you can attach a socket wrench to the nut & screw it off. never tried this myself but I've read it mentioned for similar situations. wish there were small welders hobbyists could buy ...
rumrunn6 is offline
Old 09-20-18, 08:37 AM
  #14
cdmurphy
Senior Member

cdmurphy's Avatar

Join Date: May 2015
Location: San Marcos, CA
Posts: 567

Bikes: Too many, but sometimes not enough.

Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 225 Post(s)
Likes: 0
Liked 10 Times in 7 Posts
You want to do anything in your power to avoid breaking off the screw you have inside the dropout. That's the best handle you will ever have on the rest of the thread. Break that off, and the job goes from moderately difficult, to extremely difficult.

Try soaking in PB blaster, Kroil, or a 50/50 Acetone / ATF mix. Heat can be a big help in getting oil in there too. Use a propane torch to heat the dropout to a couple of hundred degrees, then on cooling, it will pull more oil in.

If at all possible, try screwing it in further. What probably happened was someone bent the exposed threads, then tried pulling the screw out, jambing it in pretty tight. If you can back it up (screwed in further), you can then grind or file off the nub of bad threads you've exposed. Once you loose the bad part, backing the screw out should go pretty smoothly.
cdmurphy is offline
Old 09-20-18, 09:19 AM
  #15
Ex Pres
Cat 6

Ex Pres's Avatar

Join Date: Dec 2007
Location: Mountain Brook, AL
Posts: 7,358
Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 444 Post(s)
Liked 91 Times in 63 Posts
Originally Posted by gugie View Post
Try everything you can to remove it, lots of good ideas here. If it ends up stuck, you can drill it out if you're careful with an undersized bit, then tap it out. I've had to do that a couple of times.
I've been successful with this, and I've also broken a drill bit off in the hole. And it refuses to drill out.
The bad part about this is that is was on the same frame. My first attempt was successful, but since the second wasn't I didn't accomplish anything worthwhile.
Ex Pres is offline
Old 09-20-18, 09:22 AM
  #16
Colnago Mixte
Senior Member

Join Date: Sep 2017
Location: Center of Central CA
Posts: 1,671
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 897 Post(s)
Likes: 0
Liked 5 Times in 4 Posts
I found a pair of these at Walmart for under 10 bucks. What able to successfully grab the screw from the threaded end and tighten it down all the way. Will cut off the exposed end and either leave the screw head end in, or wrestle it out sometime when I'm bored. I only lose 1/8" of dropout if I do leave it in.



Colnago Mixte is offline
Old 09-20-18, 09:33 AM
  #17
masi61
Senior Member

masi61's Avatar

Join Date: Oct 2005
Location: SW Ohio
Posts: 2,857

Bikes: Puch Marco Polo, Saint Tropez, Masi Gran Criterium

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 718 Post(s)
Liked 139 Times in 105 Posts
Originally Posted by jeirvine View Post
In my experience, while drilling it out, it starts to turn when you're about halfway through. I've also done frozen derailleur stop screws, etc. It's actually kind of fun. And yes: penetrating oil regardless of your method.
Are those jewelers drills? What diameter bit and at what RPM is required to be successful? Do you need to use a cutting fluid?

I’ve got one on my Masi Campy dropout that is sheared off and there is nothing left on the outside to work with.
masi61 is online now
Old 09-20-18, 09:37 AM
  #18
gugie
Dilberteur at large

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 9,055

Bikes: It's complicated.

Mentioned: 990 Post(s)
Tagged: 0 Thread(s)
Quoted: 3179 Post(s)
Liked 1,418 Times in 723 Posts
Originally Posted by Ex Pres View Post
I've been successful with this, and I've also broken a drill bit off in the hole. And it refuses to drill out.
The bad part about this is that is was on the same frame. My first attempt was successful, but since the second wasn't I didn't accomplish anything worthwhile.
Truth be told, same here...
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 09-20-18, 10:26 AM
  #19
Jadesfire
Senior Member

Jadesfire's Avatar

Join Date: Jul 2015
Posts: 1,495

Bikes: '88 Bianchi, '94ish Trek

Mentioned: 43 Post(s)
Tagged: 2 Thread(s)
Quoted: 1080 Post(s)
Liked 127 Times in 57 Posts
Originally Posted by jeirvine View Post
I successfully drilled one of those out of a '76 Colnago frame not too long ago. I used these and these:



What kind of drill bits are those? I've got this problem on a frame I really like, and am willing to purchase more tools to fix it.
__________________
Originally Posted by LAJ View Post
Everyone thinks they have had a long strange trip, until they look at other folks' journeys. Then they realize everyone has had a long strange trip, just using different modes of transportation.
"The mystery of life isn't a problem to solve, but a reality to experience."
Jadesfire is offline
Old 09-20-18, 10:35 AM
  #20
jeirvine
Senior Member

jeirvine's Avatar

Join Date: Sep 2011
Location: Bethesda/Baltimore MD
Posts: 3,668

Bikes: '72 Moto Grand Record, '72 Gitane tandem, '72 Raleigh Super Course, '73 Raleigh Gran Sport, '73 and '76 Colnagos Super, '76 Fiorelli Coppi, '78 Raleigh SBDU Team Pro, '78 Trek 930, '81 Holdsworth Special 650B, '86 Masi GC, '87 Panasonic DX5000

Mentioned: 57 Post(s)
Tagged: 0 Thread(s)
Quoted: 642 Post(s)
Liked 233 Times in 145 Posts
Originally Posted by Jadesfire View Post
What kind of drill bits are those? I've got this problem on a frame I really like, and am willing to purchase more tools to fix it.
I used a variable-speed Dremel, and couldn't tell you the rpm. I used a few different sized bits, starting pretty small to get a pilot hole started, then working up to maybe a 1/16" or so. Once out, I did follow it up with a 3mm x .5 tap, but probably didn't need to since the screw started to turn and spun right out as the bit bit.
__________________
The man who dies with the most toys…is dead. - Rootboy
jeirvine is offline
Old 09-20-18, 11:08 AM
  #21
cdmurphy
Senior Member

cdmurphy's Avatar

Join Date: May 2015
Location: San Marcos, CA
Posts: 567

Bikes: Too many, but sometimes not enough.

Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 225 Post(s)
Likes: 0
Liked 10 Times in 7 Posts
Originally Posted by Jadesfire View Post
What kind of drill bits are those? I've got this problem on a frame I really like, and am willing to purchase more tools to fix it.
Those are solid carbide "circuit board" drills. They're designed to be run at ungodly speeds in precision spindles for printed circuit board production (100,000+ rpm)

The trouble is, they're extremely delicate. I've never been able to use any but the largest by hand in a Dremel without snapping them off. You would be much better served using high speed steel (hss) or cobalt drill bits. Much tougher, and more than hard enough for drilling out screws. Try McMaster-Carr for a large selection of drill bits, and fast shipping.

That being said, it's still a very dicey operation, especially if you're not very skilled, and lucky. (I'm a machinist by trade, and I doubt I'd have more than a 50% chance of drilling one out without just making it worse.)
cdmurphy is offline
Old 09-20-18, 11:27 AM
  #22
jeirvine
Senior Member

jeirvine's Avatar

Join Date: Sep 2011
Location: Bethesda/Baltimore MD
Posts: 3,668

Bikes: '72 Moto Grand Record, '72 Gitane tandem, '72 Raleigh Super Course, '73 Raleigh Gran Sport, '73 and '76 Colnagos Super, '76 Fiorelli Coppi, '78 Raleigh SBDU Team Pro, '78 Trek 930, '81 Holdsworth Special 650B, '86 Masi GC, '87 Panasonic DX5000

Mentioned: 57 Post(s)
Tagged: 0 Thread(s)
Quoted: 642 Post(s)
Liked 233 Times in 145 Posts
Originally Posted by cdmurphy View Post
Those are solid carbide "circuit board" drills. They're designed to be run at ungodly speeds in precision spindles for printed circuit board production (100,000+ rpm)

The trouble is, they're extremely delicate. I've never been able to use any but the largest by hand in a Dremel without snapping them off. You would be much better served using high speed steel (hss) or cobalt drill bits. Much tougher, and more than hard enough for drilling out screws. Try McMaster-Carr for a large selection of drill bits, and fast shipping.

That being said, it's still a very dicey operation, especially if you're not very skilled, and lucky. (I'm a machinist by trade, and I doubt I'd have more than a 50% chance of drilling one out without just making it worse.)
Yeah - I used the tiny bits just to start the pilot hole, which needed to be centered.
__________________
The man who dies with the most toys…is dead. - Rootboy
jeirvine is offline
Old 09-20-18, 11:32 AM
  #23
Jadesfire
Senior Member

Jadesfire's Avatar

Join Date: Jul 2015
Posts: 1,495

Bikes: '88 Bianchi, '94ish Trek

Mentioned: 43 Post(s)
Tagged: 2 Thread(s)
Quoted: 1080 Post(s)
Liked 127 Times in 57 Posts
Originally Posted by jeirvine View Post
I used a variable-speed Dremel, and couldn't tell you the rpm. I used a few different sized bits, starting pretty small to get a pilot hole started, then working up to maybe a 1/16" or so. Once out, I did follow it up with a 3mm x .5 tap, but probably didn't need to since the screw started to turn and spun right out as the bit bit.
Thanks. I'll give it another try.

Originally Posted by cdmurphy View Post
Those are solid carbide "circuit board" drills. They're designed to be run at ungodly speeds in precision spindles for printed circuit board production (100,000+ rpm)

The trouble is, they're extremely delicate. I've never been able to use any but the largest by hand in a Dremel without snapping them off. You would be much better served using high speed steel (hss) or cobalt drill bits. Much tougher, and more than hard enough for drilling out screws. Try McMaster-Carr for a large selection of drill bits, and fast shipping.

That being said, it's still a very dicey operation, especially if you're not very skilled, and lucky. (I'm a machinist by trade, and I doubt I'd have more than a 50% chance of drilling one out without just making it worse.)
Thank you . I tried with a cheaper drill bit, and was not surprised when it didn't work. I will give it another try with a quality tool and see if that will do the trick. I will not be surprised if it doesn't work, as it's really stuck in there, but you never know. That luck thing sometimes works out.
__________________
Originally Posted by LAJ View Post
Everyone thinks they have had a long strange trip, until they look at other folks' journeys. Then they realize everyone has had a long strange trip, just using different modes of transportation.
"The mystery of life isn't a problem to solve, but a reality to experience."
Jadesfire is offline
Old 09-20-18, 11:51 AM
  #24
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 6,287

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 120 Post(s)
Tagged: 0 Thread(s)
Quoted: 2310 Post(s)
Liked 557 Times in 401 Posts
Originally Posted by cdmurphy View Post
You want to do anything in your power to avoid breaking off the screw you have inside the dropout. That's the best handle you will ever have on the rest of the thread. Break that off, and the job goes from moderately difficult, to extremely difficult.

Try soaking in PB blaster, Kroil, or a 50/50 Acetone / ATF mix. Heat can be a big help in getting oil in there too. Use a propane torch to heat the dropout to a couple of hundred degrees, then on cooling, it will pull more oil in.

If at all possible, try screwing it in further. What probably happened was someone bent the exposed threads, then tried pulling the screw out, jambing it in pretty tight. If you can back it up (screwed in further), you can then grind or file off the nub of bad threads you've exposed. Once you loose the bad part, backing the screw out should go pretty smoothly.
This is how it would have been done in most shops. Heat almost never fails to loosen frozen parts. If there is a chance to use it without destroying paint etc, it's the go to method. In this case, the paint is gone on the dropout anyway, and there really isn't a downside to torching it.

I'd also +1 on cutting a slot for a screwdriver.

Drilling out stuff like this is really no fun at all, to say the least.
Salamandrine is offline
Old 09-27-18, 07:23 PM
  #25
mstateglfr
Sunshine
Thread Starter

mstateglfr's Avatar

Join Date: Aug 2014
Location: Des Moines, IA
Posts: 12,335

Bikes: '18 class built steel roadbike, '19 Fairlight Secan, '88 Schwinn Premis , Black Mountain Cycles Monstercross V4, '89 Novara Trionfo

Mentioned: 97 Post(s)
Tagged: 0 Thread(s)
Quoted: 5049 Post(s)
Liked 2,370 Times in 1,389 Posts
Update-

I used a small drill bit to bore out a little of the head of the screw. Then used a reverse threaded extracting bit and it immediately dug into the screw and wound it out.

ended up being a molehill when I thought it was a mountain.

2min job. Fantastic.

mstateglfr is online now
Likes For mstateglfr:

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
