Reynolds 531 Competition identification?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Reynolds 531 Competition identification?

Old 09-23-18, 05:37 AM
  #1
darker
Member
Thread Starter

darker's Avatar

Join Date: Feb 2017
Location: Sydney
Posts: 46

Bikes: 1985 Miyata 710

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Reynolds 531 Competition identification?

I recently purchased this Reynolds 531C bike and just after some info about the frame.
Frame has Superbe Pro rear dropouts and serial is KH101??
I know Reynolds was using older existing frames and renovating them around the mid 80-90's
Any info about the frame would be much appreciated?
cheers










darker is offline
Old 09-23-18, 05:55 AM
  #2
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 3,984

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 196 Post(s)
Tagged: 0 Thread(s)
Quoted: 1007 Post(s)
Liked 1,103 Times in 603 Posts
Reynolds 531C

" I know Reynolds was using older existing frames and renovating them around the mid 80-90's "

HUH???

Reynolds provided those style decals from 1989-1994. Bike manufacturers and frame builders could have used them for some time afterwards. The components place it at around 1989-90. Not familiar with the arrow brand bike. Was that made in OZ?



Reynolds was starting to phase out tubing made of 531 steel at that time. The 531 Competition tube set was the lightest they were making. The lighter 531 Professional tubing had been discontinued and replaced with 653.



BTW, the stem is 12mm to 15mm too high for safety.

verktyg
__________________
Don't believe everything you think! History is written by those who weren't there....

Chas. ;-)


Last edited by verktyg; 09-23-18 at 05:59 AM.
verktyg is offline
Old 09-23-18, 07:02 AM
  #3
Colnago Mixte
Senior Member

Join Date: Sep 2017
Location: Center of Central CA
Posts: 1,671
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 897 Post(s)
Likes: 0
Liked 8 Times in 7 Posts
Might be unsafe to ride without wheels too.


Nice score, OP.
Colnago Mixte is offline
Old 09-23-18, 07:16 AM
  #4
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 9,070

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 2153 Post(s)
Liked 2,184 Times in 1,349 Posts
Originally Posted by darker View Post
I recently purchased this Reynolds 531C bike and just after some info about the frame.
Frame has Superbe Pro rear dropouts and serial is KH101??
I know Reynolds was using older existing frames and renovating them around the mid 80-90's
Any info about the frame would be much appreciated?
cheers
Reynolds only made tubing not frames.
dedhed is offline
Old 09-23-18, 07:22 AM
  #5
thinktubes
weapons-grade bolognium

thinktubes's Avatar

Join Date: Dec 2008
Location: Across the street from Chicago
Posts: 5,946

Bikes: Battaglin Cromor, Ciocc Designer 84, Schwinn Superior 1981

Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 848 Post(s)
Liked 1,515 Times in 645 Posts
Nice score - cool headset!
thinktubes is offline
Old 09-23-18, 07:44 AM
  #6
joesch
Senior Member

joesch's Avatar

Join Date: Sep 2017
Location: Hotel CA / DFW
Posts: 1,306

Bikes: 83 Colnago Super, 87 50th Daccordi, 79 & 87 Guerciotti's, 90s DB/GT Mtn Bikes, 90s Colnago Master and Titanio, 96 Serotta Colorado TG, 95/05 Colnago C40/C50, 06 DbyLS TI, 08 Lemond Filmore FG SS, 12 Cervelo R3, 20/15 Surly Stragler & Steamroller

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 441 Post(s)
Liked 463 Times in 297 Posts
Originally Posted by verktyg View Post
" I know Reynolds was using older existing frames and renovating them around the mid 80-90's "

HUH???

Reynolds provided those style decals from 1989-1994. Bike manufacturers and frame builders could have used them for some time afterwards. The components place it at around 1989-90. Not familiar with the arrow brand bike. Was that made in OZ?



Reynolds was starting to phase out tubing made of 531 steel at that time. The 531 Competition tube set was the lightest they were making. The lighter 531 Professional tubing had been discontinued and replaced with 653.



BTW, the stem is 12mm to 15mm too high for safety.

verktyg
Great answer and advice on lowering that stem for safety reasons!
joesch is offline
Old 09-23-18, 10:28 AM
  #7
gugie
Bike Butcher of Portland

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 10,566

Bikes: It's complicated.

Mentioned: 1168 Post(s)
Tagged: 0 Thread(s)
Quoted: 4042 Post(s)
Liked 3,519 Times in 1,557 Posts
Hard to tell, but if that's a Laprade seatpost, it's probably too high as well.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 09-23-18, 10:51 AM
  #8
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 13,095

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 80 Post(s)
Tagged: 0 Thread(s)
Quoted: 2396 Post(s)
Liked 1,075 Times in 638 Posts
I think the TT cable guides on the bottom/side of the TT is a cool touch- out of the way of your legs, but also out of view in a drive side shot- sorta looks like it could be internal cable routing.
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin’ huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Old 09-23-18, 11:42 AM
  #9
Wildwood
Veteran, Pacifist

Wildwood's Avatar

Join Date: Dec 2004
Location: Seattle area
Posts: 11,927

Bikes: Bikes??? Thought this was social media?!?

Mentioned: 262 Post(s)
Tagged: 0 Thread(s)
Quoted: 3228 Post(s)
Liked 2,845 Times in 1,430 Posts
I agree with late 80s/early 90s for that tubing decal set.

I just built a bike with that tube set. Will do a final fit ride today on it.
My frameset (with headset) in a 58X57 size weighed 2657 g. 735 fork, 1922 frame headset.

Mine is Falcon, made in England, but I do not know the year of manufacture on my bike.




Last edited by Wildwood; 09-23-18 at 11:49 AM.
Wildwood is offline
Old 09-23-18, 11:43 AM
  #10
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 11,939
Mentioned: 73 Post(s)
Tagged: 0 Thread(s)
Quoted: 990 Post(s)
Liked 508 Times in 416 Posts
The serial number on BB shell will be a valuable clue for someone like @T-Mar who can interpret these. Make sure the cable guide isn't covering any digits/numerals and write them in this thread. I'd also be leaning toward an AUS-made frame or (less likely) made in Asia and re-badged for the AUS market.
unworthy1 is online now
Old 09-24-18, 12:59 AM
  #11
darker
Member
Thread Starter

darker's Avatar

Join Date: Feb 2017
Location: Sydney
Posts: 46

Bikes: 1985 Miyata 710

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by verktyg View Post
" I know Reynolds was using older existing frames and renovating them around the mid 80-90's "

HUH???

Reynolds provided those style decals from 1989-1994. Bike manufacturers and frame builders could have used them for some time afterwards. The components place it at around 1989-90. Not familiar with the arrow brand bike. Was that made in OZ?



Reynolds was starting to phase out tubing made of 531 steel at that time. The 531 Competition tube set was the lightest they were making. The lighter 531 Professional tubing had been discontinued and replaced with 653.



BTW, the stem is 12mm to 15mm too high for safety.

verktyg
sorry mate I meant Reynolds was bringing out renovated frames around this period. I have one of the 531 renovated frames and thought they might have been the same here. I do agree the stem is a bit high for safety purposes haha, I didn't build this bike

darker is offline
Old 10-02-18, 09:44 AM
  #12
darker
Member
Thread Starter

darker's Avatar

Join Date: Feb 2017
Location: Sydney
Posts: 46

Bikes: 1985 Miyata 710

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Colnago Mixte View Post
Might be unsafe to ride without wheels too.


Nice score, OP.
Haha agreed. I stripped it down and checked the frame over, its in pretty shape with only a few chips and scratches. How much would you say the frame is worth?
thanks
darker is offline
Old 10-02-18, 10:16 AM
  #13
USAZorro
Señor Member

USAZorro's Avatar

Join Date: Oct 2004
Location: Hardy, VA
Posts: 17,195

Bikes: Mostly English - predominantly Raleighs

Mentioned: 63 Post(s)
Tagged: 0 Thread(s)
Quoted: 1164 Post(s)
Liked 487 Times in 328 Posts
Originally Posted by darker View Post


sorry mate I meant Reynolds was bringing out renovated frames around this period. I have one of the 531 renovated frames and thought they might have been the same here. I do agree the stem is a bit high for safety purposes haha, I didn't build this bike

Not sure if it's just the way you're stating it, but to re-iterate - Reynolds made the tubing. As they weren't in the business of building frames, they weren't "bringing out renovated frames".

I recently passed along a Viking that was built using 531 tubing in 1959, and which was apparently was refinished at some time during the period where these style decals were available. The decal was out of place on the bike, but it was not inaccurate. I mention this because I am wondering if you're asking if the tubing decal is accurate for the bicycle that it is on.

Looks like a very nicely made frame, regardless.
__________________
In search of what to search for.
USAZorro is offline
Old 10-02-18, 10:36 AM
  #14
darker
Member
Thread Starter

darker's Avatar

Join Date: Feb 2017
Location: Sydney
Posts: 46

Bikes: 1985 Miyata 710

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by USAZorro View Post
Not sure if it's just the way you're stating it, but to re-iterate - Reynolds made the tubing. As they weren't in the business of building frames, they weren't "bringing out renovated frames".

I recently passed along a Viking that was built using 531 tubing in 1959, and which was apparently was refinished at some time during the period where these style decals were available. The decal was out of place on the bike, but it was not inaccurate. I mention this because I am wondering if you're asking if the tubing decal is accurate for the bicycle that it is on.

Looks like a very nicely made frame, regardless.
Cheers for the update, I do know reynolds made tubing and weren't in the business of building frames. I'm just a bit unfamiliar with this era of Reynolds tubing is all.
darker is offline
Old 09-12-21, 08:11 PM
  #15
MauriceMoss
Senior Member

MauriceMoss's Avatar

Join Date: Aug 2014
Location: Los Angeles, CA
Posts: 494

Bikes: None in ridable condition

Mentioned: 107 Post(s)
Tagged: 0 Thread(s)
Quoted: 118 Post(s)
Liked 362 Times in 128 Posts
I was sort of in the neighborhood posting in another thread and thought I'd update this one for future reference.

The frame here looks like the work of a well regarded Australian (Sydney area) builder named Kerry Hopkins, who also owns a bike shop (currently two locations) called ABC Bikes.

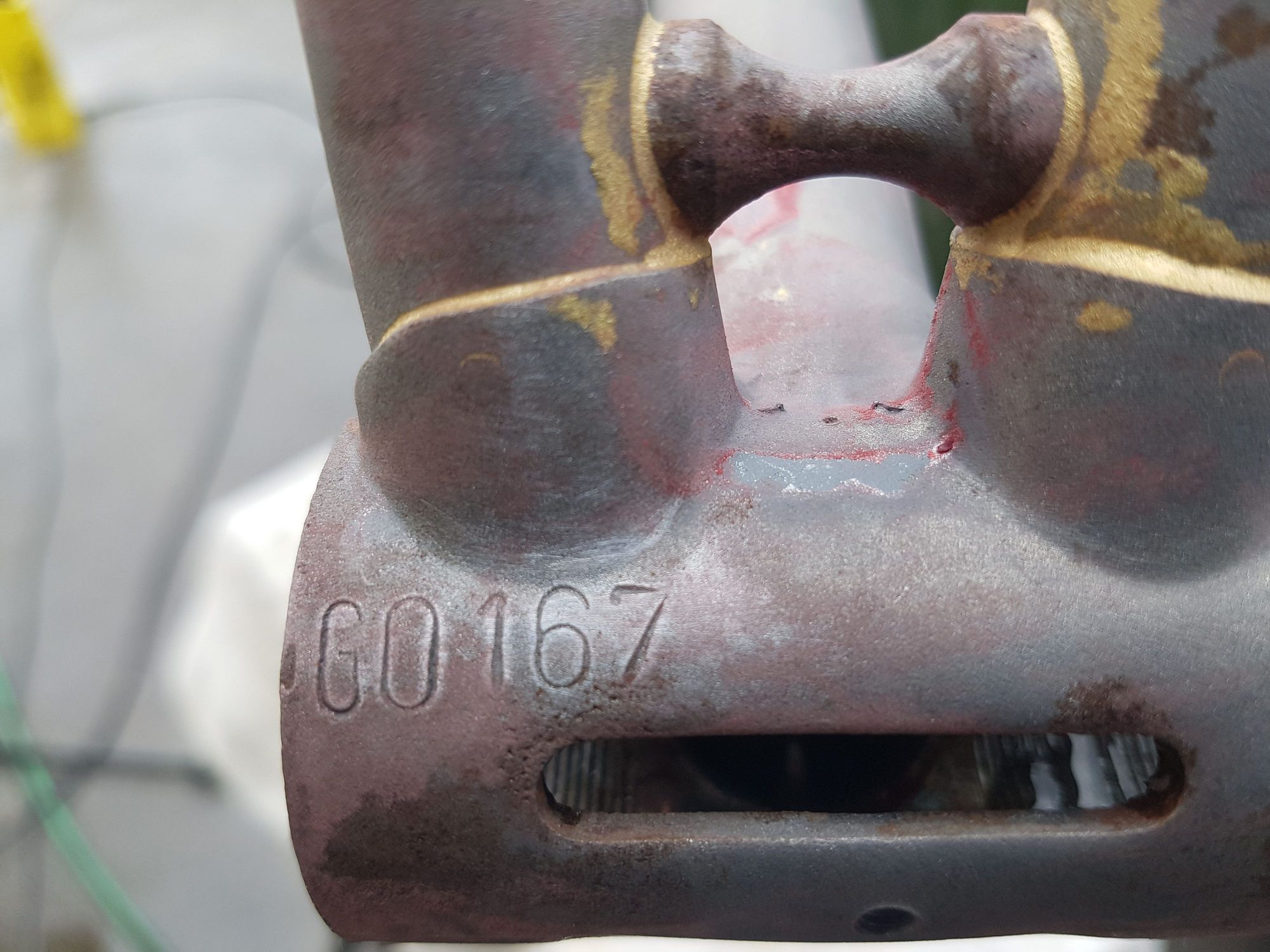

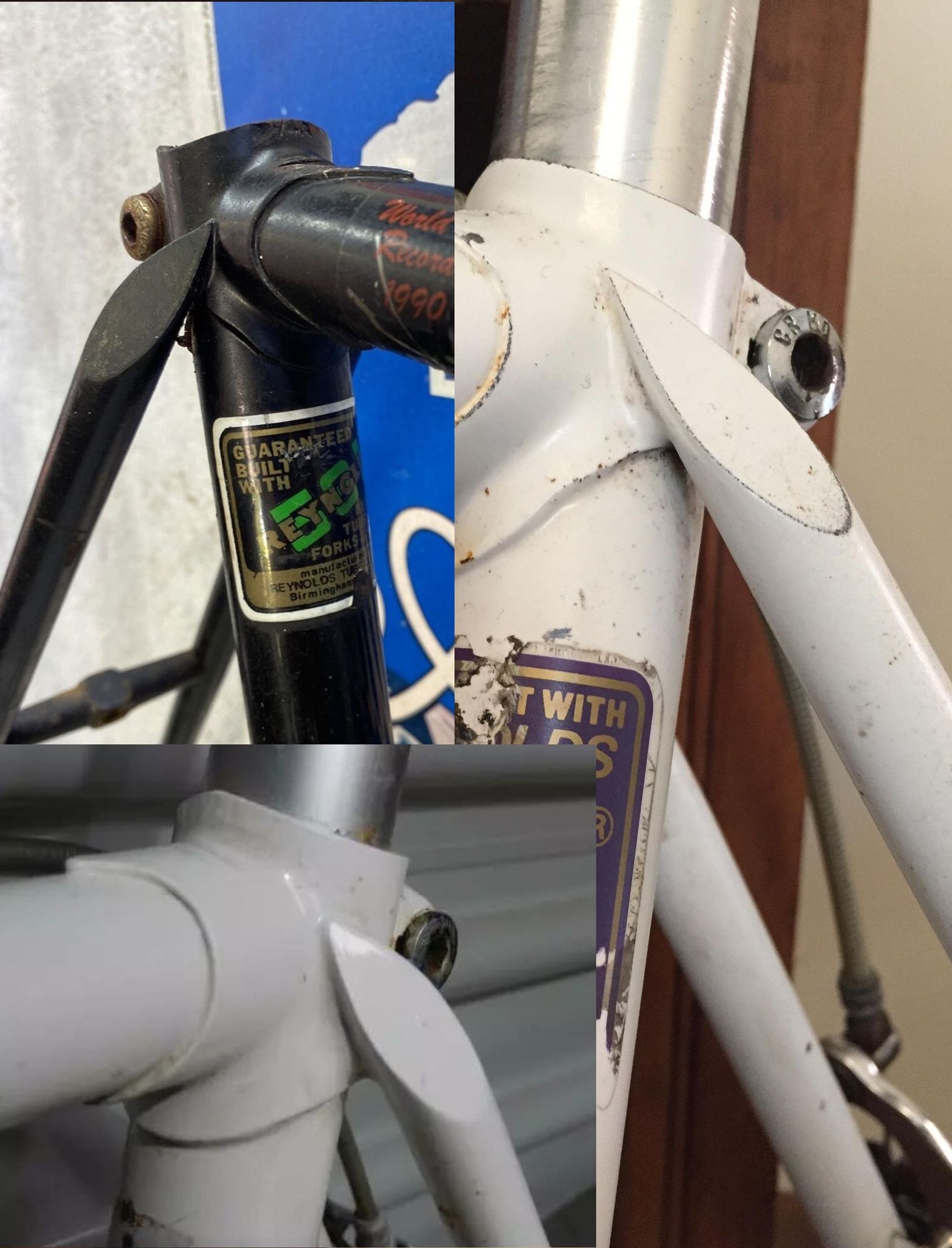

The combination of seat stay caps, stay ends, bb shell, chainstay bridge and the serial number format and location are all consistent with Kerry's builds.

Serial numbers on Hopkins frames changed over the years and I've seen 4 different formats, but they were all stamped in the same part of the bottom bracket shell. Most of Kerry's frames I've seen had serials that were prefixed by a narrow looking letter "G." Less common are ones with "KH," "ABK" or with no prefix at all. Here's an Arrow labeled frame built by Kerry Hopkins with a serial of KH100.

A side note on Kerry's son, Shaun Hopkins - he won a couple of silver medals at the 2008 Paralympic Games in Beijing.

Pics:






MauriceMoss is offline
