I need to get a fork steerer fixed. Guide me where to get it done!

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

I need to get a fork steerer fixed. Guide me where to get it done!

Reply

Old 09-24-18, 09:41 PM
  #1
shuru421
Senior Member
Thread Starter

Join Date: Aug 2012
Posts: 512
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 173 Post(s)

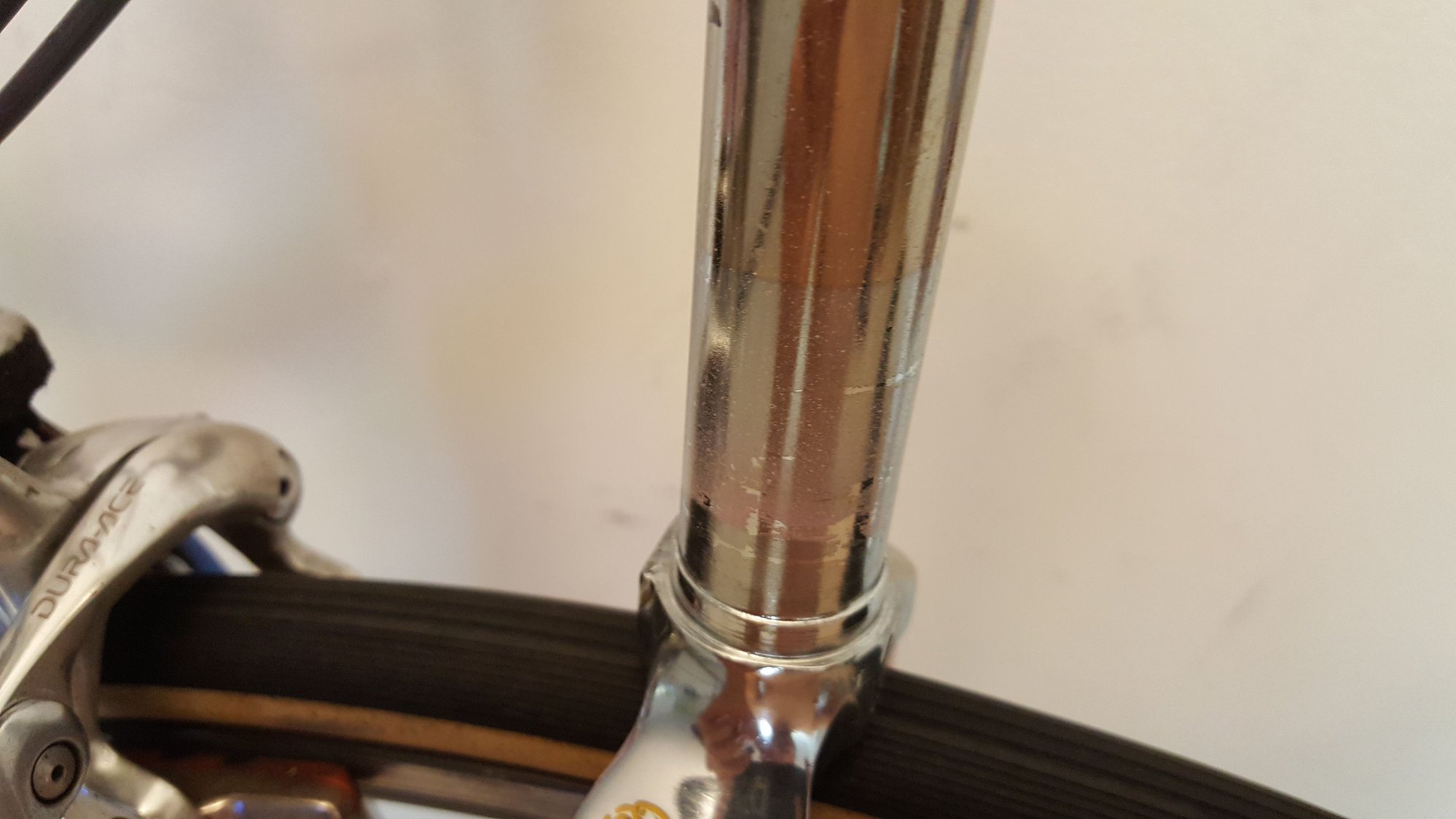

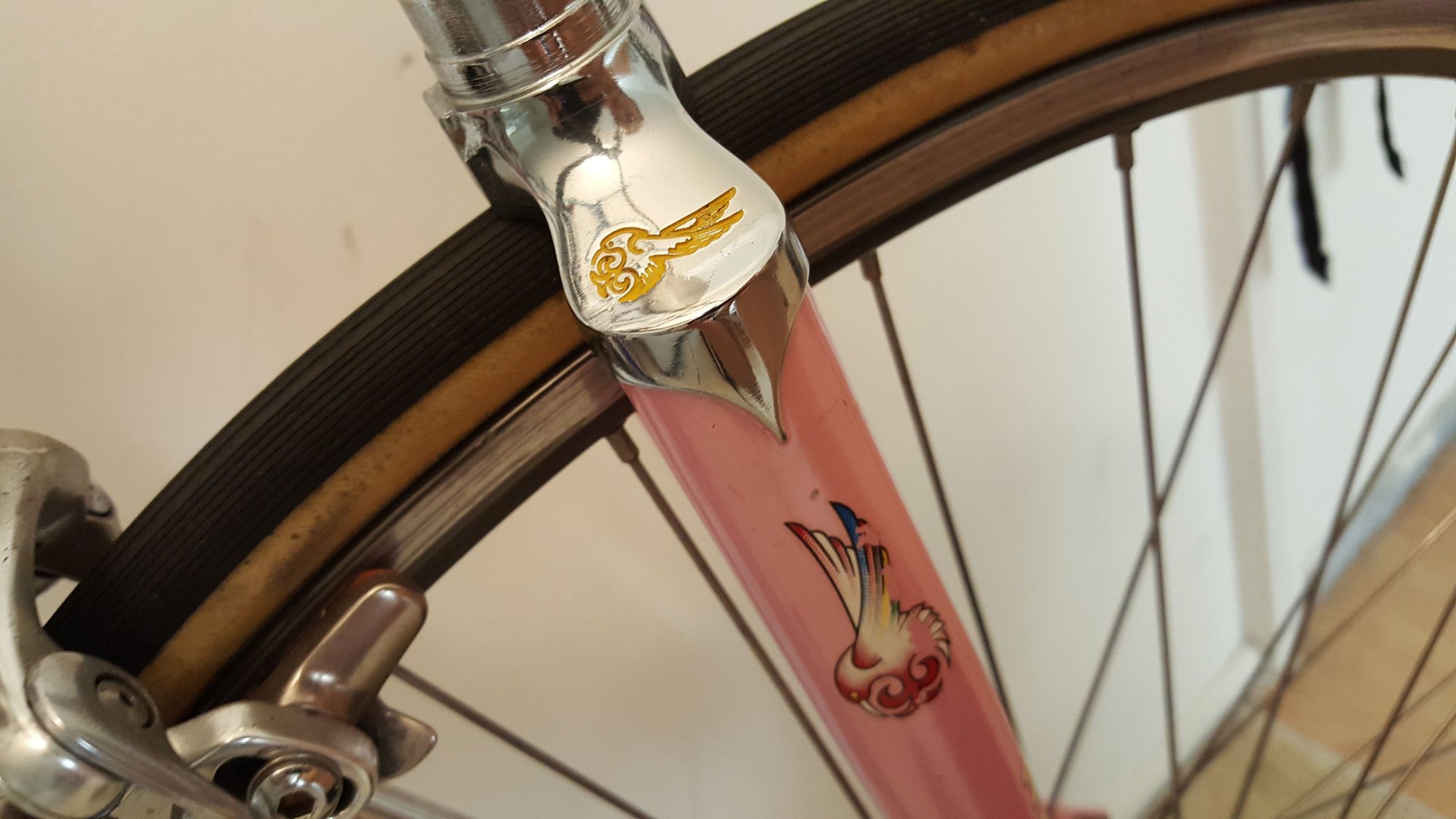

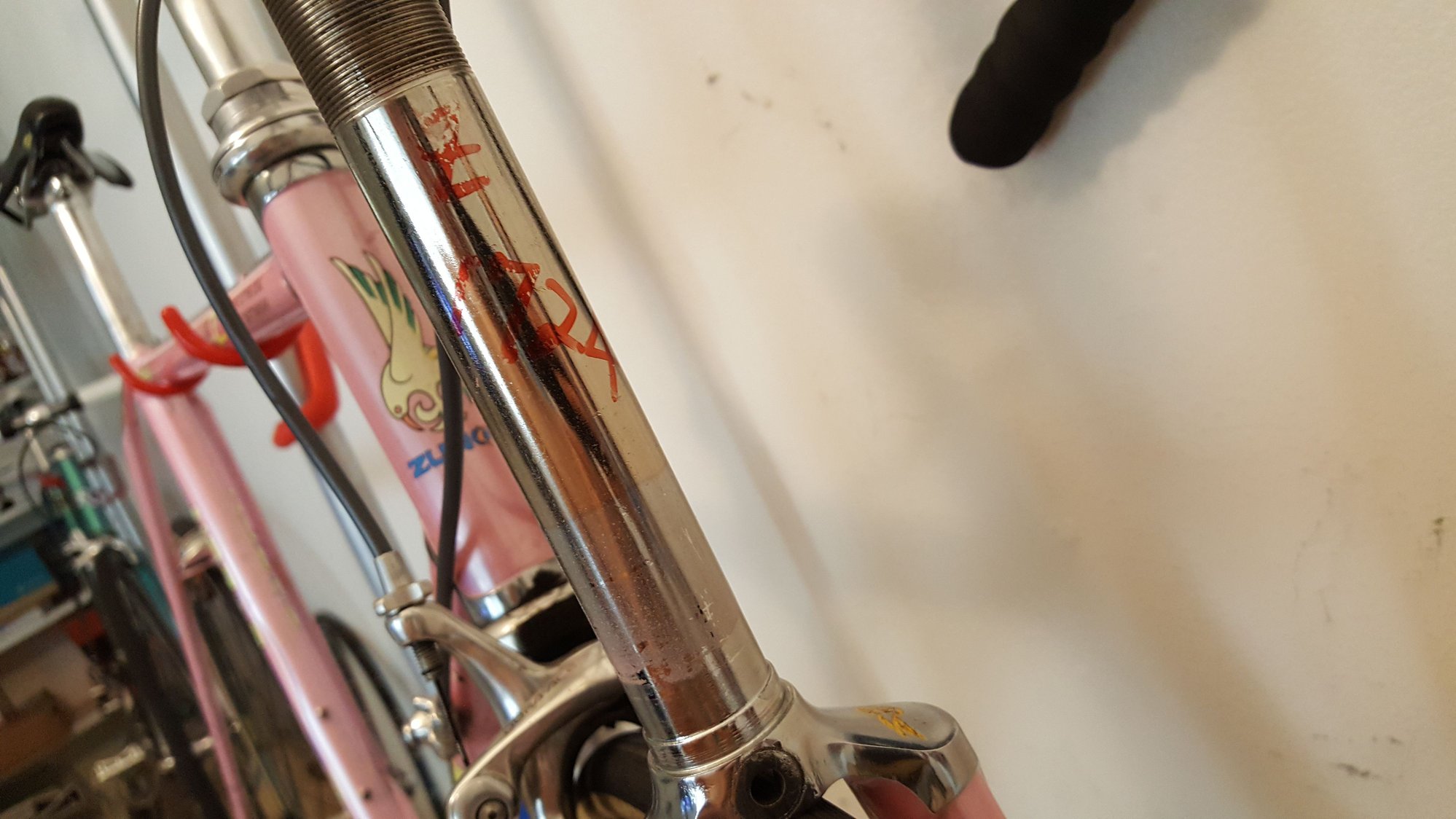

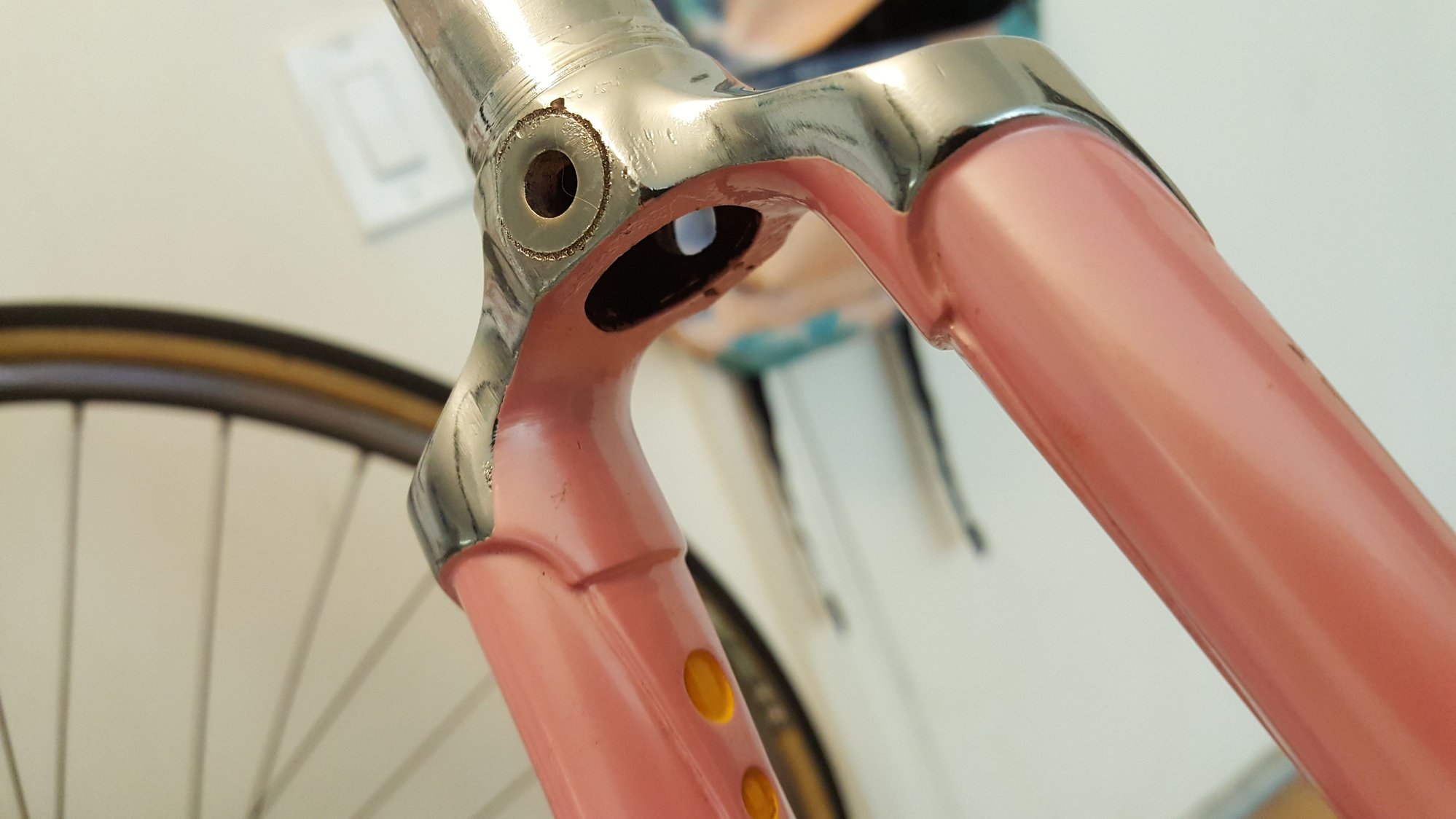

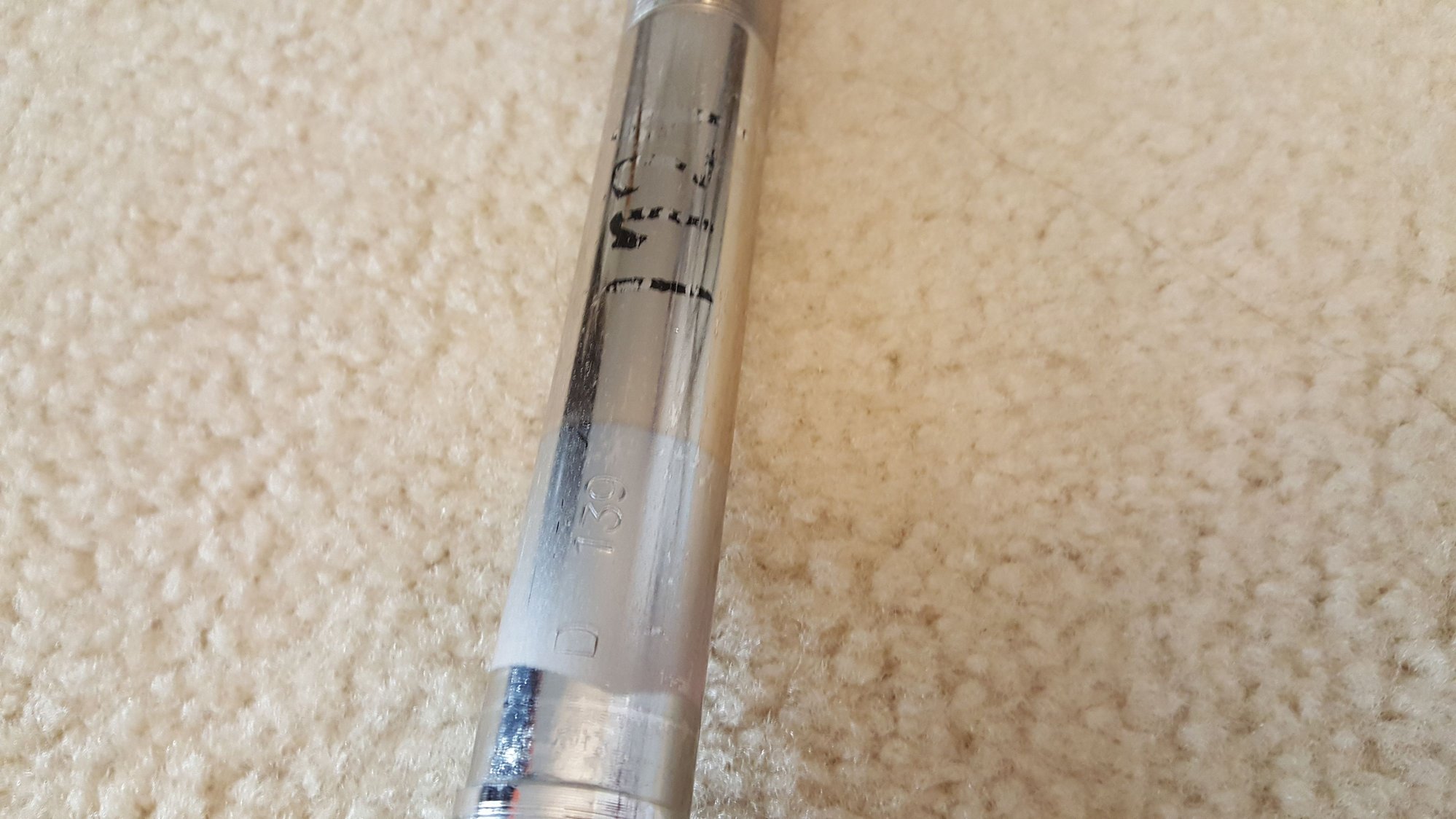

I need to get a fork steerer fixed. Guide me where to get it done!

Quick details;

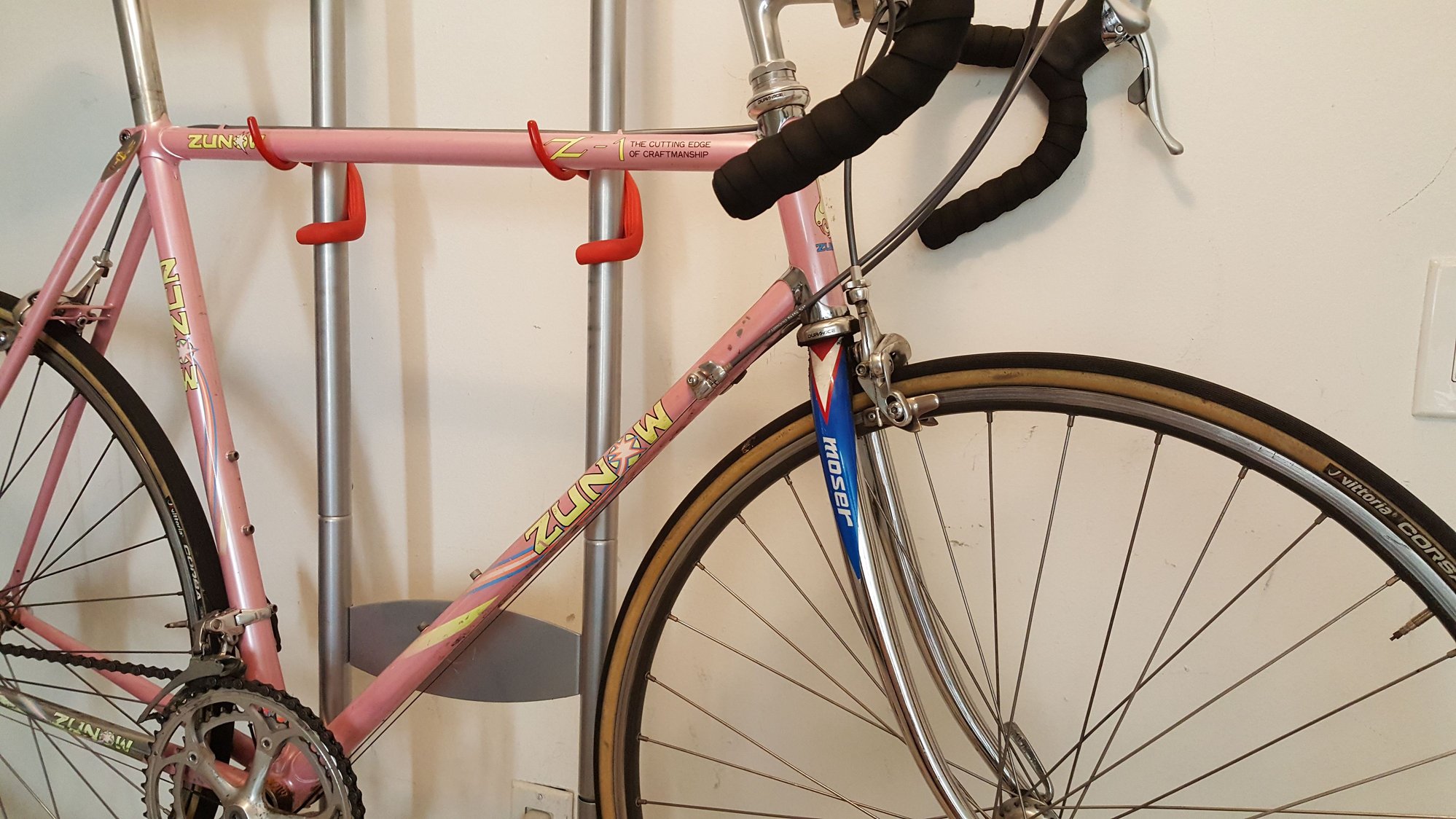

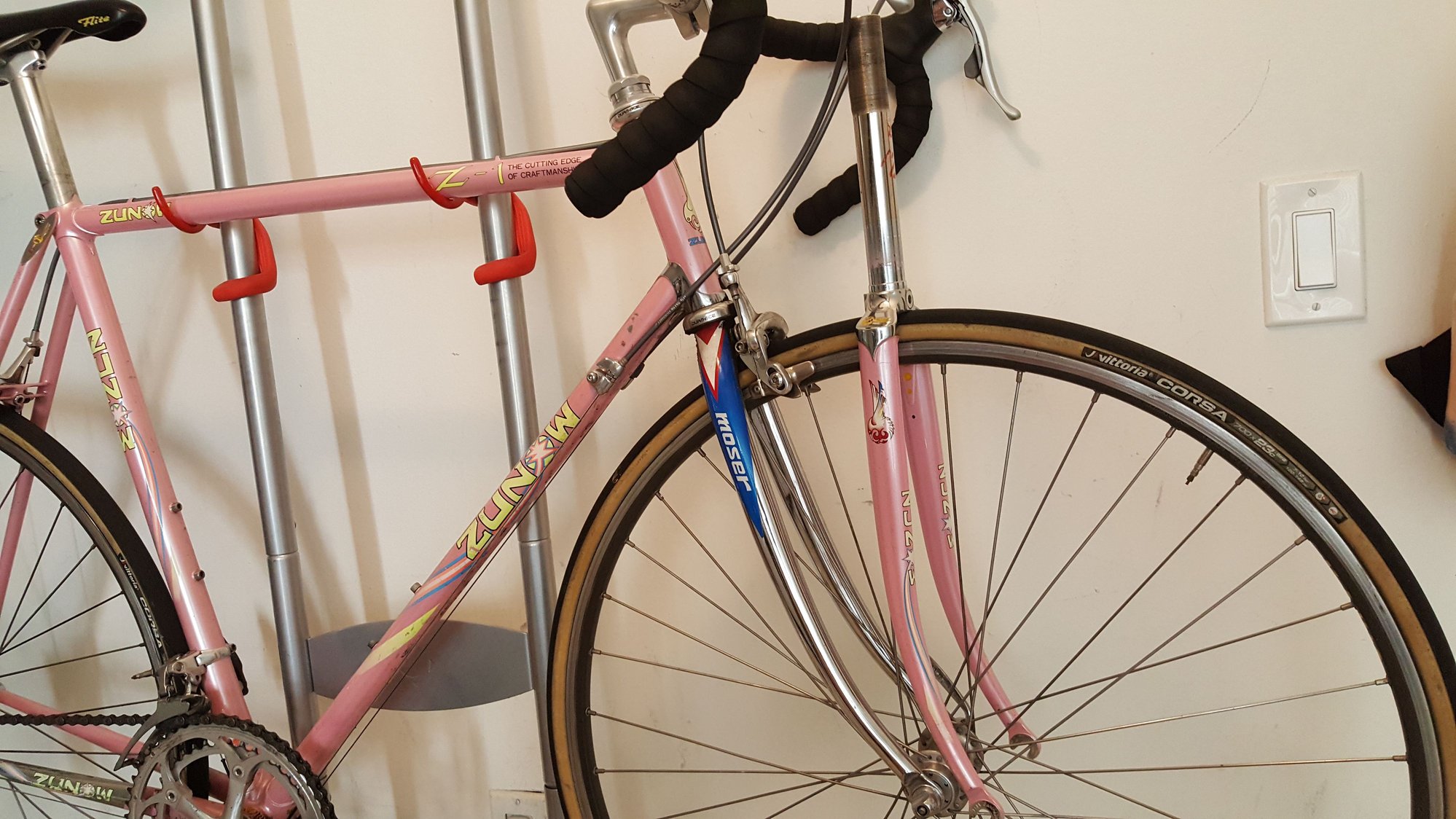

So awhile back, I bought a lovely pink Zunow (yes that was me) in hopes to own one of Japanese finest (and in a lovely color). Everything went smooth and according to plan. Payment sent, frame was shipped out and delivered in less than a week. I opened the big rectangular package, and I was in love.. The Zunow was beautiful even with all of its scuffs. The paint was still nice and pearly and ofcrouse, the Ditchex tubing has its unique characteristics in many areas. I could not wait till I got it on the road. The Zunow is currently sitting on full Dura Ace 74xx models, minus the brakes which are 7800(?). Luckily, I managed to get all my parts mint or NOS condition. The only 2 pieces which are non-Dura Ace is the seatpost (Suntour Superbe Pro 27.0) and the hubs (Mavic 571/HG). Ive been looking for 27.0 Dura Ace seatposts but might have to opt to Campagnolo. This bike is a work of art. Love the hummingbird pantos. I can see why Zunow was/is respected as one of Japanese top bicycle manufacturers. Is it crazy to say but another reason I was so keen on getting this bike was to match my girlfriends pink Univega. But its looking like things could change..

Just recently, a good friend asked if I would ever sell the bike, just frame itself. It is not for him, HIS friend inquired about it. I thought about it, thought about it ALOT..pondering, pondering and decided that if I sold the frame, I would not take less than 750 as I paid almost 900 for this frame while needing a replacement fork in the process (which the seller refunded me 160 reimbursement for a replacement fork). It is a Moser AX Leader fork, Campagnolo dropouts. I didn't have the fork fixed immediately when I realized there was damage to the fork (fork steerer) so opted to go with a replacement fork solely because I could not justify sending out the original fork to get it repaired after JUST receiving the frameset. Not to mention, I did not have much knowledge on where to get it repaired. His friend said the fork would compromise this deal and wants me to get it fixed before the sale. I told him,the Moser fork is a really great addition to the frame and compliments it really well (other than the mismatch paint, but that is quite an easy fix). It rides beautifully and both fork and rear dropouts are Campagnolo (It had to atleast have matching dropouts now..cmon, were not monsters here). He said the original fork would make it "more complete" (verbatim) and told him that I have inquired about repairs in the past and Yellowjersey was one of my top choices. He said if I get it fixed he would give me 800 for the frame. Its going to cost more than 50 dollars to get it repaired..

I need to get it fixed and need your guys help.





shuru421 is offline
Reply With Quote
Old 09-24-18, 10:06 PM
  #2
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 6,000

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 52 Post(s)
Tagged: 0 Thread(s)
Quoted: 317 Post(s)
Thankfully that's a tall enough headtube so a solid repair can be both below the stem quill and above the butted section of the steerer tube.

Looks like it can be sleeved and brazed with no impact on the fork's paintwork or chrome.

Now to just find a builder who is completely down with this approach. Luckily it costs little to ship a fork both ways.
dddd is offline
Reply With Quote
Old 09-24-18, 10:25 PM
  #3
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 22,809

Bikes: http://www.theheadbadge.com

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 51 Post(s)
Check with Mike Terraferma. Can't recall, but I think after I nagged him, he researched and did a few steerer sleeve replacements. Can't hurt to ask.

-Kurt
__________________
cudak888 is offline
Reply With Quote
Old 09-24-18, 11:02 PM
  #4
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 10,069
Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 291 Post(s)
Not sure where you are located (and have not checked in with Bernie in about a year) BUT Bernie Mikkelsen does this sort of repair all the time and tho his price has climbed since he did 2 for me, i'm sure if he's still fixing them so they stay fixed!
Alameda, Cali
Mikkelsen Frames
unworthy1 is offline
Reply With Quote
Old 09-25-18, 12:39 AM
  #5
Dfrost
Senior Member

Dfrost's Avatar

Join Date: May 2013
Location: Pacific Northwest
Posts: 1,262

Bikes: 87 Marinoni SLX Sports Tourer, 79 Miyata 912 by Gugificazione

Mentioned: 99 Post(s)
Tagged: 0 Thread(s)
Quoted: 240 Post(s)
Our “own” @gugie, located in Portland, OR, did an amazing job replacing the complete steerer tube on @RiddleOfSteel’s ‘74 Paramount, while saving the beautiful chrome fork crown. It seemed like a miracle, having seen the fork before and after the repair. There’s a thread by Gugie somewhere out in the C&V archives of showing the work as it progressed.
Dfrost is offline
Reply With Quote
Old 09-25-18, 02:03 AM
  #6
RiddleOfSteel
Lugged, Dura-Ace Glory

RiddleOfSteel's Avatar

Join Date: Mar 2015
Location: Seattle, WA
Posts: 1,864

Bikes: '87 Schwinn Prologue - '74 Schwinn Paramount P15 - '8X Davidson Impulse - '85 Schwinn Peloton - '88 Masi Nuova Strada - '15 Cannondale CAAD10 Disc - '81 Trek 710

Mentioned: 119 Post(s)
Tagged: 0 Thread(s)
Quoted: 555 Post(s)
As @Dfrost has mentioned, gugie did the repair and chronicled it on Page 5 in Post #111 in this thread. All the photos I posted mysteriously disappeared, which is a mystery. Oh well. My Paramount rides on today, a year and a half later, better than ever. He took a chance on 1) a mystery frameset and fork 2) a non-traditional way of replacing the steerer (to save the chrome) 3) some random BikeForums member with a Conan the Barbarian reference as his online handle.

Looking back, with its original Kool Lemon yellow paint, I think that it was quite a nice yellow (I'm not a yellow fan per se, but can appreciate). Maybe one day she will be painted yellow again. I do like the satin/matte black and chrome a lot, though.

All that to say, a steerer can be replaced, but if you want to save the chrome, it's super tricky, and certainly on a case-by-case basis. My Paramount's fork crown is generous in its accommodation, versus your lovely Zunow's compact fully sloping crown fork. That complicates things. And like you said, this isn't a $50 job. Mine wasn't. A local builder/shop here charges IIRC $125 for non-chrome forks and $175 for chrome forks that need a steerer replaced.

In the run-up to ultimately replacing the steerer, the sleeve-and-weld/braze idea was batted around, but I think ended up being advised against.

Apart from the repair direction, it looks like you have a monetary situation to navigate. You know how much you're into the frame, you've given a can-go-no-lower amount, yet have a friend's friend pushing you hard to take a loss on something you don't want to take a loss on, and he's being, IMO, unreasonable in that regard. It's not just the frame repair, it's the repaint, and probable repaint of the fork crown, and that adds to your cost to get the frame into "acceptable" shape for your friend's friend to buy. Semi-educated guestimate of $200-250 for all of this? [don't murder me, people, these are reasonable Seattle rate guesses]. You have a rare frame that you seem to really like, and it certainly makes for a beautiful bike. I understand the prospect of making a big chunk of money back on something, but to lose a net $300+ on the whole deal (900 buy + 200 repair and repaint = 1100 in the frameset, - 800 in sale = 300 in the hole) that you don't seem to keen on? A good part of me is of the mindset to politely tell your friend's friend to pound sand. Demands that don't take things into account, or unreasonable/low offers reek of disrespect and they are a waste of time and energy to deal with. I get the whole old school "drive a hard bargain makes you a man" thing, but I don't subscribe to that mentality (and therefore work a different strategy, to satisfactory effect) as it burns a potential long term good (friendship/relationship) for a short term gain (get what you want). We're all kind of on the same (C&V) team here, and it's not a huge team, so in a world full of friction, I'd rather not add to it.

Anyway, I'm off my soapbox. Carry on.
RiddleOfSteel is offline
Reply With Quote
Old 09-25-18, 04:10 AM
  #7
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 19,729
Mentioned: 119 Post(s)
Tagged: 0 Thread(s)
Quoted: 6916 Post(s)
Originally Posted by dddd View Post
Thankfully that's a tall enough headtube so a solid repair can be both below the stem quill and above the butted section of the steerer tube.

Looks like it can be sleeved and brazed with no impact on the fork's paintwork or chrome.

Now to just find a builder who is completely down with this approach. Luckily it costs little to ship a fork both ways.
The chrome could be a problem for welding or brazing. But, I've always thought one could cut off the damaged section. Install an internal reinforcing, and weld or braze it together. If done right, you'd stay very far away from the paint, and the repair would be relatively cheap or easy to do.

It might be easiest to convert to 1" threadless, if that is acceptable. And thus not have to worry about quill stems.
CliffordK is offline
Reply With Quote
Old 09-25-18, 08:01 AM
  #8
gugie
Crapmaster Emeritus

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 6,524

Bikes: JP Weigle'd Raleigh Competition reconstruct, 73 Raleigh Competition 650b'ed, 96 Bike Friday NWT, 83 Lotus Classique, 78 Centurion ProTour, 73 Raleigh Grand Sports

Mentioned: 611 Post(s)
Tagged: 0 Thread(s)
Quoted: 1820 Post(s)
The the OP, I could certainly braze a new steerer in, and possibly save the chrome. The paint, however would be ruined. Splicing a new piece in would be preferrable in this case, due to the unique paint and decals. One should be able to keep the fork crown area relatively cool with a wet towel wrapped around it, I would think. A good splice would be internally tapered so there wouldn't be a stress riser at the intersections, although I'm not sure if that's absolutely necessary for the forces a steerer would see.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Reply With Quote
Old 09-26-18, 03:16 AM
  #9
shuru421
Senior Member
Thread Starter

Join Date: Aug 2012
Posts: 512
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 173 Post(s)
Originally Posted by RiddleOfSteel View Post
As @Dfrost has mentioned, gugie did the repair and chronicled it on Page 5 in Post #111 in this thread. All the photos I posted mysteriously disappeared, which is a mystery. Oh well. My Paramount rides on today, a year and a half later, better than ever. He took a chance on 1) a mystery frameset and fork 2) a non-traditional way of replacing the steerer (to save the chrome) 3) some random BikeForums member with a Conan the Barbarian reference as his online handle.

Looking back, with its original Kool Lemon yellow paint, I think that it was quite a nice yellow (I'm not a yellow fan per se, but can appreciate). Maybe one day she will be painted yellow again. I do like the satin/matte black and chrome a lot, though.

All that to say, a steerer can be replaced, but if you want to save the chrome, it's super tricky, and certainly on a case-by-case basis. My Paramount's fork crown is generous in its accommodation, versus your lovely Zunow's compact fully sloping crown fork. That complicates things. And like you said, this isn't a $50 job. Mine wasn't. A local builder/shop here charges IIRC $125 for non-chrome forks and $175 for chrome forks that need a steerer replaced.

In the run-up to ultimately replacing the steerer, the sleeve-and-weld/braze idea was batted around, but I think ended up being advised against.

Apart from the repair direction, it looks like you have a monetary situation to navigate. You know how much you're into the frame, you've given a can-go-no-lower amount, yet have a friend's friend pushing you hard to take a loss on something you don't want to take a loss on, and he's being, IMO, unreasonable in that regard. It's not just the frame repair, it's the repaint, and probable repaint of the fork crown, and that adds to your cost to get the frame into "acceptable" shape for your friend's friend to buy. Semi-educated guestimate of $200-250 for all of this? [don't murder me, people, these are reasonable Seattle rate guesses]. You have a rare frame that you seem to really like, and it certainly makes for a beautiful bike. I understand the prospect of making a big chunk of money back on something, but to lose a net $300+ on the whole deal (900 buy + 200 repair and repaint = 1100 in the frameset, - 800 in sale = 300 in the hole) that you don't seem to keen on? A good part of me is of the mindset to politely tell your friend's friend to pound sand. Demands that don't take things into account, or unreasonable/low offers reek of disrespect and they are a waste of time and energy to deal with. I get the whole old school "drive a hard bargain makes you a man" thing, but I don't subscribe to that mentality (and therefore work a different strategy, to satisfactory effect) as it burns a potential long term good (friendship/relationship) for a short term gain (get what you want). We're all kind of on the same (C&V) team here, and it's not a huge team, so in a world full of friction, I'd rather not add to it.

Anyway, I'm off my soapbox. Carry on.
To be honest, he's not pushing me hard to for the sale, but he does REALLY like the bike. IM the one biting hard on the potential outcome..
I am aware of the monetary commitment I have made towards the Zunow, I paid just about 9 after the refund. So why IM giving this a hard look is because there is another frameset that could potentially be a worthy replacement. A great opportunity at a good time perhaps? Maybe. Do not get me wrong here, I love this Zunow and is a truly a machine you need to ride to appreciate (as a bike not just art), but the fact is, Ive always wanted an Merckx MX Leader and theres a local who has one in a pink/black paint that is willing to sell it to me 'for the right price'. Ideal situation, keep the Zunow and get the other frame. But reality is, I don't have another $1000+ to just dish on a frame at the moment and also, Id die (girlfriend would kill me). So this is why Im willing to take that loss.. Do you blame me? Ive alwaysssssss wanted to know how an Merckx MX Leader would ride like, and it just might happen.
shuru421 is offline
Reply With Quote
Old 09-26-18, 03:21 AM
  #10
shuru421
Senior Member
Thread Starter

Join Date: Aug 2012
Posts: 512
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 173 Post(s)
Originally Posted by gugie View Post
The the OP, I could certainly braze a new steerer in, and possibly save the chrome. The paint, however would be ruined. Splicing a new piece in would be preferrable in this case, due to the unique paint and decals. One should be able to keep the fork crown area relatively cool with a wet towel wrapped around it, I would think. A good splice would be internally tapered so there wouldn't be a stress riser at the intersections, although I'm not sure if that's absolutely necessary for the forces a steerer would see.
Hey gugie, how long does a process like this take? Any way to repair and and have it all chrome IF you chrome that is? I don't mind not being able to save the chrome since I would actually rather have it all chrome (after the repair) with the hummingbird pantos in a burgundy/maroon paint. But I guess finding someone who can chrome is another facet.
shuru421 is offline
Reply With Quote
Old 09-26-18, 03:38 AM
  #11
exmechanic89
Senior Member

exmechanic89's Avatar

Join Date: May 2015
Location: Richmond VA area
Posts: 2,635

Bikes: '00 Koga Miyata Full Pro Oval Road bike.

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 450 Post(s)
This project the way described, ie re-chroming is not gonna be cheap imo. And what if the buyer doesnt want an all chrome fork? I'd reevaluate the entire plan, honestly. Not trying to rain on your parade but you're asking a lot to be done for very little money.

Out of curiosity, how did the damage happen in the first place - over-tightened quill stem?

Last edited by exmechanic89; 09-26-18 at 03:42 AM.
exmechanic89 is offline
Reply With Quote
Old 09-26-18, 03:59 AM
  #12
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 2,650

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 93 Post(s)
Tagged: 0 Thread(s)
Quoted: 381 Post(s)

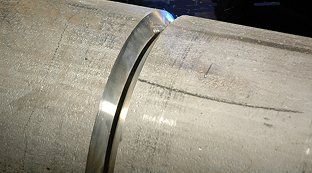

Butt Welding A New Top On A Steerer

The BEST way to do it is cut the top part of the steerer of and butt weld a new threaded section on.

The TIG weld is going to be as strong as the original steel and that's not a particularly highly stress area of the frame. The person who does it needs to have a rotating welding fixture to keep the ends accurately aligned and know what they are doing.




TIG welding will put less heat into the steerer than brazing and there's no need for a sleeve which cold cause some interference with the stem.

WARNING: welding or brazing on chrome plating releases toxic fumes. The plating should be removed in the heat affected area.

verktyg
__________________
Things aren't always what they seem... Don't believe everything you think!

Chas. ;-)
verktyg is offline
Reply With Quote
Old 09-26-18, 04:45 AM
  #13
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Fort Wayne, In
Posts: 24,748

Bikes: Too many to list here check my signature.

Mentioned: 64 Post(s)
Tagged: 2 Thread(s)
Quoted: 852 Post(s)
Frank the welder did a great job of lengthinng two steerers for a few years ago. I got some nice Tange steer tubes from a frame parts company and sent those and the forks to Frank
Bianchigirll is offline
Reply With Quote
Old 09-26-18, 07:56 AM
  #14
gugie
Crapmaster Emeritus

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 6,524

Bikes: JP Weigle'd Raleigh Competition reconstruct, 73 Raleigh Competition 650b'ed, 96 Bike Friday NWT, 83 Lotus Classique, 78 Centurion ProTour, 73 Raleigh Grand Sports

Mentioned: 611 Post(s)
Tagged: 0 Thread(s)
Quoted: 1820 Post(s)
Originally Posted by shuru421 View Post
Hey gugie, how long does a process like this take? Any way to repair and and have it all chrome IF you chrome that is? I don't mind not being able to save the chrome since I would actually rather have it all chrome (after the repair) with the hummingbird pantos in a burgundy/maroon paint. But I guess finding someone who can chrome is another facet.
Send me a PM and we can take it offline.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Reply With Quote
Old 09-26-18, 01:07 PM
  #15
gugie
Crapmaster Emeritus

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 6,524

Bikes: JP Weigle'd Raleigh Competition reconstruct, 73 Raleigh Competition 650b'ed, 96 Bike Friday NWT, 83 Lotus Classique, 78 Centurion ProTour, 73 Raleigh Grand Sports

Mentioned: 611 Post(s)
Tagged: 0 Thread(s)
Quoted: 1820 Post(s)
Originally Posted by verktyg View Post
The BEST way to do it is cut the top part of the steerer of and butt weld a new threaded section on.

The TIG weld is going to be as strong as the original steel and that's not a particularly highly stress area of the frame. The person who does it needs to have a rotating welding fixture to keep the ends accurately aligned and know what they are doing.




TIG welding will put less heat into the steerer than brazing and there's no need for a sleeve which cold cause some interference with the stem.

WARNING: welding or brazing on chrome plating releases toxic fumes. The plating should be removed in the heat affected area.

verktyg
I'd agree. If the OP can find someone to do this, that'd be my first choice. No risk to the chrome or paint, both of which are unique and specific to that frame.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Reply With Quote
Old 09-26-18, 01:22 PM
  #16
Stormy Archer
Senior Member

Stormy Archer's Avatar

Join Date: Jun 2018
Posts: 161
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 73 Post(s)
I think the seller should have refunded you more than 160.
Stormy Archer is offline
Reply With Quote
Old 09-26-18, 01:24 PM
  #17
mgopack42
Senior Member

Join Date: Apr 2018
Location: Central Valley, CA
Posts: 107

Bikes: 2011 Pinarello FP Quatro, 1994 Specialized Allez, cheap Scattante cross bike, Mid 80's Ciocc.

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 31 Post(s)
Hey Gugie,
Back in the day we used a paste of some sort to keep the heat off of the paint for adding braze ons. it worked super well and the paint with in about a 1/4 inch of the silver solder site would be untouched. still had to touch up for the area the pain was removed from. is that stuff still available, and would that keep the heat from the chrome on the crown, and the paint at the top of the legs?
mgopack42 is offline
Reply With Quote
Old 09-26-18, 02:01 PM
  #18
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 2,650

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 93 Post(s)
Tagged: 0 Thread(s)
Quoted: 381 Post(s)
Heat Shield Paste

Originally Posted by mgopack42 View Post
Hey Gugie,
Back in the day we used a paste of some sort to keep the heat off of the paint for adding braze ons. it worked super well and the paint with in about a 1/4 inch of the silver solder site would be untouched. still had to touch up for the area the pain was removed from. is that stuff still available, and would that keep the heat from the chrome on the crown, and the paint at the top of the legs?
Coldshield Thermal Paste 32 oz $27.97

https://www.eastwood.com/coldshield-thermal-paste.html

Vigor Heat Sheild Paste 16 oz $14-$18, 2 oz tube $9.00

https://www.esslinger.com/heat-shiel...paste-1lb-jar/

verktyg
__________________
Things aren't always what they seem... Don't believe everything you think!

Chas. ;-)
verktyg is offline
Reply With Quote
Old 09-26-18, 03:04 PM
  #19
LouB
Old guy on a Bike

LouB's Avatar

Join Date: Jul 2016
Location: San Antonio, TX
Posts: 483

Bikes: Trek 7.4, Gitane Super Corsa '71, Raleigh Lenton Grand Prix, Charrel '78, Tommasini Diamante, Trek Verve+

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 159 Post(s)
Call Jack at Franklin Frames in Ohio. He's a no nonsense guy and will tell you what can and cant be dont.
LouB is offline
Reply With Quote
Old 09-26-18, 03:29 PM
  #20
mgopack42
Senior Member

Join Date: Apr 2018
Location: Central Valley, CA
Posts: 107

Bikes: 2011 Pinarello FP Quatro, 1994 Specialized Allez, cheap Scattante cross bike, Mid 80's Ciocc.

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 31 Post(s)
Originally Posted by verktyg View Post
Coldshield Thermal Paste 32 oz $27.97

https://www.eastwood.com/coldshield-thermal-paste.html

Vigor Heat Sheild Paste 16 oz $14-$18, 2 oz tube $9.00

https://www.esslinger.com/heat-shiel...paste-1lb-jar/

verktyg
Yeah, what he said!
mgopack42 is offline
Reply With Quote
Old 09-26-18, 09:40 PM
  #21
RiddleOfSteel
Lugged, Dura-Ace Glory

RiddleOfSteel's Avatar

Join Date: Mar 2015
Location: Seattle, WA
Posts: 1,864

Bikes: '87 Schwinn Prologue - '74 Schwinn Paramount P15 - '8X Davidson Impulse - '85 Schwinn Peloton - '88 Masi Nuova Strada - '15 Cannondale CAAD10 Disc - '81 Trek 710

Mentioned: 119 Post(s)
Tagged: 0 Thread(s)
Quoted: 555 Post(s)
Originally Posted by shuru421 View Post
To be honest, he's not pushing me hard to for the sale, but he does REALLY like the bike. IM the one biting hard on the potential outcome..
I am aware of the monetary commitment I have made towards the Zunow, I paid just about 9 after the refund. So why IM giving this a hard look is because there is another frameset that could potentially be a worthy replacement. A great opportunity at a good time perhaps? Maybe. Do not get me wrong here, I love this Zunow and is a truly a machine you need to ride to appreciate (as a bike not just art), but the fact is, Ive always wanted an Merckx MX Leader and theres a local who has one in a pink/black paint that is willing to sell it to me 'for the right price'. Ideal situation, keep the Zunow and get the other frame. But reality is, I don't have another $1000+ to just dish on a frame at the moment and also, Id die (girlfriend would kill me). So this is why Im willing to take that loss.. Do you blame me? Ive alwaysssssss wanted to know how an Merckx MX Leader would ride like, and it just might happen.
I sensed there was some reasoning behind your willingness to let go of it--something you weren't telling us. I'm glad the guy really likes it, but still, he has to understand that there's no free lunch. At any rate, it looks like some great (and less costly) suggestions have been made and you're well on your way to resolving the whole thing. I understand, we like what we like and we seek to get it via any legal way possible, finances willing. Welcome to the club.
RiddleOfSteel is offline
Reply With Quote
Old 09-26-18, 10:14 PM
  #22
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 19,729
Mentioned: 119 Post(s)
Tagged: 0 Thread(s)
Quoted: 6916 Post(s)
I thought I'd posted here, but....

If you are planning on selling the frame, I'd get some contacts, perhaps some quotes for the work, but leave the actual repair to your buyer. That way it takes you out of the loop of liability, and allows the buyer to make the ultimate choice of threaded or threadless.

If you're planning to keep the frame, go ahead and get the fork repaired. The matching fork will look nice.
CliffordK is offline
Reply With Quote
Old 09-27-18, 07:41 AM
  #23
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 4,787

Bikes: I'd rather not count how many, thank you

Mentioned: 106 Post(s)
Tagged: 0 Thread(s)
Quoted: 775 Post(s)
Honestly, if it were me, I'd keep the Zunow and have the fork fixed. More rare, arguably more collectible, certainly a beauty.

An MX Leader or MXL/MAX bike is not going to handle any better unless you are a really big guy who puts out a lot of watts.

And I say that as someone who owns a Zunow and has owned (and sold) five MAX tubing frames.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Reply With Quote
Old 11-08-18, 12:18 PM
  #24
shuru421
Senior Member
Thread Starter

Join Date: Aug 2012
Posts: 512
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 173 Post(s)
A quick update and new question!

FORTUNATELY, the Mx Leader deal did not go through, and the last 2 posts were convincing enough for me to be happy it didnt!

I have a "new" Zunow fork on the way! Bought from Brewsmith (thank you!!) from the FS section and the anticipation is killing me! It is an aero model, straight blade fork in red. However, I will have to send out the fork to get the appropriate steerer tube length (I believe it is too short for my frame currently). I believe the combination of the 2 will result in a very unique Zunow. The new fork has seriously motivated me to consider repainting the entire frame/fork to match. Now the question is, where to find the same Zunow decals you see on my frame for repaint purposes. Ive googled and can only find the older versions with the Zunow with the "O" in a spade shape. I like the style of decals that I currently have ("O" in a shooting star style) so I was hoping someone could guide me to where I can source one for this exciting project. Help?
shuru421 is offline
Reply With Quote
Old 11-08-18, 02:43 PM
  #25
rhm
multimodal commuter

rhm's Avatar

Join Date: Nov 2006
Location: NJ, NYC, LI
Posts: 18,485

Bikes: 1940s Fothergill, 1959 Allegro Special, 1963? Claud Butler Olympic Sprint, Lambert 'Clubman', 1974 Fuji "the Ace", 1976 Holdsworth 650b conversion rando bike, 1983 Trek 720 tourer, 1984 Counterpoint Opus II, 1993 Basso Gap, 2010 Downtube 8h, and...

Mentioned: 358 Post(s)
Tagged: 0 Thread(s)
Quoted: 1267 Post(s)
I realize this idea is long past its due date, but I'm curious anyway.


Would it be possible to force the tube back to the right shape and then TIG weld that split shut? You'd have to remove the plating and clean up the split before welding, and afterwards you'd have to ream the inside of the steerer and run a die down the threads to clean up the threads. You'd lose the groove; but wouldn't it be strong enough?
__________________
I put new leather on ruined saddles like Brooks, etc. You can reach me by private message.
rhm is offline
Reply With Quote

Thread Tools
Search this Thread

Contact Us Archive Advertising Cookie Policy Privacy Statement Terms of Service
