Peugeot find

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Peugeot find

Old 09-25-18, 04:20 PM
  #1
stykthyn
Senior Member
Thread Starter

Join Date: Nov 2012
Posts: 330
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Liked 1 Time in 1 Post
Peugeot find

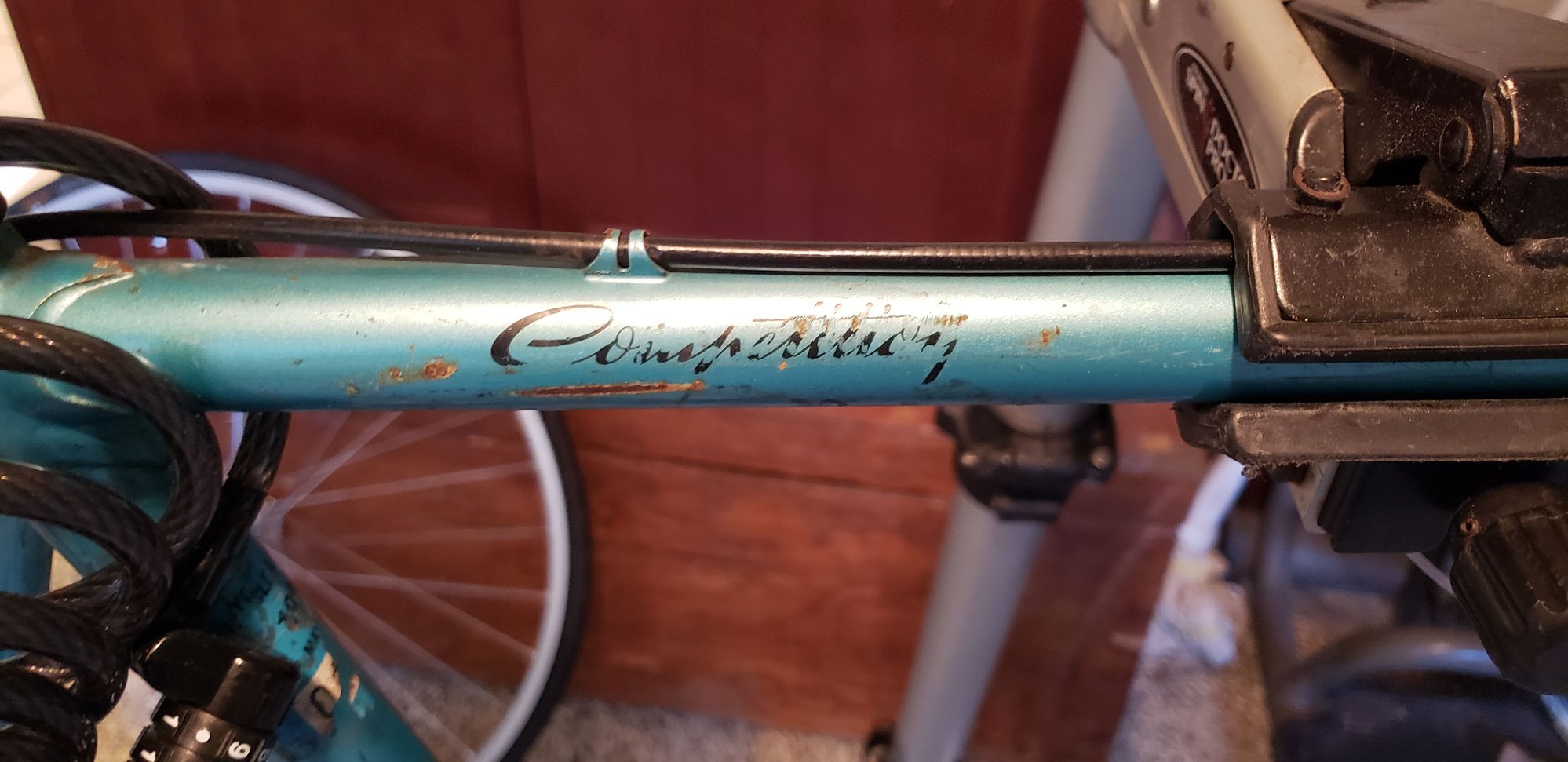

I found this bike. . Literally found it abandoned. Waited a week and no one had claimed it so i brought it home. Appears to be a 79 to 81 pkn10e, but the crank doesnt have the drilled chainrings so i am unsure.. any help? Would it be worth restoring? I do love the process, but i don't really have any feelings towards this machine one way or the other so i would likely gift it or sell it. Functionally it's all there. Rear wheel is off in the pics but i have it.




stykthyn is offline
Old 09-25-18, 04:26 PM
  #2
ryansu
Ride.Smile.Repeat

ryansu's Avatar

Join Date: May 2011
Location: Seattle WA
Posts: 2,863

Bikes: 2009 Handsome Devil, 1987 Trek 520 Cirrus, 1978 Motobecane Grand Touring, 1987 Nishiki Cresta GT, 1989 Specialized Allez Former bikes; 1986 Miyata Trail Runner, 1979 Miyata 912, 2011 VO Rando, 1999 Cannondale R800, 1986 Schwinn Passage

Mentioned: 72 Post(s)
Tagged: 0 Thread(s)
Quoted: 787 Post(s)
Liked 497 Times in 356 Posts
I'd restore that always liked that era of Peugeot bike colors and decals, I bet it will clean up nicely and be a good rider for someone. I would be thrilled if that model/Era Peugeot fell into my lap. This link may be helpful in identifying the frame.
ryansu is offline
Old 09-25-18, 04:30 PM
  #3
stykthyn
Senior Member
Thread Starter

Join Date: Nov 2012
Posts: 330
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Liked 1 Time in 1 Post
Originally Posted by ryansu View Post
I'd restore that always liked that era of Peugeot bike colors and decals, I bet it will clean up nicely and be a good rider for someone. I would be thrilled if that model/Era Peugeot fell into my lap. This link may be helpful in identifying the frame.
thanks for the link. Looks like a 79. At the very least i will cut/buff the paint and polish the shiny bits. It rides silky smooth and even with that monstrosity of a seat it comes in under 25 pounds. Not a bad machine. Just don't want to pour money into it.

Last edited by stykthyn; 09-25-18 at 04:44 PM.
stykthyn is offline
Old 09-25-18, 04:44 PM
  #4
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 10,466
Mentioned: 300 Post(s)
Tagged: 1 Thread(s)
Quoted: 2422 Post(s)
Liked 688 Times in 555 Posts
-----

Great find!

Yes, that Troxel, or whatever it is, has GOT to go.


​​​​​​​-----
juvela is online now
Old 09-25-18, 04:58 PM
  #5
seamuis
aire dŪthrub

seamuis's Avatar

Join Date: Sep 2017
Location: chatham-savannah
Posts: 553

Bikes: Raleigh Competition, Pashley Roadster Sovereign, Mercian Vincitore Speciale

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 258 Post(s)
Likes: 0
Liked 51 Times in 32 Posts
Those dropouts leads me to believe itís an 80. Everything else seems to fit with it being an 80 except the crankset. Could easily enough be a Peugeot anomaly. The 79-80 time was a big transition period for Peugeot and its pretty common that the bikes that ended up at the shops for sale didnít perfectly match what the brochures outlined. So it wouldnít at all surprise me to see an Ď80 model sporting a Ď79 crankset. I owned what I believe is a Ď79 and it had the older type simplex dropouts and mafac centerpulls. But for all I know, mine could have been an anomaly because it was silver, which according to the brochures wasnít available in 79 or 80. Could have been a replacement crankset by a previous owner as well. No way know. Decent bike. The 3 main tubes are straight gauge (non butted) Reynolds 531, the rest of the frame is whatever steel Peugeot manufactured. Most likely carbolite 103. The real challenge will be removing that crankset to service the bottom bracket.

Last edited by seamuis; 09-25-18 at 05:08 PM.
seamuis is offline
Old 09-25-18, 05:05 PM
  #6
stykthyn
Senior Member
Thread Starter

Join Date: Nov 2012
Posts: 330
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Liked 1 Time in 1 Post
Originally Posted by seamuis View Post
Those dropouts leads me to believe itís an 80. Everything else seems to fit with it being an 80 except the crankset. Could easily enough be a Peugeot anomaly. The 79-80 time was a big transition period for Peugeot and its pretty common that the bikes that ended up at the shops for sale didnít perfectly match what the brochures outlined. So it wouldnít at all surprise me to see an Ď80 model sporting a Ď79 crankset. I owned what I believe is a Ď79 and it had the older type simplex dropouts and mafac centerpulls. Could have been a replacement crankset by a previous owner as well. No way know. Decent bike. The 3 main tubes are straight gauge (non butted) Reynolds 531, the rest of the frame is whatever steel Peugeot manufactured. Most likely carbolite 103. The real challenge will be removing that crankset to service the bottom bracket.
Do you know if it's french threaded?
stykthyn is offline
Old 09-25-18, 05:12 PM
  #7
seamuis
aire dŪthrub

seamuis's Avatar

Join Date: Sep 2017
Location: chatham-savannah
Posts: 553

Bikes: Raleigh Competition, Pashley Roadster Sovereign, Mercian Vincitore Speciale

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 258 Post(s)
Likes: 0
Liked 51 Times in 32 Posts
Originally Posted by stykthyn View Post
Do you know if it's french threaded?
as with everything else Peugeot thatís a difficult question to answer. Could be, could not be. The 79-80 model years was when Peugeot was moving over to using English standard for their bikes. My example, believe it or not was literally a mix. It did have french threaded bb though. If yours is an 80 model, especially if itís closer in date to 81, thereís a better chance itís english. If it is a 79 or early 80 thereís a better chance itís french. Iím far from an expert but I did do a lot of research when I came into possession of my pkn10 in trying to identify and date it. Peugeot was an absolute mess at the time, and Iím not sure anything they produced properly matched their sales brochures.
seamuis is offline
Old 09-25-18, 05:18 PM
  #8
stykthyn
Senior Member
Thread Starter

Join Date: Nov 2012
Posts: 330
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Liked 1 Time in 1 Post
Thanks for the reply. BB feels smooth. Someone went through some effort to keep things smooth on the not too distant past. It was clearly someone's daily transportation. Unfortunately i think it was stolen and abandoned.
stykthyn is offline
Old 09-25-18, 05:36 PM
  #9
seamuis
aire dŪthrub

seamuis's Avatar

Join Date: Sep 2017
Location: chatham-savannah
Posts: 553

Bikes: Raleigh Competition, Pashley Roadster Sovereign, Mercian Vincitore Speciale

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 258 Post(s)
Likes: 0
Liked 51 Times in 32 Posts
Originally Posted by stykthyn View Post
Thanks for the reply. BB feels smooth. Someone went through some effort to keep things smooth on the not too distant past. It was clearly someone's daily transportation. Unfortunately i think it was stolen and abandoned.
well best I can assume is that if it feels like it was serviced thereís a better chance itís english. But English threaded doesnít mean that it uses English standard 22mm crank puller. It will most likely still be the stronglight proprietary 23.35mm, in fact Iíd bet on it. I donít know that I would ride or restore to sell a rescued bike without doing a service overhaul, but I would also not presume to tell anyone else what they should do. At the end of the day, wether itís a 79 or 80 doesnít really make a difference. The frames were essentially the same and itís a decent bike all around.
seamuis is offline
Old 09-25-18, 05:40 PM
  #10
stykthyn
Senior Member
Thread Starter

Join Date: Nov 2012
Posts: 330
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Liked 1 Time in 1 Post
I'll hit up my co op and ask them to inspect the bottom end. They specialize in old steel, I'm sure they would have the tools to get it done.
stykthyn is offline
Old 09-25-18, 06:54 PM
  #11
Slightspeed
Senior Member

Slightspeed's Avatar

Join Date: Apr 2017
Location: Los Angeles, CA
Posts: 2,207

Bikes: 1964 Legnano Roma Olympiade, 1973 Raleigh Super Course, 1978 Raleigh Super Course, 1978 Peugeot PR10, 2002 Specialized Allez, 2007 Specialized Roubaix, 2013 Culprit Croz Blade

Mentioned: 64 Post(s)
Tagged: 0 Thread(s)
Quoted: 720 Post(s)
Liked 688 Times in 377 Posts

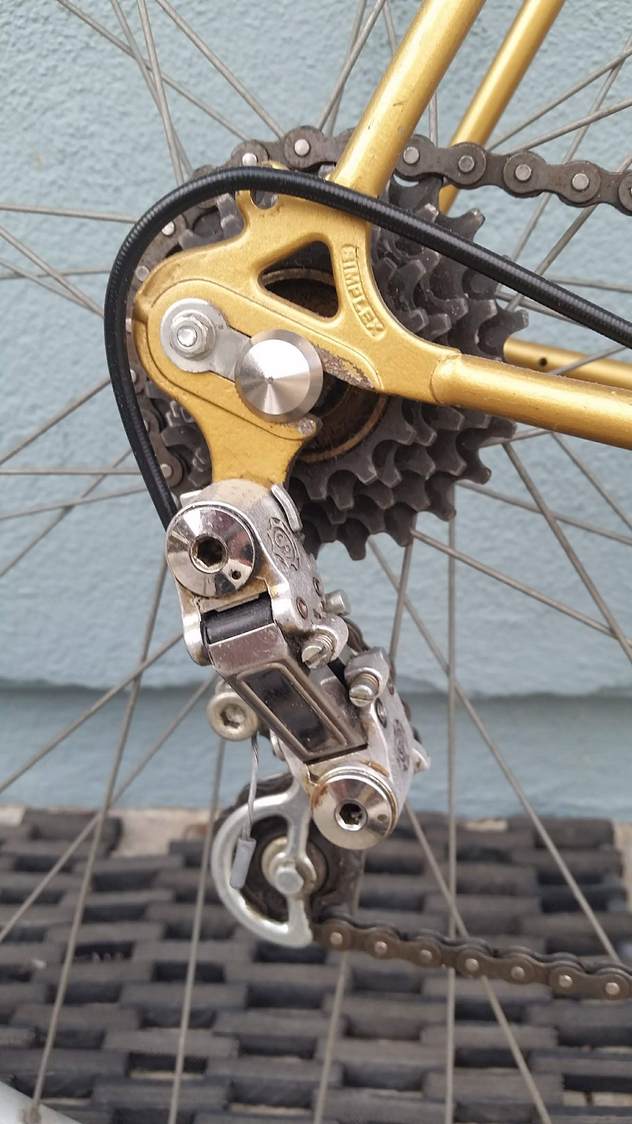

It looks very similar to my '78, which I think is a PR10, though advertised as a PN10. The Pug model numbers are especially confusing. The decals and frame look similar to mine, but I have Mafac center pulls, and the clear plastic covered head badge. It is a great riding bike. Mine came with a Stronglight TS crank, with a stripped pedal thread. I removed the TS with great difficulty, and mounted a Sugino GT compact double. Good luck with yours. That was a great time for Pugeout color/decal combinations. I changed the brake levers to Campy aero, since it had incorrect ones when I got it anyway. The front Simplex plastic derailleur was broken so I replaced it temporarily with a Shimano Exage, which seems to work. Mine doesn't have the threaded drop out screw adjusters. Heres mine.

Last edited by Slightspeed; 09-25-18 at 07:35 PM.
Slightspeed is offline
Old 09-25-18, 07:01 PM
  #12
stykthyn
Senior Member
Thread Starter

Join Date: Nov 2012
Posts: 330
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Liked 1 Time in 1 Post
Originally Posted by slightspeed View Post
it looks very similar to my '78, which i think is a pr10, though advertised as a pn10. The pug model numbers are especially confusing. The decals and frame look similar to mine, but i have mafac center pulls, and the clear plastic covered head badge. It is a great riding bike. Mine came with a stronglight ts crank, with a stripped pedal thread. I removed the ts with great difficulty, and mounted a sugino gt compact double. Good luck with yours. That was a great time for pugeout color/decal combinations. I changed the brake levers to campy aero, since it had incorrect ones when i got it anyway. The front simplex plastic derailleur was broken so i replaced it temporarily with a shimano exage, which seems to work. Mine doesn't have the threaded drop out screw adjusters. Heres mine.
nice!!!
stykthyn is offline
Old 09-25-18, 07:30 PM
  #13
seamuis
aire dŪthrub

seamuis's Avatar

Join Date: Sep 2017
Location: chatham-savannah
Posts: 553

Bikes: Raleigh Competition, Pashley Roadster Sovereign, Mercian Vincitore Speciale

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 258 Post(s)
Likes: 0
Liked 51 Times in 32 Posts
Originally Posted by Slightspeed View Post
It looks very similar to my '78, which I think is a PR10, though advertised as a PN10. The Pug model numbers are especially confusing. The decals and frame look similar to mine, but I have Mafac center pulls, and the clear plastic covered head badge. It is a great riding bike. Mine came with a Stronglight TS crank, with a stripped pedal thread. I removed the TS with great difficulty, and mounted a Sugino GT compact double. Good luck with yours. That was a great time for Pugeout color/decal combinations. I changed the brake levers to Campy aero, since it had incorrect ones when I got it anyway. The front Simplex plastic derailleur was broken so I replaced it temporarily with a Shimano Exage, which seems to work. Mine doesn't have the threaded drop out screw adjusters. Heres mine.
yours has the pre 1979 decal scheme, but it does have the older style simplex dropouts that my (believed) Ď79 has. The key in my opinion though on the model year of the OPs bike is that his frame has water bottle bosses. Regardless of everything else, I donít know of any literature pre 1980 that had a pk10 or similar model with bosses. That was included on this model starting in 1980.
seamuis is offline
Old 09-25-18, 07:43 PM
  #14
Slightspeed
Senior Member

Slightspeed's Avatar

Join Date: Apr 2017
Location: Los Angeles, CA
Posts: 2,207

Bikes: 1964 Legnano Roma Olympiade, 1973 Raleigh Super Course, 1978 Raleigh Super Course, 1978 Peugeot PR10, 2002 Specialized Allez, 2007 Specialized Roubaix, 2013 Culprit Croz Blade

Mentioned: 64 Post(s)
Tagged: 0 Thread(s)
Quoted: 720 Post(s)
Liked 688 Times in 377 Posts
Originally Posted by seamuis View Post

yours has the pre 1979 decal scheme, but it does have the older style simplex dropouts that my (believed) Ď79 has. The key in my opinion though on the model year of the OPs bike is that his frame has water bottle bosses. Regardless of everything else, I donít know of any literature pre 1980 that had a pk10 or similar model with bosses. That was included on this model starting in 1980.
My gold one does not have bottle mount bosses, or the braze on top tube cable guides, both of which I wish it had, but I do like the head badge.
Slightspeed is offline
Old 09-26-18, 07:56 AM
  #15
ollo_ollo
Senior Member

ollo_ollo's Avatar

Join Date: Nov 2003
Location: Near Sublimity Orygun
Posts: 4,931

Bikes: Still have a few left!

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 345 Post(s)
Liked 79 Times in 50 Posts
Appears identically equipped, component wise, as my 79 PKN10. My bottom bracket spindle was embossed with a "07 79" date. Suggest you clean, lube, adjust and ride it, then decide if you want to sell. They are a great C&V ride. Don
edit PKN10e brochure link: https://www.bikeboompeugeot.com/Broch...ompetition.jpg
Attached Images
File Type: jpg

Last edited by ollo_ollo; 09-26-18 at 08:11 AM. Reason: add brochure link
ollo_ollo is offline
Old 09-26-18, 08:49 AM
  #16
Hudson308
Mr. Anachronism

Hudson308's Avatar

Join Date: Jan 2013
Location: Somewhere west of Tobie's
Posts: 2,033

Bikes: fillet-brazed Chicago Schwinns, and some other stuff

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 506 Post(s)
Liked 196 Times in 134 Posts
Originally Posted by stykthyn View Post
Someone went through some effort to keep things smooth on the not too distant past. It was clearly someone's daily transportation. Unfortunately i think it was stolen and abandoned.
In the event you want to make one more stab at finding the owner, you can place a "bike found" ad on Craigslist and give a vague description of the bike and where it was found (blue bike found near 4th & Main). Ask for specifics to verify ownership. I've done that a couple of times when a bike seemed too nice to have been abandoned.
__________________
"If we don't change direction soon, we'll end up where we're going." -Irwin Corey
Hudson308 is online now
Old 09-26-18, 09:54 AM
  #17
sdn40
Senior Member

Join Date: Sep 2016
Location: Green Bay, WI
Posts: 553

Bikes: 88 Cannondale Criterium

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 247 Post(s)
Liked 79 Times in 51 Posts
Those Peugeots will always be top 3 for me as far as paint and decals go
sdn40 is online now
Old 09-26-18, 11:38 AM
  #18
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 3,412

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 167 Post(s)
Tagged: 0 Thread(s)
Quoted: 748 Post(s)
Liked 416 Times in 278 Posts
1983 psv-10

I finally got around to putting together my 1983 PSV-10 that I bought as a frame with cranks, headset, brake calipers and FD back in 2010.



The cranks were Stronglight 104 with drilled chainrings. When I overhauled the BB I was surprised to find that it was Swiss metric with a LH threaded fixed cup. I was expecting British thread on a 1983 Peugeot. It was low quality Peugeot branded rather than Stronglight.

I used my "gauge" cups to make sure that the threads were 35mm x 1 not British. The cups and spindle were toast. Fortunately I had a couple of mismarked NOS Swiss fixed cups and put in a NOS Stronglight BB.


The original Peugeot spindle was 120mm wide rather than the standard Stronglight 118mm so I used a 120mm replacement. After assembly and several re-torquings of the crank arm bolts I figured out why they used a 120mm spindle. The Stronglight 104 crank arms are cast not forged like most previous model Stronglight cranks: 49, 57, 63, 93, 1st generation 99, 105, 106...

The square is cast in rather than broached and the aluminum is softer and seats onto the spindle further.



I updated the plastic Stronglight B10 headset to one of the current model A9 headsets with sealed cartridge ball bearings plus installed Stronglight retrofriction levers. Fortunately I had a set of Mavic Module-E wheels with low flange Normandy Competition Luxe hubs that were spec'd for this bike.

Finished. It rides and handles GREAT!



BTW @seamuis I don't recall ever seeing any French bikes after about 1975 that had straight gage Reynolds 531 tubing. 3 TUBES RENFORCES means only the 3 main tube tubes are butted Reynolds 531.


@stykthyn That saddle is grossly obscene! More so than the old mattress Troxel saddles of the mid 70's.

Also, just my opinion but for Karmic reasons, I'd make a concerted effort to see if you could find the owner in case it was stolen. You can find abandoned bikes around college campuses in June at the end of school year but not so much at the beginning of a semester.

I've found several stolen bikes over the years and it was a good feeling reuniting them with their owners.

verktyg
__________________
Things aren't always what they seem... Don't believe everything you think!

Chas. ;-)

Last edited by verktyg; 09-26-18 at 11:51 AM.
verktyg is offline
Old 09-26-18, 02:19 PM
  #19
stykthyn
Senior Member
Thread Starter

Join Date: Nov 2012
Posts: 330
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Liked 1 Time in 1 Post
I put a message out on the local fb groups. I'll keep it safe for a while. If no one steps forward I'll likely just take it in to the co-op and have them address the bottom bracket. I'll look for a period correct rear wheel and seat while I'm there. It's a shame to see so many bikes that have giant cruiser seats on them. I will never understand it.
stykthyn is offline
Old 11-08-18, 06:39 PM
  #20
stykthyn
Senior Member
Thread Starter

Join Date: Nov 2012
Posts: 330
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Liked 1 Time in 1 Post
Couldn't get anyone to claim this machine so ive decided to keep it and make it my commuter. Had the shop go through the bottom bracket and wheel hubs. Swapped aero brakes up front and put a set of correct wheels i had in storage from a previous build. It rides so sweet. This is the single best friction shifting bike ive ever been on. It just falls into gear.
stykthyn is offline
Old 11-08-18, 07:01 PM
  #21
stykthyn
Senior Member
Thread Starter

Join Date: Nov 2012
Posts: 330
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Liked 1 Time in 1 Post
stykthyn is offline
Old 11-08-18, 08:10 PM
  #22
desconhecido
Senior Member

Join Date: Mar 2010
Posts: 1,795
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 399 Post(s)
Liked 123 Times in 97 Posts
Originally Posted by stykthyn View Post
Couldn't get anyone to claim this machine so ive decided to keep it and make it my commuter. Had the shop go through the bottom bracket and wheel hubs. Swapped aero brakes up front and put a set of correct wheels i had in storage from a previous build. It rides so sweet. This is the single best friction shifting bike ive ever been on. It just falls into gear.
Those old Simplex derailleurs worked pretty well. Even the plastic ones, until the wheels fell apart or the Delrin failed. The better Hurets worked pretty well also. I think the Simplex derailleurs worked at least as well as the NR.
desconhecido is offline
