Peugeot PX10LE?

Old 10-04-18, 07:08 PM
  #1
Mr_Asifi
Senior Member
Thread Starter

Mr_Asifi's Avatar

Join Date: Jun 2018
Location: Hayward, CA
Posts: 94

Bikes: 1983 Peugeot PSV10

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 28 Post(s)
Likes: 0
Liked 5 Times in 2 Posts
Peugeot PX10LE?

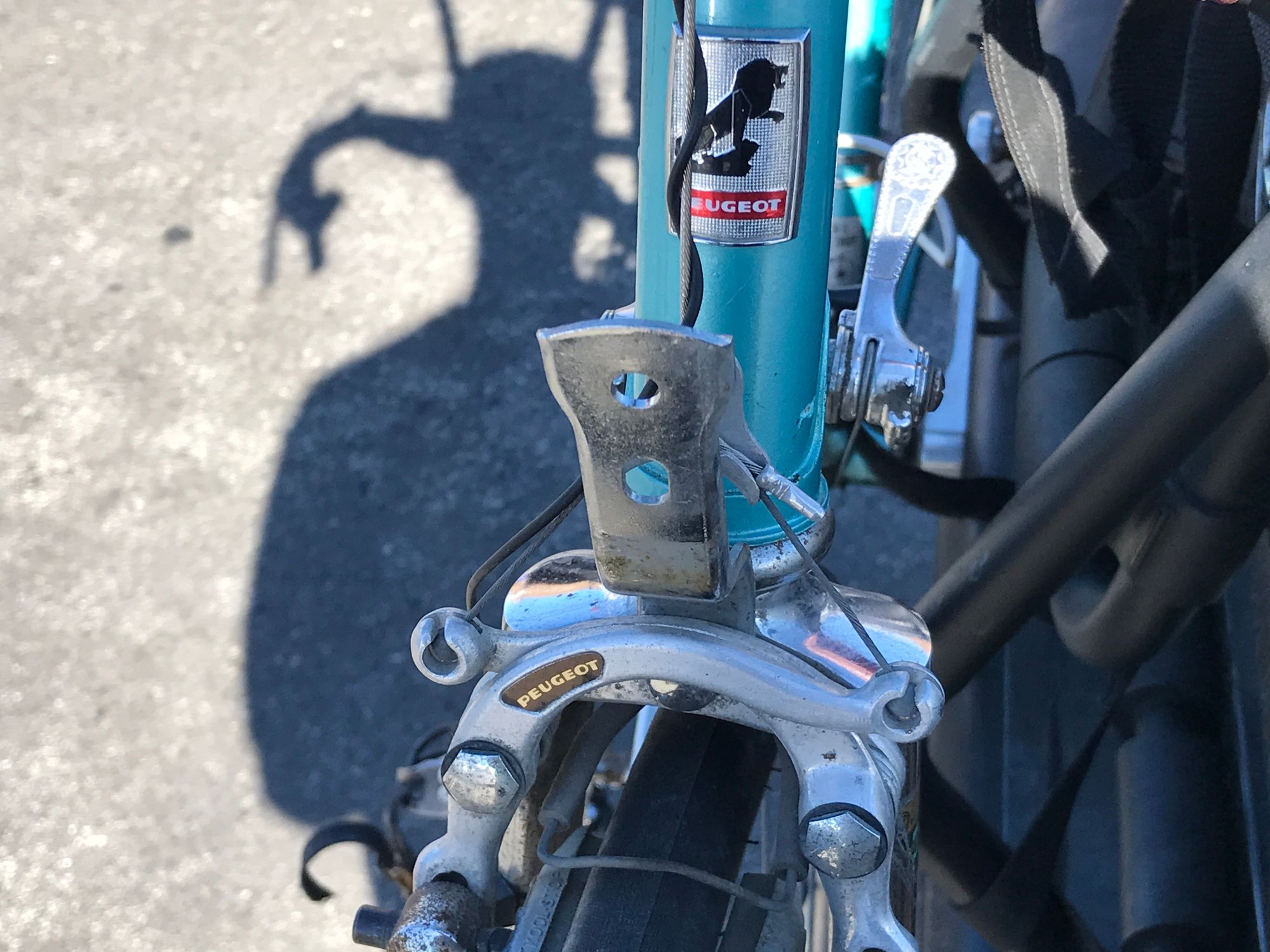

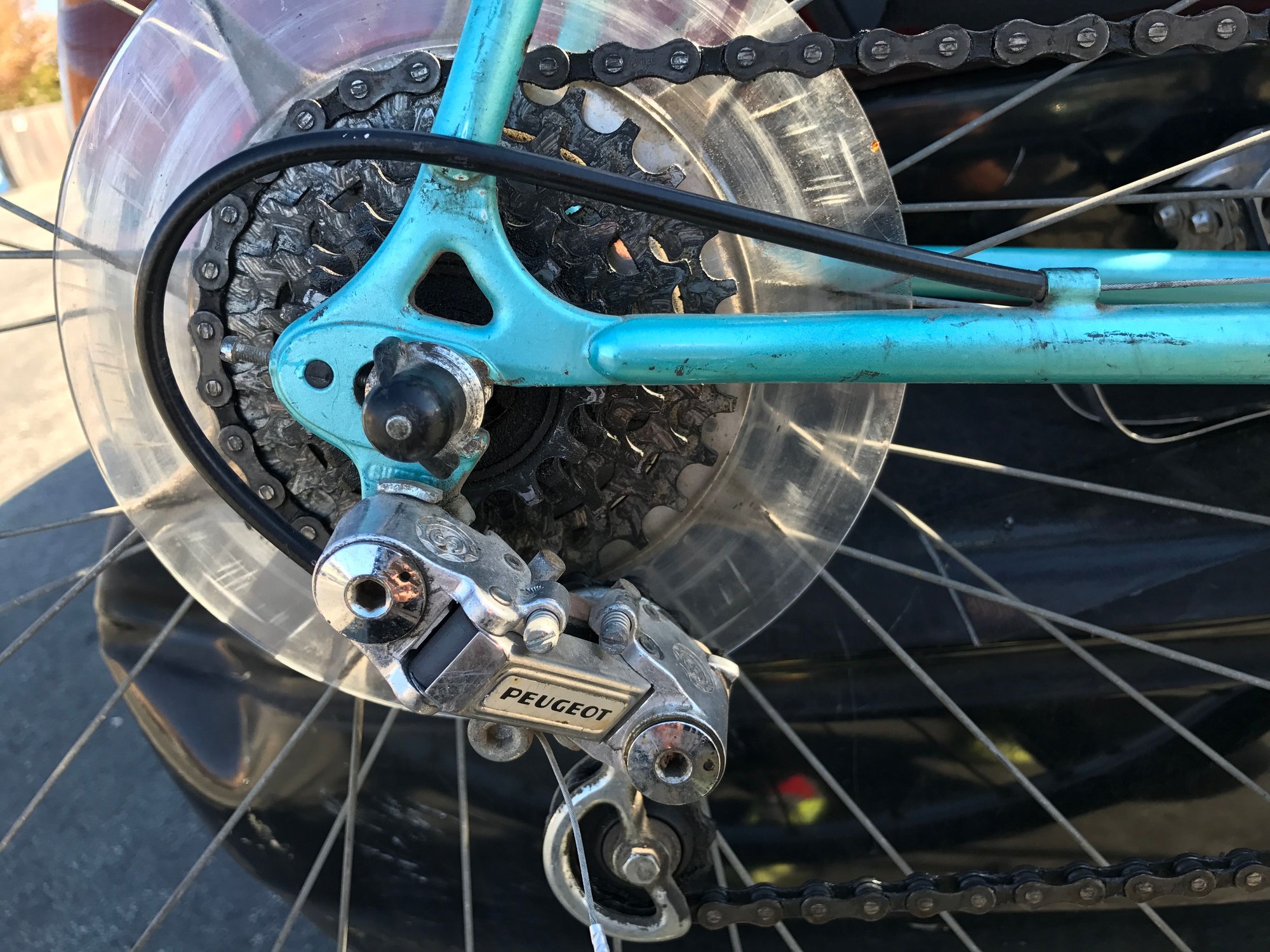

I'm trying to match my recently acquired Peugeot to the USA Catalogs on bikeboompeugeot and the closest match I can find is the 1979 Super Competition PX10LE. But, the top tube has only a "Comptetion" decal.

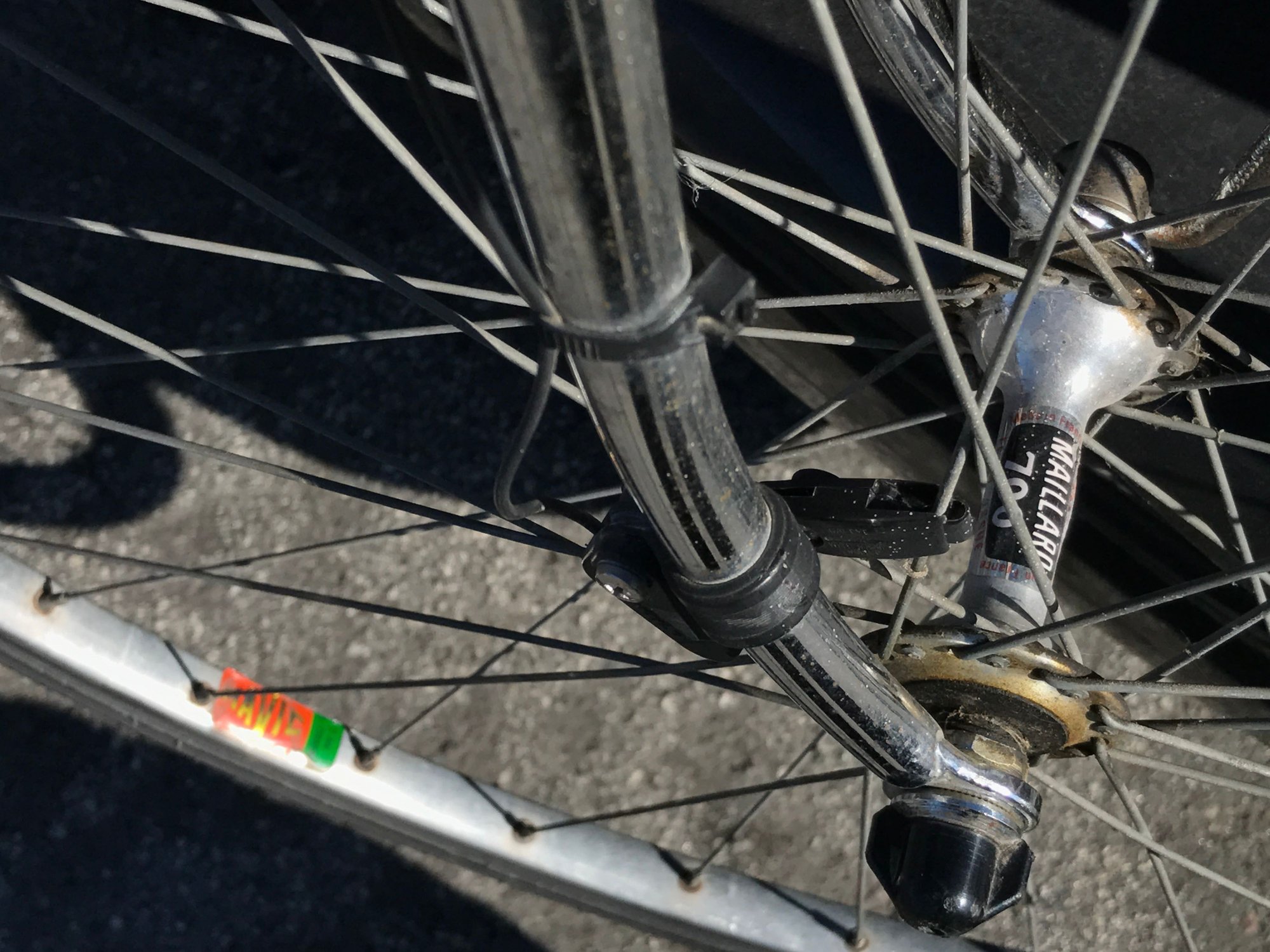

The specs check off but only thing that doesn't is the fully chromed fork on mine.

I haven't done any work to the bike but enjoy the ride. If it's not actually a PX10LE, I'm still happy I paid $160 for it. The seller said it was her grandma's bike

What do you guys think?
Mr_Asifi is offline
Old 10-04-18, 07:45 PM
  #2
Hudson308
Mr. Anachronism

Hudson308's Avatar

Join Date: Jan 2013
Location: City of Lakes
Posts: 1,520

Bikes: fillet-brazed Chicago Schwinns, and some other stuff

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 338 Post(s)
Likes: 0
Liked 14 Times in 11 Posts
PKN10? The full chrome fork is throwing me, along with the crank, but the frame does say "Competition".

__________________
"If we don't change direction soon, we'll end up where we're going." -Irwin Corey

Last edited by Hudson308; 10-04-18 at 07:49 PM.
Hudson308 is offline
Old 10-04-18, 08:09 PM
  #3
Mr_Asifi
Senior Member
Thread Starter

Mr_Asifi's Avatar

Join Date: Jun 2018
Location: Hayward, CA
Posts: 94

Bikes: 1983 Peugeot PSV10

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 28 Post(s)
Likes: 0
Liked 5 Times in 2 Posts
Originally Posted by Hudson308 View Post
PKN10? The full chrome fork is throwing me, along with the crank, but the frame does say "Competition".
I was thinking PKN10 as well but along with crank and fork, the brakes are Mafac center pull labeled as Peugeot and not Weinman. But, thanks.

Last edited by Mr_Asifi; 10-04-18 at 08:17 PM.
Mr_Asifi is offline
Old 10-05-18, 02:17 AM
  #4
1simplexnut
Senior Member

1simplexnut's Avatar

Join Date: Jul 2014
Location: New Zealand
Posts: 473

Bikes: 1963? Anquetil , 1973 PX10,1979 PX10,1984 PX10, VITUS 979 PX10DU,1970S ALAN,1985 PSV10,1980s PY10FC,1978 bERTIN,ALAN carbon

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 58 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Originally Posted by Mr_Asifi View Post


I was thinking PKN10 as well but along with crank and fork, the brakes are Mafac center pull labeled as Peugeot and not Weinman. But, thanks.
Angled 531 decal above shifters normally means PX10 of some sort :-)

Nice colour ! Enjoy the ride
1simplexnut is offline
Old 10-05-18, 02:37 AM
  #5
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 2,761
Mentioned: 89 Post(s)
Tagged: 0 Thread(s)
Quoted: 969 Post(s)
Likes: 0
Liked 4 Times in 4 Posts
Originally Posted by 1simplexnut View Post
Angled 531 decal above shifters normally means PX10 of some sort :-)

Nice colour ! Enjoy the ride
Nice colour ! Enjoy the ride[/QUOTE]
​​​​​​​+1 on the angled 531 decal.....
__________________
72 Line Seeker
83 Davidson Signature
84 Peugeot PSV
84 Peugeot PY10FC
84 Gitane Tour de France.
85 Vitus Plus Carbone 7
86 ALAN Record Carbonio
86 Medici Aerodynamic (Project)
88 Pinarello Montello
89 Bottecchia Professional Chorus SL
95 Trek 5500 OCLV (Project)
Chombi1 is offline
Old 10-05-18, 03:45 AM
  #6
Poguemahone
Vello Kombi, baby

Poguemahone's Avatar

Join Date: Dec 2002
Location: Je suis ici
Posts: 5,328

Bikes: 1973 Eisentraut; 1970s Richard Sachs; 1978 Alfio Bonnano; 1967 Peugeot PX10

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 80 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Yes, not a PK. Sloppy day with the decals at the factory I think. A PX10 LE. Circa 1980.
__________________
"It's always darkest right before it goes completely black"

Waste your money! Buy my comic book!
Poguemahone is offline
Old 10-05-18, 06:11 AM
  #7
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,818
Mentioned: 430 Post(s)
Tagged: 1 Thread(s)
Quoted: 2472 Post(s)
Likes: 0
Liked 58 Times in 54 Posts
I'm leaning heavily towards a mislabeled PXN10LE Super Competition. During this era the full Reynolds 531 models did not have eyelets on the dropouts, whereas the PK10 variants, with their lower grade stays and forks, had dropout eyelets. Also, the Reynolds 531 forks used a different, higher grade crown. Since the OP's bicycle has the higher grade fork crown and does not have eyelet dropouts, I strongly suspect the applied model name is incorrect. The full chrome fork is probably a change made after the catalogue was issued. The serial number will tell us the exact build date.
T-Mar is offline
Old 10-05-18, 06:24 AM
  #8
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 19,404

Bikes: 1959 & 1960 Capo; 1982 Bianchi; 1988 Schwinn KOM-10;

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 697 Post(s)
Liked 20 Times in 20 Posts
Assuming the Reynolds 531 sticker and the fork are original, it indeed is a PX-10 Super Competition, and T-Mar's suggestion regarding rear dropout eyelets is another strong clue.

My 1980 PKN-10 (rear dropout eyelets, half-chrome fork, non-diagonal Reynolds "3 tubes renforces" sticker) was a great bike, but I can attest to sloppy workmanship of that era -- everything from decal placement to brazing voids and splatter.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324
Capo: 1960 Sieger (2), S/N 42624, 42597
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Old 10-05-18, 08:10 AM
  #9
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 6,526

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 78 Post(s)
Tagged: 0 Thread(s)
Quoted: 533 Post(s)
Likes: 0
Liked 19 Times in 19 Posts

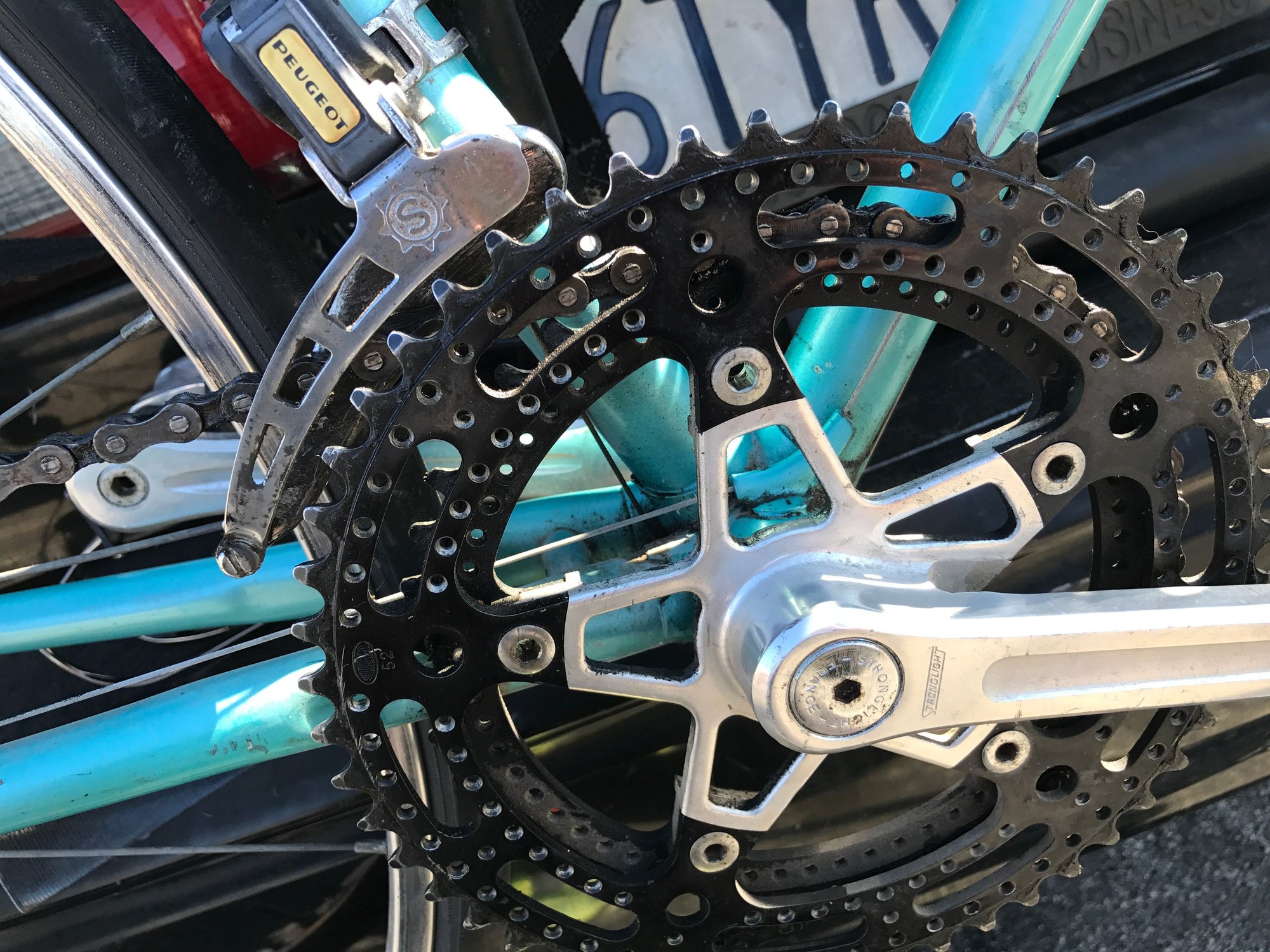

Especially that this bike's unusual crankset/chainrings is the exact 1980 PX10E item that would be hard to find, and that the shifters are Retrofriction, just adds to the complete PX10E picture.

I hesitate to be too critical of Peugeot's QC in these likely cash-strapped years, and it's nothing like the sort of issues that came out of the Carlton factory in 1973.
A decal swap done to get a shipment of bikes out the door when the SC decals perhaps ran short could have been a well-considered and reasonable decision, and makes the OP's bike somewhat the proverbial "sleeper".

I also have to give Peugeot credit for developing their lugless construction methods used later on their lesser models, which saved enough weight to allow these 501/Carbolite-tubed bikes to compete on weight terms with this premium PX10E model (I weighed them recently and they are VERY close), and which might have kept them in the game for a few more years before profit losses resulted in severe declines in production numbers.

These models from the 80's have angles near 74-degrees (on frames in the 58cm size range) and are sprightly performers.
dddd is offline
Old 10-05-18, 09:53 AM
  #10
Mr_Asifi
Senior Member
Thread Starter

Mr_Asifi's Avatar

Join Date: Jun 2018
Location: Hayward, CA
Posts: 94

Bikes: 1983 Peugeot PSV10

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 28 Post(s)
Likes: 0
Liked 5 Times in 2 Posts
Thanks everyone!

Going to clean and overhaul what's needed soon. I love the colors but can't look at the bike long because of the saddle and handlebars. Both are comfortable but almost too comfortable.

I'm not too picky about having the original saddle, seatpost, stem, and handlebars. I'm probably going to go with a used Brooks B17 in black and...not sure about stem and handlebars but definitely something not so wide as they are right now.
Mr_Asifi is offline
Old 10-05-18, 09:57 AM
  #11
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 15,118

Bikes: A bunch of old bikes and a few new ones

Mentioned: 107 Post(s)
Tagged: 0 Thread(s)
Quoted: 3608 Post(s)
Liked 63 Times in 56 Posts
Great find and great color. The bar and stem will be 25.0 and 22.0 respectively. The PO likely modified the stem to fit. Not a big deal but something you need to be aware of. You can sand down a 22.2 stem to fit and there are 22.2 stems that sometimes drop right in (Origin 8 stems usually work and don't look too bad on a vintage bike; nitto stems are supposed to work sometimes as well).
bikemig is offline
Old 11-12-18, 05:26 PM
  #12
Mr_Asifi
Senior Member
Thread Starter

Mr_Asifi's Avatar

Join Date: Jun 2018
Location: Hayward, CA
Posts: 94

Bikes: 1983 Peugeot PSV10

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 28 Post(s)
Likes: 0
Liked 5 Times in 2 Posts
Some Picture Updates

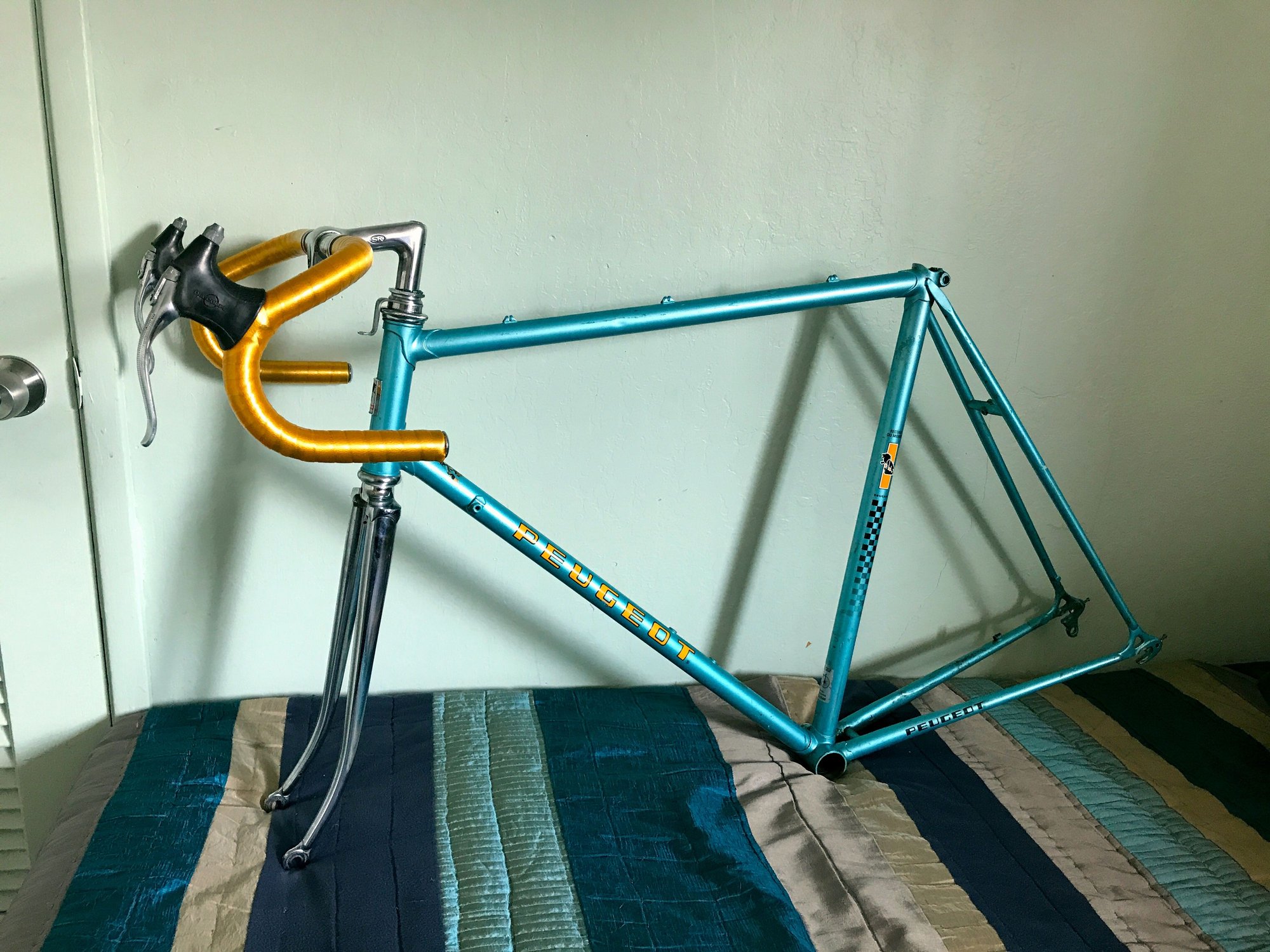

Still have a good amount of work left but just happy to have replaced the handlebars, stem, and saddle (Brooks Swift on the way)

Noticed there was a dent in the top tube. Not too bothered by it

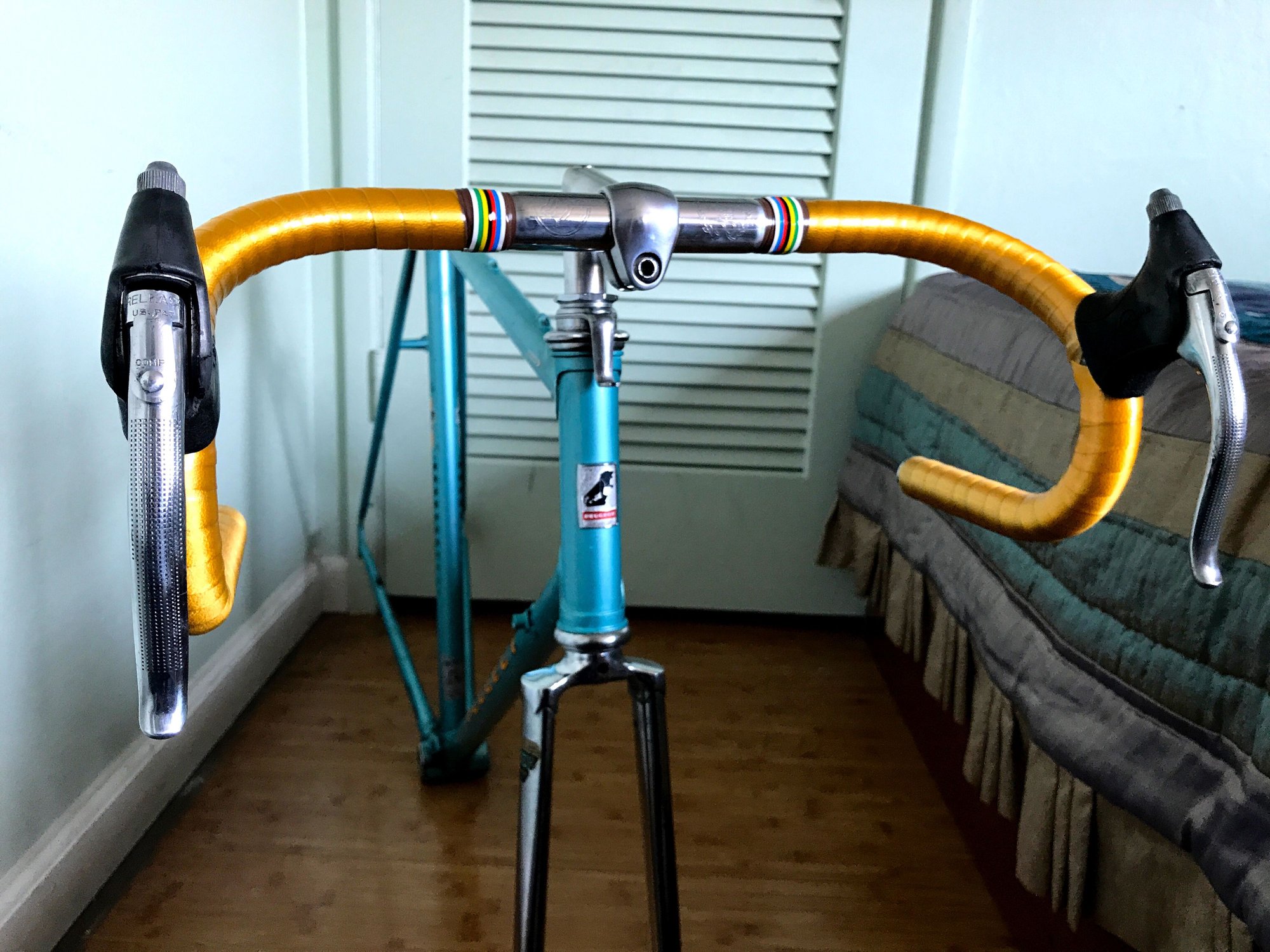

Still a beginner with taping. Was originally going to use brown leather tape but I like how this turned out

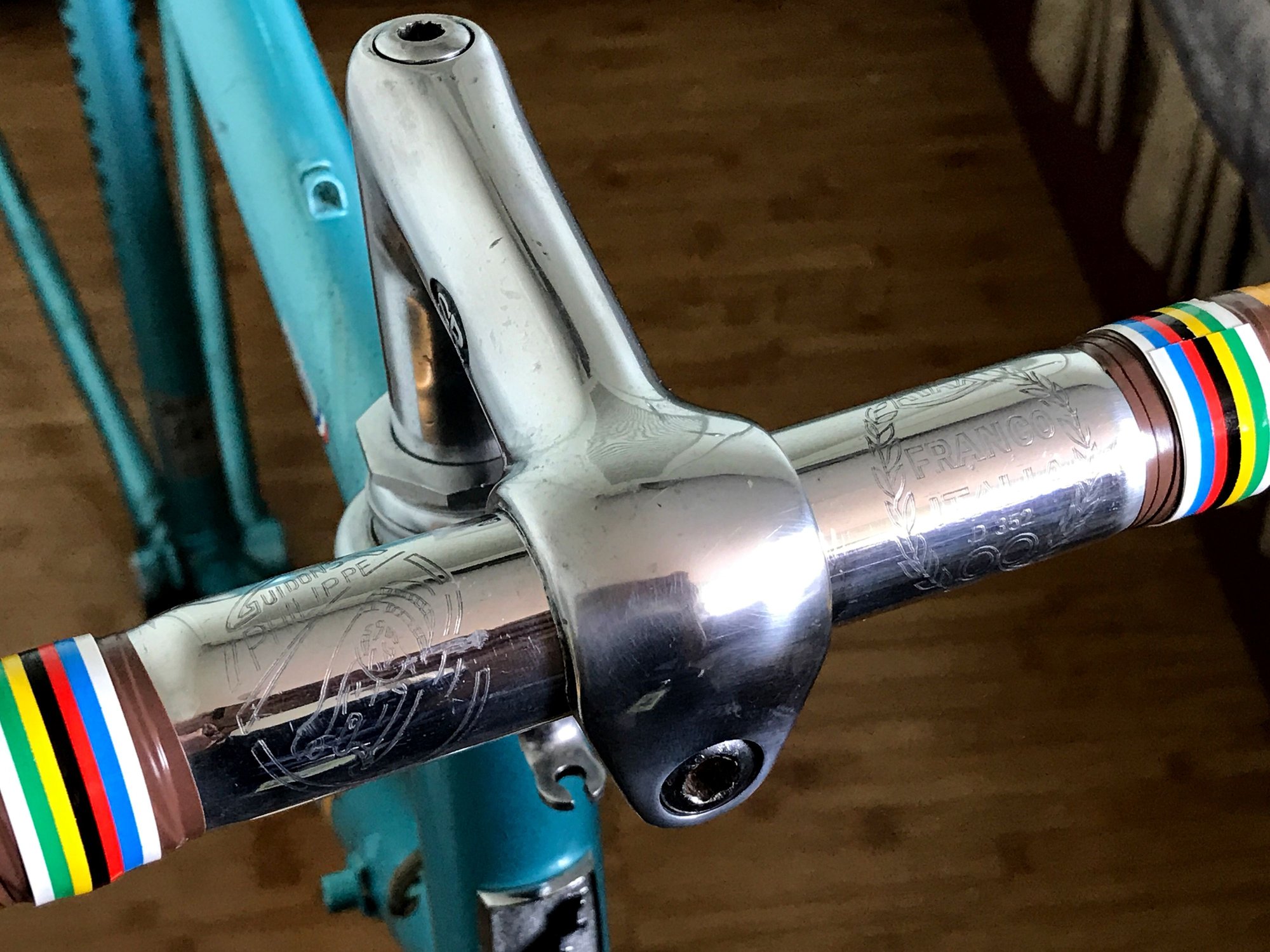

Found the handlebar at a garage sale and the stem I had laying around at home.

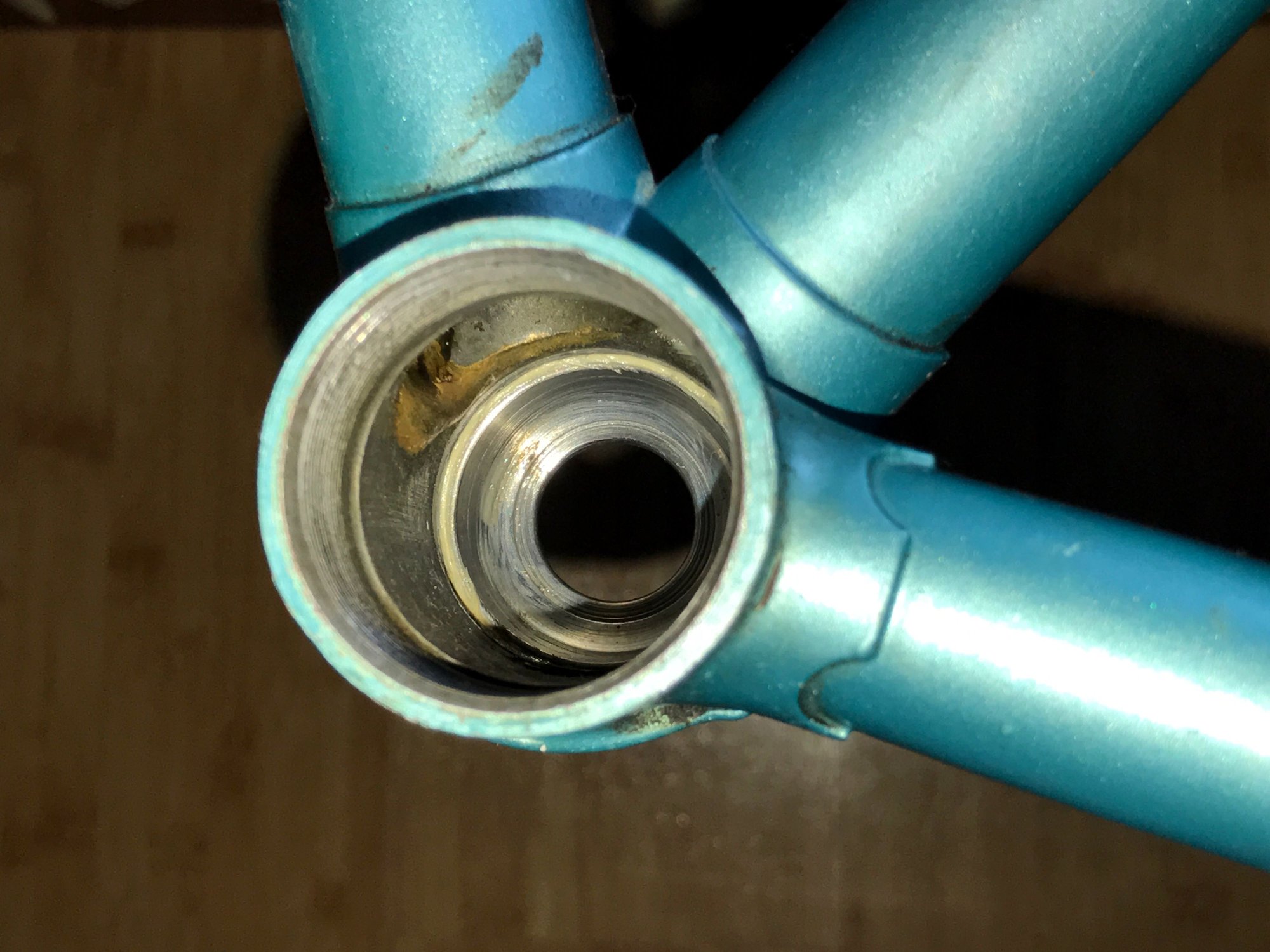

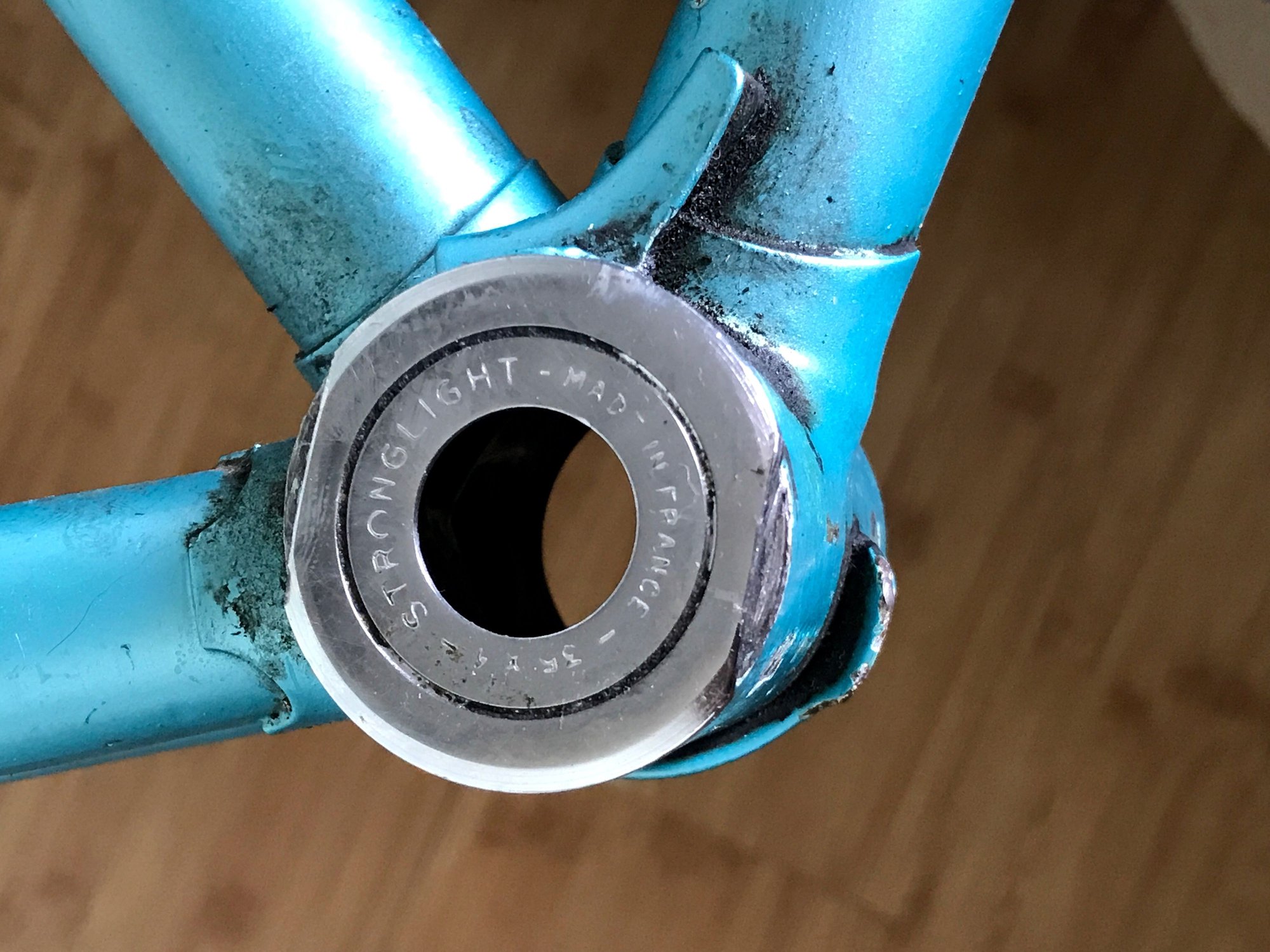

This was my first fixed cup that I had to give up on

Mr_Asifi is offline
Old 11-12-18, 08:05 PM
  #13
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 4,013

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands, Gordon, Fuso/Moulton, Bornstein, Paisley, Paramounts, 3rensho, Moto TC, Raleigh Pro's, Marinoni, 1960 Cinelli SC, 1980 Bianchi SC and more

Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 1106 Post(s)
Liked 49 Times in 38 Posts
Originally Posted by Mr_Asifi View Post

Take a look at this setup, you will never have to give up ever again.


















This was my first fixed cup that I had to give up on
Never failed, never damaged any tools, cups, rings or frames.
merziac is offline
Old 11-12-18, 08:24 PM
  #14
Mr_Asifi
Senior Member
Thread Starter

Mr_Asifi's Avatar

Join Date: Jun 2018
Location: Hayward, CA
Posts: 94

Bikes: 1983 Peugeot PSV10

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 28 Post(s)
Likes: 0
Liked 5 Times in 2 Posts
Originally Posted by merziac View Post
Never failed, never damaged any tools, cups, rings or frames.
Ingenious. Constantly learning in these forums
Mr_Asifi is offline
Old 11-12-18, 08:54 PM
  #15
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 4,013

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands, Gordon, Fuso/Moulton, Bornstein, Paisley, Paramounts, 3rensho, Moto TC, Raleigh Pro's, Marinoni, 1960 Cinelli SC, 1980 Bianchi SC and more

Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 1106 Post(s)
Liked 49 Times in 38 Posts
Originally Posted by Mr_Asifi View Post


Ingenious. Constantly learning in these forums
Tx, the beauty is that when you already have the special tools, the rest are common and easy with many options.
merziac is offline
Old 11-12-18, 09:24 PM
  #16
3alarmer
******

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 17,274

Bikes: old ones

Mentioned: 226 Post(s)
Tagged: 0 Thread(s)
Quoted: 14534 Post(s)
Liked 71 Times in 61 Posts


3alarmer is offline
Old 11-13-18, 04:56 AM
  #17
Narhay
Senior Member

Narhay's Avatar

Join Date: Sep 2012
Location: Toronto, ON, Canada
Posts: 2,735
Mentioned: 91 Post(s)
Tagged: 0 Thread(s)
Quoted: 555 Post(s)
Likes: 0
Liked 4 Times in 3 Posts
Do you want to remove the fixed cup to replace or just to clean? Make sure you are spinning the right way as it is a French bike.

Take your bottom bracket wrench and put it in the workstand or vise. Hold the frame, insert the bottom bracket cup into the wrench and turn the frame, using it for leverage instead of holding the wrench. This method has yet to fail me.
Narhay is offline
Old 11-13-18, 05:05 PM
  #18
Mr_Asifi
Senior Member
Thread Starter

Mr_Asifi's Avatar

Join Date: Jun 2018
Location: Hayward, CA
Posts: 94

Bikes: 1983 Peugeot PSV10

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 28 Post(s)
Likes: 0
Liked 5 Times in 2 Posts
Originally Posted by Narhay View Post
Do you want to remove the fixed cup to replace or just to clean?
Thanks!

I just wanted to remove the cup because it's easier to clean and repack. But in the future if I need to replace the bottom bracket, I know have several options/techniques.
Mr_Asifi is offline
Old 11-14-18, 12:44 PM
  #19
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 4,013

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands, Gordon, Fuso/Moulton, Bornstein, Paisley, Paramounts, 3rensho, Moto TC, Raleigh Pro's, Marinoni, 1960 Cinelli SC, 1980 Bianchi SC and more

Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 1106 Post(s)
Liked 49 Times in 38 Posts
Originally Posted by 3alarmer View Post


Another good setup, except for the hammer even if it is a deadblow. No need for a hammer when a lever (cheater bar, pipe, etc) can be used.
merziac is offline
