Fleslider Centurion Ironman Team Frame build thread

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Fleslider Centurion Ironman Team Frame build thread

Old 10-30-18, 09:04 PM
  #1
fleslider
Senior Member
Thread Starter

fleslider's Avatar

Join Date: Feb 2014
Location: Fort Collins, CO
Posts: 1,356

Bikes: 1974 Paramount ~ 1974 Raleigh Pro ~ 1977 Pro-Tour ~ 1978 TX900 ~ IronMan 85,87:E/M,88:M/Pro,89:E ~ 98 Peugeot Festina Replica

Mentioned: 84 Post(s)
Tagged: 0 Thread(s)
Quoted: 429 Post(s)
Liked 51 Times in 30 Posts
Fleslider Centurion Ironman Team Frame build thread

This will be the build thread for this Team Ironman Frame.

A craigslist find in Bay Ho, CA (Suburb of San Diego) A 58cm Centurion Ironman Master Team Frame. These were made by Zunow Bicycle Works of Osaka Japan. the owner was told that this bike had participated in at least 2 Ironman's one being Australia (Unknown Year), and the other being the Oceanside Half Ironman which started in the early 2000's .

According to Dave Scott, Zunow was the main builder for the Centurion race team, there were a few that were not Zunow's but most were. there is rumors that Dave's frames were made by Eisentraut, but Dave stated that he rode for Eisentraut before he rode for Centurion and that Eisentraut was not a frame builder for Centurion. It unknown at this time who rode this bike possibly Mike Pigg.

From what I have read and learned about Zunow frames the tubing was a custom made for Zunow . which looks to be based off of Tange Prestige with the oval seat tube into the bottom bracket shell. also it was well known that Zunow worked closely with Tange. the fork is labeled Tange Prestige and was also a custom Zunow piece with their Hummingbird logo in the crown.

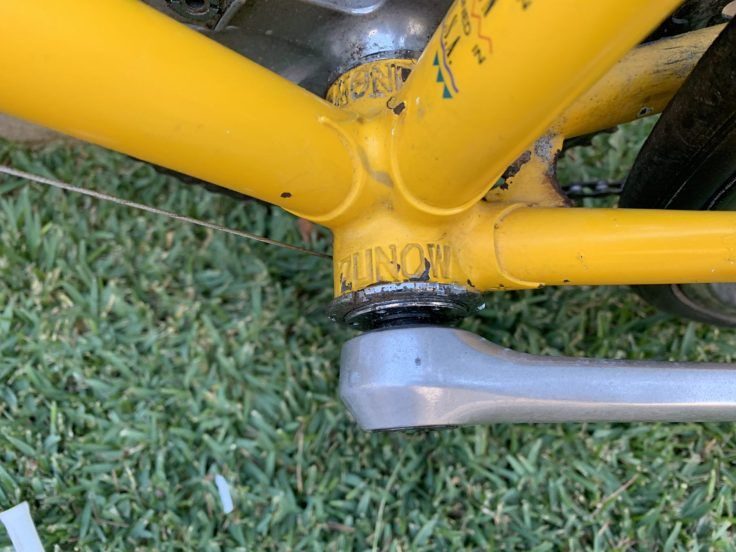

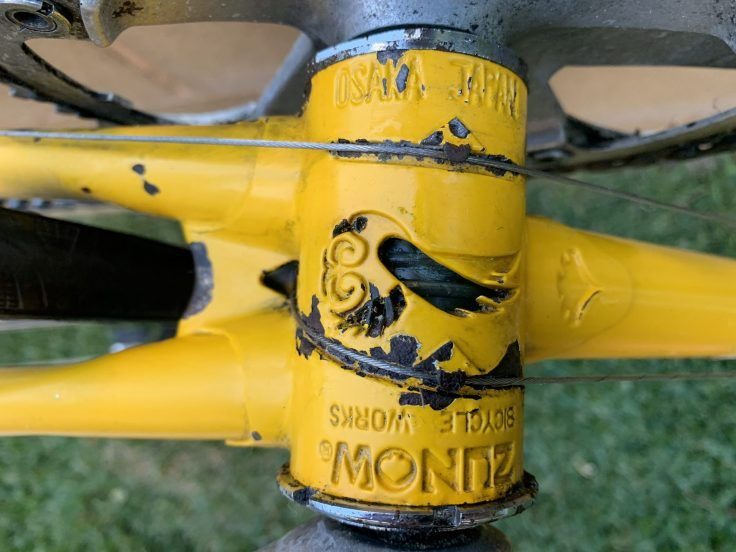

Lugs were custom Zunow as the bottom bracket has Zunow cast into it, as well as the head lugs have a few cutout details. the drops are Shimano. it is missing the Zunow Biplane Brake Bridge and channeled brake cable configuration, instead it used a single loop Brake cable braze on. this could have been done to make it look like the standard Tange 1 production Masters.

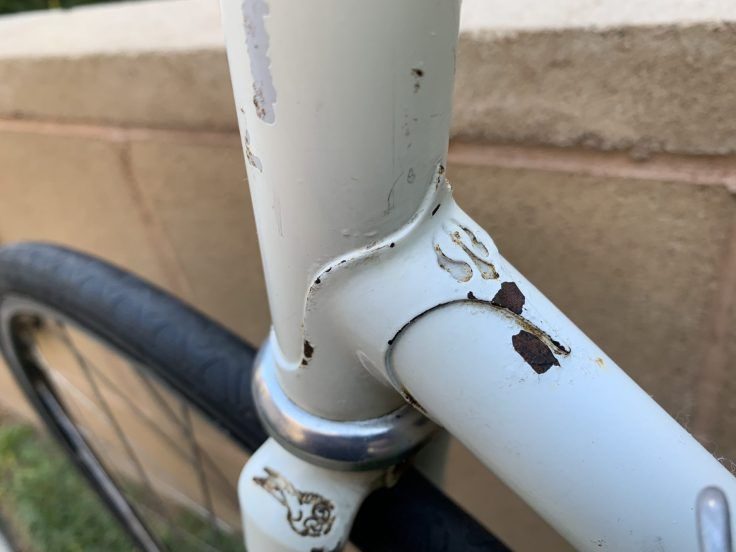

here are some pics as received Stickers except for the Shimano decal and components will be removed and it will be cleaned up and rebuilt with 7 Speed Dura-Ace to match the faded DA Headset.

Other than lug/Tubing differences with the frame the main giveaway that this was a team frame was the Centurion logo on the seat tube.




fleslider is offline
Old 10-30-18, 09:17 PM
  #2
texaspandj
Senior Member

texaspandj's Avatar

Join Date: Jun 2015
Location: Heart Of Texas
Posts: 3,762

Bikes: '86 , '87 , '88 , '89 Centurion Dave Scott Ironman.

Mentioned: 98 Post(s)
Tagged: 0 Thread(s)
Quoted: 1358 Post(s)
Liked 263 Times in 182 Posts
Subscribed.
texaspandj is offline
Old 10-30-18, 10:02 PM
  #3
Wordwreckin
Young Vintage

Wordwreckin's Avatar

Join Date: Jul 2012
Location: Texas
Posts: 100
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 29 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Wow, thatís an exciting find. Canít wait to see this one
Wordwreckin is offline
Old 10-30-18, 10:28 PM
  #4
ArnoldPowers
BikeDad

Join Date: Mar 2017
Location: Portland, Oregon
Posts: 31

Bikes: 77 Centurion ProTour, 88 Trek 950,

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Oh wow I had no Idea such a thing existed. My appreciation for Centurion just keeps growing.
ArnoldPowers is offline
Old 10-31-18, 10:00 AM
  #5
RobbieTunes
Half drunk? Finish!

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 27,128
Mentioned: 34 Post(s)
Tagged: 1 Thread(s)
Quoted: 378 Post(s)
Liked 875 Times in 555 Posts
As fleslider has graciously assisted in the building of the empire, it couldn't be with a better man.

San Deigo, eh?
Then, ya ya, I'm stoked to see this build....
Cool stuff to know.
Cool bike to build.
I know it will be....cool.

Dude.
__________________
Robbie ♪♫♪...☻
I have unfinished business.


Last edited by RobbieTunes; 10-31-18 at 10:04 AM.
RobbieTunes is offline
Old 10-31-18, 10:57 AM
  #6
diomekes
Senior Member

Join Date: Aug 2017
Location: Atlanta
Posts: 106

Bikes: '87 Centurion Ironman Expert, '88 Basso Loto, '89 Panasonic MC-5500

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 48 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
You might as well go with 8 speed Dura Ace since there are three sets of derailleurs and shifters in the sales forum right now... Unless you already have the components.
diomekes is offline
Old 10-31-18, 12:45 PM
  #7
3speedslow
Senior Member

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 7,917

Bikes: A few

Mentioned: 106 Post(s)
Tagged: 0 Thread(s)
Quoted: 1464 Post(s)
Liked 256 Times in 193 Posts
Righteous! That’s one hot mess there.
3speedslow is offline
Old 10-31-18, 12:52 PM
  #8
fleslider
Senior Member
Thread Starter

fleslider's Avatar

Join Date: Feb 2014
Location: Fort Collins, CO
Posts: 1,356

Bikes: 1974 Paramount ~ 1974 Raleigh Pro ~ 1977 Pro-Tour ~ 1978 TX900 ~ IronMan 85,87:E/M,88:M/Pro,89:E ~ 98 Peugeot Festina Replica

Mentioned: 84 Post(s)
Tagged: 0 Thread(s)
Quoted: 429 Post(s)
Liked 51 Times in 30 Posts
Originally Posted by diomekes View Post
You might as well go with 8 speed Dura Ace since there are three sets of derailleurs and shifters in the sales forum right now... Unless you already have the components.
I'm planning on returning it to its racing form, 7 speed Dura-Ace (thanks @RobbieTunes) tri bars and all. got a few more things to find D-A seatpost and Yellow Turbo saddle and D-A Stem
fleslider is offline
Old 10-31-18, 01:08 PM
  #9
texaspandj
Senior Member

texaspandj's Avatar

Join Date: Jun 2015
Location: Heart Of Texas
Posts: 3,762

Bikes: '86 , '87 , '88 , '89 Centurion Dave Scott Ironman.

Mentioned: 98 Post(s)
Tagged: 0 Thread(s)
Quoted: 1358 Post(s)
Liked 263 Times in 182 Posts
7 speed Dura Ace is the way to go especially if it was Dave's. Mike Pigg on the other hand used Shimano but not always Dura Ace.
One curious thing Pigg did on the end of his aero bars one plug was black the other white. He did that on several different bikes, not sure if it was coincidental or intentional e.g. superstitious. Also the plugs were what the standard issued Ironman plugs ie the ones with the screw compression style... stop me I'm nerding out.
One more thing before I forget, the year they used the yellow fade color scheme they were using Scott DH aero bars. Later both Scott and Pigg switched to the profile version.

Last edited by texaspandj; 10-31-18 at 01:14 PM.
texaspandj is offline
Old 10-31-18, 03:43 PM
  #10
fleslider
Senior Member
Thread Starter

fleslider's Avatar

Join Date: Feb 2014
Location: Fort Collins, CO
Posts: 1,356

Bikes: 1974 Paramount ~ 1974 Raleigh Pro ~ 1977 Pro-Tour ~ 1978 TX900 ~ IronMan 85,87:E/M,88:M/Pro,89:E ~ 98 Peugeot Festina Replica

Mentioned: 84 Post(s)
Tagged: 0 Thread(s)
Quoted: 429 Post(s)
Liked 51 Times in 30 Posts
Dave mentioned that most of the bikes were Dura-Ace but there was a couple that had Ultegra.

I got a set of Scott DH Aero bars with the bike that were made by 3TTT. not sure if they were in that era or later on.
fleslider is offline
Old 10-31-18, 04:56 PM
  #11
horatio
Hump, what hump?

horatio's Avatar

Join Date: Dec 2003
Location: SC midlands
Posts: 1,872

Bikes: See signature

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 322 Post(s)
Liked 188 Times in 119 Posts
Love that fork. No unicrown!
__________________
2010 AB T1X ** 2010 Cannondale SIX-5 ** 1993 Cannondale RS900 ** 1989 Bianchi Brava ** 1988 Nishiki Olympic ** 1987 Centurion Ironman Expert(2) ** 1985 DeRosa Professional SLX ** 1982 Basso Gap ** 198? Ciocc Designer '84 ** 198? Ciocc Competition SL ** 19?? Roberts Audax ** 198? Brian Rourke ** 1982 Mercian Olympic ** 1970 Raleigh Professional MK I ** 1952 Raleigh Sports
horatio is offline
Old 10-31-18, 05:02 PM
  #12
jetboy
Senior Member

jetboy's Avatar

Join Date: Oct 2007
Location: Oakland, CA
Posts: 3,238

Bikes: centurion ironman, look hinault 753, Zunow z-1, 83 stumpy sport, look kg96, various others

Mentioned: 60 Post(s)
Tagged: 0 Thread(s)
Quoted: 739 Post(s)
Liked 119 Times in 74 Posts
I had no idea until this bike that centurion were sourcing frames from zunow for their race bikes! Two of my favorite bikes combined into one- gets no better than that.
jetboy is offline
Old 10-31-18, 06:19 PM
  #13
texaspandj
Senior Member

texaspandj's Avatar

Join Date: Jun 2015
Location: Heart Of Texas
Posts: 3,762

Bikes: '86 , '87 , '88 , '89 Centurion Dave Scott Ironman.

Mentioned: 98 Post(s)
Tagged: 0 Thread(s)
Quoted: 1358 Post(s)
Liked 263 Times in 182 Posts
Originally Posted by fleslider View Post
Dave mentioned that most of the bikes were Dura-Ace but there was a couple that had Ultegra.

I got a set of Scott DH Aero bars with the bike that were made by 3TTT. not sure if they were in that era or later on.
It was initially some Italian company that i think i would recognize if i saw it. Is 3ttt italian?
You can contact Boone Lennon the inventor. Eventually it was sourced out.

Last edited by texaspandj; 10-31-18 at 06:26 PM.
texaspandj is offline
Old 10-31-18, 06:31 PM
  #14
canklecat
Me duelen las nalgas

canklecat's Avatar

Join Date: Aug 2015
Location: Texas
Posts: 10,997

Bikes: Centurion Ironman, Trek 5900, Univega Via Carisma, Globe Carmel

Mentioned: 180 Post(s)
Tagged: 0 Thread(s)
Quoted: 3489 Post(s)
Liked 964 Times in 642 Posts
Leaning forward, fingers twiddling...

canklecat is offline
Old 10-31-18, 06:33 PM
  #15
texaspandj
Senior Member

texaspandj's Avatar

Join Date: Jun 2015
Location: Heart Of Texas
Posts: 3,762

Bikes: '86 , '87 , '88 , '89 Centurion Dave Scott Ironman.

Mentioned: 98 Post(s)
Tagged: 0 Thread(s)
Quoted: 1358 Post(s)
Liked 263 Times in 182 Posts
Originally Posted by jetboy View Post
I had no idea until this bike that centurion were sourcing frames from zunow for their race bikes! Two of my favorite bikes combined into one- gets no better than that.
Zunow is now on my list of bikes to get. The 85 Ironman and now the Zunow...short list.
texaspandj is offline
Old 10-31-18, 06:34 PM
  #16
Vintage_Cyclist
Senior Member

Vintage_Cyclist's Avatar

Join Date: Nov 2013
Location: Big Apple
Posts: 1,326

Bikes: yes

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 375 Post(s)
Likes: 0
Liked 46 Times in 27 Posts
Originally Posted by fleslider View Post
. . . and Yellow Turbo saddle . . .
Possible substitute, used on the 87 Experts, if I'm not mistaken.
Vintage_Cyclist is offline
Old 10-31-18, 07:24 PM
  #17
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 5,891

Bikes: Lots. Just...lots.

Mentioned: 168 Post(s)
Tagged: 0 Thread(s)
Quoted: 1244 Post(s)
Liked 281 Times in 169 Posts
DA seatposts in 27.0 are....hard to find.
BUT I have a Shimano 600 seatpost, aero, visually similar to the DA 7400, in 27.0. And highly polished.
One might say mirror-like.
I mean, if you are really looking for something like that.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Old 10-31-18, 08:07 PM
  #18
markwesti
Senior Member

markwesti's Avatar

Join Date: Jul 2015
Location: Seal Beach Ca. On the right , next to Long Beach
Posts: 1,586

Bikes: 86' Centurion Ironman , 84' Bianchi Alloro

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 518 Post(s)
Liked 76 Times in 67 Posts
I'm really liking this .
markwesti is offline
Old 10-31-18, 08:30 PM
  #19
texaspandj
Senior Member

texaspandj's Avatar

Join Date: Jun 2015
Location: Heart Of Texas
Posts: 3,762

Bikes: '86 , '87 , '88 , '89 Centurion Dave Scott Ironman.

Mentioned: 98 Post(s)
Tagged: 0 Thread(s)
Quoted: 1358 Post(s)
Liked 263 Times in 182 Posts
So fleslider, what size Seatpost does the Pro bike take?
Man I wish I had known rccardr had a 27.0 shimano aero seatpost before I bought a 27.2 shimano 600 aero seatpost. The master and pre master fit 27.2 no problem but the Expert came with a 27.0 and requires a little force with 27.2.
Btw non of the Pics I've Seen of Dave Scott or Mike Piggs bike have aero seatpost.

Last edited by texaspandj; 10-31-18 at 08:38 PM.
texaspandj is offline
Old 10-31-18, 11:32 PM
  #20
RobbieTunes
Half drunk? Finish!

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 27,128
Mentioned: 34 Post(s)
Tagged: 1 Thread(s)
Quoted: 378 Post(s)
Liked 875 Times in 555 Posts
Originally Posted by texaspandj View Post
7 speed Dura Ace is the way to go especially if it was Dave's. Mike Pigg on the other hand used Shimano but not always Dura Ace.
One curious thing Pigg did on the end of his aero bars one plug was black the other white. He did that on several different bikes, not sure if it was coincidental or intentional e.g. superstitious. Also the plugs were what the standard issued Ironman plugs ie the ones with the screw compression style...

stop me I'm nerding out.

One more thing before I forget, the year they used the yellow fade color scheme they were using Scott DH aero bars. Later both Scott and Pigg switched to the profile version.
Understatement. First the naked pics, then this.
__________________
Robbie ♪♫♪...☻
I have unfinished business.

RobbieTunes is offline
Old 11-01-18, 03:09 PM
  #21
fleslider
Senior Member
Thread Starter

fleslider's Avatar

Join Date: Feb 2014
Location: Fort Collins, CO
Posts: 1,356

Bikes: 1974 Paramount ~ 1974 Raleigh Pro ~ 1977 Pro-Tour ~ 1978 TX900 ~ IronMan 85,87:E/M,88:M/Pro,89:E ~ 98 Peugeot Festina Replica

Mentioned: 84 Post(s)
Tagged: 0 Thread(s)
Quoted: 429 Post(s)
Liked 51 Times in 30 Posts
Originally Posted by texaspandj View Post
It was initially some Italian company that i think i would recognize if i saw it. Is 3ttt italian?
You can contact Boone Lennon the inventor. Eventually it was sourced out.

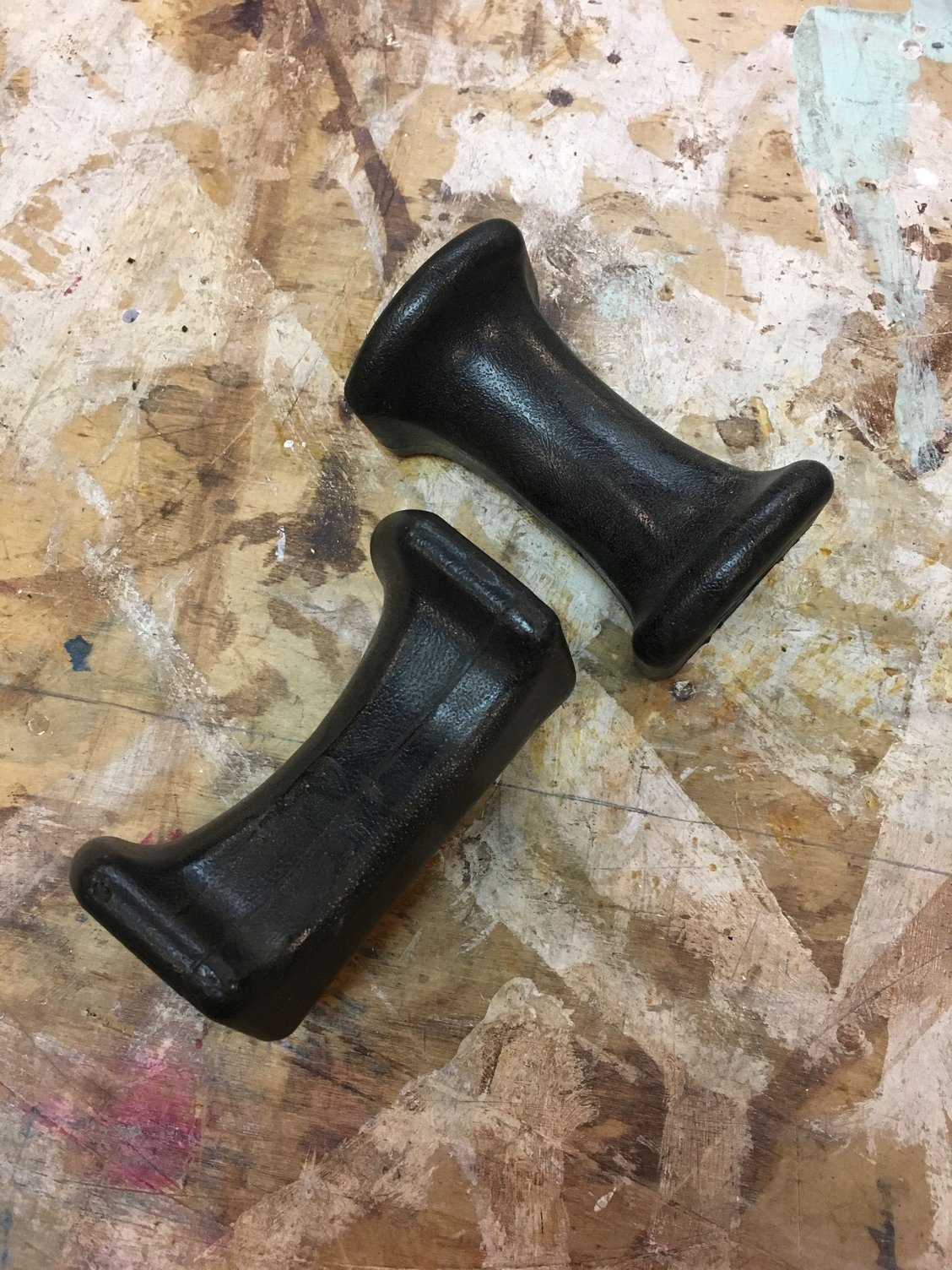

Yes they are Italian, hmm i may just use them , need to find those arm rests that fit over the bars , not the clamp style that was later on.
fleslider is offline
Old 11-01-18, 03:12 PM
  #22
fleslider
Senior Member
Thread Starter

fleslider's Avatar

Join Date: Feb 2014
Location: Fort Collins, CO
Posts: 1,356

Bikes: 1974 Paramount ~ 1974 Raleigh Pro ~ 1977 Pro-Tour ~ 1978 TX900 ~ IronMan 85,87:E/M,88:M/Pro,89:E ~ 98 Peugeot Festina Replica

Mentioned: 84 Post(s)
Tagged: 0 Thread(s)
Quoted: 429 Post(s)
Liked 51 Times in 30 Posts
Originally Posted by texaspandj View Post
So fleslider, what size Seatpost does the Pro bike take?
Man I wish I had known rccardr had a 27.0 shimano aero seatpost before I bought a 27.2 shimano 600 aero seatpost. The master and pre master fit 27.2 no problem but the Expert came with a 27.0 and requires a little force with 27.2.
Btw non of the Pics I've Seen of Dave Scott or Mike Piggs bike have aero seatpost.
Seatpost is a 27.2 that is what was in the frame when i got it and it fits well. If i recall correct my other Prestige frames also used 27.2.

I was thinking they were using the non aero Dura-Ace seatpost, I think there was another image i saw that one had a American Classic Seatpost.
fleslider is offline
Old 11-01-18, 05:20 PM
  #23
texaspandj
Senior Member

texaspandj's Avatar

Join Date: Jun 2015
Location: Heart Of Texas
Posts: 3,762

Bikes: '86 , '87 , '88 , '89 Centurion Dave Scott Ironman.

Mentioned: 98 Post(s)
Tagged: 0 Thread(s)
Quoted: 1358 Post(s)
Liked 263 Times in 182 Posts
Originally Posted by fleslider View Post
Yes they are Italian, hmm i may just use them , need to find those arm rests that fit over the bars , not the clamp style that was later on.
I have the original Scott dh aero bars on all 4 of my Ironman now however, I use clamp and cup style. But I think i have a pair of the original ones to contribute to the Pro build. I'll pm you later.
texaspandj is offline
Old 11-01-18, 05:34 PM
  #24
texaspandj
Senior Member

texaspandj's Avatar

Join Date: Jun 2015
Location: Heart Of Texas
Posts: 3,762

Bikes: '86 , '87 , '88 , '89 Centurion Dave Scott Ironman.

Mentioned: 98 Post(s)
Tagged: 0 Thread(s)
Quoted: 1358 Post(s)
Liked 263 Times in 182 Posts
Originally Posted by fleslider View Post
Seatpost is a 27.2 that is what was in the frame when i got it and it fits well. If i recall correct my other Prestige frames also used 27.2.

I was thinking they were using the non aero Dura-Ace seatpost, I think there was another image i saw that one had a American Classic Seatpost.
In that era Dura Ace seatpost came in aero, fluted and plain.
Also looking at a video from '89 Dave was using a selle San marco rolls saddle.
I'm still gonna go through some earlier video. Speaking of which before you posted it I actually was trying to post a video of Mike Pigg riding the Pro bike I think you have but, even though I have a youtube channel apparently I haven't posted a video in 10 years! So I tried and couldn't do it but I'll figure it out. I probably need to upgrade some how.

Last edited by texaspandj; 11-01-18 at 05:58 PM.
texaspandj is offline
Old 11-01-18, 06:22 PM
  #25
tyler_fred
Senior Member

tyler_fred's Avatar

Join Date: Nov 2010
Location: Magnolia State, 100į with 110% humidity
Posts: 1,066

Bikes: American, Italian, and Japanese.. in no particular order.

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 259 Post(s)
Liked 100 Times in 49 Posts

Is this the style armrest in question?
tyler_fred is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
