The "Identify This Component" Thread

How about a thread devoted to identifying mysterious vintage bike components?

Posters: Post photo(s), describe markings on part, and add any other useful information (bike found on, source, etc.)

Answerers: If possible provide manufacturer, model, usage and any other relevant or fun information.

So whaddya say, Sherlock?

Last edited by jethin; 11-03-18 at 03:36 PM.
jethin is offline
Old 11-03-18, 03:33 PM
  #2
jethin
Senior Member
Thread Starter

jethin's Avatar

Join Date: Oct 2009
Posts: 875
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 187 Post(s)
Liked 91 Times in 52 Posts

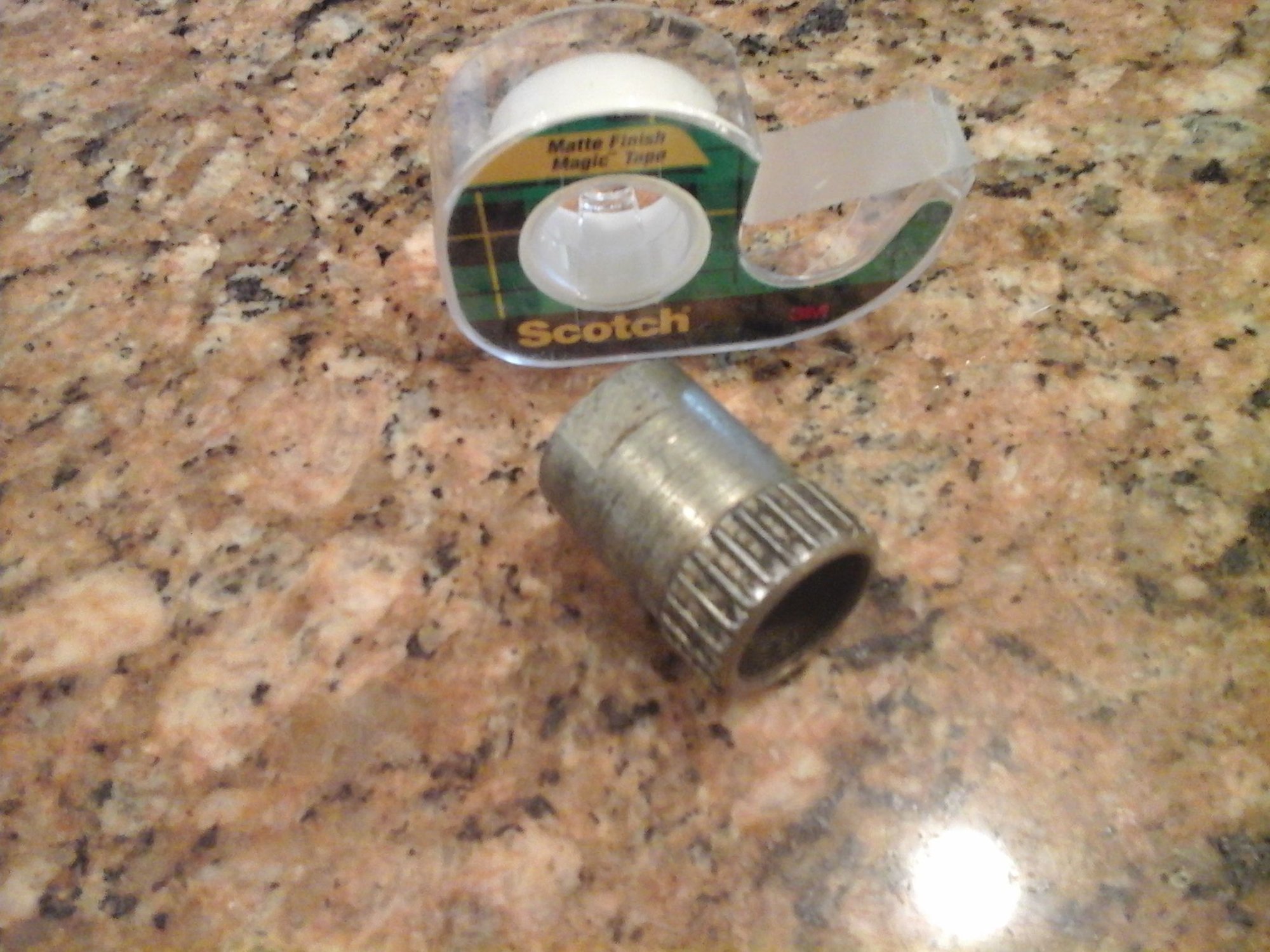

I’ll start. This bottom bracket (pic 2) has "3N-B" marked on the (120mm, hollow, JIS I think) spindle; the cartridge bearings say "OPC" and "Japan"; both the cups and lockrings are alloy.

Was this a nice bb or common as dirt? You got me!
jethin is offline
Old 11-03-18, 06:42 PM
  #3
smontanaro
Senior Member

Join Date: Aug 2007
Location: Evanston, IL
Posts: 4,371

Bikes: many

Mentioned: 50 Post(s)
Tagged: 0 Thread(s)
Quoted: 842 Post(s)
Liked 348 Times in 227 Posts

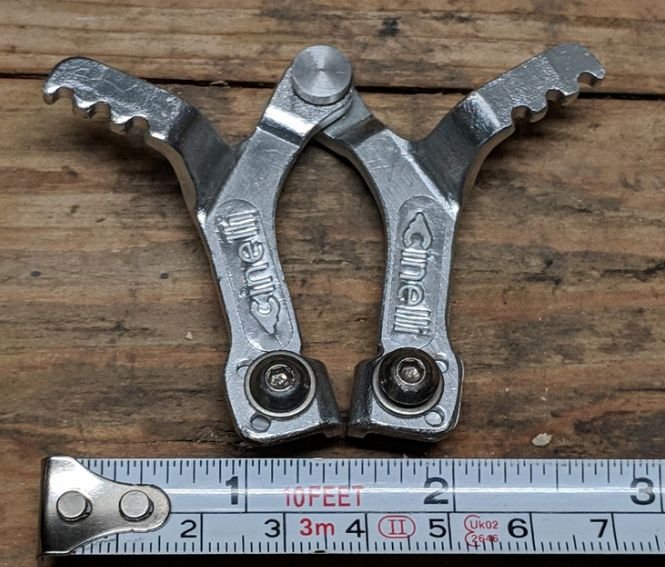

I bought this part from eBay.it a couple years ago because it's stamped "Cinelli." I didn't know what it is. Neither did the seller. Something brake-ish I suppose. A few more images on Flickr

__________________
Slowest Common Denominator
I prefer you contact me by email (skip.montanaro@gmail.com).

smontanaro is offline
Old 11-03-18, 11:25 PM
  #4
nesteel
Senior Member

Join Date: Feb 2014
Location: Midwest
Posts: 2,042

Bikes: See the signature....

Mentioned: 72 Post(s)
Tagged: 0 Thread(s)
Quoted: 505 Post(s)
Liked 99 Times in 70 Posts
Originally Posted by jethin View Post
I’ll start. This bottom bracket (pic 2) has "3N-B" marked on the (120mm, hollow, JIS I think) spindle; the cartridge bearings say "OPC" and "Japan"; both the cups and lockrings are alloy.

Was this a nice bb or common as dirt? You got me!
Looks alot (copy?) like the Suntour adjustable chainline BB.
__________________
My bikes: '81 Trek 957, '83 Trek 720, '85 Trek 500, '85 Trek 770, '81 Merckx, '85 Centurion Cinelli, '85 Raleigh Portage, '92 RB-2, '09 Bianchi
nesteel is offline
Old 11-04-18, 05:22 AM
  #5
rootboy
Senior Member

rootboy's Avatar

Join Date: Apr 2005
Location: Wherever
Posts: 16,756
Mentioned: 88 Post(s)
Tagged: 0 Thread(s)
Quoted: 549 Post(s)
Likes: 0
Liked 114 Times in 67 Posts
That's quite odd, Skip. Did anyone over on the CR list know what it was?

Originally Posted by smontanaro View Post
I bought this part from eBay.it a couple years ago because it's stamped "Cinelli." I didn't know what it is. Neither did the seller. Something brake-ish I suppose. A few more images on Flickr



rootboy is offline
Old 11-04-18, 05:51 AM
  #6
Prowler
Senior Member

Join Date: Nov 2013
Location: Near Pottstown, PA: 30 miles NW of Philadelphia
Posts: 1,713

Bikes: 2 Trek Mtn, Cannondale R600 road, 6 vintage road bikes

Mentioned: 67 Post(s)
Tagged: 0 Thread(s)
Quoted: 307 Post(s)
Liked 261 Times in 155 Posts
What does it look like if you 'open' it up fully: the long arms out the the short arms together. It reminds me of the 'third hand' tools that help tension a brake cable or derailleur cable while you make final adjustments and tighten the cable clamp. I wonder if you place one of the long arm clamping ends against the brake arm, loosely feed the brake cable thru the tool's clamp at that end then thru the tool's clamp on the other arm, and tighten that clamp. Squeeze the short arms together to tension the cable just right then tighten the brake arm cable clamp. Remove the tool.

BTW: I don't do this nor use such tools. I press the brake pads against the rim and tighten the brake cable clamp a bit. I then grip the cable a couple mm below the clamp with needle nose pliers. Loosen the clamp to allow that wee bit of slack to slip through and retighten. Test to see if I then have the pad clearance I like. Do it again if needed until I'm happy and F and R are the same. Fine tune with the adjusters.

And those notches in the short arms seems to be ready to hold an elastic or rubber band to help apply tension to the brake cable. No hand needed on the tool then - both hands on the caliper and the wrench.
Prowler is offline
Old 11-04-18, 06:26 AM
  #7
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 3,412

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 167 Post(s)
Tagged: 0 Thread(s)
Quoted: 748 Post(s)
Liked 414 Times in 278 Posts
What is that

WHAT IS THAT!



verktyg
__________________
Things aren't always what they seem... Don't believe everything you think!

Chas. ;-)
verktyg is online now
Old 11-04-18, 06:36 AM
  #8
PilotFishBob
My brain hurts!

PilotFishBob's Avatar

Join Date: Apr 2014
Location: Memphis, TN
Posts: 1,034

Bikes: A few. Define "few".

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 366 Post(s)
Liked 216 Times in 120 Posts

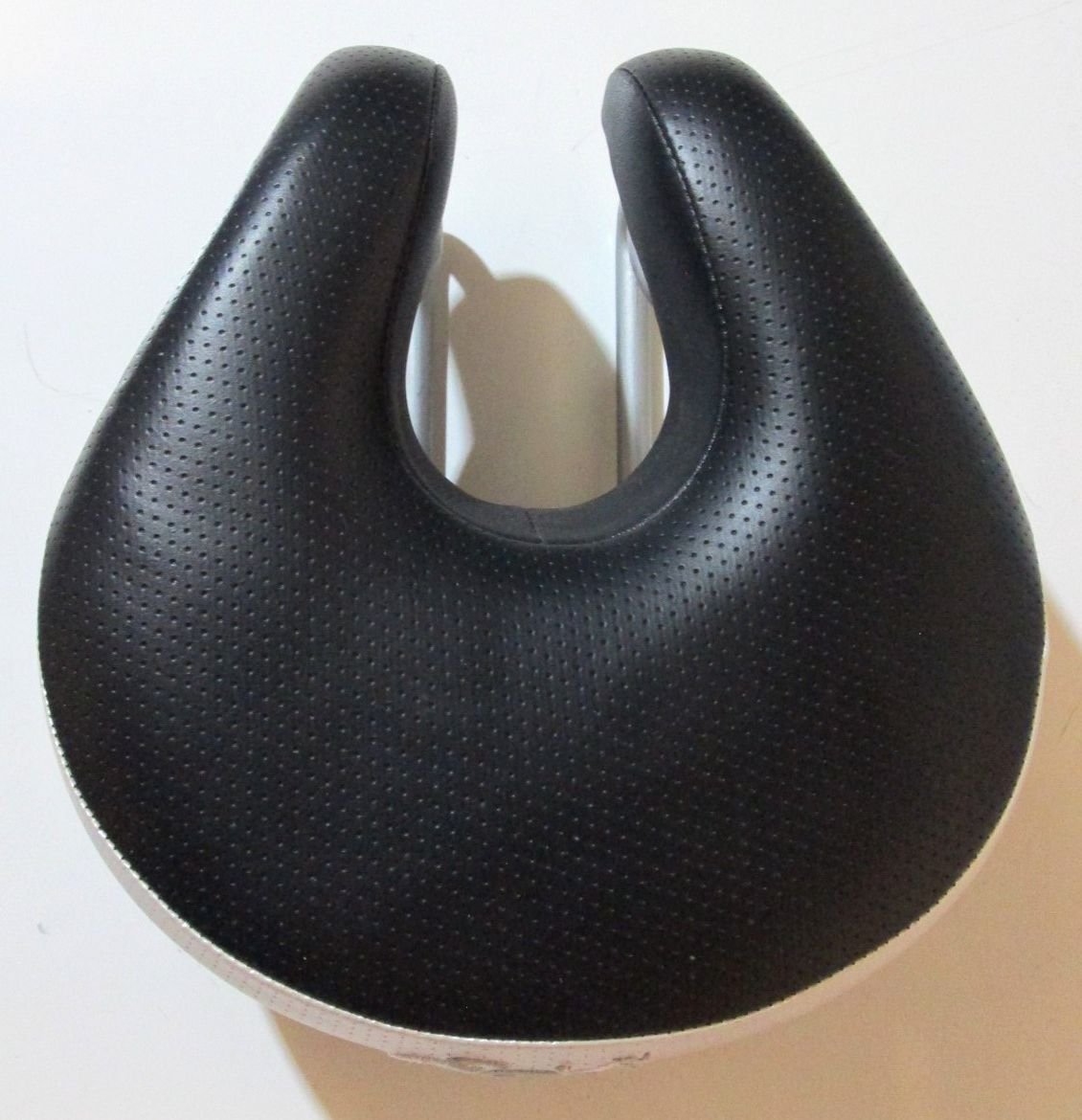

^^^ Padded toilet seat?
PilotFishBob is offline
Old 11-04-18, 01:36 PM
  #9
big chainring
Senior Member

Join Date: Sep 2007
Location: Wilmette, IL
Posts: 6,934
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 613 Post(s)
Liked 338 Times in 173 Posts


These were on an old Motobecane I bought a few years ago. Kinda wacky idea I thought. Any idea who made them?
big chainring is offline
Old 11-04-18, 02:13 PM
  #10
smontanaro
Senior Member

Join Date: Aug 2007
Location: Evanston, IL
Posts: 4,371

Bikes: many

Mentioned: 50 Post(s)
Tagged: 0 Thread(s)
Quoted: 842 Post(s)
Liked 348 Times in 227 Posts
Originally Posted by Prowler View Post
What does it look like if you 'open' it up fully: the long arms out the the short arms together. It reminds me of the 'third hand' tools that help tension a brake cable or derailleur cable while you make final adjustments and tighten the cable clamp. I wonder if you place one of the long arm clamping ends against the brake arm, loosely feed the brake cable thru the tool's clamp at that end then thru the tool's clamp on the other arm, and tighten that clamp. Squeeze the short arms together to tension the cable just right then tighten the brake arm cable clamp. Remove the tool.
...
And those notches in the short arms seems to be ready to hold an elastic or rubber band to help apply tension to the brake cable. No hand needed on the tool then - both hands on the caliper and the wrench.
@rootboy I think I asked over on CR when I first got it, maybe here as well. I don't think anybody had a definitive idea what it was.

@Prowler Here's a "wide open" picture. I agree the notches look like they're supposed to hold some sort of spring or elastic. I'm skeptical of the third-hand idea. It's made of aluminum, the center pivot is just riveted in place, and it only weighs 17g. That doesn't strike me as something robust enough to hold up to repeated usage, even in a home shop.

__________________
Slowest Common Denominator
I prefer you contact me by email (skip.montanaro@gmail.com).

smontanaro is offline
Old 11-04-18, 02:15 PM
  #11
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 3,354
Mentioned: 94 Post(s)
Tagged: 0 Thread(s)
Quoted: 1181 Post(s)
Likes: 0
Liked 214 Times in 161 Posts
Originally Posted by big chainring View Post


These were on an old Motobecane I bought a few years ago. Kinda wacky idea I thought. Any idea who made them?
Not that wacky, just another version of a centerpull caliper straddle cable quick release cam mechanism.
__________________
72 Line Seeker
83 Davidson Signature
84 Peugeot PSV
84 Peugeot PY10FC
84 Gitane Tour de France.
85 Vitus Plus Carbone 7
86 ALAN Record Carbonio
86 Medici Aerodynamic (Project)
88 Pinarello Montello
89 Bottecchia Professional Chorus SL
95 Trek 5500 OCLV (Project)
Chombi1 is offline
Old 11-04-18, 02:16 PM
  #12
smontanaro
Senior Member

Join Date: Aug 2007
Location: Evanston, IL
Posts: 4,371

Bikes: many

Mentioned: 50 Post(s)
Tagged: 0 Thread(s)
Quoted: 842 Post(s)
Liked 348 Times in 227 Posts
Originally Posted by big chainring View Post
These were on an old Motobecane I bought a few years ago. Kinda wacky idea I thought. Any idea who made them?
The color of that washer screams, "Weinmann!" or "Schwinn Approved!" to me. Quick release straddle cable thingie.
__________________
Slowest Common Denominator
I prefer you contact me by email (skip.montanaro@gmail.com).

smontanaro is offline
Old 11-04-18, 02:25 PM
  #13
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 3,354
Mentioned: 94 Post(s)
Tagged: 0 Thread(s)
Quoted: 1181 Post(s)
Likes: 0
Liked 214 Times in 161 Posts
Originally Posted by smontanaro View Post
@rootboy I think I asked over on CR when I first got it, maybe here as well. I don't think anybody had a definitive idea what it was.

@Prowler Here's a "wide open" picture. I agree the notches look like they're supposed to hold some sort of spring or elastic. I'm skeptical of the third-hand idea. It's made of aluminum, the center pivot is just riveted in place, and it only weighs 17g. That doesn't strike me as something robust enough to hold up to repeated usage, even in a home shop.

Well, it most likely had something to do with something that Cinelli made, so think saddles, stems, toeclips, handlebars, bar tape, framesets......hmmm...what else??... But they never made brakesets......
So far nothing seems to fall in place with that tool.....
Maybe something that had to do with their ATB line??
__________________
72 Line Seeker
83 Davidson Signature
84 Peugeot PSV
84 Peugeot PY10FC
84 Gitane Tour de France.
85 Vitus Plus Carbone 7
86 ALAN Record Carbonio
86 Medici Aerodynamic (Project)
88 Pinarello Montello
89 Bottecchia Professional Chorus SL
95 Trek 5500 OCLV (Project)
Chombi1 is offline
Old 11-04-18, 02:42 PM
  #14
curbtender
Senior Member

curbtender's Avatar

Join Date: Mar 2007
Location: SF Bay Area, East bay
Posts: 6,678

Bikes: Marinoni, Kestral 200 2002 Trek 5200, KHS Flite, Koga Miyata, Schwinn Spitfire 5, Schwinn Speedster, Mondia Special, Univega Alpina, Miyata team Ti, MB3

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 937 Post(s)
Liked 475 Times in 337 Posts

Probably an easy one, freewheel tool for what? Bicycle Research, larger than splines on anything I have.
curbtender is offline
Old 11-04-18, 08:02 PM
  #15
jethin
Senior Member
Thread Starter

jethin's Avatar

Join Date: Oct 2009
Posts: 875
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 187 Post(s)
Liked 91 Times in 52 Posts
Yeah, it's pretty close, but the cups are different. Maybe they were replaced. I guess 120 mm might've been for a triple.

Originally Posted by nesteel View Post
Looks alot (copy?) like the Suntour adjustable chainline BB.
jethin is offline
Old 11-04-18, 08:06 PM
  #16
jethin
Senior Member
Thread Starter

jethin's Avatar

Join Date: Oct 2009
Posts: 875
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 187 Post(s)
Liked 91 Times in 52 Posts
Edit: could this be for opening stem clamps wider for easier install/removal of handlebars?

Originally Posted by smontanaro View Post
@rootboy I think I asked over on CR when I first got it, maybe here as well. I don't think anybody had a definitive idea what it was.

@Prowler Here's a "wide open" picture. I agree the notches look like they're supposed to hold some sort of spring or elastic. I'm skeptical of the third-hand idea. It's made of aluminum, the center pivot is just riveted in place, and it only weighs 17g. That doesn't strike me as something robust enough to hold up to repeated usage, even in a home shop.


Last edited by jethin; 11-05-18 at 08:38 AM.
jethin is offline
Old 11-04-18, 09:13 PM
  #17
notenoughdaylig
Senior Member

Join Date: Sep 2007
Posts: 308

Bikes: atala cromor salsa las cruces slingshot boomtube merckx mxm

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
Liked 10 Times in 6 Posts
No, I don't have a guess but let's think outside the box. If Campy can make a corkscrew and Lamborghini wheels maybe Cinelli made tools for uses other than bikes.
notenoughdaylig is offline
Old 11-04-18, 09:23 PM
  #18
cyclophilia
Senior Member

Join Date: Apr 2014
Location: Desert Southwest
Posts: 73
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Likes: 0
Liked 1 Time in 1 Post
The Bicycle Research freewheel remover in curbtender's post #14 is for Maillard/Normandy freewheels - bike boom era - with an unusually large diameter. The attached photograph, showing a non-Bicycle Research tool, is borrowed from eBay.
cyclophilia is offline
Old 11-05-18, 09:45 AM
  #19
curbtender
Senior Member

curbtender's Avatar

Join Date: Mar 2007
Location: SF Bay Area, East bay
Posts: 6,678

Bikes: Marinoni, Kestral 200 2002 Trek 5200, KHS Flite, Koga Miyata, Schwinn Spitfire 5, Schwinn Speedster, Mondia Special, Univega Alpina, Miyata team Ti, MB3

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 937 Post(s)
Liked 475 Times in 337 Posts
Originally Posted by cyclophilia View Post
The Bicycle Research freewheel remover in curbtender's post #14 is for Maillard/Normandy freewheels - bike boom era - with an unusually large diameter. The attached photograph, showing a non-Bicycle Research tool, is borrowed from eBay.
Thanks
curbtender is offline
Old 11-05-18, 11:55 AM
  #20
cyclophilia
Senior Member

Join Date: Apr 2014
Location: Desert Southwest
Posts: 73
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Likes: 0
Liked 1 Time in 1 Post
The Cinelli tool in smontanaro's posts #3 and #10 , in light of chombi1's comment...


image from smontanaro on flickr

Could the tool be used to spread saddle rails?

Perhaps the button head machine screws and washers on the Cinelli marked side of the tool would secure a cable or a bicycle spoke, to keep the tool open when mounting a saddle on a seat post so that the rails are sufficiently spread to fit easily on the post.

When it is necessary to spread saddle rails, for example to mount an older saddle on an SR Laprade style seatpost, keeping the rails spread while positioning the saddle on the carriage can be a challenge.

Perhaps this is the tool for the job?
cyclophilia is offline
Old 11-05-18, 12:25 PM
  #21
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 9,334

Bikes: Yes, please.

Mentioned: 235 Post(s)
Tagged: 0 Thread(s)
Quoted: 1584 Post(s)
Liked 1,201 Times in 654 Posts
Of course, the Cinelli nose hair clipper.

Originally Posted by notenoughdaylig View Post
No, I don't have a guess but let's think outside the box. If Campy can make a corkscrew and Lamborghini wheels maybe Cinelli made tools for uses other than bikes.
__________________
It was the last one ...
non-fixie is online now
Old 11-05-18, 12:43 PM
  #22
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 3,354
Mentioned: 94 Post(s)
Tagged: 0 Thread(s)
Quoted: 1181 Post(s)
Likes: 0
Liked 214 Times in 161 Posts
Originally Posted by cyclophilia View Post
The Cinelli tool in smontanaro's posts #3 and #10 , in light of chombi1's comment...


image from smontanaro on flickr

Could the tool be used to spread saddle rails?

Perhaps the button head machine screws and washers on the Cinelli marked side of the tool would secure a cable or a bicycle spoke, to keep the tool open when mounting a saddle on a seat post so that the rails are sufficiently spread to fit easily on the post.

When it is necessary to spread saddle rails, for example to mount an older saddle on an SR Laprade style seatpost, keeping the rails spread while positioning the saddle on the carriage can be a challenge.

Perhaps this is the tool for the job?
I was initially thinking that it might have had something to do with saddle rails, but per my own experience of trying to spread our steel saddle rails on a Brooks by just a little bit, there is no way that tool can exert enough leverage/force to do such....
Chombi1 is offline
Old 11-05-18, 01:30 PM
  #23
smontanaro
Senior Member

Join Date: Aug 2007
Location: Evanston, IL
Posts: 4,371

Bikes: many

Mentioned: 50 Post(s)
Tagged: 0 Thread(s)
Quoted: 842 Post(s)
Liked 348 Times in 227 Posts
What about something to keep straddle cables from snagging on knobby tires if the brake cable breaks? Though I'm at a loss to think how that might be configured.

I just had a small brainstorm (or brain fart, not quite sure which). I sent a note to the seller of this strange, unique CInelli product:

https://www.ebay.com/itm/113130982198
__________________
Slowest Common Denominator
I prefer you contact me by email (skip.montanaro@gmail.com).

smontanaro is offline
Old 11-06-18, 06:02 AM
  #24
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 3,412

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 167 Post(s)
Tagged: 0 Thread(s)
Quoted: 748 Post(s)
Liked 414 Times in 278 Posts

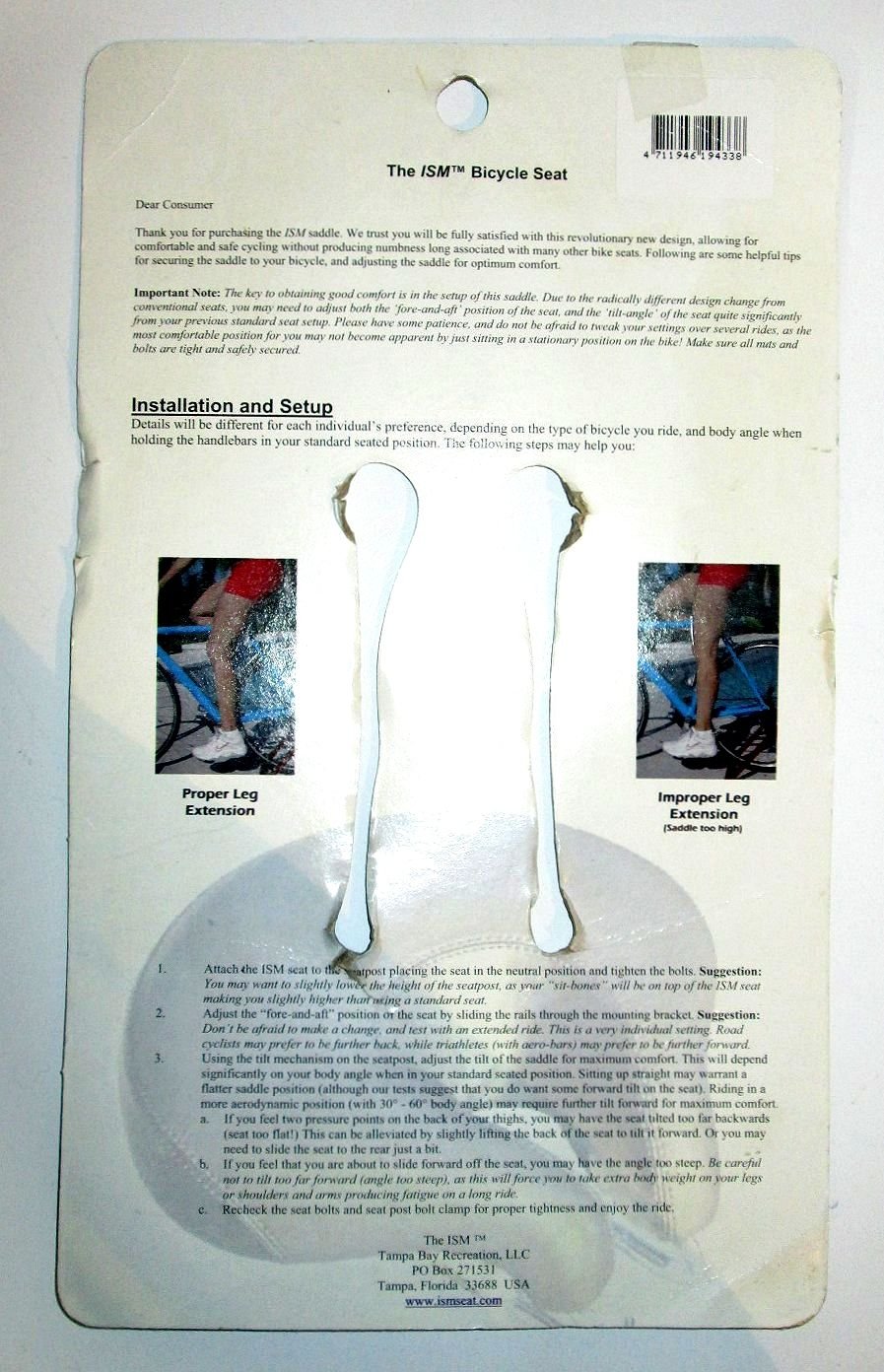

ISM - Ideal Saddle Modification - Free

Originally Posted by PilotFishBob View Post
^^^ Padded toilet seat?
Close!

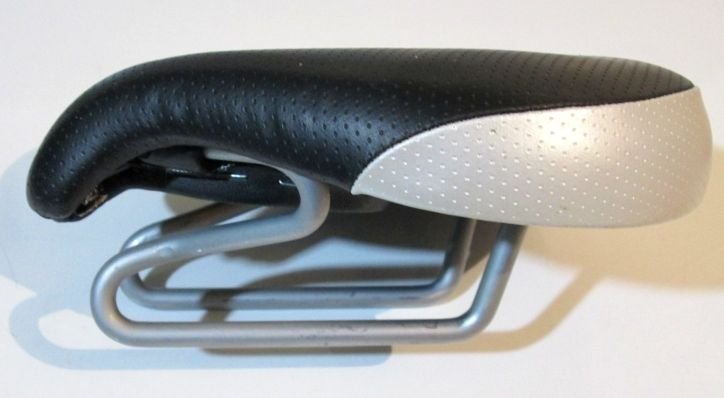

ISM - Ideal Saddle Modification "Saddle" HUH???

Back in 2010 I was having lots of saddle problems any time I rode over ~20 miles. I spent a bunch of money on saddles that didn't help. In a pique of desperation, I tried this one out. I didn't get around the block on it!








Maybe on a stationary bike???

FREE FOR SHIPPING PM me.

verktyg
__________________
Things aren't always what they seem... Don't believe everything you think!

Chas. ;-)

Last edited by verktyg; 11-06-18 at 06:11 AM.
verktyg is online now
Old 11-06-18, 11:25 AM
  #25
Ferrouscious
Some Weirdo

Ferrouscious's Avatar

Join Date: Dec 2017
Location: Rexburg, ID
Posts: 486

Bikes: '86 Maruishi Excellence, '86 Schwinn Prelude, '88 Cannondale SR2000, '74 C. Itoh "Racer"

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 212 Post(s)
Liked 131 Times in 83 Posts
Maybe there are some sort of arms or handles that are supposed to go on that Cinelli tool. That may explainy thosey groovely-lookin' thing-o's. You could then put a fair bit more spreading pressure on it.
__________________
Somewhere, a village is missing its idiot.
Ferrouscious is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
