1st CV question

Iím looking for a SunTour Cyclone GT, rear derailleur, 1976 model, for a Raleigh Supercourse Iím building up. Itís the long cage version. Missed out on one awhile ago, should have bid higher. My question is, can I just pick up a short cage model of the same vintage, which seem more abundant, and replace the cage with one from say a VX GT, long cage model? Or, is there more to it then that?
Thanks, Tim
tkamd73 is offline
Old 11-04-18, 08:50 PM
  #2
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 11,357

Bikes: 1977 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 1712 Post(s)
Liked 45 Times in 35 Posts
It depends.

Look at the attachment points- some mount the cages in different locations. There were different iterations of different derailleurs.

Here's one of my attempts at it:

The Golden Boy's 3 Pulley Project
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jiggliní huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Old 11-04-18, 08:57 PM
  #3
jimmuller
What??? Only 2 wheels?

jimmuller's Avatar

Join Date: Apr 2010
Location: Boston-ish, MA
Posts: 13,062

Bikes: 73 Raleigh Carlton Gran Sport, 72 Peugeot UO-8, 82 Peugeot TH8, 87 Bianchi Brava, 76? Masi Grand Criterium, 87 Centurion Ironman Expert, 74 Motobecane Champion Team, 86 & 77 Gazelle champion mondial, 81? Grandis, 82? Tommasini, 83 Peugeot PFN10

Mentioned: 169 Post(s)
Tagged: 0 Thread(s)
Quoted: 1046 Post(s)
Liked 13 Times in 11 Posts
Originally Posted by tkamd73 View Post
I’m looking for a SunTour Cyclone GT, rear derailleur, 1976 model, for a Raleigh Supercourse I’m building up. It’s the long cage version. Missed out on one awhile ago, should have bid higher. My question is, can I just pick up a short cage model of the same vintage, which seem more abundant, and replace the cage with one from say a VX GT, long cage model? Or, is there more to it then that?
Thanks, Tim
​​​​​​No. Several of the specs are different. The cages don't swap between them.
__________________
Real cyclists use toe clips.
With great bikes comes great responsibility.
jimmuller
jimmuller is offline
Old 11-04-18, 09:33 PM
  #4
Slightspeed
Senior Member

Slightspeed's Avatar

Join Date: Apr 2017
Location: Los Angeles, CA
Posts: 1,559

Bikes: 1961 Legnano Gran Premio, 1964 Legnano Roma Olympiade, 1973 Raleigh Super Course, 1978 Raleigh Super Course, 1978 Peugeot PR10, 2002 Specialized Allez, 2007 Specialized Roubaix, 2013 Culprit Croz Blade

Mentioned: 48 Post(s)
Tagged: 0 Thread(s)
Quoted: 491 Post(s)
Likes: 0
Liked 69 Times in 50 Posts
Not quite sure I understand the question, but I recently built a Super Course with a VGT Luxe in back and a Cyclone II in front with a Megarange 34t 6 speed and a Sugino AT 32/40/50 triple. It all works great together with Suntour bar ends. My first ever build, and I'm very happy with this combination.

Slightspeed is offline
Old 11-04-18, 10:02 PM
  #5
tkamd73
Senior Member
Thread Starter

Join Date: Dec 2015
Location: Menomonee Falls, WI
Posts: 439

Bikes: 1984 Schwinn Supersport, 1988 Trek 400t, 1977 Trek TX900, 1982 Bianchi Champione del Mondo, 1988 Trek 400 Elance, 1978 Raleigh Supercourse, 1991 PDG Paramount OS

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 146 Post(s)
Liked 11 Times in 11 Posts
Thanks guys,
@The Golden Boy, I admire your ingenuity, I was tempted to just go for it, as the main body of both derailleur look identical.

@jimmuller, I realize the cages have different attachment points, plus I’m sure spring rates are different, plus you sound pretty positive, so I’m not wasting the money on two derailleurs.
tkamd73 is offline
Old 11-04-18, 10:18 PM
  #6
tkamd73
Senior Member
Thread Starter

Join Date: Dec 2015
Location: Menomonee Falls, WI
Posts: 439

Bikes: 1984 Schwinn Supersport, 1988 Trek 400t, 1977 Trek TX900, 1982 Bianchi Champione del Mondo, 1988 Trek 400 Elance, 1978 Raleigh Supercourse, 1991 PDG Paramount OS

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 146 Post(s)
Liked 11 Times in 11 Posts
Originally Posted by Slightspeed View Post
Not quite sure I understand the question, but I recently built a Super Course with a VGT Luxe in back and a Cyclone II in front with a Megarange 34t 6 speed and a Sugino AT 32/40/50 triple. It all works great together with Suntour bar ends. My first ever build, and I'm very happy with this combination.

@Slightspeed, I was admiring your supercourse build on another thread. Pretty much going for a similiar bulld, except mine is a 78, not as nice lugwork as yours, but came equipped with the first cyclone derailleur, which I am trying to source. I realize that the V GT Lux, or VX GT will work just fine, and I may end up going that route. Iím substituting a Superbe FD for the original Compe V. I am having frame repainted in dark green, and after seeing yours, quite happy about that. Thanks for the inspiration. Tim

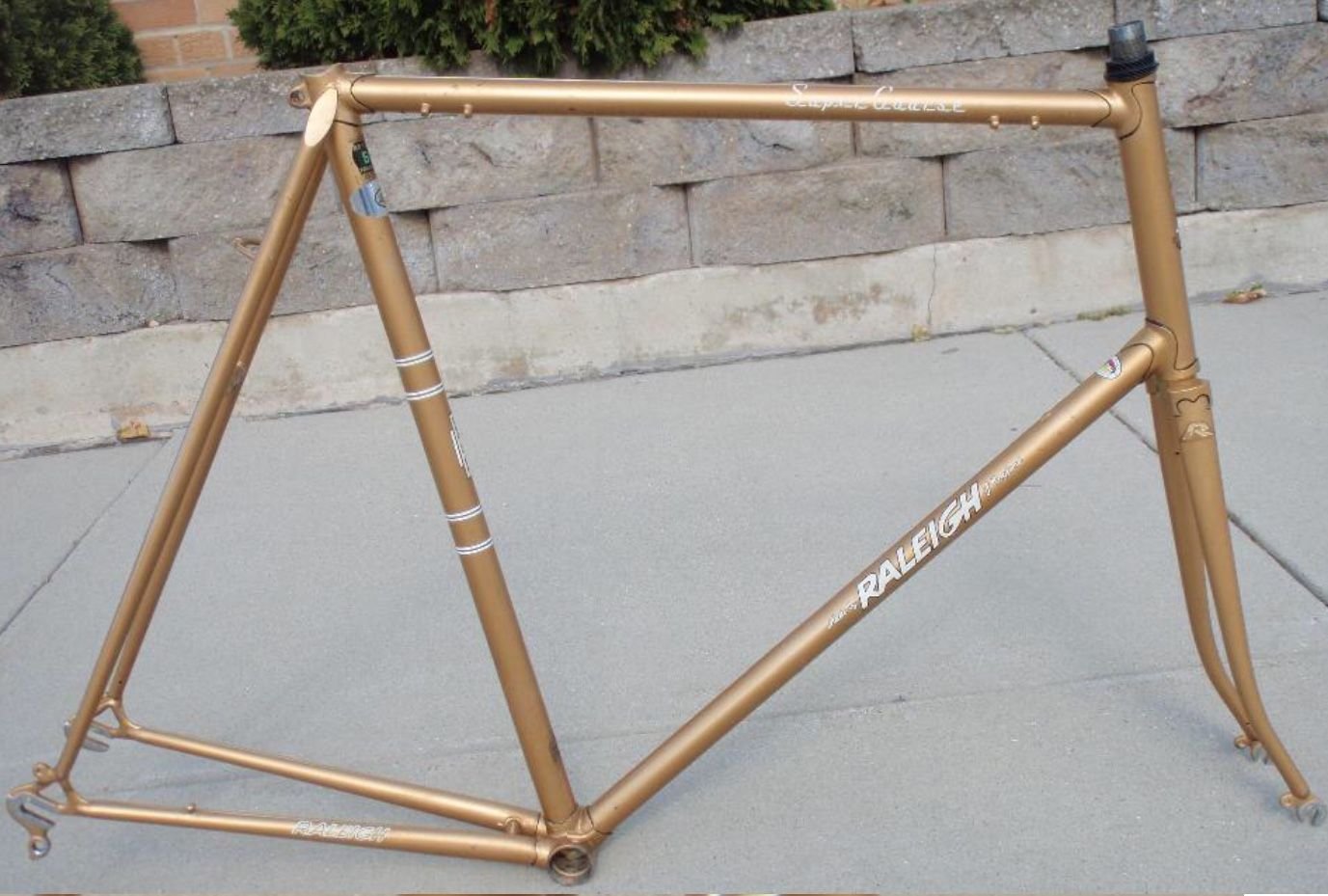

78 Supercourse frame just prior to paint strip
tkamd73 is offline
Old 11-04-18, 11:11 PM
  #7
Slightspeed
Senior Member

Slightspeed's Avatar

Join Date: Apr 2017
Location: Los Angeles, CA
Posts: 1,559

Bikes: 1961 Legnano Gran Premio, 1964 Legnano Roma Olympiade, 1973 Raleigh Super Course, 1978 Raleigh Super Course, 1978 Peugeot PR10, 2002 Specialized Allez, 2007 Specialized Roubaix, 2013 Culprit Croz Blade

Mentioned: 48 Post(s)
Tagged: 0 Thread(s)
Quoted: 491 Post(s)
Likes: 0
Liked 69 Times in 50 Posts
Originally Posted by tkamd73 View Post

@Slightspeed, I was admiring your supercourse build on another thread. Pretty much going for a similiar bulld, except mine is a 78, not as nice lugwork as yours, but came equipped with the first cyclone derailleur, which I am trying to source. I realize that the V GT Lux, or VX GT will work just fine, and I may end up going that route. Iím substituting a Superbe FD for the original Compe V. I am having frame repainted in dark green, and after seeing yours, quite happy about that. Thanks for the inspiration. Tim

78 Supercourse frame just prior to paint strip
Compared to mine, your frame looks great. Mine had a cracked braze at the upper seat tube junction, and some fiixie guy had removed the cable guides, so re-paint was never a question. I like gold bikes, and didn't know SC came in that color. I just found a gold Peugeot in great shape which cost less than the paint on my Raleigh. Have fun with yours. Heres a gold Competition I saw on a recent ride.


Last edited by Slightspeed; 11-04-18 at 11:15 PM.
Slightspeed is offline
Old 11-05-18, 02:09 AM
  #8
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 2,892

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 127 Post(s)
Tagged: 0 Thread(s)
Quoted: 502 Post(s)
Likes: 0
Liked 21 Times in 19 Posts
Not all the same....

There are undocumented difference in the look alike Suntour RDs.

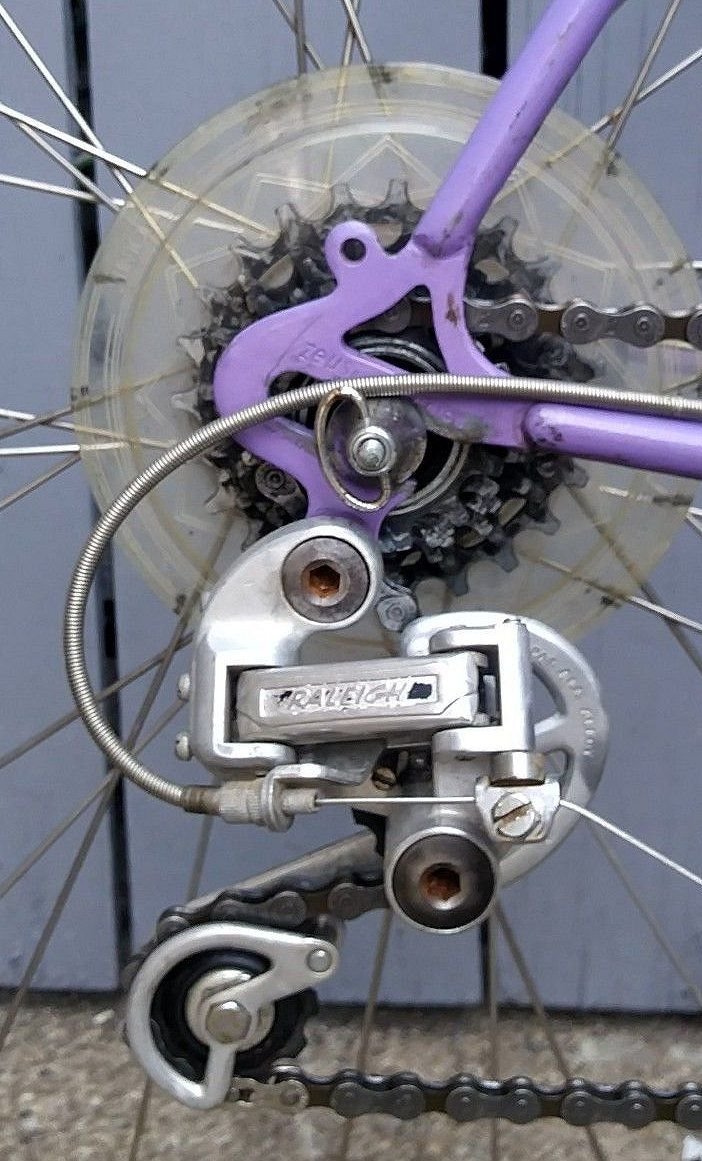

I recently overhauled this Raleigh badged Suntour VGT derailleur. Besides the cheap, black unchromed pivot bolts there were a number of differences between this one and a standard VGT.



The upper pulley mounts on the lower pivot shaft which was soft and hjad worn over .5mm in diameter. This let the pulley wobble side to side which made for unpredictable shifting. One of the chrome plated pivots on a "real" VGT wouldn't have worn like that. I used a prick punch to make indentations in the shaft to bring it back to size. Now it shifts correctly.

I also replaced the upper pivot/mounting bolt with one from a standard VG because it has a thin locknut for the inside of the dropout to secure the bolt. The original one didn't have that feature. It used shims for clearance between the RD and the dropout and was either to tight or loosened in use.



verktyg
__________________
Things aren't always what they seem... Don't believe everything you think!

Chas. ;-)
verktyg is offline
Old 11-05-18, 02:54 PM
  #9
gugie
Crapmaster Emeritus

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 7,358

Bikes: JP Weigle'd Raleigh Competition reconstruct, 73 Raleigh Competition 650b'ed, 96 Bike Friday NWT, 83 Lotus Classique, 78 Centurion ProTour, 73 Raleigh Grand Sports

Mentioned: 775 Post(s)
Tagged: 0 Thread(s)
Quoted: 2216 Post(s)
Likes: 0
Liked 46 Times in 34 Posts
Originally Posted by verktyg View Post
There are undocumented difference in the look alike Suntour RDs.

I recently overhauled this Raleigh badged Suntour VGT derailleur. Besides the cheap, black unchromed pivot bolts there were a number of differences between this one and a standard VGT.



The upper pulley mounts on the lower pivot shaft which was soft and hjad worn over .5mm in diameter. This let the pulley wobble side to side which made for unpredictable shifting. One of the chrome plated pivots on a "real" VGT wouldn't have worn like that. I used a prick punch to make indentations in the shaft to bring it back to size. Now it shifts correctly.

I also replaced the upper pivot/mounting bolt with one from a standard VG because it has a thin locknut for the inside of the dropout to secure the bolt. The original one didn't have that feature. It used shims for clearance between the RD and the dropout and was either to tight or loosened in use.



verktyg
Clearly Raleigh (and others) that branded ST derailleurs had a price point to hit, and Sun Tour figured out how to do it with cheaper parts. It would be interesting to find out all of the marques Sun Tour made derailleurs for. I know that Fuji did this as well.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 11-05-18, 05:50 PM
  #10
old's'cool
curmudgineer

old's'cool's Avatar

Join Date: Dec 2009
Location: Chicago SW burbs
Posts: 4,223

Bikes: 2 many 2 fit here

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 192 Post(s)
Likes: 0
Liked 5 Times in 4 Posts
Well, that would explain why my Raleigh branded VGT derailleur shifts like crap compared to my Cyclone. Thanks for the input verktyg, I'll have to investigate.
__________________
Geoff
"There is no Fail without Try" - Yoda Simpson
old's'cool is offline
Old 11-06-18, 04:07 AM
  #11
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 2,892

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 127 Post(s)
Tagged: 0 Thread(s)
Quoted: 502 Post(s)
Likes: 0
Liked 21 Times in 19 Posts
Bike Maker badged Suntour derailleurs

Originally Posted by gugie View Post
Clearly Raleigh (and others) that branded ST derailleurs had a price point to hit, and Sun Tour figured out how to do it with cheaper parts. It would be interesting to find out all of the marques Sun Tour made derailleurs for. I know that Fuji did this as well.
Seems I've seen other badged Suntour derailleurs but I can't think of what bike brand. Motobecane used a lot of Suntour components but I never saw any of them private labeled. SR which merged with Suntour made Moto badged cranks and maybe bars and stems.

As far as price point.... in 1973-74 Suntour V RDs retailed for ~$6.00 and the GTs for $7.00-$8.00!

Back then, you could buy a VW Beetle for $1950 and a cheap Chevy for $2300!

$500 FOR A BICYCLE? You must be outa yer tree!

verktyg
__________________
Things aren't always what they seem... Don't believe everything you think!

Chas. ;-)
verktyg is offline
Old 11-06-18, 04:42 AM
  #12
clubman
Youngman Grand

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 5,486

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 82 Post(s)
Tagged: 0 Thread(s)
Quoted: 965 Post(s)
Liked 18 Times in 16 Posts
Fuji! oops. Gugie got it.
clubman is offline
Old 11-06-18, 06:13 AM
  #13
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 11,357

Bikes: 1977 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 1712 Post(s)
Liked 45 Times in 35 Posts
Originally Posted by verktyg View Post
Seems I've seen other badged Suntour derailleurs but I can't think of what bike brand. Motobecane used a lot of Suntour components but I never saw any of them private labeled. SR which merged with Suntour made Moto badged cranks and maybe bars and stems.

As far as price point.... in 1973-74 Suntour V RDs retailed for ~$6.00 and the GTs for $7.00-$8.00!

Back then, you could buy a VW Beetle for $1950 and a cheap Chevy for $2300!

$500 FOR A BICYCLE? You must be outa yer tree!

verktyg
I seem to remember Motobecane branded Suntour stem shifters- or maybe Iím thinking a decal- on the stem clamp.
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jiggliní huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Old 11-06-18, 07:26 AM
  #14
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 2,892

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 127 Post(s)
Tagged: 0 Thread(s)
Quoted: 502 Post(s)
Likes: 0
Liked 21 Times in 19 Posts

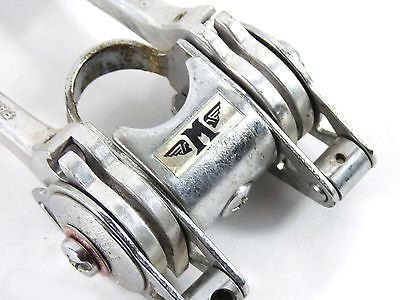

Moto badged Suntour stem shifters

Originally Posted by The Golden Boy View Post
I seem to remember Motobecane branded Suntour stem shifters- or maybe Iím thinking a decal- on the stem clamp.
BINGO! Bike Boom, maybe 1974-75?



verktyg
__________________
Things aren't always what they seem... Don't believe everything you think!

Chas. ;-)
verktyg is offline
Old 11-06-18, 09:54 AM
  #15
tkamd73
Senior Member
Thread Starter

Join Date: Dec 2015
Location: Menomonee Falls, WI
Posts: 439

Bikes: 1984 Schwinn Supersport, 1988 Trek 400t, 1977 Trek TX900, 1982 Bianchi Champione del Mondo, 1988 Trek 400 Elance, 1978 Raleigh Supercourse, 1991 PDG Paramount OS

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 146 Post(s)
Liked 11 Times in 11 Posts
Originally Posted by Slightspeed View Post
Compared to mine, your frame looks great. Mine had a cracked braze at the upper seat tube junction, and some fiixie guy had removed the cable guides, so re-paint was never a question. I like gold bikes, and didn't know SC came in that color. I just found a gold Peugeot in great shape which cost less than the paint on my Raleigh. Have fun with yours. Heres a gold Competition I saw on a recent ride.

Thatís a nice Raleigh Competition, still not a fan of the gold though. No real issues with my frame, actually itís an nos frame that has never been built up. The frame came from Wareís Cycles, large shop on Milwaukeeís NW side, closed in the 80s I think. It was ordered as a warranty repair, and never used. A former employee had it in his basement all these years, until he sold it to me. Supercoures were painted gold in 77 thru 79. Looking forward to getting it built up, but half the fun is the journey.
Thanks, Tim
tkamd73 is offline
Old 11-06-18, 10:32 AM
  #16
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 2,643

Bikes: Bob Jackson World Tour, 81 miyata 912 and 86 miyata 312.

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 816 Post(s)
Likes: 0
Liked 21 Times in 10 Posts
Currently running a cyclone ii long cage on my modern bob jackson. With a 7 speed freewheel and barcons it shifts like dream.
52telecaster is offline
Old 11-06-18, 11:15 AM
  #17
wrk101
Thrifty Bill

wrk101's Avatar

Join Date: Jan 2008
Location: Mountains of Western NC
Posts: 22,017

Bikes: 86 Katakura Silk, 87 Prologue X2, 88 Cimarron LE, 1975 Sekai 4000 Professional, 73 Paramount, plus more

Mentioned: 67 Post(s)
Tagged: 0 Thread(s)
Quoted: 654 Post(s)
Likes: 0
Liked 39 Times in 34 Posts
The V GT Luxe and the Vx GT are my favorite friction shifting long cage rear derailleurs. They are much more affordable than Cyclone GT, durable, good looking. IMHO, they are a perfect choice for a vintage touring build (again, pre-index shifting). Lighter than the V GT, and still has the open cage design.




SunTour V GT Luxe derailleur (1500)
wrk101 is offline
Old 11-06-18, 11:23 AM
  #18
tkamd73
Senior Member
Thread Starter

Join Date: Dec 2015
Location: Menomonee Falls, WI
Posts: 439

Bikes: 1984 Schwinn Supersport, 1988 Trek 400t, 1977 Trek TX900, 1982 Bianchi Champione del Mondo, 1988 Trek 400 Elance, 1978 Raleigh Supercourse, 1991 PDG Paramount OS

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 146 Post(s)
Liked 11 Times in 11 Posts
Originally Posted by gugie View Post
Clearly Raleigh (and others) that branded ST derailleurs had a price point to hit, and Sun Tour figured out how to do it with cheaper parts. It would be interesting to find out all of the marques Sun Tour made derailleurs for. I know that Fuji did this as well.
Thanks for the info, Raleigh branded ones off the table.
Tim
tkamd73 is offline
Old 11-06-18, 02:01 PM
  #19
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 2,892

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 127 Post(s)
Tagged: 0 Thread(s)
Quoted: 502 Post(s)
Likes: 0
Liked 21 Times in 19 Posts
Not a Competition

Originally Posted by Slightspeed View Post
Compared to mine, your frame looks great. Mine had a cracked braze at the upper seat tube junction, and some fiixie guy had removed the cable guides, so re-paint was never a question. I like gold bikes, and didn't know SC came in that color. I just found a gold Peugeot in great shape which cost less than the paint on my Raleigh. Have fun with yours. Heres a gold Competition I saw on a recent ride.

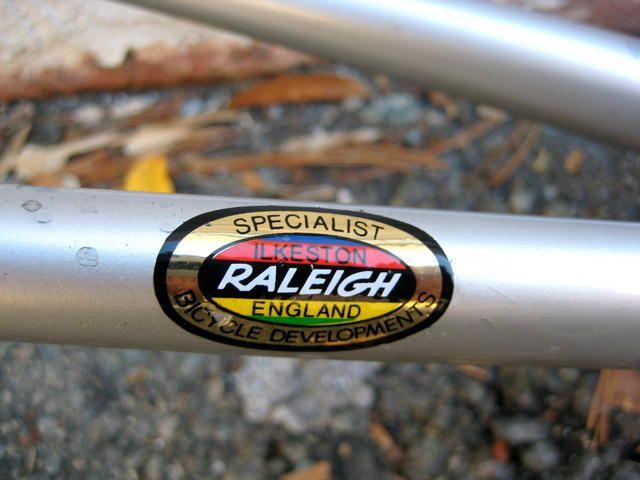

Slightspeed, the bike pictured ^ ^ ^ isn't a Competition. It's a custom built frame from Raleigh's SBDU shop in Ilkeston, UK where they made the team bikes and special order frames. It has Campy 1010A dropouts so it's probably from about 1975-77. Since these were custom built you could order lots on non standard features

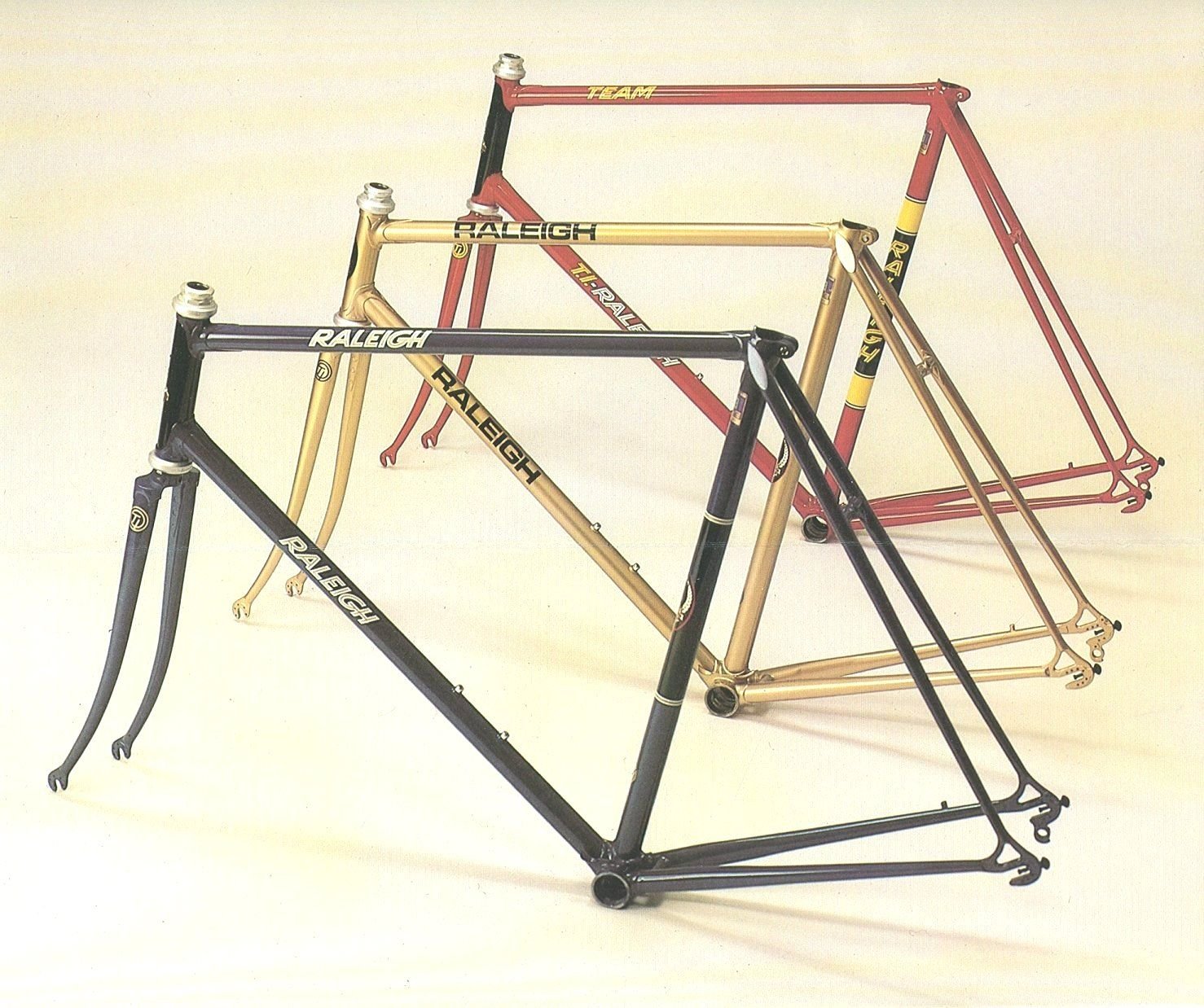

This shows some variation from a 1980 flyer.




verktyg
__________________
Things aren't always what they seem... Don't believe everything you think!

Chas. ;-)
verktyg is offline
Old 11-06-18, 02:37 PM
  #20
cinco
Senior Member

cinco's Avatar

Join Date: Dec 2006
Location: Colorado
Posts: 529

Bikes: Thirty of them

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 67 Post(s)
Likes: 0
Liked 1 Time in 1 Post
If you're still looking for a Cyclone GT I have one I'd trade for the short cage version.
cinco is offline
Old 11-06-18, 02:42 PM
  #21
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 2,643

Bikes: Bob Jackson World Tour, 81 miyata 912 and 86 miyata 312.

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 816 Post(s)
Likes: 0
Liked 21 Times in 10 Posts
Originally Posted by wrk101 View Post
The V GT Luxe and the Vx GT are my favorite friction shifting long cage rear derailleurs. They are much more affordable than Cyclone GT, durable, good looking. IMHO, they are a perfect choice for a vintage touring build (again, pre-index shifting). Lighter than the V GT, and still has the open cage design.




SunTour V GT Luxe derailleur (1500)
I have one of those as well. It also kicks ass.
52telecaster is offline
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
rustmyrtle
Classic & Vintage
10
04-27-10 05:36 AM
Racer Ex
"The 33"-Road Bike Racing
18
01-26-10 04:25 PM
Beverly
Fifty Plus (50+)
1
09-13-09 07:26 PM
jsharr
Foo
24
11-03-08 01:25 PM
optimator
Bicycle Mechanics
2
07-19-07 11:42 PM

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
