Fix it or forget it?

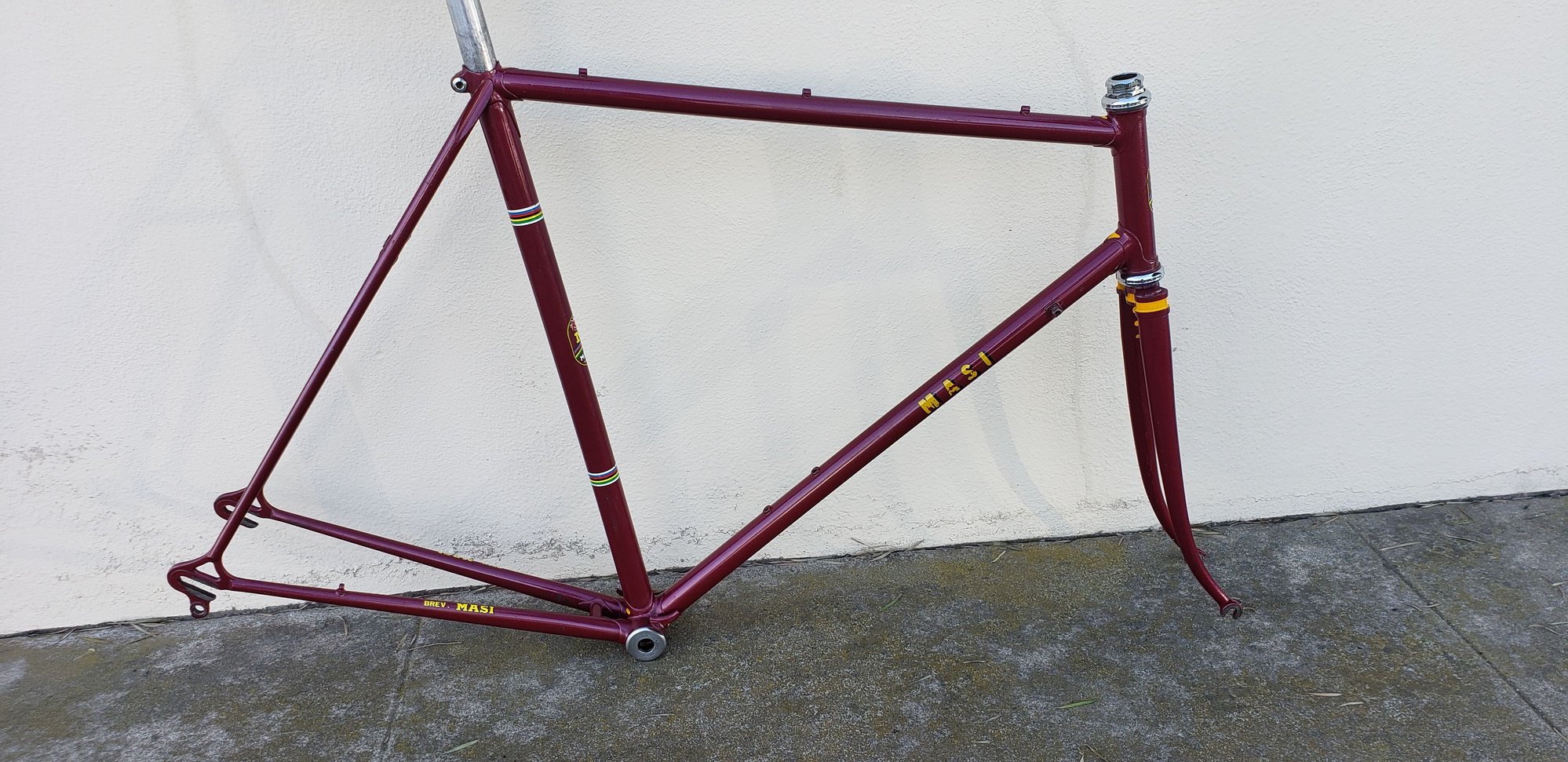

I was planning on building this Masi for the California Eroica next year but found a small ripple in the downtube just above the bottom bracket. My best guess is that the ripple is from a previous repair/repaint. I'm inclined to forget it and continue with the build as planned but thought it would be better to get some more informed opinions here first.

If I needs to be repaired I will have to set it aside for a few years until I have practiced replacing tubes enough to feel comfortable taking this on myself, or a few extra years to save up the cash to have it fixed.


brandonk is offline
Old 11-05-18, 12:30 PM
  #2
malcala622
Senior Member

malcala622's Avatar

Join Date: Oct 2014
Location: Pico Rivera, CA
Posts: 1,966

Bikes: Bianchi Trofeo/Limited/Giro.Tommasini Prestige. Bottecchia Cromor. Gios Torino. Torelli Strada?

Mentioned: 56 Post(s)
Tagged: 0 Thread(s)
Quoted: 518 Post(s)
Likes: 0
Liked 16 Times in 14 Posts
Forget it...that frame is toast...ill be glad to take off ur hands for free.
malcala622 is offline
Old 11-05-18, 01:35 PM
  #3
HarborBandS
HarborBandS

Join Date: Jun 2018
Location: Chicago Western Suburbs
Posts: 277
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 175 Post(s)
Liked 14 Times in 8 Posts
Iím not even sure I see the ďflawĒ. If itís just paint, this frameís paint job looks better than most of what people are riding in this forum. And itís on a portion of the frame thatís only visible when the bike s upside down. Hardly noticeable.

The only problem I see is of the frame was damaged and repaired poorly. And the only way to uncover that type of repair work is to remove the paint to find a weld or patch job. And hopefully itís a real Masi!

If it were me, Iíd probably take the risk and just ride it. Unless itís obvious that the ripple is more than a paint flaw.
HarborBandS is offline
Old 11-05-18, 01:46 PM
  #4
Cassave
Senior Member

Cassave's Avatar

Join Date: Jul 2005
Location: Woodland Hills, Calif.
Posts: 1,655
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Can you feel a ripple or disturbance on the inside of the tube?
Another thing to try, get a small inspection mirror and look at the inside of the tube there. Is it rippled or
discolored / burned?
I'd definitely do a little more inspection before building it up.
Cassave is offline
Old 11-05-18, 02:14 PM
  #5
bark_eater
Senior Member

Join Date: Sep 2017
Location: Eastern Shore, MD
Posts: 446

Bikes: Road ready: 1989 Centurion Sport DLX, "I Blame GP" Bridgestone CB-1. Projects: Yea, I got a problem....

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 161 Post(s)
Liked 1 Time in 1 Post
Absolute neophyte here, but... I would inspect farther up the tube for signs of of rolled out damage or bondo. Rolling blocks would not be able to get close enough to the ripple because of the cable guides. I'm not sure of the metallurgy, but this might also be a buckle from overheating the tube during construction. I've been meaning to get one of those cheap phone endoscopes for this kind of puzzle. I got one for my brother and he's used it to look inside his diesel.
bark_eater is offline
Old 11-05-18, 02:30 PM
  #6
USAZorro
SeŮor Member

USAZorro's Avatar

Join Date: Oct 2004
Location: Florence, KY
Posts: 16,214

Bikes: Mostly English - predominantly Raleighs

Mentioned: 48 Post(s)
Tagged: 0 Thread(s)
Quoted: 695 Post(s)
Liked 8 Times in 8 Posts
I wouldn't have even noticed that. I'd go with Cassave's advice. I'd be surprised if someone would have gone through the trouble of painting up a damaged frame that nicely, but checking is the prudent thing to do.
__________________
In search of what to search for.
USAZorro is offline
Old 11-05-18, 03:23 PM
  #7
Giacomo 1
Senior Member

Giacomo 1's Avatar

Join Date: Aug 2011
Location: Queens NYC
Posts: 3,184

Bikes: Colnago Super, Basso Gap, Pogliaghi, Fabio Barecci, Torelli Pista, Miyata 1400A

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 311 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Ahhh, I think your being overly cautious. That bike is a beauty. Build it, ride it, and just keep an eye on it - if you even remember the dimple is there.
Giacomo 1 is offline
Old 11-05-18, 04:30 PM
  #8
brandonk
Senior Member
Thread Starter

Join Date: Jun 2010
Location: San Diego
Posts: 108

Bikes: 84 John Howard, 85 Raleigh Kodiak, 84 Ross Mt whitney, 1950's condor, 82 Allez

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 34 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Cassave View Post
Can you feel a ripple or disturbance on the inside of the tube?
Another thing to try, get a small inspection mirror and look at the inside of the tube there. Is it rippled or
discolored / burned?
I'd definitely do a little more inspection before building it up.
I couldn't feel anything on the inside but my finger may be a little too short. I hadn't thought about looking for discoloration on the inside, I'll try that next!

Originally Posted by bark_eater View Post
Absolute neophyte here, but... I would inspect farther up the tube for signs of of rolled out damage or bondo. Rolling blocks would not be able to get close enough to the ripple because of the cable guides. I'm not sure of the metallurgy, but this might also be a buckle from overheating the tube during construction. I've been meaning to get one of those cheap phone endoscopes for this kind of puzzle. I got one for my brother and he's used it to look inside his diesel.
I had no idea the USB endoscopes were so cheap now, ordering one this afternoon. This should be Reynolds 531 tubing, from what I've read about the Masi Carlsbad shop I cant imagine this one would have rolled out of the shop like that right when they were getting established in the US, the Serial appears to be # 118. Cable guides were added at some point, possibly at the same time of a frame repair. As far as looking for bondo, is running a magnet over the tubes the best way to find it without damaging the paint?

On any other one of my bikes I wouldn't worry too much about it, but this is a grail bike for me so I want to make sure riding it as is wont cause any more damage. I have another excellent option to build for Eroica California if this one should be shelved for now.
brandonk is offline
Old 11-05-18, 06:28 PM
  #9
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 4,888

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 106 Post(s)
Tagged: 0 Thread(s)
Quoted: 1713 Post(s)
Likes: 0
Liked 32 Times in 22 Posts
It's not in the typical place for frame damage from the usual head on collision. I'm thinking that looks like laziness in sanding the primer. Essentially a paint drip. The endoscope sounds like a great idea. It should tell you if it's sloppy paint or repaired damage.

If it turns out that the tube is buckled, AFAIK there isn't as much stress at the bottom end of the down tube as there is right behind the lug. If anyone's done FEA and knows better, I'm all ears. IMHO tube replacement is the correct remedy for damaged tubes. I don't like the idea of a frame that has to be babied on rough descents, etc.

Last edited by Salamandrine; 11-05-18 at 07:11 PM.
Salamandrine is offline
Old 11-05-18, 07:13 PM
  #10
rhm
multimodal commuter

rhm's Avatar

Join Date: Nov 2006
Location: NJ, NYC, LI
Posts: 19,074

Bikes: 1940s Fothergill, 1959 Allegro Special, 1963? Claud Butler Olympic Sprint, Lambert 'Clubman', 1974 Fuji "the Ace", 1976 Holdsworth 650b conversion rando bike, 1983 Trek 720 tourer, 1984 Counterpoint Opus II, 1993 Basso Gap, 2010 Downtube 8h, and...

Mentioned: 438 Post(s)
Tagged: 0 Thread(s)
Quoted: 1538 Post(s)
Likes: 0
Liked 10 Times in 10 Posts
I have never seen a frame damaged at that location and can't imagine how it could have happened. I don't think it's anything to worry about, but I'm no expert and you shouldn't be listening to me anyway.

I would post these photos on the frame builders subforum and see what those guys think.

At any rate, I wouldn't see the harm in building it up and riding it as if it's maybe not quite as precious as previously thought. I don't think it's going to fail, but better have it fail close to home than on the Eroica.
rhm is offline
Old 11-05-18, 07:28 PM
  #11
3alarmer
******

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 17,274

Bikes: old ones

Mentioned: 226 Post(s)
Tagged: 0 Thread(s)
Quoted: 14537 Post(s)
Liked 71 Times in 61 Posts
...I have produced similar optical distortions with a run in the clear coat, using 2 part urethane type clear that goes on pretty thick.
3alarmer is offline
Old 11-05-18, 08:30 PM
  #12
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 4,022

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands, Gordon, Fuso/Moulton, Bornstein, Paisley, Paramounts, 3rensho, Moto TC, Raleigh Pro's, Marinoni, 1960 Cinelli SC, 1980 Bianchi SC and more

Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 1107 Post(s)
Liked 50 Times in 39 Posts
Originally Posted by brandonk View Post
I was planning on building this Masi for the California Eroica next year but found a small ripple in the downtube just above the bottom bracket. My best guess is that the ripple is from a previous repair/repaint. I'm inclined to forget it and continue with the build as planned but thought it would be better to get some more informed opinions here first.

If I needs to be repaired I will have to set it aside for a few years until I have practiced replacing tubes enough to feel comfortable taking this on myself, or a few extra years to save up the cash to have it fixed.


You are burning daylight, build, ride, enjoy.

And keep an eye on it if it helps you sleep better.
merziac is offline
Old 11-05-18, 09:43 PM
  #13
xiaoman1
Senior Member

xiaoman1's Avatar

Join Date: Mar 2014
Location: Weird Coast City of the Angeles
Posts: 1,992

Bikes: Paramounts, PX-10s, Mondias, Motobecane Grand Record, Specialized Allez Carbon, and Nishiki Tri-A

Mentioned: 21 Post(s)
Tagged: 1 Thread(s)
Quoted: 324 Post(s)
Likes: 0
Liked 10 Times in 8 Posts
Build it and ride it...It looks like it came from the factory that way.
Best, Ben
__________________
Paramount, Mondia, Px-10, Moto
xiaoman1 is offline
Old 11-05-18, 10:10 PM
  #14
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 6,526

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 78 Post(s)
Tagged: 0 Thread(s)
Quoted: 533 Post(s)
Likes: 0
Liked 19 Times in 19 Posts
Also, it might be molten brass that flowed in the wrong direction along the outside of the tube.
dddd is offline
Old 11-05-18, 11:59 PM
  #15
gugie
Crapmaster Emeritus

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 7,356

Bikes: JP Weigle'd Raleigh Competition reconstruct, 73 Raleigh Competition 650b'ed, 96 Bike Friday NWT, 83 Lotus Classique, 78 Centurion ProTour, 73 Raleigh Grand Sports

Mentioned: 775 Post(s)
Tagged: 0 Thread(s)
Quoted: 2215 Post(s)
Likes: 0
Liked 40 Times in 32 Posts
Tis but a scratch!

I gotta ripple or two right here:



After a week of consternation, I built it up, rode it a couple of hundred miles, rinko'ed it, shipped it back east and did 250 miles of credit card touring on it on my recent Tour de French Fender Day. Rode it on gravel too.

Check the inside of the down tube as other's have suggested, if you don't see any cracks or signs of welding, build the damn thing up and ride it, and I'll see you at Eroica in the spring!
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 11-06-18, 02:17 AM
  #16
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 2,890

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 127 Post(s)
Tagged: 0 Thread(s)
Quoted: 502 Post(s)
Likes: 0
Liked 20 Times in 18 Posts
Bulged tubes

It only takes a few seconds to overheat thin wall tubing from the orange brazing temperature to white hot. When a tube gets that hot it quickly expands in the super heated area and can cause bulging like that because the surrounding material doesn't move as easily.

Is it a problem? Probably not. The rest of the tube is going to be strong enough to support the overheated zone. If it were a problem, it probably would have caused a crack to start developing by now.

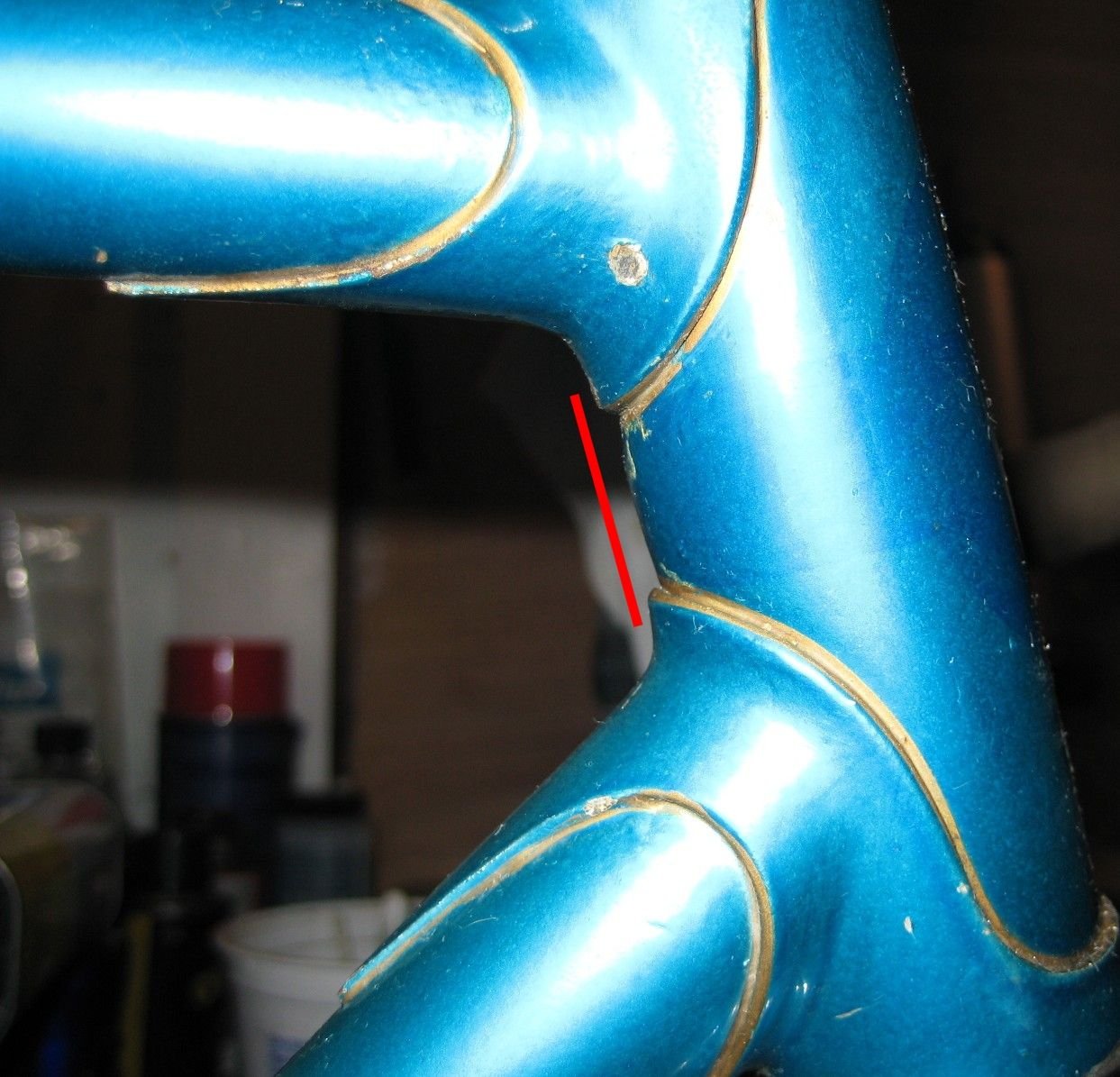

While not as extreme as in @gugie picture above ^ ^ ^ ^, I have a 1970 Gitane with a bulged head tube... see red line, it's more severe than in the photo:



As for as the sacred holy foundries of the gods (pick a name), even the best can screw up, especially when there's a new employee doing the work. BLASPHEMY! BLASPHEMY!

I'd put it together and ride it, keeping an eye of the bulged area for any sign of a crack.

It sounds like you bought the frame with that relatively new paint job. The twin plate fork crown would have been chrome plated. One reason chrome gets painted over is that it was badly rusted.



Not wanting to create FUD (Fear Uncertainty, Doubt) here's another possibility.... The bike could have been in a front ender or a garage door encounter and had the top and down tubes replaced??? Someone replacing tubes may not have had the skills to re-braze thin wall tubing into the BB???

With regards to tubing cracks at the BB, one of my Reynolds 753 frames has what looks like a crack in down tube at the BB shell. After very careful examination and with the reassurance of a very competent frame builder who thought crack was in the braze not the tube, I decided to keep riding it.

I marked the ends of the "crack" on both sides of the BB with a Sharpie pen and keep an eye on it to see if it gets bigger.



verktyg
__________________
Things aren't always what they seem... Don't believe everything you think!

Chas. ;-)

Last edited by verktyg; 11-06-18 at 02:28 AM.
verktyg is offline
Old 11-09-18, 12:50 AM
  #17
brandonk
Senior Member
Thread Starter

Join Date: Jun 2010
Location: San Diego
Posts: 108

Bikes: 84 John Howard, 85 Raleigh Kodiak, 84 Ross Mt whitney, 1950's condor, 82 Allez

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 34 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

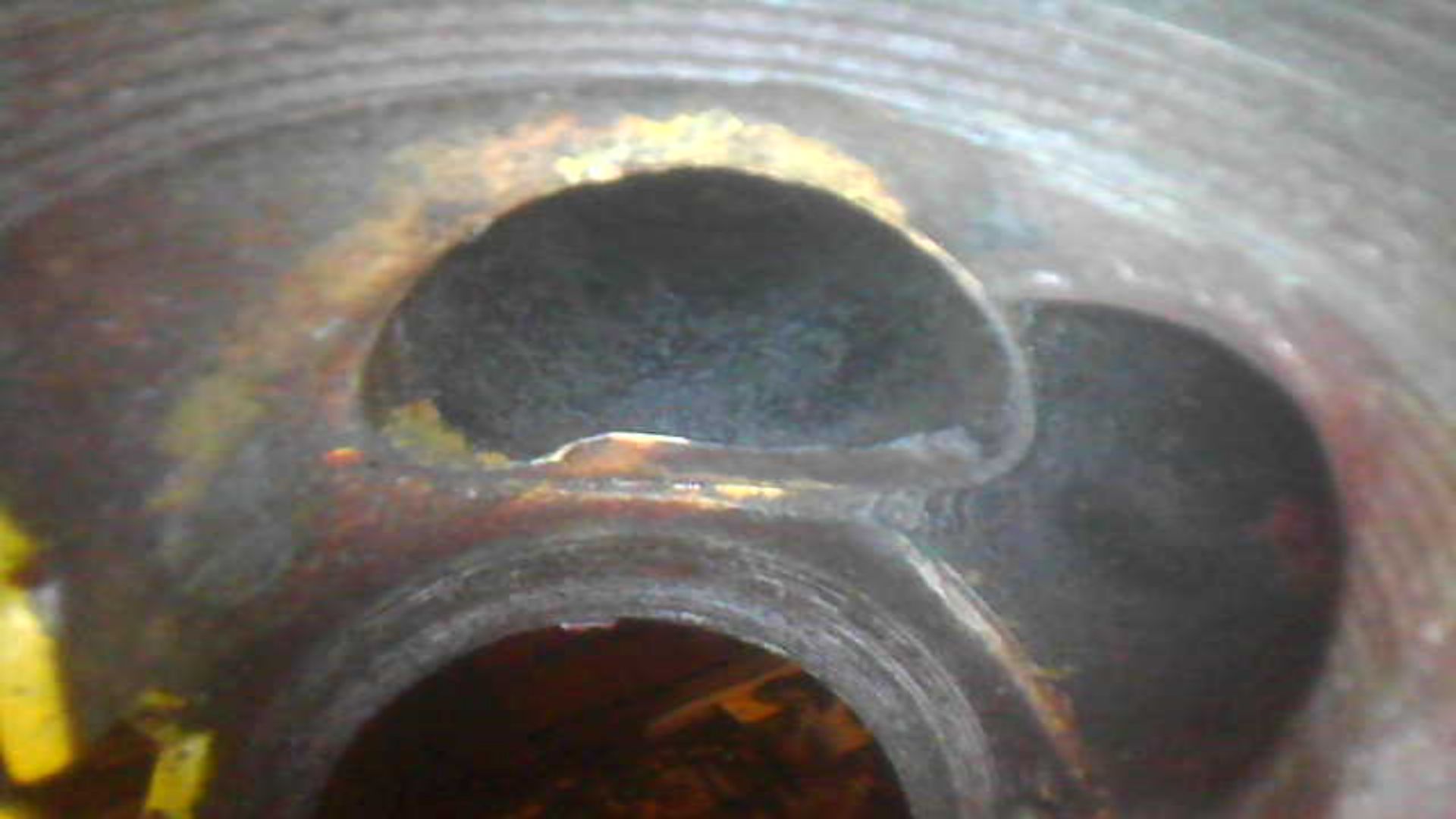

Thanks all for the advice! The endoscope came in the mail today and I was able to get a decent look at the inside of the tube.

Only slight discoloration although there is also a small indent in the opposite side of the tube. Both the bulge and indent can be felt from inside the tube as well.

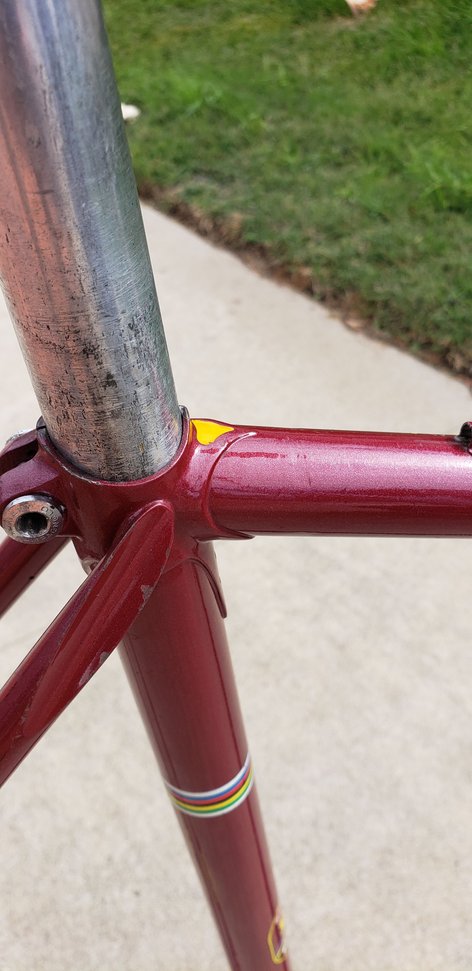

Also found a ding in the top tube near the seat cluster.

The two damaged areas may be related but I dont see any reason not to go ahead with the build and see how it rides. Might keep the ball rolling on my backup Eroica bike as well

brandonk is offline
Old 11-09-18, 07:16 AM
  #18
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 11,342

Bikes: 1977 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 1704 Post(s)
Liked 42 Times in 33 Posts
“It’ll buff out.”


I don’t know much about frame damage and what’s safe or not safe- I’m just glad and impressed that you’re (literally) looking into it.
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jiggliní huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Old 11-09-18, 07:31 AM
  #19
exmechanic89
Senior Member

exmechanic89's Avatar

Join Date: May 2015
Location: Richmond VA area
Posts: 2,725

Bikes: '00 Koga Miyata Full Pro Oval Road bike.

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 474 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I'd just build it up and ride as is. Nice frame regardless.
exmechanic89 is offline
Old 11-09-18, 04:10 PM
  #20
jmead11france
Member

jmead11france's Avatar

Join Date: Jul 2014
Location: Tucson
Posts: 37

Bikes: Limongi SuperRecord, Chesini Precision, Gilmour Nuovo Record, Schwinn Supersport, Tempo, Peloton Carbon, 1974 Paramount, Guerciotti Nuovo Record, Martelly Diamant Super Record

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I've seen that stuff before.....never seemed to effect anything....
jmead11france is offline
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
sloar
Classic and Vintage Sales
15
08-12-18 10:01 PM
corrado33
Bicycle Mechanics
40
09-02-16 10:13 AM
PDXaero
Classic & Vintage
4
03-06-09 11:37 PM
Youdelr
Classic & Vintage
3
01-08-09 08:54 PM
Zonker
Singlespeed & Fixed Gear
5
09-22-05 12:36 PM

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
