Wider aero rim for 6 speed?

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Wider aero rim for 6 speed?

Old 11-09-18, 08:23 PM
  #1
loubikes
Senior Member
Thread Starter

loubikes's Avatar

Join Date: Nov 2009
Location: Richmond Va
Posts: 76

Bikes: Bianchi Volpe 2001, Bianchi Brava, Bianchi Mondiale

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Wider aero rim for 6 speed?

I have a mid 80's Bianchi road bike that I want to put wider, aero rims on. My priority is wider rims, I'd like to get 30 or 32's on there. My rims measure 13mm, I'd like to get 17mm. If possible, I'd like the rims to be aero. The hub has to accommodate a freewheel.

What would my options be? Would this be hard to find? Where should I go about looking?

Thanks!

I have checked and it seems the frame can accommodate 32's. I put 32's on the rims and it fit with a small amount of extra space but with wider rims I expect the tube to balloon less, giving even more space (very possible I'm wrong about this). I've been using Sheldon Brown's tyre sizing article as a guide.
loubikes is offline
Old 11-09-18, 08:53 PM
  #2
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 1,545

Bikes: 69 PX-10, 81 Medici, 84 Turbo, 87 IM, 2010 Milwaukee Road, 2011 RS

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 543 Post(s)
Liked 21 Times in 18 Posts
Do you have a picture of your current 13mm rims? 32s and 35s have had no trouble staying on my Mavic Open Pros and Velocity Aeroheads which I think are 19mm.
Classtime is online now
Old 11-10-18, 12:47 AM
  #3
Dfrost
Senior Member

Dfrost's Avatar

Join Date: May 2013
Location: Pacific Northwest
Posts: 1,367

Bikes: ‘87 Marinoni SLX Sports Tourer, ‘79 Miyata 912 by Gugificazione

Mentioned: 119 Post(s)
Tagged: 0 Thread(s)
Quoted: 273 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by loubikes View Post
I have a mid 80's Bianchi road bike that I want to put wider, aero rims on. My priority is wider rims, I'd like to get 30 or 32's on there. My rims measure 13mm, I'd like to get 17mm. If possible, I'd like the rims to be aero. The hub has to accommodate a freewheel.

What would my options be? Would this be hard to find? Where should I go about looking?

Thanks!

I have checked and it seems the frame can accommodate 32's. I put 32's on the rims and it fit with a small amount of extra space but with wider rims I expect the tube to balloon less, giving even more space (very possible I'm wrong about this). I've been using Sheldon Brown's tyre sizing article as a guide.
On wider rims, the tire will be wider with the same circumference. My Compass 32mm Stampede Pass on 23mm outside width tb14’s measures 32.5mm wide, same tire on a 19mm Mavic Open4CD was 29.5mm wide. How about the 28mm Chinook Pass on a wider rim, which are 29mm actual width on those tb14’s? Ride differences are minor.

BTW, don’t expect to see any performance difference due to “aero rims’ unless you spend a lot of time at 20mph or more, but wider is nice to gain tire volume.

Rims can be built on just about any hubs with corresponding spoke counts; freewheel or cassette doesn’t matter.

Last edited by Dfrost; 11-10-18 at 12:53 AM.
Dfrost is offline
Old 11-10-18, 01:21 AM
  #4
HTupolev
Senior Member

Join Date: Apr 2015
Location: Seattle
Posts: 2,733
Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 1192 Post(s)
Liked 28 Times in 20 Posts
Originally Posted by loubikes View Post
I have a mid 80's Bianchi road bike that I want to put wider, aero rims on. My priority is wider rims, I'd like to get 30 or 32's on there. My rims measure 13mm, I'd like to get 17mm. If possible, I'd like the rims to be aero.
I'm not sure why you'd only go to 17mm for an aero rim when you plan on using 30mm tires; aero rims perform best when they're as wide as the tire is, so they can more easily recapture airflow from the tire. This is a big part of why aero rims have been getting so fat. And many current-gen aero rims - even for only 25mm tires - are now around 21mm internal. The ENVE 4.5 AR, designed for tires in the size you're looking at (but disc-only), is 25mm internal and over 30mm external. You'll still probably get some aero benefit with a narrower aero rim, but likely less.

17mm-internal rims will work just fine with your tires, in terms of tire function, though.

The hub has to accommodate a freewheel.
Pre-built deep aero wheels that accommodate freewheels are basically nonexistent. If your Bianchi is steel, you could probably re-space your frame the 4mm to fit a modern freehub wheel without issue.

If you're building the wheel... 36H aero rims are incredibly uncommon, but 32H are available. You can buy 32H aero rims from FLO, for instance.

with wider rims I expect the tube to balloon less, giving even more space (very possible I'm wrong about this).
No, wide rims tend to fatten tires.
HTupolev is offline
Old 11-10-18, 11:55 AM
  #5
masi61
Senior Member

masi61's Avatar

Join Date: Oct 2005
Location: SW Ohio
Posts: 2,056

Bikes: Puch Marco Polo, Saint Tropez, Masi Gran Criterium

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 390 Post(s)
Likes: 0
Liked 9 Times in 9 Posts
Originally Posted by loubikes View Post
I have a mid 80's Bianchi road bike that I want to put wider, aero rims on. My priority is wider rims, I'd like to get 30 or 32's on there. My rims measure 13mm, I'd like to get 17mm. If possible, I'd like the rims to be aero. The hub has to accommodate a freewheel.

What would my options be? Would this be hard to find? Where should I go about looking?

Thanks!

I have checked and it seems the frame can accommodate 32's. I put 32's on the rims and it fit with a small amount of extra space but with wider rims I expect the tube to balloon less, giving even more space (very possible I'm wrong about this). I've been using Sheldon Brown's tyre sizing article as a guide.
So you’re keeping your existing hubs and plan to have them laced into some wider aero rims?

Could you provide more info about your current hubs? Which rear spacing do you have on your bike 120, 126? Are you looking to do this wheel re-build on any particular budget? Are you wanting mild aero benefits or you talking all out 50+ mm rim profile? Aluminum or carbon rims.

I’ve been thinking for a while now that classic and vintage bikes would be a fertile breeding ground for tastefully done wheel rebuilds using modern (wider) rims that can take advantage of some of the better tire technologies available now.

masi61 is offline
Old 11-10-18, 01:15 PM
  #6
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 4,890

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 106 Post(s)
Tagged: 0 Thread(s)
Quoted: 1717 Post(s)
Likes: 0
Liked 36 Times in 24 Posts
You will probably have to have your hubs rebuilt with new rims. Not much in prefabricated 'wheelsets' available in the old 126mm standard.

Consider the Velocity A23 or H+ Son Archetype rims. They are both about 23mm wide, maybe 18mm inside I guess. They both come in 36H if that's required. Kind of overkill for aero rims, but it would be strong. I'm running the A23 rims right now with Conti GP 4000SII tires that are nominally 28, but on the A23 rims they are about 30.7mm wide.
Salamandrine is offline
Old 11-10-18, 01:21 PM
  #7
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,835
Mentioned: 431 Post(s)
Tagged: 1 Thread(s)
Quoted: 2476 Post(s)
Likes: 0
Liked 61 Times in 57 Posts
A wide aero rim was an oxymoron in the 1980s. Most were 13-16mm across the inside of the rim flanges. However, there are modern alternatives, assuming you need 700C and not 27". For instance, Velocity has the Aileron (20mm width) and Quill (21mm width).

Velocity Wheels - Hand Made in USA
Velocity Wheels - Hand Made in USA
T-Mar is offline
Old 11-10-18, 04:27 PM
  #8
63rickert
Senior Member

Join Date: Dec 2013
Posts: 1,066
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 484 Post(s)
Likes: 0
Liked 19 Times in 16 Posts
The period correct aero rim would be Araya ADX-2W. Roughly a 16-22 rim. Have not seen one for a long time. They were a bit on heavy side too. My choice for your build would be H+Son.
If you have doubts about fitting the big tire join the club. Not always possible to tell until you try. And then the tire stretches.

Last edited by 63rickert; 11-11-18 at 07:06 AM.
63rickert is offline
Old 11-10-18, 08:12 PM
  #9
jamesdak
Senior Member

Join Date: Aug 2010
Location: Utah
Posts: 5,403

Bikes: G.L. Maillot Juane & Ventoux,Schwinn Circuit, Prologue,PDG Paramount,Paramount,Tempo,Jake The Snake,LeMond Zurich & Tourmelet,Giordana XL Super & Antares,Puegeot U08,Bob Jackson,Fuji S12-S,Opus III,Orbea Cabestany,Bianchi Campione,Basso Gap

Mentioned: 85 Post(s)
Tagged: 0 Thread(s)
Quoted: 1168 Post(s)
Liked 92 Times in 51 Posts

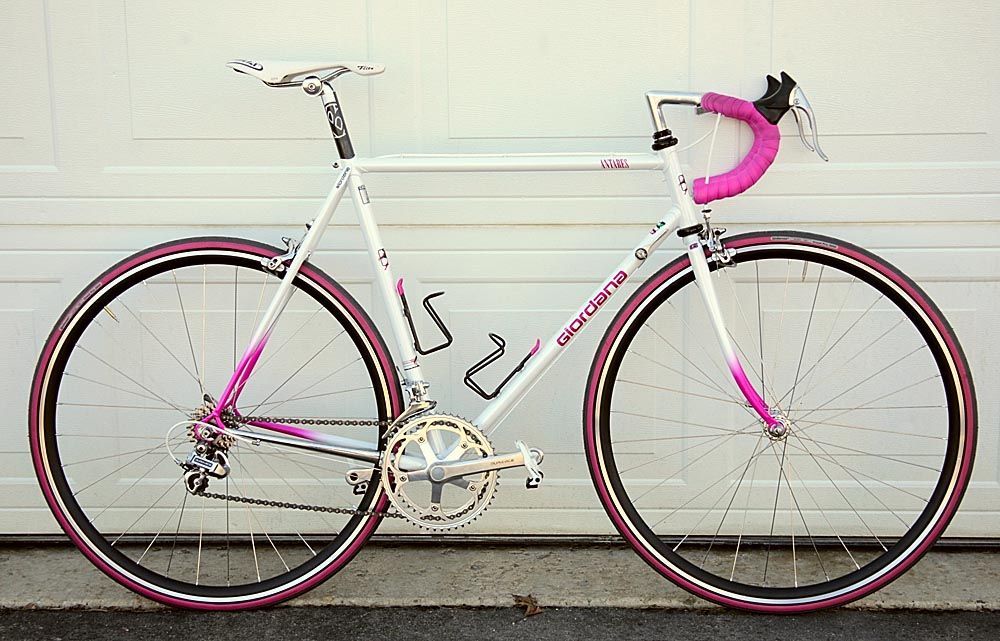

I had so Pacenti SL23 rims laced to some 6 speed Dura Ace hubs and wound up with a modern style wide rim wheelset weighing in under 1600 grams easily. Made the bike feel even better out on the road.

jamesdak is offline
Old 11-11-18, 03:19 PM
  #10
ThermionicScott
hungry

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 18,474

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 68 Post(s)
Tagged: 0 Thread(s)
Quoted: 2028 Post(s)
Liked 98 Times in 81 Posts
I've been eyeing the Pacenti Forza (wow, only $85 now: https://pacenticycledesign.com/colle...ad-front-rim-1) or Velocity Quill next time I need to build a rear 700C wheel. It's amazing what they've done with aluminum rims since the 1980s.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Old 11-13-18, 07:18 PM
  #11
loubikes
Senior Member
Thread Starter

loubikes's Avatar

Join Date: Nov 2009
Location: Richmond Va
Posts: 76

Bikes: Bianchi Volpe 2001, Bianchi Brava, Bianchi Mondiale

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Dfrost View Post

On wider rims, the tire will be wider with the same circumference.
Ok, good to know. I was assuming that a wider rim would mean the tire flattened-out and didn't sit as high (shorter circumference?), which would give me more clearance from the top of the tire to the frame.
loubikes is offline
Old 11-13-18, 07:21 PM
  #12
loubikes
Senior Member
Thread Starter

loubikes's Avatar

Join Date: Nov 2009
Location: Richmond Va
Posts: 76

Bikes: Bianchi Volpe 2001, Bianchi Brava, Bianchi Mondiale

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by masi61 View Post


So you’re keeping your existing hubs and plan to have them laced into some wider aero rims?

No. Sorry, I should've been more clear. I was to find an existing, used wheelset. I'm looking to spend as little as possible ($100-200) and don't have the skill-sets to lace a rim to a hub.
loubikes is offline
Old 11-13-18, 07:24 PM
  #13
loubikes
Senior Member
Thread Starter

loubikes's Avatar

Join Date: Nov 2009
Location: Richmond Va
Posts: 76

Bikes: Bianchi Volpe 2001, Bianchi Brava, Bianchi Mondiale

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Salamandrine View Post
You will probably have to have your hubs rebuilt with new rims. Not much in prefabricated 'wheelsets' available in the old 126mm standard.
Thanks, this pretty much answers my question. I guess I should have asked, "Can i find an aero wheelset with a hub that accepts a freewheel and has an internal rim-width of 17+mm." Thanks all!
loubikes is offline
