Can Campy Vintage Record Derailleurs Support Gearing Changes for Eroica?

I recently purchased a 1972 Gitane Super Corsa as my fall/winter project with the intent of riding it in the 2019 CA Eroica. It has all of the original Campy components and I want to modify the bike for those insane climbs that we all love on the Eroica courses. Ideally, I would like to install a triple chainring upfront (53/42/32) and possibly move to a 14x28 in back. It currently has a double chainring (53/42) and a 14x26 in the rear.
I'm quite familiar with Simplex derailleurs but am new to Campy Record gear. Should I attempt to go forward with the existing Record derailleurs or just plan on swapping out both front and rear derailleurs with a triple FD upfront and a long cage RD?
Call me a sucker for these old French bikes and all of their idio(t)synchronies!
Thanks,
Brian
Flying G is offline
Old 11-12-18, 11:29 AM
  #2
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 5,309

Bikes: I'd rather not count how many, thank you

Mentioned: 146 Post(s)
Tagged: 0 Thread(s)
Quoted: 1008 Post(s)
Liked 16 Times in 11 Posts
NR or SR?
I've found the SR will shift up to a 28 on most bikes, but...probably will not have enough wrap to deal with a triple.
On one bike, I used a 48/34 with a 14-28, so 28 teeth of wrap.
But you're talking about, what, 35 teeth of wrap? Probably too much.
__________________
Hard at work in the Secret Underground Laboratory...

Last edited by rccardr; 11-12-18 at 11:32 AM.
rccardr is offline
Old 11-12-18, 11:33 AM
  #3
Flying G
Senior Member
Thread Starter

Flying G's Avatar

Join Date: Jun 2017
Location: Northern CA
Posts: 75

Bikes: 1971 Gitane TDF, 1974 Gitane Interclub, 2001 Serotta Rapid Tour CS3 and 1986 Bruce Gordon touring bike, 1972 Gitane Super Corsa (restoration project) and 1978 Michal Johnson mystery road bike.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Sorry, should have mentioned NR.
Flying G is offline
Old 11-12-18, 11:37 AM
  #4
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 5,309

Bikes: I'd rather not count how many, thank you

Mentioned: 146 Post(s)
Tagged: 0 Thread(s)
Quoted: 1008 Post(s)
Liked 16 Times in 11 Posts
Aha. I seem to remember that NR has less wrap capability than SR.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Old 11-12-18, 11:58 AM
  #5
jeirvine
Senior Member

jeirvine's Avatar

Join Date: Sep 2011
Location: Bethesda/Baltimore MD
Posts: 3,186

Bikes: '72 Moto Grand Record, '72 Gitane tandem, '72 Raleigh Super Course, '73 Raleigh Gran Sport, '73 and '76 Colnagos Super, '76 Fiorelli Coppi, '78 Raleigh SBDU Team Pro, '78 Trek 930, '81 Holdsworth Special 650B, '86 Masi GC, '87 Panasonic DX5000

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 428 Post(s)
Likes: 0
Liked 18 Times in 11 Posts
I have a Motobecane with a TA 50/36, a 14-28 and a NR is shifting it fine. Not sure if it is low enough for you @ l'Eroica, but it works for me on hilly rides.
__________________
The man who dies with the most toys…is dead. - Rootboy
jeirvine is offline
Old 11-12-18, 12:06 PM
  #6
speedevil
I never finish anyth

speedevil's Avatar

Join Date: Jul 2010
Location: Western KY
Posts: 983

Bikes: 2008 Merckx LXM, 2003 Giant XTC mtb, 2001 Lemond Alpe d'Huez, 1997 Lemond Zurich, 1989 Cannondale ST, 198? Masi Nuovo Strada, 1984 Pinarello Turismo

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 235 Post(s)
Likes: 0
Liked 12 Times in 11 Posts
Take a look at this - might be just what you need - https://store.somafab.com/sonuredecapl.html
__________________
Dale, NL4T
speedevil is offline
Old 11-12-18, 12:16 PM
  #7
Dean51
Senior Member

Dean51's Avatar

Join Date: Feb 2016
Location: Olympic Peninsula, WA
Posts: 388

Bikes: '82 YKonno Allez, ~'80 Ron Cooper, '87 Ciocc Designer 84, '77 Schwinn Volare, '86 Tommasini Racing, Ciocc Mockba 80, '98 S-Works Hardtail Mtn., Nishiki Int'l Singlespeed

Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 134 Post(s)
Likes: 0
Liked 3 Times in 2 Posts
Originally Posted by rccardr View Post
NR or SR?
I've found the SR will shift up to a 28 on most bikes, but...probably will not have enough wrap to deal with a triple.
On one bike, I used a 48/34 with a 14-28, so 28 teeth of wrap.
But you're talking about, what, 35 teeth of wrap? Probably too much.
My experience too! I could get the SR rear to clear a 28 tooth cog, but it does not have sufficient chain wrap for your proposed triple crankset. FWIW, I rode Eroica California 2017 with a 41 x 28 low combination.....my knees were "talking" to me for a long time afterward.

Dean
__________________
Roll Me Up and Smoke Me When I Die
Dean51 is offline
Old 11-12-18, 12:20 PM
  #8
Aubergine
Bad example

Join Date: Nov 2015
Location: Seattle and Reims
Posts: 2,938
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 771 Post(s)
Liked 17 Times in 14 Posts
I also would look into the Soma Fabrications cage. I put one on a 980 derailleur (same basic parallelogram as the NR) and it works well enough.

The NR front derailleurs work really well with triples. I have them on almost all of the old friction bikes I have.
__________________
Keeping Seattle’s bike shops in business since 1978
Aubergine is offline
Old 11-12-18, 12:23 PM
  #9
Dave Mayer
Senior Member

Join Date: Dec 2006
Posts: 1,799
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 592 Post(s)
Likes: 0
Liked 10 Times in 9 Posts
I have a '73 Tour de France kitted with a triple and a 13-28 Dura-Ace 7-speed freewheel. The crankset is a Sugino PX.

The rear derailleur is a Simplex SX630 long cage. It barely handles the 28 tooth cog.

I suggest a front derailluer designed for a triple. I am using an 80s vintage Shimano Deore unit. I tried old Campy and Simplex fronts, but the shifting was slow and unreliable.

Recommendation: in terms of pure functionality, an inexpensive set of Shimano Deore derailleurs, matched with a modern Hyperglide chain and freewheel will outperform anything vintage, particularly the Campy drop-parallelogram rear derailluer.

That is, as long as you don't have a Simplex dropout/derailleur hanger on your frame. Then some mods would be required.
Dave Mayer is offline
Old 11-12-18, 12:36 PM
  #10
Ungaro
Member

Join Date: Mar 2018
Location: Fayetteville, GA
Posts: 37

Bikes: '71 Raleigh Professional MK III; '88 Bianchi Campione d'Ialia (project); 2011 Ellsworth Roots; 2012 Cool Fixie; 2017 Bottecchia Leggendaria; 2008 Electra Townie

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
FWIW: Campagnolo derailleurs (and all other vintage numbers) handled all the gears needed to sufficiently master the toughest climbs that ever were dished out, long before Eroica events came onto the scene. Perhaps the proper question to ask is whether or not your current gear ratio on your non-Eroica bike can translate over to your vintage set up.
Ungaro is offline
Old 11-12-18, 01:33 PM
  #11
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 18,222
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 33 Times in 30 Posts
I had a Campagnolo NR derailleur on my touring bike when I built it. But I think back then that I thought 36 front-24 rear was low enough for touring.

I recall that NR was rated for 28 teeth. I don't see any differences between my SR and NR derailleurs other than cosmetic.
unterhausen is offline
Old 11-12-18, 01:50 PM
  #12
top506
Death fork? Naaaah!!

top506's Avatar

Join Date: Nov 2005
Location: The other Maine, north of RT 2
Posts: 4,567

Bikes: '71 Gitane Super Corsa, '73 Atala Giro d'Italia, '73 Schwinn Super Sport, '76 Viscount Aerospace Pro, '81 Miyata 710, '84 Ross Signature 290s, '85 Miele Gara, '87 Miyata 512, '89 Centurion Ironman, many more

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 274 Post(s)
Likes: 0
Liked 5 Times in 5 Posts

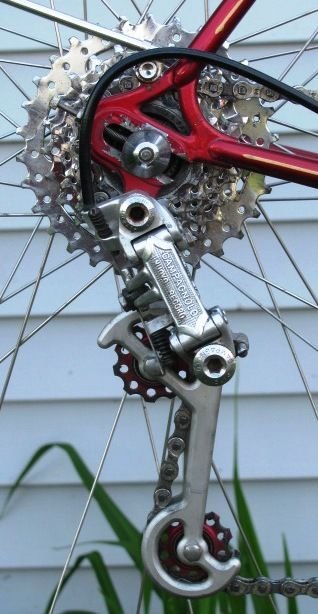

Soma cage AND a triple:




Top
__________________
You know it's going to be a good day when the stem and seatpost come right out.

(looking for a picture and not seeing it? Thank the Photobucket fiasco.PM me and I'll link it up.)
top506 is offline
Old 11-12-18, 02:00 PM
  #13
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 18,222
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 33 Times in 30 Posts
I had no idea Soma sold cage parts. How is the shifting?
unterhausen is offline
Old 11-12-18, 02:35 PM
  #14
Andy_K
Senior Member

Andy_K's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 12,050

Bikes: Yes

Mentioned: 287 Post(s)
Tagged: 0 Thread(s)
Quoted: 1739 Post(s)
Liked 17 Times in 16 Posts
I rode Eroica last year with this setup:



Nuovo Record front and rear derailleurs, Soma Nuovo Retro cage swapped in on the rear.
Nuovo Record crankset with Red Clover triplizer, 52-42-26
14-30 SunTour Perfect freewheel

The chain wrap was no problem. The rear shifting was great. The front shifting.... Well, what's more Eroica-appropriate than having to dismount and manually change gears? Actually it wasn't quite that bad. I could shift down to smaller rings with no trouble. I could shift from the middle ring to the big ring with no trouble. To get from the small ring to the middle ring I had to shift to the big ring first and then drop it back down to the middle. Honestly, that was the least of my worries. The toe clips gave me a lot more trouble. I've been told that if you use a small big ring (48T, for instance) and lower the front derailleur you can get the NR front derailleur to shift small-to-middle reliably.

The thing I would note about this though is that even with my 26-front x 30-rear low gear I still ended up walking a substantial portion of all three main climbs. They're just brutal that way.
__________________
My Bikes
Andy_K is offline
Old 11-12-18, 03:22 PM
  #15
lostarchitect
incazzare.

lostarchitect's Avatar

Join Date: Mar 2010
Location: Brooklyn, NY
Posts: 6,890

Bikes: See sig

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Likes: 0
Liked 5 Times in 4 Posts
I ran a 14-28 with an unmodified NR derailleur with no issues.
__________________
1964 JRJ (Bob Jackson), 1973 Wes Mason, 1974 Raleigh Gran Sport, 1986 Schwinn High Sierra, 2000ish Colian (Colin Laing), 2011 Dick Chafe, 2013 Velo Orange Pass Hunter
lostarchitect is offline
Old 11-12-18, 03:32 PM
  #16
rootboy
Senior Member

rootboy's Avatar

Join Date: Apr 2005
Location: Wherever
Posts: 16,621
Mentioned: 75 Post(s)
Tagged: 0 Thread(s)
Quoted: 493 Post(s)
Likes: 0
Liked 5 Times in 5 Posts
The Nuovo Record rear was rated for 26. But many here, including me, have used it for 28. It requires a little bit of special setup,
like moving the wheel further forward in the dropouts so the derailleur cage can clear the big cog.
On the first Super Record rears the cages were the same as on Nuovo Record. But on the later versions they redesigned the cage a bit, and the geometry
of the lower pivot itself. Those models will run 28 a little better than NR derailleurs.

Originally Posted by unterhausen View Post
I recall that NR was rated for 28 teeth. I don't see any differences between my SR and NR derailleurs other than cosmetic.

Last edited by rootboy; 11-12-18 at 07:39 PM.
rootboy is offline
Old 11-12-18, 03:37 PM
  #17
rootboy
Senior Member

rootboy's Avatar

Join Date: Apr 2005
Location: Wherever
Posts: 16,621
Mentioned: 75 Post(s)
Tagged: 0 Thread(s)
Quoted: 493 Post(s)
Likes: 0
Liked 5 Times in 5 Posts
Originally Posted by Ungaro View Post
FWIW: Campagnolo derailleurs (and all other vintage numbers) handled all the gears needed to sufficiently master the toughest climbs that ever were dished out, long before Eroica events came onto the scene. .
Heh., Yes, if you are in very good condition, like most of us were in our 20's. But I'm not sure that statement applies to old geezers, riding old bikes, on gravel roads up in the mountains of California.
Maybe the OP is built like Eddy...dunno.
rootboy is offline
Old 11-12-18, 03:41 PM
  #18
Lascauxcaveman
Senior Member

Lascauxcaveman's Avatar

Join Date: Nov 2011
Location: Port Angeles, WA
Posts: 7,255

Bikes: A green one, "Ragleigh," or something.

Mentioned: 157 Post(s)
Tagged: 0 Thread(s)
Quoted: 1304 Post(s)
Liked 21 Times in 18 Posts
I've gone as high as a 14-30 cog set out back with an unmodified NR rear derailleur. That was with 52/42 up front. Big/big combo was a little tighter than I like, but sometimes I push them all the way, to see how far they will go
__________________
● 1971 Grandis SL ● 1972 Lambert Grand Prix frankenbike ● 1972 Raleigh Super Course fixie ● 1973 Nishiki Semi-Pro ● 1980 Apollo "Legnano" ● 1981 Miyata 1000 ● 1984 Bianchi Limited ● 1984 Nishiki Landau ● 1984 Peugeot Vagabond ● 1985 Trek 600 ● 1985 Shogun Prairie Breaker ● 1986 Univega Nuovo Sport ● 1986 Merckx Super Corsa ● 1987 Schwinn Tempo ● 1988 Schwinn Voyageur ● 1989 Trek 400 ● 1990 Cannondale ST600 ● 1993 Technium RT600 ● 1996 Kona Lava Dome ● And a Bike to Be Named Later ●
Lascauxcaveman is offline
Old 11-12-18, 03:55 PM
  #19
Ungaro
Member

Join Date: Mar 2018
Location: Fayetteville, GA
Posts: 37

Bikes: '71 Raleigh Professional MK III; '88 Bianchi Campione d'Ialia (project); 2011 Ellsworth Roots; 2012 Cool Fixie; 2017 Bottecchia Leggendaria; 2008 Electra Townie

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by rootboy View Post
Heh., Yes, if you are in very good condition, like most of us were in our 20's. But I'm not sure that statement applies to old geezers, riding old bikes, on gravel roads up in the mountains of California.
Maybe the OP is built like Eddy...dunno.
Indeed. My point is that it's not about gearing a bike to handle Eroica - any bike can handle Eroica. It's about gearing a bike for the rider. Myself, I've never had a bike with a decent motor....
Ungaro is offline
Old 11-12-18, 04:03 PM
  #20
davester
Senior Member

davester's Avatar

Join Date: Oct 2012
Location: Berkeley CA
Posts: 1,513

Bikes: 1981 Ron Cooper, 1974 Cinelli Super Corsa, 2000 Gary Fisher Sugar 1, 1986 Miyata 710, 1983 Nishiki Cresta

Mentioned: 44 Post(s)
Tagged: 0 Thread(s)
Quoted: 397 Post(s)
Likes: 0
Liked 16 Times in 14 Posts
I rode the last two Eroica Californias and Eroica Gaiole using Nuovo Record, a triple (Red Clover triplizer on my Campy Record cranks) with the Soma cage and it worked fine. It shifts just as badly as the Nuovo Record ever shifted a wide range freewheel, which is to say not nearly as precisely as a Suntour Cyclone especially on the small cogs, but well enough for me. My setup has a 52-42-30 and 13-28. I even switched to a 13-32 to ride the Markleeville Deathride and it still worked fine. That is definitely plumbing the limits of both the front and rear derailleurs and in a few gears the chain drags on the lowest part of the front derailleur cage. I'm running way beyond the published capacity of the front derailleur.
davester is offline
Old 11-12-18, 04:06 PM
  #21
Andy_K
Senior Member

Andy_K's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 12,050

Bikes: Yes

Mentioned: 287 Post(s)
Tagged: 0 Thread(s)
Quoted: 1739 Post(s)
Liked 17 Times in 16 Posts
Originally Posted by rootboy View Post
Maybe the OP is built like Eddy...dunno.
I'm built a bit like Eddy...



I'm pretty sure he could still ride circles around me though.
__________________
My Bikes
Andy_K is offline
Old 11-12-18, 04:51 PM
  #22
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 41,650

Bikes: 8

Mentioned: 188 Post(s)
Tagged: 0 Thread(s)
Quoted: 6836 Post(s)
Likes: 0
Liked 215 Times in 179 Posts
Originally Posted by unterhausen View Post
I had no idea Soma sold cage parts. How is the shifting?
Friction.. your skill is the difference ..
SoMa is Merry sales Online Retailer and brand name. ..
fietsbob is offline
Old 11-12-18, 04:58 PM
  #23
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 18,222
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 33 Times in 30 Posts
I forget what bike it was on, but the last time I swapped from a suntour gt to a campagnolo NR, the NR shifted a lot better than I remember. But Suntours wore out and a NR didn't wear out nearly as quickly, so maybe that is an unfair comparison.

When I went to 9 speed on that bike, I went to a modern rear derailleur. Until last summer, I was shifting 9 speed with friction bar end shifters, so I'm not afraid of that part. Although with a 9 speed chain, if it's not totally in gear it's a good idea to fix that fairly quickly.
unterhausen is offline
Old 11-12-18, 06:22 PM
  #24
top506
Death fork? Naaaah!!

top506's Avatar

Join Date: Nov 2005
Location: The other Maine, north of RT 2
Posts: 4,567

Bikes: '71 Gitane Super Corsa, '73 Atala Giro d'Italia, '73 Schwinn Super Sport, '76 Viscount Aerospace Pro, '81 Miyata 710, '84 Ross Signature 290s, '85 Miele Gara, '87 Miyata 512, '89 Centurion Ironman, many more

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 274 Post(s)
Likes: 0
Liked 5 Times in 5 Posts
Originally Posted by davester View Post
It shifts just as badly as the Nuovo Record ever shifted a wide range freewheel
Well said, and I concur.

Top
__________________
You know it's going to be a good day when the stem and seatpost come right out.

(looking for a picture and not seeing it? Thank the Photobucket fiasco.PM me and I'll link it up.)
top506 is offline
Old 11-12-18, 07:41 PM
  #25
rootboy
Senior Member

rootboy's Avatar

Join Date: Apr 2005
Location: Wherever
Posts: 16,621
Mentioned: 75 Post(s)
Tagged: 0 Thread(s)
Quoted: 493 Post(s)
Likes: 0
Liked 5 Times in 5 Posts
Originally Posted by Ungaro View Post
Indeed. My point is that it's not about gearing a bike to handle Eroica - any bike can handle Eroica. It's about gearing a bike for the rider. Myself, I've never had a bike with a decent motor....
So true. I haven't had a good motor since I was 28.
rootboy is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
