First Generation Cannondale SR Model restore

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

First Generation Cannondale SR Model restore

Old 11-15-18, 06:54 PM
  #1
jjhabbs
Senior Member
Thread Starter

jjhabbs's Avatar

Join Date: Feb 2012
Location: Chicagoland
Posts: 1,253

Bikes: to many to list

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Likes: 0
Liked 5 Times in 2 Posts

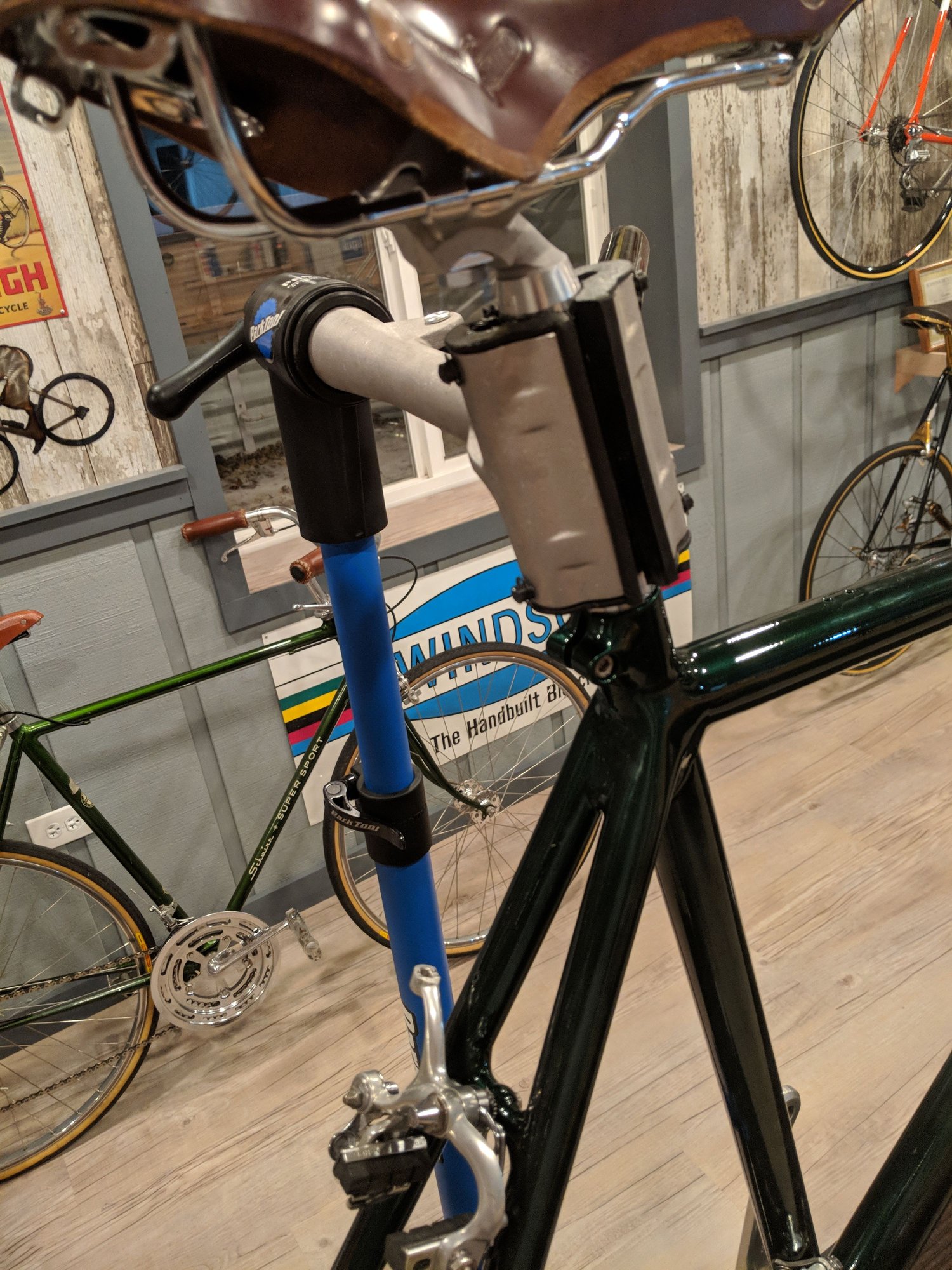

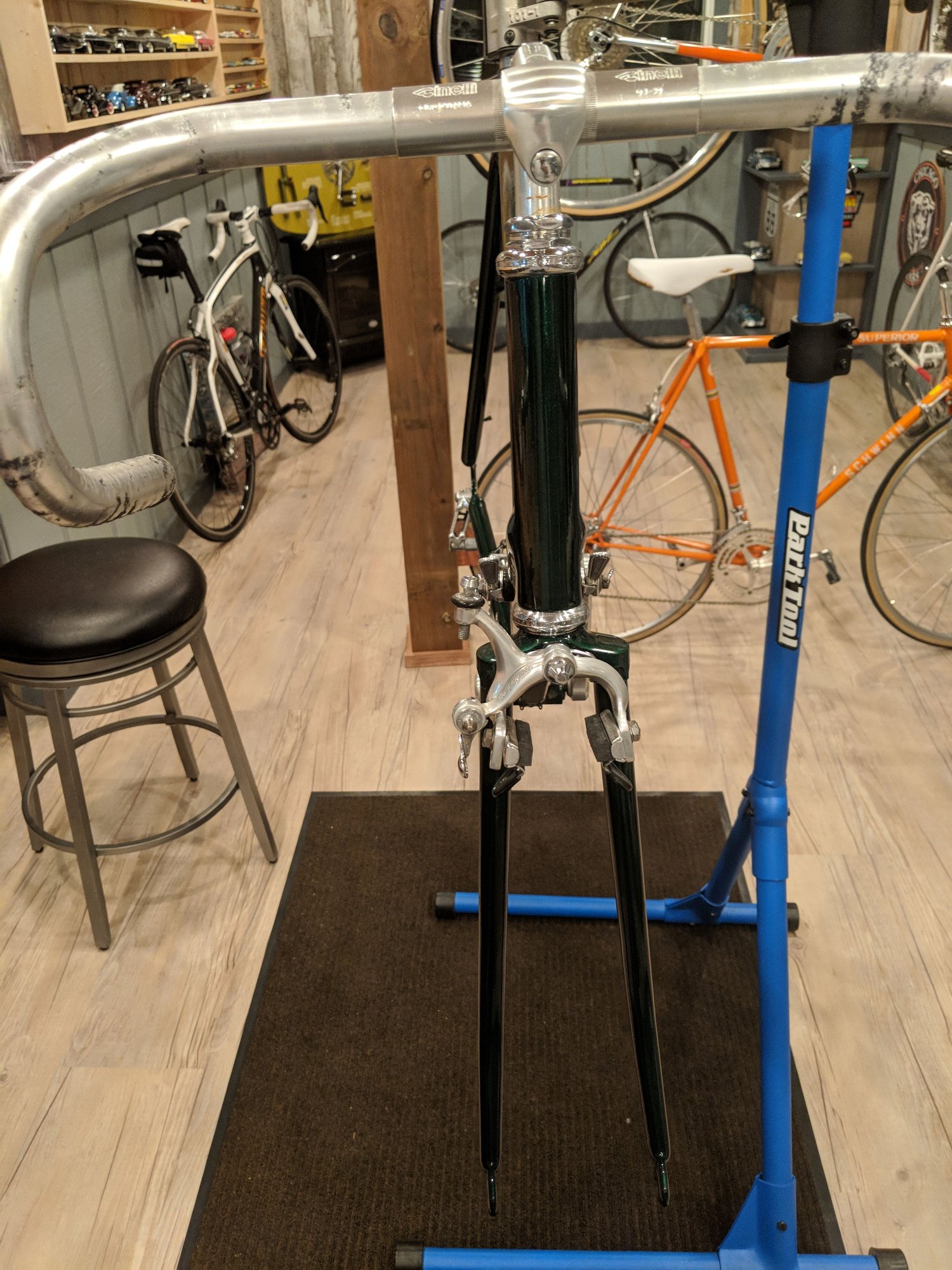

First Generation Cannondale SR Model restore

Back in the 80s I managed the largest Cannondale dealership in the midwest. The SR series came out the second year that offered the Criterium geometry. Alll the frames were the same. Back then I painted one Dark forest green and put campy on it. I am now replicating that bicycle. Here are some pics.
The plan
Full Super/Nuovo record group. Large flange hubs, Mavics, Vittoria Corso, Brooks, Cinelli. Yellow decals. Need to build some wheels and the rest should go fast.




__________________
From Illinois. Collector of many fine bicycles from all over the world. Subscribe to my Youtube channel. Just search John Haboush
jjhabbs is offline
Old 11-15-18, 07:08 PM
  #2
Trakhak
Senior Member

Join Date: Jan 2005
Location: Baltimore, MD
Posts: 1,708
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 366 Post(s)
Liked 16 Times in 11 Posts
That silver NV Record crank against the dark forest green is sublime.
Trakhak is offline
Old 11-15-18, 07:12 PM
  #3
jjhabbs
Senior Member
Thread Starter

jjhabbs's Avatar

Join Date: Feb 2012
Location: Chicagoland
Posts: 1,253

Bikes: to many to list

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Likes: 0
Liked 5 Times in 2 Posts
Originally Posted by Trakhak View Post
That silver NV Record crank against the dark forest green is sublime.
It really pops doesnt it. Thanks. The large flange Campy hubs all polished up does the same!
__________________
From Illinois. Collector of many fine bicycles from all over the world. Subscribe to my Youtube channel. Just search John Haboush
jjhabbs is offline
Old 11-15-18, 09:26 PM
  #4
Lascauxcaveman
Senior Member

Lascauxcaveman's Avatar

Join Date: Nov 2011
Location: Port Angeles, WA
Posts: 7,249

Bikes: A green one, "Ragleigh," or something.

Mentioned: 155 Post(s)
Tagged: 0 Thread(s)
Quoted: 1295 Post(s)
Liked 18 Times in 15 Posts
Great color. If I ever decide to refinish my ST600, thatís pretty close to what I have in mind.
Lascauxcaveman is offline
Old 11-15-18, 09:55 PM
  #5
Mark Isaak
Junior Member

Join Date: Jan 2017
Location: Austin, TX
Posts: 24

Bikes: Argon 18 - Nitrogen, Ritchey - Pro Logic, Ridley - Crossfire, 1976 Colnago Super, 1984 Viner Special Professional, 198? Pinarello Super

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
About what year did those frames come out? Is it steel or aluminum?

its a great color.
Mark Isaak is offline
Old 11-15-18, 11:03 PM
  #6
RiddleOfSteel
Lugged, Dura-Ace Glory

RiddleOfSteel's Avatar

Join Date: Mar 2015
Location: Seattle, WA
Posts: 2,515

Bikes: '87 Schwinn Prologue - '74 Schwinn Paramount P15 - '8X Davidson Impulse - '88 Land Shark Road Shark - '92 Specialized Epic Carbon - '15 Cannondale CAAD10 Disc - '81 Trek 710 - '92? Bushnell Track Bike

Mentioned: 152 Post(s)
Tagged: 0 Thread(s)
Quoted: 795 Post(s)
Likes: 0
Liked 27 Times in 23 Posts
I have always thought the visual juxtaposition of the "future" aluminum Cannondale framesets and the current/but old world "past" that was Campagnolo NR/SR was/is very intriguing. A bit bizarre, especially in red as were some of the SR900s of the period. The fact that this bike is a deep forest green metallic works incredibly well with the admittedly glowing Campy components. This will be a treat to behold. I can't wait to see it!
RiddleOfSteel is offline
Old 11-16-18, 06:52 AM
  #7
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 5,302

Bikes: I'd rather not count how many, thank you

Mentioned: 146 Post(s)
Tagged: 0 Thread(s)
Quoted: 1007 Post(s)
Liked 16 Times in 11 Posts
Not to nitpick, but the first SR series bikes- particularly the SR900- came out in 1985. They had metal top tube cable guides.
The frame above- which is gorgeous, BTW- appears to be from a later model year with plastic top tube cable guides.
Looking forward to seeing this finished build!
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Old 11-16-18, 11:18 AM
  #8
jjhabbs
Senior Member
Thread Starter

jjhabbs's Avatar

Join Date: Feb 2012
Location: Chicagoland
Posts: 1,253

Bikes: to many to list

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Likes: 0
Liked 5 Times in 2 Posts
Originally Posted by rccardr View Post
Not to nitpick, but the first SR series bikes- particularly the SR900- came out in 1985. They had metal top tube cable guides.
The frame above- which is gorgeous, BTW- appears to be from a later model year with plastic top tube cable guides.
Looking forward to seeing this finished build!
You are correct.. However this is still considered the first generation. Small changes were made. Next gen was the Criterium 3.0 frameset. with the skinny seat stays pushed forward on the replaceable drops. I have new plastic cable guides but having a hard time pushing that pin in to lock them into place.

Thanks

JJ
__________________
From Illinois. Collector of many fine bicycles from all over the world. Subscribe to my Youtube channel. Just search John Haboush
jjhabbs is offline
Old 11-16-18, 11:45 AM
  #9
crank_addict
Senior Member

crank_addict's Avatar

Join Date: Aug 2013
Posts: 6,416
Mentioned: 80 Post(s)
Tagged: 0 Thread(s)
Quoted: 1060 Post(s)
Likes: 0
Liked 17 Times in 12 Posts
John, wow on the museum! The shop is tidy too-

Anyways, neat project and especially for you riding down memory lane. I would think you have the decal of the shop you managed??

A friend of mine had what I believe an SR300. Radical for the time and unforgiving stiff vs. steel. Plus weighed in the range of carbon tube - ally lugged glued bikes. The first time I sample rode it was a transformation. The thought process of what 'fast SHOULD be like' - they always feel this way. He had clinchers and hated fussing with tubulars. Narrow rubber was the in thing too. He was always pinch flatting...lol. Though never heard him complain while on century rides.

Paint-
Haven't looked at the catalog but was curious of the paint choice. Classy. I have on a '98 H300 Silk Path a similar metallic green. Can't trust the camera or monitor but they look very close.
Cheers!
crank_addict is offline
Old 11-16-18, 11:59 AM
  #10
jjhabbs
Senior Member
Thread Starter

jjhabbs's Avatar

Join Date: Feb 2012
Location: Chicagoland
Posts: 1,253

Bikes: to many to list

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Likes: 0
Liked 5 Times in 2 Posts
Originally Posted by crank_addict View Post
John, wow on the museum! The shop is tidy too-

Anyways, neat project and especially for you riding down memory lane. I would think you have the decal of the shop you managed??

A friend of mine had what I believe an SR300. Radical for the time and unforgiving stiff vs. steel. Plus weighed in the range of carbon tube - ally lugged glued bikes. The first time I sample rode it was a transformation. The thought process of what 'fast SHOULD be like' - they always feel this way. He had clinchers and hated fussing with tubulars. Narrow rubber was the in thing too. He was always pinch flatting...lol. Though never heard him complain while on century rides.

Paint-
Haven't looked at the catalog but was curious of the paint choice. Classy. I have on a '98 H300 Silk Path a similar metallic green. Can't trust the camera or monitor but they look very close.
Cheers!
Thanks for the interest! This started out life as an SR300 I believe. I still have the parts. The color choice was just a vision I had years ago. Brown tape, saddle etc. will look classy. When Cannondale came on the scene we had other brands, Schwinn, trek Miyata... But the Cannondale was revolutionary. Those of us that worshipped the occasional Klein that we came across gravitated to Cannondale, The frames were lighter and much stiffer. We were young, we didnt care that the ride was harsh. The only difference is that the one I made in the 80s had a triple campy crank and a long cage NR derailleur. Love the green!!
__________________
From Illinois. Collector of many fine bicycles from all over the world. Subscribe to my Youtube channel. Just search John Haboush
jjhabbs is offline
Old 11-16-18, 12:05 PM
  #11
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 5,302

Bikes: I'd rather not count how many, thank you

Mentioned: 146 Post(s)
Tagged: 0 Thread(s)
Quoted: 1007 Post(s)
Liked 16 Times in 11 Posts
Originally Posted by jjhabbs View Post
I have new plastic cable guides but having a hard time pushing that pin in to lock them into place. JJ
I remove the pin from the assembly and lightly lubricate it, then insert using a flat blade screwdriver held close to the end, pressing down on the pin with the flat of the blade. A dime might work as well.

Protect the area around the cable guide with masking tape, just in case the blade slips. Cuz it will.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Old 11-16-18, 12:16 PM
  #12
jjhabbs
Senior Member
Thread Starter

jjhabbs's Avatar

Join Date: Feb 2012
Location: Chicagoland
Posts: 1,253

Bikes: to many to list

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Likes: 0
Liked 5 Times in 2 Posts
Originally Posted by rccardr View Post


I remove the pin from the assembly and lightly lubricate it, then insert using a flat blade screwdriver held close to the end, pressing down on the pin with the flat of the blade. A dime might work as well.

Protect the area around the cable guide with masking tape, just in case the blade slips. Cuz it will.
Thanks.. I have tried doing that however. Maybe im sheepish with it because I dont want to scratch...so ...Ill take our advise and protect the tube and try again. was thinking about actually sharpening the one side so it slides down easier..

Thanks!!!

JJ
__________________
From Illinois. Collector of many fine bicycles from all over the world. Subscribe to my Youtube channel. Just search John Haboush
jjhabbs is offline
Old 11-16-18, 12:35 PM
  #13
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 5,302

Bikes: I'd rather not count how many, thank you

Mentioned: 146 Post(s)
Tagged: 0 Thread(s)
Quoted: 1007 Post(s)
Liked 16 Times in 11 Posts
That's a good idea. Also might want to check if the interference is coming from the guide or the hole in the top tube. Sometimes a little paint will make it smaller...enough to be frustrating, anyway.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Old 11-16-18, 12:41 PM
  #14
jjhabbs
Senior Member
Thread Starter

jjhabbs's Avatar

Join Date: Feb 2012
Location: Chicagoland
Posts: 1,253

Bikes: to many to list

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Likes: 0
Liked 5 Times in 2 Posts
I'm sure that's an issue I'll run a small drill bit through it and take that pain out . Thanks so much
jjhabbs is offline
Old 11-16-18, 12:56 PM
  #15
SpeedofLite
Senior Member

SpeedofLite's Avatar

Join Date: Aug 2010
Location: Henderson, NV, USA
Posts: 441

Bikes: Litespeed (8); Slingshot (6); Specialized (2); Kestrel (2); Softride (2); Cervelo (1); FELT (1); Cannondale (1); Fuji (1); Centurion (1); Schwinn (1)

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 107 Post(s)
Liked 23 Times in 17 Posts
Originally Posted by jjhabbs View Post
Back in the 80s I managed the largest Cannondale dealership in the midwest.
Then you should remember the ad below from Bicycling Feb 1988. I can't remember being influenced by an advertisement more than this one. I was so geeked by the image that I bought the same red 1988 Cannondale SR800 shown in the ad. It instantly added 1-2 mph to my avg 25 mile triathlon speed. However, as advertised, it was the stiffest frame I ever rode. I remember being very uncomfortable on that bike at 60 miles. I pretty much took it up the 5-hole beyond that distance and dreaded any bumps in the road.

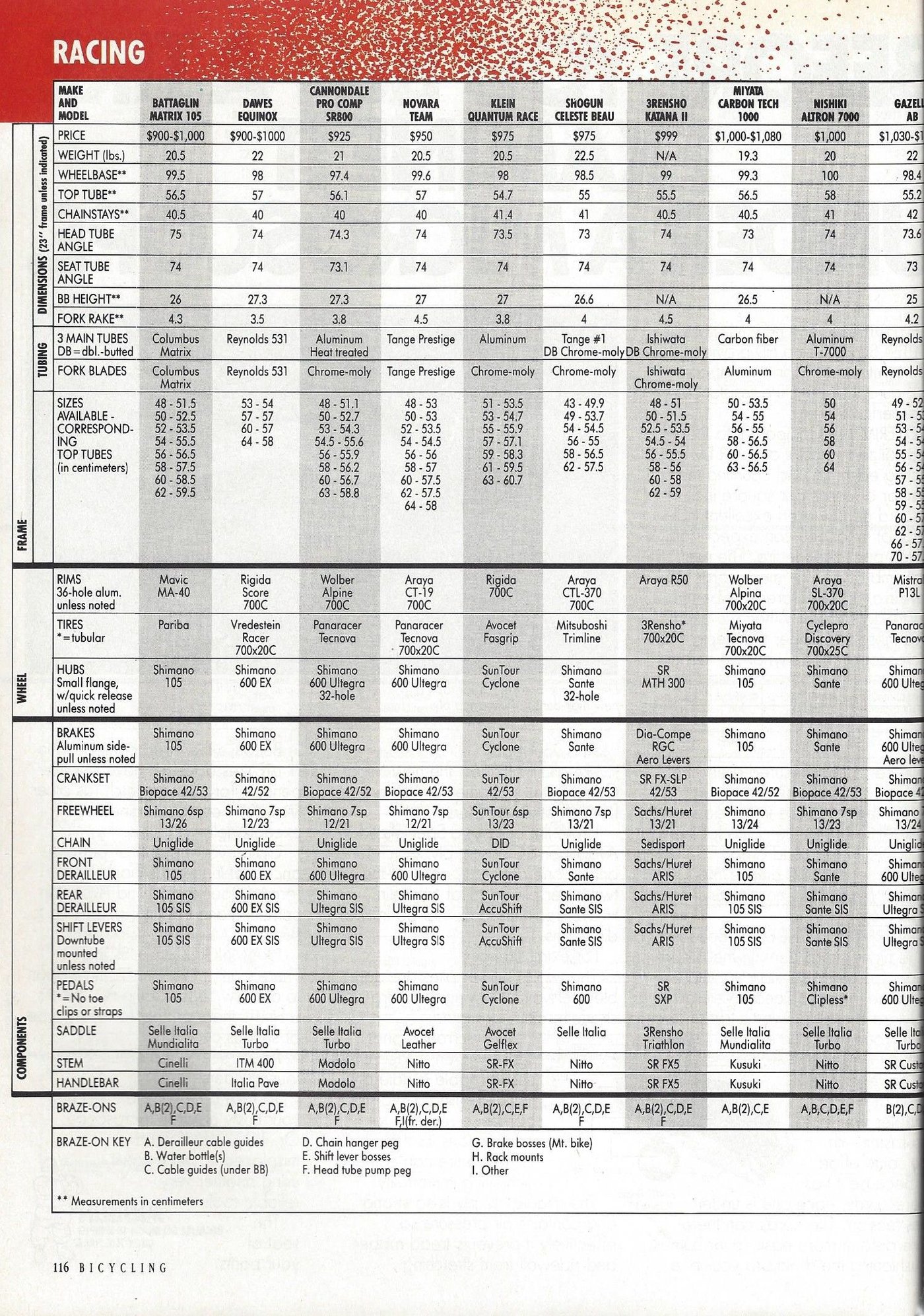

Also below are the specs for that bike as listed in the 1988 Bicycling Buyer's Guide.

Best wishes for success with your build!



__________________
WTB: Slingshot road model (1990s era; 18" L or 20" XL frame size)
WTB: Slingshot promotional documents (catalog, pamphlets, etc).
WTB: Bicycling! Issues Oct 1969 and Jan 1973.
WTB: ZIPP 500 front wheel (650c clincher)
SpeedofLite is online now
Old 11-17-18, 09:11 AM
  #16
Charliekeet
Senior Member

Join Date: Sep 2015
Location: Massachusetts
Posts: 229

Bikes: Giant OCR1, Trek 1000, Cannondale F400, Miyata 100

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 62 Post(s)
Likes: 0
Liked 8 Times in 5 Posts
:
Originally Posted by Trakhak View Post
That silver NV Record crank against the dark forest green is sublime.
Seconded. I have an SR900 in red with really trashed paint and Iíve been wondering which way to go if I ever refinish it. I was looking at the catalogue thinking black paint, but this is inspiring
Charliekeet is offline
Old 11-17-18, 09:22 AM
  #17
beicster
Senior Member

Join Date: Jan 2017
Location: Berea, KY
Posts: 572
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 146 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
That is fantastic.
__________________
Andy
beicster is offline
Old 11-17-18, 04:12 PM
  #18
jjhabbs
Senior Member
Thread Starter

jjhabbs's Avatar

Join Date: Feb 2012
Location: Chicagoland
Posts: 1,253

Bikes: to many to list

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Likes: 0
Liked 5 Times in 2 Posts
Originally Posted by Charliekeet View Post
:

Seconded. I have an SR900 in red with really trashed paint and Iíve been wondering which way to go if I ever refinish it. I was looking at the catalogue thinking black paint, but this is inspiring
The great thing about a cannondale is that they paint up easy! Mine was powder coated. The problem with that was the thickness of the paint at the der hanger. I had to peel some of the paint back. I also had to replace the cable guides because mine were the plastic ones. It was very affordable. Just make sure that they mask the headtube, Bottom bracket and of course all the threaded areas.

Cost wise it was a great deal. Power coating was 125, Decals 11 and cable guides 35... The guides were a bit pricy but they were the only ones I could find.

Thanks for your interest.

JJ
__________________
From Illinois. Collector of many fine bicycles from all over the world. Subscribe to my Youtube channel. Just search John Haboush
jjhabbs is offline
Old 11-17-18, 04:29 PM
  #19
Charliekeet
Senior Member

Join Date: Sep 2015
Location: Massachusetts
Posts: 229

Bikes: Giant OCR1, Trek 1000, Cannondale F400, Miyata 100

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 62 Post(s)
Likes: 0
Liked 8 Times in 5 Posts
Originally Posted by jjhabbs View Post
The great thing about a cannondale is that they paint up easy! Mine was powder coated. The problem with that was the thickness of the paint at the der hanger. I had to peel some of the paint back. I also had to replace the cable guides because mine were the plastic ones. It was very affordable. Just make sure that they mask the headtube, Bottom bracket and of course all the threaded areas.

Cost wise it was a great deal. Power coating was 125, Decals 11 and cable guides 35... The guides were a bit pricy but they were the only ones I could find.

Thanks for your interest.

JJ
Thanks for the specifics & costs too. Iíd be ok on the cable guides with mine. Luckily there arenít too many decals for one to replace on these models. I hadnít even thought of that yet.
Thereís a place near here that does it and maybe Iíll see if theyíre in that ballpark; while I was originally gonna do it myself, that seems reasonable.
Charliekeet is offline
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
deacon mark
Road Cycling
0
12-14-13 09:45 AM
therover
Classic and Vintage Bicycles: Whats it Worth? Appraisals.
6
03-26-12 05:47 AM
sageo3000
Bicycle Mechanics
8
10-29-10 02:10 AM
JDMFanatic
Bicycle Mechanics
8
08-14-10 01:34 PM
ephemeralskin
Singlespeed & Fixed Gear
23
10-17-06 05:50 AM

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
