Something else for you nerds

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Something else for you nerds

Old 11-25-18, 01:01 PM
  #1
jimmuller
What??? Only 2 wheels?
Thread Starter

jimmuller's Avatar

Join Date: Apr 2010
Location: Boston-ish, MA
Posts: 13,067

Bikes: 73 Raleigh Carlton Gran Sport, 72 Peugeot UO-8, 82 Peugeot TH8, 87 Bianchi Brava, 76? Masi Grand Criterium, 87 Centurion Ironman Expert, 74 Motobecane Champion Team, 86 & 77 Gazelle champion mondial, 81? Grandis, 82? Tommasini, 83 Peugeot PFN10

Mentioned: 169 Post(s)
Tagged: 0 Thread(s)
Quoted: 1049 Post(s)
Liked 14 Times in 12 Posts
Something else for you nerds

This is the first phase of a followup to the fork study I started back in March.

I had measured the resonance frequencies of the forks on several of my bikes. I did this by mounting a high-frequency accelerometer (my phone) on the fork, lifting the front wheel off the ground, then thumping the top of the wheel with a rubber-coated mallet. The results can be seen in this picture:



One feature which jumps out is the complexity of the Peugeot PFN10's spectrum. Higher frequenceis are present, but what vibration mode would cause that? Are the fork blades bending in two or more modes, or is the fork exhibiting some sort of torsional vibration?


I had known that the fork blades weren't aligned. Tightening the QR skewer always pulled the wheel over to one side, and bolts mounted to the insides of the DO's were neither aligned nor even parallel. So at some point I took the fork to Peter Mooney and asked him to straighten it. (I am not sure I can feel any improvement but I had not ridden it enough prior to that to evaluate it. It sure rides well now.)

I always wondered if poor alignment might have contributed to the unusual resonance. So I repeated the experiment and obtained a very different result. Here are comparisons of the data and spectra, pre- and post-alignment. The difference is astounding. All those high frequencies in the original spectrum are gone.





Why should alignment have produced such a difference? One conjecture is this. When an impact hits the fork the blades bend elastically. If they are pre-stressed differently, one up and forward and the other down and back, they could build up bending-induced stress at different rates and begin oscillating up/forward-down/back out of phase. The mode is like how you swing your arms in opposite directions when walking. When the arms bend opposite directions it swings the wheel back and forth. The frequency is higher than the basic fork resonance because the moment of inertia about the steering axis is less than that of the whole fork.

To test this idea I repeated the experiment but thumped the bike at two different places. I thumped the front of the wheel so as to rotate the steering axis, and then again on the side of the fork to make the entire fork resonate laterally with minimal steering rotation. I repeated these thumps several times to make sure the results caused characteristic vibrations.

The spectrum from a thump rotating the steering shows a distinct match to the high frequencies in the original spectrum.



The spectrum from a thump on the side of the fork is quite different:



Finally, to demonstrate that the results are repeatable I superimposed the three wheel-front thumps:



Conclusion: Mis-aligned DO's on the fork create higher frequencies in the response to bumps. The behavior seems to be that the two blades do not respond identically to fore and aft deformation, resulting in steering oscillation. It is not clear whether this can be felt on the road. However it does suggest that fork alignment is good.
__________________
Real cyclists use toe clips.
With great bikes comes great responsibility.
jimmuller

Last edited by jimmuller; 11-25-18 at 01:06 PM.
jimmuller is offline
Old 11-25-18, 01:08 PM
  #2
Dan Burkhart
Senior member

Dan Burkhart's Avatar

Join Date: Oct 2004
Location: Oakville Ontario
Posts: 7,278
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 542 Post(s)
Liked 20 Times in 17 Posts
Thank you for reaffirming that I am not a nerd. I didn't get any of that.
Dan Burkhart is offline
Old 11-25-18, 01:30 PM
  #3
crank_addict
Senior Member

crank_addict's Avatar

Join Date: Aug 2013
Posts: 6,421
Mentioned: 80 Post(s)
Tagged: 0 Thread(s)
Quoted: 1064 Post(s)
Likes: 0
Liked 18 Times in 13 Posts
'Cracks' me up thinking what might be the results for my Viscount.

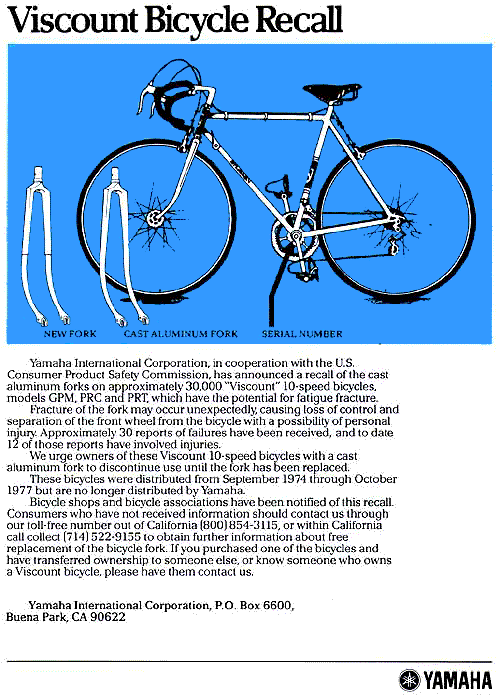

Add the irony Yamaha (with their tuning fork logo) took over distribution of Viscount in the US.


crank_addict is offline
Old 11-25-18, 01:37 PM
  #4
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 9,155

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, Rocky Mountain Cardiac

Mentioned: 144 Post(s)
Tagged: 0 Thread(s)
Quoted: 600 Post(s)
Likes: 0
Liked 38 Times in 35 Posts
Huh?
__________________
Learn how to find, restore and maintain vintage road bicycles at... MY "TEN SPEEDS"
randyjawa is offline
Old 11-25-18, 01:49 PM
  #5
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 5,316

Bikes: I'd rather not count how many, thank you

Mentioned: 146 Post(s)
Tagged: 0 Thread(s)
Quoted: 1009 Post(s)
Liked 22 Times in 15 Posts
To me, the only thing more important than knowing the resonance frequency of my fork, is the dielectric value of my rim tape.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Old 11-25-18, 01:53 PM
  #6
Dan Burkhart
Senior member

Dan Burkhart's Avatar

Join Date: Oct 2004
Location: Oakville Ontario
Posts: 7,278
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 542 Post(s)
Liked 20 Times in 17 Posts
Originally Posted by randyjawa View Post
Huh?
Join the club.
Dan Burkhart is offline
Old 11-25-18, 02:17 PM
  #7
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 2,772
Mentioned: 89 Post(s)
Tagged: 0 Thread(s)
Quoted: 973 Post(s)
Likes: 0
Liked 7 Times in 7 Posts
I think you should take into account the effects of the rim glue curing/hardening after some time after tire installation, as it turns from a liquid towards solid state. The harmonic dampening effects of the glue, especially where they accumulated into the spoke head wells, will be much diminished......:
__________________
72 Line Seeker
83 Davidson Signature
84 Peugeot PSV
84 Peugeot PY10FC
84 Gitane Tour de France.
85 Vitus Plus Carbone 7
86 ALAN Record Carbonio
86 Medici Aerodynamic (Project)
88 Pinarello Montello
89 Bottecchia Professional Chorus SL
95 Trek 5500 OCLV (Project)
Chombi1 is offline
Old 11-25-18, 02:17 PM
  #8
Wileyrat
Senior Member

Join Date: Mar 2013
Location: Tucson Az
Posts: 1,314

Bikes: 2015 Ridley Fenix, 1983 Team Fuji, 1985 Novara Strada, 2013 BD Motobecane 650ht, 90 Trek 850

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 239 Post(s)
Likes: 0
Liked 8 Times in 7 Posts
Looks to me with your misaligned fork, the vibration waves were cancelling each other out, probably giving you a smoother ride.

Of course handling issues were another matter.

I'd be curious why the Masi flatlines so quickly. Does it ride stiff?

Last edited by Wileyrat; 11-25-18 at 02:20 PM.
Wileyrat is offline
Old 11-25-18, 02:43 PM
  #9
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 7,736

Bikes: Yes, please.

Mentioned: 190 Post(s)
Tagged: 0 Thread(s)
Quoted: 1060 Post(s)
Liked 44 Times in 36 Posts
Interesting. @jimmuller: would this be something other members could reproduce with just a phone, an app and a mallet? Like C&V venturing into the big data thing?
__________________
Reasons to be cheerful!
non-fixie is offline
Old 11-25-18, 02:49 PM
  #10
Darth Lefty
Disco Infiltrator

Darth Lefty's Avatar

Join Date: May 2013
Location: Folsom CA
Posts: 9,510

Bikes: '76 Paramount, Salsa Timberjack, Burley Samba, Terra Trike

Mentioned: 58 Post(s)
Tagged: 0 Thread(s)
Quoted: 1483 Post(s)
Liked 97 Times in 65 Posts
Topic aside, those are pretty good FFT plots.
Darth Lefty is offline
Old 11-25-18, 03:22 PM
  #11
repechage
Senior Member

Join Date: Jun 2006
Posts: 13,341
Mentioned: 77 Post(s)
Tagged: 0 Thread(s)
Quoted: 936 Post(s)
Likes: 0
Liked 13 Times in 11 Posts
Originally Posted by Chombi1 View Post
I think you should take into account the effects of the rim glue curing/hardening after some time after tire installation, as it turns from a liquid towards solid state. The harmonic dampening effects of the glue, especially where they accumulated into the spoke head wells, will be much diminished......:
one could argue the same wheel should be used throughout. It is interesting that the tubular wheel/tire combos appear to "calm" down faster.

also gives an added place to look if one experiences steering shimmy while descending. The bicycle as a system is quite tolerant of alignment flaws but "dialing" all in can improve things.
repechage is offline
Old 11-25-18, 04:27 PM
  #12
Narhay
Senior Member

Narhay's Avatar

Join Date: Sep 2012
Location: Toronto, ON, Canada
Posts: 2,743
Mentioned: 91 Post(s)
Tagged: 0 Thread(s)
Quoted: 560 Post(s)
Likes: 0
Liked 8 Times in 7 Posts


If you feel you might have too much free time I have a roof to basement reno you could come and scrape wallpaper or sand floors.
Narhay is offline
Old 11-25-18, 04:53 PM
  #13
RobbieTunes
Half drunk? Finish!

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 25,789
Mentioned: 33 Post(s)
Tagged: 1 Thread(s)
Quoted: 347 Post(s)
Liked 99 Times in 70 Posts
All this information resonates within me.
__________________
Robbie ♪♫♪...☻
I have unfinished business.

RobbieTunes is offline
Old 11-25-18, 04:54 PM
  #14
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 2,772
Mentioned: 89 Post(s)
Tagged: 0 Thread(s)
Quoted: 973 Post(s)
Likes: 0
Liked 7 Times in 7 Posts
Originally Posted by Narhay View Post


If you feel you might have too much free time I have a roof to basement reno you could come and scrape wallpaper or sand floors.
An idle mind is.........(fill in the blank)......
Chombi1 is offline
Old 11-25-18, 06:43 PM
  #15
P!N20
Senior Member

P!N20's Avatar

Join Date: Aug 2010
Posts: 460
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 184 Post(s)
Likes: 0
Liked 15 Times in 15 Posts
Interested why you thumped the wheel with a mallet; could you not just lift the front wheel a set height off the ground then drop it?
P!N20 is offline
Old 11-25-18, 07:18 PM
  #16
rumrunn6
Senior Member

rumrunn6's Avatar

Join Date: Jul 2008
Location: 25 miles northwest of Boston
Posts: 22,879

Bikes: Bottecchia Sprint, GT Timberline 29r

Mentioned: 87 Post(s)
Tagged: 0 Thread(s)
Quoted: 3035 Post(s)
Liked 120 Times in 97 Posts
Well that was interesting, about bikes, science, tools & Jim! & Brings to mind the dreaded ‘death wobble’ & I’m wondering if misaligned forks could result is worsening the wobble meaning if someone is experiencing the wobble, one thing to check would be fork alignment
rumrunn6 is offline
Old 11-25-18, 07:21 PM
  #17
rumrunn6
Senior Member

rumrunn6's Avatar

Join Date: Jul 2008
Location: 25 miles northwest of Boston
Posts: 22,879

Bikes: Bottecchia Sprint, GT Timberline 29r

Mentioned: 87 Post(s)
Tagged: 0 Thread(s)
Quoted: 3035 Post(s)
Liked 120 Times in 97 Posts
Originally Posted by repechage View Post

also gives an added place to look if one experiences steering shimmy while descending. The bicycle as a system is quite tolerant of alignment flaws but "dialing" all in can improve things.
yeah crossed my mind too
rumrunn6 is offline
Old 11-25-18, 07:22 PM
  #18
jimmuller
What??? Only 2 wheels?
Thread Starter

jimmuller's Avatar

Join Date: Apr 2010
Location: Boston-ish, MA
Posts: 13,067

Bikes: 73 Raleigh Carlton Gran Sport, 72 Peugeot UO-8, 82 Peugeot TH8, 87 Bianchi Brava, 76? Masi Grand Criterium, 87 Centurion Ironman Expert, 74 Motobecane Champion Team, 86 & 77 Gazelle champion mondial, 81? Grandis, 82? Tommasini, 83 Peugeot PFN10

Mentioned: 169 Post(s)
Tagged: 0 Thread(s)
Quoted: 1049 Post(s)
Liked 14 Times in 12 Posts
Okay, time for more explanation. That first post was short to avoid driving away all you tldr'ers. There is a lot to respond to, and I'm sure I'll miss some. In no particular order...

In that original study I made no attempt to match the impulse strengths or the system damping. The Masi does appear to decay away faster but I wouldn't read too much into that. Not counting the PFN10, the only real observation you make is that the frequency is slightly lower for the Grandis with the clincher wheel even though you'd think it might have a stiffer fork and thus be higher. The Peugeot on the other hand is so different it begs for further investigation.

I suspect neither the sewup glue nor the wheel has any effect on this. After all, the primary frequency response of the fork is about 31Hz and the higher frequency stuff is more than double that. It would feel to the hand like buzzing and may be a cause of fatigue, but probably does not contribute to wheel oscillation.

I used a mallet on the tire instead of dropping the wheel on the floor because I wanted to remove the effect of the bike bouncing off the floor at the start. The mallet is more controlled. But just bouncing the tire might have worked too. Anyone can do this with a bike and a cellphone app. But I analyzed the data with a program I wrote to let me step through it quickly, compute the FFT over selected intervals, and plot the result. No, I am not interested in helping out with house renovations.

Now for further explanation. The original PFN10 resonance was so squiggly compared to the other bikes' decaying harmonic resonance that something was clearly amiss. A plot such as this:

is oscillation "strength" on the vertical axis and frequency on the horizontal axis, low frequency to the left, high frequency to the right. The labels "64", 128", etc do not indicate the frequency but rather, the number of data points across the FFT output. The large peak at about data point 40 computes out to be about 31Hz. The presence of higher frequency content is what made the original look so squiggly.

An oscillation involves elastic bending and has a frequency determined by the stiffness and the mass. When two different frequencies are present it indicates that two different kinds of bending are happening. Clearly one type is the fork bending such that the wheel moves forward and up then backward and down. All the bikes did that about the same. The PFN10 was clearly moving in some other way too originally, but aligning the fork fixed it. That just begs for an explanation! Of course it might have been due to the bar tape dielectric constant, but I doubt it.
__________________
Real cyclists use toe clips.
With great bikes comes great responsibility.
jimmuller
jimmuller is offline
Old 11-26-18, 01:23 AM
  #19
RiddleOfSteel
Lugged, Dura-Ace Glory

RiddleOfSteel's Avatar

Join Date: Mar 2015
Location: Seattle, WA
Posts: 2,521

Bikes: '87 Schwinn Prologue - '74 Schwinn Paramount P15 - '8X Davidson Impulse - '88 Land Shark Road Shark - '92 Specialized Epic Carbon - '15 Cannondale CAAD10 Disc - '81 Trek 710 - '92? Bushnell Track Bike

Mentioned: 153 Post(s)
Tagged: 0 Thread(s)
Quoted: 797 Post(s)
Likes: 0
Liked 29 Times in 25 Posts
I wondered where this thread went or what you had concluded after time, and I'm glad you've resurrected the subject as I find it fascinating! It does make sense that a misaligned fork would give a squiggly frequency reading. The fact that the (presumably aligned) other forks gave very similar readings or reading patterns is cool to see as it creates a reference of sorts with which to compare other forks or tires etc.

Have you thought about carrying this test out on the rear wheel? The front makes sense as there is no triangulation and thus the fork is able to flex and give pronounced readings. The rear triangle seems like it would produce much smaller/tighter frequency readings--ones that would require re-scaling of the vertical axis to see more clearly. Compare and contrast front and rear readings with which frame/bike you like riding (vs not like as much) or which frame/bike has characteristic x or y or z, and see if there exists any correlation, loose or not.
RiddleOfSteel is offline
Old 11-26-18, 05:57 AM
  #20
pastorbobnlnh
Freewheel Medic

pastorbobnlnh's Avatar

Join Date: Oct 2005
Location: Ascending or Descending the NH Mountains NW of Concord!
Posts: 11,182

Bikes: Snazzy* Schwinns, Classy Cannondales, & a Lonely '83 Santana Tandem (* Ed.)

Mentioned: 84 Post(s)
Tagged: 0 Thread(s)
Quoted: 464 Post(s)
Liked 15 Times in 9 Posts
Jim, just two cents from a somewhat nerdy pastor/freewheel medic in snow-bound NH (and it's only November ):

This needs to be repeated on a control course, set up over northern New England winter frost heaves. Same rider on different bikes/forks, but with the same wheelset (if possible). And then repeated with different weight riders. Of course speed and variations in tracking the control course need to be accounted and factored into final charting. And to add more complexity to the entire engineering investigation, accelerometers (i.e. smart phones) should be strapped to each fork blade and each seat stay.
__________________
Bob
Dreaming about riding in NH's summertime!

Visit my websites:
FreeWheelSpa.com orpastorbobnlnh.com
pastorbobnlnh is offline
Old 11-26-18, 07:05 AM
  #21
DiegoFrogs
Senior Member

DiegoFrogs's Avatar

Join Date: Feb 2005
Location: Toledo, OH
Posts: 2,371

Bikes: '77 Centurion "Pro Tour"; '67 Carlton "The Flyer"; 1984 Ross MTB (in USA)

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 92 Post(s)
Likes: 0
Liked 1 Time in 1 Post
I'm curious if you have some idea about what range of frequencies a person might be able to actually feel. I imagine the answer depends a lot on the displacement, and whether it's growing or shrinking with time with the various inputs that happen while riding (i.e. repeated periodic whacks with the hammer) or whether the reaction is in some other axis and one feels him/herself reacting to these things.
DiegoFrogs is offline
Old 11-26-18, 07:10 AM
  #22
smontanaro
Senior Member

Join Date: Aug 2007
Location: Evanston, IL
Posts: 3,328

Bikes: many

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 441 Post(s)
Likes: 0
Liked 12 Times in 9 Posts
That resonated with my inner nerd. Might you have pictures of your experimental setup? How did you calibrate your mallet thumps?
smontanaro is offline
Old 11-26-18, 08:53 AM
  #23
Chr0m0ly
Senior Member

Chr0m0ly's Avatar

Join Date: Apr 2014
Location: Lincoln Square, Chicago, IL
Posts: 1,074

Bikes: '84 Miyata 610 '85 Miyata 710, ‘86 Miyata 710, ‘91 Cannondale ST600, ‘84 Trek 610, 520, 620, ‘91 Miyata 1000LT, a few frames, some odds and ends....

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 394 Post(s)
Likes: 0
Liked 4 Times in 4 Posts
I’ve been a historic fender practicing Fiore De Liberi for 7/8 years. In the sword nerd community there has been some study into the harmonics, polar moments, and balance point of swords and this is VERY similar.

I’m loving this post, and would like to see where it goes but I don’t think it would be noticeable to a rider. The fork is damped on one end with a pneumatic suspension braced against the road, and the other end is damped by being held by (hopefully) greased ball bearings and then by the riders hands. Isolated from the fork by the flex of the bars, and then the grip tape, possibly gloves....

Chr0m0ly is offline
Old 11-26-18, 08:58 AM
  #24
top506
Death fork? Naaaah!!

top506's Avatar

Join Date: Nov 2005
Location: The other Maine, north of RT 2
Posts: 4,567

Bikes: '71 Gitane Super Corsa, '73 Atala Giro d'Italia, '73 Schwinn Super Sport, '76 Viscount Aerospace Pro, '81 Miyata 710, '84 Ross Signature 290s, '85 Miele Gara, '87 Miyata 512, '89 Centurion Ironman, many more

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 274 Post(s)
Likes: 0
Liked 5 Times in 5 Posts
This outdoes your 'wheel as a structure under tension' monologue.

Top
__________________
You know it's going to be a good day when the stem and seatpost come right out.

(looking for a picture and not seeing it? Thank the Photobucket fiasco.PM me and I'll link it up.)
top506 is offline
Old 11-26-18, 11:20 AM
  #25
Johno59
Senior Member

Join Date: Oct 2016
Location: Cambridge UK
Posts: 327

Bikes: 1903 Sunbeam

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 120 Post(s)
Likes: 0
Liked 10 Times in 9 Posts
Piano Man

Back in the day a LBS that employed a master wheelbuilder would have to have a in-tune stand up piano to ensure the spokes were correctly tensioned to keep the groove.
With all due respect to Doc Spectrometer I seriously doubt no amount of twisting forks could correct a B flat laced turd into a a C sharp laced wil-o-the-wisp.
Johno59 is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
