Un-Scientific Centerpull Brake Review

Old 12-04-18, 03:19 PM
  #26
Dfrost
Senior Member

Dfrost's Avatar

Join Date: May 2013
Location: Pacific Northwest
Posts: 1,333

Bikes: ‘87 Marinoni SLX Sports Tourer, ‘79 Miyata 912 by Gugificazione

Mentioned: 112 Post(s)
Tagged: 0 Thread(s)
Quoted: 263 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

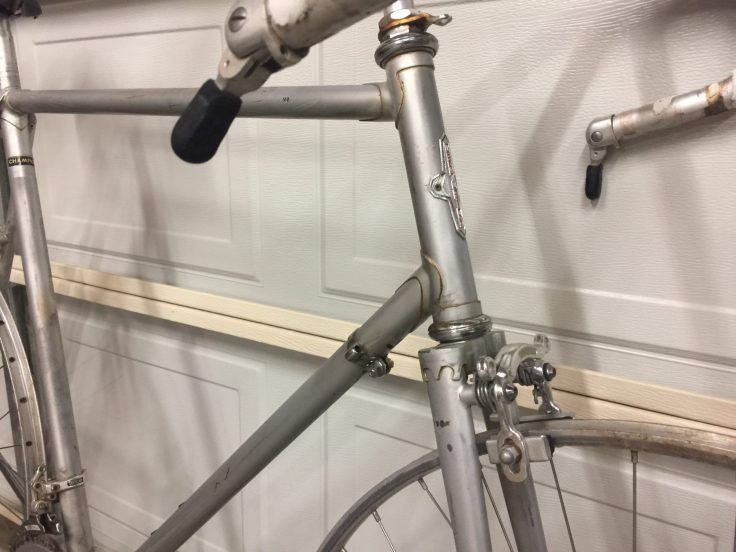

The Gugificazione treatment to my Miyata 912 fork included posts for a Gran Compe 610 brake, giving mounting locations for the front rack as well as maintaining fender clearance after the re-rake. I’ve got KoolStop Cross full-salmon pads (still using road pad holders in this photo) and love the braking feel and modulation. They squeal only once in a while at high speeds, but definitely not an issue. I also tried a MAFAC Racer with the Compass upgrades and salmon pads on the same posts, but didn’t notice any improvement in power or feel, and the squeal was nearly constant. So GC stayed, and its as nice a brake as the dual pivot that was there before the mods. BTW, a sweet addition was the roller straddle cable carrier with quick release.

Anybody want to buy a single Racer set with the upgrades, spare pads, and some polish work accomplished?




Last edited by Dfrost; 12-04-18 at 03:25 PM.
Dfrost is offline
Old 12-04-18, 03:33 PM
  #27
ironwood
Senior Member

Join Date: Nov 2009
Location: Boston area
Posts: 1,678

Bikes: 1984 Bridgestone 400 1985Univega nouevo sport 650b conversion 1993b'stone RBT 1985 Schwinn Tempo

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 384 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
That's a Dia-Compe 610, not a Gran- Compe. The present Dia-Compe company, for some reason, has a Dia- Compe line and a Gran- Comp line of components,
ironwood is offline
Old 12-04-18, 09:01 PM
  #28
fleslider
Senior Member

fleslider's Avatar

Join Date: Feb 2014
Location: Fort Collins, CO
Posts: 1,202

Bikes: 1974 Paramount ~ 1974 Raleigh Pro ~ 1977 Pro-Tour ~ 1978 TX900 ~ IronMan 85,87:E/M,88:M/Pro,89:E ~ 88/90/99 GT Avalanche~ 1992 Cannondale T1000 ~ 1992/94 Klein Pinnacle ~ 1998 Peugeot Festina Replica

Mentioned: 70 Post(s)
Tagged: 0 Thread(s)
Quoted: 340 Post(s)
Liked 0 Times in 0 Posts
My 77 Centurion Pro Tour has Braze On Center pulls "Dia-Compe G-Type" it says in the catalog, not sure what it means

fleslider is offline
Old 12-05-18, 11:12 AM
  #29
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 4,698

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 100 Post(s)
Tagged: 0 Thread(s)
Quoted: 1628 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Gran Compe is the fancy version of Dia Compe. Like Lincoln instead of Ford. They are simply the deluxe version with better finish and some upgraded bits and pieces -- for the most part. The short reach Gran Compe 450 center pulls were Gran Compe only. For that matter all but the GC 450 were license built versions of Weinmann CP brakes. As someone noted, even the Weinmann labeled brakes were made in various places.

I'm not sure if "G-Type" was an earlier version of Gran Compe, or if it meant braze on. A bit before my time. Anyone know?
Salamandrine is offline
Old 12-05-18, 03:20 PM
  #30
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 20,148

Bikes: Several, mostly not name brands.

Mentioned: 99 Post(s)
Tagged: 0 Thread(s)
Quoted: 1584 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Zeus 2000 was one of the prettiest centerpull calipers:

JohnDThompson is offline
Old 12-05-18, 05:38 PM
  #31
SamSpade1941
Senior Member

SamSpade1941's Avatar

Join Date: Apr 2016
Posts: 465
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 296 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by fleslider View Post
My 77 Centurion Pro Tour has Braze On Center pulls "Dia-Compe G-Type" it says in the catalog, not sure what it means

I dig that frame, and have been keeping my eye open for one for a while... I hope your restoration goes perfectly..
SamSpade1941 is offline
Old 12-06-18, 12:58 AM
  #32
Aubergine
Senior Member

Join Date: Nov 2015
Location: Seattle and Reims
Posts: 2,773
Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 696 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by RobbieTunes View Post
Sort of OT question: What is the difference between Weinmann 610 and Weinmann 610 Vainquer 999?
I am no expert, but I can say that the “610” refers to the caliper length. The Vainqueur is the actual model number. The Weinmann Vainqueur models marked 725 have a longer reach. They were commonly sold in sets with the 610 on the front and the 725 on the rear.
__________________
Keeping Seattle’s bike shops in business since 1978
Aubergine is offline
Old 12-06-18, 09:06 AM
  #33
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: West Village, New York City
Posts: 36,748

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1973 Raleigh Twenty, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 400 Post(s)
Tagged: 0 Thread(s)
Quoted: 5173 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
First, I think the long one is a 750, not a 725. Second, I think 999 referred to a pair of calipers where you get the 610 and the 750.
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Old 12-06-18, 01:19 PM
  #34
crank_addict
Senior Member

crank_addict's Avatar

Join Date: Aug 2013
Posts: 6,345
Mentioned: 78 Post(s)
Tagged: 0 Thread(s)
Quoted: 1030 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by JohnDThompson View Post
Zeus 2000 was one of the prettiest centerpull calipers:

Interesting serrated marking at the pivot fastener -decorative?

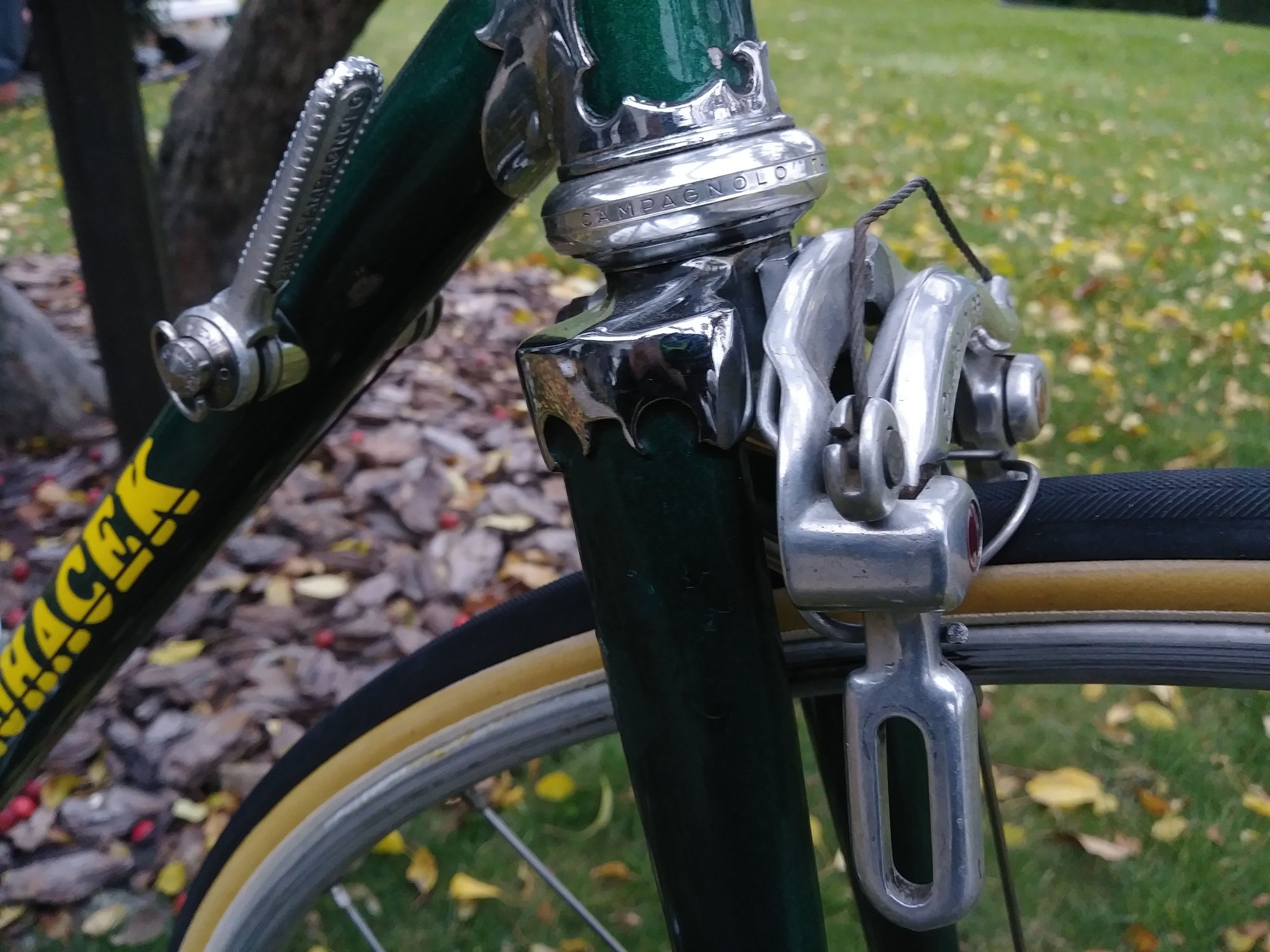

I'm a fan of the old MAFAC Racer with its shoe mount slot in plane with the arm. The post assembly may weigh more but adjustability for toe is easy peasy.
crank_addict is offline
Old 12-06-18, 01:30 PM
  #35
crank_addict
Senior Member

crank_addict's Avatar

Join Date: Aug 2013
Posts: 6,345
Mentioned: 78 Post(s)
Tagged: 0 Thread(s)
Quoted: 1030 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Soon to use the GB Coureur 66 on another build.

Note the casting wrapped around the arm pivots.



crank_addict is offline
Old 12-06-18, 01:30 PM
  #36
fleslider
Senior Member

fleslider's Avatar

Join Date: Feb 2014
Location: Fort Collins, CO
Posts: 1,202

Bikes: 1974 Paramount ~ 1974 Raleigh Pro ~ 1977 Pro-Tour ~ 1978 TX900 ~ IronMan 85,87:E/M,88:M/Pro,89:E ~ 88/90/99 GT Avalanche~ 1992 Cannondale T1000 ~ 1992/94 Klein Pinnacle ~ 1998 Peugeot Festina Replica

Mentioned: 70 Post(s)
Tagged: 0 Thread(s)
Quoted: 340 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by SamSpade1941 View Post
I dig that frame, and have been keeping my eye open for one for a while... I hope your restoration goes perfectly..
Thanks! i really dig these old Pro Tours.
fleslider is offline
Old 12-06-18, 01:52 PM
  #37
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 20,148

Bikes: Several, mostly not name brands.

Mentioned: 99 Post(s)
Tagged: 0 Thread(s)
Quoted: 1584 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by crank_addict View Post
Interesting serrated marking at the pivot fastener -decorative?
Quite possibly:

JohnDThompson is offline
Old 12-06-18, 02:32 PM
  #38
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 4,698

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 100 Post(s)
Tagged: 0 Thread(s)
Quoted: 1628 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by JohnDThompson View Post
Quite possibly:

Those were some of the coolest centerpull brakes ever.

They made them in black too, BTW -- since we are discussing vintage black parts in another thread. I still remember a Zeus came into the shop where I worked with the complete black Zeus 2000 group including those brakes. Never saw another set like it. It seemed impossibly cool and exotic at the time. It's hard to see from a photo how delicate and graceful they are in person.

Last edited by Salamandrine; 12-06-18 at 02:40 PM.
Salamandrine is offline
Old 12-06-18, 05:08 PM
  #39
tiredhands
Sempiternal Newb

tiredhands's Avatar

Join Date: Dec 2014
Location: Panama City, FL
Posts: 603

Bikes: 1984 Trek 510, 1990 Trek 520, 1992 Trek 750

Mentioned: 44 Post(s)
Tagged: 0 Thread(s)
Quoted: 218 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I put some Tourneys on my recently rebuilt 510 to help maximize fender clearance. They've got a lower profile than Weinmann/Dia Compe, but seem a bit flexy when I test them in the stand. They stop really quick, though, very easy to lock up.

tiredhands is offline
Old 12-26-18, 05:07 PM
  #40
crank_addict
Senior Member

crank_addict's Avatar

Join Date: Aug 2013
Posts: 6,345
Mentioned: 78 Post(s)
Tagged: 0 Thread(s)
Quoted: 1030 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Interesting read from 1990 about Otto Weinmann.

crank_addict is offline
Old 12-26-18, 05:48 PM
  #41
steelbikeguy
Senior Member

steelbikeguy's Avatar

Join Date: Feb 2008
Location: Peoria, IL
Posts: 1,588
Mentioned: 48 Post(s)
Tagged: 0 Thread(s)
Quoted: 500 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by crank_addict View Post
Soon to use the GB Coureur 66 on another build.

Note the casting wrapped around the arm pivots.


Those GB brakes have always intrigued me. Any comments on how they compare to their contemporary brakes??

Also.. what's the story on that frame? Any frame with chromed Nervex lugs gets my attention.

Steve in Peoria
steelbikeguy is offline
Old 12-26-18, 06:08 PM
  #42
rando_couche
Senior Member

Join Date: Jul 2013
Posts: 998
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 117 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by JohnDThompson View Post
Zeus 2000 was one of the prettiest centerpull calipers:

rando_couche is offline
Old 12-26-18, 09:59 PM
  #43
crank_addict
Senior Member

crank_addict's Avatar

Join Date: Aug 2013
Posts: 6,345
Mentioned: 78 Post(s)
Tagged: 0 Thread(s)
Quoted: 1030 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by steelbikeguy View Post
Those GB brakes have always intrigued me. Any comments on how they compare to their contemporary brakes??

Also.. what's the story on that frame? Any frame with chromed Nervex lugs gets my attention.

Steve in Peoria
Merry Christmas, Steve-
This project is bit down the que. Custom Paramount. I originally acquired the GB Couriers for an English Witcomb though unfortunately that bike requires a very short reach. These are the shortest reach model and still don't fit, so l decided to use them on this Paramount. Have yet to experience them but like the design.
crank_addict is offline
Old 12-27-18, 09:18 AM
  #44
steelbikeguy
Senior Member

steelbikeguy's Avatar

Join Date: Feb 2008
Location: Peoria, IL
Posts: 1,588
Mentioned: 48 Post(s)
Tagged: 0 Thread(s)
Quoted: 500 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by crank_addict View Post
Merry Christmas, Steve-
This project is bit down the que. Custom Paramount. I originally acquired the GB Couriers for an English Witcomb though unfortunately that bike requires a very short reach. These are the shortest reach model and still don't fit, so l decided to use them on this Paramount. Have yet to experience them but like the design.
Someday you'll have to publish your list of projects... seems to be a lot of them, and all of them are fun and interesting!

The GB brakes appeal to me because they don't use the bolts to handle the bending load of the caliper arms... or at least look like they don't. Granted, other centerpull designs don't appear to have any difficulty,
Because I spend to much time wondering about stuff that probably doesn't matter, I have to wonder how the GB design avoids having excess play in the pivot. Of course, I am amazed that the humble Weinmann centerpull doesn't have any adjustment for the pivot, but rarely has any noticeable play. In comparison, every single pivot sidepull brake has provisions to adjust the pivot tightness ... although I don't recall how the Campy monoplanar brake handles it.

..sorry... too much rambling and such.... but would be interested in any sort of study of the effects of brake pivot play and the effect on brake effectiveness. Surely Frank Berto or Jobst did some testing at one point or another??

Steve in Peoria
steelbikeguy is offline
Old 12-27-18, 10:47 AM
  #45
Ferrouscious
Some Weirdo

Ferrouscious's Avatar

Join Date: Dec 2017
Location: SW OH
Posts: 138

Bikes: '82 Austro Daimler Alpina, '71 C. Itoh, '86? Maruishi Excellence

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 45 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Pretty sure you can adjust the pivot tightness on the Weinmanns. I'm up for the study. Always nice to have more information.
Ferrouscious is offline
Old 12-27-18, 12:45 PM
  #46
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 6,370

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 66 Post(s)
Tagged: 0 Thread(s)
Quoted: 470 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Ferrouscious View Post
Pretty sure you can adjust the pivot tightness on the Weinmanns. I'm up for the study. Always nice to have more information.
The only "adjustment" would be to simply tighten the pivot bolts, but which tends to "mushroom" the ends of the sleeve and have one end dig into the alloy bridge.
Once any binding is detected, there is no reversing it, short of disassembly and thinning the bushing flanges. If you loosen the bolts slightly they will tend to loosen unless a penetrating grade of Loctite is applied to the tip of the bolts at the hex nuts. The pivots will then exhibit some added play and flexibility.
dddd is offline
Old 12-27-18, 12:51 PM
  #47
pfaustus
Senior Member

Join Date: Aug 2012
Posts: 111

Bikes: 1980 Motobecane Super Touring, 1980? Trek 620, 1964 Dunelt, 1991 Specialized Hardrock Comp, 80's Peugeot Vagabond, '74 Raleigh Super Course

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Instead of trying to make a shorter straddle cable, you can get the same effect with a wider yoke. I like to use the triangular yokes used for cantis.
pfaustus is offline
Old 12-27-18, 12:53 PM
  #48
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 6,370

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 66 Post(s)
Tagged: 0 Thread(s)
Quoted: 470 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by steelbikeguy View Post
...
..sorry... too much rambling and such.... but would be interested in any sort of study of the effects of brake pivot play and the effect on brake effectiveness. Surely Frank Berto or Jobst did some testing at one point or another??
Steve in Peoria
I don't see how freeplay can have any effect once the actuating cable tension is applied.
With the pad pushing against the rim, any freeplay is fully preloaded by static force that it can't "rebound" to cause any movement.

What changes with increased freeplay is that the pad can initially tilt in response to the initial meeting of the pads to the rim. So the retracted state of the pad's toe adjustment might need to be adjusted so as to take the freeplay into consideration.

I always study the pad's positioning along the rim's brake track with the brake applied and with the rim having been driven forward slightly under some force of braking, so that the pad can be adjusted to meet the rim forcefully still in perfect alignment along the brake track. This can keep the pad from cutting the tire.
dddd is offline
Old 12-27-18, 01:26 PM
  #49
steelbikeguy
Senior Member

steelbikeguy's Avatar

Join Date: Feb 2008
Location: Peoria, IL
Posts: 1,588
Mentioned: 48 Post(s)
Tagged: 0 Thread(s)
Quoted: 500 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by dddd View Post
I don't see how freeplay can have any effect once the actuating cable tension is applied.
With the pad pushing against the rim, any freeplay is fully preloaded by static force that it can't "rebound" to cause any movement.
......
I was thinking of brake squealing. I've had times with Campy side pull brakes where squealing was reduced by adjusting the pivot to get rid of any play.

Steve in Peoria
steelbikeguy is offline
Old 12-28-18, 09:02 PM
  #50
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 6,370

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 66 Post(s)
Tagged: 0 Thread(s)
Quoted: 470 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by steelbikeguy View Post
I was thinking of brake squealing. I've had times with Campy side pull brakes where squealing was reduced by adjusting the pivot to get rid of any play.

Steve in Peoria
Yes, but I think that tighter pivots might only be affecting the dynamic toe of the pads (the effective toe as the pad begins exerting real force against the rotating rim).
In other words, tight pivots better preserve the static (visible) toe-in of the pads, instead of losing some of the toe-in to the freeplay of a loose pivot.

I don't think that a squeeling brake is causing any jiggling movement at the pivots, even as the pad surfaces are "jumping around" against the rim.

It takes positive toe in the static adjustment to effect zero dynamic toe under braking loads, due to freeplay in the pivots and flex in the arms and pads.
I often set pads to zero dynamic toe by rotating the wheel in the forward direction with sandpaper pulled against the pad surface with brake applied.
This would seem to compensate for any of the effects of pivot freeplay on the dynamic toe of the pad against the rim under the force of braking.
Illustated below on my Trek Navigator comfort/mtb:
dddd is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
