Un-Scientific Centerpull Brake Review

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Un-Scientific Centerpull Brake Review

Reply

Old 11-28-18, 11:00 AM
  #1
willoughby1
Junior Member
Thread Starter

Join Date: Oct 2018
Posts: 23
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Un-Scientific Centerpull Brake Review

Thought I'd share this - I picked up a pair of Dia Compe Gran Compe centerpulls off Ebay. Seller bought them new and just about had a stroke getting them adjusted and gave up. I put them on my wife's Fuji so I could eventually move away from the 27" wheels. Overall they look nice and weren't really that difficult to adjust as long as you have a helper. They feel more solid than the Dia Comps they replaced, and in my brief testing was able to lock up and lay rubber. I don't know if these compare to the Paul brakes, but I paid 100 bucks for the pair and overall very happy with them.

willoughby1 is offline
Reply With Quote
Old 11-28-18, 12:31 PM
  #2
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 6,032

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 335 Post(s)
Solid and timeless.

Good calipers to use with fenders or fat tires (I used to race XC using 45mm knobbies with Weinmann 750 centerpulls).

Looks like the newer variant does away with the need to ever have to bend the arms, which greatly spares the bushings and sleeves from damage.
dddd is offline
Reply With Quote
Old 11-28-18, 12:35 PM
  #3
3speedslow
Senior Member

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 6,427

Bikes: A few

Mentioned: 66 Post(s)
Tagged: 0 Thread(s)
Quoted: 933 Post(s)
Since we are being un- scientific I might add that your Fuji is dang gorgeous! Black, chrome elegant.
3speedslow is offline
Reply With Quote
Old 11-28-18, 01:06 PM
  #4
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 4,355

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 94 Post(s)
Tagged: 0 Thread(s)
Quoted: 1475 Post(s)
I concur with your review. I have them on my Mercian, and like them a lot. Frankly I was expecting to replace them with dual pivots by now, but I have no complaints. They work well for all conditions, even loaded touring in hilly terrain.

From what I've heard, the GC610 are based on the 60s era Weinmann pattern, which was a little bit beefier than the 70's Weinmann/Dia-Compe brakes that we all know. They do feel a little stiffer and more precise, almost like a Campy Record brake in precision, but with dual pivot power. If they were good enough for René Herse, they are good enough for me...

I upgraded my pads to Kool Stop Dura type, and I highly recommend that. They are lighter, look better, and stop better than the stock pads.

The only issue I've had is the plating on the pivot bolts doesn't really hold up. Mine are pretty oxidized. Not sure what it is but it isn't chrome. Minor complaint though.
Salamandrine is offline
Reply With Quote
Old 11-28-18, 01:41 PM
  #5
ironwood
Senior Member

Join Date: Nov 2009
Location: Boston area
Posts: 1,591

Bikes: 1984 Bridgestone 400 1985Univega nouevo sport 650b conversion 1993b'stone RBT 1985 Schwinn Tempo

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 313 Post(s)
Now if you had someone braze on studs, they would really be great. I have Grand Bois long reach centerpulls mounted on studs and they are great. The new Gran Comp are similar in that they are based on the MAFAC brakes.
ironwood is offline
Reply With Quote
Old 11-28-18, 02:00 PM
  #6
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 4,355

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 94 Post(s)
Tagged: 0 Thread(s)
Quoted: 1475 Post(s)
Originally Posted by ironwood View Post
Now if you had someone braze on studs, they would really be great. I have Grand Bois long reach centerpulls mounted on studs and they are great. The new Gran Comp are similar in that they are based on the MAFAC brakes.
The Gran Compe are based on the old Weinmann centerpull pattern, not MAFAC. The Weinmann/DiaCompe/GranCompe calipers are stiffer to begin with compared to MAFAC. It would indeed be trick to have them mounted on braze on studs. Herse did that. The difference in feel I suspect would likely be less dramatic than with MAFAC, but they would look cooler for sure.
Salamandrine is offline
Reply With Quote
Old 11-28-18, 02:43 PM
  #7
Vintage_Cyclist
Senior Member

Vintage_Cyclist's Avatar

Join Date: Nov 2013
Location: Big Apple
Posts: 1,177

Bikes: yes

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 286 Post(s)
Originally Posted by Salamandrine View Post
The only issue I've had is the plating on the pivot bolts doesn't really hold up. Mine are pretty oxidized. Not sure what it is but it isn't chrome. Minor complaint though.
That seems to be a Dia Compe issue. I have a pair of their ENE bar-end shifters and the bolts heavily oxidized over the last 4 years.
Vintage_Cyclist is online now
Reply With Quote
Old 11-28-18, 03:49 PM
  #8
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 6,032

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 335 Post(s)
Originally Posted by Salamandrine View Post
The Gran Compe are based on the old Weinmann centerpull pattern, not MAFAC. The Weinmann/DiaCompe/GranCompe calipers are stiffer to begin with compared to MAFAC. It would indeed be trick to have them mounted on braze on studs. Herse did that. The difference in feel I suspect would likely be less dramatic than with MAFAC, but they would look cooler for sure.
In lieu of having your frame/fork brazed, one can dramatically improve these caliper's actuation stiffness by adding longer bolts and a "booster" arch.
Further, by tethering the arms at the pad mounting bolt, bending forces being fed into the pivots are almost entirely eliminated, leading to a much freer movement with resultant modulation improvement (same logic as top-line Campagnolo and Dura-Ace calipers having ball-bearing pivots).

A super-short straddle wire (pillaged from a later canti straddle assembly, one leg of it) can increase leverage, exploiting the gain in stiffness, but requires complete disassembly to install. These brakes are more than stout now, actuated by M730 SLR Servowave(?) levers.

I have to say that it was fun to test these mods, back when I was doing XC races using these calipers. Earlier on, it was not uncommon to have the lever come to the grip on steep, wet descents!


dddd is offline
Reply With Quote
Old 11-29-18, 06:43 AM
  #9
bear_a_bug
Senior Member

Join Date: May 2013
Location: Logan Square, Chicago
Posts: 205

Bikes: '85 Trek 870 city bike, '74 Raleigh Super Tourer (Gugificazione-d), '83 Trek 620, '91 Bill Davidson Impulse

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 62 Post(s)
Originally Posted by dddd View Post
Further, by tethering the arms at the pad mounting bolt, bending forces being fed into the pivots are almost entirely eliminated, leading to a much freer movement with resultant modulation improvement (same logic as top-line Campagnolo and Dura-Ace calipers having ball-bearing pivots).
Interesting to hear that others have done this, too. I used zip ties looped around the fork leg and then through the window of the caliper arm above the brake pad (the adjustment area where you slide the brake pad up and down...hard to explain). Really helped reduce that flex when braking.
bear_a_bug is offline
Reply With Quote
Old 11-29-18, 01:30 PM
  #10
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 7,568
Mentioned: 172 Post(s)
Tagged: 1 Thread(s)
Quoted: 1447 Post(s)
-----

Are there current makers for the boosters?

Can recall Spence Wolf of Cupertino Bike Shop fame carrying and making extensive use of them BITD. Have not seen any modern produced examples.

Thanks for any information.

-----
juvela is offline
Reply With Quote
Old 11-29-18, 02:17 PM
  #11
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 6,032

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 335 Post(s)
Originally Posted by juvela View Post
-----

Are there current makers for the boosters?

Can recall Spence Wolf of Cupertino Bike Shop fame carrying and making extensive use of them BITD. Have not seen any modern produced examples.

Thanks for any information.

-----
A booster plate is very easy to make, and mine were home-made.

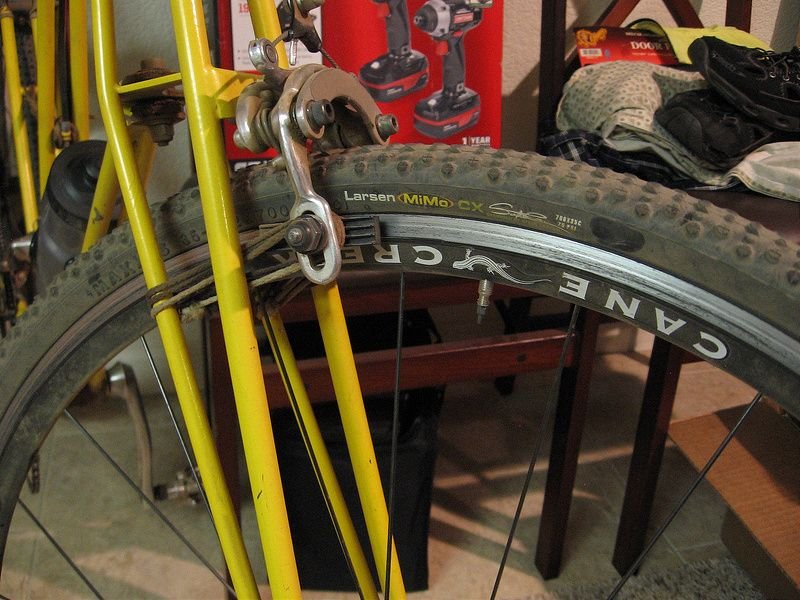

If there is a lot of tire clearance, I have even used the broken-off bracket of a waterbottle cage as a brace after only slight reshaping to clear the top of the tire!

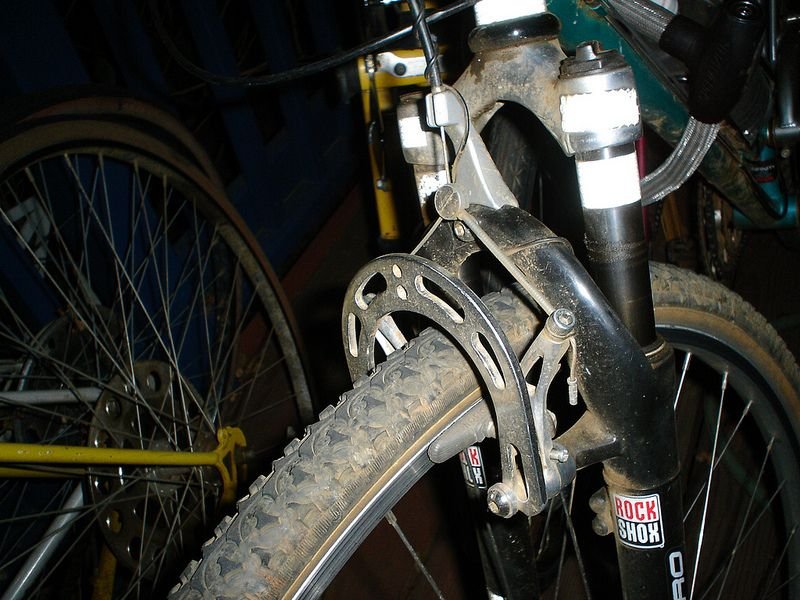

This front canti brace was made from an aftermarket booster brace that I cut the big orbital adjustment hoops off of, thus shortening it up since it was designed for much fatter tires.

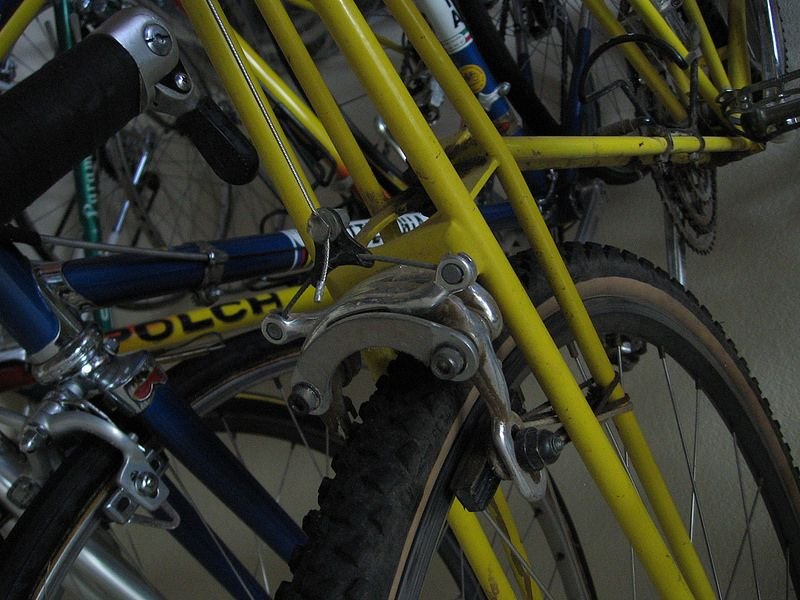

The one below it was made from scratch, using relatively thin stock, .090" or so. Both helped to prevent brake pad squeal and to make for much more-solid braking feel and modulation.


dddd is offline
Reply With Quote
Old 11-29-18, 02:50 PM
  #12
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 7,568
Mentioned: 172 Post(s)
Tagged: 1 Thread(s)
Quoted: 1447 Post(s)
----

Thanks very much quattro dee!

-----
juvela is offline
Reply With Quote
Old 11-29-18, 03:44 PM
  #13
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 19,078

Bikes: 1959 Capo; 1980 Peugeot PKN-10; 1981 Bianchi; 1988 Schwinn KOM-10;

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 609 Post(s)
Originally Posted by Salamandrine View Post
...
From what I've heard, the GC610 are based on the 60s era Weinmann pattern, which was a little bit beefier than the 70's Weinmann/Dia-Compe brakes that we all know. ...

I upgraded my pads to Kool Stop Dura type, and I highly recommend that. They are lighter, look better, and stop better than the stock pads.

...
Interesting -- I am very happy w/ the ca. 1960 OEM Weinmanns on my Capos. Now I'll have to compare them with the 1970s brakes in my parts bin.

KoolStop pad upgrade is mandatory with almost any make and model of brake caliper.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324
Capo: 1960 Sieger, S/N 42624
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1981 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Reply With Quote
Old 11-30-18, 01:33 AM
  #14
Aubergine
Senior Member

Join Date: Nov 2015
Location: Seattle and Reims
Posts: 2,363

Bikes: Too many to list

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 552 Post(s)
Originally Posted by John E View Post
Interesting -- I am very happy w/ the ca. 1960 OEM Weinmanns on my Capos. Now I'll have to compare them with the 1970s brakes in my parts bin.
Please report back, John. I also am curious, because my experience in the 70s with old Weinmann and Dia-Compe centerpulls has been that they were poor brakes. But given my level of knowledge back then (none!) I have no idea whether it was the calipers themselves or some other link in the chain that was weak.
__________________
Keeping Seattle’s bike shops in business since 1978
Aubergine is offline
Reply With Quote
Old 11-30-18, 09:15 AM
  #15
Mr. 66
Senior Member

Join Date: Aug 2015
Posts: 553
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 141 Post(s)
Those things were made all over the place, I have seen Swiss, French, West Germany, and Japan stamped versions.
Mr. 66 is offline
Reply With Quote
Old 11-30-18, 10:58 AM
  #16
63rickert
Senior Member

Join Date: Dec 2013
Posts: 624
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 289 Post(s)
My 1950 Bates is fitted with pre-'62, single spring Weinmann 750 brakes, pads adjusted near the bottom of the slot. Very solid brakes. Part of the unique ride of the Diadrant fork is simply the sheer length of the fork blades. At a glance it looks as if the brakes should be frightening and squirrely but there is none of that. Fitted with unknown and very old aftermarket pads. If they ever dry out or give up it will be Kool Stops but the past four years just no need. Every bit as positive and powerful as any of my Mafacs - which of course are all much shorter.
63rickert is offline
Reply With Quote
Old 11-30-18, 11:51 AM
  #17
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 6,087

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 75 Post(s)
Tagged: 0 Thread(s)
Quoted: 1302 Post(s)
Off topic but related: I raced the Grand Comp sidepulls on my '76 Fuji Pro. Very good brakes: I did have to keep in mind I had more stopping power that just about every other bike in a race. (This being when Campy NR was universal and adhered closely to the Enesto Campagnolo philosophy that no one won a race by stopping; that brakes were mere,y for speed adjust.) When it came to working on the brakes I liked the second cable release at the lever, that piece of the top of the lever that swung away and allowed the lever to open further. Yes, it seemed a little corny on a pure racing bike but ... in a race that meant a lot to me, I was taken down 5 miles from the finish. Just bruises and road rash, bike fine except a wobble in the front wheel so it was hitting the brake pads. In my chase, I really did not want to reach down for the release lever on the caliper, but thanks to Dia Comp I didn't have to. Just flipped off the release on the lever. Second plus - I still had full braking power with no changes except having to reach a little further for the lever. (Not that it mattered; I never touched the brakes the rest of the race.)

Only gripe with those brakes - the levers were too small for my hands. But I didn't get my eyes opened to that fact until I put the far bigger Mafac 2000 levers on my username bike a year later.

And my other related the topic: Running those Grand Comp centerpulls (or the equivalent Weinmanns) as a rear brake and running the housing the full length makes them a great match, feel and performance-wise to a Mafac Racer front caliper. I have Schwinn approved (presumably Weinmann) rears and Mafac Racer fronts on my two winter/rain/city bikes. Those bikes stop really well. Lots of power but very predictable and with great control. A car cuts in front of you and hits the brakes. With a pure adrenaline squeeze, you will stop really fast. (It has never crossed my mind that they needed "boosters". Perhaps I just don't weigh enough.) I like that both the Weinmann (and I presume the Grand Comp) and the Racers can be turned into the other application, front or rear, by just going to a hardware store and buying the appropriate bolt. My two mixed pairs were simple two matched sets from different bikes. (And my favorite joke, no longer true; you could always get a near NOS set of Mafac Racers for $50 - but you had to remove and dispose of the attached Peugeot UO-8. In the '80s, there were hundreds, thousands, of UO-8s bought in one of the bike frenzies and never ridden.

Ben
79pmooney is offline
Reply With Quote
Old 11-30-18, 12:00 PM
  #18
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 37,400

Bikes: 8

Mentioned: 143 Post(s)
Tagged: 0 Thread(s)
Quoted: 5582 Post(s)
U brakes are center pull too .. Campagnolo Euclid brakes were kind of pretty..


fietsbob is offline
Reply With Quote
Old 11-30-18, 12:07 PM
  #19
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 4,355

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 94 Post(s)
Tagged: 0 Thread(s)
Quoted: 1475 Post(s)
I remember the Spence Wolfe brake boosters well. They came into the LBS where I worked pretty often. The Cupertino bikes usually had them, often along with a custom "alpine" jockey cage Campy NR RD, Super Champ 58 rims with rim ropes (always!), and tied and soldered spokes.

I found these online. Whoever is running the current version of the Cupertino bike shop apparently sells repro brake boosters. Obviously you could make your own. Spence Wolf / Cupertino Bike Shop reproduction MAFAC brake booster plate - (NEW) - MAFAC caliper AFTER


FWIW a quick flex test comparing the new GC610 vs MAFAC racers shows that the former are dramatically stiffer. Therefore I'd assume that boosters would do more for MAFAC performance than for Weinmann/DC/GC brakes.

It would be interesting to see how they compare to vintage 60s Weinmanns. I'm not sure if the hearsay about them being based on them is actually true. Might be. Vernier calipers would tell the tale.
Salamandrine is offline
Reply With Quote
Old 11-30-18, 12:21 PM
  #20
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 6,087

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 75 Post(s)
Tagged: 0 Thread(s)
Quoted: 1302 Post(s)
Originally Posted by Salamandrine View Post
I remember the Spence Wolfe brake boosters well. They came into the LBS where I worked pretty often. The Cupertino bikes usually had them, often along with a custom "alpine" jockey cage Campy NR RD, Super Champ 58 rims with rim ropes (always!), and tied and soldered spokes.

I found these online. Whoever is running the current version of the Cupertino bike shop apparently sells repro brake boosters. Obviously you could make your own. Spence Wolf / Cupertino Bike Shop reproduction MAFAC brake booster plate - (NEW) - MAFAC caliper AFTER


FWIW a quick flex test comparing the new GC610 vs MAFAC racers shows that the former are dramatically stiffer. Therefore I'd assume that boosters would do more for MAFAC performance than for Weinmann/DC/GC brakes.

It would be interesting to see how they compare to vintage 60s Weinmanns. I'm not sure if the hearsay about them being based on them is actually true. Might be. Vernier calipers would tell the tale.
Another project! I happen to have plenty of 1/4" 6061 plate lying around. That should have sufficient overkill factor. (It's the "another project" I don't need.
79pmooney is offline
Reply With Quote
Old 11-30-18, 02:06 PM
  #21
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 19,078

Bikes: 1959 Capo; 1980 Peugeot PKN-10; 1981 Bianchi; 1988 Schwinn KOM-10;

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 609 Post(s)
Originally Posted by fietsbob View Post
U brakes are center pull too .. Campagnolo Euclid brakes were kind of pretty..


... as are RollerCams. I have both on my mtn bike.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324
Capo: 1960 Sieger, S/N 42624
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1981 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Reply With Quote
Old 11-30-18, 04:15 PM
  #22
tiredhands
Sempiternal Newb

tiredhands's Avatar

Join Date: Dec 2014
Location: Panama City, FL
Posts: 509

Bikes: 1984 Trek 510, 1990 Trek 520, 1992 Trek 750

Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 183 Post(s)

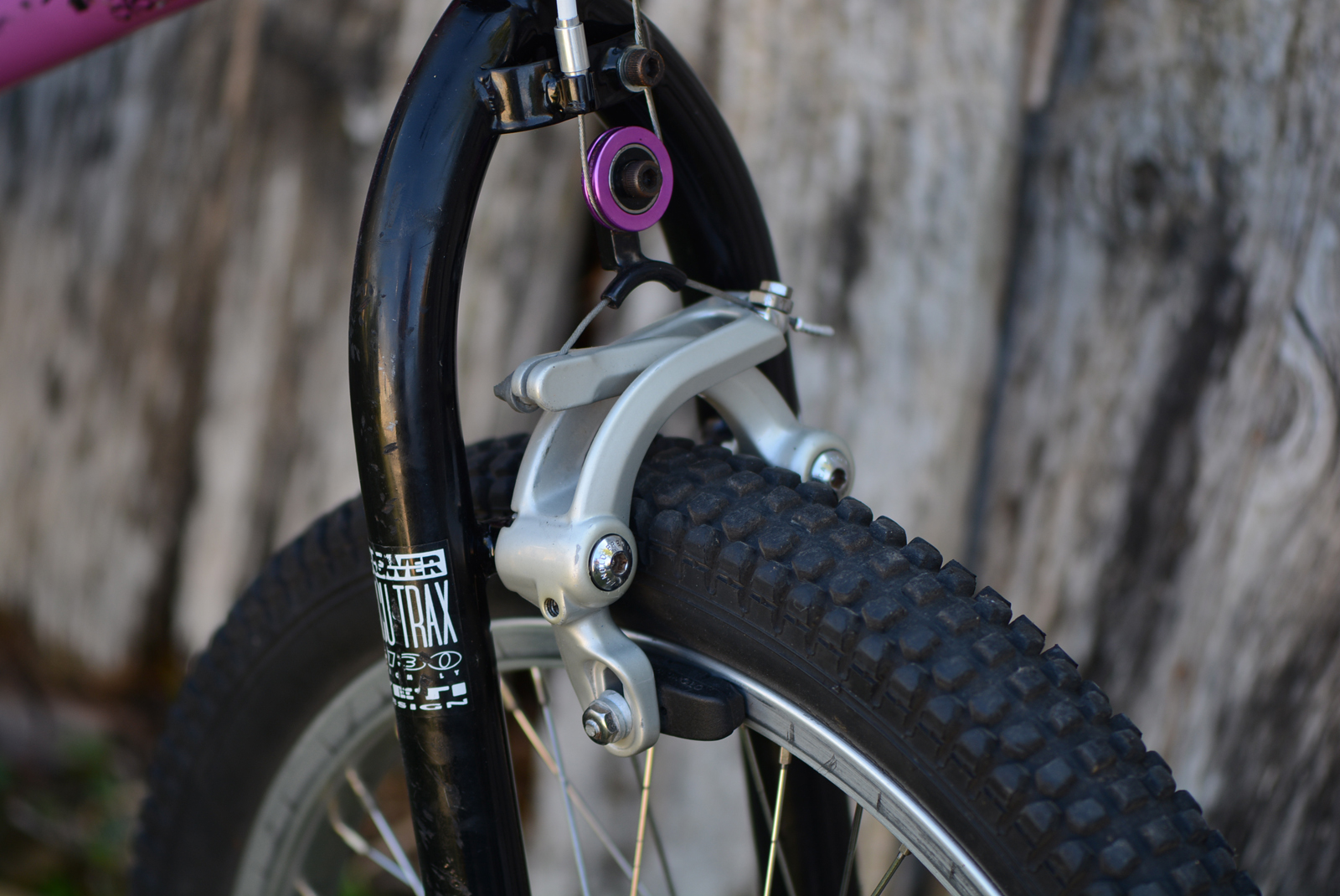

Chris Bishop from MD is working some magic with customized Zeus 2000 brakes - link to an Instagram picture
The way he and Chapman work with centerpulls makes me want to put direct-mount bosses on something fancy.
tiredhands is offline
Reply With Quote
Old 12-02-18, 09:12 PM
  #23
willoughby1
Junior Member
Thread Starter

Join Date: Oct 2018
Posts: 23
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Originally Posted by 3speedslow View Post
Since we are being un- scientific I might add that your Fuji is dang gorgeous! Black, chrome elegant.
Yeah, you wouldn't believe it, but I got that bike off Craigslist for 50 bucks, came with Campy wheels and some other aftermarket goodies, although I added the Brooks and the box. I rode it around for quite a while before finally admitting it was just too small and giving it to my wife. She now thinks it's as cool as I always did and would never give it up. Her pomeranian rides in the box.

willoughby1 is offline
Reply With Quote
Old 12-02-18, 10:47 PM
  #24
3speedslow
Senior Member

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 6,427

Bikes: A few

Mentioned: 66 Post(s)
Tagged: 0 Thread(s)
Quoted: 933 Post(s)
There weren’t too many big mixes out there. I think Schwinn had a 23” model, Raleigh too.
3speedslow is offline
Reply With Quote
Old 12-04-18, 10:08 AM
  #25
RobbieTunes
Old and in the way

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Indiana
Posts: 23,965
Mentioned: 25 Post(s)
Tagged: 1 Thread(s)
Quoted: 293 Post(s)
Sort of OT question: What is the difference between Weinmann 610 and Weinmann 610 Vainquer 999?
__________________
Robbie ♪♫♪...☻
'59 Raleigh Sports, '85 Raleigh Competition
'84 Klein Performance, '85 Pinarello Record
'87 Colnago Super, '90 Cinelli Super Corsa
'88 Centurion Ironman, '91 Centurion Carbon-R
'88 Fiorini, '99 Trek Y-Foil
2016 Wraith Hustle

RobbieTunes is offline
Reply With Quote

Thread Tools
Search this Thread

Contact Us Archive Advertising Cookie Policy Privacy Statement Terms of Service
