Cyclone Rear Der Large Jockey Wheel

What is available as a replacement for the lower jockey wheel on the Suntour Cyclone rear derailleur? It is larger than the upper wheel and the dust cover on one side of each wheel is built into the removable cage plate.
TiHabanero is offline
Old 11-30-18, 01:22 PM
  #2
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 11,334

Bikes: 1977 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 70 Post(s)
Tagged: 0 Thread(s)
Quoted: 1700 Post(s)
Liked 40 Times in 32 Posts
The Cyclone derailleurs I’m familiar with do not match your description. The pulleys are the same size. I think they’re 11T, but 10T pulleys work fine. And the dust covers are a part of the pulley-held together by the screw that holds the cage together.

If the dust covers are on the cage, they’re stuck on by hardened chain goop.

The only Suntour derailleur that I know of that has a larger lower pulley is the 2nd version of the Mountech with the 13T lower pulley.
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin’ huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Old 11-30-18, 01:33 PM
  #3
clubman
Youngman Grand

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 5,482

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 82 Post(s)
Tagged: 0 Thread(s)
Quoted: 963 Post(s)
Liked 15 Times in 13 Posts
With the exception of the Cyclone 3 pulley model...maybe someone harvested mismatched pair, assuming the op's talking about a 2 pulley Cyclone.

Last edited by clubman; 11-30-18 at 01:39 PM.
clubman is offline
Old 11-30-18, 01:38 PM
  #4
TiHabanero
Senior Member
Thread Starter

Join Date: Nov 2012
Posts: 2,273
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 643 Post(s)
Likes: 0
Liked 20 Times in 19 Posts
Yes, this size jockey wheel was a new one on me, too. I have the original Cyclone, Mark II, and this one, which I have not seen before. It is stamped as a Cyclone, but is much different from any one I have seen thus far. Desrali shows it is a Cyclone 6200. I am sure a standard wheel will work in there, but would be out of place, so to speak.
TiHabanero is offline
Old 11-30-18, 01:40 PM
  #5
clubman
Youngman Grand

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 5,482

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 82 Post(s)
Tagged: 0 Thread(s)
Quoted: 963 Post(s)
Liked 15 Times in 13 Posts
This one is a 6300.


clubman is offline
Old 11-30-18, 02:22 PM
  #6
TiHabanero
Senior Member
Thread Starter

Join Date: Nov 2012
Posts: 2,273
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 643 Post(s)
Likes: 0
Liked 20 Times in 19 Posts
The Mark II I have is the 3500, two wheel model. The three wheel model is a gem of a shifter over a wide range of gearing. Very durable, too. At one time I aimed to have one of each iteration of the Cyclone rear der, however I nixed it as my space is becoming crowded and no place to display parts anymore.
TiHabanero is offline
Old 11-30-18, 06:36 PM
  #7
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 11,334

Bikes: 1977 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 70 Post(s)
Tagged: 0 Thread(s)
Quoted: 1700 Post(s)
Liked 40 Times in 32 Posts
Originally Posted by TiHabanero View Post
Yes, this size jockey wheel was a new one on me, too. I have the original Cyclone, Mark II, and this one, which I have not seen before. It is stamped as a Cyclone, but is much different from any one I have seen thus far. Desrali shows it is a Cyclone 6200. I am sure a standard wheel will work in there, but would be out of place, so to speak.
Absolutely KOOKY!

Now that I think of it- I haven't had that style of Cyclone- I've had a few of the 1st style (I know there's different iterations of the 1st gen Cyclones) and a few MIIs- and I know of these- but I've always assumed they're similar!

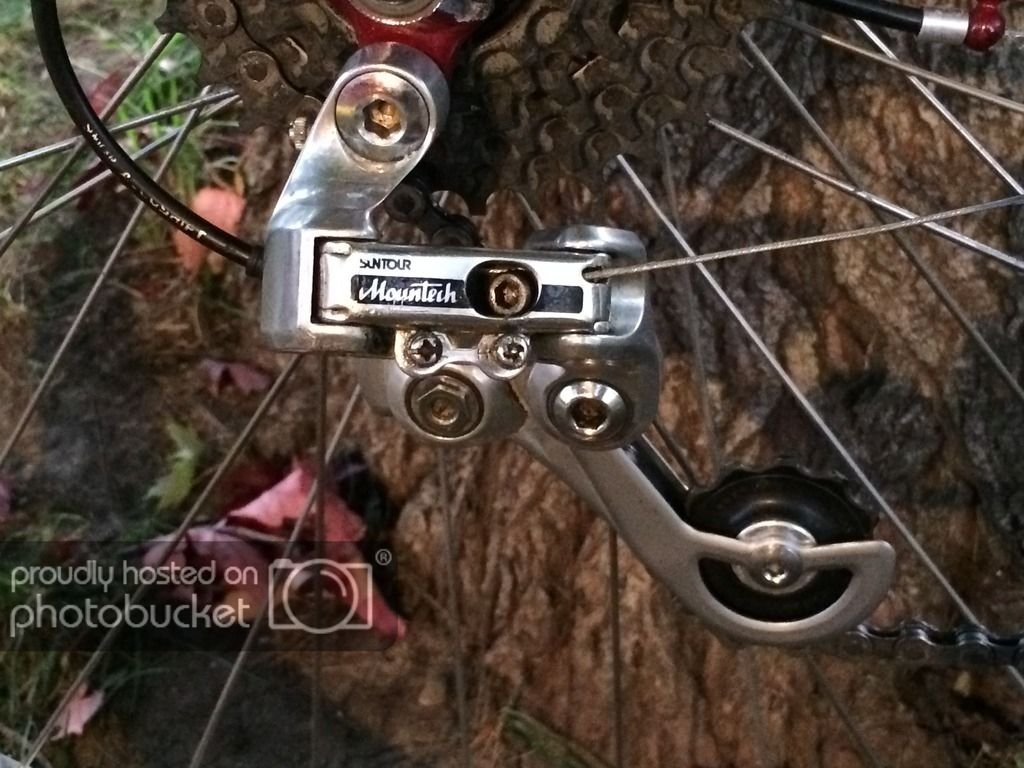

I only knew about the Mountech having the big pulley- according to my old thread it says 12T.
