I am buying this Bianchi, but what is it anyways??

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

I am buying this Bianchi, but what is it anyways??

Old 11-30-18, 11:12 AM
  #1
Reynolds 531
Senior Member
Thread Starter

Join Date: Oct 2014
Location: Reno nevada
Posts: 248

Bikes: 4 Old school BMX, 6 Klunkers, 5 29er race bikes, 4 restored Sting Rays, Now 3 vintage steel bike being built up

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 92 Post(s)
Liked 3 Times in 3 Posts
I am buying this Bianchi, but what is it anyways??

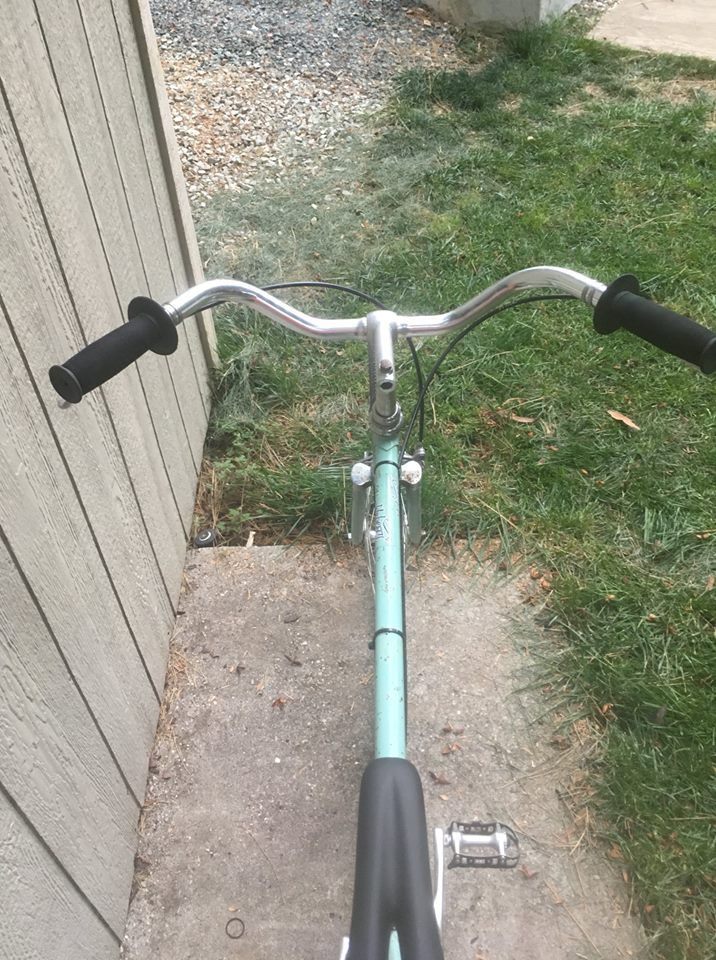

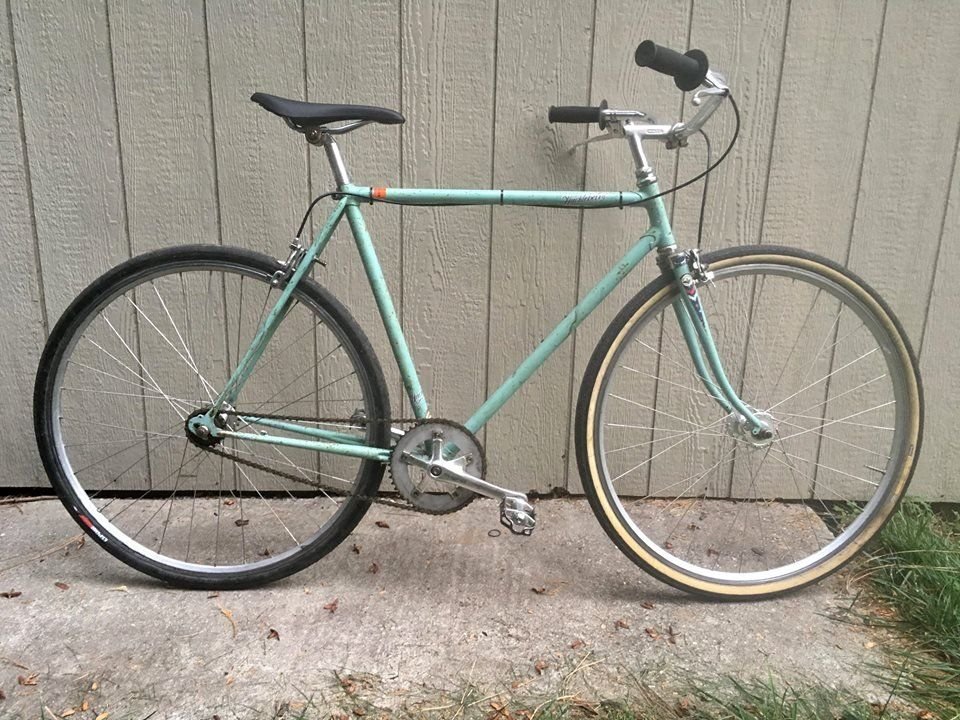

This bike is for sale near me, but out in the sticks, where there is miserable snow and cold, so the price is very low. I know it has the wrong wheels, the wrong brakes, the tires are cut, etc. But I just paid half the asking price of this bike just for V.O. handlebars, let alone the pedals and seat.

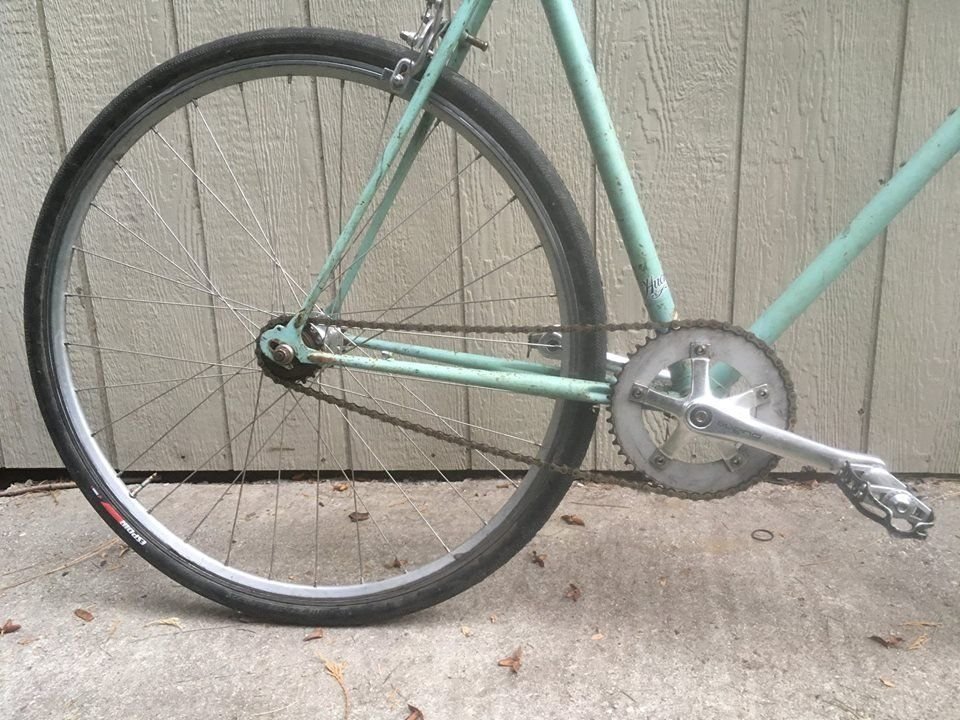

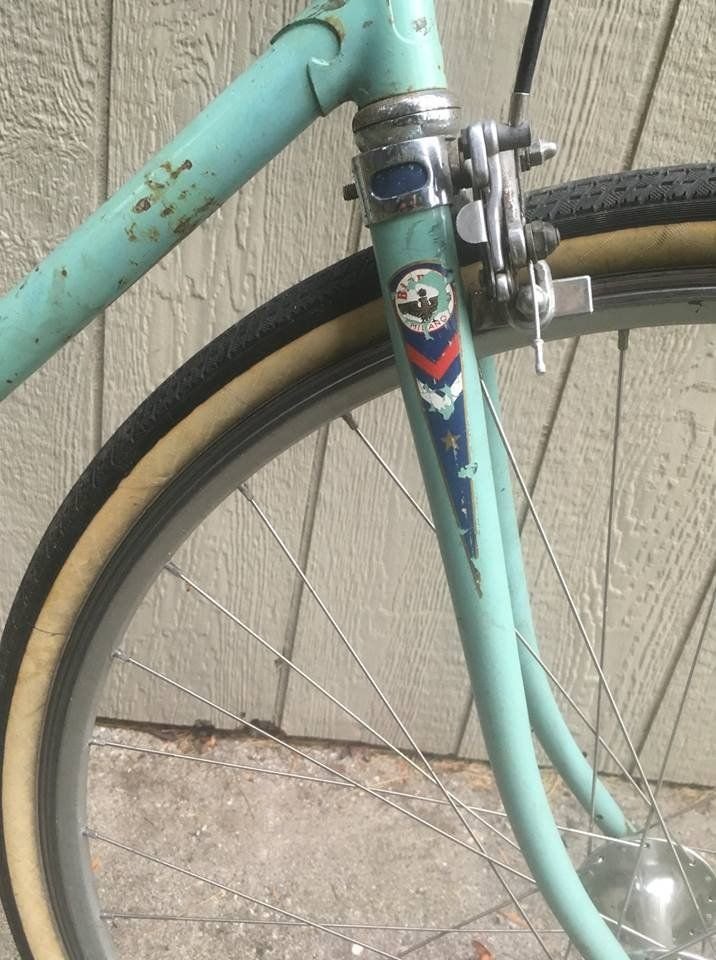

Looks like a low end Bianchi. Dropouts are crude, has integrated headset (fingers crossed), water bottle bosses, unreadable script that someone may recognize.

So what is it?



Reynolds 531 is offline
Old 11-30-18, 11:50 AM
  #2
orcas island
Senior Member

Join Date: Sep 2009
Posts: 472
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 51 Post(s)
Likes: 0
Liked 8 Times in 6 Posts
I’m not positive, but I think that this might be their “Sprint” model. Early 1970’s if I am remembering correctly. There was a bit of information on this in one of the Bianchi model identification threads...
orcas island is offline
Old 11-30-18, 12:17 PM
  #3
Reynolds 531
Senior Member
Thread Starter

Join Date: Oct 2014
Location: Reno nevada
Posts: 248

Bikes: 4 Old school BMX, 6 Klunkers, 5 29er race bikes, 4 restored Sting Rays, Now 3 vintage steel bike being built up

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 92 Post(s)
Liked 3 Times in 3 Posts
Originally Posted by orcas island View Post
I’m not positive, but I think that this might be their “Sprint” model. Early 1970’s if I am remembering correctly. There was a bit of information on this in one of the Bianchi model identification threads...
Cool. I will look for that thread.
Reynolds 531 is offline
Old 12-01-18, 09:17 AM
  #4
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,851
Mentioned: 431 Post(s)
Tagged: 1 Thread(s)
Quoted: 2483 Post(s)
Likes: 0
Liked 67 Times in 61 Posts
The presence of stamped dropouts suggests a hi-tensile Bianchi Calibrati 1-20 tubeset, while the absence of top tube cable stops are indicative of a club racer Rekord variant. If so, the lack of a rear derailleur hanger indicates pre-1974. Bottle bosses would be incongruous with the apparent era but are located abnormally high on the down tube and may have been owner installed. Assuming early 1970s, the serial number should be located on the front collar of the upper head lug and will indicate the frame manufacture date.

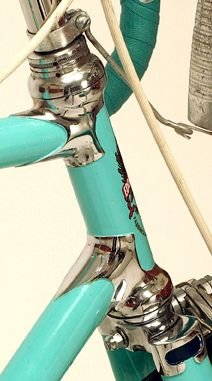

The headset is not an integral version. Integral headsets have the cups formed as part of the lug (i.e. the cups are integral with the lugs - see photo). Bearing races are then installed in the lug cups. The subject bicycle clearly has separate cups that are pressed into the lugs.

T-Mar is offline
Old 12-01-18, 09:49 AM
  #5
Reynolds 531
Senior Member
Thread Starter

Join Date: Oct 2014
Location: Reno nevada
Posts: 248

Bikes: 4 Old school BMX, 6 Klunkers, 5 29er race bikes, 4 restored Sting Rays, Now 3 vintage steel bike being built up

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 92 Post(s)
Liked 3 Times in 3 Posts
Originally Posted by T-Mar View Post
The presence of stamped dropouts suggests a hi-tensile Bianchi Calibrati 1-20 tubeset, while the absence of top tube cable stops are indicative of a club racer Rekord variant. If so, the lack of a rear derailleur hanger indicates pre-1974. Bottle bosses would be incongruous with the apparent era but are located abnormally high on the down tube and may have been owner installed. Assuming early 1970s, the serial number should be located on the front collar of the upper head lug and will indicate the frame manufacture date.

The headset is not an integral version. Integral headsets have the cups formed as part of the lug (i.e. the cups are integral with the lugs - see photo). Bearing races are then installed in the lug cups. The subject bicycle clearly has separate cups that are pressed into the lugs.

Ok, thank you. I have never seen a Bianchi integral headset in real life before. I agree with your observations about the bottle bosses. Whatever this really, it is Celeste-Patina, and I have boxes of low end Campy parts because they remind me of my first "real bike" (Cilo Pacer).
This will look good with Three arm Campagnolo Sport (I have the steel or aluminum)
Reynolds 531 is offline
Old 12-01-18, 09:56 AM
  #6
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Fort Wayne, In
Posts: 25,641

Bikes: Too many to list here check my signature.

Mentioned: 94 Post(s)
Tagged: 2 Thread(s)
Quoted: 1268 Post(s)
Liked 39 Times in 30 Posts
Personally I seldom look at anything without a integral RD hanger. That way you at least get a decent rider with a good chance of tre tubi thrifti ChroMo
__________________
Bianchis '87 Sport SX, '90 Proto, '90 Campione del Fausto Giamondi Specialisma Italiano Mundo, '91 Boarala 'cross, '93 Project 3, '86 Volpe, '97 Ti Megatube, , '90 something Vento 603,

Others but still loved,; '80 RIGI, '80 Batavus Professional, '87 Cornelo, '09 Motobecane SOLD, '?? Jane Doe (still on the drawing board), '90ish Haro Escape
Bianchigirll is offline
Old 12-01-18, 10:19 AM
  #7
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 22,423
Mentioned: 166 Post(s)
Tagged: 0 Thread(s)
Quoted: 8523 Post(s)
Liked 81 Times in 73 Posts
Curious,

Does anything on the bike indicate the place of manufacture?
CliffordK is offline
Old 12-01-18, 10:34 AM
  #8
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,851
Mentioned: 431 Post(s)
Tagged: 1 Thread(s)
Quoted: 2483 Post(s)
Likes: 0
Liked 67 Times in 61 Posts
Originally Posted by CliffordK View Post
Curious,

Does anything on the bike indicate the place of manufacture?
I'm not aware of any non-Italian Bianchi manufacturing prior to 1980 and the subject bicycle appears to pre-daten that. The serial number would confirm the origin, as would would the bottom bracket threading standard.
T-Mar is offline
Old 12-01-18, 11:43 AM
  #9
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 19,413

Bikes: 1959 & 1960 Capo; 1982 Bianchi; 1988 Schwinn KOM-10;

Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 701 Post(s)
Liked 22 Times in 22 Posts
My first road bike was a bottom-of-the-line Bianchi Corsa. The fork crown was very similar to yours, although slightly more ornate. Stamped dropouts, no derailleur hanger, plain gauge carbon steel frame, and one-piece head lugs and head tube, perhaps because it was a 21" frame, or perhaps because it was a cheapo model. It road surprisingly well for what it was, and I got a lot of good use of it.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324
Capo: 1960 Sieger (2), S/N 42624, 42597
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Old 12-01-18, 11:56 AM
  #10
shuru421
Senior Member

Join Date: Aug 2012
Posts: 641
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 240 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
my questions is, how much did you pay?
shuru421 is offline
Old 12-01-18, 01:21 PM
  #11
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 6,526

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 78 Post(s)
Tagged: 0 Thread(s)
Quoted: 536 Post(s)
Likes: 0
Liked 19 Times in 19 Posts
Good call on those bottle bosses, that's something to be wary of.

I recently bought a 19~81 Tre-Tubi Bianchi Nuovo Racing for under $200, a great deal until I discovered that the seattube bottle bosses were in fact JB-Welded on (one had broken off), and unfortunately the butted tube was also drilled thru in two places. It will be a good, and good-looking, rider (for me @142lbs and nearing 60-y-o), I've already done one 55-mile ride on it, but it's value is seriously compromised.

I've always liked cheap bikes as builds because the risk of investment is low and so the bikes find more-varied usefulness. I often question the expenditure of so many hours making such lesser-valued bikes "right", but that's my hobby and has been for almost forever. I prefer to stretch out the rebuilding and detailing process as the bike "pays for itself" through actual usage, especially as the fit and function changes can be validated in more or less real time, and with defects/issues presenting themselves as early on as possible. This process of "humble origins" often starts with an oil-can tune-up and basic wheel/tire/brake prep, with each subsequent ride prompting one or more additional detail repairs, stem change, cable restoration, etc.
dddd is offline
Old 12-01-18, 04:59 PM
  #12
Reynolds 531
Senior Member
Thread Starter

Join Date: Oct 2014
Location: Reno nevada
Posts: 248

Bikes: 4 Old school BMX, 6 Klunkers, 5 29er race bikes, 4 restored Sting Rays, Now 3 vintage steel bike being built up

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 92 Post(s)
Liked 3 Times in 3 Posts
Originally Posted by shuru421 View Post
my questions is, how much did you pay?
$100
Reynolds 531 is offline
Old 12-01-18, 05:22 PM
  #13
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 8,120
Mentioned: 213 Post(s)
Tagged: 1 Thread(s)
Quoted: 1623 Post(s)
Liked 31 Times in 28 Posts
-----

Appears it may have begun life as a Record/Rekord ca. 1971.

Kitting included NERVAR Sport chainset, Campag Valentino gear ensemble, Universal Extra brakes, 3TTT Touriste stem & bar, Sheffield pedals.

-----
juvela is offline
Old 12-01-18, 06:42 PM
  #14
Reynolds 531
Senior Member
Thread Starter

Join Date: Oct 2014
Location: Reno nevada
Posts: 248

Bikes: 4 Old school BMX, 6 Klunkers, 5 29er race bikes, 4 restored Sting Rays, Now 3 vintage steel bike being built up

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 92 Post(s)
Liked 3 Times in 3 Posts
Originally Posted by juvela View Post
-----

Appears it may have begun life as a Record/Rekord ca. 1971.

Kitting included NERVAR Sport chainset, Campag Valentino gear ensemble, Universal Extra brakes, 3TTT Touriste stem & bar, Sheffield pedals.

-----
Thank you.
Reynolds 531 is offline
