Travel bike?

Old 12-01-18, 10:42 AM
  #1
Mr. Spadoni
Senior Member
Thread Starter

Join Date: Jan 2015
Posts: 235
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 91 Post(s)
Liked 0 Times in 0 Posts
Travel bike?

It’s the time of year when I think about being somewhere warmer. And then yesterday I talked with a guy riding his Ritchey Breakaway (?) and he raved about how he loved the bike. The ease of travel with that frame was just an added bonus.
So, when I got home, I looked at the Ritcheys. Nice enough, but the carbon fork offended my tastes.
Then I remembered S&S couplings. But on a vintage bike? Guess it can be done...this popped up,on eBay



Anyone ever done this sort of conversion on a CV bike? And no, I would not do this on a 7-11 EM

Last edited by Mr. Spadoni; 12-01-18 at 10:44 AM. Reason: Bad title
Mr. Spadoni is offline
Old 12-01-18, 12:40 PM
  #2
seedsbelize
necessary illusions

Join Date: Nov 2010
Location: Tixkokob, Yucatán, México
Posts: 11,300
Mentioned: 94 Post(s)
Tagged: 1 Thread(s)
Quoted: 4734 Post(s)
Liked 34 Times in 27 Posts

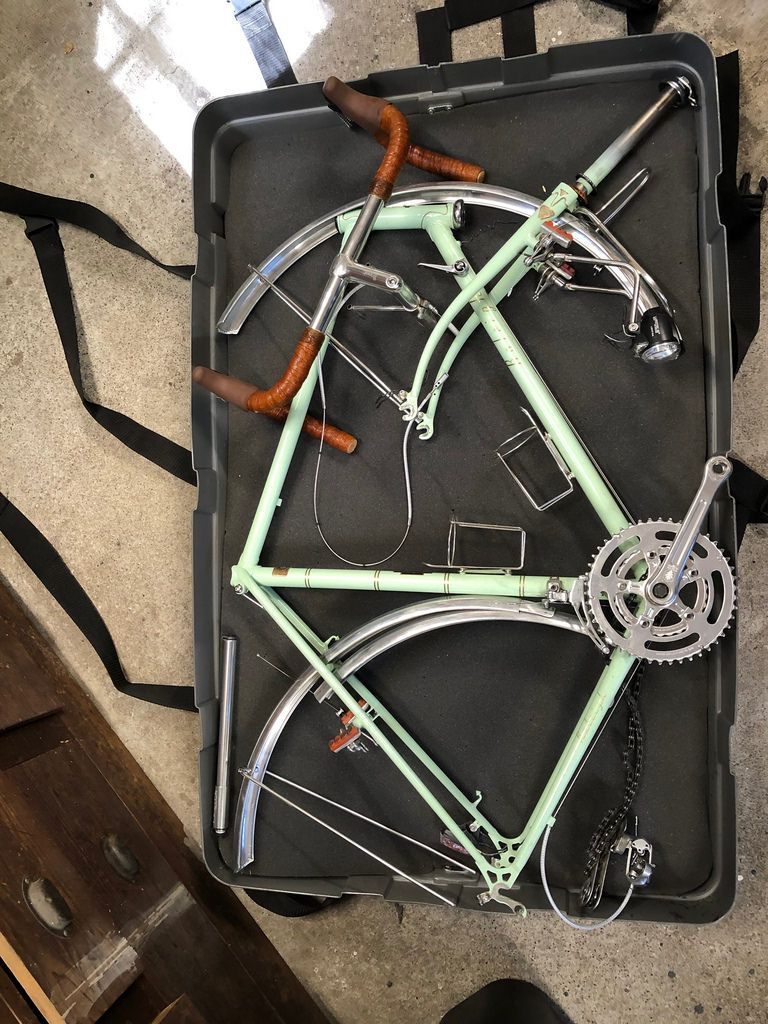

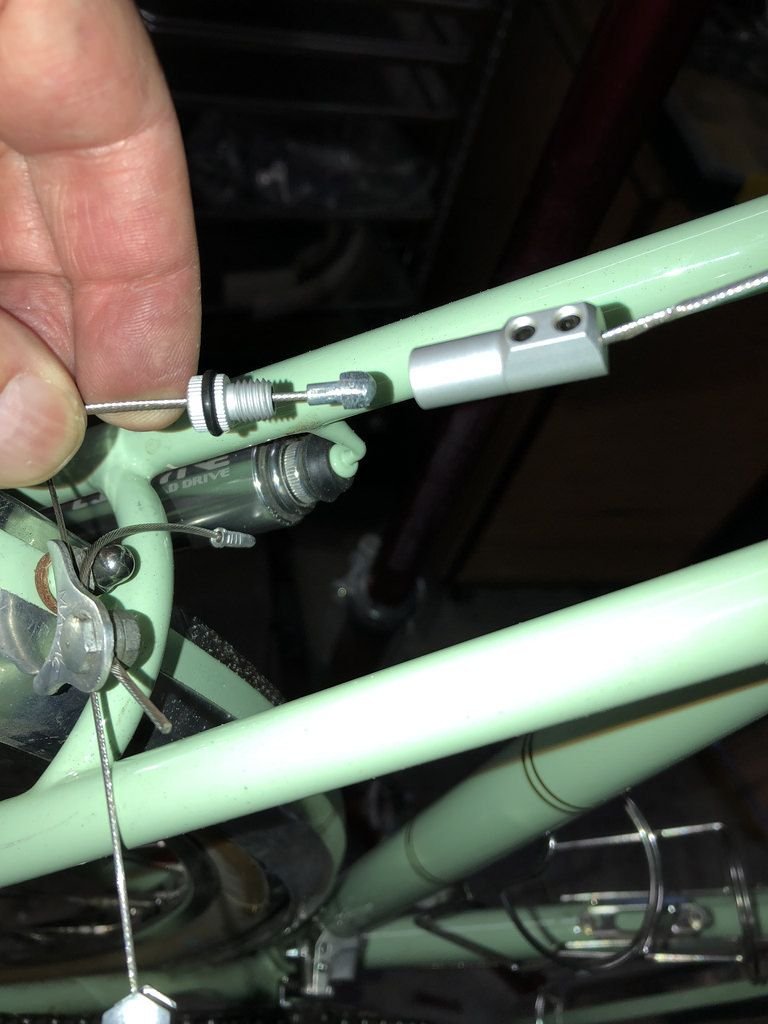

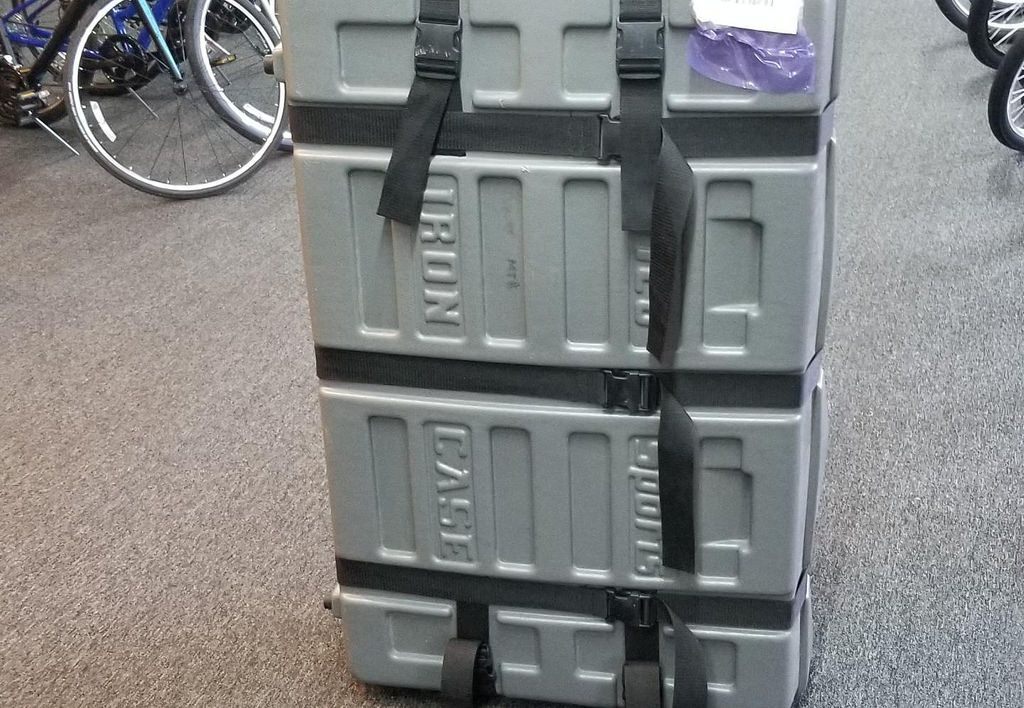

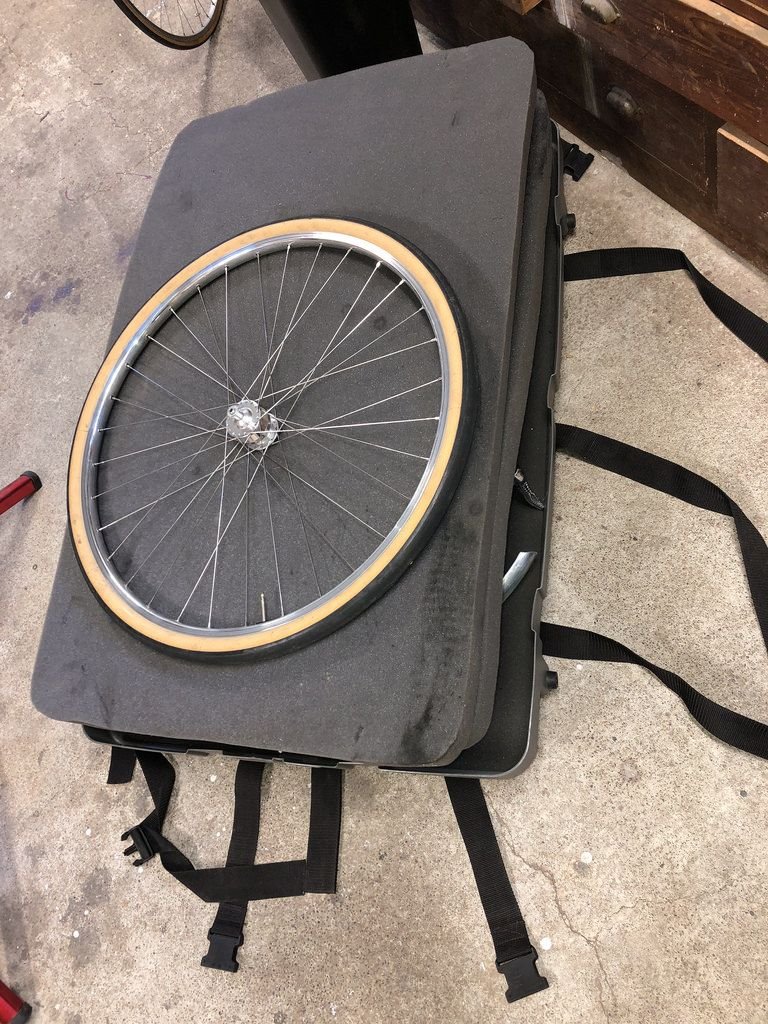

I had S&S couplers put on my 84 Schwinn Letour Luxe, for $600. Why that bike? Because it was the last one I still had in the US. The builder moved two cable stops so as to not interfere with the couplers. I also bought three cable splitters. I painted it (badly) myself, and am in process of trying to do it better. Initially I built my own case, from luan, and used it on many trips. Then a year ago, I stumbled upon a used S&S hard case for $100. It makes for a luxurious combination. I highly recommend all of it.

Edit: BF won't let me load photos today.

Last edited by seedsbelize; 12-02-18 at 08:36 AM.
seedsbelize is offline
Old 12-01-18, 12:55 PM
  #3
seedsbelize
necessary illusions

Join Date: Nov 2010
Location: Tixkokob, Yucatán, México
Posts: 11,300
Mentioned: 94 Post(s)
Tagged: 1 Thread(s)
Quoted: 4734 Post(s)
Liked 34 Times in 27 Posts

seedsbelize is offline
Old 12-02-18, 12:12 AM
  #4
bwilli88
Senior Member

bwilli88's Avatar

Join Date: Jan 2013
Location: Kampong Cham, Cambodia but I have quite a few in Lancaster, PA
Posts: 1,773

Bikes: Bikes in USA; 73 Raleigh Supercourse dingle speed, 74 Raleigh Grand Prix SS, 78 Raleigh Supercourse, 83 Centurion Pro-Tour, 82 Raleigh RRA.

Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 419 Post(s)
Liked 9 Times in 8 Posts

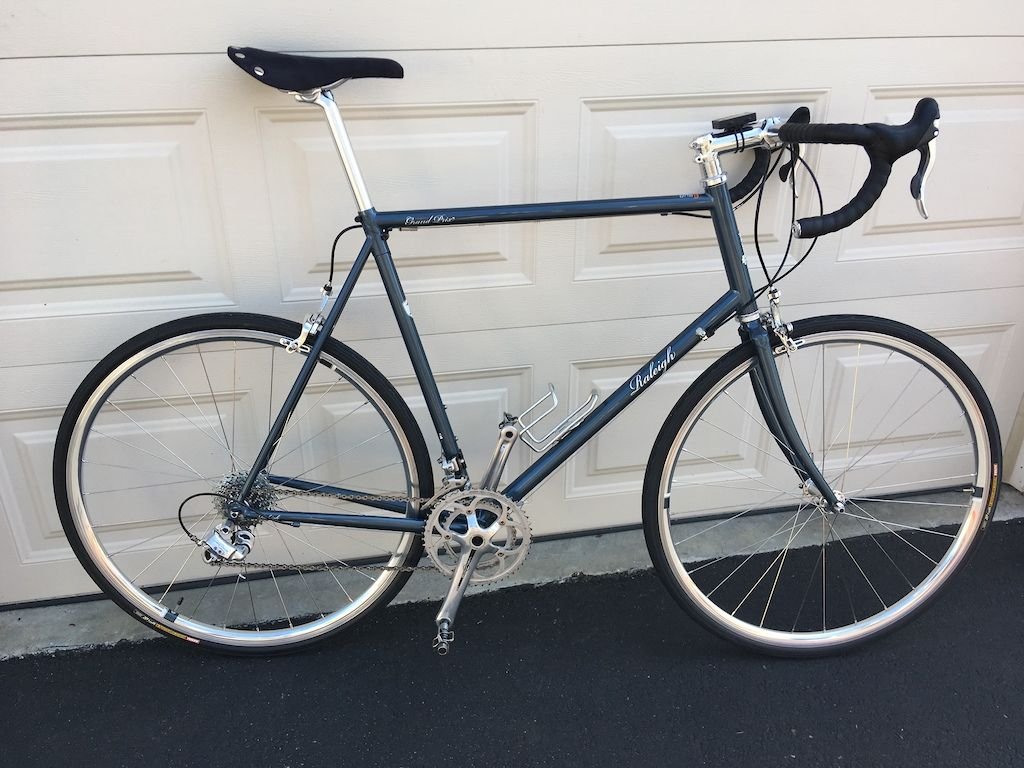

Look at the 2017 Raleigh Grand Prix it is a frame only from Raleigh that sports a licensed ritchey system.
__________________
My Cambodia bikes; ?? Zunow, 81 Centurion Pro Tour, 85 Gazelle Mens Market bike, ?? Maxwell Allroad, 12 Fuji Stratos.

Last edited by bwilli88; 12-02-18 at 05:51 AM.
bwilli88 is online now
Old 12-02-18, 12:34 AM
  #5
gugie
Crapmaster Emeritus

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 7,359

Bikes: JP Weigle'd Raleigh Competition reconstruct, 73 Raleigh Competition 650b'ed, 96 Bike Friday NWT, 83 Lotus Classique, 78 Centurion ProTour, 73 Raleigh Grand Sports

Mentioned: 777 Post(s)
Tagged: 0 Thread(s)
Quoted: 2219 Post(s)
Likes: 0
Liked 47 Times in 35 Posts
I can Bikeflight a full rinko bike cross country for under $50. And you can rinko-ize a bike for not much money at all.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 12-02-18, 08:36 AM
  #6
seedsbelize
necessary illusions

Join Date: Nov 2010
Location: Tixkokob, Yucatán, México
Posts: 11,300
Mentioned: 94 Post(s)
Tagged: 1 Thread(s)
Quoted: 4734 Post(s)
Liked 34 Times in 27 Posts
I travel mostly international. A coupled bike is a must.
seedsbelize is offline
Old 12-02-18, 12:36 PM
  #7
Mr. Spadoni
Senior Member
Thread Starter

Join Date: Jan 2015
Posts: 235
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 91 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by gugie View Post
I can Bikeflight a full rinko bike cross country for under $50. And you can rinko-ize a bike for not much money at all.
ok, you got me. What’s a rinko bike?
Mr. Spadoni is offline
Old 12-02-18, 12:44 PM
  #8
gugie
Crapmaster Emeritus

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 7,359

Bikes: JP Weigle'd Raleigh Competition reconstruct, 73 Raleigh Competition 650b'ed, 96 Bike Friday NWT, 83 Lotus Classique, 78 Centurion ProTour, 73 Raleigh Grand Sports

Mentioned: 777 Post(s)
Tagged: 0 Thread(s)
Quoted: 2219 Post(s)
Likes: 0
Liked 47 Times in 35 Posts
Originally Posted by Mr. Spadoni View Post
ok, you got me. What’s a rinko bike?

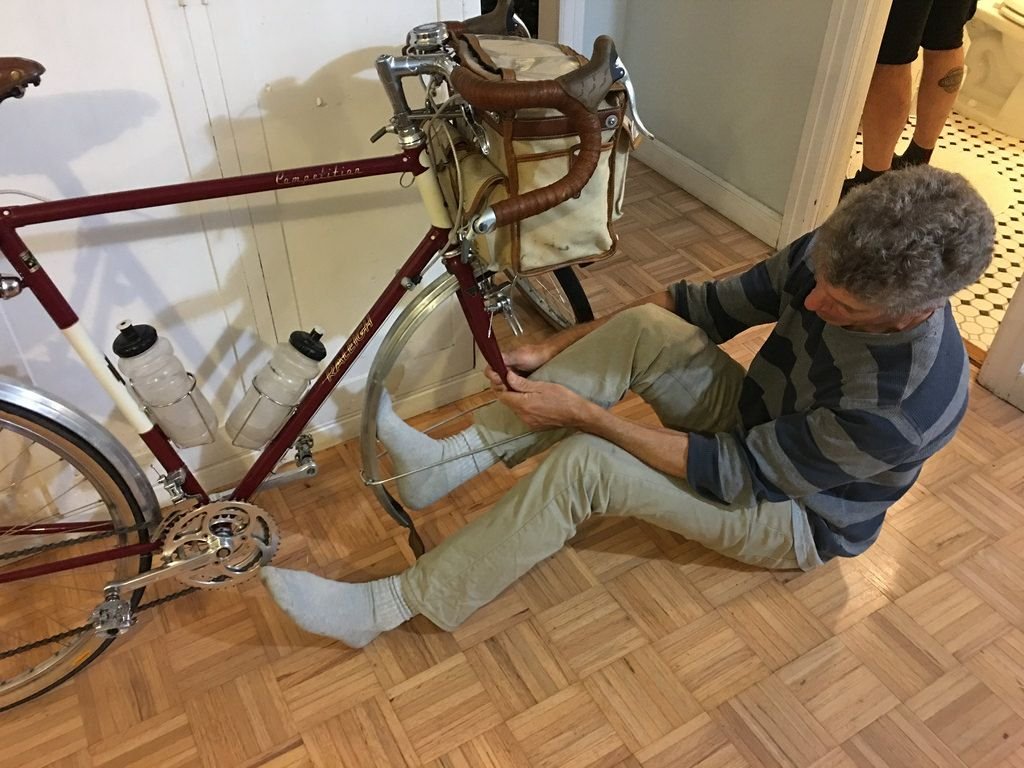

It's a Japanese thing, travelling with your bike by train, but can be used for other things. The only mods are a split rear fender (if you have fenders), and making sure your cables can detach with the handlebars. Here's my "rinko" bike.




__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 12-02-18, 12:55 PM
  #9
jetboy
Senior Member

jetboy's Avatar

Join Date: Oct 2007
Location: Oakland, CA
Posts: 2,988

Bikes: centurion ironman, look hinault 753, Zunow z-1, 83 stumpy sport, look kg96, various others

Mentioned: 57 Post(s)
Tagged: 0 Thread(s)
Quoted: 624 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
these guys have a lot of options and while not exactly a deal they seem in line with a reasonable cost for the product.

BCW Store
jetboy is offline
Old 12-02-18, 07:46 PM
  #10
Mr. Spadoni
Senior Member
Thread Starter

Join Date: Jan 2015
Posts: 235
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 91 Post(s)
Liked 0 Times in 0 Posts
Rinko? That’s what it’s called. Saw the end of a travel show where a guy was touring Japan this way. Sounds pretty cool.
Mr. Spadoni is offline
Old 12-02-18, 07:47 PM
  #11
Mr. Spadoni
Senior Member
Thread Starter

Join Date: Jan 2015
Posts: 235
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 91 Post(s)
Liked 0 Times in 0 Posts
Have you seen anyone that currently has the frame for sale? I can find complete bikes, but no frames.
Mr. Spadoni is offline
Old 12-02-18, 07:55 PM
  #12
jetboy
Senior Member

jetboy's Avatar

Join Date: Oct 2007
Location: Oakland, CA
Posts: 2,988

Bikes: centurion ironman, look hinault 753, Zunow z-1, 83 stumpy sport, look kg96, various others

Mentioned: 57 Post(s)
Tagged: 0 Thread(s)
Quoted: 624 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Originally Posted by Mr. Spadoni View Post
Have you seen anyone that currently has the frame for sale? I can find complete bikes, but no frames.
the link I posted has frames for sale. or at least frames as a kit anyway, but you are probably gonna need all that stuff that come wiith it, so seems an ok deal.
http://www.bilenky.com/product-page/...travel-package

Last edited by jetboy; 12-02-18 at 07:59 PM.
jetboy is offline
Old 12-02-18, 08:18 PM
  #13
jetboy
Senior Member

jetboy's Avatar

Join Date: Oct 2007
Location: Oakland, CA
Posts: 2,988

Bikes: centurion ironman, look hinault 753, Zunow z-1, 83 stumpy sport, look kg96, various others

Mentioned: 57 Post(s)
Tagged: 0 Thread(s)
Quoted: 624 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Della Santa if its your size!

https://sfbay.craigslist.org/nby/bik...759008302.html
jetboy is offline
Old 12-02-18, 09:12 PM
  #14
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 22,368
Mentioned: 166 Post(s)
Tagged: 0 Thread(s)
Quoted: 8524 Post(s)
Liked 82 Times in 74 Posts
Originally Posted by Mr. Spadoni View Post
Have you seen anyone that currently has the frame for sale? I can find complete bikes, but no frames.
How tall are you?

What size are you looking for?
CliffordK is offline
Old 12-02-18, 11:39 PM
  #15
gaucho777
Senior Member

gaucho777's Avatar

Join Date: Aug 2009
Location: Berkeley, CA
Posts: 6,327

Bikes: '72 Cilo Pacer, '72 Peugeot PX10, '73 Speedwell Ti, '74 Nishiki Competition, '74 Peugeot UE-8, '85 De Rosa Pro, '86 Look Equipe 753, '86 Look KG86, '89 Parkpre Team, '90 Parkpre Team MTB, '90 Merlin

Mentioned: 57 Post(s)
Tagged: 0 Thread(s)
Quoted: 394 Post(s)
Liked 5 Times in 5 Posts
If I were looking for a coupled travel bike, I'd think about either a chromed or Ti frame...less worry about potential paint damage during travel/shipping.
gaucho777 is offline
Old 12-03-18, 12:12 AM
  #16
Reynolds 531
Senior Member

Join Date: Oct 2014
Location: Reno nevada
Posts: 248

Bikes: 4 Old school BMX, 6 Klunkers, 5 29er race bikes, 4 restored Sting Rays, Now 3 vintage steel bike being built up

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 92 Post(s)
Liked 4 Times in 4 Posts
That Raleigh looks pretty nice
Reynolds 531 is offline
Old 12-03-18, 02:24 AM
  #17
Aubergine
Bad example

Join Date: Nov 2015
Location: Seattle and Reims
Posts: 2,930
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 771 Post(s)
Liked 17 Times in 14 Posts
My wife and I have three Rodriguez travel bikes. We keep two permanently in Reims, and we can box them up to go just anywhere. Custom Bicycles | Rodriguez Bicycles and Tandems in Seattle

__________________
Keeping Seattle’s bike shops in business since 1978
Aubergine is offline
Old 12-03-18, 09:59 AM
  #18
Mr. Spadoni
Senior Member
Thread Starter

Join Date: Jan 2015
Posts: 235
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 91 Post(s)
Liked 0 Times in 0 Posts
Thanks for all the suggestions and information. I am going to think about this a bit...can’t be buying a big item for myself in December, as it did occur to me that there is a holiday coming up.
That said, I think the search will be for 58 cm, no carbon, standard brakes ( I just don’t have the patience for canti’s), and sized to use components that are already on my other bikes so I don’t need special tools, or more wheels, or an app to adjust the derailleur.
Will let you know how it goes.....
Mr. Spadoni is offline
Old 12-03-18, 01:23 PM
  #19
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 4,892

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 106 Post(s)
Tagged: 0 Thread(s)
Quoted: 1718 Post(s)
Likes: 0
Liked 37 Times in 25 Posts
Another suggestion. Have you considered an Alex Moulton? They are not even remotely cheap, but every once in a while people stumble into a great deal on a vintage one. Should pack down to a small suitcase due to the small wheels. That idea appeals to me. I doubt it'd be as convenient as a true folder like a Brompton or something, but the ride and performance would be more comparable to a traditional bike.

OTOH those S&S couplers are a pretty amazing invention. I remember seeing them at Interbike when they first were introduced. I was skeptical but apparently they work great. A traditional diamond frame with couplers is now a proven solution for a travel bike. Might be faster to pack than the above, and less money as well. Also, why not combine techniques? Use couplers and Rinko stuff. No reason not to that I can see.
Salamandrine is offline
Old 12-03-18, 02:39 PM
  #20
Reynolds 531
Senior Member

Join Date: Oct 2014
Location: Reno nevada
Posts: 248

Bikes: 4 Old school BMX, 6 Klunkers, 5 29er race bikes, 4 restored Sting Rays, Now 3 vintage steel bike being built up

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 92 Post(s)
Liked 4 Times in 4 Posts
Originally Posted by Mr. Spadoni View Post
Thanks for all the suggestions and information. I am going to think about this a bit...can’t be buying a big item for myself in December, as it did occur to me that there is a holiday coming up.
That said, I think the search will be for 58 cm, no carbon, standard brakes ( I just don’t have the patience for canti’s), and sized to use components that are already on my other bikes so I don’t need special tools, or more wheels, or an app to adjust the derailleur.
Will let you know how it goes.....
https://www.pinkbike.com/buysell/2277826/
Reynolds 531 is offline
Old 12-03-18, 03:00 PM
  #21
seedsbelize
necessary illusions

Join Date: Nov 2010
Location: Tixkokob, Yucatán, México
Posts: 11,300
Mentioned: 94 Post(s)
Tagged: 1 Thread(s)
Quoted: 4734 Post(s)
Liked 34 Times in 27 Posts
Originally Posted by Mr. Spadoni View Post
Thanks for all the suggestions and information. I am going to think about this a bit...can’t be buying a big item for myself in December, as it did occur to me that there is a holiday coming up.
That said, I think the search will be for 58 cm, no carbon, standard brakes ( I just don’t have the patience for canti’s), and sized to use components that are already on my other bikes so I don’t need special tools, or more wheels, or an app to adjust the derailleur.
Will let you know how it goes.....
This is why I went coupled instead of BikeFriday. Normal frame, normal racks and such. Nothing proprietary.
seedsbelize is offline
Old 12-03-18, 03:02 PM
  #22
seedsbelize
necessary illusions

Join Date: Nov 2010
Location: Tixkokob, Yucatán, México
Posts: 11,300
Mentioned: 94 Post(s)
Tagged: 1 Thread(s)
Quoted: 4734 Post(s)
Liked 34 Times in 27 Posts
Originally Posted by gugie View Post
It's a Japanese thing, travelling with your bike by train, but can be used for other things. The only mods are a split rear fender (if you have fenders), and making sure your cables can detach with the handlebars. Here's my "rinko" bike.




So a Rinko is just a torn down bike--nothing really special about it.
seedsbelize is offline
Old 12-03-18, 03:31 PM
  #23
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 15,157

Bikes: A bunch of old bikes and a few new ones

Mentioned: 107 Post(s)
Tagged: 0 Thread(s)
Quoted: 3627 Post(s)
Liked 78 Times in 70 Posts
A bike friday would be on my short list if I were looking for a travel bike.
bikemig is online now
Old 12-03-18, 03:36 PM
  #24
gugie
Crapmaster Emeritus

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 7,359

Bikes: JP Weigle'd Raleigh Competition reconstruct, 73 Raleigh Competition 650b'ed, 96 Bike Friday NWT, 83 Lotus Classique, 78 Centurion ProTour, 73 Raleigh Grand Sports

Mentioned: 777 Post(s)
Tagged: 0 Thread(s)
Quoted: 2219 Post(s)
Likes: 0
Liked 47 Times in 35 Posts
Originally Posted by seedsbelize View Post
So a Rinko is just a torn down bike--nothing really special about it.
Sure, but technically it has to break down to a certain size. If it meets this requirement, you can bring it onto a train in Japan and hang it up on a hook. The Japanese have taken this to a new level, a well planned rinko bike will go back together in, say,15 minutes and without any special tools.

Here's a list of some common characteristics:

1. Wheels come off quickly (yeah, duh)
2. Fork comes off without any special tools. Typically rinko bikes use sealed bearings so grease and contamination aren't an issue.
3. Handlebars come off, cables disconnect from brakes and derailleurs if not using downtube shifters. Because of this, many
people choose to use downtube shifters.
4. Rear fender is split and easily removed/replaced.
5. Pedals are removable without a pedal wrench
6. All of the aboe done quiclky and easily.

When I first saw Jan Heine pimping rinko, my thought was that, in the US, it was a solution in search of a problem, since our train system doesn't allow for a bike bag to be hung in the same car as you're riding in (at least the trains I've taken). After I shipped my bike back east for French Fender Day last year, and getting my fenders dinged up in the process (and headset cup destroyed), I decided to modify a bike I built to meet this new requirement.

Rinko no bueno.



Rinko bueno

Split cable stops help easy cable removal.

I've found that Ritchey cable disconnects make this easy and a workaround for bikes that don't have split cable stops.




So, rinko is breaking down your bike, yes, but quickly, and the ability to put it back together quickly.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 12-03-18, 03:42 PM
  #25
gugie
Crapmaster Emeritus

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 7,359

Bikes: JP Weigle'd Raleigh Competition reconstruct, 73 Raleigh Competition 650b'ed, 96 Bike Friday NWT, 83 Lotus Classique, 78 Centurion ProTour, 73 Raleigh Grand Sports

Mentioned: 777 Post(s)
Tagged: 0 Thread(s)
Quoted: 2219 Post(s)
Likes: 0
Liked 47 Times in 35 Posts
Here's a good pictorial of a Rinko bike broken down for travel.

Natsuko did a demo of rinko breakdown at this year's French Fender Day, I think it was under 15 minutes.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
