Curiosity of vintage F.I.R. Italy components

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Curiosity of vintage F.I.R. Italy components

Old 12-01-18, 02:22 PM
  #1
crank_addict
Banned
Thread Starter

Join Date: Aug 2013
Posts: 7,152
Mentioned: 93 Post(s)
Tagged: 0 Thread(s)
Quoted: 1361 Post(s)
Likes: 0
Liked 391 Times in 256 Posts
Curiosity of vintage F.I.R. Italy components

I'm lacing a wheelset using F.i.R. EA50 rims which lead me to research more of this maker. I noticed on velobase some attractive derailleurs,though no specs and very little is mentioned.

Anyone care to share?
crank_addict is offline
Old 12-01-18, 03:05 PM
  #2
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Shady Pines Retirement Fort Wayne, In
Posts: 27,338

Bikes: Too many to list here check my signature.

Mentioned: 144 Post(s)
Tagged: 2 Thread(s)
Quoted: 1943 Post(s)
Liked 729 Times in 460 Posts
I never really noticed them before but they most certainly are rebranded, maybe Dia Compe brakes and Sachs derailleurs.
__________________
Bianchis '90 Proto, '90 Campione del Fausto Giamondi Specialisma Italiano Mundo, '91 Boarala 'cross, '93 Project 3, '86 Volpe, '97 Ti Megatube, '93 Reparto Corse SBX

Others but still loved; '80 Batavus Professional, '87 Cornelo, '?? Jane Doe (still on the drawing board), '90ish Haro Escape SLX Bertoni "Speckled Trout"
Bianchigirll is offline
Old 12-01-18, 03:11 PM
  #3
repechage
Senior Member

Join Date: Jun 2006
Posts: 15,564
Mentioned: 103 Post(s)
Tagged: 0 Thread(s)
Quoted: 1774 Post(s)
Liked 643 Times in 499 Posts
Originally Posted by Bianchigirll View Post
I never really noticed them before but they most certainly are rebranded, maybe Dia Compe brakes and Sachs derailleurs.
I have two NOS pair of Fir rims, I bought them as I saw them way back on a Confente and I suspected they were original to the bike.
I have not built them up, seem quality. the pairs I have are not especially lightweight, but most rims in the 390-410 gram weight range are plenty stout enough. I was not aware their were any other branded components.
repechage is offline
Old 12-01-18, 03:55 PM
  #4
crank_addict
Banned
Thread Starter

Join Date: Aug 2013
Posts: 7,152
Mentioned: 93 Post(s)
Tagged: 0 Thread(s)
Quoted: 1361 Post(s)
Likes: 0
Liked 391 Times in 256 Posts
'As seen on PC' they appear circa 1980's. Race changer short cage. Marked, Italy





crank_addict is offline
Old 12-01-18, 04:13 PM
  #5
elcraft
elcraft

Join Date: Sep 2008
Location: Greater Boston
Posts: 708
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 105 Post(s)
Liked 33 Times in 30 Posts
Interesting! There are no entries at velobase.com for these components, nor are there any images at disrealigears.co.uk .
You are in a position to contribute to both these resources. I had never heard of this marque before. Apparently, Fabricca Italia Ruote ( Italian Wheel Factory) had "disappeared" from the market in 2005, but had a website as of 2012. They apparently sought to expand their offerings from more than rims to components during the Eighties. They created their own designs rather than simply rebadge another product ( at least according to disrealigears.co.uk).
elcraft is offline
Old 12-01-18, 06:08 PM
  #6
Spaghetti Legs
Senior Member

Join Date: Dec 2014
Location: Central Virginia
Posts: 4,131

Bikes: Numerous

Mentioned: 97 Post(s)
Tagged: 0 Thread(s)
Quoted: 1265 Post(s)
Liked 782 Times in 357 Posts
Those derailleurs are cool. I have a set of FIR EL 25 rims that came OEM on my ‘89 Bianchi.
__________________
N = '96 Colnago C40, '04 Wilier Alpe D'Huez, '10 Colnago EPS, '85 Merckx Pro, '89 Merckx Century, '86 Tommasini Professional, '04 Teschner Aero FX Pro, '05 Alan Carbon Cross, '86 De Rosa Professional, '82 Colnago Super, '95 Gios Compact Pro, '95 Carrera Zeus, '84 Basso Gap, ‘89 Cinelli Supercorsa, ‘83 Bianchi Specialissima, ‘85 Pinarello Record, Ritchey Breakaway Steel, '84 Paletti Super Prestige, Heron Randonneur
Spaghetti Legs is offline
Old 12-01-18, 06:57 PM
  #7
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 3,373
Mentioned: 94 Post(s)
Tagged: 0 Thread(s)
Quoted: 1188 Post(s)
Likes: 0
Liked 223 Times in 167 Posts
I recently bought a Chorus hubbed, FIR Sirius rimmed wheelset for my Bottecchia Professional SL bike and this is the first time I owned wheels with FIR rims. So far they are feeling really nice, stable and solid on the road. Not surprising as they are not that light, as far as tubular rims go, but I have a feeling that these will be wheels that I would hardly have to true back straight through the years I will own it. Found out researching FIR rims that they do have a reputation for being high quality, reliable, tough rims.
Chombi1 is offline
Old 12-01-18, 07:44 PM
  #8
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 21,026
Mentioned: 564 Post(s)
Tagged: 1 Thread(s)
Quoted: 3810 Post(s)
Likes: 0
Liked 1,254 Times in 921 Posts
The subject derailleurs are from the early 1990s FIR Gemini group. I saw this group in 1993. They were FIR proprietary design but reportedly contract manufactured by Campagnolo. The rear was 8 speed index compatible for Campagnolo spacing. The levers were down tube only and index/friction switchable. At the time, FIR also had a crankset, cartridge bottom bracket (steel or titanium spindles), hubset with a Campagnolo compatible freehub, single pivot brakeset, headset, seat post and, of course, rims.
T-Mar is offline
Old 12-03-18, 04:57 PM
  #9
crank_addict
Banned
Thread Starter

Join Date: Aug 2013
Posts: 7,152
Mentioned: 93 Post(s)
Tagged: 0 Thread(s)
Quoted: 1361 Post(s)
Likes: 0
Liked 391 Times in 256 Posts
^thanks as always, T-mar

More tidbits;

FIR (Fabbrica Italiana Ruote) wheels have enjoyed an influential part in cycling history. Past riders have included Mario Cipollini and they have enjoyed many podiums in both road and off road events.

A Brief History:

1956: Arrigoni brothers found FIR in Boltiere (Bergamo province)

1960-1970 FIR introduces the quality control during the manufacturing process and selects some professional cycling teams to test its new products.

1980 FIR is the first wheels’ manufacturer to introduce the use of carbon in wheel manufacturing process, creating the “Aru System”.
crank_addict is offline
Old 12-03-18, 06:48 PM
  #10
jiangshi
OFG in Exile

Join Date: Jul 2013
Posts: 1,775
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 433 Post(s)
Liked 152 Times in 104 Posts
Pretty sure Fiamme became F.I.R. or at least a part of it.

Not positive, but worth a bet.
jiangshi is offline
Old 12-04-18, 10:02 AM
  #11
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 21,026
Mentioned: 564 Post(s)
Tagged: 1 Thread(s)
Quoted: 3810 Post(s)
Likes: 0
Liked 1,254 Times in 921 Posts
I went back and checked some magazines circa 1993 and found a 1993 road test of a Pesenti Carbon with the FiR Gemini components. The article mentions that the components were "new", implying that they came out circa 1993. So, they're more mid-1990s than early 1990s.

I also found evidence of a 1993-1994 UCI category 2 team, Rossin-FiR. This is the only team I've aware of that had major FiR sponsorship, outside of the 1991 Jolly-Club 88-FiR team. Given the era and level of sponsorship,it's possible that they used the FiR Gemini group but I haven't been able to find any photographic evidence.

Arguably, FiR's biggest success in the mid-1990s came courtesy of Tony Rominger. He used FiR disc wheels to set his 1994 Hour Records and used FiR rims in winning the 1995 Giro d'Italia.

I also just realized that I've been previously incorrect in typing the brand name. It is FiR, not FIR.


T-Mar is offline
Likes For T-Mar:
Old 07-19-20, 02:36 AM
  #12
Cyclopast
Junior Member

Join Date: Apr 2020
Posts: 11
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 7 Times in 1 Post
Hello T-Mar,

Thank you so much for all these informations. I'm currently searching for information on FiR.

Your thread has been really helpful. Do you know from which magazine come from the Pesenti X FiR groupset test by David Ramsden?
Cyclopast is offline
Old 07-19-20, 04:41 AM
  #13
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 7,742

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '90 De Rosa Professional, '91 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 987 Post(s)
Liked 623 Times in 393 Posts
I have two tubulars, ST 120, in my stock. The spoke calculator, downloaded, has 19 FiR rims listed to choose from.
FiR Antara 2000
FiR EA10
FiR EA50
FiR EA60
FiR EA61
FiR EA65
FiR EL20
FiR EL45
FiR ES35
FiR EU90
FiR MT 232
FiR Net97
FiR Net97(MEASURE TO BE SURE!)
FiR Net97 (MEASURE TO BE SURE!) - Difference ERD listed.
FiR SC150 actual weight 380gms!
FiR SC170
FiR SC200
FiR SC350
FiR SRG30 (30mm deep aero rim, 500gms)
__________________
Bikes don't stand alone. They are two tired.

Last edited by SJX426; 07-19-20 at 04:48 AM.
SJX426 is offline
Old 07-19-20, 05:30 AM
  #14
Cyclopast
Junior Member

Join Date: Apr 2020
Posts: 11
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 7 Times in 1 Post
Seems like a very nice calculator. I just laced a pair of SRG 30. I was looking for general information on the brand, they did rims, groupset, sponsored team, and I can not find any catalogs about FiR.
Cyclopast is offline
Old 07-19-20, 06:12 AM
  #15
Wileyone
Senior Member

Wileyone's Avatar

Join Date: Oct 2014
Location: GWN
Posts: 2,451
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 1565 Post(s)
Liked 362 Times in 249 Posts
I have a set of FIR Rigel tubular rims on my Holdsworth. They have a beautiful brushed aluminium finish.

Wileyone is offline
Old 07-19-20, 07:47 AM
  #16
Cyclopast
Junior Member

Join Date: Apr 2020
Posts: 11
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 7 Times in 1 Post
Wow that's a really clean pair. How is the overall build look like? Are they tubular or clincher? I struggled to find a pair of 36 holes low profile and affordable.
Cyclopast is offline
Old 11-09-20, 02:02 PM
  #17
LittleGinseng
lurking nightrider

LittleGinseng's Avatar

Join Date: Apr 2004
Location: NE Florida
Posts: 503

Bikes: '84 Lotus Supreme, '85 Club Fuji, '86 Schwinn Peloton, '87 DS Ironman Expert, '87 Maruishi Professional, '88 Takara

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 64 Post(s)
Liked 28 Times in 16 Posts
Here are two pics of FiR group sets available in 1988. The Apollo road double group was available for $185.00 through ZAR international located in Stamford, Connecticut.

__________________
"If there hadn't been women we'd still be squatting in a cave eating raw meat, because we made civilization in order to impress our girl friends. And they tolerated it and let us go ahead and play with our toys." Orson Welles
LittleGinseng is offline
Likes For LittleGinseng:
Old 11-09-20, 04:15 PM
  #18
Lattz
Senior Member

Join Date: Aug 2017
Location: Germany
Posts: 433

Bikes: 80s Alan Super Record, 79' Somec Special, 90s Rossin(?) Columbus Ego Triathlon, Peugeot Prestige, Alan corsa (frame only), 90s Prophete , previously: Bianchi SBX Reparto Corse, Peugeot Neuilly, Hercules steel city, 60s(?) PON Dutch bike, Enik

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 183 Post(s)
Liked 378 Times in 333 Posts
They were top players in the aero/TT world with their disc wheels like A.R.D System, Killing System, Halley System and Jumbo, highly sought after wheels up to date for those who are in that biz.
Also their 3-4-5-6 spoke carbon wheels are cool (I know it's a matter of taste) but also like hen's teeth. Their deep section alu rims, the Aria, Rialto, Super Rialto and Polar (MTB) and I guess there were more are the affordable "Shamals" whenever they pop up, I have let like 2-3 pairs of 700c Arias run away for EUR~90, because at the time I didn't need them, also on the "Tiny EGOist Rossin" I have a 650c rear Rialto, it is beautiful, but chances are low for an affordable matching front.

















Last edited by Lattz; 11-09-20 at 04:20 PM.
Lattz is offline
Likes For Lattz:
Old 11-10-20, 08:08 AM
  #19
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 21,026
Mentioned: 564 Post(s)
Tagged: 1 Thread(s)
Quoted: 3810 Post(s)
Likes: 0
Liked 1,254 Times in 921 Posts
Originally Posted by Cyclopast View Post
Hello T-Mar,

Thank you so much for all these informations. I'm currently searching for information on FiR.

Your thread has been really helpful. Do you know from which magazine come from the Pesenti X FiR groupset test by David Ramsden?

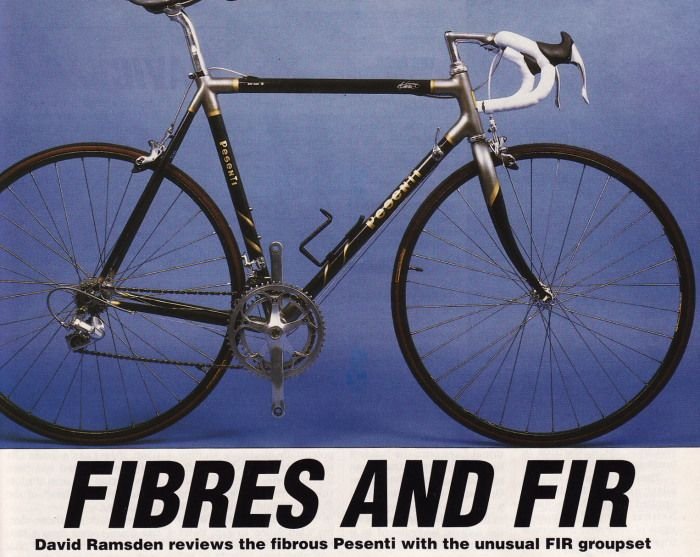

I'll save you the trouble of hunting it down. Here's the FiR component review from the subject article. Sorry it took so long. My scanner died quite some time ago and I don't own a camera phone, so it can take lengthy periods to get images done for members, especially if my memory isn't cooperating with the full "to do" list when the opportunity arises.

T-Mar is offline
Likes For T-Mar:
Old 11-10-20, 09:34 AM
  #20
Choke
Disciple of St. Tullio

Choke's Avatar

Join Date: Jul 2008
Location: State of Jefferson
Posts: 627

Bikes: Ciöcc, Bianchi, DeRosa, Eddy Merckx, Frejus, Hampsten, Kondor, Losa, Magni, Pegoretti, Pelizzoli, Pogliaghi, Scapin

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 201 Post(s)
Liked 138 Times in 72 Posts
I'm a fan, I have a couple of wheelsets with FiR rims. These are 'Tour Ceramic'.....the black is a ceramic coating. (I borrowed them from another bike for this pic as the wheels weren't built yet, hence the blue nipples that seem out of place.)

Choke is offline
