Show us your Campy Triples

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Show us your Campy Triples

Old 01-02-19, 07:48 PM
  #51
72fuji
Senior Member

Join Date: Oct 2008
Location: se michigan
Posts: 62

Bikes: fuji finest, klien pinacle

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
First read the title and thought...Campy? 60’s Batman, Elvira and Rocky Horror..... then I realized I should be thinking about either a triple or a compact. 52t just doesn’t cut it anymore. I have never been a grinder. Anyone know if I can downsize my Superbe Prop lol?

Cheers
Tony

72fuji is online now
Old 01-03-19, 11:26 AM
  #52
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 11,334

Bikes: 1977 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 70 Post(s)
Tagged: 0 Thread(s)
Quoted: 1700 Post(s)
Liked 40 Times in 32 Posts
Originally Posted by 72fuji View Post
First read the title and thought...Campy? 60’s Batman, Elvira and Rocky Horror..... then I realized I should be thinking about either a triple or a compact. 52t just doesn’t cut it anymore. I have never been a grinder. Anyone know if I can downsize my Superbe Prop lol?

Cheers
Tony

If you have a 144 BCD Superbe Pro crankset, I think the smallest size you can go is a 41T chainring- but those are impossible to find- but 42s are out there.

Finding a 48 or 50 big ring and a 42 little ring for a 144 BCD crankdset shouldn’t be too difficult.
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin’ huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Old 01-03-19, 01:27 PM
  #53
Andy_K
Senior Member
Thread Starter

Andy_K's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 12,053

Bikes: Yes

Mentioned: 287 Post(s)
Tagged: 0 Thread(s)
Quoted: 1736 Post(s)
Liked 15 Times in 14 Posts
Originally Posted by The Golden Boy View Post
If you have a 144 BCD Superbe Pro crankset, I think the smallest size you can go is a 41T chainring- but those are impossible to find- but 42s are out there.
And there are 42T 144 BCD triplizers.
__________________
My Bikes
Andy_K is offline
Old 01-03-19, 01:52 PM
  #54
SvenMN
Senior Member

SvenMN's Avatar

Join Date: Nov 2010
Location: Minnesota, USA
Posts: 352
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Andy_K View Post
And there are 42T 144 BCD triplizers.

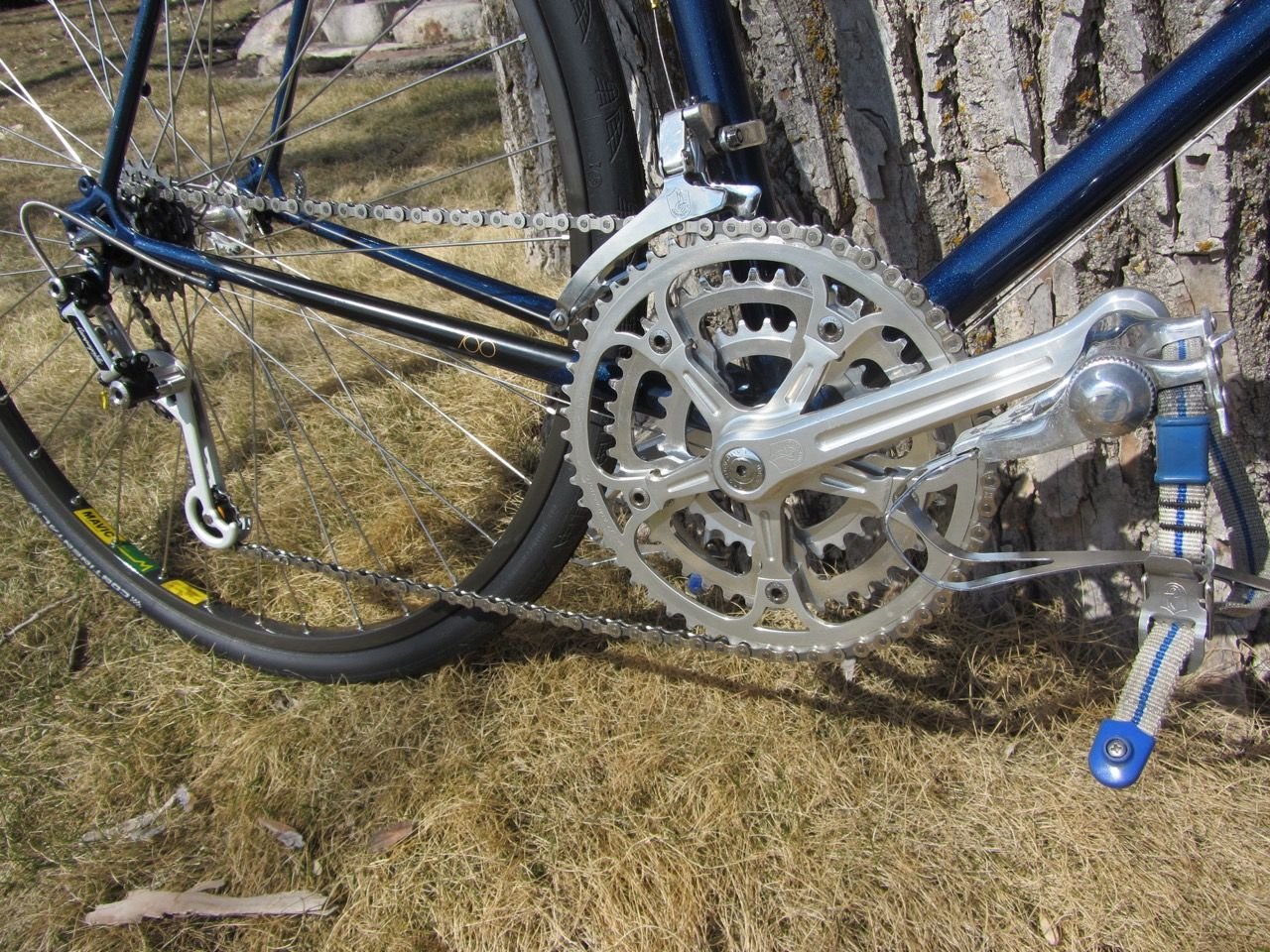

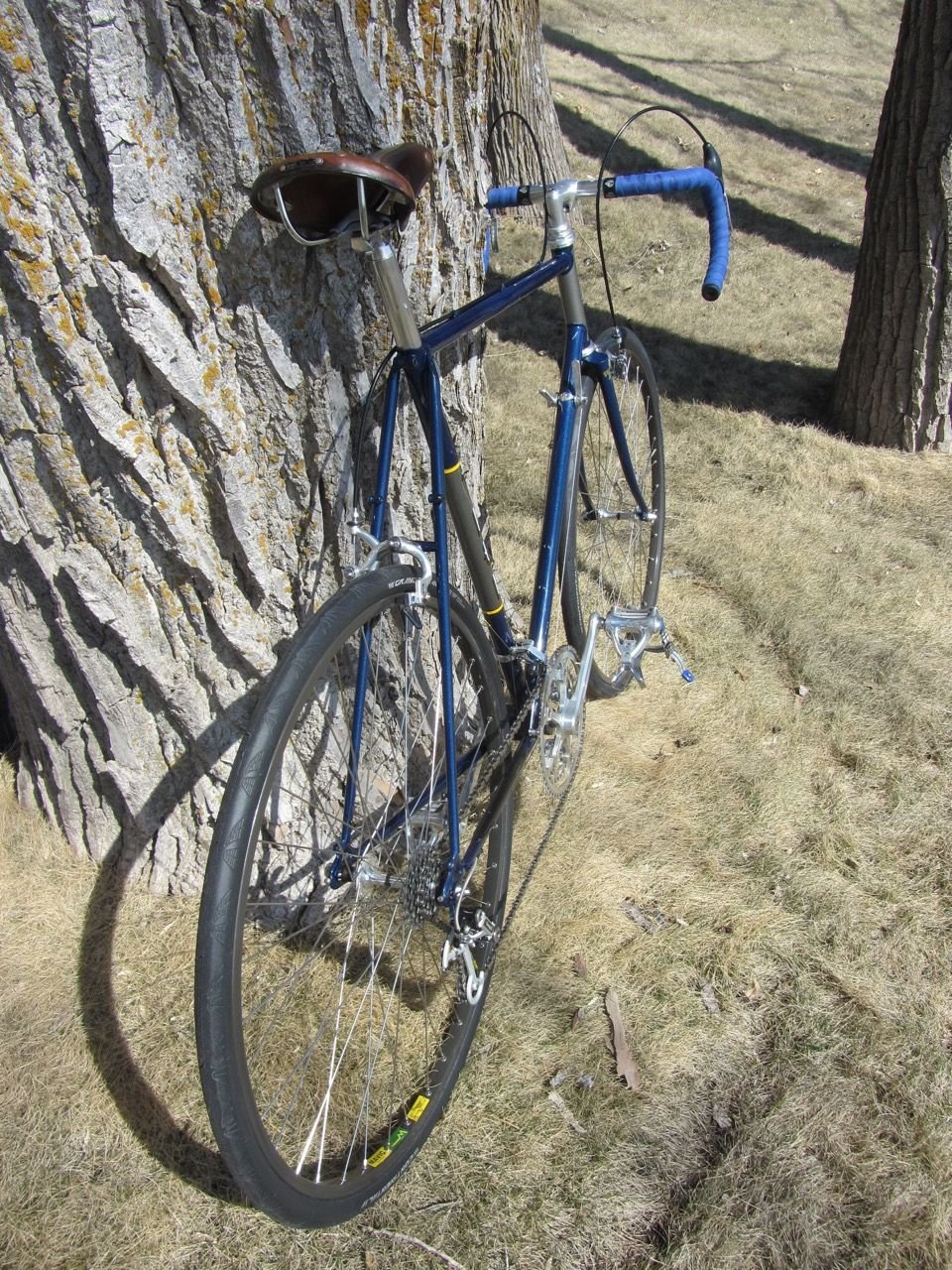

Here is my "tripilized" Trek 700. 53-42-30 chainrings. Long cage on the SR RD. Victory triple FD. Pic is showing 13-23 freewheel, but now has 13-28, could go >28t with more chain length.



__________________
Bikes: currently n=11, while balancing s-1
SvenMN is offline
Old 01-03-19, 02:07 PM
  #55
Reynolds 531
Senior Member

Join Date: Oct 2014
Location: Reno nevada
Posts: 243

Bikes: 4 Old school BMX, 6 Klunkers, 5 29er race bikes, 4 restored Sting Rays, Now 3 vintage steel bike being built up

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 91 Post(s)
Liked 3 Times in 3 Posts
Originally Posted by Andy_K View Post
And there are 42T 144 BCD triplizers.
They seem to have dried up. I like the T/A version best, and the Red Clover copies. Have you seen any for sale lately?
Reynolds 531 is offline
Old 01-03-19, 02:18 PM
  #56
Andy_K
Senior Member
Thread Starter

Andy_K's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 12,053

Bikes: Yes

Mentioned: 287 Post(s)
Tagged: 0 Thread(s)
Quoted: 1736 Post(s)
Liked 15 Times in 14 Posts
Originally Posted by Reynolds 531 View Post
They seem to have dried up. I like the T/A version best, and the Red Clover copies. Have you seen any for sale lately?
As far as I know you can still get the Red Clover version.

144 BCD Triplizer, 42 Teeth
__________________
My Bikes
Andy_K is offline
Old 01-03-19, 02:23 PM
  #57
Andy_K
Senior Member
Thread Starter

Andy_K's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 12,053

Bikes: Yes

Mentioned: 287 Post(s)
Tagged: 0 Thread(s)
Quoted: 1736 Post(s)
Liked 15 Times in 14 Posts
Originally Posted by SvenMN View Post
Long cage on the SR RD.
Thanks! I've been wondering how that looks. I think the Soma long cage looks almost like it belongs on a Nuovo Record RD, but I've been thinking about moving my triplizer and long cage from my De Rosa to my Gios and the Gios has an SR.
__________________
My Bikes
Andy_K is offline
Old 01-03-19, 02:37 PM
  #58
Reynolds 531
Senior Member

Join Date: Oct 2014
Location: Reno nevada
Posts: 243

Bikes: 4 Old school BMX, 6 Klunkers, 5 29er race bikes, 4 restored Sting Rays, Now 3 vintage steel bike being built up

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 91 Post(s)
Liked 3 Times in 3 Posts
Originally Posted by Andy_K View Post
As far as I know you can still get the Red Clover version.

144 BCD Triplizer, 42 Teeth
Shows as "Unavilable", so I can't add to "cart". I have never seen anyone else sell a copy. I will email them.
Reynolds 531 is offline
Old 01-03-19, 02:49 PM
  #59
Andy_K
Senior Member
Thread Starter

Andy_K's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 12,053

Bikes: Yes

Mentioned: 287 Post(s)
Tagged: 0 Thread(s)
Quoted: 1736 Post(s)
Liked 15 Times in 14 Posts
Originally Posted by Reynolds 531 View Post
Shows as "Unavilable", so I can't add to "cart". I have never seen anyone else sell a copy. I will email them.
That's very odd. It let me add one to my cart just now. @jonwvara, any idea what's going on?
__________________
My Bikes
Andy_K is offline
Old 01-03-19, 03:01 PM
  #60
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 4,005

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands, Gordon, Fuso/Moulton, Bornstein, Paisley, Paramounts, 3rensho, Moto TC, Raleigh Pro's, Marinoni, 1960 Cinelli SC, 1980 Bianchi SC and more

Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 1101 Post(s)
Liked 45 Times in 37 Posts
Originally Posted by Reynolds 531 View Post
Shows as "Unavilable", so I can't add to "cart". I have never seen anyone else sell a copy. I will email them.
Look up Willow and Interloc on ebay and the web.
merziac is offline
Old 01-03-19, 03:05 PM
  #61
RobbieTunes
Half drunk? Finish!

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 25,742
Mentioned: 32 Post(s)
Tagged: 1 Thread(s)
Quoted: 346 Post(s)
Liked 58 Times in 48 Posts
Alas, the frame for my 3x10 downtube-shifted Campy is not worthy of the expense. Good thing I had yet to find the wheels... I'll slum it to DA and look for another platform.
__________________
Robbie ♪♫♪...☻
I have unfinished business.

RobbieTunes is offline
Old 01-03-19, 03:40 PM
  #62
jonwvara
Senior Member

jonwvara's Avatar

Join Date: Apr 2006
Location: Washington County, Vermont, USA
Posts: 2,913

Bikes: 1966 Dawes Double Blue, 1976 Raleigh Gran Sport, 1975 Raleigh Sprite 27, 1980 Univega Viva Sport, 1971 Gitane Tour de France, 1984 Lotus Classique, 1976 Motobecane Grand Record

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 298 Post(s)
Liked 3 Times in 3 Posts
Originally Posted by Andy_K View Post
That's very odd. It let me add one to my cart just now. @jonwvara, any idea what's going on?
Holy mackerel, this is news to me. I've got lots of triplizers on hand, for both Stronglight 122 and Campagnolo 144. I'll see if I can figure out what's going on. I'm evidently a lot better at bike maintenance than at web site maintenance.

If anyone needs a chainring before get the web site problem dealt with (assuming that there is a problem), send an email to me at jon@redclovercomponents.com and we'll work around the web site.

Edit: I just went to the site and was able to add a 144 triplizer to a shopping cart and go to checkout as normally. Reynolds 531, want to try it again? Maybe there's some sort of problem on your end?
__________________
www.redclovercomponents.com

"Progress might have been all right once, but it has gone on too long."
--Ogden Nash

Last edited by jonwvara; 01-03-19 at 03:46 PM.
jonwvara is offline
Old 01-03-19, 03:48 PM
  #63
jonwvara
Senior Member

jonwvara's Avatar

Join Date: Apr 2006
Location: Washington County, Vermont, USA
Posts: 2,913

Bikes: 1966 Dawes Double Blue, 1976 Raleigh Gran Sport, 1975 Raleigh Sprite 27, 1980 Univega Viva Sport, 1971 Gitane Tour de France, 1984 Lotus Classique, 1976 Motobecane Grand Record

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 298 Post(s)
Liked 3 Times in 3 Posts
Originally Posted by Andy_K View Post
That's very odd. It let me add one to my cart just now. @jonwvara, any idea what's going on?
What did you find, Andy--did the site work for you? I just tried it (see edit to previous post), and it seemed to be working normally.
JV
__________________
www.redclovercomponents.com

"Progress might have been all right once, but it has gone on too long."
--Ogden Nash
jonwvara is offline
Old 01-03-19, 03:49 PM
  #64
Duke7777
Senior Member

Join Date: Aug 2014
Posts: 139

Bikes: 48 Alleluia, 52 Blondin, 57 Cattaneo, 68&72 CNC, 55 Dujay, 79 Gemini, 46 Herse, 76 Singer, 48 LeGreves, 55 Metropole, 78 Carre, 78 SMG Redolfi, 49 Baines, 49 Carpenter, 62 Holds. Cyclone, 74 Holds. Pro, 49 Carpenter, 55 Condor, 78 TSIsaac, 74Crescent

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 41 Post(s)
Likes: 0
Liked 6 Times in 2 Posts
I fairly recently ordered a Red Clover triplizer. I initially had problems ordering because my adblocker was somehow blocking the system, so you might look at that. I installed the triplizer on my '79 Gemini and it works very well. The big ring is just a 47, so the Nuovo Record rear derailleur has enough chain wrap for all combinations. This gives me the gear range I want, but there is a lot of redundancy - the entire middle ring, actually.








I also wanted to try drilling and tapping the Campagnolo crank spider to directly bolt on a 74mm bcd ring. It took me a year or two to find the mounting bolts. I finally tried this recently on my Crescent Pepita and it works great.





I would like to do this conversion on a couple of other 70s Campagnolo bikes, but now I find the biggest challenge is getting the right spindles. The Campagnolo X3 spindles are fairly rare and/or expensive, and work only with thin cups. Stronglight triple spindles are more reasonable and easier to find, but also won't work with thick Campagnolo cups, and still require some searching.

Last edited by Duke7777; 01-03-19 at 03:59 PM.
Duke7777 is offline
Old 01-03-19, 04:12 PM
  #65
jonwvara
Senior Member

jonwvara's Avatar

Join Date: Apr 2006
Location: Washington County, Vermont, USA
Posts: 2,913

Bikes: 1966 Dawes Double Blue, 1976 Raleigh Gran Sport, 1975 Raleigh Sprite 27, 1980 Univega Viva Sport, 1971 Gitane Tour de France, 1984 Lotus Classique, 1976 Motobecane Grand Record

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 298 Post(s)
Liked 3 Times in 3 Posts
Originally Posted by Duke7777 View Post
I fairly recently ordered a Red Clover triplizer. I initially had problems ordering because my adblocker was somehow blocking the system, so you might look at that. I installed the triplizer on my '79 Gemini and it works very well. The big ring is just a 47, so the Nuovo Record rear derailleur has enough chain wrap for all combinations. This gives me the gear range I want, but there is a lot of redundancy - the entire middle ring, actually.








I also wanted to try drilling and tapping the Campagnolo crank spider to directly bolt on a 74mm bcd ring. It took me a year or two to find the mounting bolts. I finally tried this recently on my Crescent Pepita and it works great.





I would like to do this conversion on a couple of other 70s Campagnolo bikes, but now I find the biggest challenge is getting the right spindles. The Campagnolo X3 spindles are fairly rare and/or expensive, and work only with thin cups. Stronglight triple spindles are more reasonable and easier to find, but also won't work with thick Campagnolo cups, and still require some searching.
If you don't mind a non-puristical--indeed, perhaps heretical--solution, modern JIS Shimano cartridge bottom brackets work very well with triplized Campy cranks. The modern JIS taper is very close to the that of the old Campagnolo spindles. Most of the triples that I've built up have worked well with a 115mm cartridge bb. It's usually easy enough to add a mm or so of spacer to the drive side if the chainline needs to be tweaked slightly.
__________________
www.redclovercomponents.com

"Progress might have been all right once, but it has gone on too long."
--Ogden Nash
jonwvara is offline
Old 01-03-19, 05:03 PM
  #66
Reynolds 531
Senior Member

Join Date: Oct 2014
Location: Reno nevada
Posts: 243

Bikes: 4 Old school BMX, 6 Klunkers, 5 29er race bikes, 4 restored Sting Rays, Now 3 vintage steel bike being built up

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 91 Post(s)
Liked 3 Times in 3 Posts
Originally Posted by jonwvara View Post
Edit: I just went to the site and was able to add a 144 triplizer to a shopping cart and go to checkout as normally. Reynolds 531, want to try it again? Maybe there's some sort of problem on your end?
I opened in a new browser window, so I bought one. Thanks!!

Reynolds 531 is offline
Old 01-03-19, 05:06 PM
  #67
Duke7777
Senior Member

Join Date: Aug 2014
Posts: 139

Bikes: 48 Alleluia, 52 Blondin, 57 Cattaneo, 68&72 CNC, 55 Dujay, 79 Gemini, 46 Herse, 76 Singer, 48 LeGreves, 55 Metropole, 78 Carre, 78 SMG Redolfi, 49 Baines, 49 Carpenter, 62 Holds. Cyclone, 74 Holds. Pro, 49 Carpenter, 55 Condor, 78 TSIsaac, 74Crescent

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 41 Post(s)
Likes: 0
Liked 6 Times in 2 Posts
Originally Posted by jonwvara View Post
If you don't mind a non-puristical--indeed, perhaps heretical--solution, modern JIS Shimano cartridge bottom brackets work very well with triplized Campy cranks. The modern JIS taper is very close to the that of the old Campagnolo spindles. Most of the triples that I've built up have worked well with a 115mm cartridge bb. It's usually easy enough to add a mm or so of spacer to the drive side if the chainline needs to be tweaked slightly.

I should have mentioned that most of my bikes (even the Campagnolo equipped ones) are French threaded, which limits my options for modern replacements. The information on your website is very helpful, and the VO bb would be a good option if I could stand the sight of those modern cups! Compass offers a very nice but expensive SKF.
Duke7777 is offline
Old 01-03-19, 05:07 PM
  #68
jonwvara
Senior Member

jonwvara's Avatar

Join Date: Apr 2006
Location: Washington County, Vermont, USA
Posts: 2,913

Bikes: 1966 Dawes Double Blue, 1976 Raleigh Gran Sport, 1975 Raleigh Sprite 27, 1980 Univega Viva Sport, 1971 Gitane Tour de France, 1984 Lotus Classique, 1976 Motobecane Grand Record

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 298 Post(s)
Liked 3 Times in 3 Posts
Originally Posted by Reynolds 531 View Post
I opened in a new browser window, so I bought one. Thanks!!

Sweet! I'll send it off first thing tomorrow.
JV
__________________
www.redclovercomponents.com

"Progress might have been all right once, but it has gone on too long."
--Ogden Nash
jonwvara is offline
Old 01-03-19, 05:16 PM
  #69
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 4,005

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands, Gordon, Fuso/Moulton, Bornstein, Paisley, Paramounts, 3rensho, Moto TC, Raleigh Pro's, Marinoni, 1960 Cinelli SC, 1980 Bianchi SC and more

Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 1101 Post(s)
Liked 45 Times in 37 Posts
As another aside, Bob Freeman does Campy conversions with custom made 30 + 31t inner rings with spindles. Not cheap but well done.
merziac is offline
Old 01-03-19, 05:22 PM
  #70
Andy_K
Senior Member
Thread Starter

Andy_K's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 12,053

Bikes: Yes

Mentioned: 287 Post(s)
Tagged: 0 Thread(s)
Quoted: 1736 Post(s)
Liked 15 Times in 14 Posts
Originally Posted by jonwvara View Post
What did you find, Andy--did the site work for you? I just tried it (see edit to previous post), and it seemed to be working normally.
JV
Yes. It looks fine to me. I've already got the triplizer I needed from you (pictured on my De Rosa on the first page of this thread) so I didn't go through to purchase, but it looks like it would have let me.
__________________
My Bikes
Andy_K is offline
Old 01-03-19, 06:00 PM
  #71
jonwvara
Senior Member

jonwvara's Avatar

Join Date: Apr 2006
Location: Washington County, Vermont, USA
Posts: 2,913

Bikes: 1966 Dawes Double Blue, 1976 Raleigh Gran Sport, 1975 Raleigh Sprite 27, 1980 Univega Viva Sport, 1971 Gitane Tour de France, 1984 Lotus Classique, 1976 Motobecane Grand Record

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 298 Post(s)
Liked 3 Times in 3 Posts
Originally Posted by Duke7777 View Post
I should have mentioned that most of my bikes (even the Campagnolo equipped ones) are French threaded, which limits my options for modern replacements. The information on your website is very helpful, and the VO bb would be a good option if I could stand the sight of those modern cups! Compass offers a very nice but expensive SKF.
I have a French-threaded VO cartridge on my PX-10, in conjunction with a triplized Stronglight 93. It works very well. I just avoid looking at the cups. It's been a few years since I installed it, but I'm pretty sure it's the 122mm version with a 1mm spacer under the drive-side cup.
__________________
www.redclovercomponents.com

"Progress might have been all right once, but it has gone on too long."
--Ogden Nash
jonwvara is offline
Old 01-03-19, 06:03 PM
  #72
jonwvara
Senior Member

jonwvara's Avatar

Join Date: Apr 2006
Location: Washington County, Vermont, USA
Posts: 2,913

Bikes: 1966 Dawes Double Blue, 1976 Raleigh Gran Sport, 1975 Raleigh Sprite 27, 1980 Univega Viva Sport, 1971 Gitane Tour de France, 1984 Lotus Classique, 1976 Motobecane Grand Record

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 298 Post(s)
Liked 3 Times in 3 Posts
Originally Posted by Andy_K View Post
Yes. It looks fine to me. I've already got the triplizer I needed from you (pictured on my De Rosa on the first page of this thread) so I didn't go through to purchase, but it looks like it would have let me.
Yes, my experience as well. I think it was an ad-blocker problem.
__________________
www.redclovercomponents.com

"Progress might have been all right once, but it has gone on too long."
--Ogden Nash
jonwvara is offline
Old 01-04-19, 06:44 AM
  #73
top506
Death fork? Naaaah!!

top506's Avatar

Join Date: Nov 2005
Location: The other Maine, north of RT 2
Posts: 4,567

Bikes: '71 Gitane Super Corsa, '73 Atala Giro d'Italia, '73 Schwinn Super Sport, '76 Viscount Aerospace Pro, '81 Miyata 710, '84 Ross Signature 290s, '85 Miele Gara, '87 Miyata 512, '89 Centurion Ironman, many more

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 274 Post(s)
Likes: 0
Liked 5 Times in 5 Posts
@jonwvara strikes again:



Top
__________________
You know it's going to be a good day when the stem and seatpost come right out.

(looking for a picture and not seeing it? Thank the Photobucket fiasco.PM me and I'll link it up.)
top506 is offline
Old 01-04-19, 07:00 AM
  #74
Chrome Molly
Senior Member

Chrome Molly's Avatar

Join Date: Jan 2012
Location: Forksbent, MN
Posts: 3,278

Bikes: Yes

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 296 Post(s)
Likes: 0
Liked 1 Time in 1 Post


My Campy triples are modern but still love to climb.

Chrome Molly is offline
Old 01-04-19, 11:55 AM
  #75
RobbieTunes
Half drunk? Finish!

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 25,742
Mentioned: 32 Post(s)
Tagged: 1 Thread(s)
Quoted: 346 Post(s)
Liked 58 Times in 48 Posts
^^Still dig that D'Arienzo.^^
Coolest SLX frame ever.
Doubt I'll ever see another one.
__________________
Robbie ♪♫♪...☻
I have unfinished business.

RobbieTunes is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
