Alvit (Huret) derailleur question

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Alvit (Huret) derailleur question

Old 01-03-19, 01:24 PM
  #1
WGB
WGB
Thread Starter

WGB's Avatar

Join Date: Jul 2017
Location: Niagara Region
Posts: 1,787

Bikes: League Fuji

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 522 Post(s)
Liked 89 Times in 68 Posts
Alvit (Huret) derailleur question

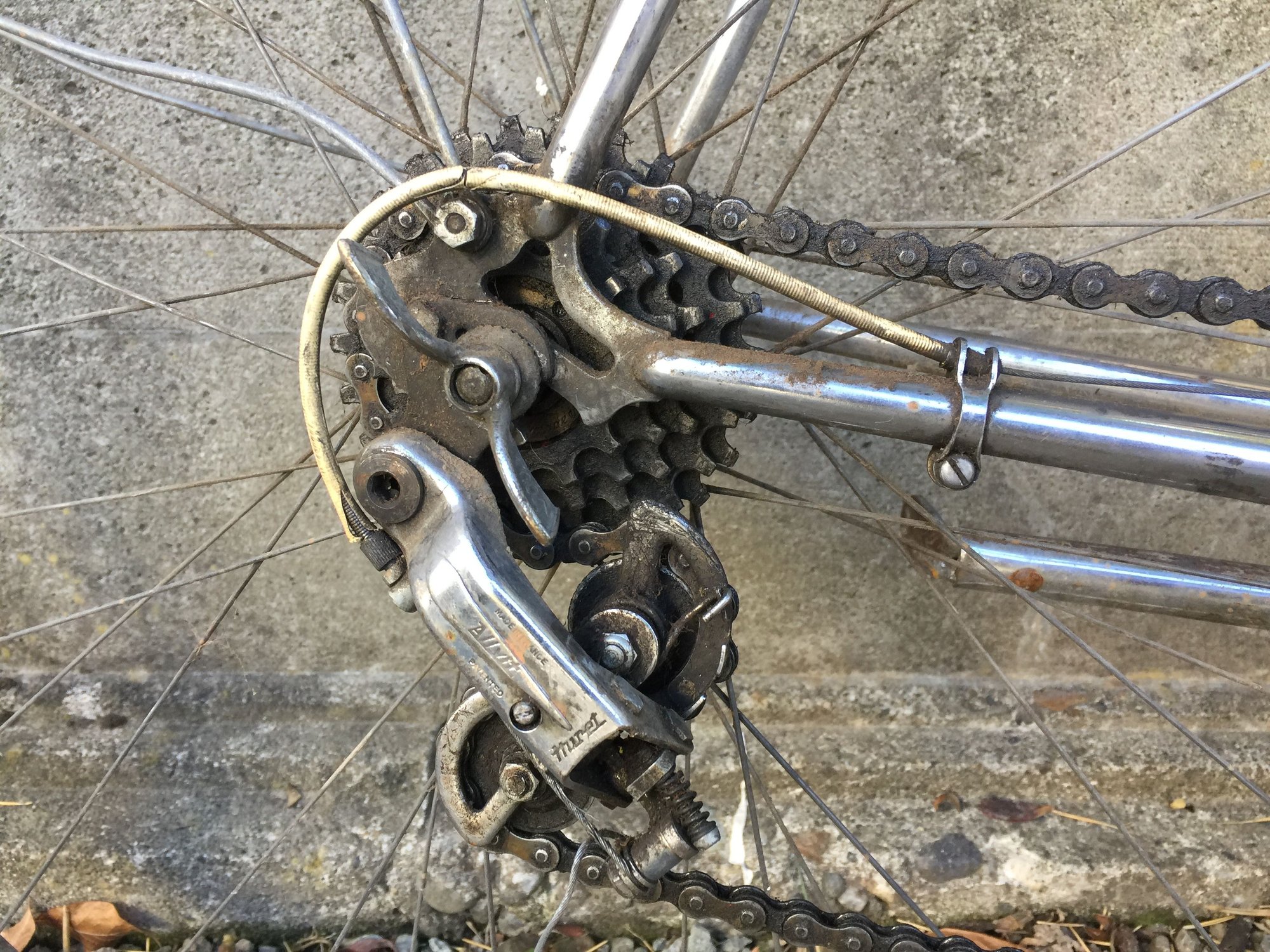

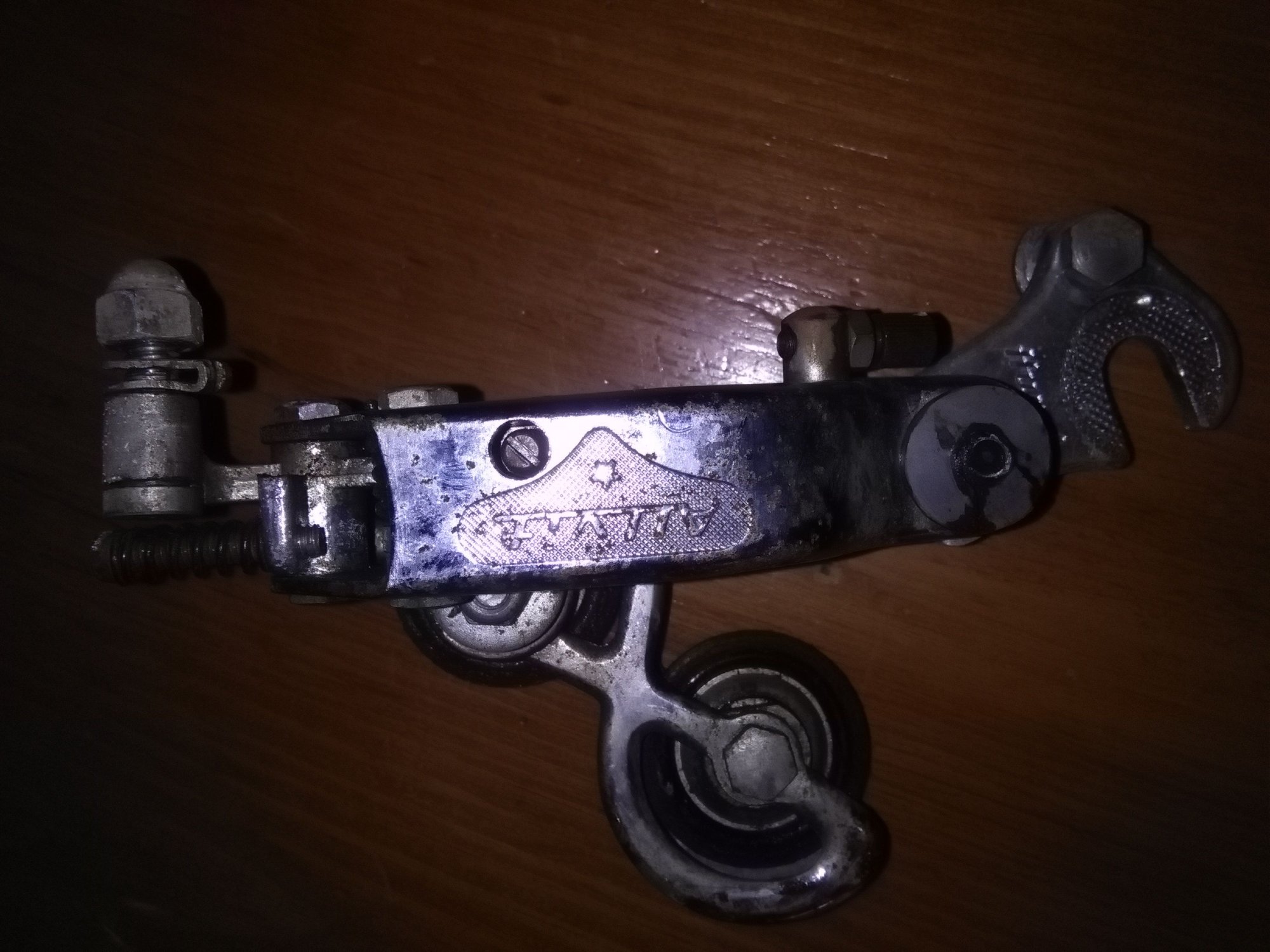

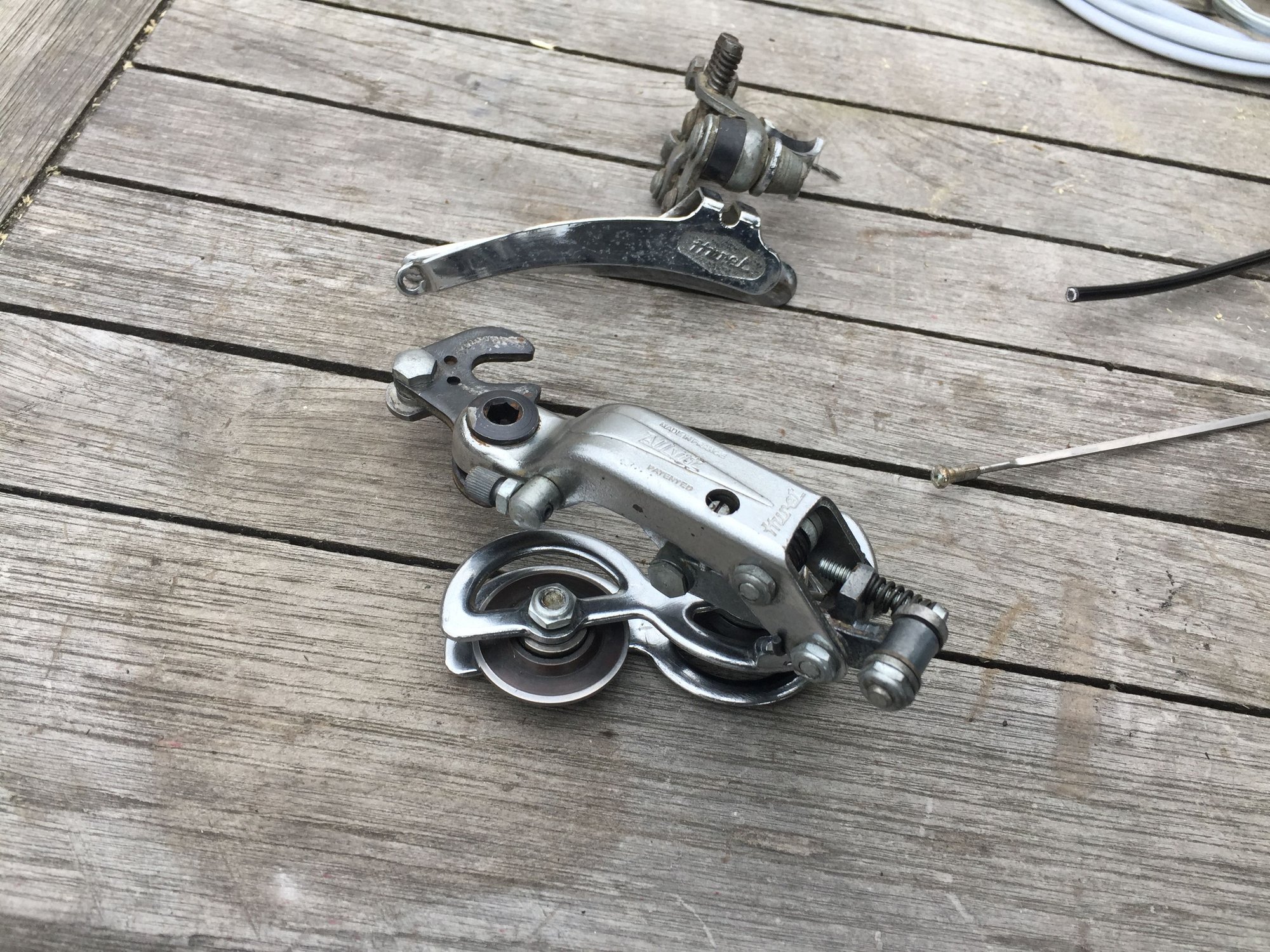

Just rebuilding a Gitane Grand Sport Deluxe and when I got to the Huret Alvit RD I noticed something odd. While the RD is still very dirty, I think it will polish up nicely but the jockey wheels (cogs) are smooth (no teeth). I assumed they were just really really worn, but they aren't. It seems they came that way.

I googled and saw lots of images of Huret Alvit RDs. Some had smooth jockey wheels, some had jockey wheels with teeth and some had one wheel with teeth and one wheel without.

Should I replace the smooth wheels with ones with teeth or leave as is? One would think that teeth would grip the chain better than a smooth surface or is it part of the design?


WGB is offline
Old 01-03-19, 02:17 PM
  #2
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,352

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 100 Post(s)
Tagged: 0 Thread(s)
Quoted: 849 Post(s)
Likes: 0
Liked 256 Times in 196 Posts
At the limit, a toothless pulley may allow a larger largest cog to be fitted. But, in one case where I used a 30t cog with a Schwinn-Approved Allvit, I recall having to grind a bit of metal from the inner pulley cage plate to achieve clearance during shifting to and from the largest cog.
This might also have been due to a large step (6 teeth iir) between the largest two cogs, but I can't be sure of that.

It would seem that when hard shifts are made, that might lift the chain off of the pulley, that a toothed pulley might better keep the chain centered on the pulley, but I can't verify this from any experience using these Huret derailers.

The only other things that I can say from experience about the Huret pullies are 1) that the plastic part is extremely durable, and 2) that replacing the tiny (1/8" iir) balls with Gr25 chromium balls makes for noticeably-smoother rotation.

dddd is offline
Old 01-03-19, 02:39 PM
  #3
WGB
WGB
Thread Starter

WGB's Avatar

Join Date: Jul 2017
Location: Niagara Region
Posts: 1,787

Bikes: League Fuji

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 522 Post(s)
Liked 89 Times in 68 Posts
dddd - 2) that replacing the tiny (1/8" iir) balls with Gr25 chromium balls makes for noticeably-smoother rotation.

Assuming you replaced with 1/8" or did you move to whole new size when you went with GR25?
WGB is offline
Old 01-03-19, 02:54 PM
  #4
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,352

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 100 Post(s)
Tagged: 0 Thread(s)
Quoted: 849 Post(s)
Likes: 0
Liked 256 Times in 196 Posts
Originally Posted by WGB View Post
dddd - 2) that replacing the tiny (1/8" iir) balls with Gr25 chromium balls makes for noticeably-smoother rotation.

Assuming you replaced with 1/8" or did you move to whole new size when you went with GR25?
Standard size, which I believe was 1/8".
dddd is offline
Old 01-03-19, 03:07 PM
  #5
USAZorro
Señor Member

USAZorro's Avatar

Join Date: Oct 2004
Location: Hardy, VA
Posts: 16,672

Bikes: Mostly English - predominantly Raleighs

Mentioned: 53 Post(s)
Tagged: 0 Thread(s)
Quoted: 893 Post(s)
Liked 176 Times in 125 Posts
Those derailleurs are effective doorstops.

I'd leave the jockeys alone as long as they aren't damaged and spin freely.
__________________
In search of what to search for.
USAZorro is offline
Old 01-03-19, 03:13 PM
  #6
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 17,062

Bikes: A bunch of old bikes and a few new ones

Mentioned: 140 Post(s)
Tagged: 0 Thread(s)
Quoted: 4530 Post(s)
Liked 843 Times in 592 Posts
campy gran sport derailleurs (the old ones, not the nuovo ones) have ball bearings and smooth jockey wheels. They were campy's top of the line until 1963 I believe. I guess smooth jockey wheels were a thing back in the day?
bikemig is offline
Old 01-03-19, 03:44 PM
  #7
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,352

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 100 Post(s)
Tagged: 0 Thread(s)
Quoted: 849 Post(s)
Likes: 0
Liked 256 Times in 196 Posts
Some British derailers featured a toothed top pulley with a smooth lower pulley.

There might be differences in noise level in some applications between smooth and toothed pullies, and there may have been perceptions that a smooth pulley perhaps offered lower frictional losses.
As well, a seized-up toothless pulley might allow a bike to be still ridden, versus a locked-up pulley having teeth.
dddd is offline
Old 01-03-19, 03:56 PM
  #8
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,504
Mentioned: 265 Post(s)
Tagged: 1 Thread(s)
Quoted: 2117 Post(s)
Liked 334 Times in 295 Posts
-----

The toothless wheels may hark back to the 1930's when there was a belief that derailleurs were a significant friction source which drained away a rider's efforts.

From a visual selling point at least, a dealer could point to the toothless wheels and suggest that they had less friction...

If you wish to jazz up your rear mech a bit you could get a set with the red plastic tyres as seen in dddd's photo.

-----
juvela is offline
Old 01-03-19, 04:19 PM
  #9
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 5,988

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 116 Post(s)
Tagged: 0 Thread(s)
Quoted: 2171 Post(s)
Liked 389 Times in 294 Posts
The extinct old 3/32" standard width (5/6 speed chains) typically had side plates which extended significantly beyond the bushings. The teeth weren't really needed. The wheel between the sideplates was enough. It was a common thing for Huret derailleurs to use smooth wheels.

If using a modern chain, I'd suggest swapping the wheels for toothed variety. Modern 5/6/7 speed chains are more similar to the old narrow Sedisport and Suntour Ultra chains than formerly standard width 3/32 chains. If you are using a vintage chain, there's no need; the toothless will work fine.
Salamandrine is offline
Old 01-03-19, 04:50 PM
  #10
Slightspeed
Senior Member

Slightspeed's Avatar

Join Date: Apr 2017
Location: Los Angeles, CA
Posts: 2,157

Bikes: 1964 Legnano Roma Olympiade, 1973 Raleigh Super Course, 1978 Raleigh Super Course, 1978 Peugeot PR10, 2002 Specialized Allez, 2007 Specialized Roubaix, 2013 Culprit Croz Blade

Mentioned: 63 Post(s)
Tagged: 0 Thread(s)
Quoted: 707 Post(s)
Liked 604 Times in 333 Posts

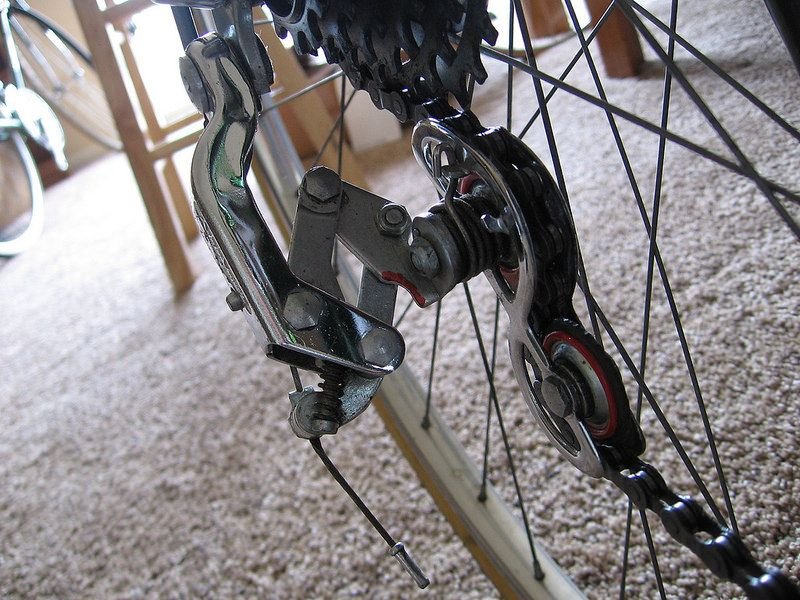

My '64 Legnano came with this steel Campy Gran Sport with non toothed jockey wheels. Never had an issue with them in 54 years of riding. Mine does have little flats or indents every so far, but is toothless.



I have cleaned the bike since this photo ... trust me😉
Slightspeed is offline
Old 01-03-19, 04:57 PM
  #11
Honusms
Senior Member

Honusms's Avatar

Join Date: Nov 2017
Location: Fort Worth, Texas
Posts: 230

Bikes: More than my husband knows about

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 87 Post(s)
Liked 22 Times in 14 Posts

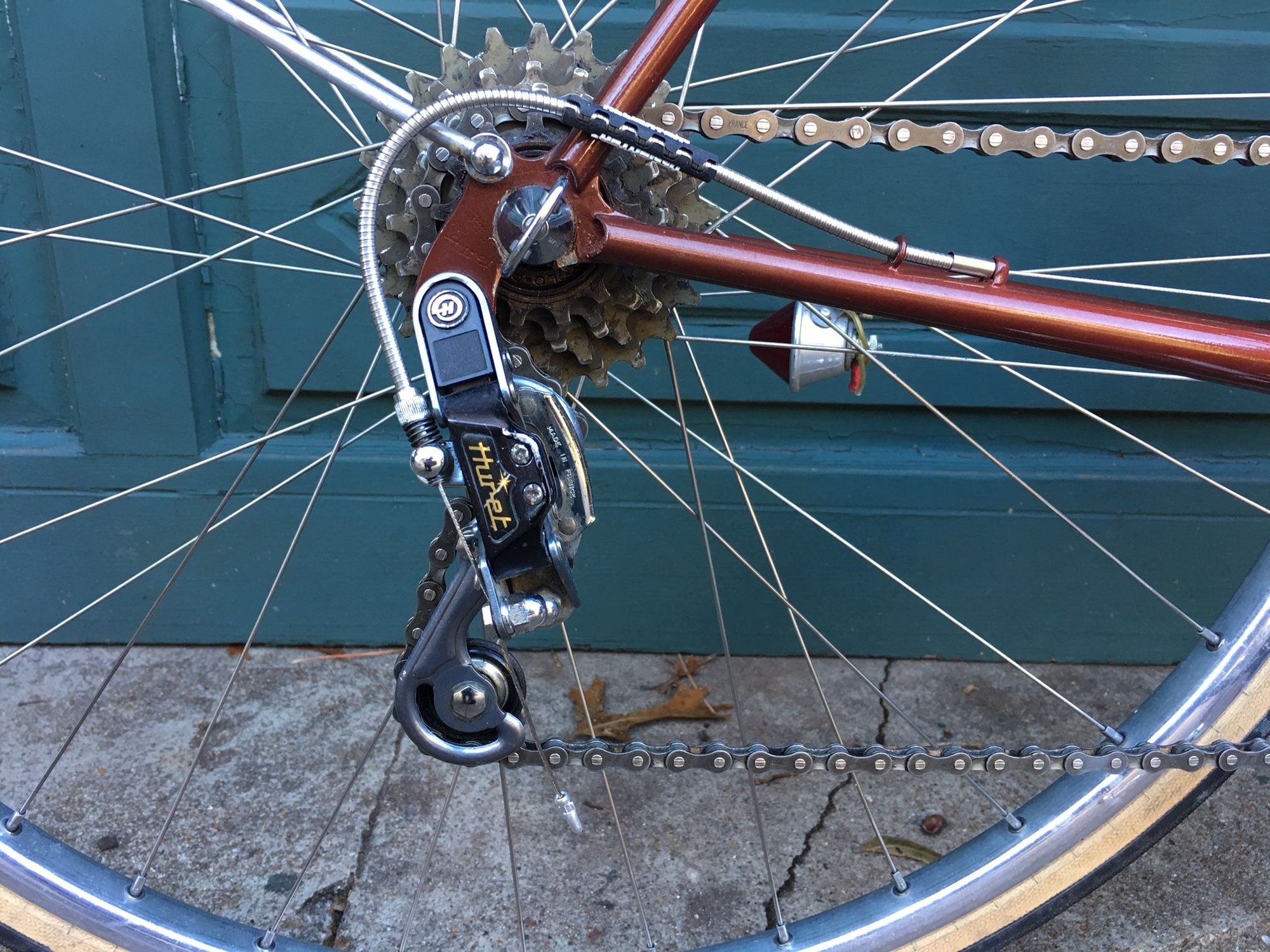

The Huret Duopar on my Jo Routens is toothless. Works flawlessly.


Honusms is offline
Old 01-03-19, 08:23 PM
  #12
Slowride79
Senior Member

Join Date: Apr 2018
Posts: 56
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked 5 Times in 2 Posts

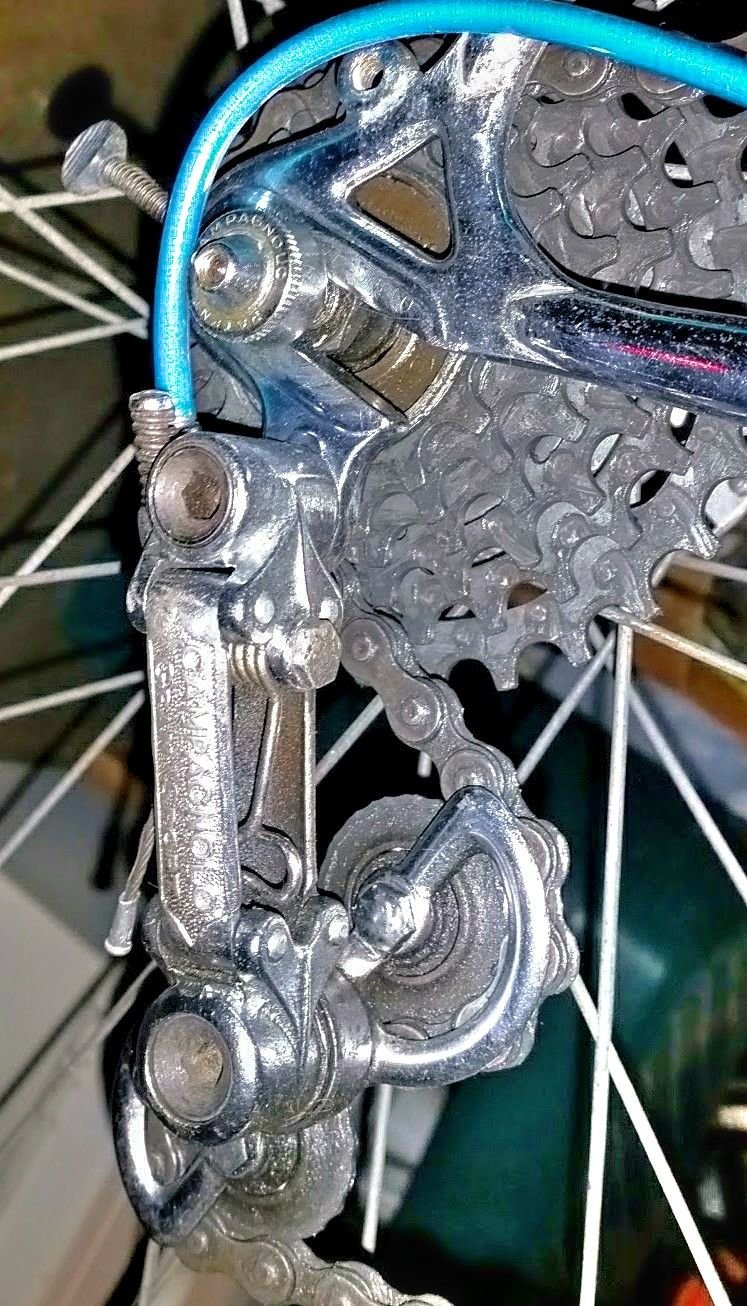

Pulleys work fine as they are . Here's my '69 all cleaned up w/fresh grease in pulleys.
Slowride79 is offline
Old 01-03-19, 11:35 PM
  #13
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 5,988

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 116 Post(s)
Tagged: 0 Thread(s)
Quoted: 2171 Post(s)
Liked 389 Times in 294 Posts
For sure try the stock smooth wheels first. Better than even odds they'll be fine even with modern chains.
Salamandrine is offline
Old 01-04-19, 09:29 AM
  #14
Mr. 66
Senior Member

Mr. 66's Avatar

Join Date: Aug 2015
Posts: 1,259
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 369 Post(s)
Liked 186 Times in 142 Posts

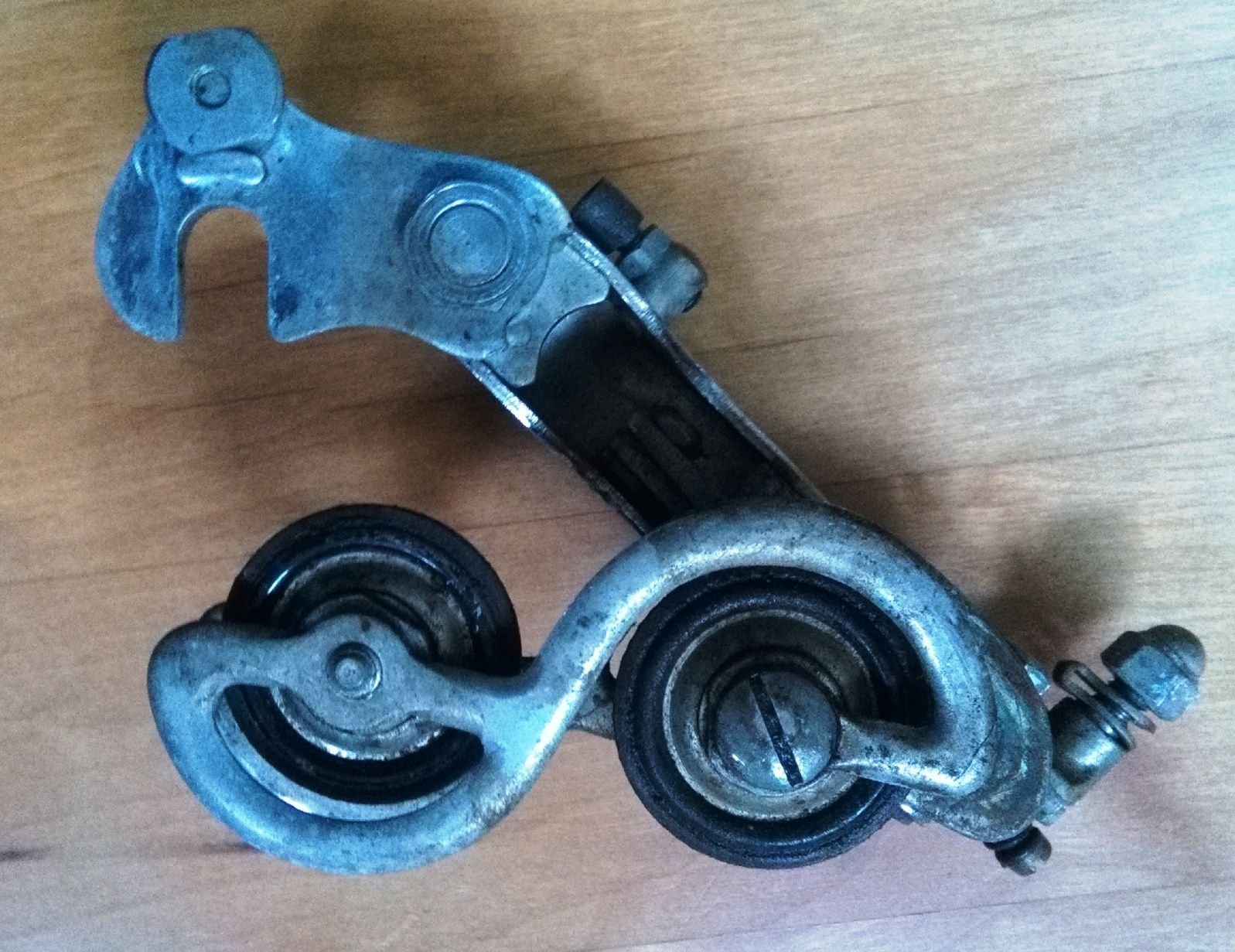

This version has 3 hooks for the tension spring. I have another with the red wheels that on has 2 hooks



Don't play twister, the original was munched. The old was all steel, the rebuild has some white plastic under the pivot casing. It must be newer than original.

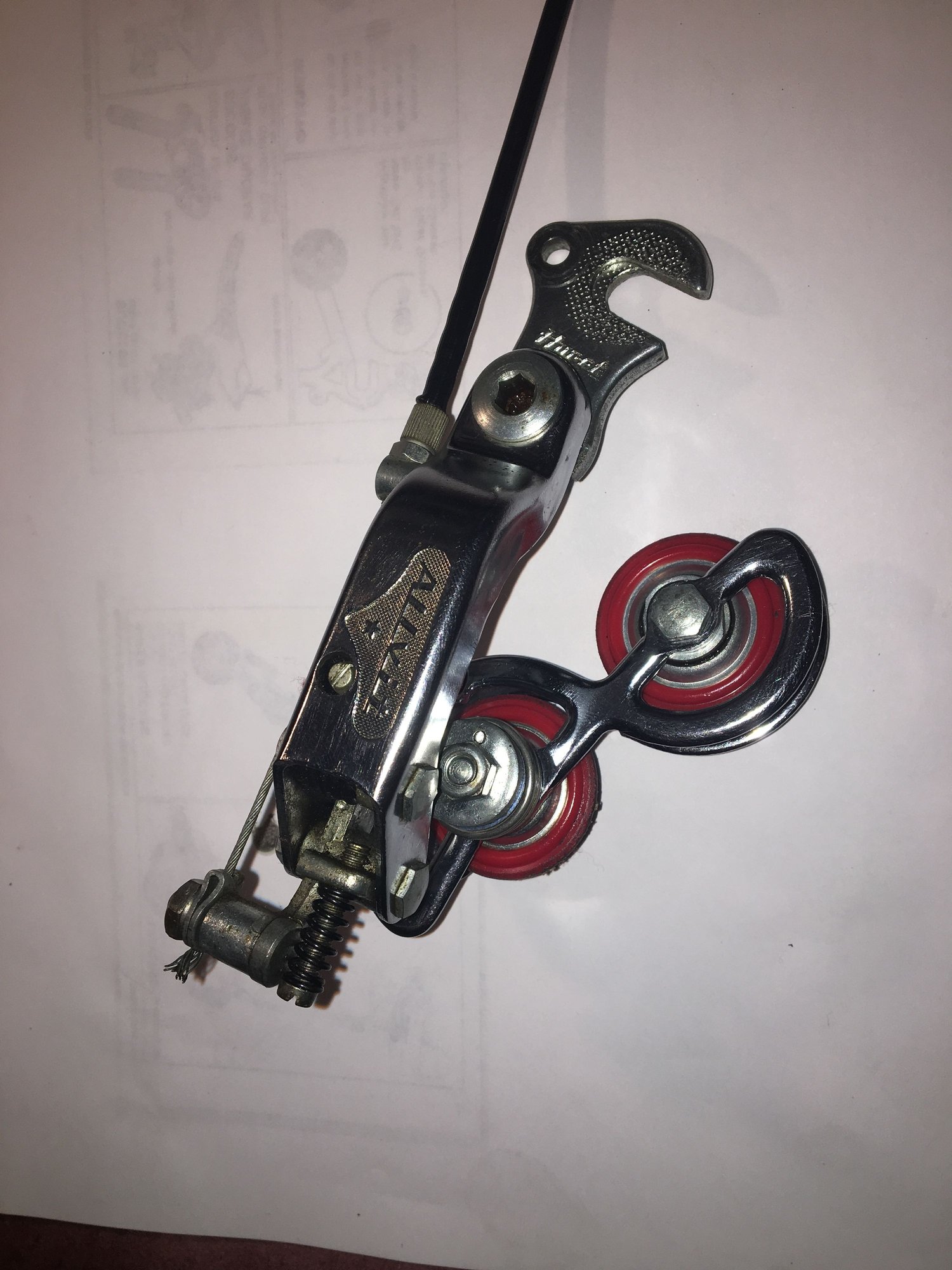

My rebuilt alvit works great on my Geminiani, this one is stock for the original 3x5 drive train.
Mr. 66 is offline
Old 01-04-19, 01:38 PM
  #15
Jon T
Senior Member

Join Date: Jun 2017
Location: West Orange County, CA
Posts: 1,106

Bikes: '84 Peugeot PH10LE

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 393 Post(s)
Likes: 0
Liked 43 Times in 31 Posts
My first 10-speed was an ORLY TdF purchased at Pep Boys (yes-they usta' sell bikes too) back in '71 or 2. It had the Huret-Alvet rd with smooth jockey wheels. Never had any problems with them and they shifted very smoothly. I miss that bike.
Jon
Jon T is offline
Old 01-04-19, 02:50 PM
  #16
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 42,728

Bikes: 8

Mentioned: 194 Post(s)
Tagged: 0 Thread(s)
Quoted: 7373 Post(s)
Liked 977 Times in 617 Posts
Bitd

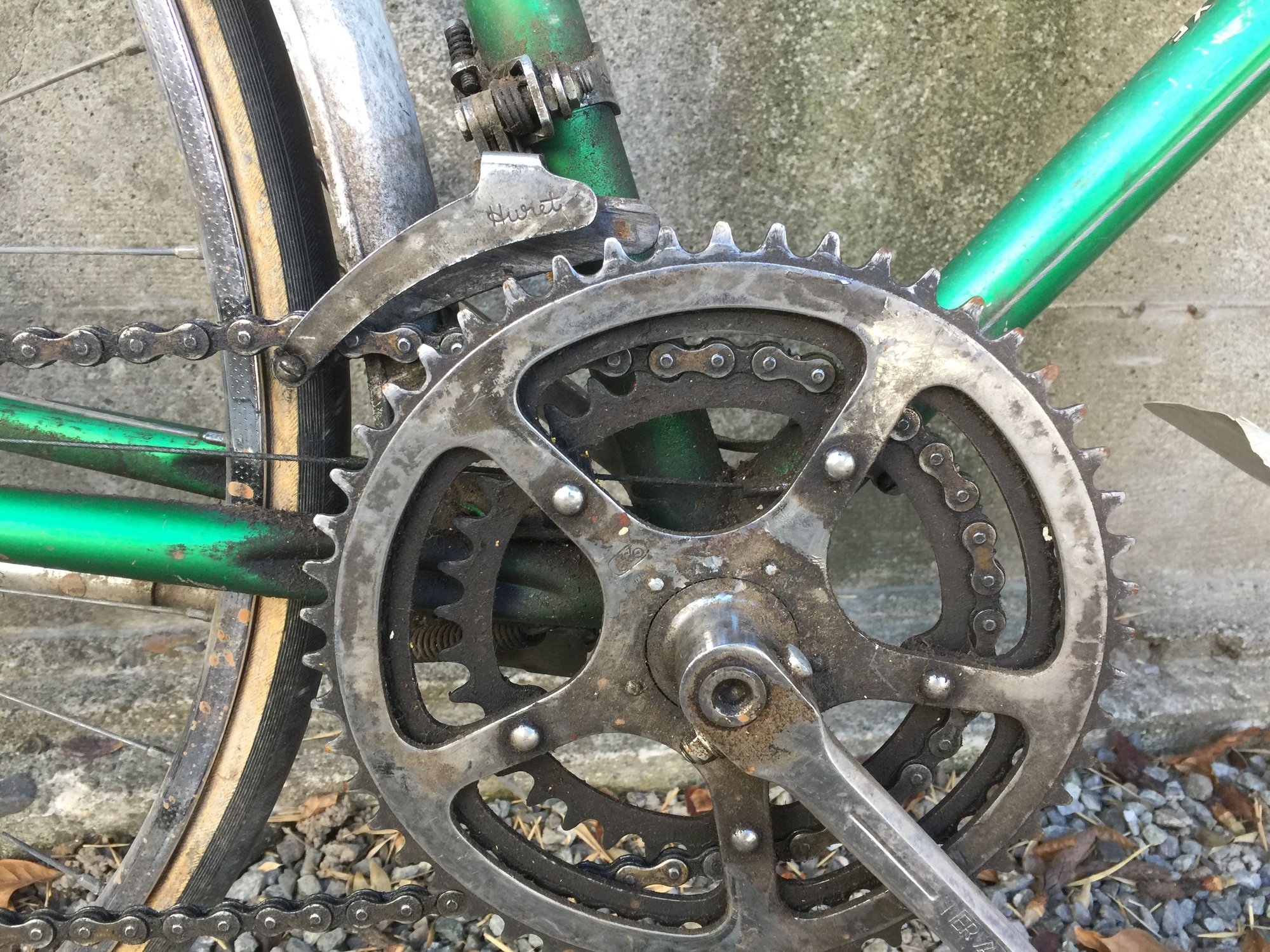

I used those Hurets on my 3 by 3 by 3 (27) speed I built in the late 50s with 1/8" wide chain .. 3 speed hub , 3 cogs , 3 chainrings.

As you see above chains used to have side plates, wider than the rollers , now they only use that on single speed chain.


and so the derailleur pulleys now have teeth ..

Last edited by fietsbob; 01-04-19 at 02:57 PM.
fietsbob is offline
Old 01-04-19, 04:16 PM
  #17
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,352

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 100 Post(s)
Tagged: 0 Thread(s)
Quoted: 849 Post(s)
Likes: 0
Liked 256 Times in 196 Posts
FWIW, the toothless-pulley Huret rear derailers have worked flawlessly on several performance builds of mine, using modern 8 and 9-speed chain, and after being modded for use with standard 6-speed freewheels.

Whatever the teeth do, they don't seem to do much!
dddd is offline
Old 01-04-19, 08:43 PM
  #18
WGB
WGB
Thread Starter

WGB's Avatar

Join Date: Jul 2017
Location: Niagara Region
Posts: 1,787

Bikes: League Fuji

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 522 Post(s)
Liked 89 Times in 68 Posts
dddd - where are the 1/8in balls? Are they inside the wheel races??

I haven't had time to strip and polish it but I looked up the online diagrams to help reassemble and don't see any bearings

Last edited by WGB; 01-04-19 at 08:50 PM. Reason: Adding
WGB is offline
Old 01-04-19, 09:49 PM
  #19
elcraft
elcraft

Join Date: Sep 2008
Location: Greater Boston
Posts: 664
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 75 Post(s)
Liked 22 Times in 21 Posts
Originally Posted by juvela View Post
-----

The toothless wheels may hark back to the 1930's when there was a belief that derailleurs were a significant friction source which drained away a rider's efforts.

From a visual selling point at least, a dealer could point to the toothless wheels and suggest that they had less friction...

If you wish to jazz up your rear mech a bit you could get a set with the red plastic tyres as seen in dddd's photo.

-----
I spent more than a few years hunting down a set of red pulleys in both flavors, toothed and toothless, for a specific build. There were also instances of having only the lower, toothless pulley in red. And I thought I was the only one who noticed....
elcraft is offline
Old 01-05-19, 04:47 PM
  #20
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,352

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 100 Post(s)
Tagged: 0 Thread(s)
Quoted: 849 Post(s)
Likes: 0
Liked 256 Times in 196 Posts
Originally Posted by WGB View Post
dddd - where are the 1/8in balls? Are they inside the wheel races??

I haven't had time to strip and polish it but I looked up the online diagrams to help reassemble and don't see any bearings
You'll see that there are wrench flats on the inner race of the pulleys, for adjusting the ball bearings.

The upper pulley has a male- threaded extension on one of the inner races, has to do with how it is attached and with the long pivot bolt passing through it (it's hollow).
dddd is offline
Old 01-06-19, 07:54 AM
  #21
Mr. 66
Senior Member

Mr. 66's Avatar

Join Date: Aug 2015
Posts: 1,259
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 369 Post(s)
Liked 186 Times in 142 Posts
Here is the diagram Juvela posted on the thread which I rebuilt my Alvit. I thought about doing a complete disassemble, but I came to my senses. LOL those French!


Mr. 66 is offline
Old 01-06-19, 08:29 AM
  #22
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 19,870
Mentioned: 515 Post(s)
Tagged: 1 Thread(s)
Quoted: 3306 Post(s)
Likes: 0
Liked 725 Times in 558 Posts
Another reason to use the OEM pulleys is that they use the less common, larger, 6mm hole and bolt.
T-Mar is offline
