Tragedy at the K Garage

My plan for today was to swap out the drivetrain on my Serotta from the original Chorus 2x6 to a Racing T 3x8 setup. I started with the crank. The drive side showed a serious lack of grease on the threaded parts and required a rubber mallet applied to the crank removal tool, but on the plus side I got to use my peanut butter wrench. Moving on the the non-drive side, I discovered that I didn't have the correct tool to remove the dust cap.



Sadly, there are no round tip wrenches in my toolset.

Do I have any recourse other than drilling holes in this thing?
__________________
My Bikes
Andy_K is offline
Old 01-05-19, 07:17 PM
  #2
3speedslow
Senior Member

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 7,267

Bikes: A few

Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 1239 Post(s)
Likes: 0
Liked 23 Times in 21 Posts
I would lay it down and let triflow sit on that crease between the cap and threads for a night. Then try putting a next larger Allen into the hole.
3speedslow is offline
Old 01-05-19, 07:19 PM
  #3
deux jambes
Senior Member

deux jambes's Avatar

Join Date: Jul 2018
Location: Eugene, OR
Posts: 857
Mentioned: 47 Post(s)
Tagged: 0 Thread(s)
Quoted: 314 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Ran into a stripped recessed pivot nut recently. It took some thinking.

I wonder if you used a slightly smaller Allen wrench and used a pliable shim between it and the cap. Maybe a thin piece of rubber?

Or or you might consider thin bladed screwdriver just a hair wider than the key hole. Tap it with a hammer until it just seats into the hole.
deux jambes is online now
Old 01-05-19, 07:27 PM
  #4
Andy_K
Senior Member
Thread Starter

Andy_K's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 12,053

Bikes: Yes

Mentioned: 287 Post(s)
Tagged: 0 Thread(s)
Quoted: 1736 Post(s)
Liked 15 Times in 14 Posts
Originally Posted by deux jambes View Post
I wonder if you used a slightly smaller Allen wrench and used a pliable shim between it and the cap. Maybe a thin piece of rubber?
That's a good idea. Thanks! I just started 3speedslow's suggestion with penetrating oil. I'll try various improvised wrenches tomorrow.
__________________
My Bikes
Andy_K is offline
Old 01-05-19, 07:31 PM
  #5
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 1,549

Bikes: 69 PX-10, 81 Medici, 84 Turbo, 87 IM, 2010 Milwaukee Road, 2011 RS

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 542 Post(s)
Liked 21 Times in 18 Posts
A dremel would make a quick slot for a screwdriver.
But wouldn't two little holes for a red spanner look correct? Put two holes in the drive side too.
Classtime is offline
Old 01-05-19, 07:47 PM
  #6
since6
Senior Member

Join Date: Nov 2015
Location: Lacey, WA
Posts: 1,388

Bikes: Stevenson Custom, Stevenson Custom Tandem, Nishiki Professional

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 284 Post(s)
Likes: 0
Liked 29 Times in 16 Posts
Don't forget aluminum foil.

So here's my thought:

Once you've soaked the threads for the night and have found an allen wrench that fits tight in the rounded hole take a bit of aluminum foil and put it inside the rounded hole of the crank cap and then force the allen wrench into the rounded hole. Slow steady pressure until you've either bottomed in the crank cap hole or as deep as you can go, if it's a plastic cap and not an aluminum cap use extra care as you seat the allen wrench into the caps rounded hole not to crack it with too much pressure. The goal is to have the aluminum shim up tight on the edges of the allen wrench against the inside of the rounded out crank cap hole. Then bring up your pressure slowly on the lever arm of the allen wrench and see if you can get the threads to give and move before you overcome the friction of the allen wrench edges biting into the shim of the aluminum foil against the rounded out crank cap.

Good luck.
since6 is offline
Old 01-05-19, 07:54 PM
  #7
Reynolds 531
Senior Member

Join Date: Oct 2014
Location: Reno nevada
Posts: 243

Bikes: 4 Old school BMX, 6 Klunkers, 5 29er race bikes, 4 restored Sting Rays, Now 3 vintage steel bike being built up

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 91 Post(s)
Liked 3 Times in 3 Posts
Fit a Torx in there. There are many many more sizes of Torx, between the Allen sizes.
Kinda wiggle one in, then wiggle in the next size up, and then perhaps even again, until you have formed a new Torx shaped hole in the dustcap.
Reynolds 531 is offline
Old 01-05-19, 07:56 PM
  #8
seedsbelize
Refugee

Join Date: Nov 2010
Location: Tixkokob, Yucatán, México
Posts: 11,250
Mentioned: 93 Post(s)
Tagged: 1 Thread(s)
Quoted: 4708 Post(s)
Liked 24 Times in 22 Posts
A flat screwdriver will take it right off. And it will still be round, so that when you acquire the correct tool, it will still work.Win win.
seedsbelize is offline
Old 01-05-19, 07:59 PM
  #9
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 2,760
Mentioned: 89 Post(s)
Tagged: 0 Thread(s)
Quoted: 969 Post(s)
Likes: 0
Liked 4 Times in 4 Posts
Been there, done that... carefully pounded (Pounding in the Allen head wrench actually helped break the threads loose) a bigger sized Allen head wrench into it to "create" new flats turned it back and forth slowly with lots of penetrant till it finally screwed off the crank arm......threw the offending cap away and replaced it with a new one with grease on its threads.....
Had one that was really seized onto the crank arm. Carefullty cut a slot on its face with my Dremel then used a big flat screw driver to twist it off. Threw the also mangled cap away and replaced it with a new one with grease on its threads and I was happy!
Although these caps can get a bit expensive, I just treat them as regular wear items, usually bunged up by previous owners of my bikes....
Frankly, I always left the caps of my crankset and usually etheir lost and tossed them out, years ago......but. but,..... C&V collecting......these days...

Last edited by Chombi1; 01-05-19 at 08:02 PM.
Chombi1 is offline
Old 01-05-19, 08:07 PM
  #10
Homebrew01
Super Moderator

Homebrew01's Avatar

Join Date: Jul 2004
Location: Ffld Cnty Connecticut
Posts: 21,055

Bikes: Old Steelies I made, Old Cannondales

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 797 Post(s)
Likes: 0
Liked 30 Times in 22 Posts
Try a tapping in a slightly bigger non-metric wrench. The next size metric is probably too big.
__________________
Bikes: Old steel race bikes, old Cannondale race bikes, less old Cannondale race bike, crappy old mtn bike.

FYI: http://www.bikeforums.net/forum-sugg...ad-please.html
Homebrew01 is online now
Old 01-05-19, 08:08 PM
  #11
tyler_fred
Senior Member

tyler_fred's Avatar

Join Date: Nov 2010
Location: Sunny Mid-South
Posts: 922

Bikes: '83 Schwinn Super Sport SP, '84 Schwinn Peloton, '86 Schwinn Tempo, '87 Schwinn Circuit, '87 Torelli Super Strada, '87 Cannondale SR500, '91 Bottecchia Professional SL

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 204 Post(s)
Likes: 0
Liked 8 Times in 7 Posts
Would an easy out screw extractor possibly work?
tyler_fred is offline
Old 01-05-19, 08:37 PM
  #12
gugie
Crapmaster Emeritus

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 7,351

Bikes: JP Weigle'd Raleigh Competition reconstruct, 73 Raleigh Competition 650b'ed, 96 Bike Friday NWT, 83 Lotus Classique, 78 Centurion ProTour, 73 Raleigh Grand Sports

Mentioned: 774 Post(s)
Tagged: 0 Thread(s)
Quoted: 2214 Post(s)
Likes: 0
Liked 39 Times in 32 Posts
It’s easy with a torch.
gugie is online now
Old 01-05-19, 08:45 PM
  #13
3alarmer
******

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 17,273

Bikes: old ones

Mentioned: 226 Post(s)
Tagged: 0 Thread(s)
Quoted: 14531 Post(s)
Liked 71 Times in 61 Posts
....every one of those I've ever done, I've accomplished with 50/50 ATF/acetone as the penetrant, and drilling two holes to fit a pin spanner. You try to visualize where the crank bolt flats end, so you can drill through and into the empty space between the crank bolt and the crank...but that's not absolutely required for success. It just makes it easier, rather than bottoming out your drill bit on the bolt head.

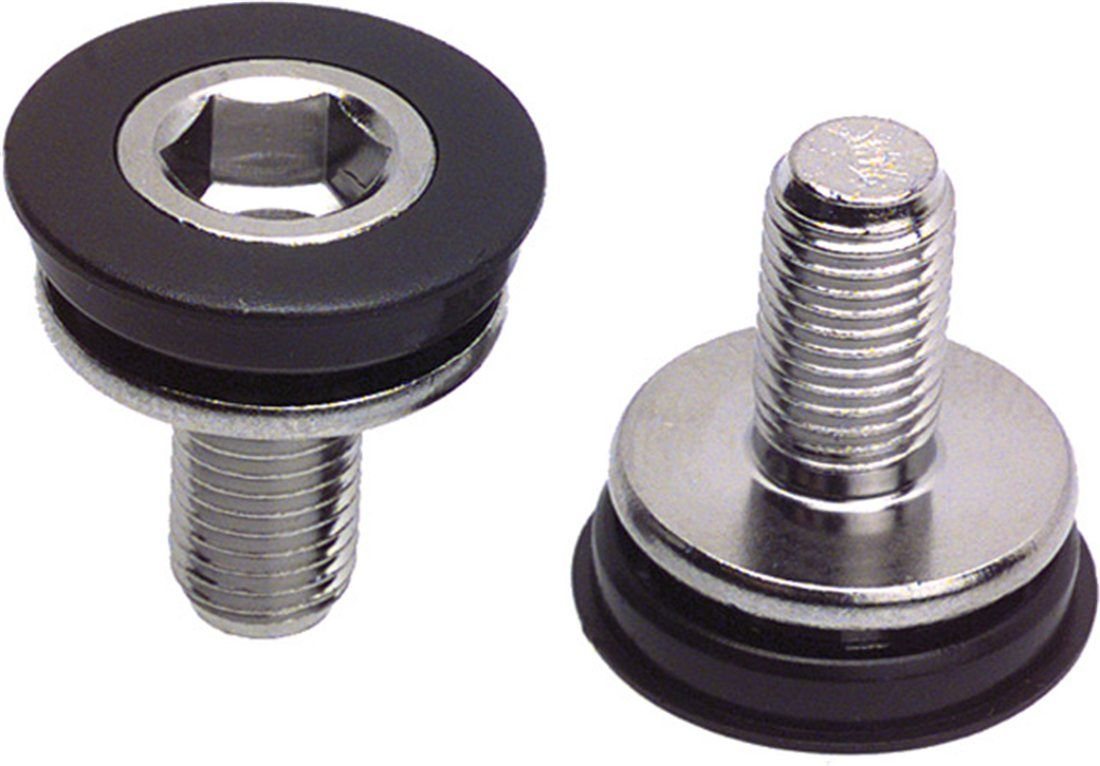

I have a nice collection of Campagnolo and Stronglight crank caps now, because I started replacing most of my crank bolts with these things, with an integral thread protector.

3alarmer is offline
Old 01-05-19, 08:47 PM
  #14
Steve Whitlatch
Senior Member

Steve Whitlatch's Avatar

Join Date: Sep 2013
Location: Chicago area
Posts: 3,627
Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 517 Post(s)
Liked 6 Times in 3 Posts
I have never been able to salvage a stuck dust cap. I either buy a replacement or go with a modern bolt. It won`t be any easier to get it off the next time around even if you can get it off without mangling it.
__________________
My bikes: 1970`s Roberts - 1981 Miyata 912 - 1980`s Ocshner (Chrome) - 1987 Schwinn Circuit - 1987 Schwinn Prologue - 1992 Schwinn Crosspoint - 1999 Schwinn Circuit - 2014 Cannondale Super Six EVO
Steve Whitlatch is offline
Old 01-05-19, 08:50 PM
  #15
Mr. Spadoni
Senior Member

Join Date: Jan 2015
Posts: 235
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 91 Post(s)
Liked 0 Times in 0 Posts
Drill one hole, get a nail and a hammer and tap it out. And If I have any dust caps laying about, you can have them all.
Mr. Spadoni is offline
Old 01-05-19, 08:53 PM
  #16
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 23,467

Bikes: http://www.theheadbadge.com

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 298 Post(s)
Liked 73 Times in 61 Posts
^
What Spadoni said - or drill two holes and take it out with an adjustable pin spanner (such as a Park SPA-6)

-Kurt
__________________
cudak888 is offline
Old 01-05-19, 09:06 PM
  #17
Hudson308
Mr. Anachronism

Hudson308's Avatar

Join Date: Jan 2013
Location: City of Lakes
Posts: 1,514

Bikes: fillet-brazed Chicago Schwinns, and some other stuff

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 337 Post(s)
Likes: 0
Liked 12 Times in 10 Posts
Originally Posted by 3alarmer View Post
....every one of those I've ever done, I've accomplished with 50/50 ATF/acetone as the penetrant, and drilling two holes to fit a pin spanner.
Careful here. Acetone will melt a plastic cap. You may not care if you plan to discard it, but you might have a mess to clean up in the threads.
__________________
"If we don't change direction soon, we'll end up where we're going." -Irwin Corey
Hudson308 is offline
Old 01-05-19, 09:19 PM
  #18
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 6,522

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 78 Post(s)
Tagged: 0 Thread(s)
Quoted: 532 Post(s)
Likes: 0
Liked 17 Times in 17 Posts
First thing to do (after applying an aggressive penetrant) is to impact the periphery of the cap repeatedly with a wood dowel. Work it repeatedly until the threads are cracked loose from each other. There will still be static tension on the threads that will require some torque to overcome.

Using a 7/32" or equivalent 5.5mm hex key, cut off the short leg of the key (and the bend with it).
Taper the tip of the key to the tune of a half-millimeter, using a flat file to taper each of the six flats.
Now you have a tool that can be effectively driven into the rounded hole, recreating a good part of the hex shape that you once had there. Grip the key with a Vise-Grip while striking with a hammer while using eye protection, then turn the cap out of the crankarm.
The cap can be re-used, but you will want to force the tool a ways through the hole (with the cap perhaps resting on a block of wood) so that a normal 7/32" key can later be used to install it and remove it in normal fashion.
Grease the cap threads well before reinstalling!
dddd is offline
Old 01-05-19, 09:21 PM
  #19
jiangshi
Senior Member

Join Date: Jul 2013
Posts: 1,411
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 266 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by Reynolds 531 View Post
Fit a Torx in there. There are many many more sizes of Torx, between the Allen sizes.
Kinda wiggle one in, then wiggle in the next size up, and then perhaps even again, until you have formed a new Torx shaped hole in the dustcap.
^^^This is the correct answer.
jiangshi is offline
Old 01-05-19, 09:57 PM
  #20
Andy_K
Senior Member
Thread Starter

Andy_K's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 12,053

Bikes: Yes

Mentioned: 287 Post(s)
Tagged: 0 Thread(s)
Quoted: 1736 Post(s)
Liked 15 Times in 14 Posts
FWIW, the cap is steel. I'm not sure I can "gently tap" a bigger allen wrench into that. I'm not even sure I can drill it with what I've got on hand.
__________________
My Bikes
Andy_K is offline
Old 01-05-19, 10:06 PM
  #21
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 4,006

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands, Gordon, Fuso/Moulton, Bornstein, Paisley, Paramounts, 3rensho, Moto TC, Raleigh Pro's, Marinoni, 1960 Cinelli SC, 1980 Bianchi SC and more

Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 1101 Post(s)
Liked 45 Times in 37 Posts
Originally Posted by Andy_K View Post
FWIW, the cap is steel. I'm not sure I can "gently tap" a bigger allen wrench into that. I'm not even sure I can drill it with what I've got on hand.
See the first part of my post above, torx bits or Lisle tool super outs, easy peasy.
merziac is online now
Old 01-05-19, 11:11 PM
  #22
repechage
Senior Member

Join Date: Jun 2006
Posts: 13,341
Mentioned: 77 Post(s)
Tagged: 0 Thread(s)
Quoted: 936 Post(s)
Likes: 0
Liked 13 Times in 11 Posts
Originally Posted by Andy_K View Post
FWIW, the cap is steel. I'm not sure I can "gently tap" a bigger allen wrench into that. I'm not even sure I can drill it with what I've got on hand.
A torx 27 or 30 may be the ticket. Maybe. There are also some small "spline" drive bits. Or triple square drive bits.
If you do not have them lying around... I do but bought sets for a few projects over time.. I would do as previously suggested and drill two 3/32" or so holes near the perimeter, reference another cap to stay inside the threaded section, then a pin wrench or something to use as a drift, part of the trick is to have the bike restrained.
Penetrant is useful and a initial step.
Been here a number of times, the chrome is hard, the material below is not, be sure to use a punched locator point to prevent drill wander.

This is the reason that I do not like crank bolt dust caps.
repechage is offline
Old 01-05-19, 11:30 PM
  #23
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 6,522

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 78 Post(s)
Tagged: 0 Thread(s)
Quoted: 532 Post(s)
Likes: 0
Liked 17 Times in 17 Posts
Originally Posted by Andy_K View Post
...Do I have any recourse other than drilling holes in this thing?
Well, the moral of this story is going to be to always grease the threads, and whenever a cap fails to yield to a normal amount of loosening torque, to apply penetrant and impact the cap's periphery with a sturdy dowel before using any additional amount of torque.
All of which has never failed me (other than the times that I didn't do this of course).

And as for "wiggling in" a tool bit or "gently" hammering on it, I usually go big or go home. It's very hard to do any damage hitting the head of a crank bolt, so I aim for a complete bottoming out of the hardened bit in the hole. The hammering and resultant wedging action serves to cold-work the bore into a cold-forged net shape that matches the exact shape of the tool.
And again, with vigorous blows it is most advisable to hold the bit with a Vise-Grip and to wear safety glasses.

Last edited by dddd; 01-05-19 at 11:37 PM.
dddd is offline
Old 01-06-19, 12:28 AM
  #24
3alarmer
******

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 17,273

Bikes: old ones

Mentioned: 226 Post(s)
Tagged: 0 Thread(s)
Quoted: 14531 Post(s)
Liked 71 Times in 61 Posts
Originally Posted by Hudson308 View Post
Careful here. Acetone will melt a plastic cap. You may not care if you plan to discard it, but you might have a mess to clean up in the threads.
...the plastic ones don't get corroded in place. If it's corroded in place, it ain't plastic.
3alarmer is offline
Old 01-06-19, 01:36 AM
  #25
Lascauxcaveman
Senior Member

Lascauxcaveman's Avatar

Join Date: Nov 2011
Location: Port Angeles, WA
Posts: 7,249

Bikes: A green one, "Ragleigh," or something.

Mentioned: 155 Post(s)
Tagged: 0 Thread(s)
Quoted: 1295 Post(s)
Liked 17 Times in 14 Posts
Originally Posted by Andy_K View Post
FWIW, the cap is steel. I'm not sure I can "gently tap" a bigger allen wrench into that. I'm not even sure I can drill it with what I've got on hand.
Do you have a bench grinder? I've made several custom tapered hex wrenches by taking whatever SAE size allen/hex key is larger than 5mm and tapering it down to pound into a stripped dust cap to screw it out. To my knowledge, this is the only possible use for SAE sized hex keys. Lord knows they don't fit anything else :shrug:
__________________
● 1971 Grandis SL ● 1972 Lambert Grand Prix frankenbike ● 1972 Raleigh Super Course fixie ● 1973 Nishiki Semi-Pro ● 1980 Apollo "Legnano" ● 1981 Miyata 1000 ● 1984 Bianchi Limited ● 1984 Nishiki Landau ● 1984 Peugeot Vagabond ● 1985 Trek 600 ● 1985 Shogun Prairie Breaker ● 1986 Univega Nuovo Sport ● 1986 Merckx Super Corsa ● 1987 Schwinn Tempo ● 1988 Schwinn Voyageur ● 1989 Trek 400 ● 1990 Cannondale ST600 ● 1993 Technium RT600 ● 1996 Kona Lava Dome ● And a Bike to Be Named Later ●
Lascauxcaveman is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
