Sturmey Archer S5.2 question

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Sturmey Archer S5.2 question

Old 01-06-19, 09:11 AM
  #1
BigChief
Senior Member
Thread Starter

BigChief's Avatar

Join Date: Jan 2015
Posts: 3,226
Mentioned: 102 Post(s)
Tagged: 0 Thread(s)
Quoted: 1292 Post(s)
Likes: 0
Liked 80 Times in 67 Posts
Sturmey Archer S5.2 question

I have a 1969 SA S5 hub on a bike that I'm very pleased with. I'm planning a custom build and found a nice NOS S5.2 hub. Shell dated April 1983. I'm confused about the advise from Sheldon Brown's S5 web page. They recommend upgrading the S5.1 hub to S5.2 specs or retro fitting it to S5 specs because of problems with the S5.1 staying in gear. However, the instructions claim that only hubs dated 8/88 or later contain the recommended up grades. So where does this leave a S5.2 hub from 4/83? I suppose I'll use the hub as is because of the rarity of parts, but I was wondering if anyone here has experience with these hubs and any advise for me. Thanks

__________________
Inflate Hard
BigChief is offline
Old 01-06-19, 09:56 AM
  #2
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 3,366

Bikes: Bob Jackson World Tour, Falcon and 98 Bianchi Volpe

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 1047 Post(s)
Liked 412 Times in 243 Posts
No advice but thats a cool hub.
52telecaster is offline
Old 01-06-19, 03:41 PM
  #3
rhm
multimodal commuter

rhm's Avatar

Join Date: Nov 2006
Location: NJ, NYC, LI
Posts: 19,444

Bikes: 1940s Fothergill, 1959 Allegro Special, 1963? Claud Butler Olympic Sprint, Lambert 'Clubman', 1974 Fuji "the Ace", 1976 Holdsworth 650b conversion rando bike, 1983 Trek 720 tourer, 1984 Counterpoint Opus II, 1993 Basso Gap, 2010 Downtube 8h, and...

Mentioned: 488 Post(s)
Tagged: 0 Thread(s)
Quoted: 1716 Post(s)
Liked 178 Times in 133 Posts
I have the guts of one of those hubs, but not the shell, which makes it difficult* for me to say what the date on the shell was. I used it for a while, and it was okay, but the adjustment on the left side shifter was really tricky, such that it would randomly switch back and forth between medium range and wide range. I found this annoying, so I switched in an older version.

I don't think I have any advice for you, but if you have a specific question I might come up with something.

*Okay, impossible.
rhm is offline
Old 01-06-19, 05:42 PM
  #4
BigChief
Senior Member
Thread Starter

BigChief's Avatar

Join Date: Jan 2015
Posts: 3,226
Mentioned: 102 Post(s)
Tagged: 0 Thread(s)
Quoted: 1292 Post(s)
Likes: 0
Liked 80 Times in 67 Posts
It's just like TI/Raleigh to fix something that wasn't broken. My experience with the bell crank S5 is entirely positive. Although I'm using a trigger on the right and friction for the left. It does take a bit of finesse to engage the wide range, but it's reliable and every other shift is smooth as silk. Well, this is a .2 and the problem is supposed to be with the .1. I'll post a review here after I get some mileage on it.
__________________
Inflate Hard
BigChief is offline
Old 01-06-19, 06:04 PM
  #5
Charles Wahl
Disraeli Gears

Charles Wahl's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 3,717
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 281 Post(s)
Liked 93 Times in 66 Posts
You don't show the right-side actuator stuff you have. If you have one of the "crappy bellcrank" ones, then Mark Stonich (MnHPVA Guy) can fix you up -- he knows how to repurpose a Shimano one.
Charles Wahl is offline
Likes For Charles Wahl:
Old 01-06-19, 06:22 PM
  #6
BigChief
Senior Member
Thread Starter

BigChief's Avatar

Join Date: Jan 2015
Posts: 3,226
Mentioned: 102 Post(s)
Tagged: 0 Thread(s)
Quoted: 1292 Post(s)
Likes: 0
Liked 80 Times in 67 Posts
Originally Posted by Charles Wahl View Post
You don't show the right-side actuator stuff you have. If you have one of the "crappy bellcrank" ones, then Mark Stonich (MnHPVA Guy) can fix you up -- he knows how to repurpose a Shimano one.
They changed from a bellcrank/ pushrod left side to a indicator pin/chain left side on these. It came with both indicator pins. I assume it works backwards from the original S5.
__________________
Inflate Hard
BigChief is offline
Old 01-06-19, 06:27 PM
  #7
rhm
multimodal commuter

rhm's Avatar

Join Date: Nov 2006
Location: NJ, NYC, LI
Posts: 19,444

Bikes: 1940s Fothergill, 1959 Allegro Special, 1963? Claud Butler Olympic Sprint, Lambert 'Clubman', 1974 Fuji "the Ace", 1976 Holdsworth 650b conversion rando bike, 1983 Trek 720 tourer, 1984 Counterpoint Opus II, 1993 Basso Gap, 2010 Downtube 8h, and...

Mentioned: 488 Post(s)
Tagged: 0 Thread(s)
Quoted: 1716 Post(s)
Liked 178 Times in 133 Posts
Originally Posted by Charles Wahl View Post
You don't show the right-side actuator stuff you have. If you have one of the "crappy bellcrank" ones, then Mark Stonich (MnHPVA Guy) can fix you up -- he knows how to repurpose a Shimano one.
I think we're talking about a hub that has a pull chain on both sides.
rhm is offline
Old 08-07-19, 08:35 PM
  #8
jackbombay
Senior Member

Join Date: Jun 2019
Location: Portland Oregon
Posts: 832
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 387 Post(s)
Liked 348 Times in 214 Posts
Originally Posted by BigChief View Post
They changed from a bellcrank/ pushrod left side to a indicator pin/chain left side on these. It came with both indicator pins. I assume it works backwards from the original S5.
Thread bump!

Have you gotten this hub laced into a wheel?

Do you know if the left side indicator chain is the same part as the right side indicator chain?

Lastly, is the left side shifting reversed from the older S5 as you hypothesised?


Thanks!
jackbombay is offline
Old 08-07-19, 10:51 PM
  #9
jackbombay
Senior Member

Join Date: Jun 2019
Location: Portland Oregon
Posts: 832
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 387 Post(s)
Liked 348 Times in 214 Posts
So, I did find more info on this, the S5/2 does shift differently than the S5. If the shifter going to the left side of the hub fails (cable goes slack) on the S5 you still have use of 2 3 and 4, but if the left side shifter fails on the S5/2 you endup with use of 1 3 and 5. That is, tension on the left cable of the S5 put the hub in the wide range ratio, and tension on the left side cable of the S5/2 puts the hub in the close ratio.
jackbombay is offline
Old 08-08-19, 05:03 AM
  #10
BigChief
Senior Member
Thread Starter

BigChief's Avatar

Join Date: Jan 2015
Posts: 3,226
Mentioned: 102 Post(s)
Tagged: 0 Thread(s)
Quoted: 1292 Post(s)
Likes: 0
Liked 80 Times in 67 Posts

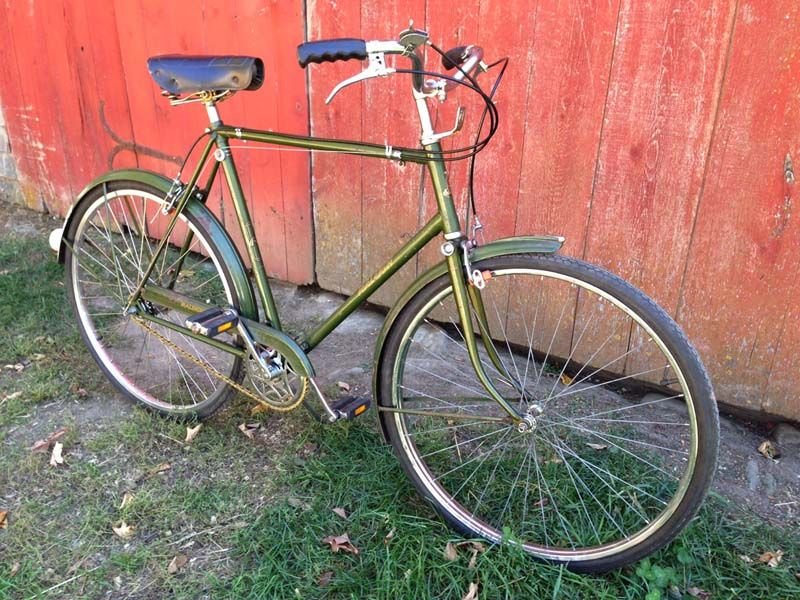

It's still sitting there in the box. I was holding out for a light weight frame, but I've decided to spend a lot less money and use it on a 70s Sports I already have. A winter project.

__________________
Inflate Hard
BigChief is offline
Likes For BigChief:
Old 08-08-19, 05:17 AM
  #11
BigChief
Senior Member
Thread Starter

BigChief's Avatar

Join Date: Jan 2015
Posts: 3,226
Mentioned: 102 Post(s)
Tagged: 0 Thread(s)
Quoted: 1292 Post(s)
Likes: 0
Liked 80 Times in 67 Posts
Originally Posted by jackbombay View Post
Thread bump!

Have you gotten this hub laced into a wheel?

Do you know if the left side indicator chain is the same part as the right side indicator chain?

Lastly, is the left side shifting reversed from the older S5 as you hypothesised?


Thanks!
The indicator pins are different lengths
__________________
Inflate Hard
BigChief is offline
