1984 Trek 400 Build

Hi all,

Starting this build thread for a 1984 Trek 400 frame I picked up here from the C&V Sales forum. I know it's not the most sought after model, but it's a stepping stone to my goal of finding a 1979 Trek. I've only worked on newer aluminum and 90's era steel Trek Singletracks, so this will be an experience builder. It's got quite a bit of scratches and some rust, but no dents and it's solid. Since it's just a bare frame I'm thinking resto-custom-mod also since I have a bunch of newer parts. Here's a pic below and you can also see the original ad in the sales forum for more pics.



Original ad thread where I got it from: 1984 TREK 400 frame (56cm c-t-c)

Stay tuned for more...

Last edited by amerikaner; 01-14-19 at 11:19 PM. Reason: adding link to original ad with more pics
amerikaner is offline
Reply With Quote
Old 01-13-19, 11:12 PM
  #2
amerikaner
Junior Member
Thread Starter

Join Date: Jul 2018
Posts: 19
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
First things first...gotta figure out sizes:

What I do know:
1984 Trek 400 22.5" frame (Pewter with Red/White decals)
126mm Drop out spacing
Since it's a Tange Mangalloy 2001 frame headtube ID should be 30mm following JIS standard
Bottom Bracket is BSA

What I don't know:
Seatpost diameter? Tried a 27.2 and it's too tight a fit
amerikaner is offline
Reply With Quote
Old 01-14-19, 08:53 AM
  #3
3speedslow
Senior Member

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 6,580

Bikes: A few

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 975 Post(s)
I own 3 Trek 400’s. Only one really accepted a 27.2 post willingly. All had straight sides and ears in the clamp area. Just something about the 400’s.

it will make a fine rider.
3speedslow is online now
Reply With Quote
Old 01-14-19, 11:35 AM
  #4
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 10,695

Bikes: 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 60 Post(s)
Tagged: 0 Thread(s)
Quoted: 1430 Post(s)
Congratulations!

I had an 84 420 and currently have an 86 400 Elance. Regardless of where these sat in Trek’s hierarchy, they’re really excellent bikes. You hear it often said about 70s and 80s Treks: ‘Trek’s entry level was most other companies’ mid level.’

My 86 400 Elance was the first bike I hunted down. I specifically searched for a blue 86 400... It took several months, but I found one, drove 200 miles round trip and paid too much for it- But I got it- built it up gloriously- I still think it’s my most beautiful bike... The only reason I sold my 420 is because it only had one bottle mount (and Junior’s friend needed a quality bike...)

I don’t recall the seat post size. And I’d re-check that dropout spacing- it may be at 128- and that allows you to squeeze in a 130 with no trouble at all.

It’ll definitely be a fun project!

good luck!


__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

ďI might have gotten away with it too, if it wasn't for these blasted kids and their dog.Ē

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Reply With Quote
Old 01-14-19, 12:46 PM
  #5
Chr0m0ly
Senior Member

Chr0m0ly's Avatar

Join Date: Apr 2014
Location: Lincoln Square, Chicago, IL
Posts: 878

Bikes: '84 Miyata 610 '85 Miyata 710, Ď86 Miyata 710, Ď91 Cannondale ST600, Ď84 Trek 610, 520, 620, Ď91 Miyata 1000LT, a few frames, some odds and ends....

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 304 Post(s)
Originally Posted by The Golden Boy View Post
Congratulations!

I had an 84 420 and currently have an 86 400 Elance. Regardless of where these sat in Trekís hierarchy, theyíre really excellent bikes. You hear it often said about 70s and 80s Treks: ĎTrekís entry level was most other companiesí mid level.í

My 86 400 Elance was the first bike I hunted down. I specifically searched for a blue 86 400... It took several months, but I found one, drove 200 miles round trip and paid too much for it- But I got it- built it up gloriously- I still think itís my most beautiful bike... The only reason I sold my 420 is because it only had one bottle mount (and Juniorís friend needed a quality bike...)

I donít recall the seat post size. And Iíd re-check that dropout spacing- it may be at 128- and that allows you to squeeze in a 130 with no trouble at all.

Itíll definitely be a fun project!

good luck!



Agreed! Congratulations!
Those are Tange Mangalloy main triangle and either Mangalloy or hi-ten forks and stays, but Iíd wager a very nice ride either way. All Treks main tubes were double butted then, and I think it has 43cm chain stays?

I have an Ď84 610 thatís very close to the 400 Elance. The Sports series from Trek in the 80ís are just really amazing bikes-of-all-trade. Stable to commute on, and zippy for the weekends. Have fun with the build and put up some pics!



Chr0m0ly is online now
Reply With Quote
Old 01-14-19, 03:06 PM
  #6
tkamd73
Senior Member

Join Date: Dec 2015
Location: Menomonee Falls, WI
Posts: 316

Bikes: 1984 Schwinn Supersport, 1992 PDG Series 5 Paramount, 1988 Trek 400t, 1977 Trek TX900, 1982 Bianchi Champione del Mondo, 1986 Trek 400 Elance, 1978 Raleigh Supercourse

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 102 Post(s)
I’ve got an 86 400 Elance with 531 triangle, and an 88 400t with the True Temper frame. Both take a 27.2 seatpost, great rides, you’ll have no regrets. Measureing the five 27.2 seatposts I have, the diameter varies between 27.13 and 27.28, If it’s not the post original to the bike, try another, assuming it takes a 27.2.
Tim
tkamd73 is offline
Reply With Quote
Old 01-14-19, 04:46 PM
  #7
fliplap
Member

Join Date: Nov 2013
Posts: 30
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
I have an 82 412 that had a non-OE 27.0 post in it when I got it. Likely because poor finishing of the seat tube made the original 27.2 a right fit.

Took it over to to the local co-op and used a reamer, and then a flex home, to clean up the seat tube and bring it back to where it needed to be.
fliplap is online now
Reply With Quote
Old 01-14-19, 08:40 PM
  #8
Vefer
Senior Member

Join Date: Jan 2012
Location: Mount Prospect, Il
Posts: 124

Bikes: Trek 4300, '84 Trek 400,'88 Trek 560, 82 Motobecane Randonee, 75 Schwinn Collegiate, Schwinn Sierra, '84 Trek 890, 2001 Trek 5200 OCLV USPS, 99 Trek Y Foil

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
I have an 84 400 triple. 27.2 seat post is a tight fit. I honed mine out, it's still snug but that is how they fit. It's not a highly sought after collectible, But it is a REALLY nice all around rider. It's comfortable, it's fast enough, but not the stiffest bike, makes for a really nice sporty touring bike. Mine has been to RAGBRAI 2 times, Wonderful bike for that kind of riding.
Vefer is offline
Reply With Quote
Old 01-14-19, 11:16 PM
  #9
amerikaner
Junior Member
Thread Starter

Join Date: Jul 2018
Posts: 19
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Thanks, I tried cleaning out the seat tube with steel wool attached to a wire with a drill...got it pretty clean. Tried a Bontrager SSR, one from a Trek 930 and a Ritchey Classic and none could go past the split in the seat post. Going to borrow a 26.8 from friend to see if it fits.

Meanwhile, I need to find a headset that is truly 30mm JIS and not ISO 30.2mm. Was hoping to get a Tange one but the ones I'm finding say JIS like the Levin, but the reviews from people who bought them say they are actually 30.2mm with 27mm crown race ID rather than the true JIS 30mm cups and 27mm crown race ID.

So plans right now are to find a seatpost and headset so I can build it up and get the fit right before I do any other touchups or re-paint or even powder coat.
amerikaner is offline
Reply With Quote
Old 01-15-19, 12:53 AM
  #10
amerikaner
Junior Member
Thread Starter

Join Date: Jul 2018
Posts: 19
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Originally Posted by The Golden Boy View Post
‘Trek’s entry level was most other companies’ mid level.’


Still kinda true today...have a 2016 1.1 that I upgraded to full 105 R7000. If anything though these days the entry level seems to skimp on brakes, bottom bracket and crank.

Originally Posted by The Golden Boy View Post
And I’d re-check that dropout spacing- it may be at 128- and that allows you to squeeze in a 130 with no trouble at all.

Thanks, dropout spacing is 126.24mm measured with caliper, but 130mm hub fits fine...in fact barely had the spread it and it slipped right in.

Last edited by amerikaner; 01-15-19 at 12:57 AM.
amerikaner is offline
Reply With Quote
Old 01-15-19, 12:59 AM
  #11
amerikaner
Junior Member
Thread Starter

Join Date: Jul 2018
Posts: 19
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Originally Posted by tkamd73 View Post
Iíve got an 86 400 Elance with 531 triangle, and an 88 400t with the True Temper frame. Both take a 27.2 seatpost, great rides, youíll have no regrets. Measureing the five 27.2 seatposts I have, the diameter varies between 27.13 and 27.28, If itís not the post original to the bike, try another, assuming it takes a 27.2.
Tim
Measured 4 seatposts I had that are 27.2 and they all measured between 27.08 and 27.12.
amerikaner is offline
Reply With Quote
Old 01-15-19, 08:26 AM
  #12
tkamd73
Senior Member

Join Date: Dec 2015
Location: Menomonee Falls, WI
Posts: 316

Bikes: 1984 Schwinn Supersport, 1992 PDG Series 5 Paramount, 1988 Trek 400t, 1977 Trek TX900, 1982 Bianchi Champione del Mondo, 1986 Trek 400 Elance, 1978 Raleigh Supercourse

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 102 Post(s)
Originally Posted by amerikaner View Post
Measured 4 seatposts I had that are 27.2 and they all measured between 27.08 and 27.12.
Yeah I was kind of suprised, thought they would all be at, or under. Only 2 were over, one just slightly. The ones on my 400s are under, at 27.12. Both are Nittos
Tim

Last edited by tkamd73; 01-15-19 at 08:31 AM.
tkamd73 is offline
Reply With Quote
Old 01-15-19, 08:56 AM
  #13
hobbitman
Senior Member

Join Date: May 2011
Location: Chattanooga, TN
Posts: 213

Bikes: 96 Trek 820 FG

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Originally Posted by amerikaner View Post
Meanwhile, I need to find a headset that is truly 30mm JIS and not ISO 30.2mm. Was hoping to get a Tange one but the ones I'm finding say JIS like the Levin, but the reviews from people who bought them say they are actually 30.2mm with 27mm crown race ID rather than the true JIS 30mm cups and 27mm crown race ID.
.
If you haven't found a headset yet, velomine sells a full JIS headset.

Tange Levin CDS 1 Threaded Headset 27.0 x 30.0 JIS Chrome [6193 or 35496] - $23.00 Velomine.com : Worldwide Bicycle Shop, fixed gear track bike wheelsets campagnolo super record vintage bike
hobbitman is offline
Reply With Quote
Old 01-15-19, 11:09 AM
  #14
Pompiere
Senior Member

Join Date: Nov 2005
Location: NW Ohio
Posts: 2,355

Bikes: 1984 Miyata 310, 1986 Schwinn Sierra, 2011 Jamis Quest, 1980 Peugeot TH8 Tandem, 1992 Performance Parabola, 1987 Ross Mt. Hood, 1988 Schwinn LeTour, 1988 Trek 400T

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 180 Post(s)
Originally Posted by The Golden Boy View Post
Congratulations!

I had an 84 420 and currently have an 86 400 Elance. Regardless of where these sat in Trekís hierarchy, theyíre really excellent bikes. You hear it often said about 70s and 80s Treks: ĎTrekís entry level was most other companiesí mid level.í

My 86 400 Elance was the first bike I hunted down. I specifically searched for a blue 86 400... It took several months, but I found one, drove 200 miles round trip and paid too much for it- But I got it- built it up gloriously- I still think itís my most beautiful bike... The only reason I sold my 420 is because it only had one bottle mount (and Juniorís friend needed a quality bike...)

I donít recall the seat post size. And Iíd re-check that dropout spacing- it may be at 128- and that allows you to squeeze in a 130 with no trouble at all.

Itíll definitely be a fun project!

good luck!


This is good to hear. I got a 400T in bright red just before the snow started flying, so I haven't got a chance to take it for a proper ride yet. And, the 27.2 mm seat post is a tight fit on mine as well.
Pompiere is offline
Reply With Quote
Old 01-15-19, 08:15 PM
  #15
amerikaner
Junior Member
Thread Starter

Join Date: Jul 2018
Posts: 19
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Thanks hobbitman...all the other places that carried the Levin had the 30.2mm diameters. So it's this one, the Velo Orange one or find a vintage one on ebay...was hoping to find a sealed bearing one but can't find one in full JIS except for older Dura Ace ones that are super expensive.
amerikaner is offline
Reply With Quote
Old 01-15-19, 08:59 PM
  #16
jamesj
Senior Member

jamesj's Avatar

Join Date: Dec 2005
Location: Arizona
Posts: 861

Bikes: 2015 Specialized AWOL, 2006 Paul Frank Cruiser, 1987 Specialized Street Stomper, 1980 Trek 412, 1979 Raleigh Sport,

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 50 Post(s)
I have a 1980 412 and love that bike! mine is Ishiwata 022 main triangle Ishiwata 0265 Hi-Ten forks and stays. I remember a 27.2 post was tight for some odd reason when I bought it, It was kinda tight but it went down, have a Thomson seat post right now in it.

I just switched out the NITTO 90mm stem to a black CINELLI 80mm. Im wanting a little bit more height and thinking I might switch to a NITTO Pearl stem.

I also have a pretty trashed1987 Trek 400 Elance that I'm not sure what to do with yet.

jamesj is offline
Reply With Quote
Old 01-15-19, 09:20 PM
  #17
amerikaner
Junior Member
Thread Starter

Join Date: Jul 2018
Posts: 19
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Ooooh...that's nice! The older logo matches so much better than the mid 80's one. Still searching for a '79! As for the seat post, gonna try a 26.8 and if it's too loose. I'll go the honing route...just kina pricy for the tool.
amerikaner is offline
Reply With Quote
Old 01-15-19, 09:31 PM
  #18
natterberry
Senior Member

natterberry's Avatar

Join Date: Sep 2017
Location: Springfield, IL
Posts: 178

Bikes: ‘83/‘85 Trek 760, ‘82 Trek 614, ‘85 Trek 460

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 62 Post(s)
The 27.2 into my 614 is pretty tight. I havenít installed the new post yet, but I feel like the tube could use a hone.
natterberry is offline
Reply With Quote
Old 01-16-19, 05:44 AM
  #19
nomadmax
Senior Member

Join Date: Jun 2018
Location: SW Ohio
Posts: 274

Bikes: Colnago Master, Colnago Classic, Felt VR40, Fuji Nevada 1.1 MTB, 1974 Schwinn Varsity & 1959 Schwinn Hornet

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
OP, I vote you make it a Masi
nomadmax is offline
Reply With Quote
Old 01-16-19, 07:20 AM
  #20
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 10,695

Bikes: 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 60 Post(s)
Tagged: 0 Thread(s)
Quoted: 1430 Post(s)
Originally Posted by nomadmax View Post
OP, I vote you make it a Masi
I see what you did there!!!!

__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

ďI might have gotten away with it too, if it wasn't for these blasted kids and their dog.Ē

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Reply With Quote
Old 01-17-19, 03:24 PM
  #21
amerikaner
Junior Member
Thread Starter

Join Date: Jul 2018
Posts: 19
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)

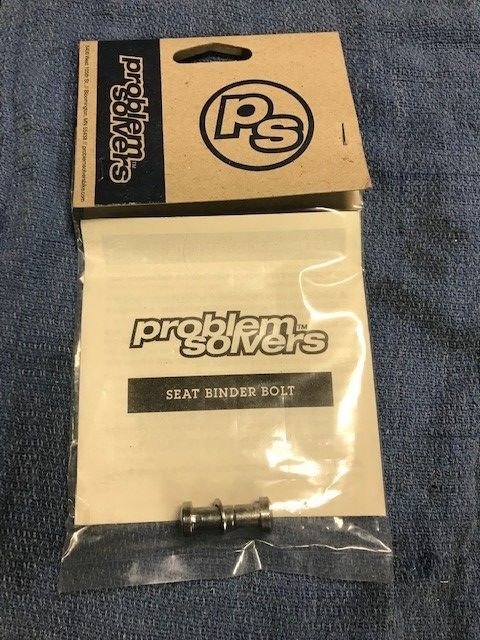

Just got the seat binder bolt last night. Fits perfectly. Now I just need a seatpost!

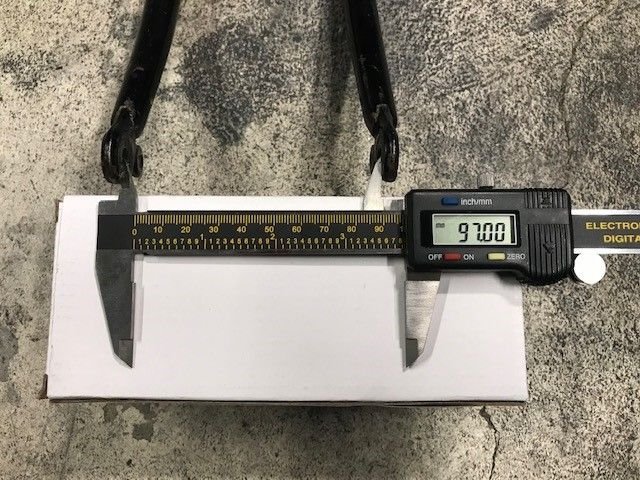

Also, here's the fork that came with it. It's not original but it's a Tange. Steerer tube is a bit long, but will see by how much once I get my headset. I did notice one thing though when test fitting a wheel. The spacing is bit narrow...not sure if this is normal or if there was a narrower standard. I did some other measurements and it's straight and square with not dents anything so not sure.
amerikaner is offline
Reply With Quote
Old 01-17-19, 07:25 PM
  #22
jlaw
Senior Member

Join Date: Mar 2018
Posts: 358

Bikes: 2015 Spec. AWOL Elite, 2007 Spec. Roubaix Elite, 2003 Spec. Big Hit 2, 1998 VooDoo Zobop, 1985 Trek 410, 1984 Trek 620

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 124 Post(s)

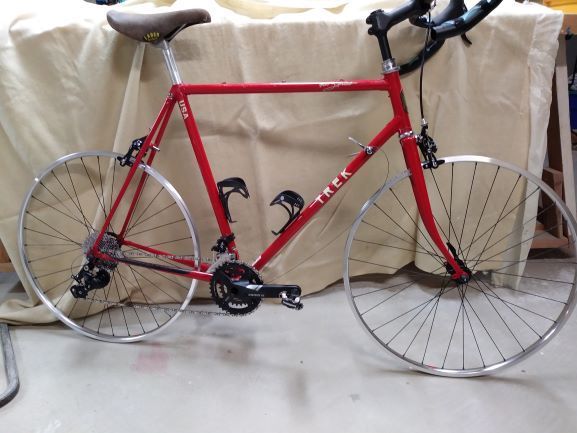

The 400 series has comfortable geometry with a sporty feel. I bought an '85 410 and took it down to frame/fork - kept the headset, seat, and seat post - installed modern components with 650b wheels and fenders - great all-arounder.

Have fun with yours!

jlaw is offline
Reply With Quote
Old 01-17-19, 08:18 PM
  #23
ramzilla
Senior Member

ramzilla's Avatar

Join Date: Dec 2014
Location: 1/2 Atlanta GA 1/2 Fernandina FL
Posts: 2,258

Bikes: Vintage Japanese Bicycles

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 348 Post(s)
I also had some serious seat tube issues with a Trek 400 series bike. A few years back I bought a 1984 Trek 420 Cirrus for cheap because of a stuck seat tube. It was a beautiful bike with a Reynolds 531 frame and cantilever brakes. But, it was in rough shape and - the seat tube was stuck. I stripped the bike down to the bare frame and put the seat post in a bench vise. Started twisting the frame back and forth. Decided to either bust the frame or break the post. Fortunately, the post broke free before the frame broke. Sandpapered the post and inside the seat tube. Greased everything up. Put it all back together. No worries since. Still own the bike. One of my favorite rides.
ramzilla is offline
Reply With Quote

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us Archive Advertising Cookie Policy Privacy Statement Terms of Service
