Spoke choice for Campy High Flange

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Spoke choice for Campy High Flange

Old 01-15-19, 11:16 PM
  #1
vintagerando
Senior Member
Thread Starter

Join Date: Mar 2015
Location: Connecticut
Posts: 1,950
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 432 Post(s)
Liked 18 Times in 15 Posts
Spoke choice for Campy High Flange

Has anyone recently re-laced a Campy High Flange with new spokes? I have little experience with building up a wheel; as a favor a mechanic from my LBS is going to do it with me. I was focusing in on either some Sapim or DT Swiss J bend spokes. But I haven't purchased yet. I came across an old post discussing that the bend on some modern spokes does not work well with old high flange hubs. So, before I pull trigger (and possibly buy the wrong spokes) does anyone have specific experience with high flange, and what brand did you buy?
Thanks.
__________________
1967 Frejus
1968 Peugeot PX-10
1983 Peter Mooney
1995 Waterford 1200
1996 Waterford 1200
2003 Dahon Speed P8
2013 Rawland Stag
2016 Giant Defy Advanced Pro 0
vintagerando is offline
Old 01-15-19, 11:40 PM
  #2
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 6,921

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 1637 Post(s)
Likes: 0
Liked 59 Times in 50 Posts
I've been using DT spokes on Campy (Edit: very high flanged) Tipos for years and am still running two pairs, both fronts. With a good even tension and a relieved build, I don't see any issues. I've always just figured that any spoke needs to be seated (ie gently bent) to sit correctly. Ride it, maybe a tweak on the truing in the first 1-200 miles.

I've never heard that caution but that might simply be that I don't talk wheelbuilding a lot. I just buy spokes in bulk, rims as needed and build. I break most of my spokes at the rims; I think in large part because I build wheels with more crosses and bigger hub flanges than the spokes holes are aligned for so many spokes take a slight bend at the nipple (with the threads acting as a crack starter). Even with that, I break so few spokes it is hardly an issue. And I use enough, always 32 or 35 that breaking one is never a ride ender. I use my winter wheel spokes through 3 rims before starting with fresh ones.

Ben
79pmooney is offline
Old 01-15-19, 11:45 PM
  #3
Reynolds 531
Senior Member

Join Date: Oct 2014
Location: Reno nevada
Posts: 247

Bikes: 4 Old school BMX, 6 Klunkers, 5 29er race bikes, 4 restored Sting Rays, Now 3 vintage steel bike being built up

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 92 Post(s)
Liked 3 Times in 3 Posts
I use Sapim and love them, especially for used hubs wherein the Campy holes have become enlarged.

I can add details tomorrow
Reynolds 531 is offline
Old 01-15-19, 11:59 PM
  #4
vintagerando
Senior Member
Thread Starter

Join Date: Mar 2015
Location: Connecticut
Posts: 1,950
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 432 Post(s)
Liked 18 Times in 15 Posts
The old spokes (40+ years) are an odd size; 307mm. I used an old Park Tools ruler that has a specific hole for hanging and measuring spokes. To match that exact length bumps the price from $1.00 to $1.40, at least on the Wheelbuilders site. Most sellers want to sell even length 306, 308 etc.
There is a seller on eBay that was recommended here on Bikeforums, "childhood_dreams", whom cuts custom lengths, very affordable but they spokes appear to have no brand-name. I plan to discuss with my buddy-mechanic before buying. I just wanted to figure out if there are specific brands recommended or not recommend to couple with high flange. Thanks to those that respond.
__________________
1967 Frejus
1968 Peugeot PX-10
1983 Peter Mooney
1995 Waterford 1200
1996 Waterford 1200
2003 Dahon Speed P8
2013 Rawland Stag
2016 Giant Defy Advanced Pro 0
vintagerando is offline
Old 01-16-19, 08:07 AM
  #5
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 5,308

Bikes: I'd rather not count how many, thank you

Mentioned: 146 Post(s)
Tagged: 0 Thread(s)
Quoted: 1008 Post(s)
Liked 16 Times in 11 Posts
The 650B wheels that Peter Chisholm (former owner of Vecchio's in Colorado) built for me were high flange and he used washers under the spoke heads.
Pete (Chromolly) has them now. I think.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Old 01-16-19, 08:13 AM
  #6
Fahrenheit531
50th Anniversary Edition

Fahrenheit531's Avatar

Join Date: Aug 2013
Location: Tucson, AZ
Posts: 3,455

Bikes: Schwinn Paramount ('71) and Volare ('78); Raleigh Competition GS ('79)

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 544 Post(s)
Liked 55 Times in 30 Posts
My Paramount is set up with Sapim butted spokes. Dunno if one particular ingredient is more important than the rest, but the Campy high-flange hub/Sapim spoke/H+Son TB-14 rim combination delivers a quality ride.
__________________
A race bike in any era is a highly personal choice that at its "best" balances the requirements of fit, weight, handling, durability and cost tempered by the willingness to toss it and oneself down the pavement at considerable speed. ~Bandera
Fahrenheit531 is offline
Old 01-16-19, 08:17 AM
  #7
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Fort Wayne, In
Posts: 25,633

Bikes: Too many to list here check my signature.

Mentioned: 94 Post(s)
Tagged: 2 Thread(s)
Quoted: 1265 Post(s)
Liked 39 Times in 30 Posts
You can't go wrong with DT, we used them all the time, I couldn't count how many wheels I laced and built with them. Does Wheelsmith still make spokes?

I used to enjoy wheel building and had some great guys to help me out. I learned to lace wheels first and I'd that and hand them off to one of the more experience guys to finish up. I slowly worked up to tensioning them and then handing off for finish work to doing everything on my own. However I only learned 3 cross and of course radil (which is harder when it comes to finishing the wheel) and sadly never learned the od patterns like 4 cross, crowsfoot or twisting spokes.
__________________
Bianchis '87 Sport SX, '90 Proto, '90 Campione del Fausto Giamondi Specialisma Italiano Mundo, '91 Boarala 'cross, '93 Project 3, '86 Volpe, '97 Ti Megatube, , '90 something Vento 603,

Others but still loved,; '80 RIGI, '80 Batavus Professional, '87 Cornelo, '09 Motobecane SOLD, '?? Jane Doe (still on the drawing board), '90ish Haro Escape
Bianchigirll is offline
Old 01-16-19, 09:54 AM
  #8
3alarmer
******

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 17,278

Bikes: old ones

Mentioned: 226 Post(s)
Tagged: 0 Thread(s)
Quoted: 14544 Post(s)
Liked 72 Times in 62 Posts
...I built up three sets of Campy high flange hubs earlier in the fall into wheels using DT spokes and Sun M 13ii rims. These were 700c rims, and at cross three they worked well with spokes that were 290 in the front and 289/290 in the back. There were no issues with the bend fitting the hub flange. I used no washers.

It is a little tougher to feed the spokes through the holes in one of these hubs to lace them, but it has nothing to do with the bend at the spoke head..

Unless you're building some kind of 630 rim, not a 622, that length sounds long to me, but I have no idea what you're using for a rim, and what cross pattern. But if you try to go to extreme in the cross pattern (like to cross 4), you can run into some issues with the spoke heads interfering with the run line of the spoke.

Last edited by 3alarmer; 01-16-19 at 09:57 AM.
3alarmer is offline
Old 01-16-19, 11:08 AM
  #9
3speedslow
Senior Member

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 7,272

Bikes: A few

Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 1240 Post(s)
Likes: 0
Liked 25 Times in 22 Posts
The bend of new spokes is put towards using new hubs, aluminium hubs. Some problems arise when you use new spokes which have a longer bend to lace older steel hubs. You should be okay if hubs are aluminium. Now, the issue of which is better for HF hubs, straight or DB spokes is another consideration.
3speedslow is offline
Old 01-16-19, 11:25 AM
  #10
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 4,890

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 106 Post(s)
Tagged: 0 Thread(s)
Quoted: 1715 Post(s)
Likes: 0
Liked 35 Times in 24 Posts
FWIW, 4 cross works just fine with campy high flange hubs. 4x was neither unusual or extreme when these hubs were popular.

It's IMO a mistake to use excessive spoke tension on vintage hubs.
Salamandrine is offline
Old 01-16-19, 11:56 AM
  #11
rickrob
Senior Member

Join Date: Aug 2015
Location: Metro West, Boston
Posts: 314

Bikes: 82 Univega Sportour, 88 Bridgestone RB3, 72 Raleigh Super Course, 75 Jeunet 620

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 71 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by vintagerando View Post
There is a seller on eBay that was recommended here on Bikeforums, "childhood_dreams", whom cuts custom lengths, very affordable but they spokes appear to have no brand-name. I plan to discuss with my buddy-mechanic before buying. I just wanted to figure out if there are specific brands recommended or not recommend to couple with high flange. Thanks to those that respond.
I buy all my spokes from childhood_dreams. I believe he uses Sapim exclusively. Every set I bought had Sapim decals included. He cuts to the nearest whole length, from 45mm to 309mm

Last edited by rickrob; 01-16-19 at 12:04 PM. Reason: Added info
rickrob is offline
Old 01-16-19, 12:04 PM
  #12
gugie
Crapmaster Emeritus

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 7,361

Bikes: JP Weigle'd Raleigh Competition reconstruct, 73 Raleigh Competition 650b'ed, 96 Bike Friday NWT, 83 Lotus Classique, 78 Centurion ProTour, 73 Raleigh Grand Sports

Mentioned: 775 Post(s)
Tagged: 0 Thread(s)
Quoted: 2215 Post(s)
Likes: 0
Liked 42 Times in 34 Posts
DT, Wheelsmith, Sapim, I've used them all. Anybody that prefers one over the other is either a professional wheelbuilder or likes to pick nits.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 01-16-19, 01:04 PM
  #13
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 6,921

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 1637 Post(s)
Likes: 0
Liked 59 Times in 50 Posts
Originally Posted by Bianchigirll View Post
You can't go wrong with DT, we used them all the time, I couldn't count how many wheels I laced and built with them. Does Wheelsmith still make spokes?

I used to enjoy wheel building and had some great guys to help me out. I learned to lace wheels first and I'd that and hand them off to one of the more experience guys to finish up. I slowly worked up to tensioning them and then handing off for finish work to doing everything on my own. However I only learned 3 cross and of course radil (which is harder when it comes to finishing the wheel) and sadly never learned the od patterns like 4 cross, crowsfoot or twisting spokes.
4 cross trues up just like 3 cross. Only difference is the lacing (and longer spokes). (And I'll argue the point that 4 cross is "odd" No, by my math, 3 cross is odd and 4 cross even!) Now, twisted spokes is just that; twisted.


gugie , 01-16-19 10:04 AM
DT, Wheelsmith, Sapim, I've used them all. Anybody that prefers one over the other is either a professional wheelbuilder or likes to pick nits.

I haven't used Sapims. (The ones that I've seen were a lot more expensive than DT. I break very few DTs so I see no reason to pay the extra cash and I build all my wheels and 4 cross so broken spokes are never a ride ender.) DT vs Wheelsmith is simply who has what when I need them. The past decade and a half, that has been DT, but if Wheelsmith gets into the shops I go to, my wheels will have them. It is not hard to make spokes that are strong and well made. (I do thoroughly enjoy lacing up wheels with exact lengths and depths of threading. I remember well my days of building race wheels with the galvanized (and cheap) Robergel Sports (that were as light as DT Revolutions). Strong. They built very good wheels but ... the lengths and depths of threading were all over the place, It took a long time to get the basic loose, evenly tensioned spokes with a wheel in the ballpark for true to start tightening and truing. And 3 spokes per set of wheels broke early on. Always. Once they were replaced, those wheels rolled on for many thousands of miles trouble free. Building my first Wheelsmith wheel was a joyous revelation. So fast to lace up and start! No broken spokes! Gleaming SS! And ultimate wheel life was the same.

Ben
79pmooney is offline
Old 01-16-19, 01:13 PM
  #14
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 4,890

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 106 Post(s)
Tagged: 0 Thread(s)
Quoted: 1715 Post(s)
Likes: 0
Liked 35 Times in 24 Posts
RE galvanized spokes - yeah, they were standard spokes once. I recall when stainless spokes were still viewed with some suspicion, and many people considered them to be excessively flashy. Some people felt zinc plated spokes were better. I don't remember what the rationale was, but there was one.

Don't forget Berg Union.

Last edited by Salamandrine; 01-16-19 at 01:35 PM.
Salamandrine is offline
Old 01-16-19, 02:53 PM
  #15
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Fort Wayne, In
Posts: 25,633

Bikes: Too many to list here check my signature.

Mentioned: 94 Post(s)
Tagged: 2 Thread(s)
Quoted: 1265 Post(s)
Liked 39 Times in 30 Posts
Originally Posted by 79pmooney View Post
4 cross trues up just like 3 cross. Only difference is the lacing (and longer spokes). (And I'll argue the point that 4 cross is "odd" No, by my math, 3 cross is odd and 4 cross even!) Now, twisted spokes is just that; twisted.
Ben
Well you know what I mean

I am not sure the purpose of this other than a super stiff funky looking wheel but..


I have a pair of 'crowsfoot' laced wheels that one 9of the great guiys at D&Q in So Jersey built for me. Hard to get a good pic of them so this from the 'net

__________________
Bianchis '87 Sport SX, '90 Proto, '90 Campione del Fausto Giamondi Specialisma Italiano Mundo, '91 Boarala 'cross, '93 Project 3, '86 Volpe, '97 Ti Megatube, , '90 something Vento 603,

Others but still loved,; '80 RIGI, '80 Batavus Professional, '87 Cornelo, '09 Motobecane SOLD, '?? Jane Doe (still on the drawing board), '90ish Haro Escape
Bianchigirll is offline
Old 01-16-19, 08:56 PM
  #16
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 20,429

Bikes: Several, mostly not name brands.

Mentioned: 110 Post(s)
Tagged: 0 Thread(s)
Quoted: 1697 Post(s)
Liked 63 Times in 43 Posts
For the last set of Record hubs I built up (last winter, actually), I used Sapim spokes and they were fine. But I've used DT, Wheelsmith, and even Robergel, Union, and Torrington over the years. I suspect you'll be fine with any decent quality spokes.
JohnDThompson is offline
Old 01-22-19, 02:39 PM
  #17
PeterLYoung
Senior Member

PeterLYoung's Avatar

Join Date: Mar 2014
Location: Southport, North Carolina, USA & Pevensey, East Sussex, UK
Posts: 211

Bikes: 1)1992 Trek 970, 2)2010 Trek 6500, 3)2012 Trek Fuel EX7. 4)1974 Colnago Super, 5)1955 Freddie Grubb Meteor. 6)1993 Airborne Ti-Hag Titanium. 7)1936 BSA 602DX Roadster. 8)1957 Philips P2 Sports. 9)1955 Dayton Roadmaster. 10)1948 Humber Clubman.

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 106 Post(s)
Liked 3 Times in 3 Posts
Had these wheels built by Strada Handbuilt Wheels in Worthing Sussex UK for a vintage Grubb racer. Ridden both sets since with no problems, never had to take them back for retentioning or any other problems.

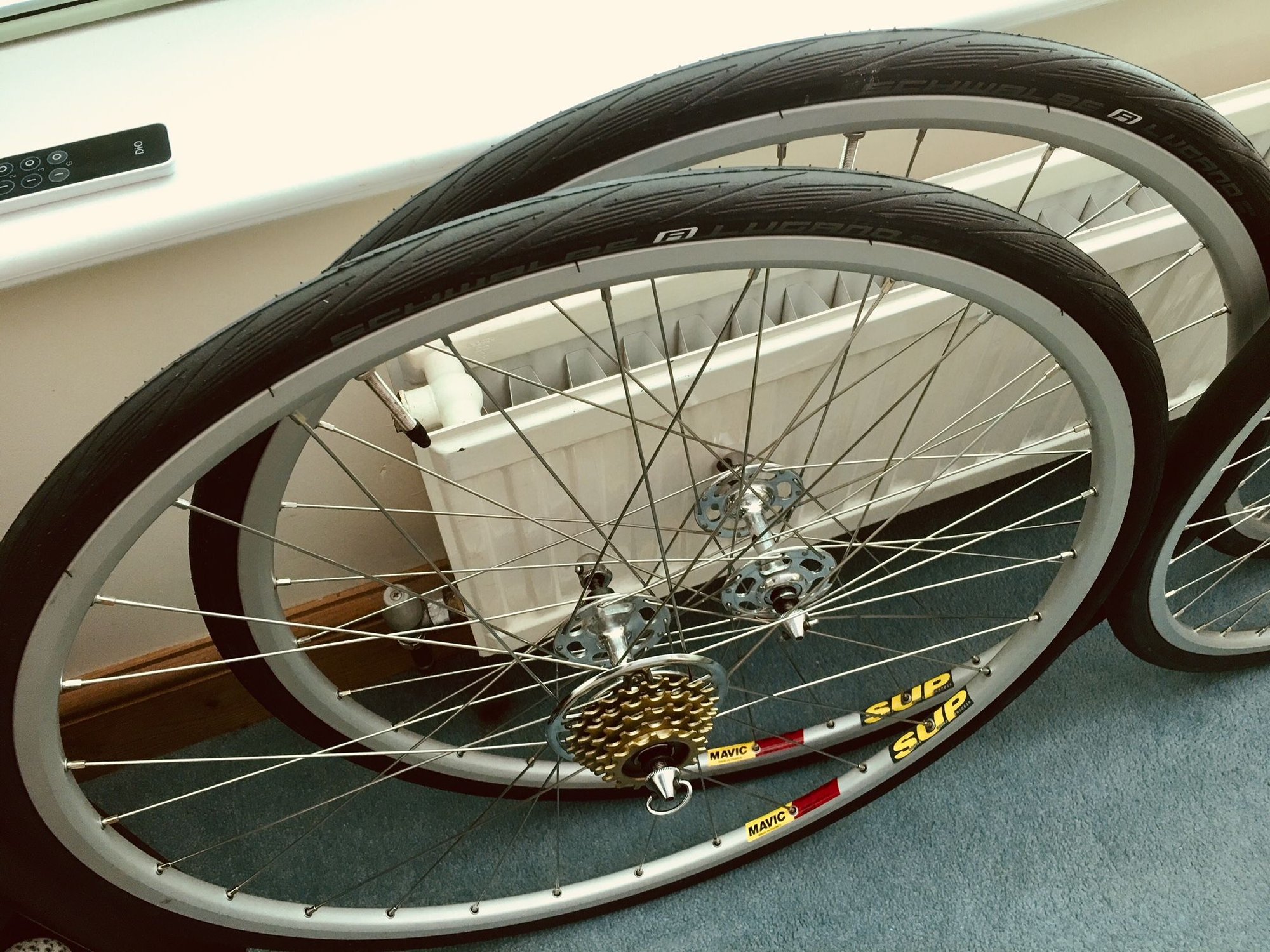

Vintage Campag Record Hubs have not been a problem either. Photos show them before they were ridden



NOS 700 Mavic Open SUP Rims, Record 28 spoke Rear Hub dated 1958 and never laced, Record 28 spoke Front Hub late 60's. SAPIM Double Butted SS Spokes



NOS 27" Weinmann LP18 Rims on late 60's 36 spoke Record Hubs, SAPIM Double butted SS Spokes

Last edited by PeterLYoung; 02-27-19 at 08:36 AM. Reason: Misspelling
PeterLYoung is offline
Old 01-23-19, 12:46 AM
  #18
gaucho777
Senior Member

gaucho777's Avatar

Join Date: Aug 2009
Location: Berkeley, CA
Posts: 6,323

Bikes: '72 Cilo Pacer, '72 Peugeot PX10, '73 Speedwell Ti, '74 Nishiki Competition, '74 Peugeot UE-8, '85 De Rosa Pro, '86 Look Equipe 753, '86 Look KG86, '89 Parkpre Team, '90 Parkpre Team MTB, '90 Merlin

Mentioned: 57 Post(s)
Tagged: 0 Thread(s)
Quoted: 393 Post(s)
Likes: 0
Liked 4 Times in 4 Posts
Do you know what size you need? This seller (https://www.ebay.com/sch/dennishchic...1&_ipg=&_from=) has a lot of nice vintage spokes (and other goodies) if you're interested in going that route. I've built hi-flange wheels with Robergel, DT, Sapin, Wheelsmith spokes, and maybe a couple others. I really like Robergel spokes--light weight, smooth tapers, excellent quality--but you have to be sure you get the correct (French-threaded) nipples. No experience building with Stella spokes (just using them), but that would be a good option for a vintage Italian bike/wheelset.
gaucho777 is offline
Old 01-23-19, 05:08 AM
  #19
Kabuki12
Senior Member

Kabuki12's Avatar

Join Date: Jan 2016
Location: Ventura County ,California
Posts: 416

Bikes: 1973 Windsor Profesional,1976 Kabuki diamond formula with full Campy, 1977 Raleigh Competition GS , 1971 Stella original Campy equip. 1978 Raleigh Super Grand Prix, 1972 Italvega Gran Rally ,1972 Super Mondia Special

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 96 Post(s)
Likes: 0
Liked 12 Times in 10 Posts
I have a set of record high flange hubs that came with Stella butted spokes. Quite a few miles on them and only had to true them once. They are dated 1971 and came off an early Frejus racer. I also have a set of Tipo hubs(1971) that I laced myself to Wienman 700's with butted spokes of unknown brand but Stainless Steel material. I think with all spokes when building wheels ( I am not an expert) you should seat the spoke at the hub end before tensioning or truing the wheel. That is what I was told by a local bike shop where I found the spokes(NOS). The head of the spoke usually lays pretty flat against the hub chamfer when seated properly. Joe
Kabuki12 is online now
Old 01-23-19, 05:38 AM
  #20
xetaprime
Senior Member

Join Date: Sep 2015
Location: Florida
Posts: 175
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 62 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I just built up a set of Campy NR low flange using DT Competition spokes 2mm. I'd read there wouldn't be a problem with the bends. Not sure the thickness of the high flange hubs but I had trouble with every spoke making the bend. Not really 'trouble', but I did have to gently bend each spoke. Didn't take long at all and after tensioning all seated perfectly.
xetaprime is offline
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
ada12
Electric Bikes
6
05-23-18 07:36 PM
Unknown Cyclist
Electric Bikes
4
04-25-10 05:52 PM
toyotaboy
Electric Bikes
3
10-18-09 01:54 PM
pengyou
Electric Bikes
0
04-05-08 08:47 PM
TexasGuy
Foo
19
02-02-07 06:02 AM

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
