"Italian" Chainstay Shift Cable Stops

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

"Italian" Chainstay Shift Cable Stops

Old 01-25-19, 10:52 AM
  #1
Hailstorm_7
Senior Member
Thread Starter

Hailstorm_7's Avatar

Join Date: Feb 2018
Posts: 51

Bikes: 2019 Trek Emonda SLR7 Disc, 2017 Advocate Cycles Sand County, 2016 Surly Disc Trucker, 2011 Specialized Tarmac SL3 Expert Double, 1996 Sancineto, 1989 Cinelli Corsa "Mens Sana," 1985 Peugeot PGN-10 Galibier

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
"Italian" Chainstay Shift Cable Stops

What is the best solution for dealing with (what I have come to call) Italian-style shift cable stops? Included is an example below from a Bianchi that I've been working to restore. It won't fit 4mm cable housing, let alone the caps to cover the ends of the housing, and using a cap with a long ferrule only causes that ferrule to bend (as the cap itself still isn't secured). Is there an accessory that we are missing? I have the same issue on a Cinelli for which I would love a solution. Thanks as always for the advice!

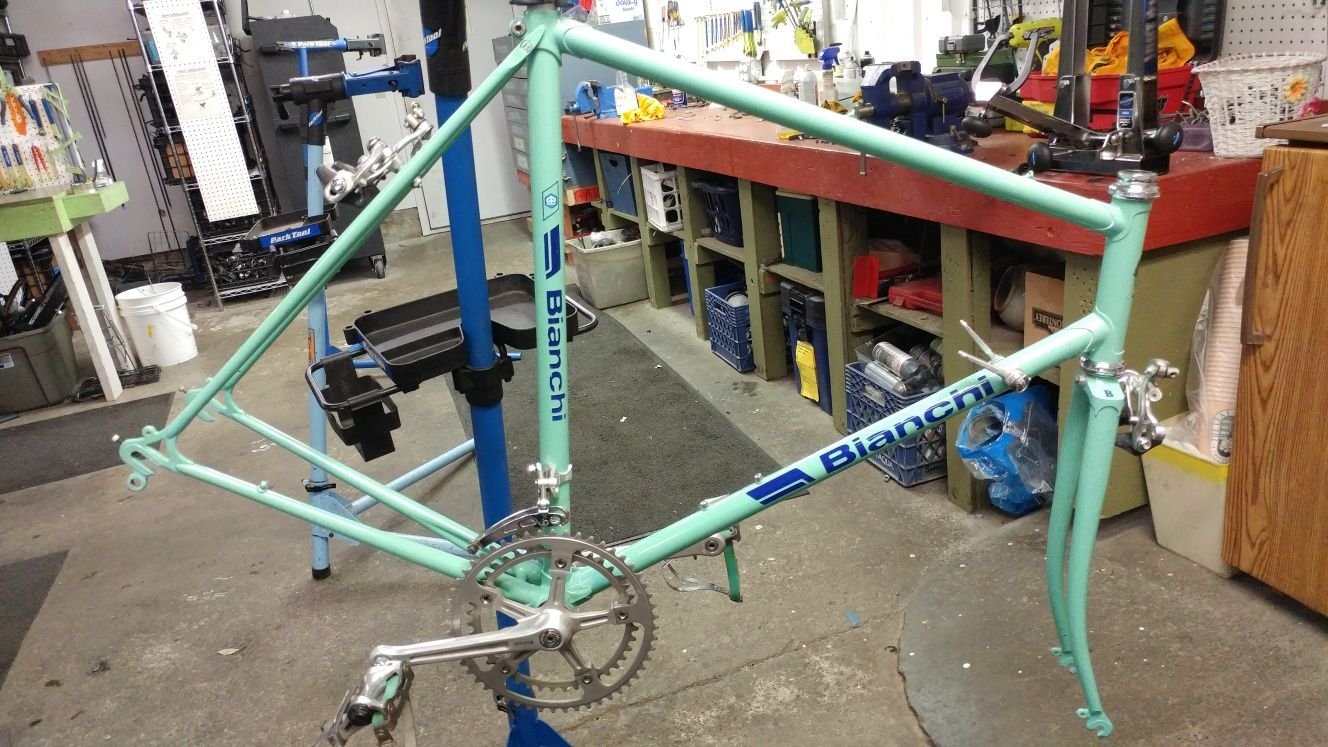

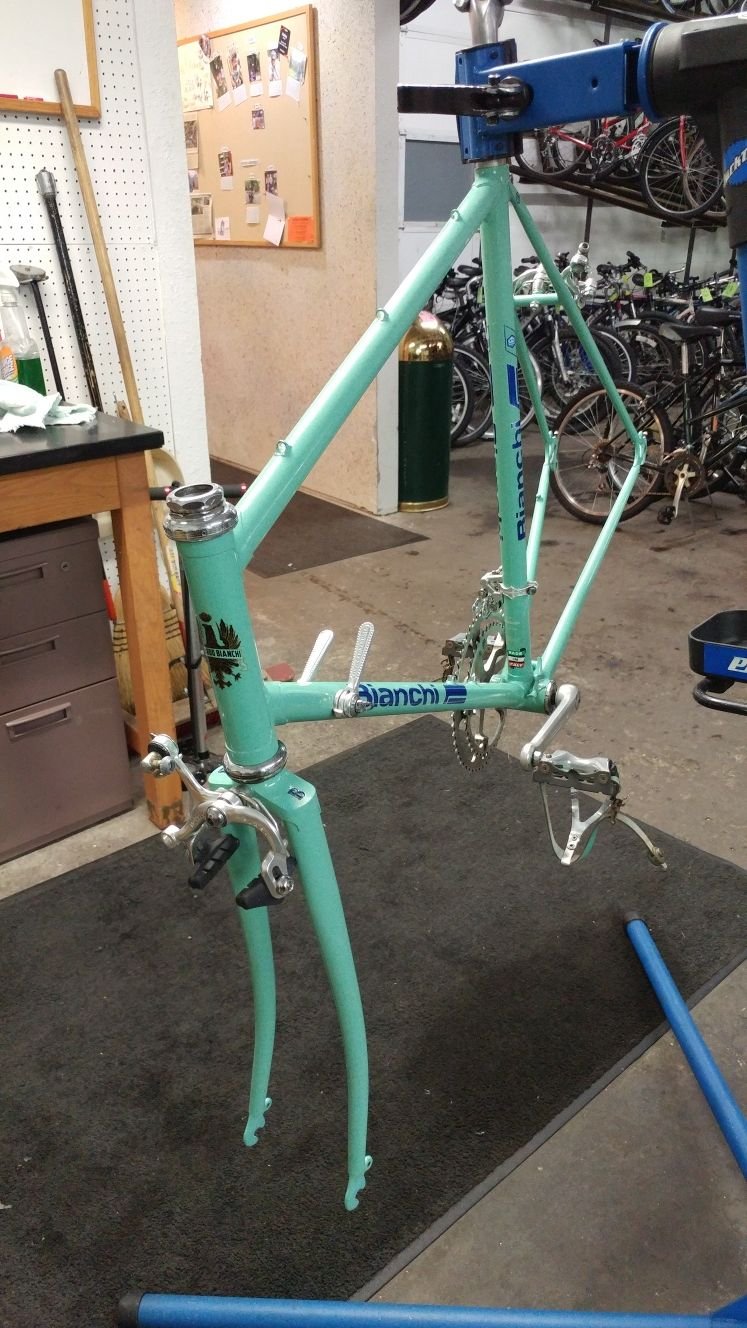

p.s., Bianchigirll, if you have a quick ID on the bike itself, that would certainly be appreciated. I can provide more photos/info as needed. Thanks!

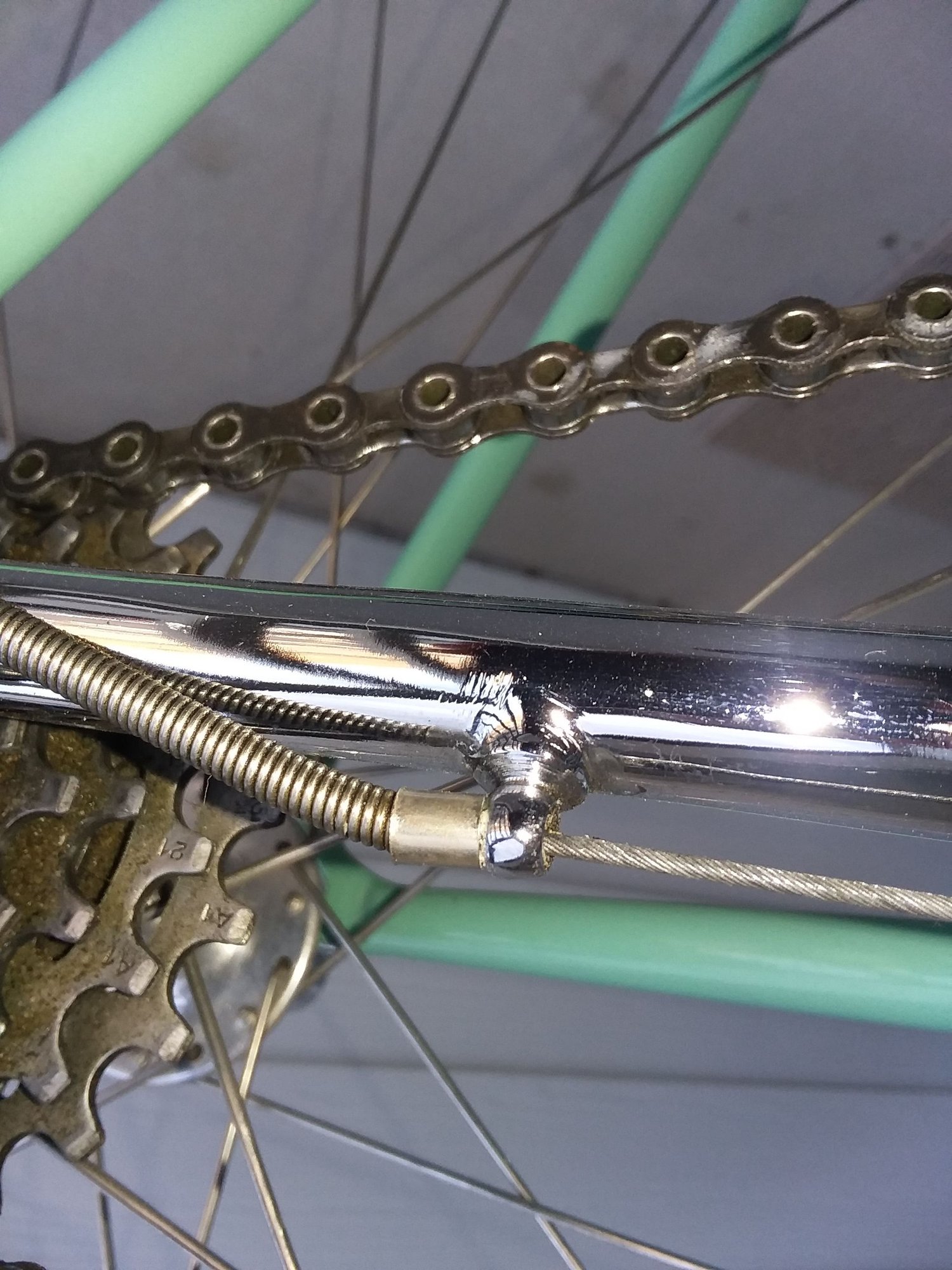

This style of cable stop here.

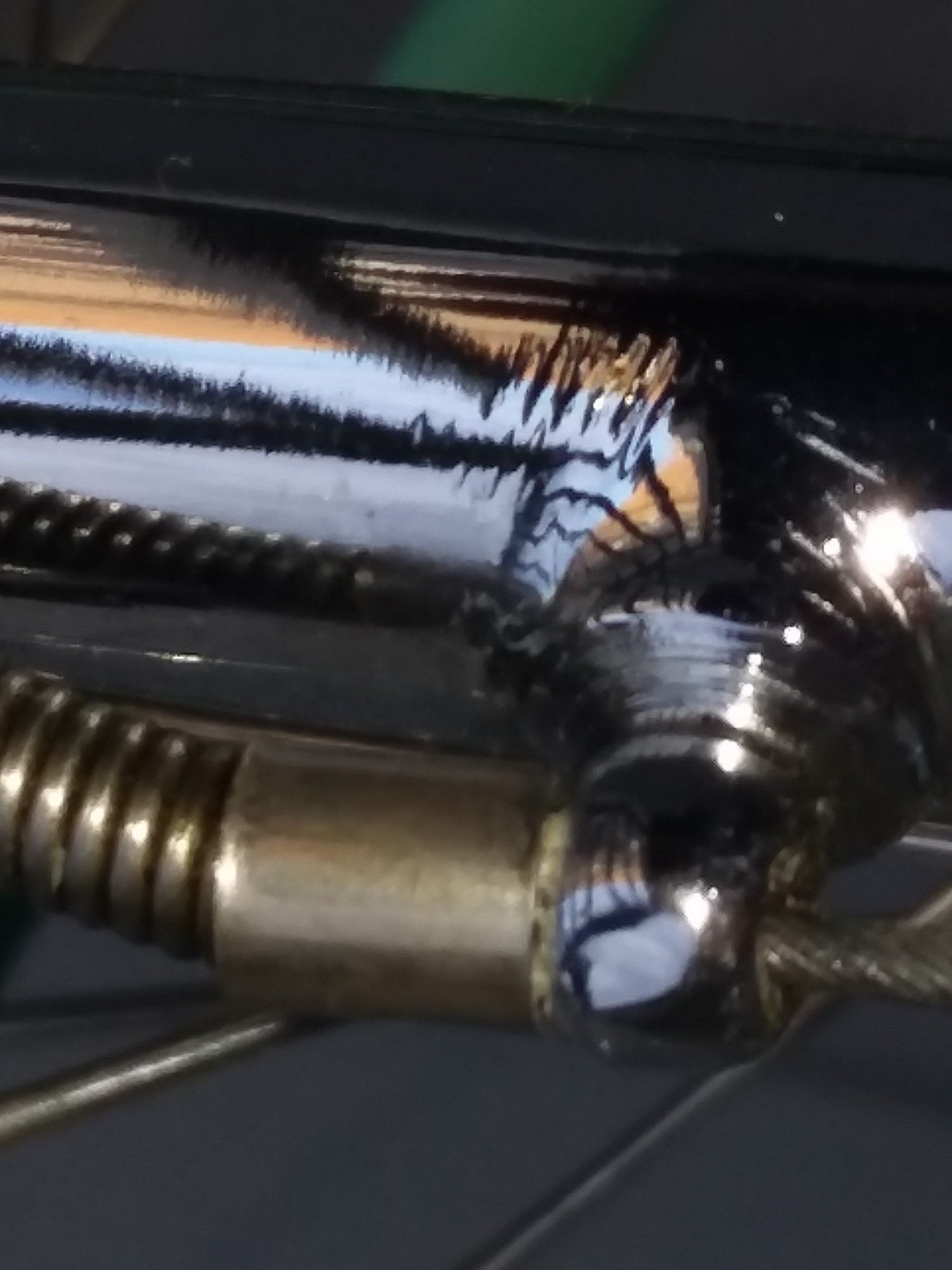

This style of cable stop here.



I'm assuming early to mid-80s.
Hailstorm_7 is offline
Old 01-25-19, 10:57 AM
  #2
Aubergine
Bad example

Join Date: Nov 2015
Location: Seattle and Reims
Posts: 2,947
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 771 Post(s)
Liked 16 Times in 13 Posts
You need to find a « step-down » ferrule. Just do a search on eBay or Amazon and you’ll find them.
__________________
Keeping Seattle’s bike shops in business since 1978
Aubergine is offline
Old 01-25-19, 10:57 AM
  #3
USAZorro
Señor Member

USAZorro's Avatar

Join Date: Oct 2004
Location: Florence, KY
Posts: 16,213

Bikes: Mostly English - predominantly Raleighs

Mentioned: 48 Post(s)
Tagged: 0 Thread(s)
Quoted: 695 Post(s)
Liked 8 Times in 8 Posts
Have you tried a step-down ferrule?
__________________
In search of what to search for.
USAZorro is offline
Old 01-25-19, 11:28 AM
  #4
Andy_K
Senior Member

Andy_K's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 12,053

Bikes: Yes

Mentioned: 287 Post(s)
Tagged: 0 Thread(s)
Quoted: 1736 Post(s)
Liked 15 Times in 14 Posts
This one will work. I'm willing to bet my reputation on it (it's a low stakes wager).



But seriously, that has been a perfect fit on every 80's Italian bike I've tried it with.
__________________
My Bikes
Andy_K is offline
Old 01-25-19, 12:03 PM
  #5
Piff
Senior Member

Piff's Avatar

Join Date: Nov 2013
Posts: 520
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 243 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Are these the right kind of ferrule to use for a 70s Raleigh Super Course? They also have small diameter cable stops.
Piff is offline
Old 01-25-19, 12:13 PM
  #6
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 5,302

Bikes: I'd rather not count how many, thank you

Mentioned: 146 Post(s)
Tagged: 0 Thread(s)
Quoted: 1007 Post(s)
Liked 16 Times in 11 Posts
Why yes, yes they are.
Also used on Shimano systems, quite frequently.
Hailstorm, if you need a couple and your LBS is unhelpful, PM me. I have a jar full, happy to mail you some.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Old 01-25-19, 12:30 PM
  #7
Random Tandem
Senior Member

Random Tandem's Avatar

Join Date: Oct 2014
Location: Vancouver, Canada
Posts: 137

Bikes: Disc-Brake Sturmey-Archer S5 Hub All-Weather Commuter, 1970's Sekine, 1980's Kuwahara Tandem, plus a few dozen

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 44 Post(s)
Liked 1 Time in 1 Post
Sometimes I have had to use the steel stepped ferrules from old Raleigh 3-speeds to fit into vintage small diameter cable stops. Perhaps that would work for you in this case. Easy to find at a bike co-op...

-Will
Random Tandem is offline
Old 01-25-19, 01:21 PM
  #8
Bianchi84
Senior Member

Bianchi84's Avatar

Join Date: Feb 2017
Location: Concord, NC
Posts: 196

Bikes: 1984 Bianchi Tipo Corsa, 1985 Cannondale SM600 (24/26)

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 50 Post(s)
Liked 2 Times in 2 Posts
Mine uses the original (Campagnolo?) steel cable/ferrule assembly. I'm not sure if these are still made; those I've seen on sale at "auction" have been a little pricey.
(Looks like I need to clean that drivetrain a little!!)

Bianchi84 is offline
Old 01-25-19, 01:30 PM
  #9
rhm
multimodal commuter

rhm's Avatar

Join Date: Nov 2006
Location: NJ, NYC, LI
Posts: 19,071

Bikes: 1940s Fothergill, 1959 Allegro Special, 1963? Claud Butler Olympic Sprint, Lambert 'Clubman', 1974 Fuji "the Ace", 1976 Holdsworth 650b conversion rando bike, 1983 Trek 720 tourer, 1984 Counterpoint Opus II, 1993 Basso Gap, 2010 Downtube 8h, and...

Mentioned: 438 Post(s)
Tagged: 0 Thread(s)
Quoted: 1537 Post(s)
Likes: 0
Liked 9 Times in 9 Posts
Gugificazione?
__________________
I put new leather on ruined saddles like Brooks, etc. You can reach me by private message.
rhm is offline
Old 01-25-19, 03:24 PM
  #10
Hailstorm_7
Senior Member
Thread Starter

Hailstorm_7's Avatar

Join Date: Feb 2018
Posts: 51

Bikes: 2019 Trek Emonda SLR7 Disc, 2017 Advocate Cycles Sand County, 2016 Surly Disc Trucker, 2011 Specialized Tarmac SL3 Expert Double, 1996 Sancineto, 1989 Cinelli Corsa "Mens Sana," 1985 Peugeot PGN-10 Galibier

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by rccardr View Post
Hailstorm, if you need a couple and your LBS is unhelpful, PM me. I have a jar full, happy to mail you some.
I will definitely keep the offer in mind. Thank you!
Hailstorm_7 is offline
Old 01-25-19, 04:28 PM
  #11
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,812
Mentioned: 430 Post(s)
Tagged: 1 Thread(s)
Quoted: 2469 Post(s)
Likes: 0
Liked 57 Times in 53 Posts
The bicycle looks like a Bianchi Nuovo Racing, circa 1982-1984. Serial number?
T-Mar is offline
Old 01-25-19, 07:11 PM
  #12
repechage
Senior Member

Join Date: Jun 2006
Posts: 13,341
Mentioned: 77 Post(s)
Tagged: 0 Thread(s)
Quoted: 936 Post(s)
Likes: 0
Liked 13 Times in 11 Posts
Originally Posted by Andy_K View Post
This one will work. I'm willing to bet my reputation on it (it's a low stakes wager).



But seriously, that has been a perfect fit on every 80's Italian bike I've tried it with.
That one may not fit. the cable stop was originally sold through Campagnolo, those others copied. Campy made a step down plated brass ferrule, the Campy small end looks of smaller OD than the aluminum one pictured.
repechage is offline
Old 01-25-19, 07:30 PM
  #13
Andy_K
Senior Member

Andy_K's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 12,053

Bikes: Yes

Mentioned: 287 Post(s)
Tagged: 0 Thread(s)
Quoted: 1736 Post(s)
Liked 15 Times in 14 Posts
Originally Posted by repechage View Post
That one may not fit. the cable stop was originally sold through Campagnolo, those others copied. Campy made a step down plated brass ferrule, the Campy small end looks of smaller OD than the aluminum one pictured.
Not to argue, but to provide more information, I've used the Shimano step-down ferrule on a 1976 Austro Daimler Ultima, a 1982 Specialized Sequoia, a 1984 Pinarello Gran Turismo, a 1987 Pinarello Montello, and a 1987 Serotta Colorado, all with visually identical diver's helmet cable stops, and it fit perfectly on all of them. I have a 1969 Raleigh Competition and a 1973 Raleigh International where the fit was a little loose but acceptable, and a 1982 Trek where I had to use a zip tie to keep the cable entry angle stable. The cable stop on the Trek has a significantly larger opening (maybe should have a step down at all) and is obviously different visually. I can provide pictures or measurements if that would be helpful. I think I also have the Campy ferrule in question, so if I can find that in my parts drawer I might be able to offer a comparison. If you can find it locally, the Shimano piece costs less than $2 so it's a pretty low risk item.
__________________
My Bikes
Andy_K is offline
Old 01-25-19, 09:27 PM
  #14
Andy_K
Senior Member

Andy_K's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 12,053

Bikes: Yes

Mentioned: 287 Post(s)
Tagged: 0 Thread(s)
Quoted: 1736 Post(s)
Liked 15 Times in 14 Posts
Originally Posted by T-Mar View Post
The bicycle looks like a Bianchi Nuovo Racing, circa 1982-1984. Serial number?
I would have said Bianchi Limited based on the fork crown.
__________________
My Bikes
Andy_K is offline
