Which would you choose for 126 Rear Hub, Freewheel or Cassette?

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Which would you choose for 126 Rear Hub, Freewheel or Cassette?

Reply

Old 02-03-19, 03:21 PM
  #1
shuru421
Senior Member
Thread Starter

Join Date: Aug 2012
Posts: 626
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 233 Post(s)
Which would you choose for 126 Rear Hub, Freewheel or Cassette?

After doing some research, Im planning on doing a 7 speed hub + 8 speed Campagnolo Ergo + 8 speed Campagnolo rear derailleur for my 126mm road bike.
Not many Campagnolo 7 speed (126) cassette hubs are available which is leaning me towards the freewheel version as it would be nice to keep all Campagnolo.
On the other hand, Shimano has many 7 speed (126) hubs both in cassette and freewheel versions available. Both in uniglide, hyperglide and or both UG/HG compatible.
So question is,
Do either one (cassette or freewheel) offer any advantages/disadvantages or are they literally the same (since its 7 speed, literally).
And if I were to go with Shimano cassette, Im guessing UG/HG compatible one would be best? Why are Shimano 1055 and other models more popular than Dura-Ace 7 speed cassette/freewheel hubs?
shuru421 is offline
Reply With Quote
Old 02-03-19, 03:26 PM
  #2
Bandera
Hiatus

Join Date: Mar 2013
Location: TX Hill Country
Posts: 5,606
Mentioned: 80 Post(s)
Tagged: 0 Thread(s)
Quoted: 946 Post(s)
Cassette, at 126 spacing and 7 cogs FWs were obsolete.
If you don't want a stronger axle and easy to change gearing go FW, otherwise Shimano cassette.

105 or Ultegra cassettes vs DA, much lower price and indistinguishable shifting performance.

-Bandera
__________________
'74 Raleigh Internat'l. '77 Trek TX900 FG. '90 Vitus 979. '10 Merckx EMX3. '13 Soma Stanyan
Bandera is offline
Reply With Quote
Old 02-03-19, 04:00 PM
  #3
masi61
Senior Member

masi61's Avatar

Join Date: Oct 2005
Location: SW Ohio
Posts: 1,933

Bikes: Puch Marco Polo, Saint Tropez, Masi Gran Criterium

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 340 Post(s)
Originally Posted by shuru421 View Post
After doing some research, Im planning on doing a 7 speed hub + 8 speed Campagnolo Ergo + 8 speed Campagnolo rear derailleur for my 126mm road bike.
Not many Campagnolo 7 speed (126) cassette hubs are available which is leaning me towards the freewheel version as it would be nice to keep all Campagnolo.
On the other hand, Shimano has many 7 speed (126) hubs both in cassette and freewheel versions available. Both in uniglide, hyperglide and or both UG/HG compatible.
So question is,
Do either one (cassette or freewheel) offer any advantages/disadvantages or are they literally the same (since its 7 speed, literally).
And if I were to go with Shimano cassette, Im guessing UG/HG compatible one would be best? Why are Shimano 1055 and other models more popular than Dura-Ace 7 speed cassette/freewheel hubs?
I would look for a nice Shimano 7 speed UG/HG rear hub. The wheel bearings ride in the outer part of the freehub body moving the bearings further out for increased strength. The advantage of having a combination freehub body is that you can use inexpensive HG 7 speed cassettes. The Uniglide 7 speed cassettes still shift quite nice in my opinion and you never know, you might find a source for some - just keep your eyes open. The shift ramps on HG cassettes are usually considered better performing than the UG. Both styles use individual cogs, so building up custom combinations is possible. I’ve also read that UG cogs are the longest lasting since all but the threaded smallest sprocket is flip-able for double the life (any scalloping of the tooth profile would not cause skipping if the cog was flipped and the damage was on the trailing edge and no longer critical for chain engagement.

You mention that the 1055 and other HG ready 7 speed freehubs are more popular than the gorgeous, polished Dura Ace 7400 7-speed freehub. The good news is that this perception exists, yes. For you, this means that if you keep your eyes open you might come across a deal on a Dura Ace 7400 Uniglide hub. These are Uniglide only though which is another reason for the decreased demand. Used ones pop up pretty often on eBay, and sometimes the seller will include the matching Dura Ace cassette. I built up my 126mm Saint Tropez commuter bike wheels with the Dura Ace 7400 28 hole hub onto some DT Swiss RR1.1 rims and it built a nice, strong wheel. The 7-speed Uniglide cassette indexes well with a used 105SC GS rear derailleur and 105SC down-tube braze-on shift levers that I have mounted on MicroShift (now called Gevenalle) shift pods for a very reliable 3x7 drivetrain.

There were Shimano mountain hubs that could be outfitted with 137mm Wheels Manufacturing chromoly replacement axles, effectively converting them to 126 space road use. Deore, Deore LX, and Deore XT all came out with combo UG/HG freehub bodies for a year or two and are worth seeking out. I would have to look up the version numbers of these 7 speed Deore versions. The Deore XT hubs we’re near Dura Ace quality and came in polished silver or black anodized. They used the same design of bearing seals as Dura Ace. These bearing seals permit using a micro grease gun to service the bearings a bit without a full rebuild.

So with regard to your Campagnolo shifter/rear derailleur choice are you using 8 speed Campy? I heard that these pull 5mm per click which is the same as the Shimano 7 speed spacing (5.0mm).
masi61 is offline
Reply With Quote
Old 02-03-19, 04:02 PM
  #4
noobinsf
Senior Member

Join Date: Sep 2005
Location: Oakland, CA
Posts: 1,024

Bikes: '04 Felt SR91, '82 Univega Competizione, '72 Motobecane Grand Record, '72 Puch Bergmeister

Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 269 Post(s)
I built up a 7-speed cassette on a 126 hub so I could have the smaller 12-tooth cog as the highest gear, allowing smaller chainrings for similar gearing. New and affordable freewheels will most commonly get you a 14-tooth small cog, sometimes 13.
noobinsf is offline
Reply With Quote
Old 02-03-19, 04:54 PM
  #5
wrk101
Thrifty Bill

wrk101's Avatar

Join Date: Jan 2008
Location: Mountains of Western NC
Posts: 21,739

Bikes: 86 Katakura Silk, 87 Prologue X2, 88 Cimarron LE, 1975 Sekai 4000 Professional, 73 Paramount, plus more

Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 566 Post(s)
UG = big mistake. Early HG, which still has UG threads on it, would be fine. Check out what NOS UG cassettes are going for on eBay. Its only going to get worse. Never build a wheel with totally obsolete sizing for consumables.
wrk101 is offline
Reply With Quote
Old 02-03-19, 05:00 PM
  #6
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 14,507

Bikes: A bunch of old bikes and a few new ones

Mentioned: 89 Post(s)
Tagged: 0 Thread(s)
Quoted: 3376 Post(s)
Cassettes are a better design as others have pointed out. The advantage of freewheels with a 126 mm rear wheel is that is the way most of them came and there is a lot of supply out there in terms of old parts.
bikemig is offline
Reply With Quote
Old 02-03-19, 05:11 PM
  #7
top506
Death fork? Naaaah!!

top506's Avatar

Join Date: Nov 2005
Location: The other Maine, north of RT 2
Posts: 4,513

Bikes: '71 Gitane Super Corsa, '73 Atala Giro d'Italia, '73 Schwinn Super Sport, '76 Viscount Aerospace Pro, '81 Miyata 710, '84 Ross Signature 290s, '85 Miele Gara, '87 Miyata 512, '89 Centurion Ironman, many more

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 255 Post(s)
Originally Posted by wrk101 View Post
UG = big mistake. Early HG, which still has UG threads on it, would be fine.
This. They can be had high-end (Dura Ace FH-7402)) or low end (Exage HG 50). I run both.

Top
__________________
You know it's going to be a good day when the stem and seatpost come right out.

(looking for a picture and not seeing it? Thank the Photobucket fiasco.PM me and I'll link it up.)
top506 is offline
Reply With Quote
Old 02-03-19, 06:54 PM
  #8
repechage
Senior Member

Join Date: Jun 2006
Posts: 13,164
Mentioned: 73 Post(s)
Tagged: 0 Thread(s)
Quoted: 867 Post(s)
Originally Posted by wrk101 View Post
UG = big mistake. Early HG, which still has UG threads on it, would be fine. Check out what NOS UG cassettes are going for on eBay. Its only going to get worse. Never build a wheel with totally obsolete sizing for consumables.
Cogs can be modified to fit the earlier hubs, but agreed, don't buy into a problem.
repechage is offline
Reply With Quote
Old 02-03-19, 07:43 PM
  #9
shuru421
Senior Member
Thread Starter

Join Date: Aug 2012
Posts: 626
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 233 Post(s)
Originally Posted by masi61 View Post
There were Shimano mountain hubs that could be outfitted with 137mm Wheels Manufacturing chromoly replacement axles, effectively converting them to 126 space road use. Deore, Deore LX, and Deore XT all came out with combo UG/HG freehub bodies for a year or two and are worth seeking out. I would have to look up the version numbers of these 7 speed Deore versions. The Deore XT hubs we’re near Dura Ace quality and came in polished silver or black anodized. They used the same design of bearing seals as Dura Ace. These bearing seals permit using a micro grease gun to service the bearings a bit without a full rebuild.

So with regard to your Campagnolo shifter/rear derailleur choice are you using 8 speed Campy? I heard that these pull 5mm per click which is the same as the Shimano 7 speed spacing (5.0mm).
Its interesting you brought up the Deore freehub bodies..
There is a a wheelset which is Shimano RX100 with Deore freehub body and I wondered why this was..he is asking 100 for it which had me thinking it might be a great/cost effective option, and you are also clarifying the positives in this 'hub body change' method. Should I buy it and run new rims on it?

And yes, I am planning on running 8 speed Campy with 7 speed Shimano cassette because of the compatibility.
shuru421 is offline
Reply With Quote
Old 02-04-19, 10:58 AM
  #10
shuru421
Senior Member
Thread Starter

Join Date: Aug 2012
Posts: 626
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 233 Post(s)
Originally Posted by top506 View Post
This. They can be had high-end (Dura Ace FH-7402)) or low end (Exage HG 50). I run both.

Top
They were available in HG for the Dura Ace FH-7402??\
shuru421 is offline
Reply With Quote
Old 02-04-19, 11:11 AM
  #11
masi61
Senior Member

masi61's Avatar

Join Date: Oct 2005
Location: SW Ohio
Posts: 1,933

Bikes: Puch Marco Polo, Saint Tropez, Masi Gran Criterium

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 340 Post(s)
Originally Posted by shuru421 View Post
They were available in HG for the Dura Ace FH-7402??\
The 7402 was Uniglide only. You’ll need a 7403 freehub body in order to run HG cassettes in 8,9 or 10 speeds. Unfortunately these are becoming hard to find. Someone on these forums called them a white Unicorn. They swap out easily using the correct splined Shimano removal tool. The 7402/7403 rear hubs were made with something like 128.5mm locknut to locknut spacing. These were a transitional design to the current 130mm standard. The thinking was that you could spread the dropouts slightly on your 126mm frame to fit. The non-driveside locknut was domed slightly to permit slightly skewed clamping in the dropouts for less than perfect fits. This was to prevent axle flexing for less than perfect fits.
masi61 is offline
Reply With Quote
Old 02-04-19, 12:06 PM
  #12
top506
Death fork? Naaaah!!

top506's Avatar

Join Date: Nov 2005
Location: The other Maine, north of RT 2
Posts: 4,513

Bikes: '71 Gitane Super Corsa, '73 Atala Giro d'Italia, '73 Schwinn Super Sport, '76 Viscount Aerospace Pro, '81 Miyata 710, '84 Ross Signature 290s, '85 Miele Gara, '87 Miyata 512, '89 Centurion Ironman, many more

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 255 Post(s)
Yeah, 7403. My bad.

Top
__________________
You know it's going to be a good day when the stem and seatpost come right out.

(looking for a picture and not seeing it? Thank the Photobucket fiasco.PM me and I'll link it up.)
top506 is offline
Reply With Quote
Old 02-04-19, 12:23 PM
  #13
jcb3
Senior Member

jcb3's Avatar

Join Date: Sep 2014
Location: Irvine, CA
Posts: 523

Bikes: 1983 Trek 700, 1972 Peugeot PX10, 1989 Nishiki Cascade, 2014 Focus Izalco

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 103 Post(s)
It looks like our pal at loose screws is making 12t uniglide threaded cogs (34.6mm)

the others can be easily made to fit with a dremel - I’m running uniglide on 120 old bikes
jcb3 is offline
Reply With Quote
Old 02-04-19, 01:04 PM
  #14
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 6,320

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 450 Post(s)
I'll go on record saying that Shimano freehubs were offered in 126mm and 130mm, but nothing in between.
The 8s hubs of the transition era had cone-shaped locknuts however, to facilitate installation into narrower frame spacings, and many frames from that era did spec at 128mm dropout spacing.

Uniglide is the best thing for friction-shifting. Where it becomes a problem is when any kind of indexed handlebar-mounted shifter is used, since the unpredictable slippage under load during shifting while off of the saddle can stress one's legs and can be hazardous in terms of controlling the bike. Thus Hyperglide became a necessity when STI and Ergo levers came into use on road bikes.

The smallest threaded Uniglide cog is a critical wear item that can turn up scarce on the market. Great to hear that someone might be producing these again!

I did many HG freehub-body swaps back in the day. All cones, seals and related hardware from the driveside of the axle should be replaced with those intended for use with the new freehub body.
Note there are many freehub body variants that position the cogs differently relative to the hub flange, this because the hubshells have their own differences in this regard. Not something to be ignored as it's not trivial at all, canbe a couple of millimeters at least and will affect wheel dish and even the overall width across the dropouts. So any change-outs must be measured up carefully or test-fitted and checked out before final assembly.
Dura-Ace cassettes, at least in the early 8s era, used a smaller threading diameter to fit on a stepped-down threaded snout on the freehub body. This as I recall was to allow use of 11t cogs that today are most scarce. Even the 12t and 13t smallest cogs can be hard to find.

Freehubs are superior to any freewheel hub that uses a 10mm axle since the flexing axle can break your frame's dropout (a common end-of-life scenario for many a frame).
Don't use 10mm axle freewheel hubs on any frame that is dear and precious if you (combined effects) 1) have heavy total load on rear wheel, 2) use your bike in tough conditions such as off-road, 3) use small chainring sizes and 4) use wider freewheels.

Last edited by dddd; 02-04-19 at 01:11 PM.
dddd is offline
Reply With Quote
Old 02-04-19, 01:15 PM
  #15
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 39,649

Bikes: 8

Mentioned: 167 Post(s)
Tagged: 0 Thread(s)
Quoted: 6197 Post(s)
I have used a Phil Wood Freewheel hub with 126 axle assemblies , on my Touring Bike .. very reliable.. I built up wheels from that 48 hole hub..

increasing its reliability..




....
fietsbob is offline
Reply With Quote
Old 02-04-19, 01:34 PM
  #16
USAZorro
Señor Member

USAZorro's Avatar

Join Date: Oct 2004
Location: Florence, KY
Posts: 16,104

Bikes: Mostly English - predominantly Raleighs

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 662 Post(s)
Freewheel for me at 126... that said, I've been known to spread 126 to 130, and go with the cheap and ubiquitous 9 speed cassette. I think I'm up to 4 bikes that were initially 126, but are now 130.
__________________
In search of what to search for.
USAZorro is offline
Reply With Quote
Old 02-04-19, 03:39 PM
  #17
Spaghetti Legs
Senior Member

Join Date: Dec 2014
Location: Central Virginia
Posts: 3,067

Bikes: Numerous

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 730 Post(s)
If this is a steel bike, why not just use a Campy 8 speed cassette hub? I have 2 bikes that are 126 spaced with Campy 8 speed groups, including a near and dear to me De Rosa. You would get the benefits of IMO the best all around looking and performing Campy groups and not have to worry about kludging together different compatibilities.
__________________
N = '96 Colnago C40, '04 Wilier Alpe D'Huez, '10 Colnago EPS, '85 Merckx Pro, '89 Merckx Century, '85 Moser, '86 Tommasini Professional, '04 Teschner Aero FX Pro, '05 Alan Carbon Cross, '86 De Rosa Professional, '82 Colnago Super, '95 Gios Compact Pro, '95 Carrera Zeus, '84 Basso Gap, ‘89 Cinelli Supercorsa
Spaghetti Legs is offline
Reply With Quote
Old 02-04-19, 04:29 PM
  #18
shuru421
Senior Member
Thread Starter

Join Date: Aug 2012
Posts: 626
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 233 Post(s)
Look what the wind blew in..(it was pretty windy over in my area..)

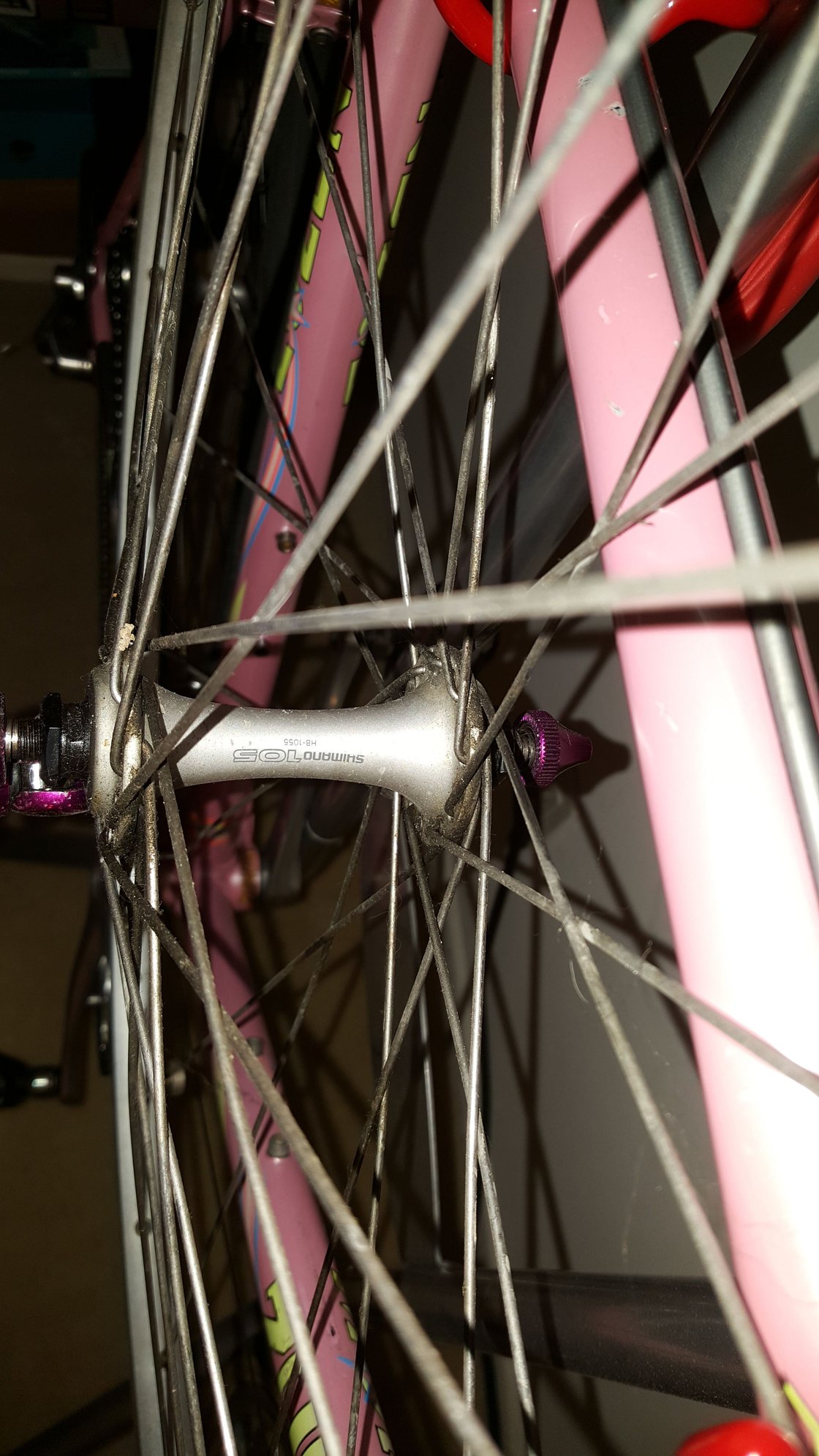

I went through my garage and found these wheelsets just hanging around.
So I did some research but can't figure out if these were the 126mm or the 130mm versions..
Its currently laced so my measurements with a measuring tape is a bit hard to distinguish 100% 126..
But what I do see that this is HG Shimano hub (which Ive been looking for) and also a 7 speed cassette (which Ive also been looking for).
From the pictures, could anyone confirm if this is indeed 126mm or a 130mm?





shuru421 is offline
Reply With Quote
Old 02-04-19, 04:37 PM
  #19
noobinsf
Senior Member

Join Date: Sep 2005
Location: Oakland, CA
Posts: 1,024

Bikes: '04 Felt SR91, '82 Univega Competizione, '72 Motobecane Grand Record, '72 Puch Bergmeister

Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 269 Post(s)
Well, couldn't be better -- Velobase says these are 126mm hyperglide.

VeloBase.com - Component: Shimano FH-1055 / HB-1055, 105SC
noobinsf is offline
Reply With Quote
Old 02-04-19, 04:41 PM
  #20
shuru421
Senior Member
Thread Starter

Join Date: Aug 2012
Posts: 626
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 233 Post(s)
I also found these as well..
Ironically, Ive been debating a freewheel or cassette..
So Im assuming (if its true) the freewheel is a Shimano Dura-Ace threaded on an Italian thread freewheel and not just a Dura-Ace last cog threaded on?
I remember buying these years ago, I believe it was Record hubs(?) laced to Omega Tubulars. No idea which year the hubs are from..
So given all checks out, I can potentially also use these with provided 7 speed Dura-Ace freewheel yes?




shuru421 is offline
Reply With Quote
Old 02-04-19, 04:43 PM
  #21
Spaghetti Legs
Senior Member

Join Date: Dec 2014
Location: Central Virginia
Posts: 3,067

Bikes: Numerous

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 730 Post(s)

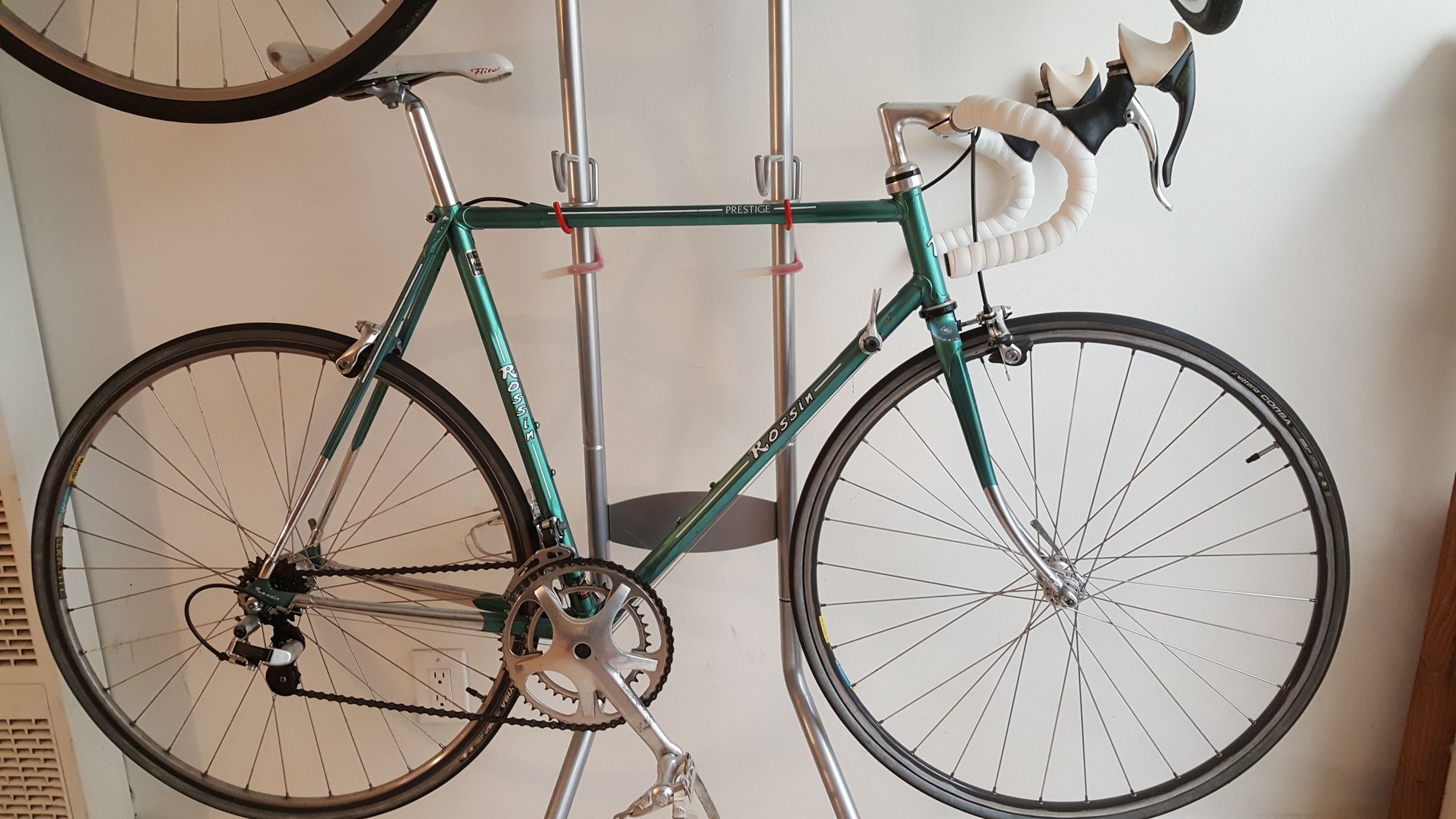

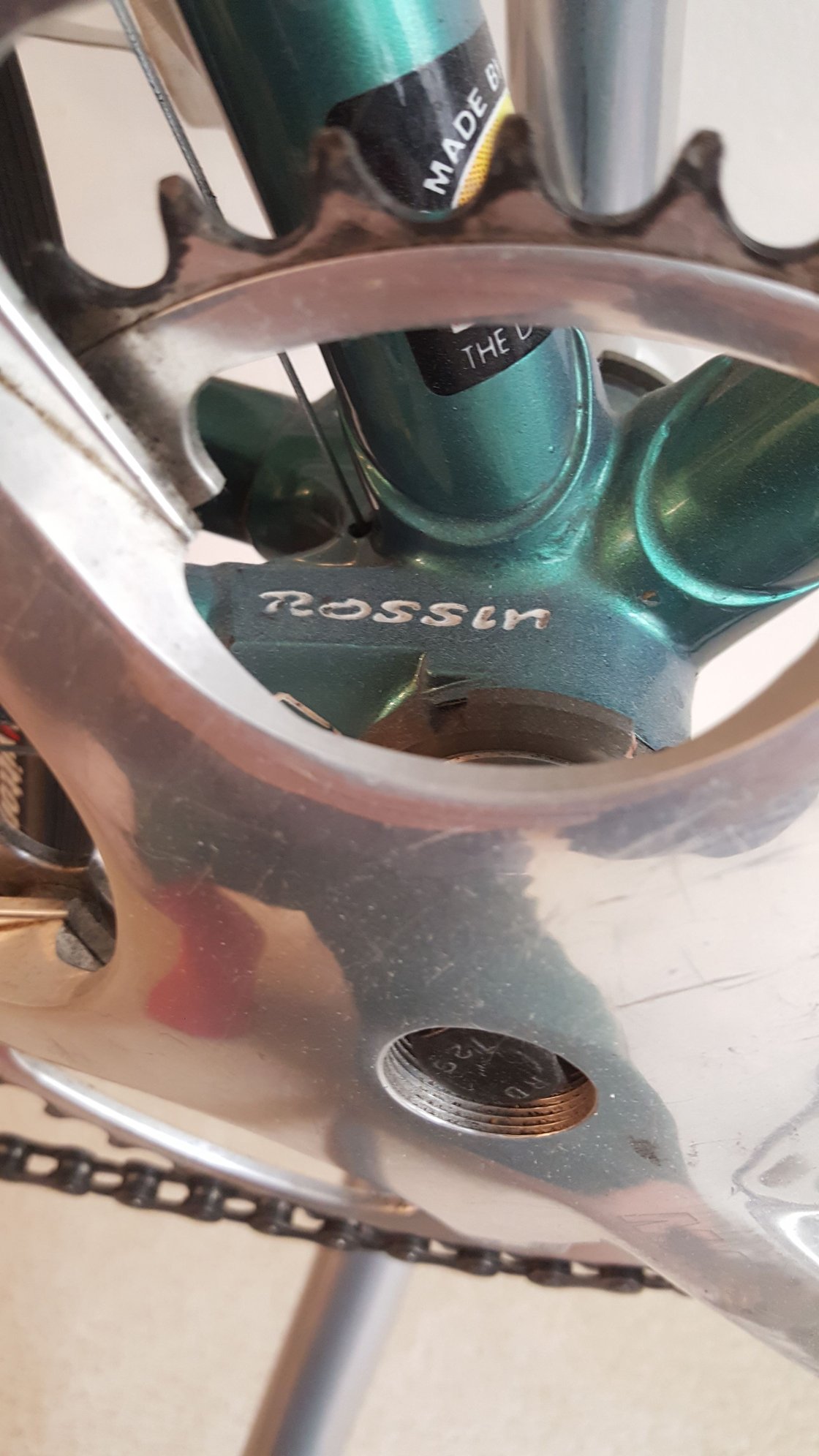

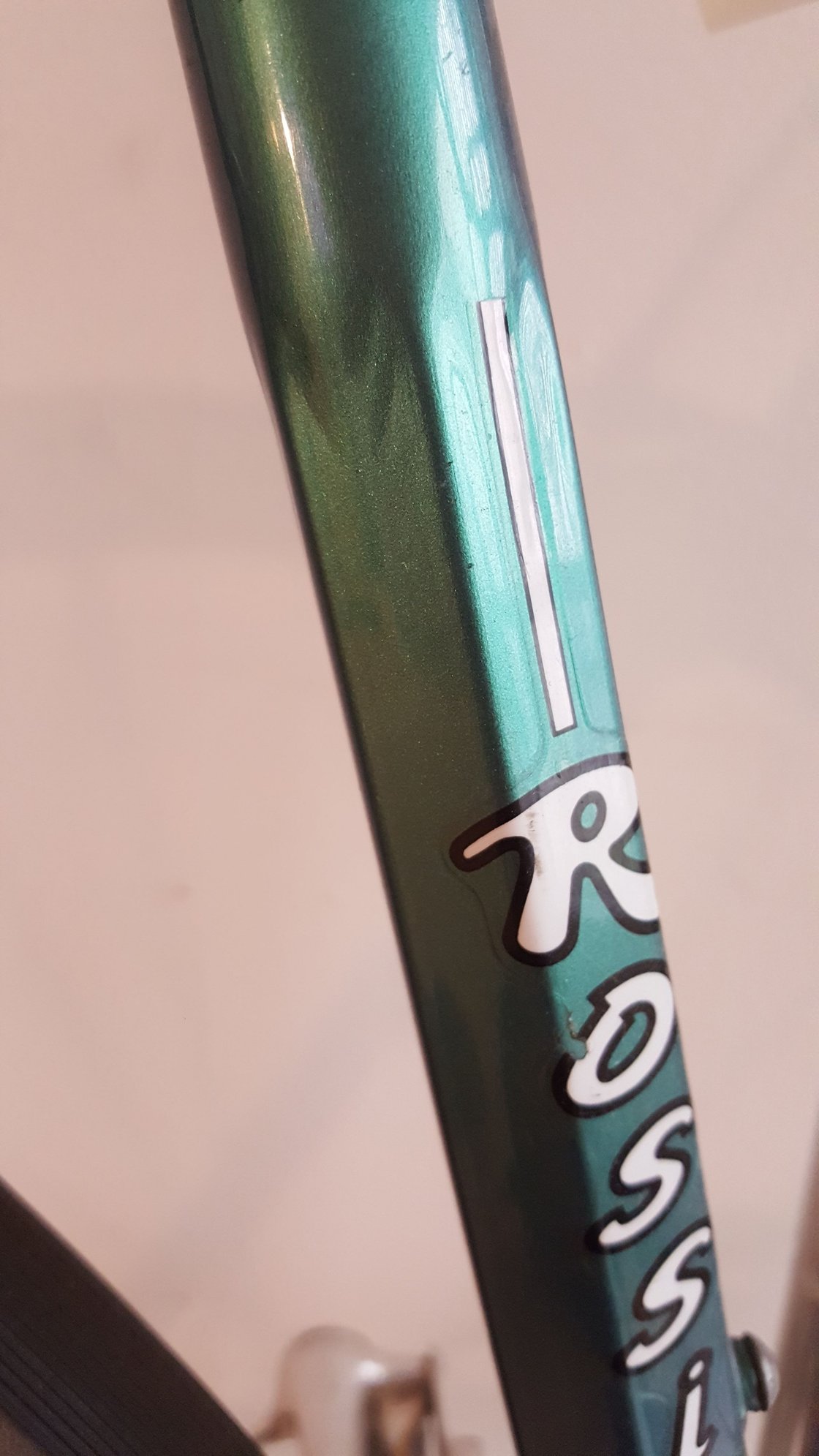

I’m gonna be sorry I asked but I’d like to see more of that green Rossin!
__________________
N = '96 Colnago C40, '04 Wilier Alpe D'Huez, '10 Colnago EPS, '85 Merckx Pro, '89 Merckx Century, '85 Moser, '86 Tommasini Professional, '04 Teschner Aero FX Pro, '05 Alan Carbon Cross, '86 De Rosa Professional, '82 Colnago Super, '95 Gios Compact Pro, '95 Carrera Zeus, '84 Basso Gap, ‘89 Cinelli Supercorsa
Spaghetti Legs is offline
Reply With Quote
Old 02-04-19, 06:55 PM
  #22
shuru421
Senior Member
Thread Starter

Join Date: Aug 2012
Posts: 626
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 233 Post(s)




shuru421 is offline
Reply With Quote
Old 02-04-19, 07:10 PM
  #23
old's'cool
curmudgineer

old's'cool's Avatar

Join Date: Dec 2009
Location: Chicago SW burbs
Posts: 4,207

Bikes: 2 many 2 fit here

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 184 Post(s)
Originally Posted by masi61 View Post
...The shift ramps on HG cassettes are usually considered better performing than the UG. Both styles use individual cogs, so building up custom combinations is possible...
For what it's worth, this is not an advantage for cassettes (vs. freewheels).
__________________
Geoff
"There is no Fail without Try" - Yoda Simpson
old's'cool is offline
Reply With Quote
Old 02-04-19, 07:26 PM
  #24
Bandera
Hiatus

Join Date: Mar 2013
Location: TX Hill Country
Posts: 5,606
Mentioned: 80 Post(s)
Tagged: 0 Thread(s)
Quoted: 946 Post(s)
Originally Posted by old's'cool View Post
For what it's worth, this is not an advantage for cassettes (vs. freewheels).
In my shop(s) we had ST Perfect/Pro Compe and later Winner cog boards to replace individual cogs,both supplemented by a Shimano 6/7 FW cog boards and replaced by Shimano cassette cog boards.
Try to find any of that on demand now: Good Luck.

-Bandera
__________________
'74 Raleigh Internat'l. '77 Trek TX900 FG. '90 Vitus 979. '10 Merckx EMX3. '13 Soma Stanyan
Bandera is offline
Reply With Quote
Old 02-04-19, 08:41 PM
  #25
ThermionicScott
Hammer and tongs

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 17,696

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 1736 Post(s)
Although the selection isn't what it once was, 7-speed cassette system gets my vote for a 126mm bike.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Reply With Quote

Thread Tools
Search this Thread

Contact Us Archive Advertising Cookie Policy Privacy Statement Terms of Service
