Have cleaned up the steel stem from the Royal Nord and it cleaned up very well. It looks like "Cinton" but could find no reference to it online. Everything comes up "Clinton" May or may not use the original bars. The grip space is very short as were the original grips. The staining/ etching on the front wheel in particular is proving troublesome but wet sanding is helping. The frame and fork are reunited with new headset bearings. I replaced the the retainer style with loose for more bearing surface.
__________________
We are what we reflect. We are the changes that we bring to this world. Ride often. -Geo.-
browngw is offline
Old 03-08-19, 01:35 PM
  #27
Munny
Senior Member

Join Date: May 2012
Location: Belgium, Bicycle country
Posts: 200

Bikes: 50 ? More?

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 34 Post(s)
Originally Posted by browngw View Post
... the steel stem ...l. It looks like "Cinton" but could find no reference to it online.
It will be as difficult to find it online with the real "TIP TOP" name.
A friend of mine, who had contacts in the Titan plant, told me once that Titan, Douglas, Unic, Orothers, ... were all produced in the same plant

Tip top is also a name for tyres repairs patches

The seatpost looks very Titan to me
Pedals JRC were made in Liege, starting prewar and still been sold through the fifties

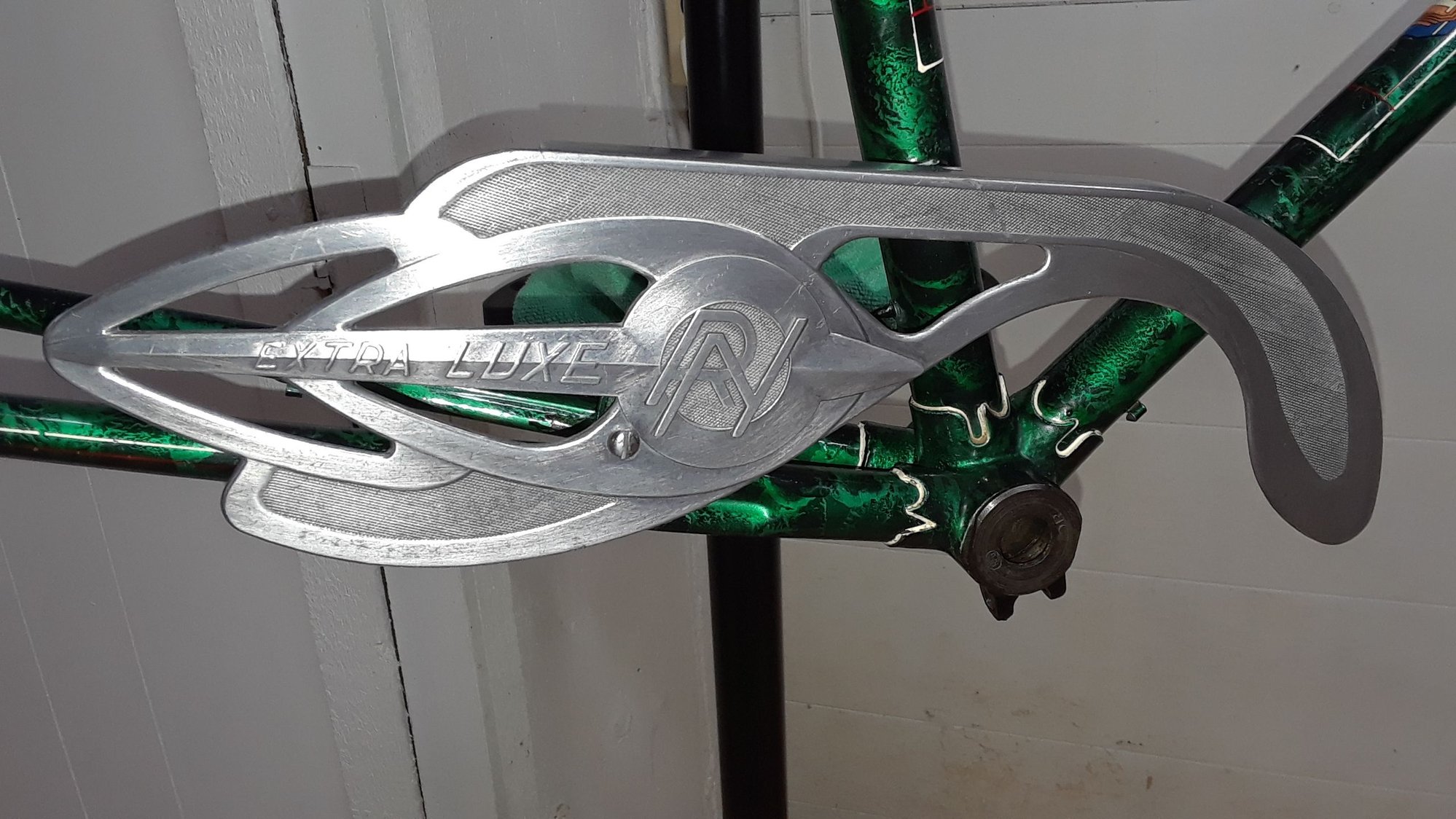

The chainguard might read RAY in reference to Ray Impanis but I can't confirm it
Munny is offline
Old 03-08-19, 10:16 PM
  #28
browngw
Adventure Rider
Thread Starter

browngw's Avatar

Join Date: Mar 2012
Location: Port Dover Ontario Canada
Posts: 1,179

Bikes: 1958 Sun Cresta, 1965 Dilecta Le Blanc, 1967 Royal Nord, 1971 Robin Hood Sports, 1972 Raleigh Sports, 1976 SuperCycle Excalibur, 1979 Raleigh DL1 , 2014 Salsa Vaya, 2017 Felt DD70, 2016 Giant ATX27.5, 2012 Giant Halfway Folder, and others

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 213 Post(s)
Originally Posted by Munny View Post
It will be as difficult to find it online with the real "TIP TOP" name.
A friend of mine, who had contacts in the Titan plant, told me once that Titan, Douglas, Unic, Orothers, ... were all produced in the same plant

Tip top is also a name for tyres repairs patches

The seatpost looks very Titan to me
Pedals JRC were made in Liege, starting prewar and still been sold through the fifties
The chainguard might read RAY in reference to Ray Impanis but I can't confirm it
Thanks for the information @Munny. I did find out a little more, and agree that Titan was likely involved. Slowly, things are starting to come together with this beautiful old bike. I'm still not sure whether it is 50s or 60s. Perhaps someone can date the Weinmann Type 810 brakes.
__________________
We are what we reflect. We are the changes that we bring to this world. Ride often. -Geo.-
browngw is offline
Old 03-09-19, 03:04 AM
  #29
Munny
Senior Member

Join Date: May 2012
Location: Belgium, Bicycle country
Posts: 200

Bikes: 50 ? More?

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 34 Post(s)
The brakes doesn't appear to me as a good dating criteria.
Unless you find a date code on the rear side of the brake, Weinmann, Swiss-Belgian company, were common from the fifties through the heigties

I'd be you, I'd search for a date code on the rear hub.
I'd expect brampton hubs to be dated like the sturmey while maybe less documented
I just had a look at one and found "N° 140B-5"
Munny is offline
Old 03-09-19, 03:49 AM
  #30
Kovkov
Senior Member

Kovkov's Avatar

Join Date: Nov 2017
Location: Switzerland
Posts: 223

Bikes: 1957 Alpa Special, 1963 Condor Delta, 1967 Tigra Sprint, 1977 Oltenia, 1987 Mondia, 1965 Staco de luxe, 1969 Amberg

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 56 Post(s)
Originally Posted by 3speedslow View Post
What headset is that?
Don’t know the brand but it seems to be “inverse”. On the upper part the cup is in the headtube and the cone is threaded. I have two of those, both french threaded without info.
Kovkov is offline
Old 03-09-19, 03:53 AM
  #31
Kovkov
Senior Member

Kovkov's Avatar

Join Date: Nov 2017
Location: Switzerland
Posts: 223

Bikes: 1957 Alpa Special, 1963 Condor Delta, 1967 Tigra Sprint, 1977 Oltenia, 1987 Mondia, 1965 Staco de luxe, 1969 Amberg

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 56 Post(s)

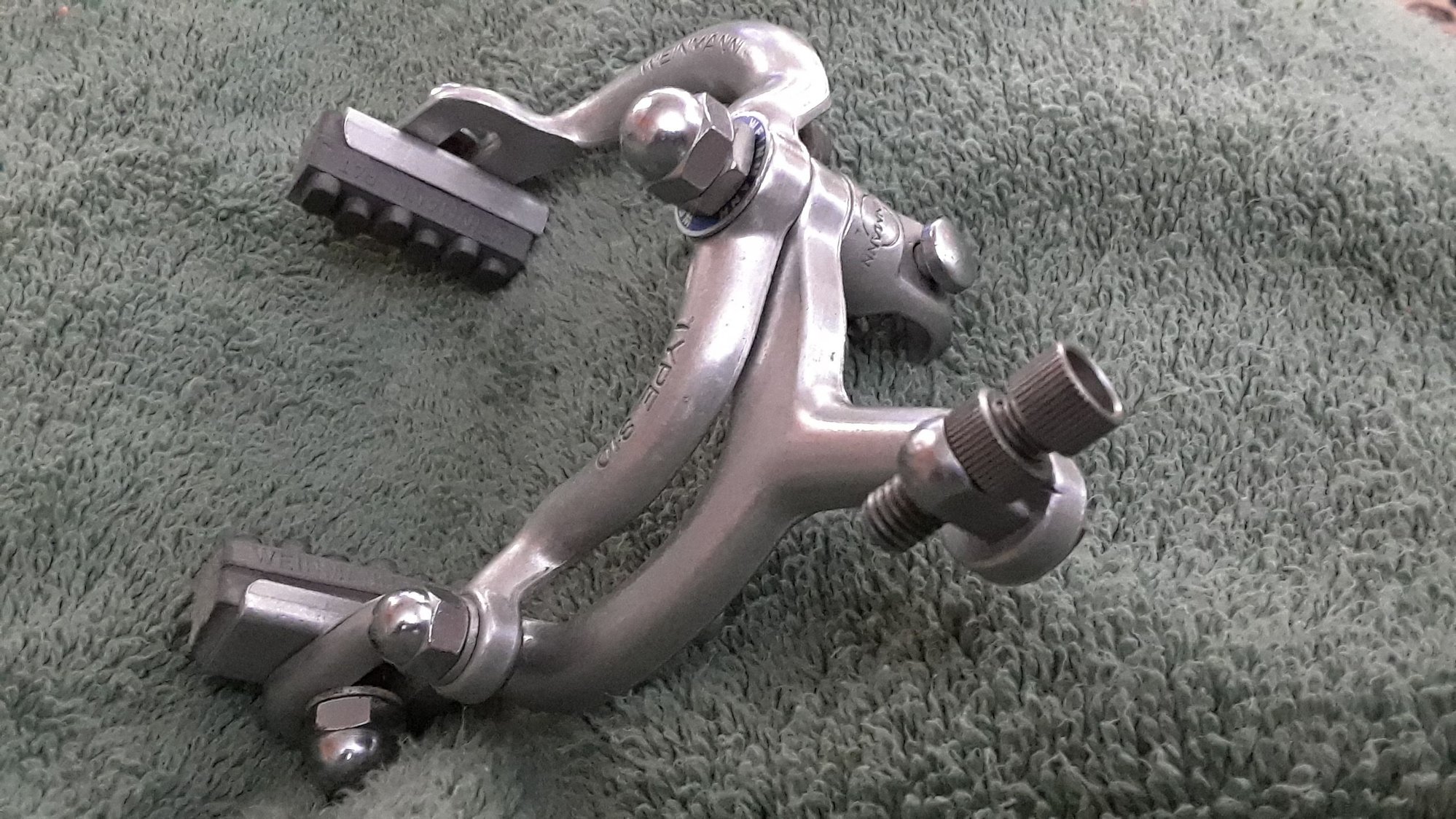

The brakes can be as old as 1956 because that’s the oldest i have that look the same
Kovkov is offline
Old 03-09-19, 09:02 AM
  #32
Munny
Senior Member

Join Date: May 2012
Location: Belgium, Bicycle country
Posts: 200

Bikes: 50 ? More?

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 34 Post(s)
Having some thoughts that these types of Weinmann could be older than that, I just had a look in a belgian cycling magazine and opened one dating of 1947.

Bingo!

Not only is the Weinmann brake advertised but your headset (normal) is an Edco.

Here in Belgium, we adopted some swiss parts (all in normal BSA threads)
So you'll find Weinmann (which after all could be as Belgian as Swiis as a brand), Edco, Lucifer, ...

Please do not conclude that your bike is from 1947
Munny is offline
Old 03-09-19, 09:24 AM
  #33
since6
Senior Member

Join Date: Nov 2015
Location: Lacey, WA
Posts: 1,253

Bikes: Stevenson Custom, Stevenson Custom Tandem, Nishiki Professional

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 248 Post(s)
What a beautiful bike and great restoration you are doing.

We forget the three-speed, but in its time it was THE step up bike from my single speed coaster brake Western Flyer. Wow and hand brakes too, you were almost a racer.

Wish I'd kept some of them I rode as a child.
since6 is offline
Old 03-09-19, 11:09 AM
  #34
browngw
Adventure Rider
Thread Starter

browngw's Avatar

Join Date: Mar 2012
Location: Port Dover Ontario Canada
Posts: 1,179

Bikes: 1958 Sun Cresta, 1965 Dilecta Le Blanc, 1967 Royal Nord, 1971 Robin Hood Sports, 1972 Raleigh Sports, 1976 SuperCycle Excalibur, 1979 Raleigh DL1 , 2014 Salsa Vaya, 2017 Felt DD70, 2016 Giant ATX27.5, 2012 Giant Halfway Folder, and others

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 213 Post(s)
Originally Posted by Kovkov View Post


Don’t know the brand but it seems to be “inverse”. On the upper part the cup is in the headtube and the cone is threaded. I have two of those, both french threaded without info.

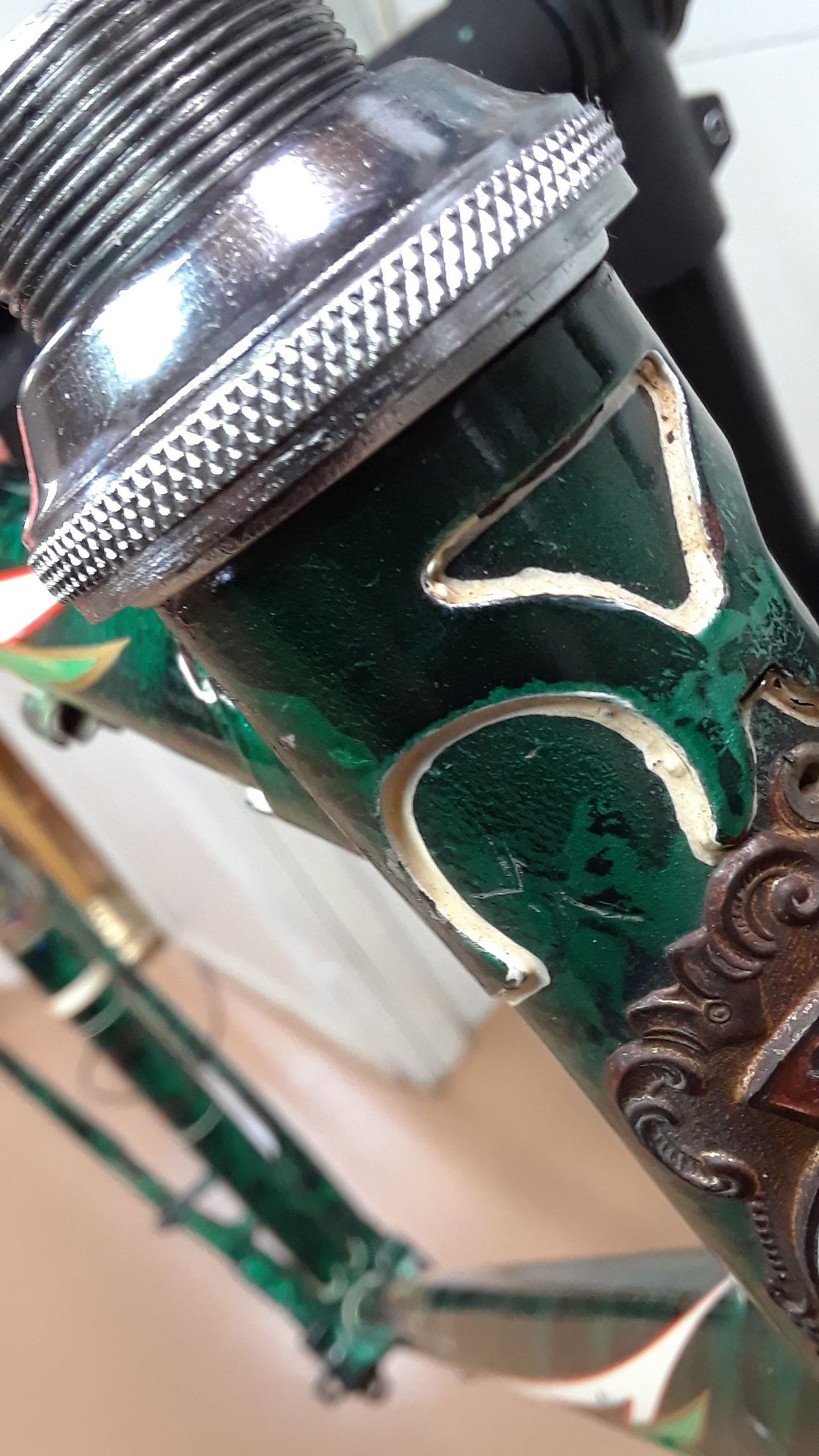

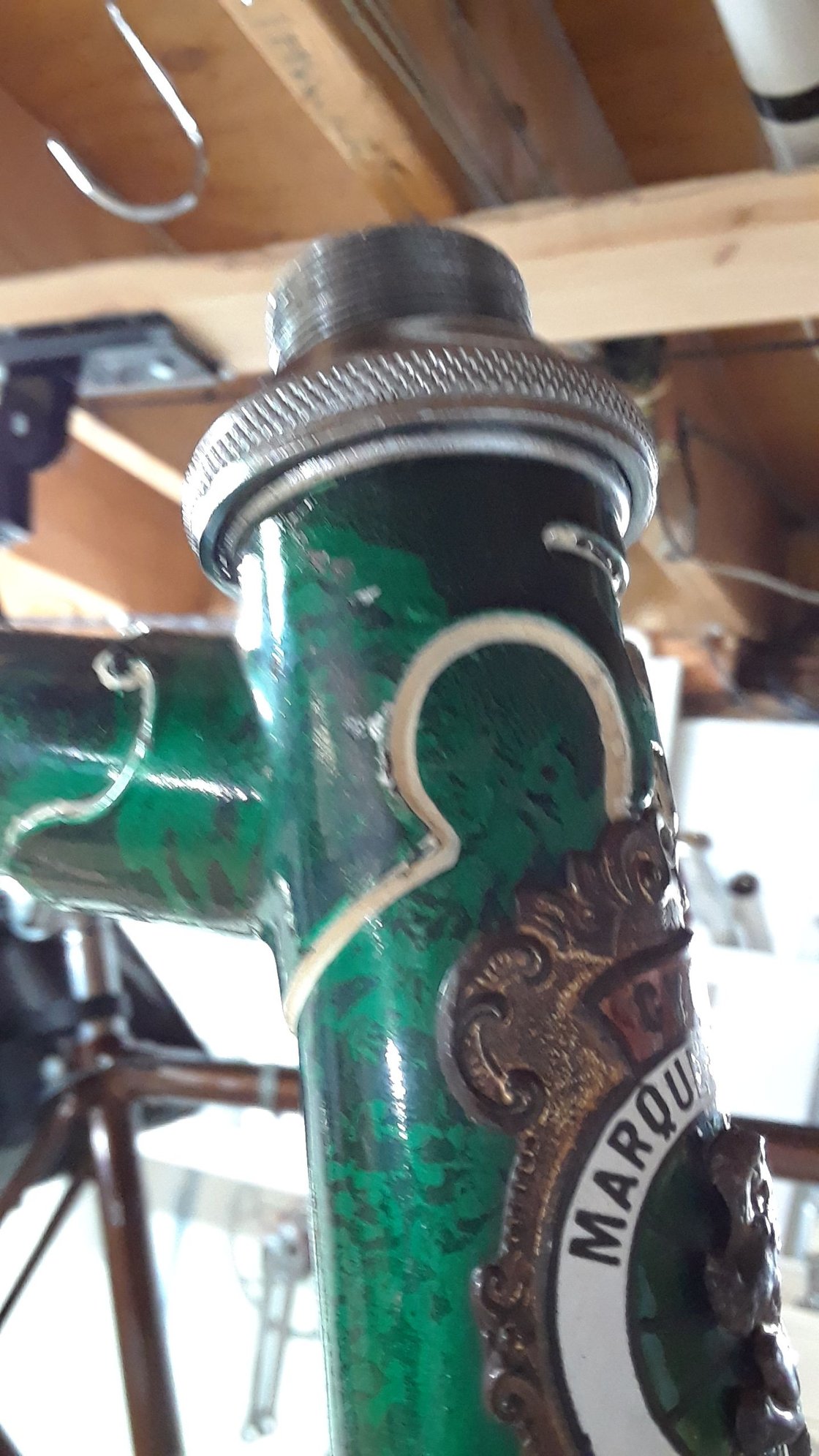

What I would refer to as the cone is in the headtube and the rotating adjusting "nut" is the cup. If the bearings had not been on retainers, they would automatically spill out! This does make it odd as it is in the same orientation as the fork crown and headtube instead of the common "bookend" arrangement. Must remember to be careful if I take it apart as I used loose bearings(24) on the rebuild. I would like to take this chance to thank everyone who has added information and assisted in the research. Much appreciated!

__________________
We are what we reflect. We are the changes that we bring to this world. Ride often. -Geo.-

Last edited by browngw; 03-09-19 at 11:15 AM.
browngw is offline
Old 03-09-19, 11:56 AM
  #35
browngw
Adventure Rider
Thread Starter

browngw's Avatar

Join Date: Mar 2012
Location: Port Dover Ontario Canada
Posts: 1,179

Bikes: 1958 Sun Cresta, 1965 Dilecta Le Blanc, 1967 Royal Nord, 1971 Robin Hood Sports, 1972 Raleigh Sports, 1976 SuperCycle Excalibur, 1979 Raleigh DL1 , 2014 Salsa Vaya, 2017 Felt DD70, 2016 Giant ATX27.5, 2012 Giant Halfway Folder, and others

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 213 Post(s)
Originally Posted by Munny View Post
The brakes doesn't appear to me as a good dating criteria.
Unless you find a date code on the rear side of the brake, Weinmann, Swiss-Belgian company, were common from the fifties through the heigties

I'd be you, I'd search for a date code on the rear hub.
I'd expect brampton hubs to be dated like the sturmey while maybe less documented
I just had a look at one and found "N° 140B-5"

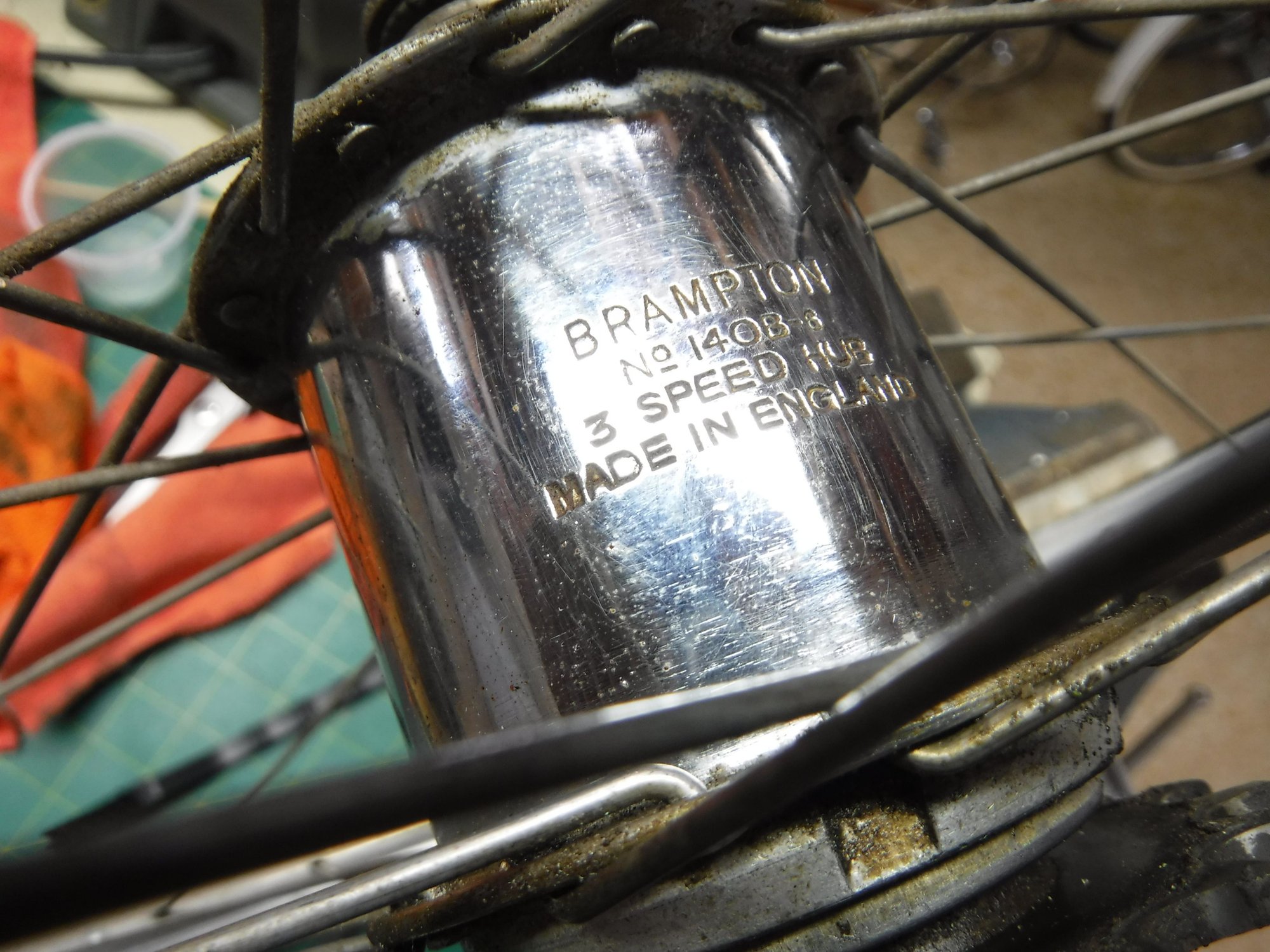

I have been searching for a date on the hub. I have three bicycles with Sturmey Archer hubs and they are all date stamped. Like you, I found No. 140B-6 but with no info on Brampton production, very difficult. The last # is slightly smaller and might be the year of production (56 or 66) although I'm still guessing the latter. RN production stopped in 1967 according to internet information. Wheels and hubs are next up.
__________________
We are what we reflect. We are the changes that we bring to this world. Ride often. -Geo.-
browngw is offline
Old 03-09-19, 12:08 PM
  #36
browngw
Adventure Rider
Thread Starter

browngw's Avatar

Join Date: Mar 2012
Location: Port Dover Ontario Canada
Posts: 1,179

Bikes: 1958 Sun Cresta, 1965 Dilecta Le Blanc, 1967 Royal Nord, 1971 Robin Hood Sports, 1972 Raleigh Sports, 1976 SuperCycle Excalibur, 1979 Raleigh DL1 , 2014 Salsa Vaya, 2017 Felt DD70, 2016 Giant ATX27.5, 2012 Giant Halfway Folder, and others

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 213 Post(s)
Originally Posted by since6 View Post
What a beautiful bike and great restoration you are doing.

We forget the three-speed, but in its time it was THE step up bike from my single speed coaster brake Western Flyer. Wow and hand brakes too, you were almost a racer.

Wish I'd kept some of them I rode as a child.

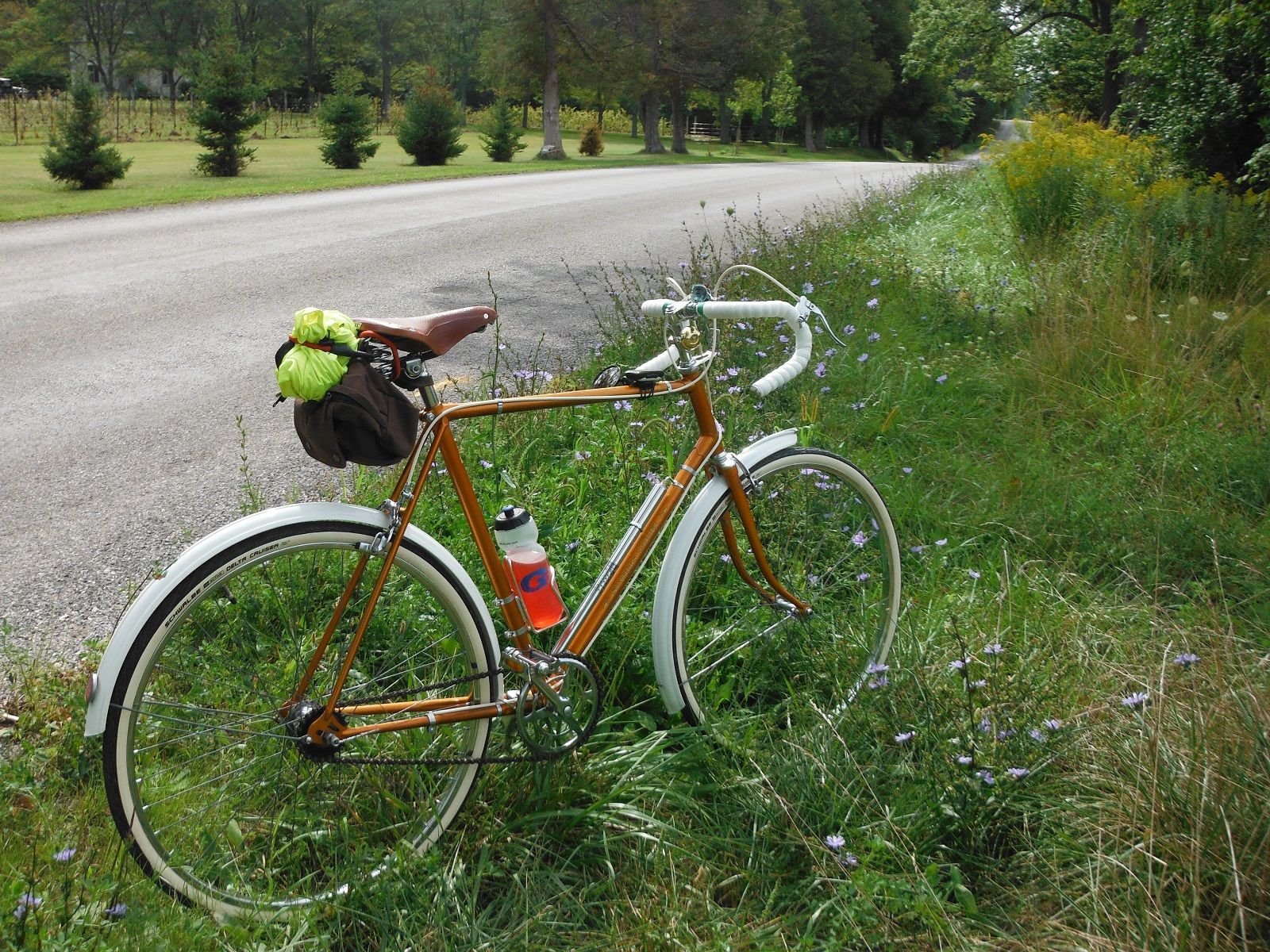

Three speeds are becoming a larger part of my fleet. This is my fourth and some are ridden a lot. Once set up with the right CR and cogs for the terrain and your riding style they can be very efficient and fun riders. I have a 1958 Sun Cresta 5 speed I seldom ride (48TCR and 14-22 freewheel ) , yet my 1971 Robin Hood with a 46TCR and 21Tcog Sturmey Archer AW gets ridden a lot. On a solo ride last fall, a passing group asked if I wanted to join them. I politely declined as there are limitations to a 3 speed! I desperately wanted a 3 speed when I was a young fellow but never got one, maybe now is my time.
__________________
We are what we reflect. We are the changes that we bring to this world. Ride often. -Geo.-
browngw is offline
Old 03-11-19, 10:50 AM
  #37
Munny
Senior Member

Join Date: May 2012
Location: Belgium, Bicycle country
Posts: 200

Bikes: 50 ? More?

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 34 Post(s)

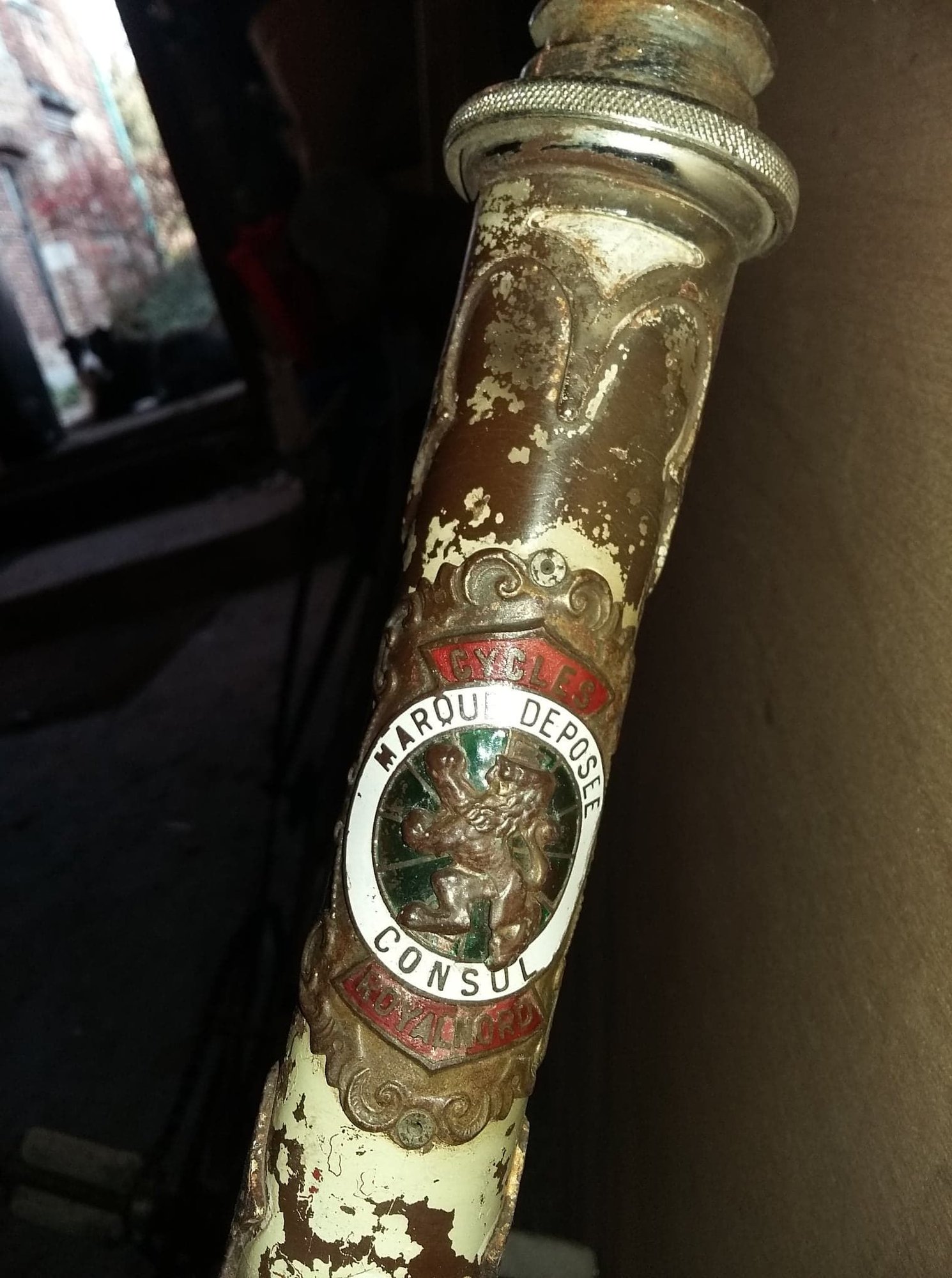

I've just been proposed a free Royal Nord



As you can see this one is a "Consul"
And a President must be above a Consul.
I don't know much about the Hufkens brother production (Royal Nord - a brand I forgot - Alfonse Thomann) and I had to refuse it.
Far too much bikes

This is just helping you to undersand how these bikes were called.
I guess you have got the top of the range
Munny is offline
Old 03-11-19, 01:47 PM
  #38
crank_addict
Senior Member

crank_addict's Avatar

Join Date: Aug 2013
Posts: 6,340
Mentioned: 78 Post(s)
Tagged: 0 Thread(s)
Quoted: 1027 Post(s)
A very handsome and distinctive bike. Though it looks much older than 1967. Guessing middle 1950s??
crank_addict is offline
Old 03-11-19, 02:16 PM
  #39
browngw
Adventure Rider
Thread Starter

browngw's Avatar

Join Date: Mar 2012
Location: Port Dover Ontario Canada
Posts: 1,179

Bikes: 1958 Sun Cresta, 1965 Dilecta Le Blanc, 1967 Royal Nord, 1971 Robin Hood Sports, 1972 Raleigh Sports, 1976 SuperCycle Excalibur, 1979 Raleigh DL1 , 2014 Salsa Vaya, 2017 Felt DD70, 2016 Giant ATX27.5, 2012 Giant Halfway Folder, and others

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 213 Post(s)
Originally Posted by Munny View Post
I've just been proposed a free Royal Nord



As you can see this one is a "Consul"
And a President must be above a Consul.
I don't know much about the Hufkens brother production (Royal Nord - a brand I forgot - Alfonse Thomann) and I had to refuse it.
Far too much bikes

This is just helping you to undersand how these bikes were called.
I guess you have got the top of the range
That makes three I have heard of! My "President" a "Commander" and now a "Consul". The crank set has been cleaned and inspected and all seems good. I must admit the quality of chrome is not as good as similarly aged British bikes but the quality of the stampings and machining is much better. The five pins in the CR are movable but centre punched so I did not remove them. A heavily imprinted DX was the only marking I could find.
__________________
We are what we reflect. We are the changes that we bring to this world. Ride often. -Geo.-
browngw is offline
Old 03-11-19, 09:11 PM
  #40
Ronbo Fomby
Newbie

Join Date: Nov 2013
Posts: 2
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Royal Nord

Greetings from Ct.
Long time reader, new to posting.
I have a President as well. It is pre 1950 and has the same paint scheme in blue.
Mine is as new with less than one mile on it. The chain has the orig oil on it. Out of the house 3 times since 1980.
Will post photos when allowed can email them till then.
Ron
Ronbo Fomby is offline
Old 03-12-19, 08:55 AM
  #41
browngw
Adventure Rider
Thread Starter

browngw's Avatar

Join Date: Mar 2012
Location: Port Dover Ontario Canada
Posts: 1,179

Bikes: 1958 Sun Cresta, 1965 Dilecta Le Blanc, 1967 Royal Nord, 1971 Robin Hood Sports, 1972 Raleigh Sports, 1976 SuperCycle Excalibur, 1979 Raleigh DL1 , 2014 Salsa Vaya, 2017 Felt DD70, 2016 Giant ATX27.5, 2012 Giant Halfway Folder, and others

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 213 Post(s)
Originally Posted by Ronbo Fomby View Post
Greetings from Ct.
Long time reader, new to posting.
I have a President as well. It is pre 1950 and has the same paint scheme in blue.
Mine is as new with less than one mile on it. The chain has the orig oil on it. Out of the house 3 times since 1980.
Will post photos when allowed can email them till then.
Ron
Wow! Can't wait to see the pictures and any other information you may have. I wonder how many Royal Nords' there are in North America and how did they get here? Feel free to email me at browngw80@gmail.com anytime.
__________________
We are what we reflect. We are the changes that we bring to this world. Ride often. -Geo.-
browngw is offline
Old 03-12-19, 08:58 AM
  #42
3speedslow
Senior Member

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 7,010

Bikes: A few

Mentioned: 86 Post(s)
Tagged: 0 Thread(s)
Quoted: 1142 Post(s)

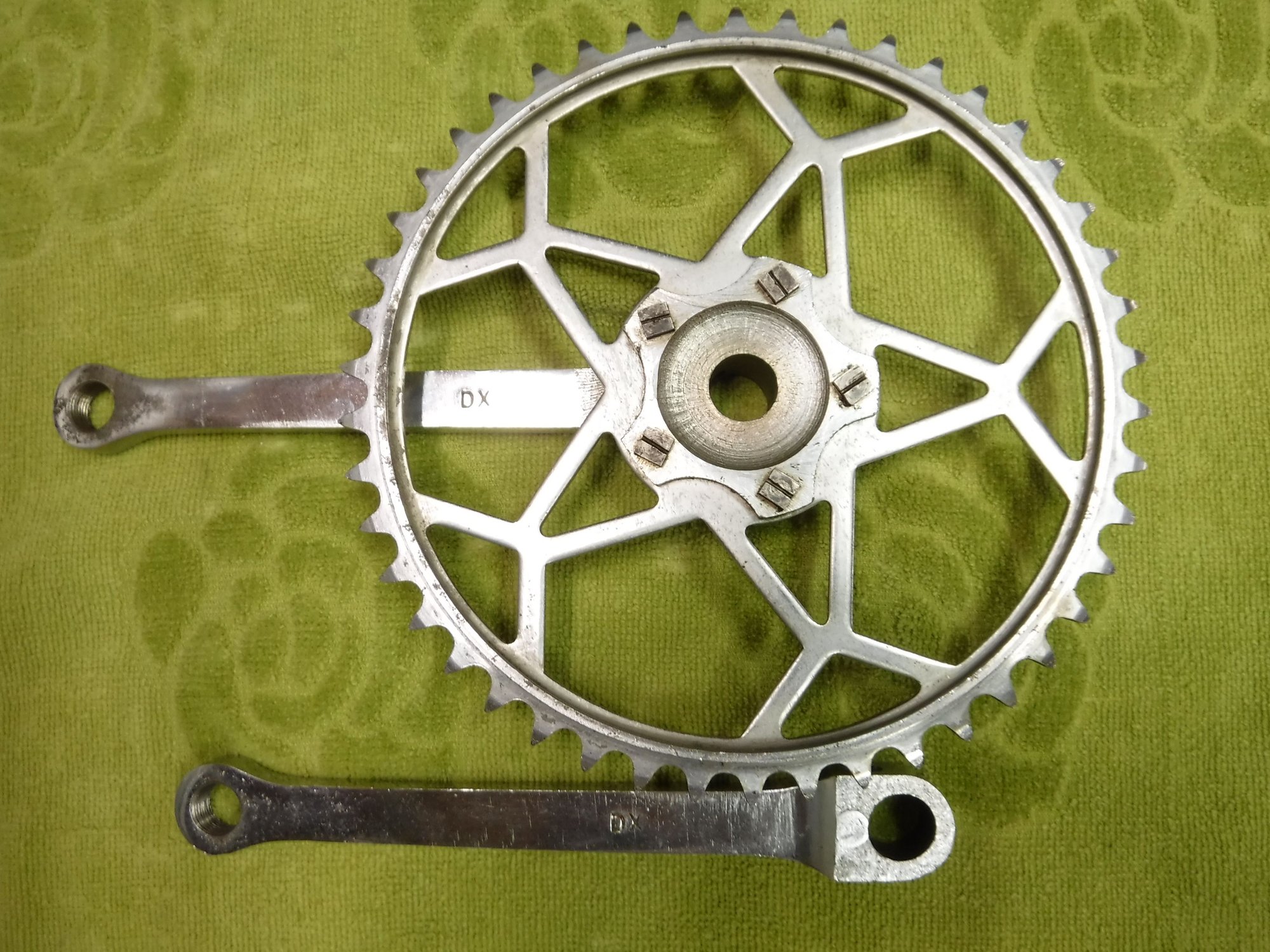

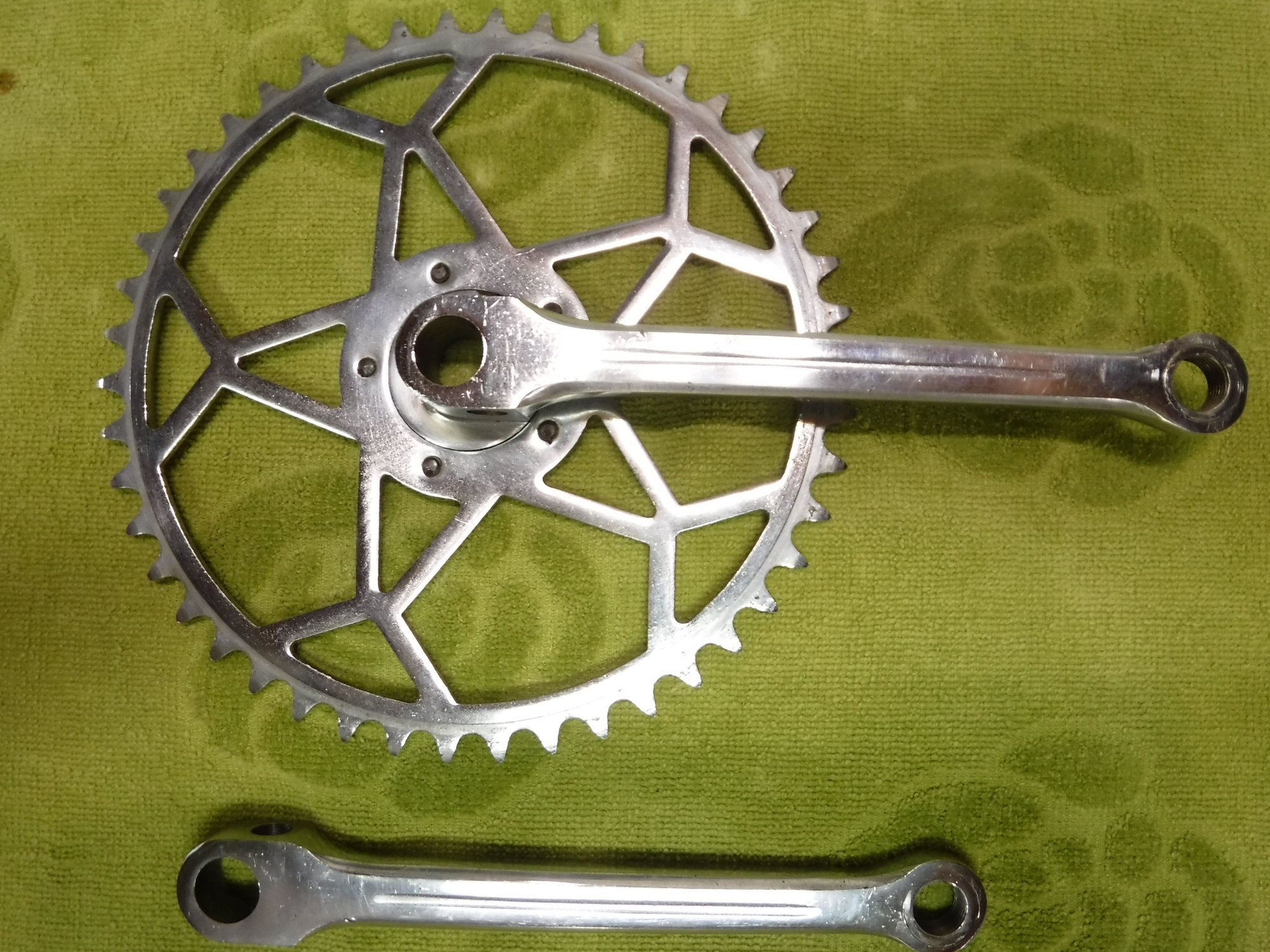

I wish my cranks cleaned up as nice as those on your Nord. Nice looking machine browngw
3speedslow is offline
Old 03-12-19, 11:29 AM
  #43
ddeand
Senior Member

ddeand's Avatar

Join Date: Jul 2004
Location: Twin Cities
Posts: 656
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 109 Post(s)
Lovin’ this bike and this thread!
__________________
Some days, it's not even worth gnawing through the restraints.
ddeand is offline
Old 03-12-19, 12:52 PM
  #44
browngw
Adventure Rider
Thread Starter

browngw's Avatar

Join Date: Mar 2012
Location: Port Dover Ontario Canada
Posts: 1,179

Bikes: 1958 Sun Cresta, 1965 Dilecta Le Blanc, 1967 Royal Nord, 1971 Robin Hood Sports, 1972 Raleigh Sports, 1976 SuperCycle Excalibur, 1979 Raleigh DL1 , 2014 Salsa Vaya, 2017 Felt DD70, 2016 Giant ATX27.5, 2012 Giant Halfway Folder, and others

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 213 Post(s)

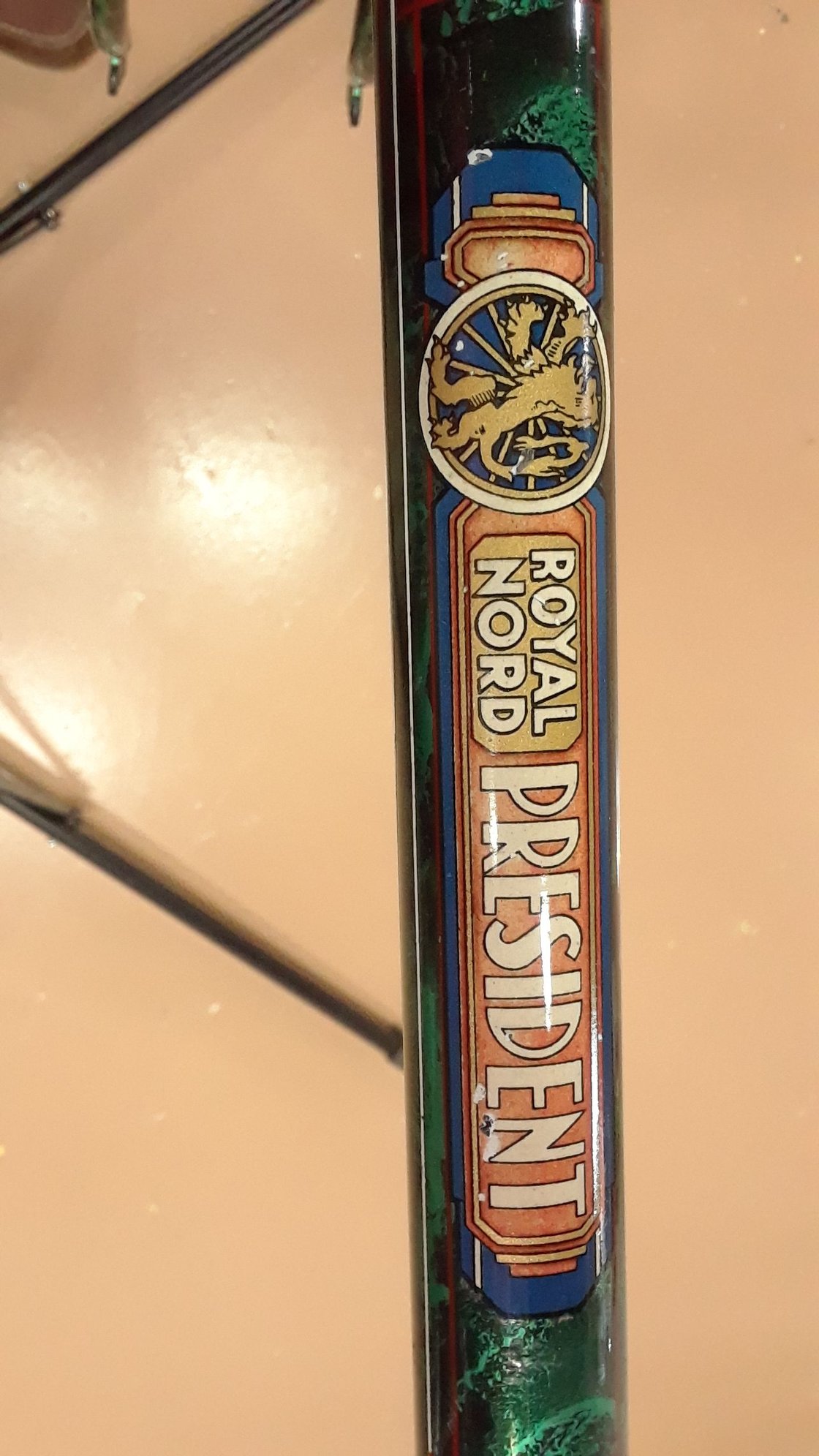

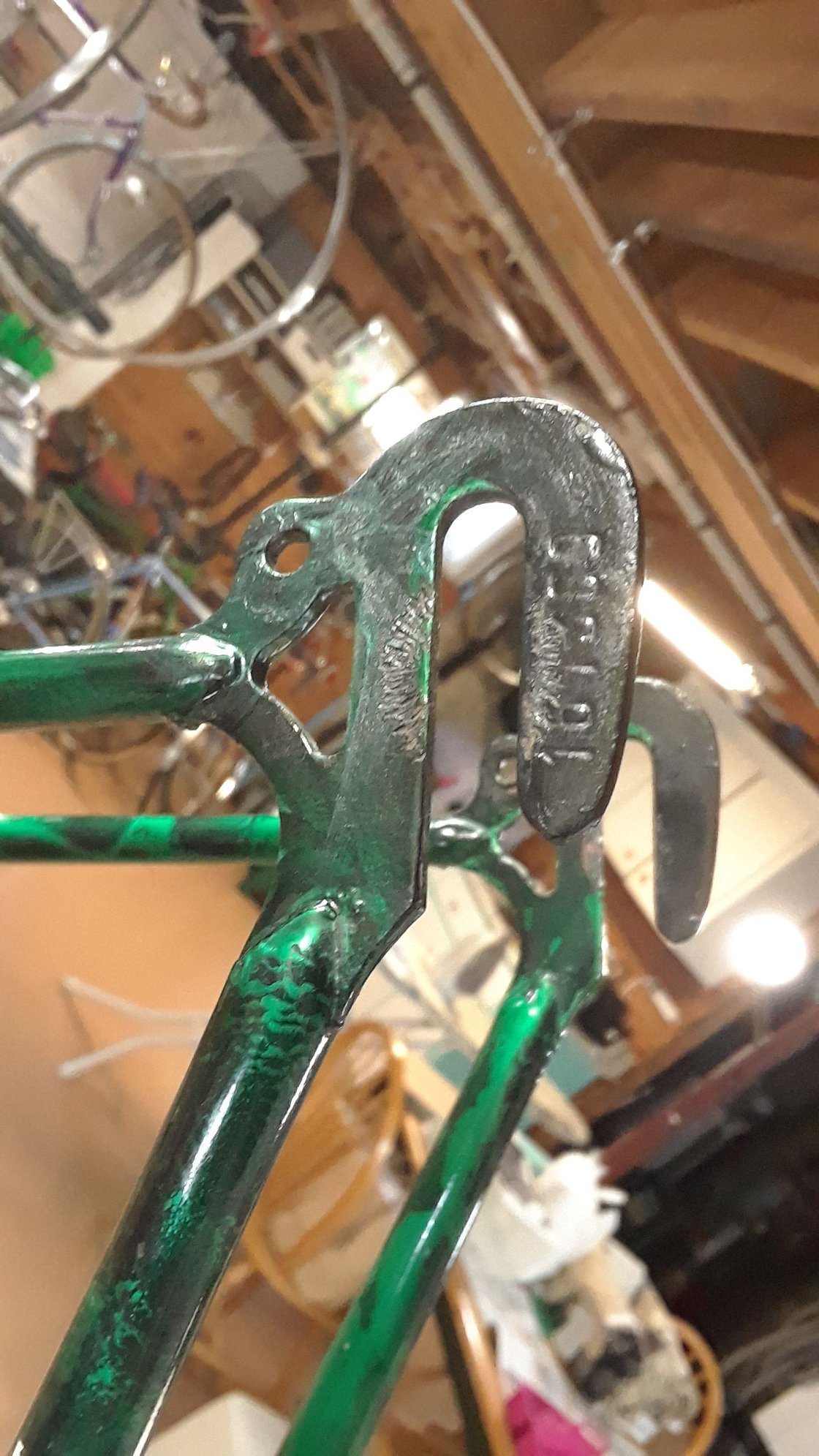

Spent some time today cleaning and touch-up painting on the frame. Not sure how I missed it before, but was delighted to find the serial number on the rear dropout. "161369". Without knowing a convention, it doesn't help date it but it at least has an identity.
The frame weighs 2.86kg (6.3lbs) without the fork.
__________________
We are what we reflect. We are the changes that we bring to this world. Ride often. -Geo.-
browngw is offline
Old 03-12-19, 12:58 PM
  #45
browngw
Adventure Rider
Thread Starter

browngw's Avatar

Join Date: Mar 2012
Location: Port Dover Ontario Canada
Posts: 1,179

Bikes: 1958 Sun Cresta, 1965 Dilecta Le Blanc, 1967 Royal Nord, 1971 Robin Hood Sports, 1972 Raleigh Sports, 1976 SuperCycle Excalibur, 1979 Raleigh DL1 , 2014 Salsa Vaya, 2017 Felt DD70, 2016 Giant ATX27.5, 2012 Giant Halfway Folder, and others

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 213 Post(s)


Paint and decals are excellent for the age. Some of the alloy parts have faired less well due to corrosion but I have the front wheel in presentable condition now.
__________________
We are what we reflect. We are the changes that we bring to this world. Ride often. -Geo.-
browngw is offline
Old 03-14-19, 03:58 AM
  #46
Munny
Senior Member

Join Date: May 2012
Location: Belgium, Bicycle country
Posts: 200

Bikes: 50 ? More?

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 34 Post(s)
I can be wrong but there is something special in the naming of your bike that can also point to early fifties.
As you may know, Belgium is a kingdom.
Kingdoms have no "president" but a king.
This regime was choosen at the time the country was put together because all the neighbours were also kingdoms, including France.

This is reflected in the brand name "Royal Nord".
So why a President when the brand name includes Royal ?


Early fifties is a special moment over here.
There were questions to change the political regime.
The actual king was impeached and his son only became king after a delay.
The population was strongly devided on the kingdom question and we were short of becoming a republic.

Because of that I could see the "president" name as linked to that period and also a way to please the opposed customers
Munny is offline
Old 03-15-19, 09:24 PM
  #47
browngw
Adventure Rider
Thread Starter

browngw's Avatar

Join Date: Mar 2012
Location: Port Dover Ontario Canada
Posts: 1,179

Bikes: 1958 Sun Cresta, 1965 Dilecta Le Blanc, 1967 Royal Nord, 1971 Robin Hood Sports, 1972 Raleigh Sports, 1976 SuperCycle Excalibur, 1979 Raleigh DL1 , 2014 Salsa Vaya, 2017 Felt DD70, 2016 Giant ATX27.5, 2012 Giant Halfway Folder, and others

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 213 Post(s)

Cleanup of the beautiful chain guard.
__________________
We are what we reflect. We are the changes that we bring to this world. Ride often. -Geo.-
browngw is offline
Old 03-18-19, 10:14 AM
  #48
browngw
Adventure Rider
Thread Starter

browngw's Avatar

Join Date: Mar 2012
Location: Port Dover Ontario Canada
Posts: 1,179

Bikes: 1958 Sun Cresta, 1965 Dilecta Le Blanc, 1967 Royal Nord, 1971 Robin Hood Sports, 1972 Raleigh Sports, 1976 SuperCycle Excalibur, 1979 Raleigh DL1 , 2014 Salsa Vaya, 2017 Felt DD70, 2016 Giant ATX27.5, 2012 Giant Halfway Folder, and others

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 213 Post(s)

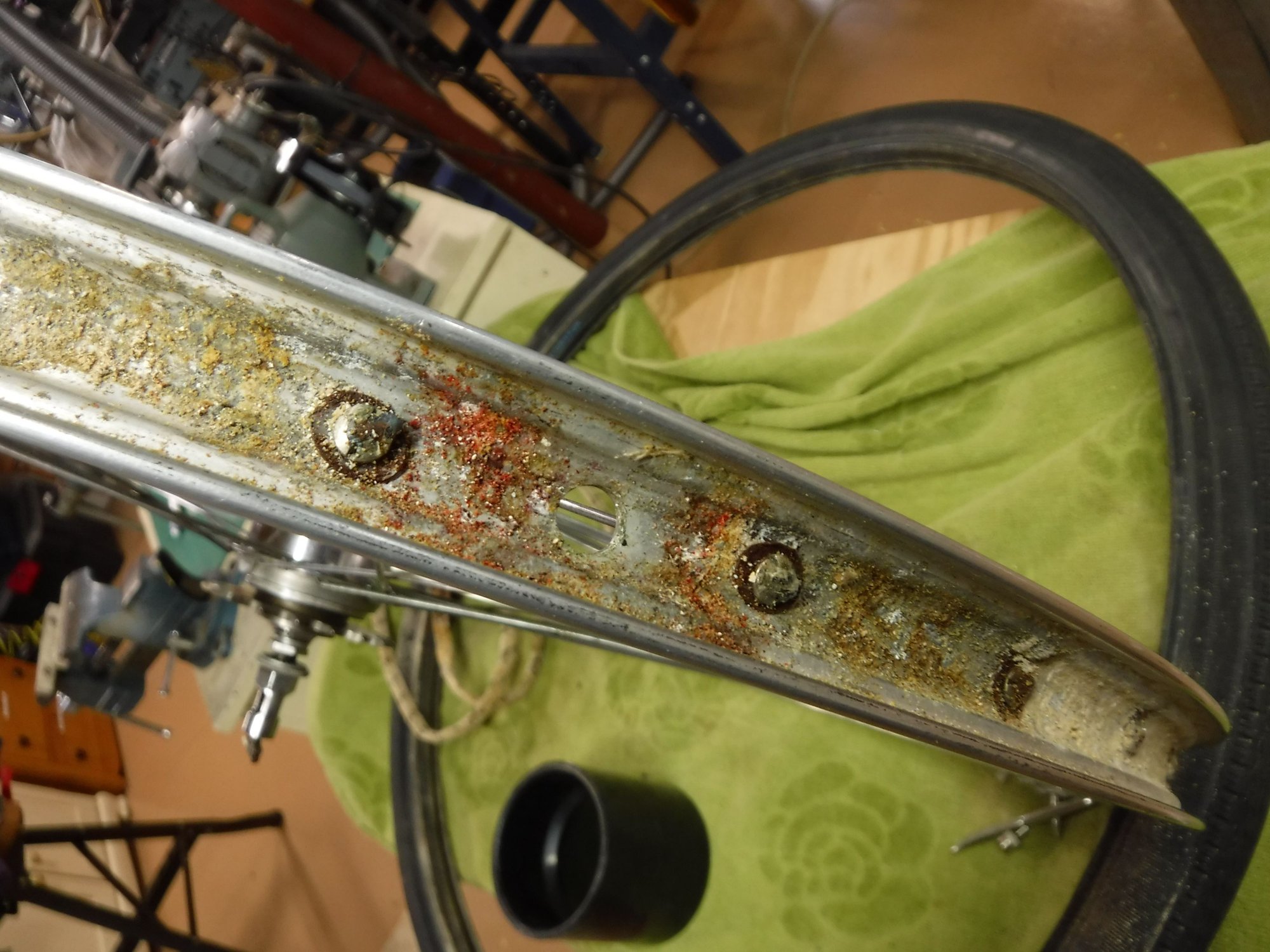

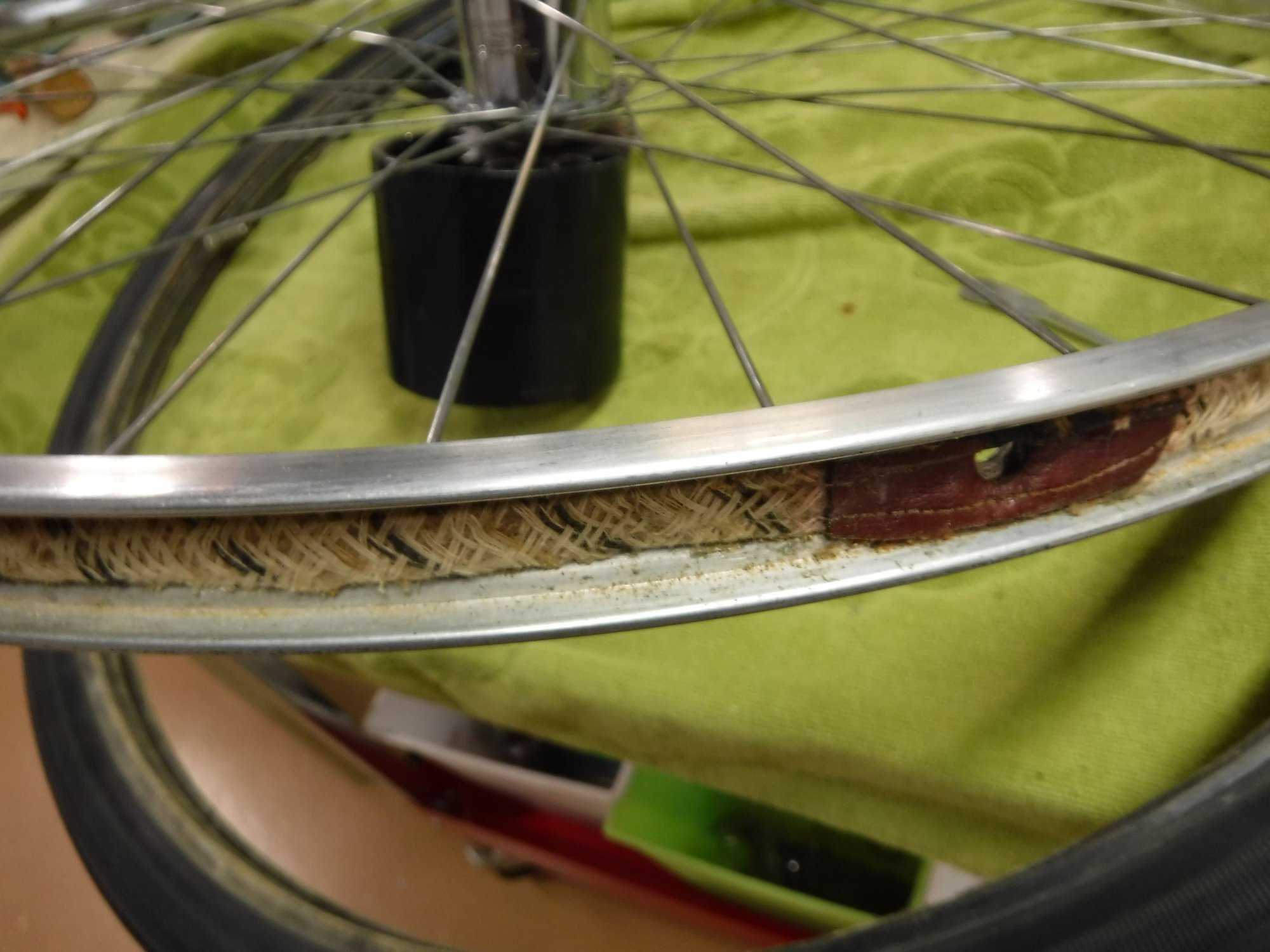

The heart of any bicycle, its wheels. After days of spoke cleaning, wet sanding, wire brushing, 3M pad polishing the 28" Crown Special alloy rims were looking pretty presentable. Both wheels were wearing Dunlop Imperial tires and appeared to have their original metal stem tubes. The rear did not hold air and I found a sliver of steel in the tire. Removing the tires revealed a mess of corrosion hidden underneath. Likely original Dunlop Airseal tubes and a rim strip of some sort of fabric that had become moist and caused a lot of corrosion on the inside of the rim. The bike spent some years in Florida near the beach which may not of helped. Plenty of wire brushing and new rubber rim tape (27"x 18mm) has it ready for some new tires when I can find some available in Canada.


__________________
We are what we reflect. We are the changes that we bring to this world. Ride often. -Geo.-
browngw is offline
Old 03-18-19, 01:49 PM
  #49
3speedslow
Senior Member

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 7,010

Bikes: A few

Mentioned: 86 Post(s)
Tagged: 0 Thread(s)
Quoted: 1142 Post(s)
Big difference!
3speedslow is offline
Old 03-18-19, 01:51 PM
  #50
3speedslow
Senior Member

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 7,010

Bikes: A few

Mentioned: 86 Post(s)
Tagged: 0 Thread(s)
Quoted: 1142 Post(s)
Forgot to ask, one member here had a Norman. He decided to build a daily set of wheels for it and use the original for special rides. Is this your thinking or just stick with one wheelset?
3speedslow is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
