The "two-hour, yard-sale-find, Raleigh International build."

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

The "two-hour, yard-sale-find, Raleigh International build."

Old 02-06-19, 06:41 PM
  #1
cudak888
www.theheadbadge.com
Thread Starter

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 23,133

Bikes: http://www.theheadbadge.com

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 179 Post(s)
Liked 6 Times in 5 Posts
The "two-hour, yard-sale-find, Raleigh International build."

I've been pretty content keeping my collection at N = N for lack of any surprise finds at yard sales for a number of years now, but just last weekend, I had the surprising fortune to pick up a Fuji Finest - chrome well worse for wear - and a copper Raleigh International.

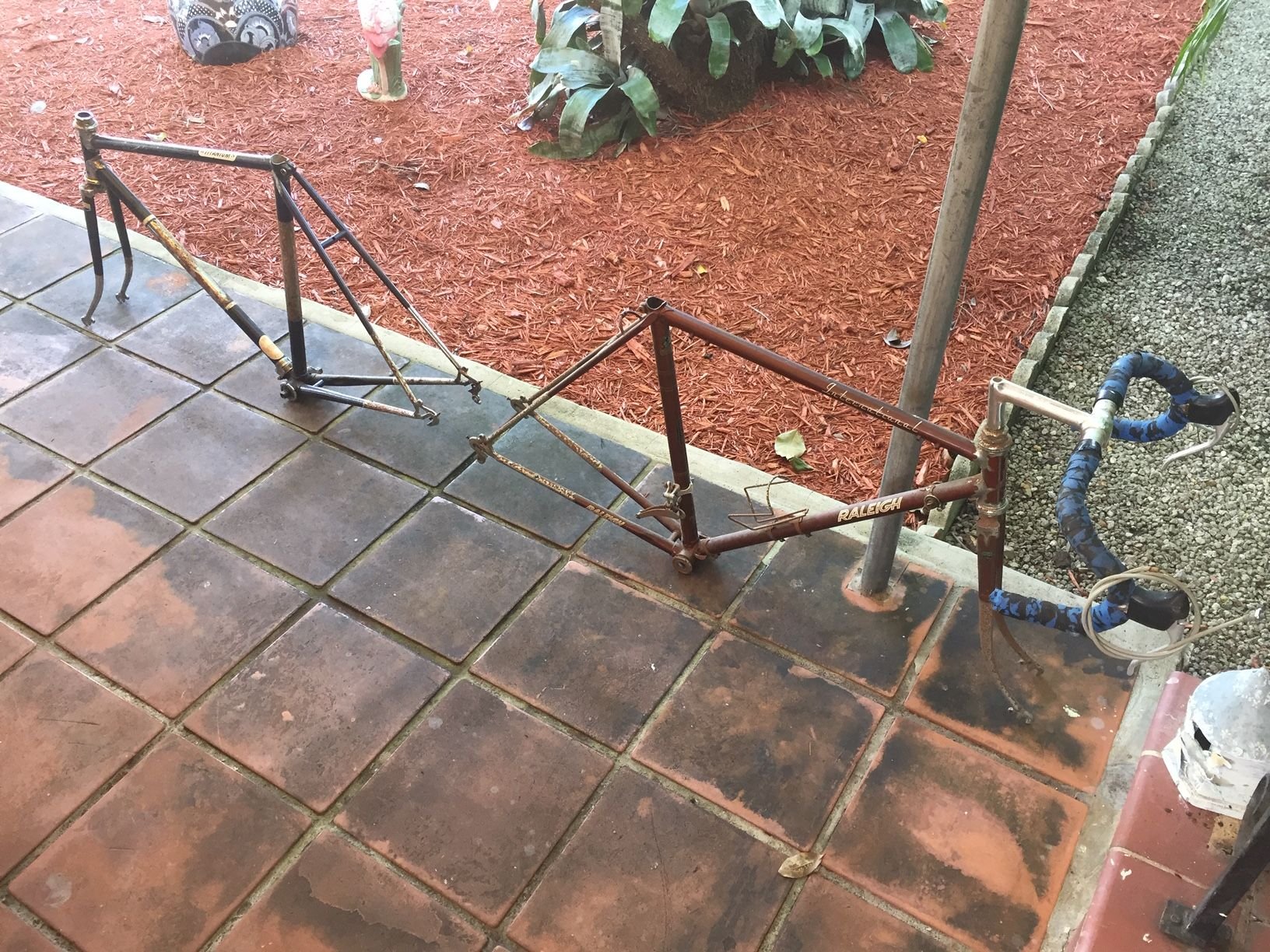

The Finest's chrome is flaking down to the steel, but the International's chrome is surprisingly intact under a serious layer of surface crap. It's pretty darn hard to clean off.



At any rate, neither fit me - so I had no reason to worry about the N + 1 = N syndrome, and have had them sitting around - mainly as I've been procrastinating over cleaning the International's chrome for a flip.

However... I had a tentative agreement with a coworker that I could lend them something reasonably comfortable for a bike course tomorrow, and forgot to dig up that over the weekend. But the International fit the bill for size, and with my limited amount of parts at present, I knew I had just enough parts that would fit it.

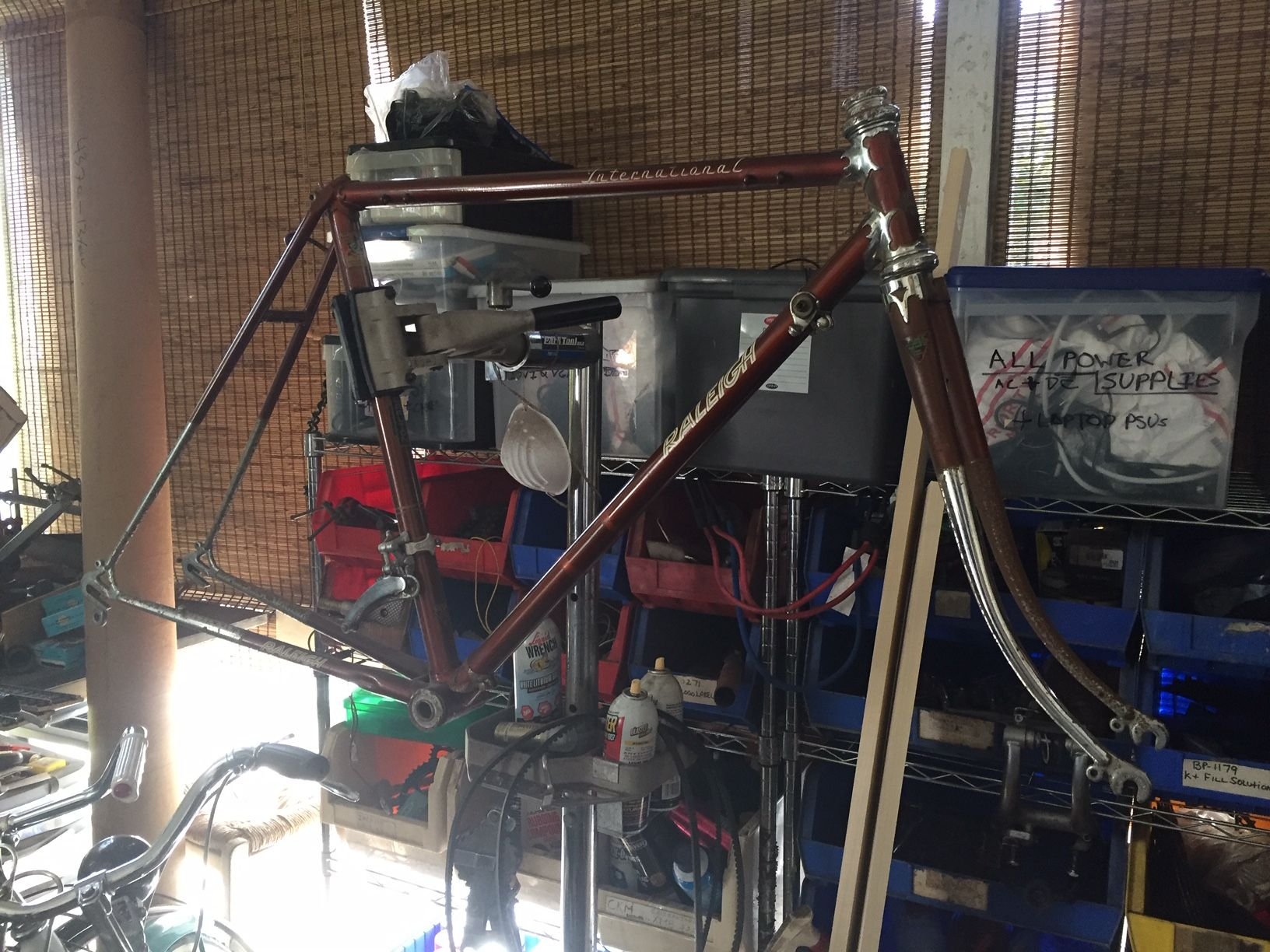

So, at around 8:30 in the evening on Tuesday, I cued the A-Team theme and began throwing this thing together with anything and everything in sight; hang the cleanup job. This is what came of it, two hours later:

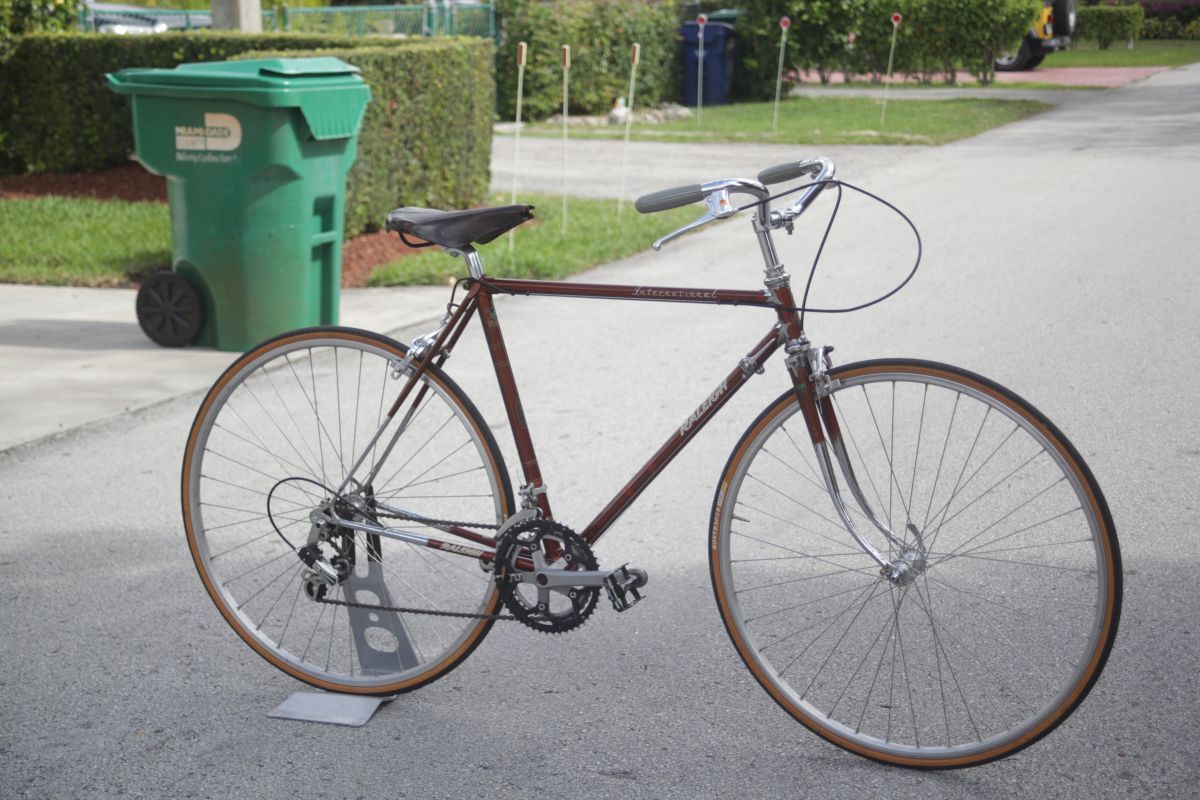

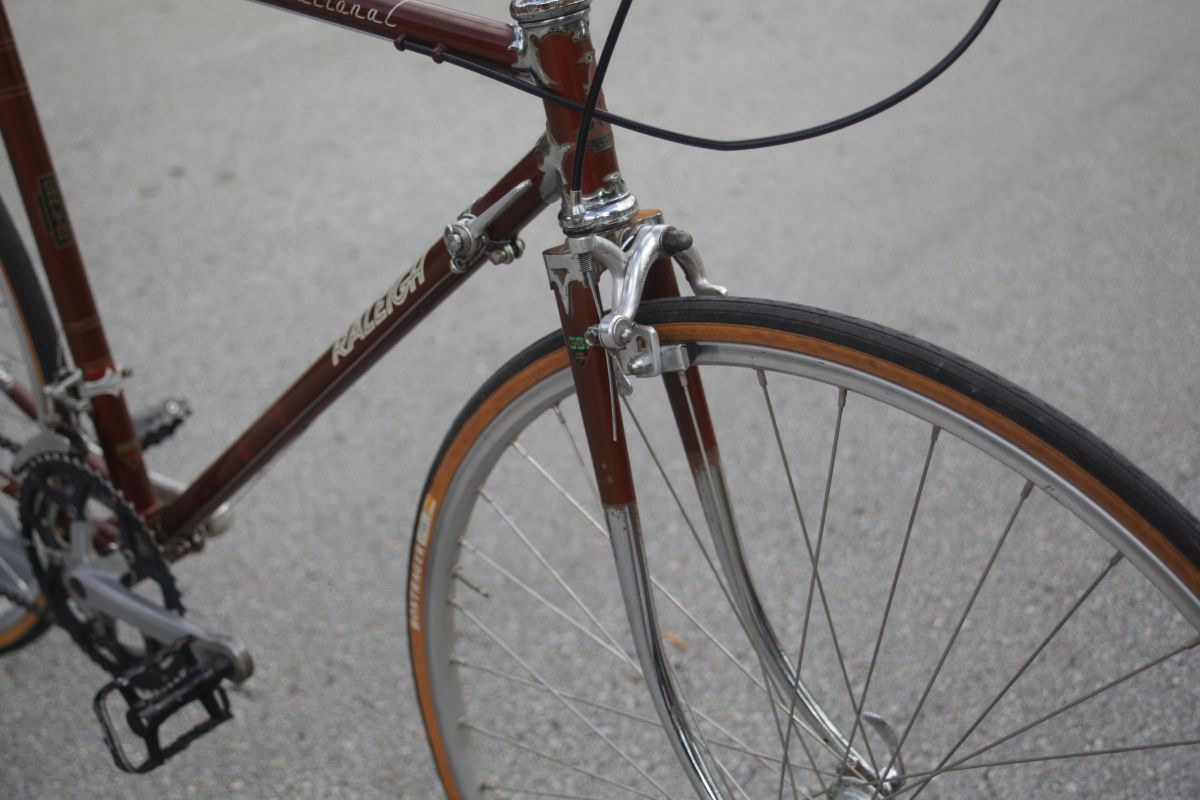

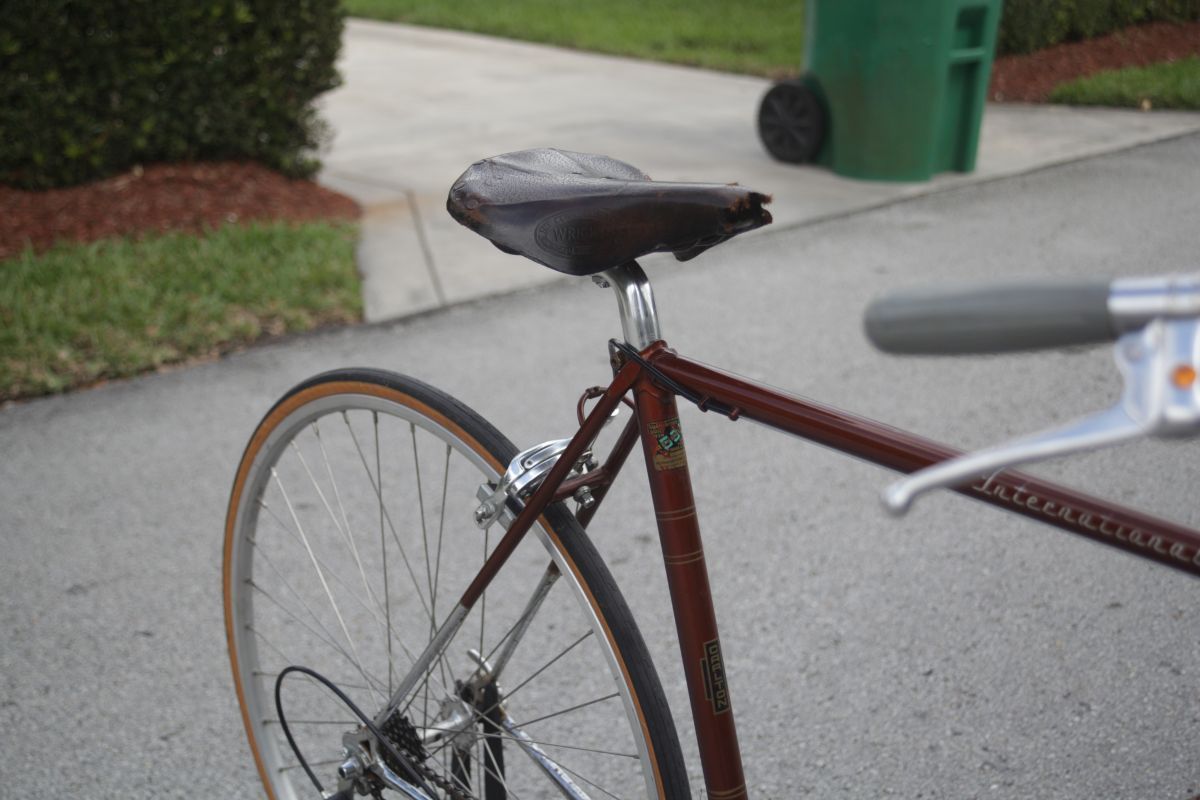

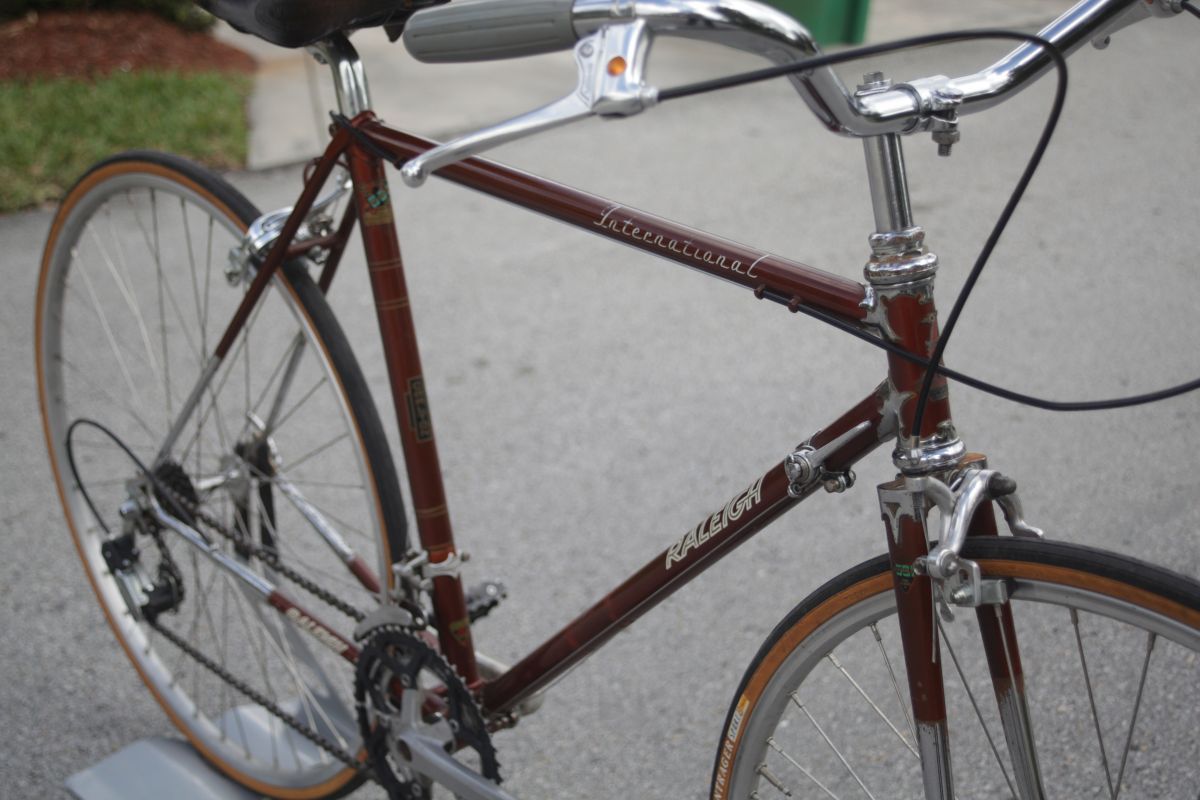

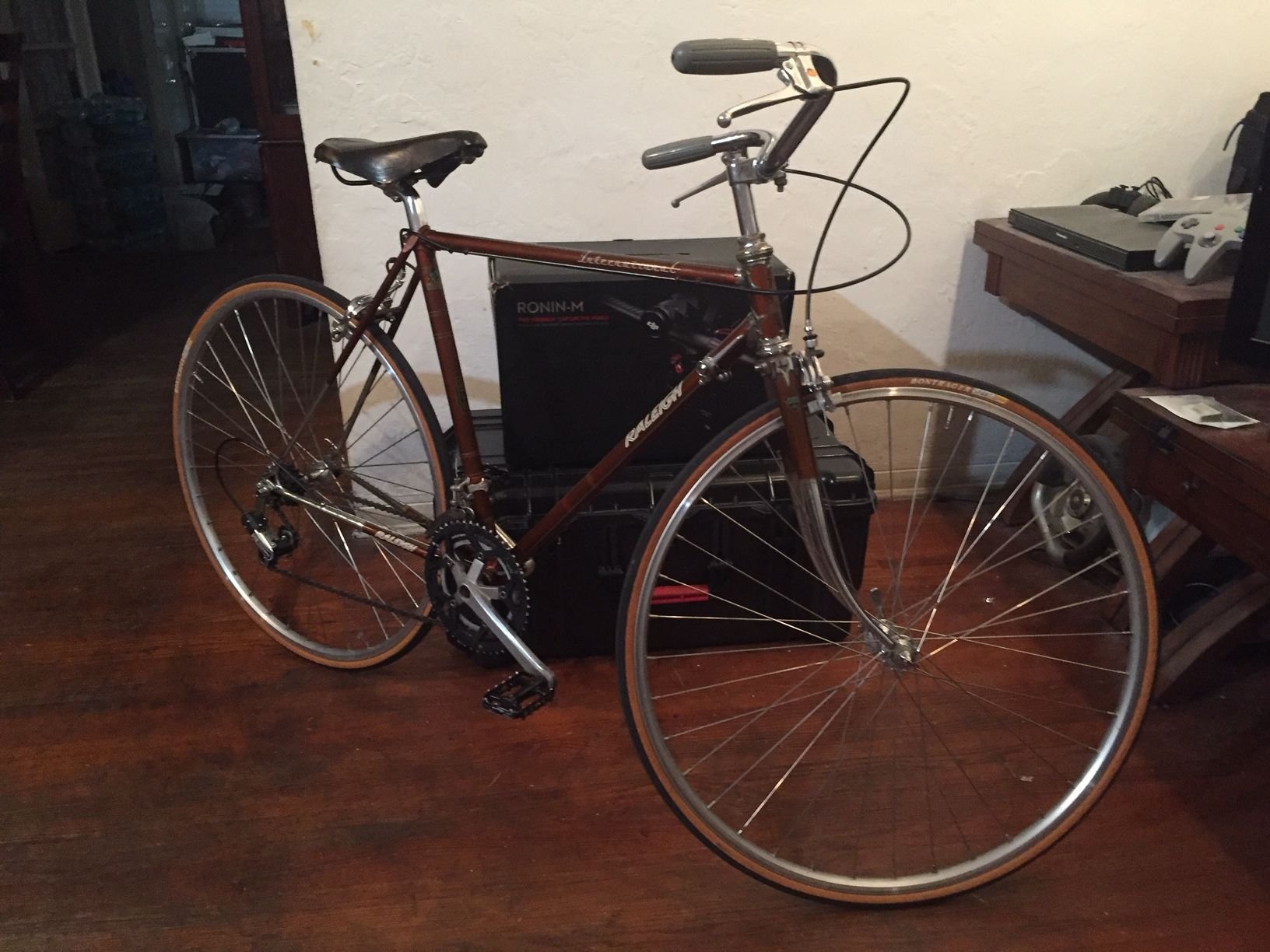

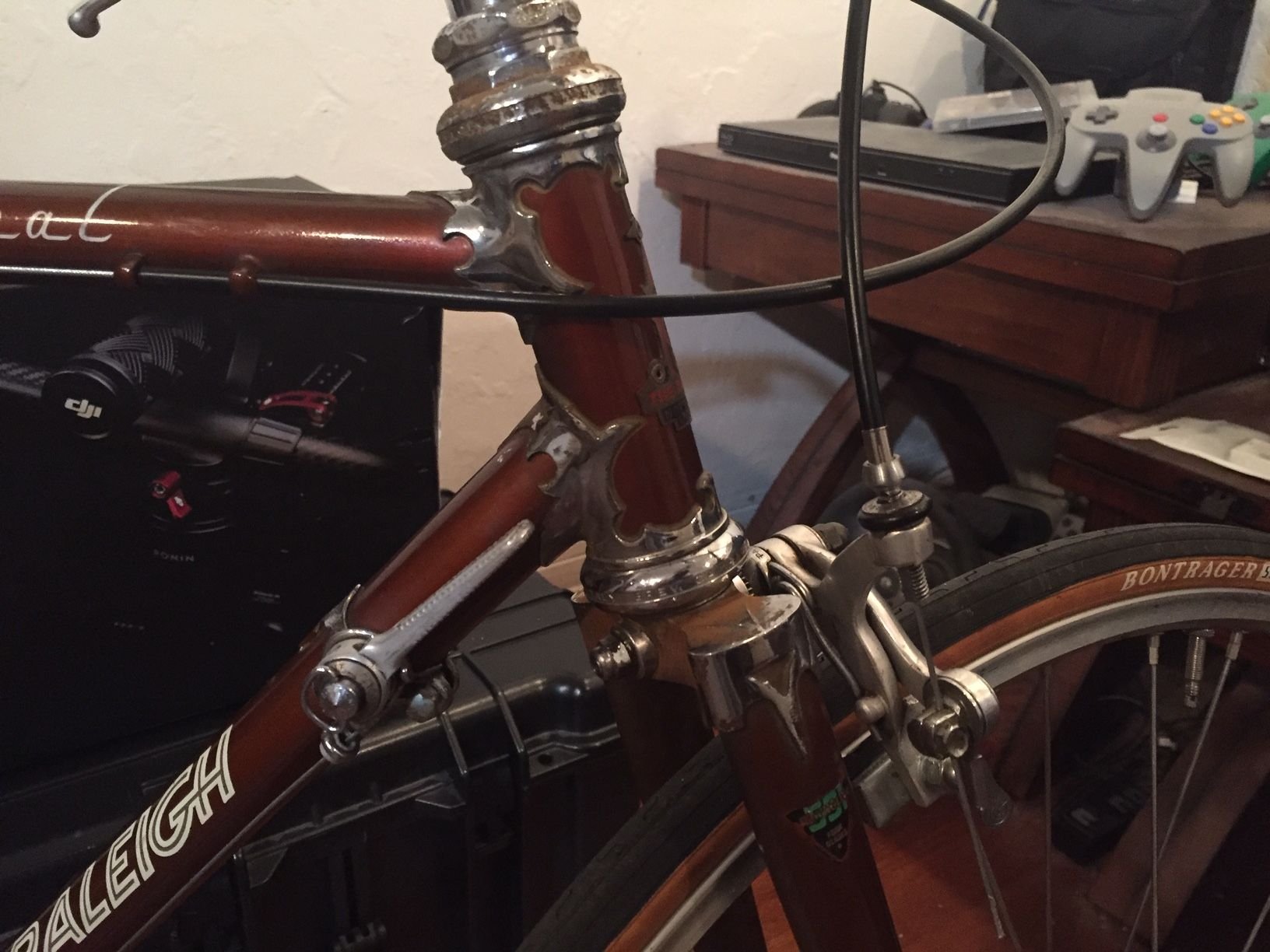

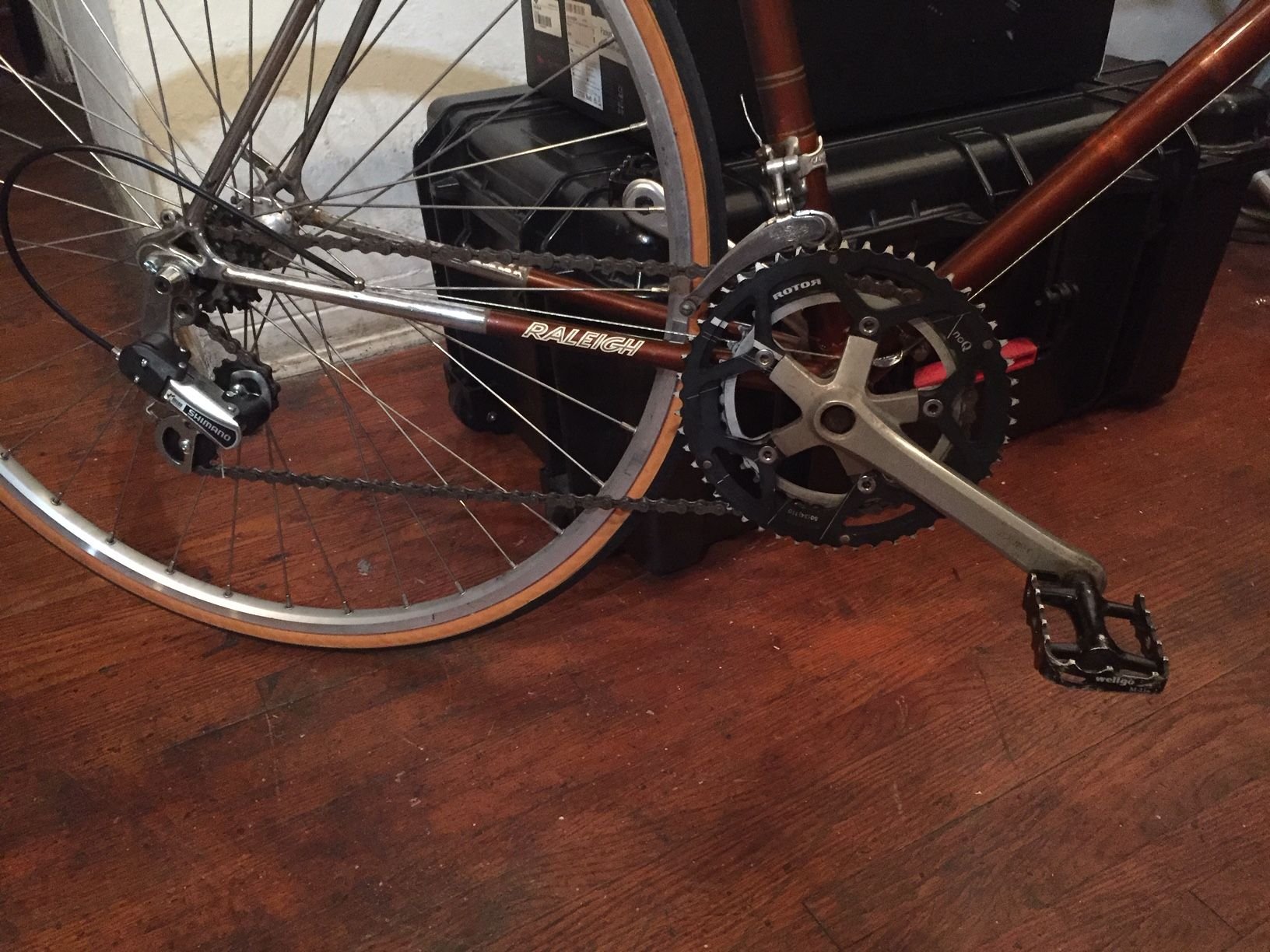

Not bad for a speed build utilizing whatever I found - mostly by chance and cobbled through some ingenuity - in my unreasonably sparse pile.

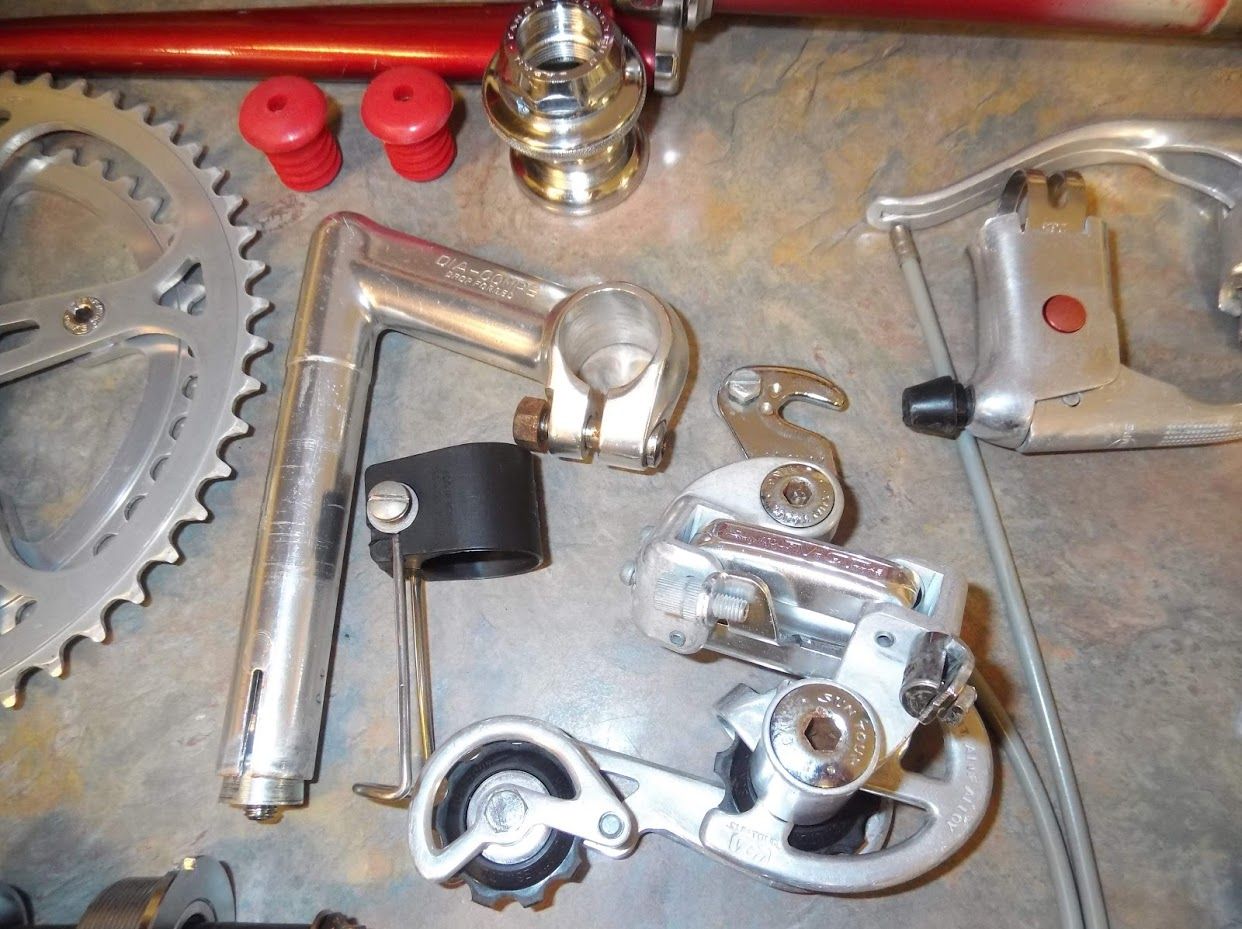

The final parts build wound up something like this:
  • Sugino thick-cup BB pulled directly from the Fuji Finest. The MW-68 spindle was swapped in favor of a Shimano spindle with a JIS taper, given the cranks.
  • Shimano 68mm spindle for a triple - 122.5mm. It was the only one I had, and to avoid horrible chainline, I installed it backwards. Hell with the Q-factor!
  • BB spindle bolts off a Shimano UN71 that welded itself to the adjustable cup
  • Handlebar and Dia-Compe brake levers off the 1980 "Stump Dump" Raleigh Sports from pastorbobnlnh (though I believe the handlebar and stem are off an earlier Raleigh, and I put them on the '80)
  • Late Raleigh bullet grips from...well, I don't remember.
  • Some sort of Shimano triple drive side crankarm, 110BCD. I believe I used a Sugino on the left side.
  • Modern Rotor 50t 110BCD outer ring - unused from my Raleigh Twenty camera bike project - and a Vuelta 38t inner ring, paired with some spare chainring bolts
  • A godawful new pulloff Shimano RD from a cheap Chinese folder. It was the ONLY spare I had, so I committed the ultimate (reversible) sin by mounting a derailer with a built in hanger onto a Campagnolo 1010 dropout (this will be the first thing to be rectified!)
  • Some sort of aftermarket 27.2 seatpost I had on my faux Rossin with the Wrights W3N off said Rossin
  • Modern Mavic 700C wheels laced to Record hubs - also off the Rossin
  • Weird mix of a Tektro long-reach dual-pivot and a Campagnolo Record front brake caliper
  • Spare, early Record shift lever for the front derailer. Had to pilfer the right side shiftier lever (a later Record with the meh nylon friction washer) from the Rossin - but it wasn't hooked to anything anyway.
  • Wellgo pedals from a Specialized that my neighbor rode into the ground - somehow, the pedals survived the thrashing that the drivetrain couldn't...
  • Headset, front derailer, shifter clamp, and bottom bracket cable guide came with the International
  • A surprisingly good KMC chain salvaged off a junked Target special (a Roadmaster Granite Peak...yech) that someone had actually tried to maintain at one time.
  • New cables and Teflon-lined housings. I ran out of cable end caps recently, so I soldered the cables - doable on these, as they weren't stainless.
And on a side note, after years of pairing those Weinmann/Dia-Compe brake levers with centerpulls or crappy sidepulls, I was SHOCKED to see how well they stopped this thing dead in its tracks with the Record/Tektro combo - and the feel is surprisingly better with the stiffer Campag sidepull than the somewhat spongy (if completely effective) dual pivot.

With any luck, I'll have some nicer pictures to share when it comes home on Friday. In the meantime, this is what it looked like after its second shakedown test ride. All I had to do was adjust the rear derailer a bit. Front was surprisingly fine, but rubs in low gear. So be it, it was 10:30.





-Kurt
__________________
cudak888 is offline
Old 02-06-19, 06:57 PM
  #2
squirtdad
Senior Member

squirtdad's Avatar

Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 6,011

Bikes: 90/91 De Rosa, '84 Team Miyata, '82 nishiski,

Mentioned: 52 Post(s)
Tagged: 0 Thread(s)
Quoted: 769 Post(s)
Liked 13 Times in 11 Posts
nice build with what you had to work with.....
__________________
Looking for Team Miyata F&F 58cm
squirtdad is offline
Old 02-06-19, 07:25 PM
  #3
cudak888
www.theheadbadge.com
Thread Starter

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 23,133

Bikes: http://www.theheadbadge.com

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 179 Post(s)
Liked 6 Times in 5 Posts
Originally Posted by squirtdad View Post
nice build with what you had to work with.....
Trust me, I can't wait to rip off the rear derailer, followed by that modern chainring. My 53T Rotor may look good on the Blasptwenty - behind a chainguard - but not on the International.




-Kurt
__________________
cudak888 is offline
Old 02-06-19, 07:44 PM
  #4
xiaoman1
Senior Member

xiaoman1's Avatar

Join Date: Mar 2014
Location: Weird Coast City of the Angeles
Posts: 1,925

Bikes: Paramounts, PX-10s, Mondias, Motobecane Grand Record, Specialized Allez Carbon, and Nishiki Tri-A

Mentioned: 21 Post(s)
Tagged: 1 Thread(s)
Quoted: 306 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by cudak888 View Post
I've been pretty content keeping my collection at N = N for lack of any surprise finds at yard sales for a number of years now, but just last weekend, I had the surprising fortune to pick up a Fuji Finest - chrome well worse for wear - and a copper Raleigh International.







With any luck, I'll have some nicer pictures to share when it comes home on Friday. In the meantime, this is what it looked like after its second shakedown test ride. All I had to do was adjust the rear derailer a bit. Front was surprisingly fine, but rubs in low gear. So be it, it was 10:30.
-Kurt
Turned out very nice...Just my size, wrong coast and wrong yard sale!!!
Best, Ben
__________________
Paramount, Mondia, Px-10, Moto

Last edited by xiaoman1; 02-06-19 at 07:48 PM.
xiaoman1 is online now
Old 02-06-19, 09:01 PM
  #5
jamesj
Senior Member

jamesj's Avatar

Join Date: Dec 2005
Location: Arizona
Posts: 872

Bikes: 2015 Specialized AWOL, 2006 Paul Frank Cruiser, 1987 Specialized Street Stomper, 1980 Trek 412, 1979 Raleigh Sport,

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 58 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Man, is that a 52??? If only!!!
jamesj is offline
Old 02-06-19, 09:43 PM
  #6
cudak888
www.theheadbadge.com
Thread Starter

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 23,133

Bikes: http://www.theheadbadge.com

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 179 Post(s)
Liked 6 Times in 5 Posts
No idea what size it is, really - didn't measure it. Eyeballed it, built it, and found out this morning that I not only got it right, my guess at saddle height was dead-on perfect.

-Kurt
__________________

Last edited by cudak888; 02-06-19 at 09:51 PM.
cudak888 is offline
Old 02-10-19, 12:38 PM
  #7
cudak888
www.theheadbadge.com
Thread Starter

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 23,133

Bikes: http://www.theheadbadge.com

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 179 Post(s)
Liked 6 Times in 5 Posts
I'm a few days late to my own party here, but I've finally been able to get back to the International (which turns out to be a 52cm).

First off, apparently, the Wrights W3N finally decided it'd had enough of this world, and proceeded to achieve Elon Musk-levels of Hyperloop acceleration as it shot off into the nearest curb (correction - the saddle nose probably went faster, given the levels of nonsense that the Hyperloop is). Honestly, I'm not surprised; it was nearing the end. Everything except the adjuster bolt was located, so off to eBay it goes .

Said coworker wasn't able to finish the ride because of this, but, as I'm told, the group ride for this "entry level" bike course involved a 3-lane, 45 MPH stroad. All the levels of absurdity you'd expect from vehicular cycling Foresterites* were on display here. Plus, they set the group pace at 22mph for the newbies and wound up splitting the pack into eight sections. Need I mention they had ex-dockless share bikes for those who couldn't bring bikes? That saddle nose had a better sense of timing than most movie editors.

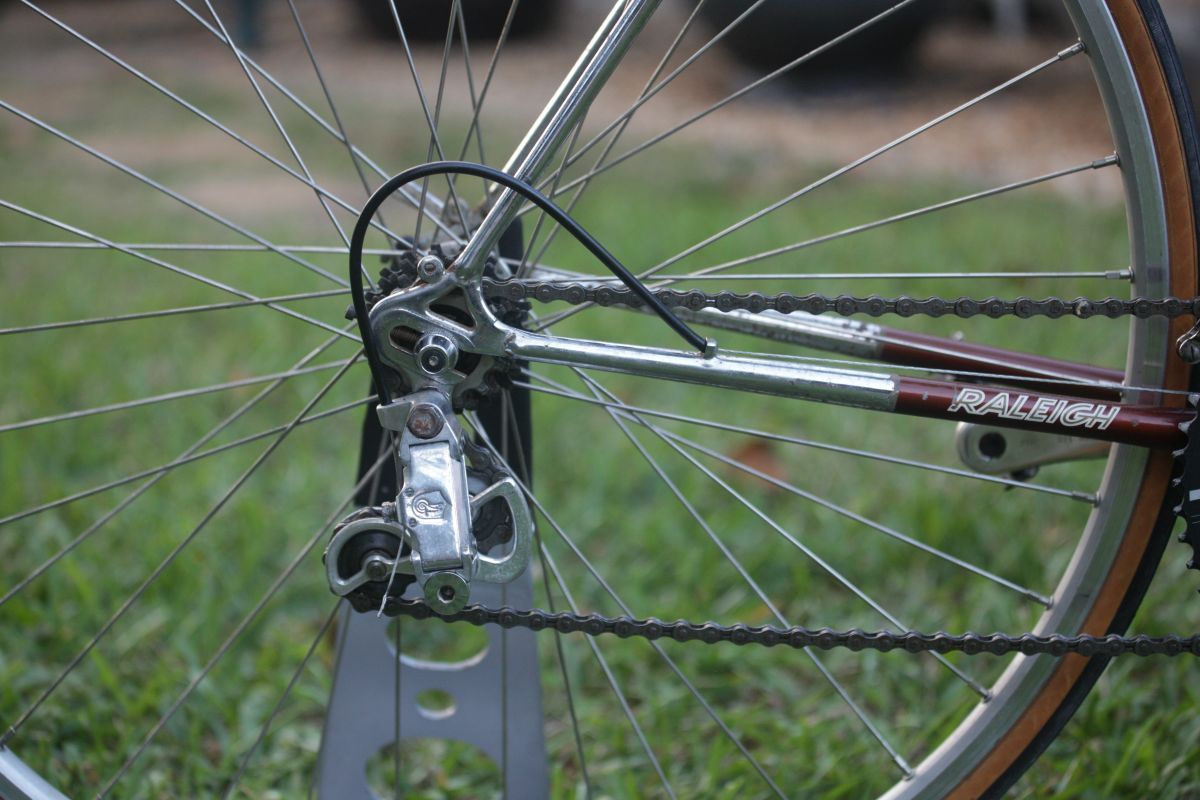

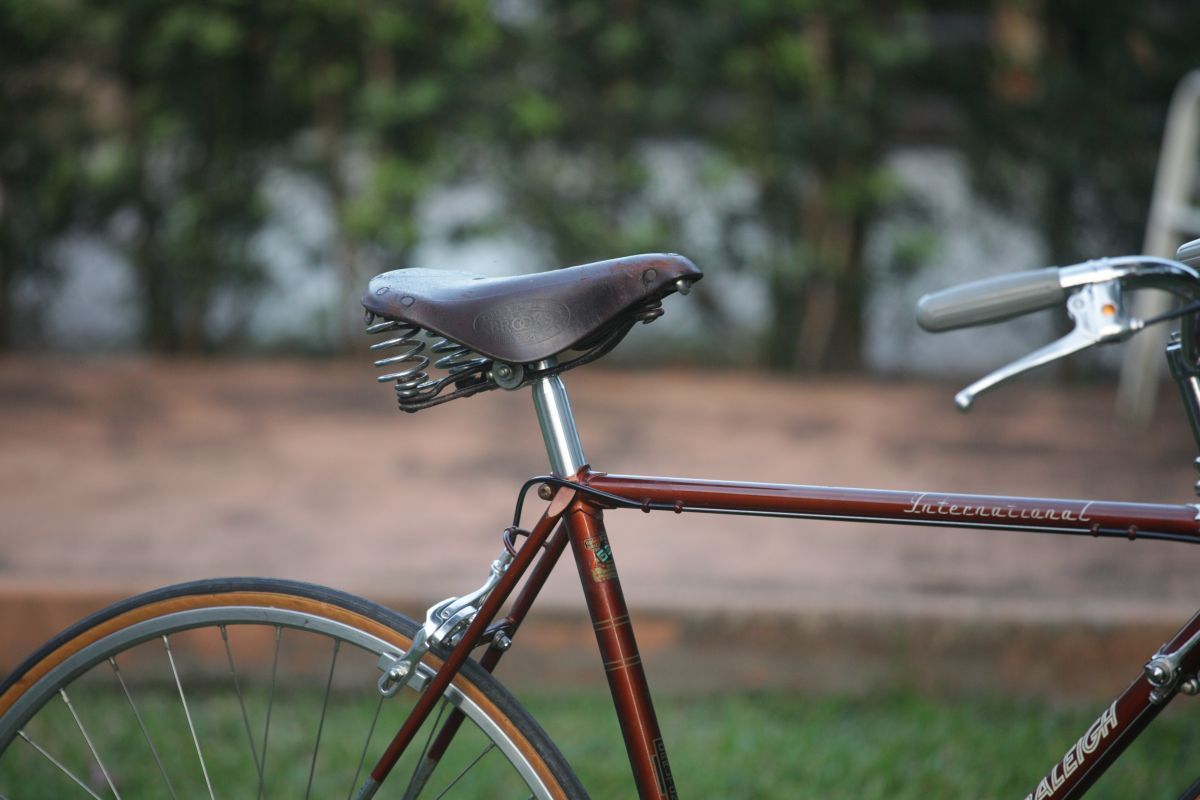

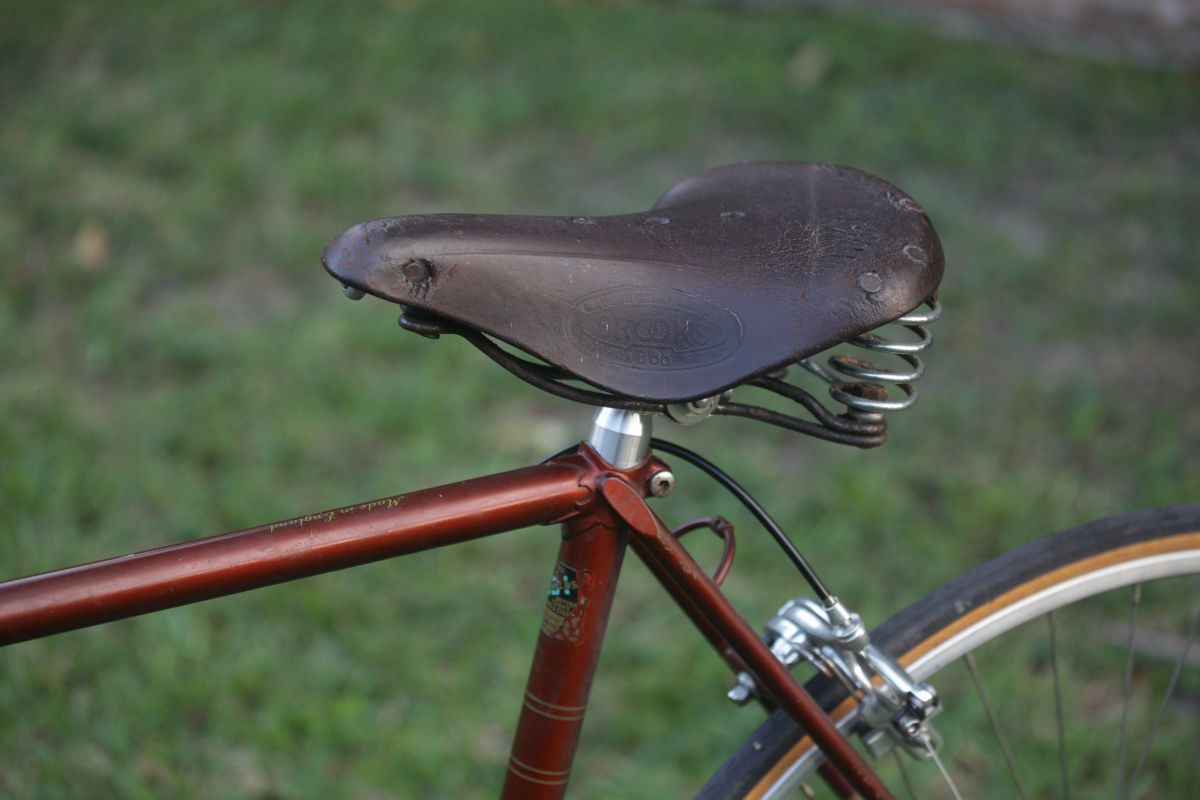

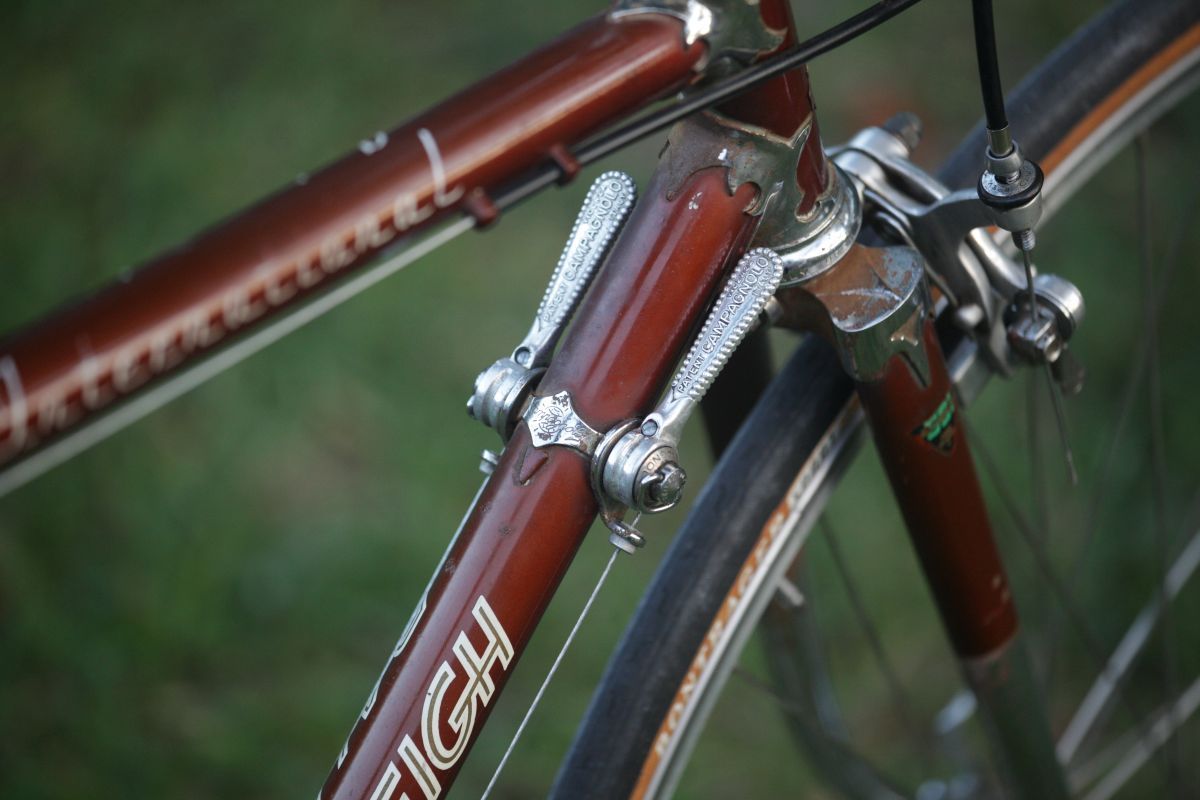

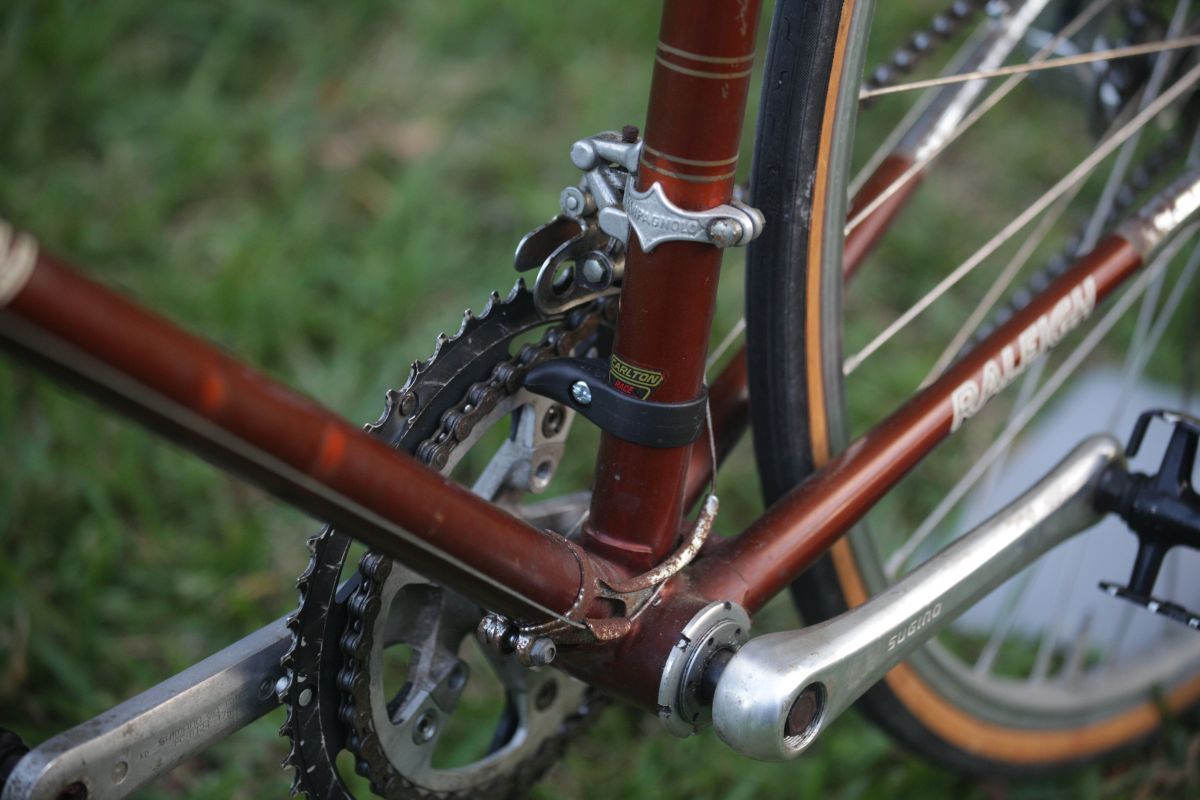

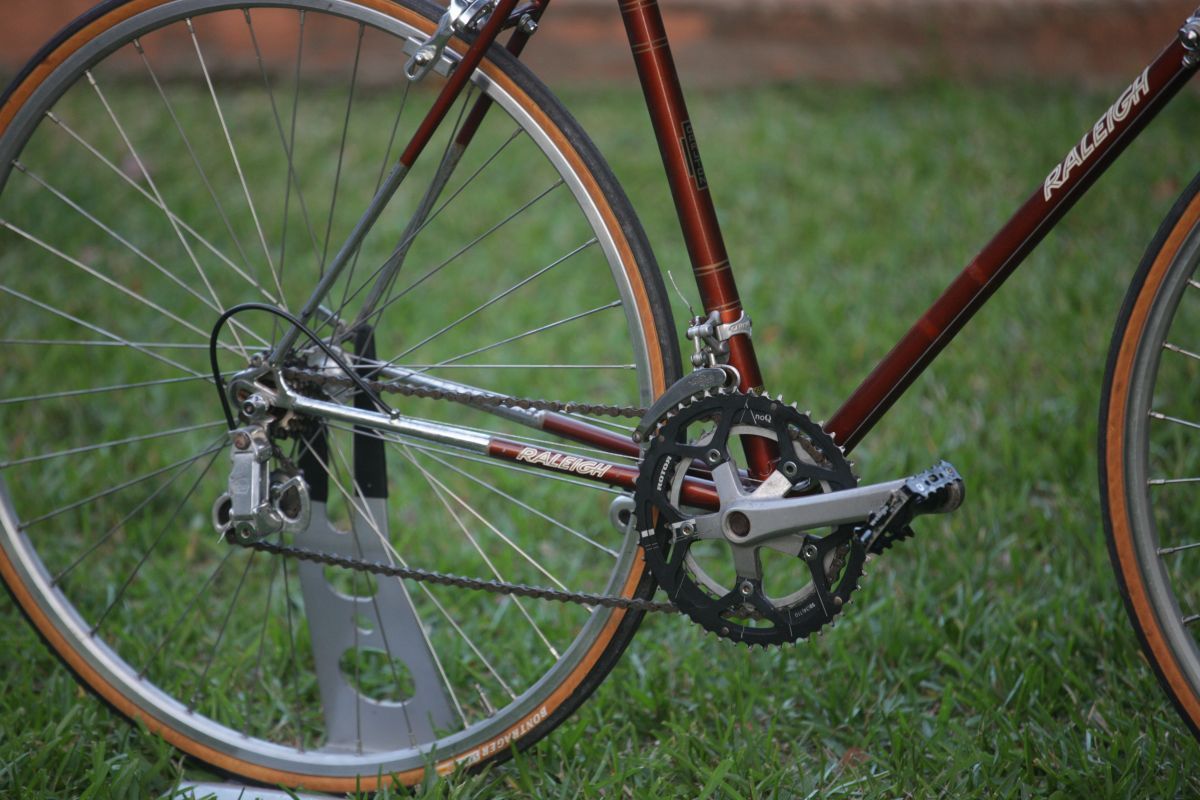

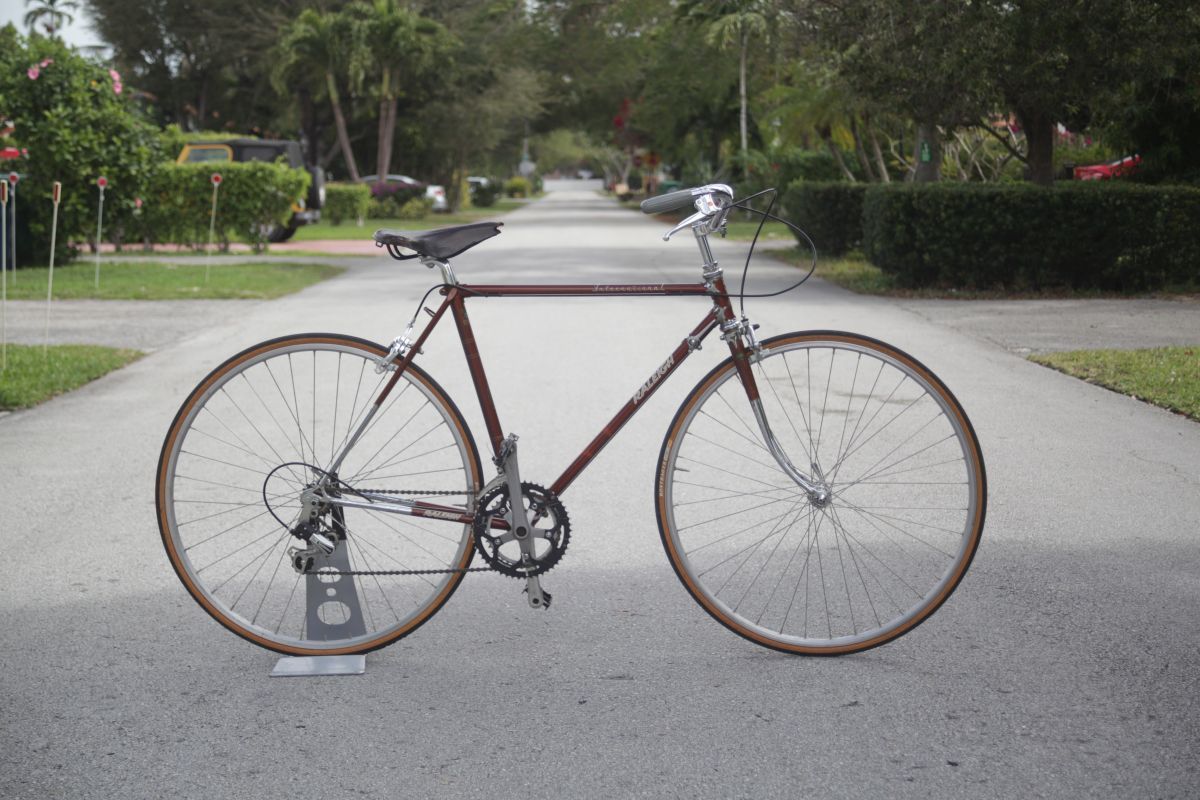

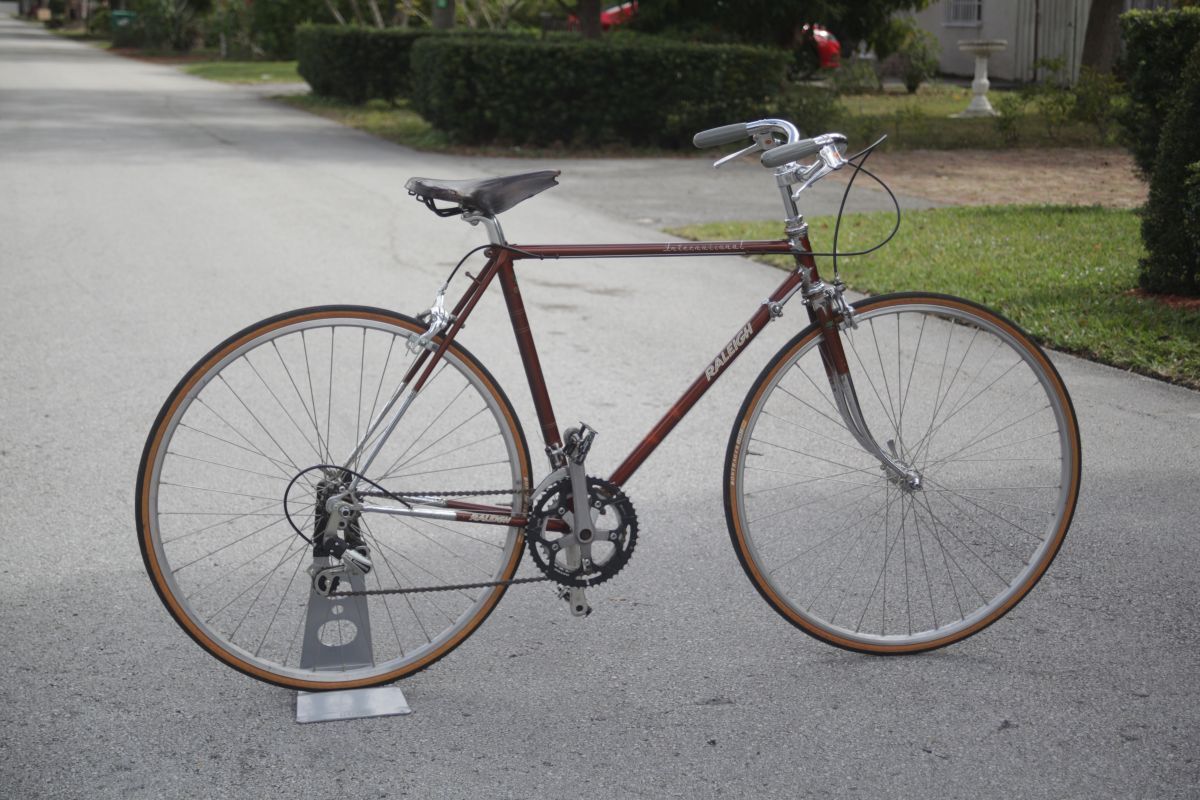

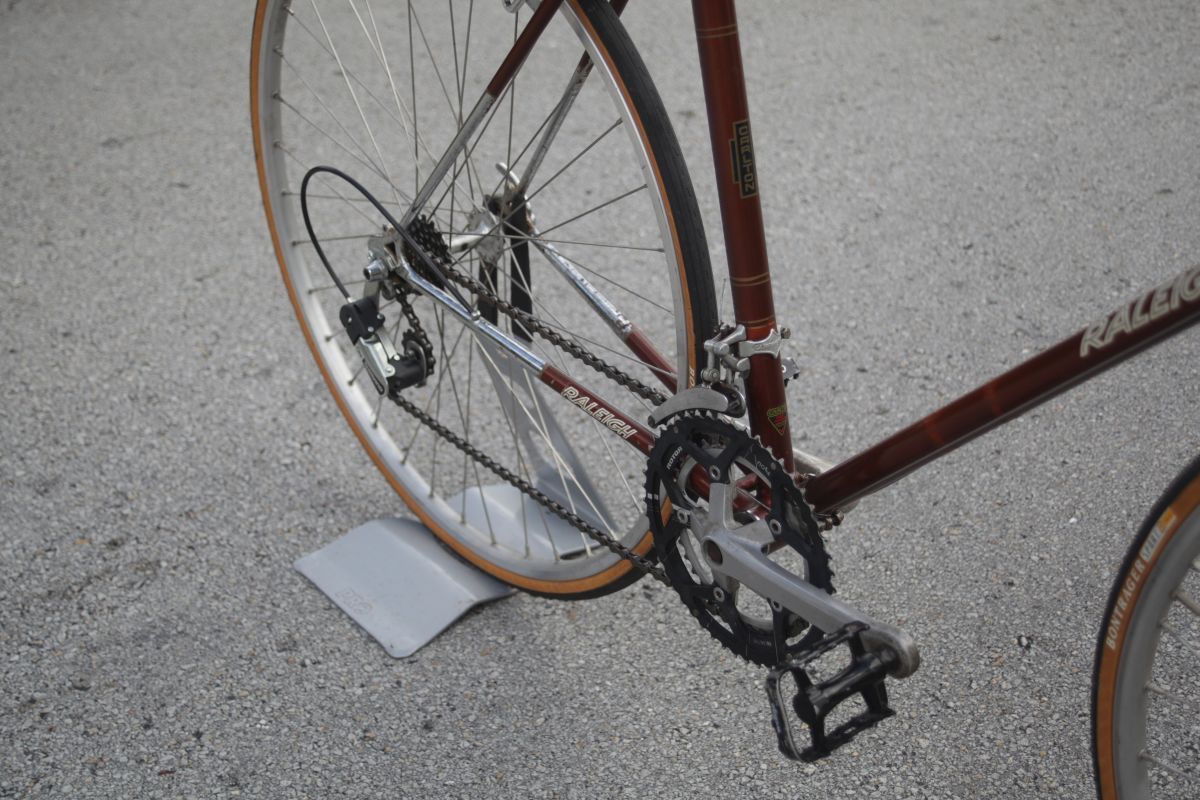

But I digress. I took some beauty shots of the International, sans saddle nose today. I still believe that with the right crankset and derailer, this combination would look pretty phenomenal.



This one is for Pastor Bob...














-Kurt

*John, I know you're on this forum, and if you want to have an intelligent debate (read = argument) over the hearsay you have published as "research," and how it's ruined bicycle safety and protected bike lane infrastructure in America over the last 30+ years, I'm game for it on the A&S forum. It didn't matter to me so much when I was thinking only of myself, but after hearing it from my coworkers - who are also my friends - your "effective cycling" was just effective enough to hit home and strike a nerve.
__________________

Last edited by cudak888; 02-10-19 at 03:29 PM.
cudak888 is offline
Old 02-11-19, 09:33 AM
  #8
USAZorro
Señor Member

USAZorro's Avatar

Join Date: Oct 2004
Location: Florence, KY
Posts: 16,190

Bikes: Mostly English - predominantly Raleighs

Mentioned: 48 Post(s)
Tagged: 0 Thread(s)
Quoted: 686 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by cudak888 View Post
No idea what size it is, really - didn't measure it. Eyeballed it, built it, and found out this morning that I not only got it right, my guess at saddle height was dead-on perfect.

-Kurt
Listed as 20 - 1/2"
__________________
In search of what to search for.
USAZorro is offline
Old 02-11-19, 11:52 AM
  #9
fishboy316
Senior Member

fishboy316's Avatar

Join Date: Jan 2015
Location: Arnold Maryland
Posts: 232

Bikes: Cervelo S5, Cannondale AL1 Lefty MTB, Trek X01, Trek Farley 7,1951 Raleigh Sport, 57&60 Raleigh Tourist, 70 Raleigh Super Course, 80's Soma Prestiege,72 Raleigh Grand Sports, 85 Club Fuji, 76 Raleigh Competition, 85 Panasonic,70's Peugot u08. & more

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Very nice! I love the International. Very sweet frame. Thanks for sharing!
fishboy316 is offline
Old 02-11-19, 09:30 PM
  #10
cudak888
www.theheadbadge.com
Thread Starter

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 23,133

Bikes: http://www.theheadbadge.com

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 179 Post(s)
Liked 6 Times in 5 Posts
Honestly, this thing rides so zippy that I'm sorely tempted to find a 23" International and move the whole build to it, sans the ugly bits.

Originally Posted by USAZorro View Post
Listed as 20 - 1/2"
That's it then. Had a brain fart there and forgot that Raleigh measured in imperial.

I've gone through my stash, and the very last C&V stem from the '70s that I have spare is an ATAX, which looks surprisingly decent (read = not crack-prone). Almost tempted to throw it on here if it's 22.2 and not 22.0. EDIT: 22.0. So much for that idea.

-Kurt
__________________
cudak888 is offline
Old 02-12-19, 06:19 AM
  #11
pastorbobnlnh
Freewheel Medic

pastorbobnlnh's Avatar

Join Date: Oct 2005
Location: Ascending or Descending the NH Mountains NW of Concord!
Posts: 11,156

Bikes: Snazzy* Schwinns, Classy Cannondales, & a Lonely '83 Santana Tandem (* Ed.)

Mentioned: 82 Post(s)
Tagged: 0 Thread(s)
Quoted: 448 Post(s)
Liked 3 Times in 2 Posts
Kurt, love the green tipster waste receptacle for South Florida! Very municipal!

You are more than welcome to this Dia-Compe 22.2 stem. Since your mixing all sorts of bits together, why not!?!

__________________
Bob
Dreaming about riding in NH's summertime!

Visit my websites:
FreeWheelSpa.com orpastorbobnlnh.com
pastorbobnlnh is offline
Old 02-13-19, 06:33 AM
  #12
cudak888
www.theheadbadge.com
Thread Starter

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 23,133

Bikes: http://www.theheadbadge.com

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 179 Post(s)
Liked 6 Times in 5 Posts
Thanks Bob, but the International will probably wind up being flipped anyway due to its size; I wouldn't take your generosity for it. Thing is, I don't mind making a flip bike an excuse for a nice-looking build when I have the opportunity to do so

Then again, I finished this one last week, so I have a slight duality of pride here...
https://miami.craigslist.org/mdc/bik...816099487.html

-Kurt
__________________
cudak888 is offline
Old 02-13-19, 07:02 AM
  #13
pastorbobnlnh
Freewheel Medic

pastorbobnlnh's Avatar

Join Date: Oct 2005
Location: Ascending or Descending the NH Mountains NW of Concord!
Posts: 11,156

Bikes: Snazzy* Schwinns, Classy Cannondales, & a Lonely '83 Santana Tandem (* Ed.)

Mentioned: 82 Post(s)
Tagged: 0 Thread(s)
Quoted: 448 Post(s)
Liked 3 Times in 2 Posts
Kurt, love the green tip in your CL ad! I believe you are loosing money in this flip--- simply because your time in creating the write-up was worth way--- way more than $40.
__________________
Bob
Dreaming about riding in NH's summertime!

Visit my websites:
FreeWheelSpa.com orpastorbobnlnh.com
pastorbobnlnh is offline
Old 02-13-19, 11:42 AM
  #14
Pcampeau
Senior Member

Join Date: Aug 2017
Posts: 130
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by pastorbobnlnh View Post
Kurt, love the green tip in your CL ad! I believe you are loosing money in this flip--- simply because your time in creating the write-up was worth way--- way more than $40.
At least the ad sounds like it was fun to write!
Pcampeau is offline
Old 02-13-19, 12:17 PM
  #15
tiger1964
Senior Member

tiger1964's Avatar

Join Date: Apr 2011
Location: Maryland
Posts: 650

Bikes: Drysdale/Gitane/Zeus/Palo-Alto/Falcon

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 159 Post(s)
Liked 3 Times in 2 Posts
I like the look, but how convenient are the DT shift levers with the upright handlebars?
tiger1964 is offline
Old 02-13-19, 12:40 PM
  #16
machinist42
Senior Member

machinist42's Avatar

Join Date: Dec 2016
Location: Trails End, Wilmington, NC
Posts: 938

Bikes: 1972 Falcon San Remo, 1974 Maserati MT-1, 1974 Raleigh International, 1984 Lotus Odyssey, 198? Rossin Ghibli, 1990 LeMond Le Vanquer (sic), 1991 Specialized Allez Transition Pro.

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 336 Post(s)
Liked 2 Times in 2 Posts
In Country

Originally Posted by cudak888 View Post
...But I digress. I took some beauty shots of the International, sans saddle nose today. I still believe that with the right crankset and derailer, this combination would look pretty phenomenal

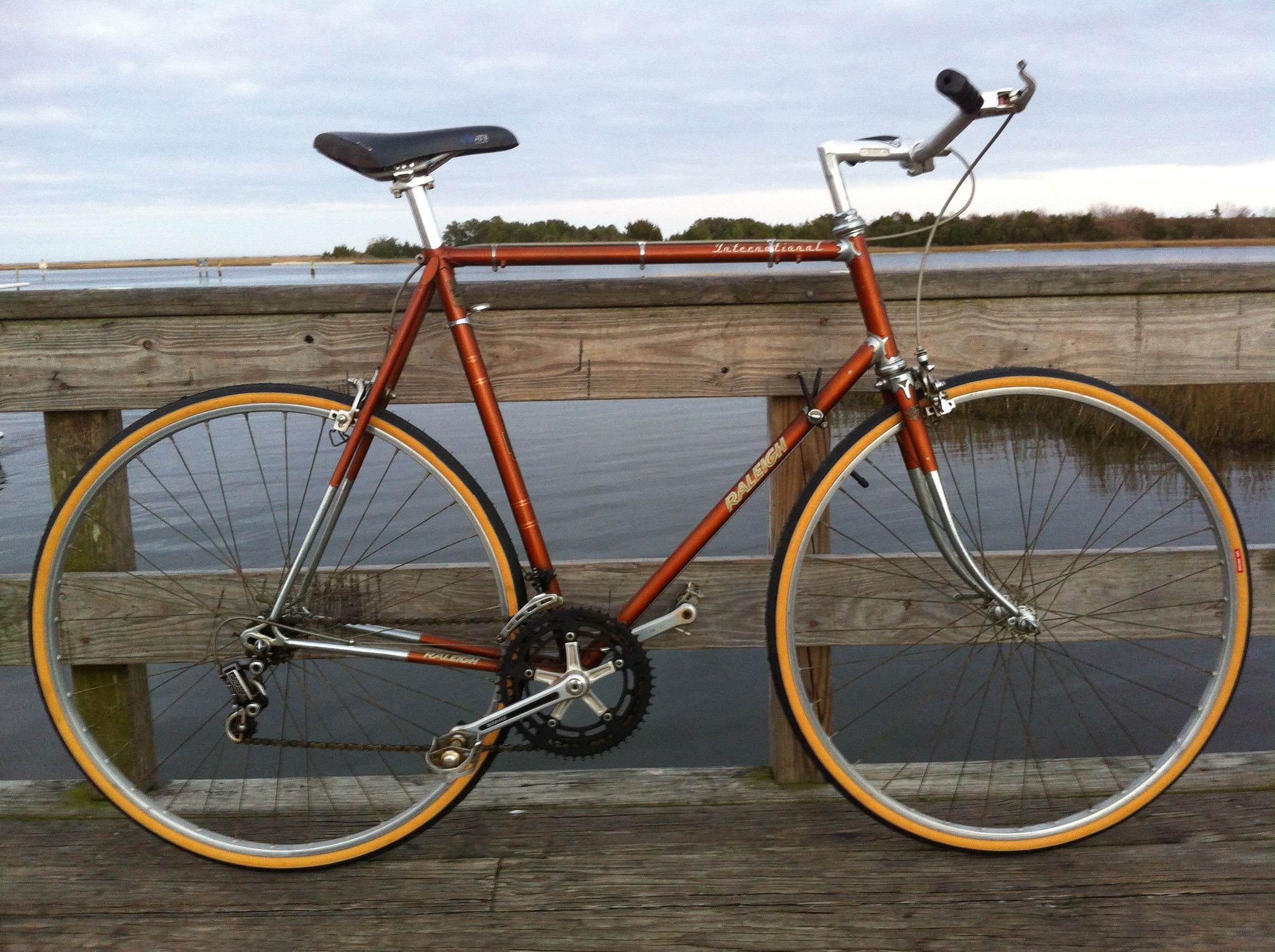

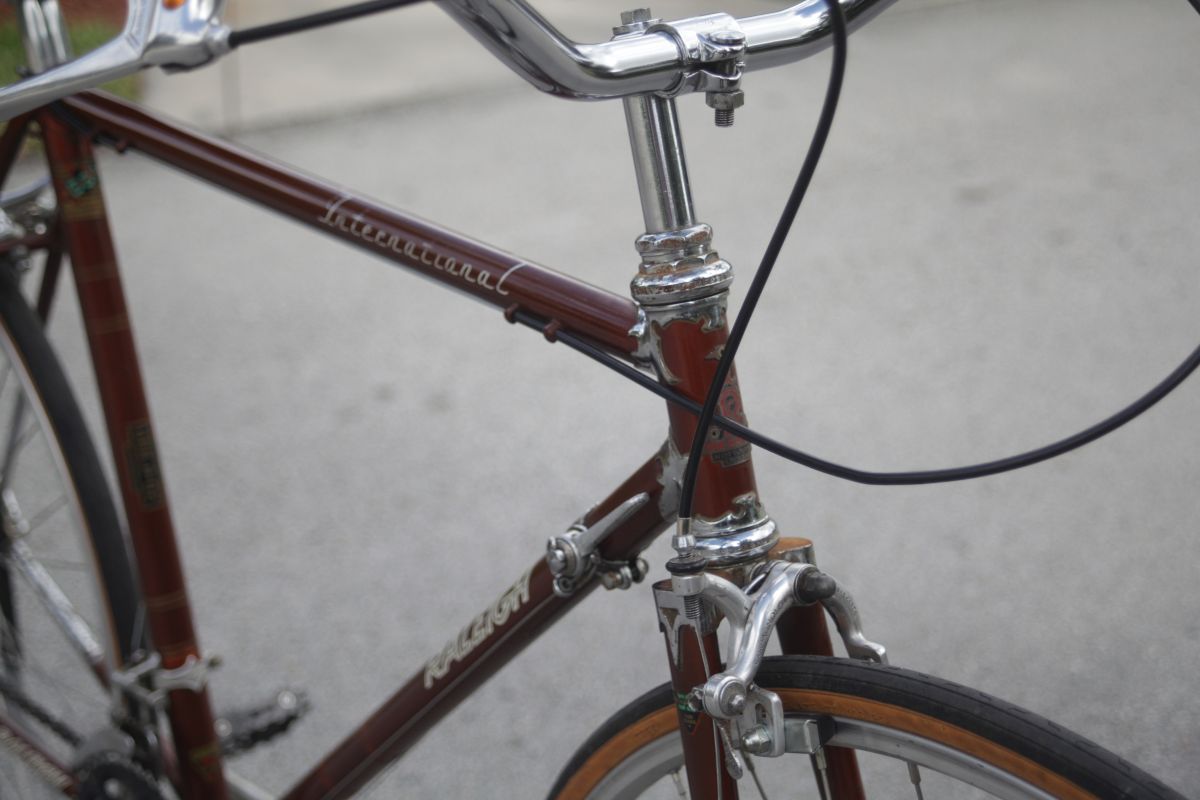

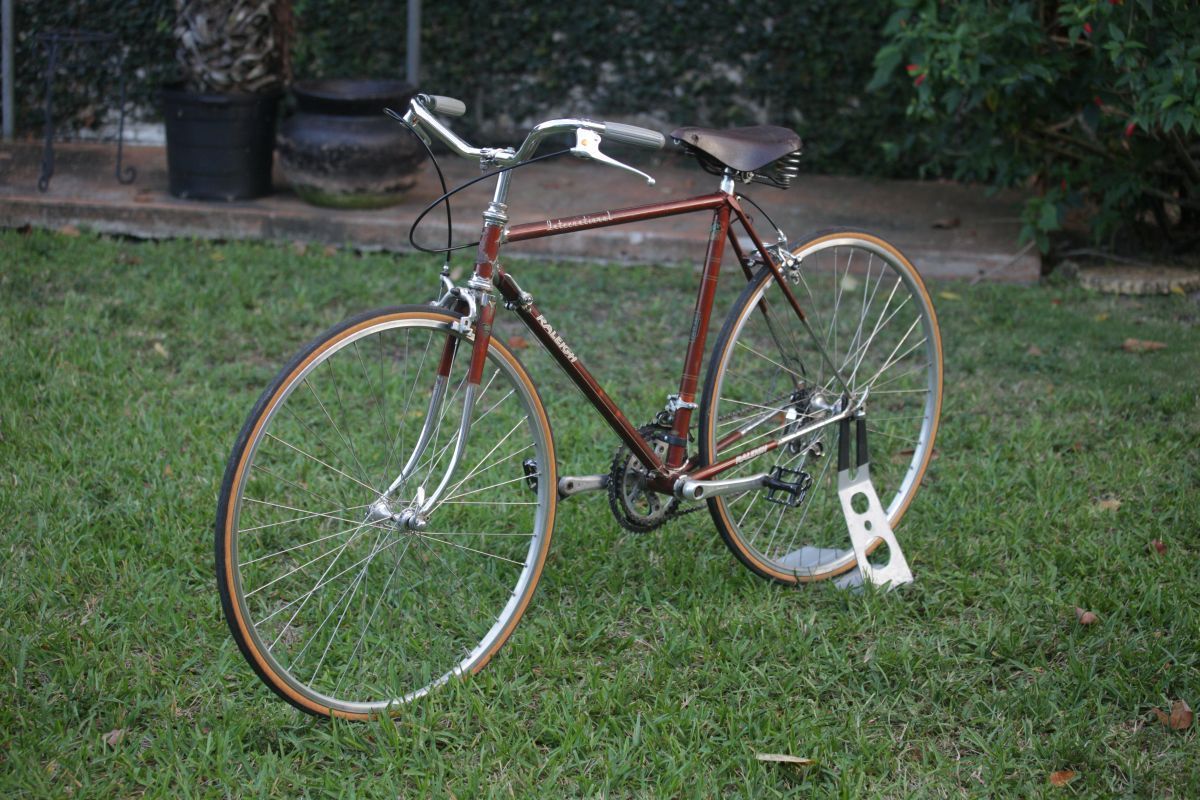

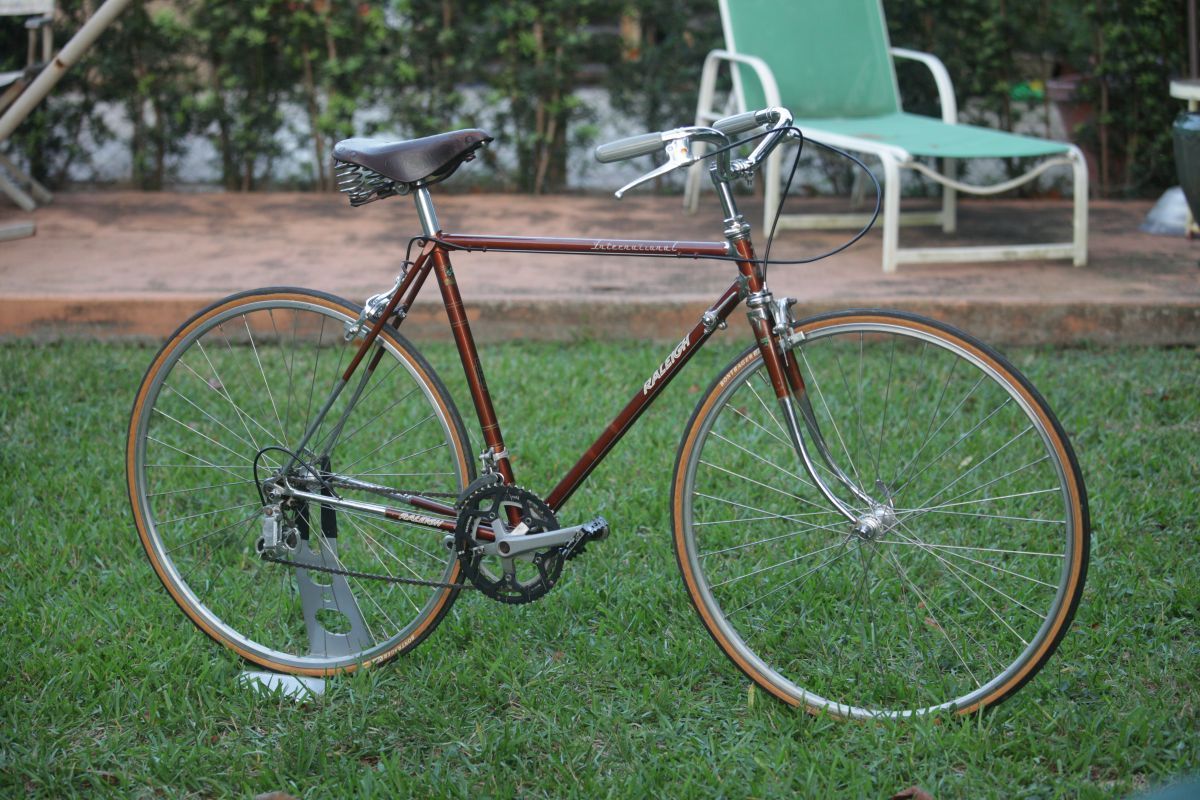

Perhaps like this? This was the previous owner's build, with first gen Dura-Ace except or the headset. It was a fine ride, but I prefer drop bars, and chanced upon the appropriate Campagnolo and Mafac bits, so it was not fated to stay this way. The 630 rims he installed laced to Dura-Ace hubs so the sidepulls would reach also seemed to change the feel of the ride,
machinist42 is offline
Old 02-13-19, 09:25 PM
  #17
cudak888
www.theheadbadge.com
Thread Starter

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 23,133

Bikes: http://www.theheadbadge.com

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 179 Post(s)
Liked 6 Times in 5 Posts
Originally Posted by pastorbobnlnh View Post
Kurt, love the green tip in your CL ad! I believe you are loosing money in this flip--- simply because your time in creating the write-up was worth way--- way more than $40.
I couldn't let you down, Bob! The Roadmaster pictures were taken a few minutes before the International, so the can hasn't moved an inch between both photos.

Ironically enough, this bike is the Roadmaster Granite Peak that donated its chain to the Raleigh.

Originally Posted by Pcampeau View Post
At least the ad sounds like it was fun to write!
Writing the humorous ad was worth it. Building the bike was not - I had it kicking about in its mostly-complete factory form until I found those cruiser wheels in the trash. I even had to drill the lousy rivets out of the cheapo triple crankset to make it a proper single ring.

Originally Posted by tiger1964 View Post
I like the look, but how convenient are the DT shift levers with the upright handlebars?
They were barely an issue - for me. But keep in mind I usually ride 58cm and was running around like a clown when testing this thing. The length of my arms and upper body may give me an unrealistic perception of ease in comparison to someone who fits this thing.

Originally Posted by machinist42 View Post
Perhaps like this? This was the previous owner's build, with first gen Dura-Ace except or the headset. It was a fine ride, but I prefer drop bars, and chanced upon the appropriate Campagnolo and Mafac bits, so it was not fated to stay this way. The 630 rims he installed laced to Dura-Ace hubs so the sidepulls would reach also seemed to change the feel of the ride,
Not really; I'd be seeking out a polished aluminum crankset, and I'd probably stick with a single ring with a circular chain protector. A TA Pro 5 Vis would suit the bill nicely. Maybe a Zeus 2000 RD just to be different.

-Kurt
__________________
cudak888 is offline
Old 02-14-19, 10:50 AM
  #18
tiger1964
Senior Member

tiger1964's Avatar

Join Date: Apr 2011
Location: Maryland
Posts: 650

Bikes: Drysdale/Gitane/Zeus/Palo-Alto/Falcon

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 159 Post(s)
Liked 3 Times in 2 Posts
Originally Posted by cudak888 View Post
The length of my arms and upper body may give me an unrealistic perception of ease in comparison to someone who fits this thing.
Extremely good point; I keep forgetting not everyone has my long-legs, short-arms proportions.
tiger1964 is offline
Old 02-14-19, 11:07 AM
  #19
squirtdad
Senior Member

squirtdad's Avatar

Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 6,011

Bikes: 90/91 De Rosa, '84 Team Miyata, '82 nishiski,

Mentioned: 52 Post(s)
Tagged: 0 Thread(s)
Quoted: 769 Post(s)
Liked 13 Times in 11 Posts
Originally Posted by tiger1964 View Post
I like the look, but how convenient are the DT shift levers with the upright handlebars?
I had a torpado set up in a similar manner....... really not a problem for me..... but i tended to not shift a lot.....kinda of like a single speed at that point of time......with lots of other single speed gearing options. keeps it very clean.......otherwise I woulld go thumb shifters
__________________
Looking for Team Miyata F&F 58cm
squirtdad is offline
Old 02-18-19, 03:22 PM
  #20
ryansu
Ride.Smile.Repeat

ryansu's Avatar

Join Date: May 2011
Location: Seattle WA
Posts: 1,532

Bikes: 2009 Handsome Devil, 1978 Motobecane Grand Touring, 1987 Nishiki Cresta GT, Former bikes; 1986 Miyata Trail Runner, 1979 Miyata 912, 2011 VO Rando, 1999 Cannondale R800, 2012 Soma Smoothie, 1986 Schwinn Passage

Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 408 Post(s)
Liked 11 Times in 9 Posts
I pity the fool who sets the pace of a newbie group ride at 22 mph......
ryansu is offline
Old 02-18-19, 06:53 PM
  #21
xetaprime
Senior Member

Join Date: Sep 2015
Location: Florida
Posts: 175
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 62 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
My first road bike was a 75-76 Batavus with low end Simplex derailleur. And TMI I loved that bike. Even wrote Batavus saying how much I loved it. They wrote back saying they would send a Batavus robe- not kidding! It never came. I was devastated at the time. But next, the love of my life was a used green 72-ish Raleigh International. Frame was always too big for me but I had it into the early 90s? I wish I could find a cheap 54 (21-ish) bike again but funds are gone DAMNIT!!!
xetaprime is offline
Old 02-18-19, 10:40 PM
  #22
cudak888
www.theheadbadge.com
Thread Starter

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 23,133

Bikes: http://www.theheadbadge.com

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 179 Post(s)
Liked 6 Times in 5 Posts
Originally Posted by ryansu View Post
I pity the fool who sets the pace of a newbie group ride at 22 mph......
Don't forget the 45 mph 3-lane urban arterial with no shoulders either. That's what happens when you let members of a cycling club - who mean well, but have long forgotten the needs of new riders (and the fact that not everyone is the fearless rider type) - lead a ride.

It'd be funny if it wasn't so dangerous; one of my team either came near or had (didn't get 100% confirmation) an asthma attack trying to keep up on one of the ex-OFO dockless bikes they provided (wasn't aware these were provided, or this International might not have been built).

Anyway, I ought to shut up about this, because I fully intend to put the bite on them for one of those OFOs I think my next kink in bike collecting will be retired dockless share bikes...

Originally Posted by xetaprime View Post
My first road bike was a 75-76 Batavus with low end Simplex derailleur. And TMI I loved that bike. Even wrote Batavus saying how much I loved it. They wrote back saying they would send a Batavus robe- not kidding! It never came. I was devastated at the time. But next, the love of my life was a used green 72-ish Raleigh International. Frame was always too big for me but I had it into the early 90s? I wish I could find a cheap 54 (21-ish) bike again but funds are gone DAMNIT!!!
I'm kinda feeling that way with this International. Had a couple of members PM me and I've been sandbagging...almost want to trade for a 23" of the same!

-Kurt
__________________

Last edited by cudak888; 04-02-19 at 04:01 PM.
cudak888 is offline
Old 03-15-19, 06:43 PM
  #23
cudak888
www.theheadbadge.com
Thread Starter

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 23,133

Bikes: http://www.theheadbadge.com

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 179 Post(s)
Liked 6 Times in 5 Posts



Round #2 for the International. Something made me want to keep it around a bit longer. Sure enough, another event cropped up with similar circumstances to bring her back into service today. I dare say I'm going to justify this thing as the designated "guest bike."

Since I was not content with the original build, I decided to address a few issues and annoyances beforehand:

First off, the wrecked W3N gave way to a Brooks B17 Champion Standard that I've had kicking around for a few millennia - in an attempt to find the "right bike" for it. This is an odd duck of a saddle; too narrow for a city-oriented 3-speed, but equipped with springs and all the heavy, comfy bits one expects for such a bike. But it seems right at home on an upright-bar converted Raleigh International.



That required an el-cheapo straight post (didn't have time to experiment with rail spacers) but I'm not complaining. Looks good.

I was told that the chain popped once during the bike's first outing. I tried the FD multiple times over with the RD in various spots and couldn't replicate the problem. I swear it must have happened from a sneaker heel kicking the chain.

I put one of these doo-dads on to put a stop to it. It doesn't look great - especially over the Carlton Race Proven transfer - but it should keep chain popping issues tidy.



The mis-matched shifters are also no longer a problem, but I did not have time to locate a proper right hand pressure washer, plate, or D-ring screw. I used the later generation parts off the Rossin instead. Anyone have the earlier bits available? Rusty is fine.




The other thing that had to go was that cheap Shimano RD. I went to the LBS and wound up with two RD's out of the parts bin - a Suntour Alpha 5000 (basically a Cyclone 7000 with a fully-polished and clear-anodized finish) and a Campagnolo Triomphe missing its upper pivot bolt. I bought the Triomphe just for fun - I happen to like the look of the Triomphe/Victory RD's, even though I know the Victory is superior. I was sure I didn't have an upper pivot bolt for it, but I was pretty sure I had the derailer jockey wheel bolt to fix up the Suntour.

Famous last words.

After an hour of searching, I came up dry, Suntour speaking. However, the search ended when I opened one obscure drawer of mine - looking for Suntour bits - only to find a really ugly Nuovo Gran Sport upper pivot bolt. Ugly or not, I happen to know it'll work on the Triomphe, and I now have less than 8 hours to get this thing done.

Baym.





Excuse the cable housing angle at the chainstay; it's just the way it wants to sit. I could shorten the cable run, but didn't have the time to perfect it.

Predictably, it now shifts worse than with the two-bit Shimano shifter, but I can tolerate the looks a lot more (if I don't look at the upper pivot bolt).

And that's about it. I haven't done anything about the crank or rear caliper for lack of any replacements at present, but they'll probably get swapped out once some parts drop into my lap. Eventually.

A few more photos:




-Kurt
__________________
cudak888 is offline
Old 03-16-19, 10:08 AM
  #24
AdventureManCO
Senior Member

Join Date: Jul 2008
Location: Front Range CO
Posts: 266

Bikes: 1968 PX10, 1969 PX10 (64cm/FS), 1987 Centurion Ironman Expert, 1989 Centurion Le Mans, 1977 Fuji S10-S, 1972ish Dawes Galaxy, 1973 Raleigh Super Course (FS), Schwinn Super Sport, 1998 Schwinn Homegrown, 1996 Trek 990, Bridgestone MB-3

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 98 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
This machine is classy in it's simplicity. I think it is beautiful.
AdventureManCO is offline
Old 03-16-19, 12:28 PM
  #25
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: West Village, New York City
Posts: 36,872

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1973 Raleigh Twenty, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 409 Post(s)
Tagged: 0 Thread(s)
Quoted: 5241 Post(s)
Liked 20 Times in 20 Posts
It's an awfully nice guest bike. I might like to visit you in a year, and I would try the bike. I'm not going to make it to FL this year.

I'm thinking I want a tall guest bike, like around 25" frame. There's a UO-8 at the coop I'm eyeing.
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
