The Teledyne Titan Saloon.

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

The Teledyne Titan Saloon.

Old 07-02-19, 09:19 PM
  #176
crank_addict
Senior Member

crank_addict's Avatar

Join Date: Aug 2013
Posts: 6,990
Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 1269 Post(s)
Likes: 0
Liked 289 Times in 188 Posts
Unobtanium

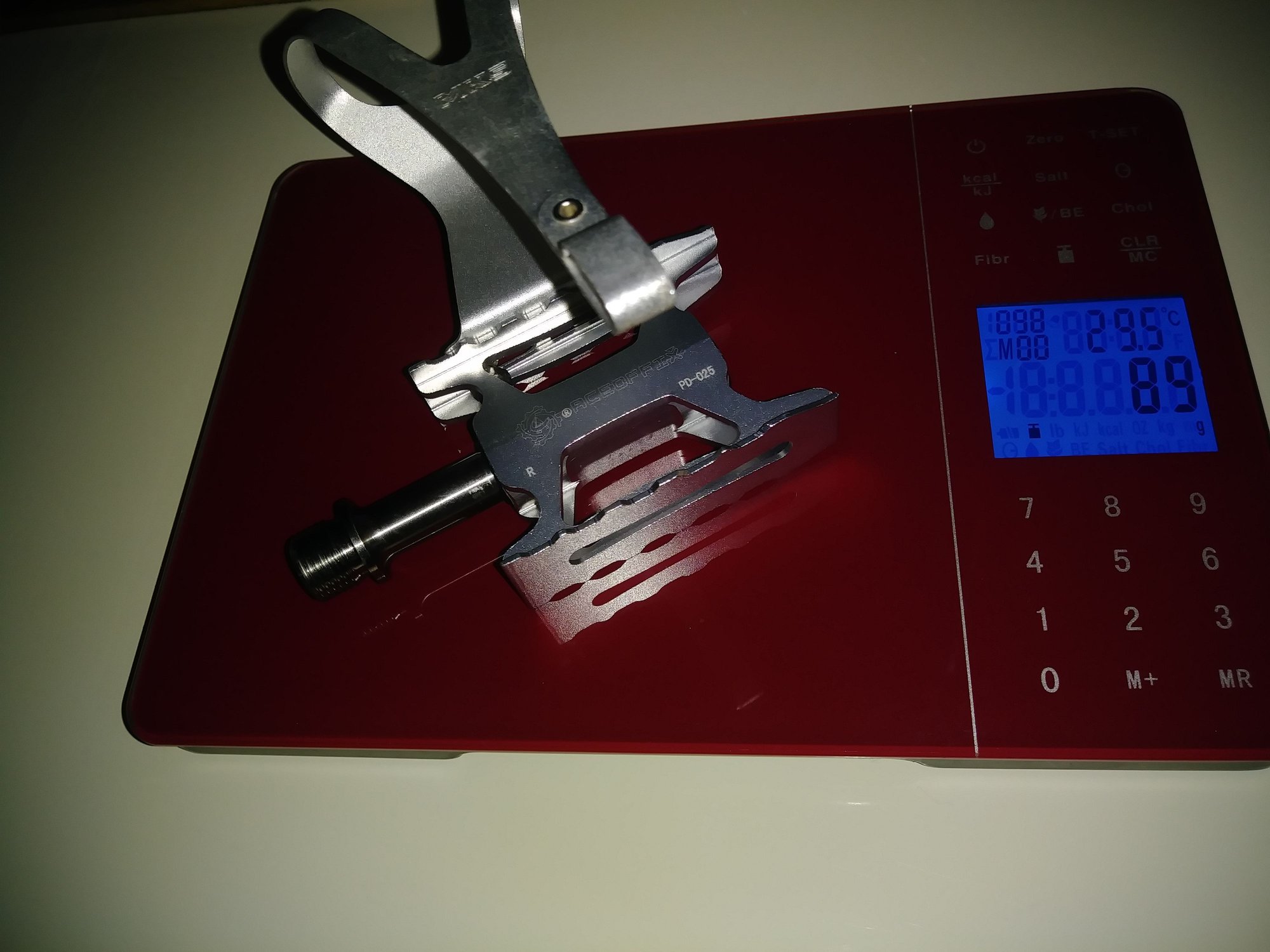

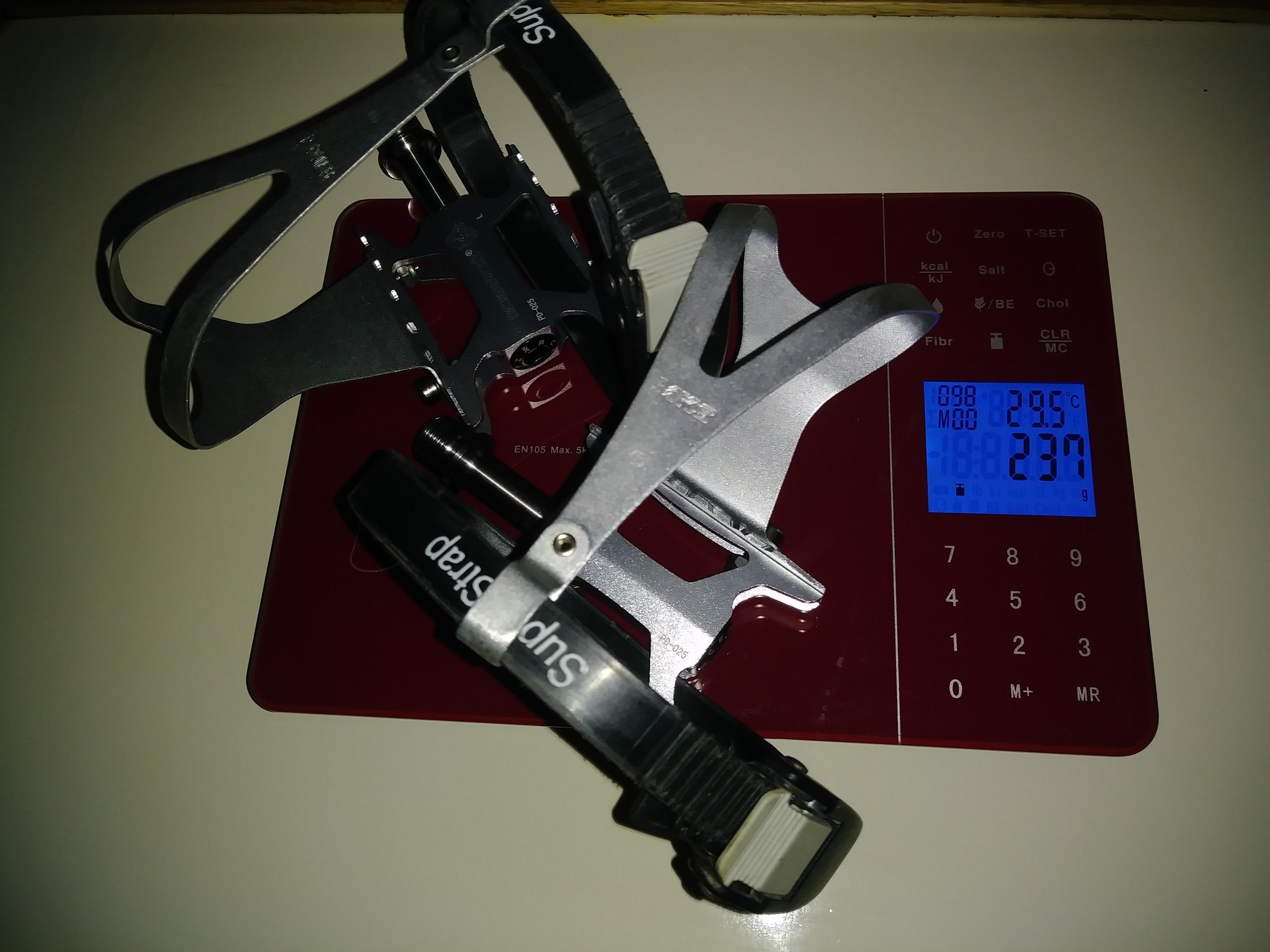

Decided on the following foot contraption for the Teledyne.

Chaos in Hong Kong isn't stopping them from shipping some freaky light pedals. Bearings are silky smooth!

Ally toe clips from MKS Japan.

Super Strap made in Italy. I think to have purchased them in 1990, a brilliant design.



Last edited by crank_addict; 07-02-19 at 09:45 PM.
crank_addict is offline
Old 07-03-19, 08:50 PM
  #177
RobbieTunes
Half drunk? Finish!

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 26,884
Mentioned: 34 Post(s)
Tagged: 1 Thread(s)
Quoted: 373 Post(s)
Liked 717 Times in 463 Posts
You better bring that thing to Coppi or I'll tell Peter you have something for him.
__________________
Robbie ♪♫♪...☻
I have unfinished business.

RobbieTunes is online now
Old 09-02-19, 03:30 PM
  #178
joluja
Junior Member

Join Date: Jul 2018
Location: Phoenix, AZ
Posts: 11

Bikes: Merckx Corsa Extra, Ciocc Mockba, Zeus Victoria, Alan Competition (RIP), Lemond Ventoux, Serotta CDA, Willier Cento 1SR, Pinarello FP Quattro, Teledyne Titan, Chesini Arena Precision 83

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked 17 Times in 7 Posts
My New Titan

Hello all,I figured this is the group that would appreciate this info. I just bought a Titan from the son of a Titan bicycle shop dealer (#141). It was from his late fathers collection and is in remarkable shape and has original headset/bottom bracket/Shimano cable clips etc. I added a few photos from the Titan bicycle dealer information packet and original tags from the one he bought. Pretty cool stuff and I will post photos once I clean it up.







joluja is offline
Likes For joluja:
Old 09-02-19, 03:52 PM
  #179
RobbieTunes
Half drunk? Finish!

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 26,884
Mentioned: 34 Post(s)
Tagged: 1 Thread(s)
Quoted: 373 Post(s)
Liked 717 Times in 463 Posts
GREAT stuff.
__________________
Robbie ♪♫♪...☻
I have unfinished business.

RobbieTunes is online now
Old 09-02-19, 04:34 PM
  #180
Andy Antipas
Senior Member

Join Date: Sep 2011
Location: Durango, CO
Posts: 218

Bikes: too many old steel bikes

Mentioned: 52 Post(s)
Tagged: 0 Thread(s)
Quoted: 50 Post(s)
Liked 35 Times in 15 Posts
Durango Titan

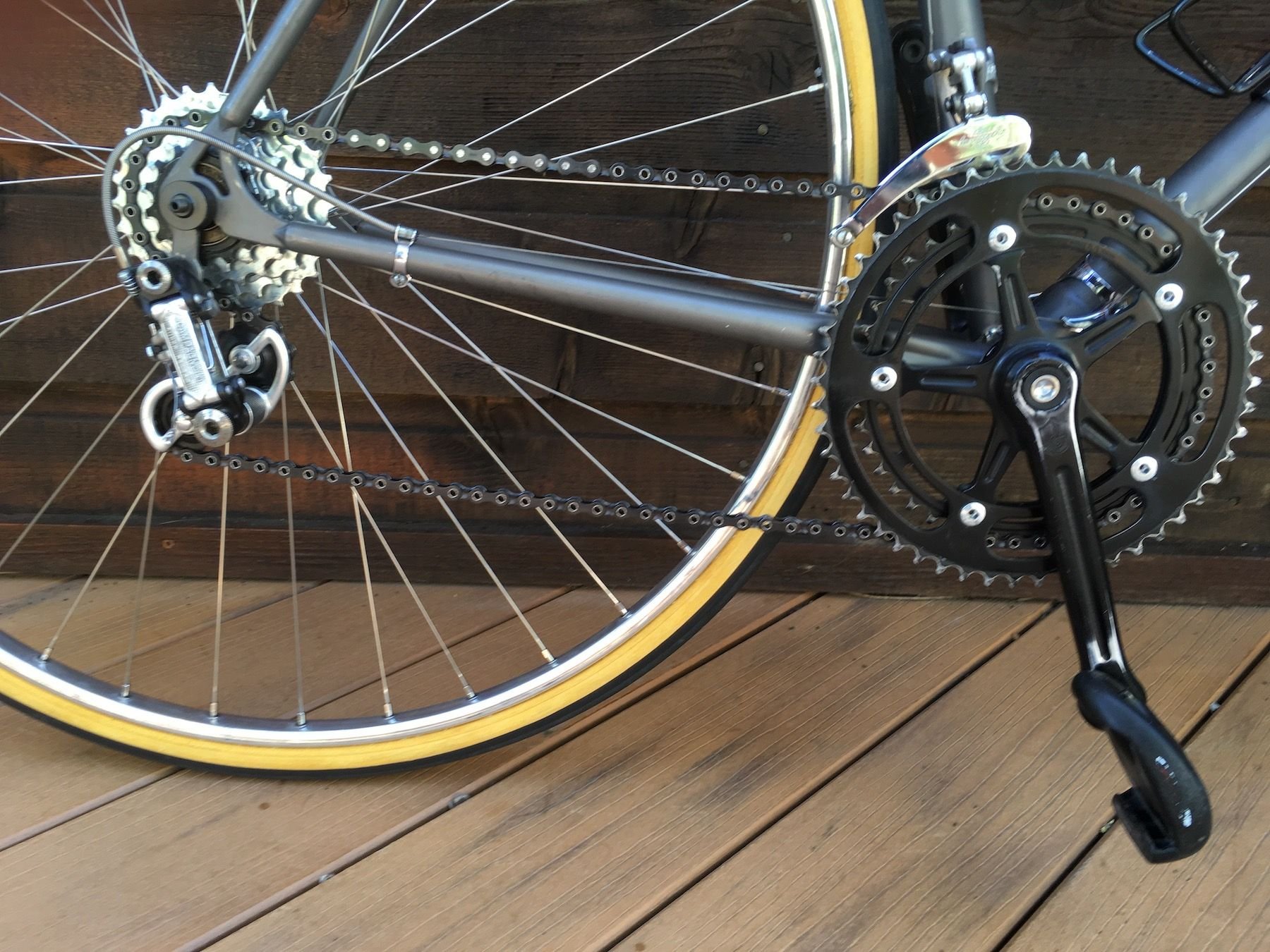

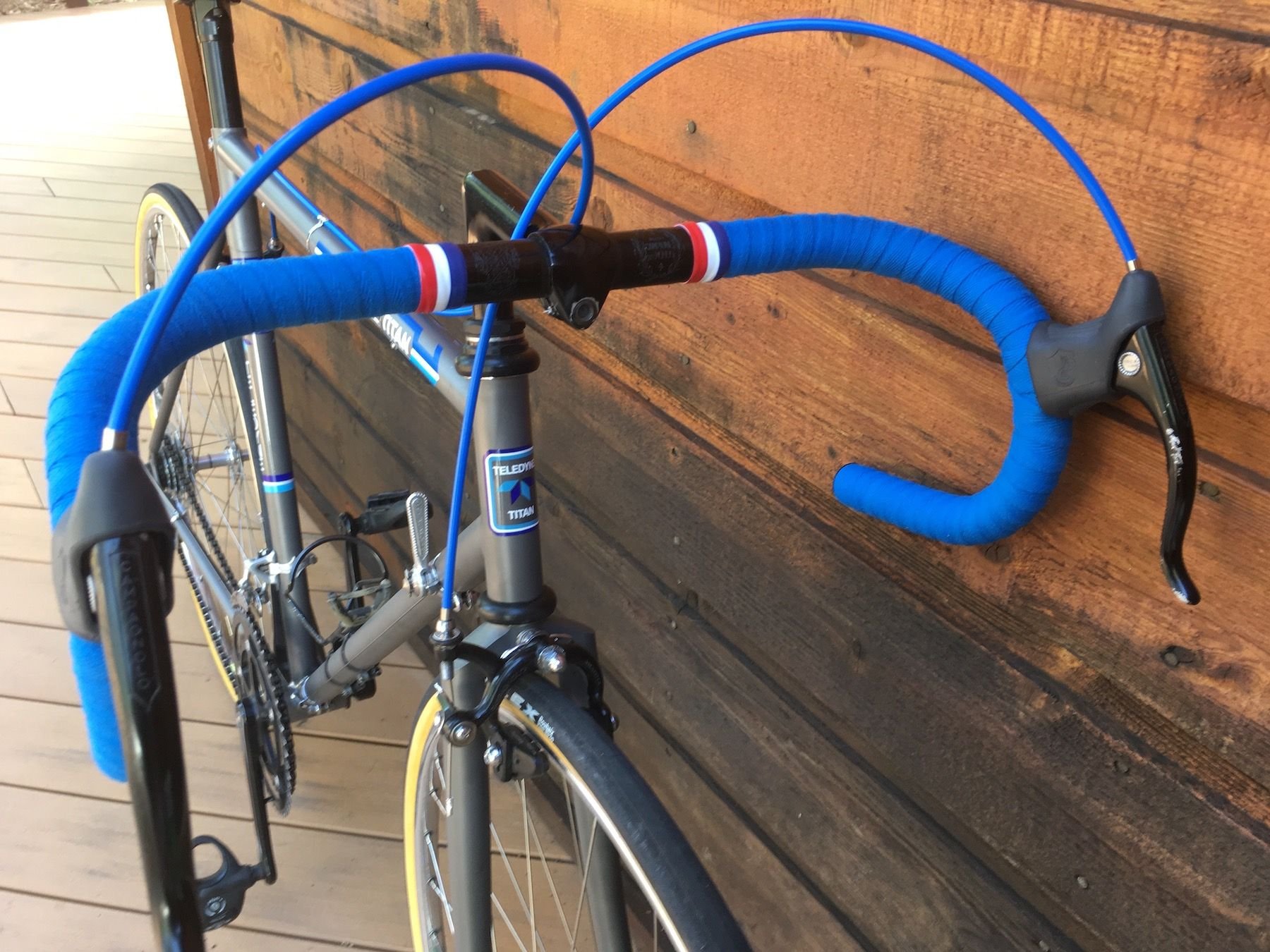

I have been watching this thread and thought I should add to it. Last winter a well worn/tired Teledyne Titan showed up for sale in Durango that I was able to purchase for a very reasonable price. The bike came with black anodized Cinelli bar/stem and Campy record components. The seller was originally from San Francisco, used the bike as his commuter, and all the bits and pieces were really filthy/grimy. I built a new set of wheels using Weyless hubs/Fiamme Ergal tubular rims/veloflex tires, and replaced all the consumables. Lots of cleaning and scrubbing later, a set of replacement decals, and I put it all together. It weighs about 18 pounds. I have ridden it a few hundred miles and I'm mixed on the ride quality. I don't find it to be super flexible and it feels similar to steel. Since these pictures were taken I have replaced the pedals with Weyless quills and the saddle with a plastic Cinelli Unicanitor.






Last edited by Andy Antipas; 09-02-19 at 06:22 PM.
Andy Antipas is offline
Old 09-02-19, 06:04 PM
  #181
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 3,033
Mentioned: 93 Post(s)
Tagged: 0 Thread(s)
Quoted: 1063 Post(s)
Likes: 0
Liked 76 Times in 61 Posts
Originally Posted by Andy Antipas View Post
I have been watching this thread and thought I should add to it. Last winter a well worn/tired Teledyne Titan showed up for sale in Durango that I was able to purchase for a very reasonable price. The bike came with black anodized Cinelli bar/stem and Campy record components. The seller was originally from San Francisco, used the bike has his commuter, and all the bits and pieces were really filthy/grimy. I built a new set of wheels using Weyless hubs/Fiamme Ergal tubular rims/veloflex tires, and replaced all the consumables. Lots of cleaning and scrubbing later, a set of replacement decals, and I put it all together. It weighs about 18 pounds. I have ridden it a few hundred miles and I'm mixed on the ride quality. I don't find it to be super flexible and it feels similar to steel. Since these pictures were taken I have replaced the pedals with Weyless quills and the saddle with a plastic Cinelli Unicanitor.





Beautiful TT build!!
Really went downtown with some if the components like the hollow pin chain (Regina America Superleggera?).
Only thing I'd watch out for are the Fiamme Ergal rims.
Those tend to be quite noodely, and tend to easily go out of true. Works best as special "race day" rims, but can be quite frustrating to keep true as daily or even just training rims...
Chombi1 is offline
Old 09-02-19, 06:21 PM
  #182
Andy Antipas
Senior Member

Join Date: Sep 2011
Location: Durango, CO
Posts: 218

Bikes: too many old steel bikes

Mentioned: 52 Post(s)
Tagged: 0 Thread(s)
Quoted: 50 Post(s)
Liked 35 Times in 15 Posts
Thanks @Chombi1. I have been watching the wheels and with 300 miles I haven't had to touch them up at all (knock wood). They are pretty darn light, and they aren't for everyone. The Titan is in the bike riding rotation, but ultimately won't see a lot of miles.

Yes, Superleggera chain. I had a Zeus alloy freewheel on it, but it shifted poorly between the first two cogs. The cog spacing looks off? On went a modern steel Freewheel, which shifts fine. The Weyless seat post came with the bike. I used alloy chainring bolts and Ti seat binder bolt. I think Weyless made hubs, seat posts, and pedals. My goal was to try to have those parts on this bike. The other components are standard stuff.
Andy Antipas is offline
Old 09-09-19, 12:11 PM
  #183
crank_addict
Senior Member

crank_addict's Avatar

Join Date: Aug 2013
Posts: 6,990
Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 1269 Post(s)
Likes: 0
Liked 289 Times in 188 Posts
Perhaps someone here would like a project.
(Disclosure: No affilliation. Proceed with caution.)

https://norfolk.craigslist.org/bik/d...954282752.html


1976 Teledyne Titan $250
crank_addict is offline
Old 09-17-19, 01:11 AM
  #184
Random Tandem
Senior Member

Random Tandem's Avatar

Join Date: Oct 2014
Location: Vancouver, Canada
Posts: 142

Bikes: Disc-Brake Sturmey-Archer S5 Hub All-Weather Commuter, 1970's Sekine, 1980's Kuwahara Tandem, plus a few dozen

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 45 Post(s)
Liked 5 Times in 4 Posts
"New" Teledyne Titan Build to Ride

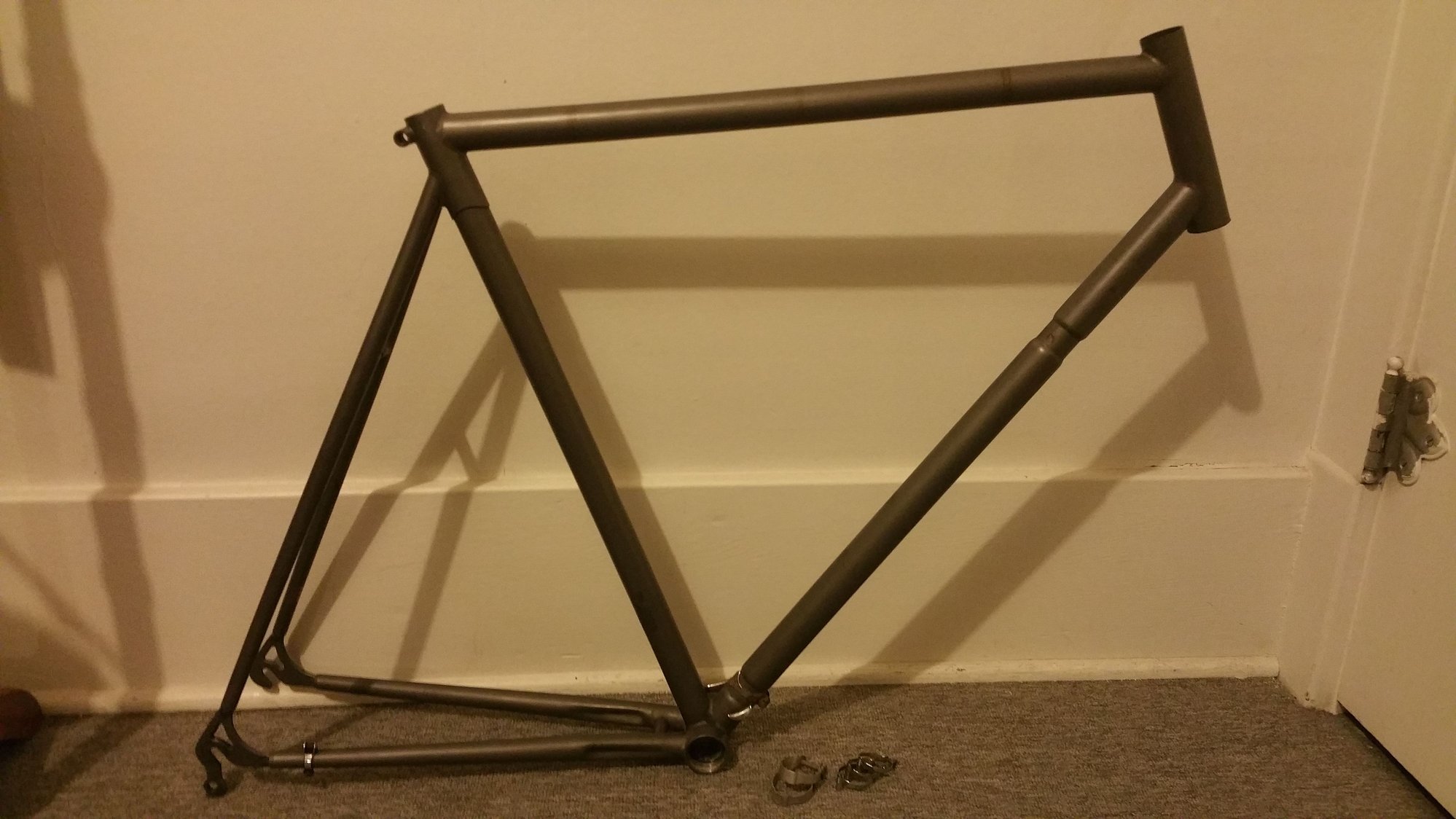

I am happy to introduce to you S/N TL 000653, a 24" Teledyne Titan (that I recently acquired in an online auction):

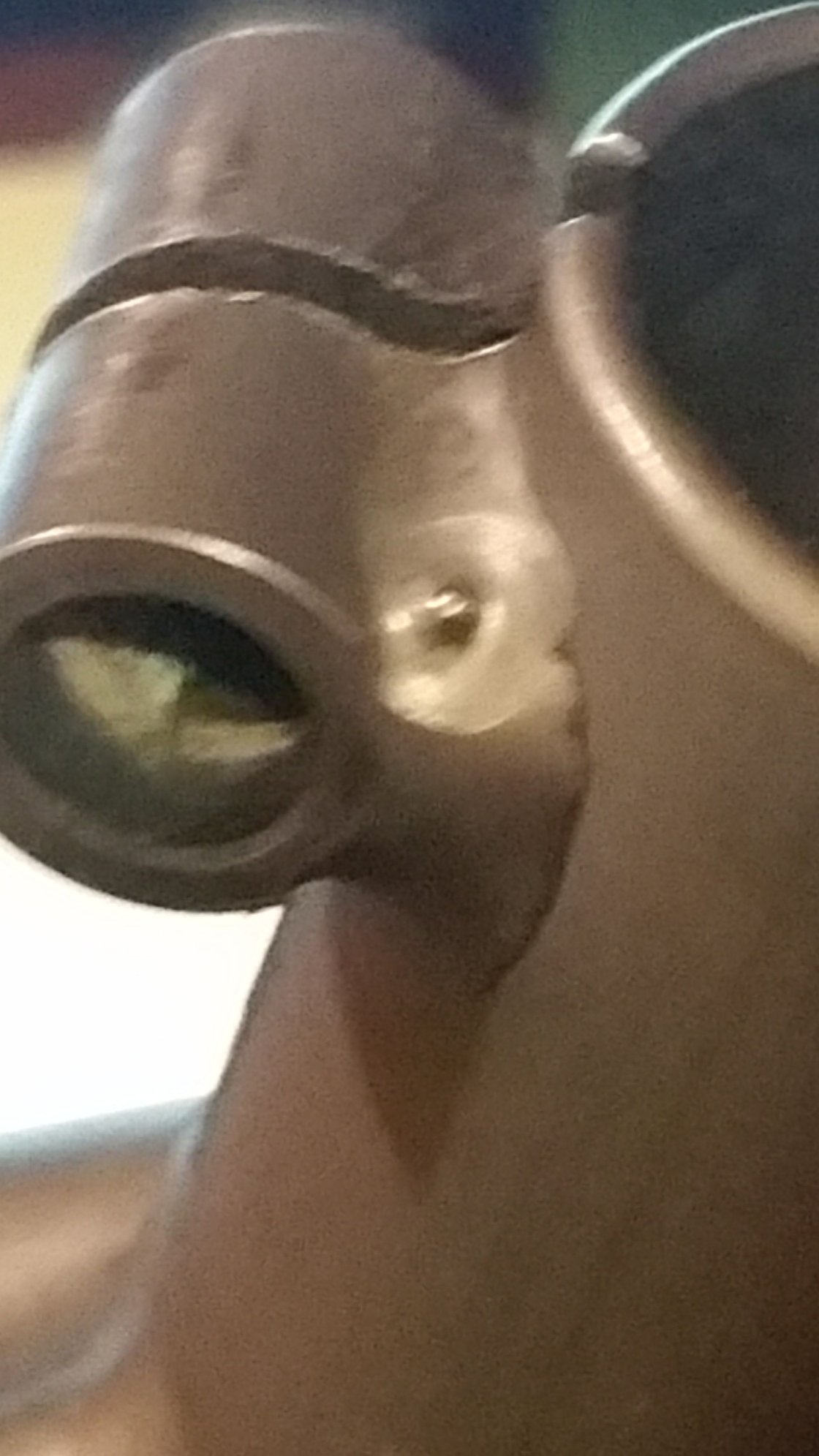

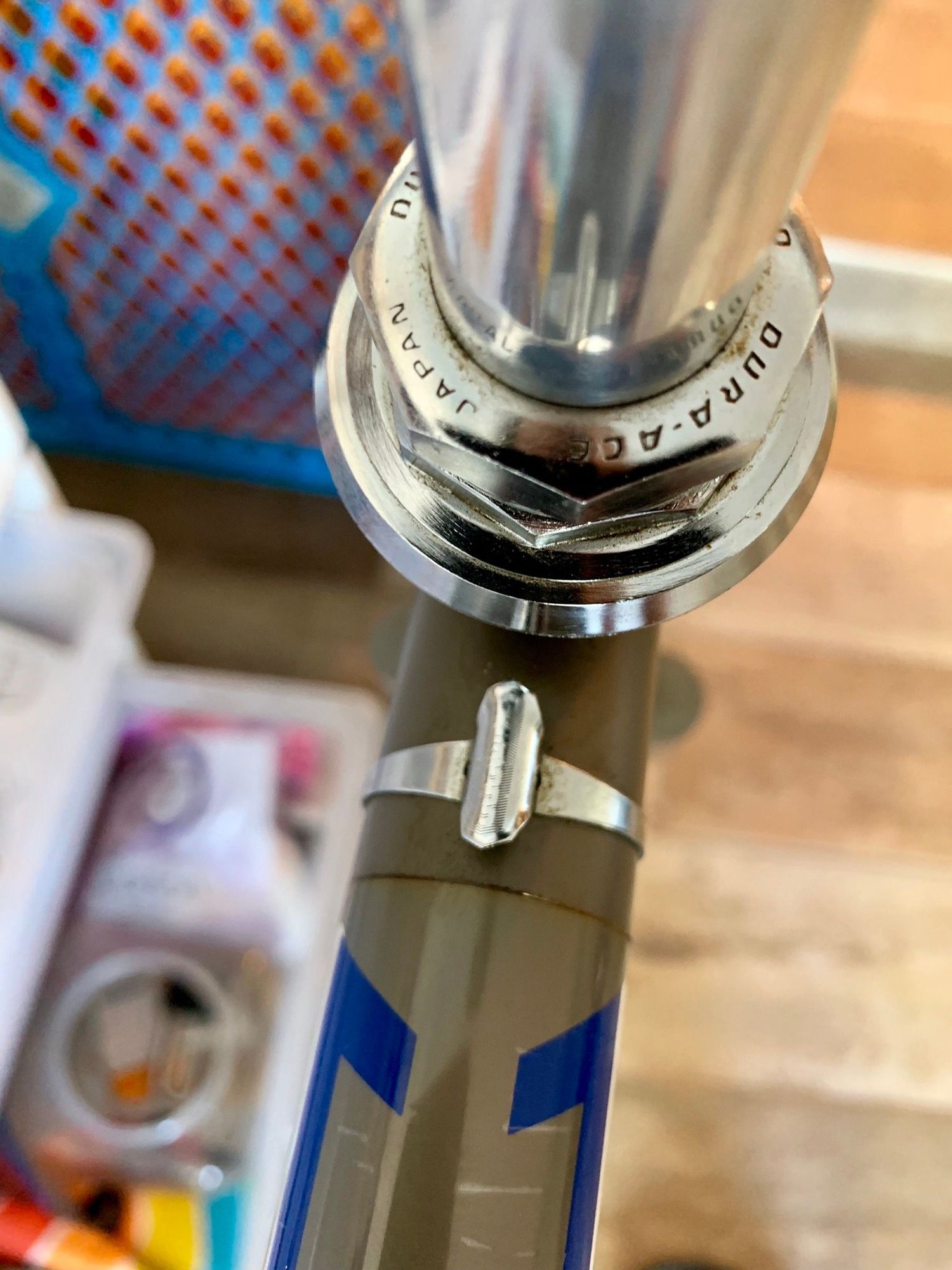

It has the oversized cable guides and water bottle cage clamps, but no fork, decals and a little damage on the DS seatpost binder bolt tab:



(I had a real beast of a time trying to get my phone to focus, but the DS tab has a crack where it is welded to the seat tube.) I am building the frame up to ride it, but I am torn whether I should get the tab weld fixed, or remove both tabs and use a modern clamp around the seat tube. The frame is straight and seems good otherwise, so I am excited to see how it feels.

My build plan is Shimano 600 Arabesque, as I have a full set that came off an 25" 1983 Apollo Gran Sport that I refashioned with new components for my nephew who wanted a light racer (but did not have the cash for carbon). I have been thinking about what fork to use, but I expect I will at least temporarily put it together and ride it with a threaded steel fork. Eventually, I may swap that out for a threadless carbon fork. It will not be a museum piece, but hopefully a smooth rider.

-Will
Random Tandem is offline
Old 09-17-19, 08:53 AM
  #185
'02 nrs
royaloaker

'02 nrs's Avatar

Join Date: Jan 2010
Location: se MIch.
Posts: 193

Bikes: 1938 claud butler,1983 Basso,teledyne titan,teocali super,nrs,1993 stumpjumper fsr,Paramountain,Paramount Buell,4 banger,Zaskar LE,Colnago Master Ibex MTB,1987ish,.etc....

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 70 Post(s)
Liked 60 Times in 35 Posts
1974


# 204 ,was a good year for this example,refurbished.sew-ups,clb lightweight cable housing.

Last edited by '02 nrs; 12-29-19 at 11:15 AM.
'02 nrs is offline
Old 09-17-19, 12:20 PM
  #186
crank_addict
Senior Member

crank_addict's Avatar

Join Date: Aug 2013
Posts: 6,990
Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 1269 Post(s)
Likes: 0
Liked 289 Times in 188 Posts
As the original post request, I shall reply more of the experience on the Titan.

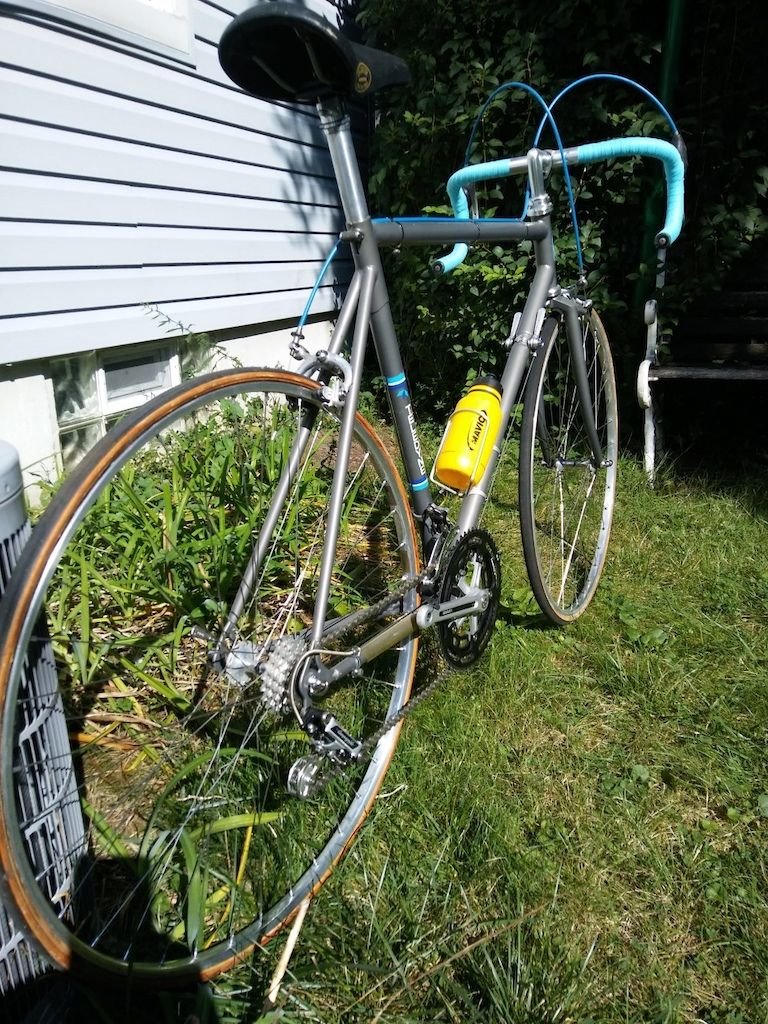

Pic from the Centenario Coppi 2019 main ride on Sunday. I wasn't data logging but according to others, the 100k included near 4,500 - 5,000 ft. el gain and the steepest grade recorded was 18%.

This bike is 'easily capable' (actually feel I was cheating- lol) with a ridiculous and super slow 20 gear inch low and up to 112 g.in. high to rip. It was an excellent time and was pleased with my choice of bike. I treated it with respect, not wanting to torsionally mangle this flexy flier it requires a relaxed steady spin. One has to change or adapt their riding style to keep oneself and / or the bike together.


I was with a few others on some fast descents where they recorded 45+ mph and being dumb, lead a few. This, also on other roads with loose goose chip seal. Under heavy braking is when the bike becomes very ~~~~~~squirrely. Visually seeing the fork flex is quite something,,, but to frighten is not where ones mind should go. I relaxed, set my weight rearward and 'heavily' relied on the rear brake.

Concluding, these bikes require a complete different thinking and trust. I would suggest for those not accustomed or willing to change their riding style- please save yourself and stay off these crazy early Russian tubed, experimental first time bike maker.

crank_addict is offline
Likes For crank_addict:
Old 09-17-19, 12:50 PM
  #187
repechage
Senior Member

Join Date: Jun 2006
Posts: 14,040
Mentioned: 88 Post(s)
Tagged: 0 Thread(s)
Quoted: 1199 Post(s)
Liked 228 Times in 179 Posts
I owned on a long time ago.
you are correct- apply a lot of front brake and the wheelbase shrinks 15-20 mm.
one must adapt.
on the climbs - the bike can do what Jan Heine raves about - " planes "
but one must be pedaling at the right pressure and cadence- then it feels like it is giving back more than you are applying.
above or below- meh.
a learned "groove".
I sold mine off long before the steerer reports. If I owned one today I might try a Look carbon fork- just to try.
repechage is offline
Old 09-24-19, 11:41 AM
  #188
Last ride 76
Senior Member

Last ride 76's Avatar

Join Date: Nov 2013
Location: Just moved...1 km S. Now above the "Bike Path" ( River Road, Piermont, NY)
Posts: 1,383

Bikes: Old Bikes: '74 Ron Cooper, Crashed and repaired '76, restored 2015!!! need restoration '74 Witcomb track bike (bought in '75) '75 Carlsbad Masi, bought in '76 New bikes: 84-85 Gios torino "Professional" '76 Olmo Competition C Titiano

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 322 Post(s)
Liked 120 Times in 101 Posts
The thrill is back, part 2

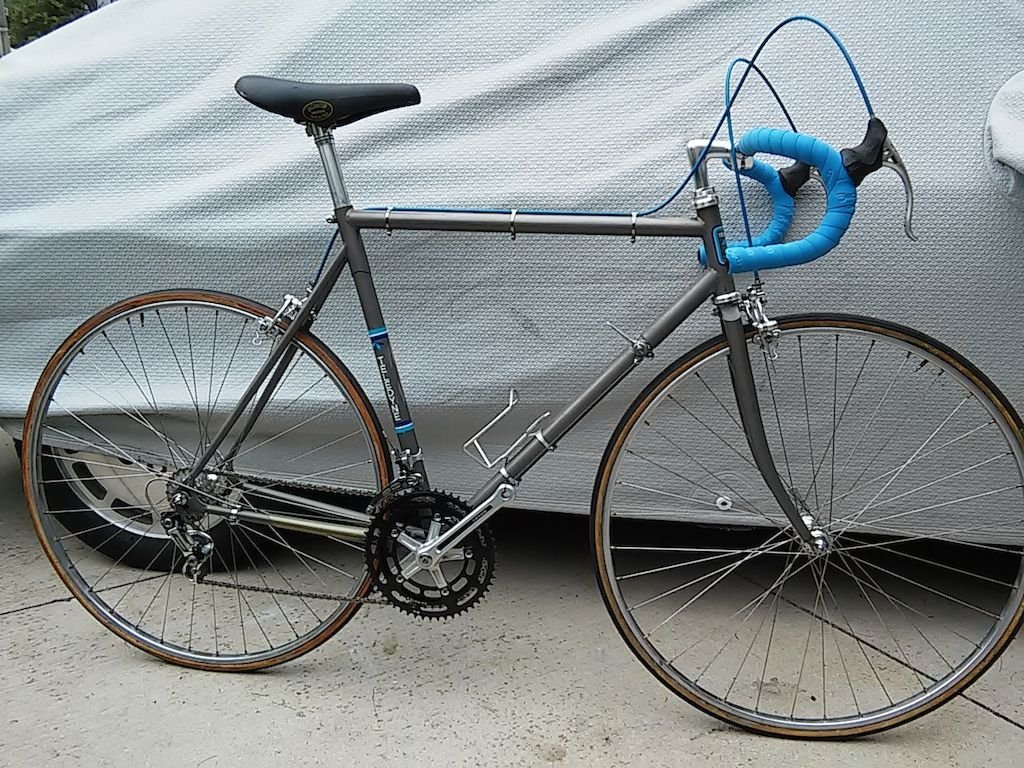

As it arrived.
About a month ago, I posted a thread "The thrill is back". After passing the NOS Titan frame on to Robbie, (Beautiful build there!) I figured I was not going to have a shot at doing a "best of the day, weenie build". Lightning struck again in the form of a dented and dinged (no visible weld problems) 58 cm Titan, serial # 000075. So one made without the benefit of experience... Given the parts mix my guess is it was set up by the original owner, not by a shop. The man I bought it from made some changes too. He bought it from Daniel Boone's Bike Shop in Houston, in 1977.

So far...

Keeping:

Cycle Pro alloy headset. (Never heard of it, thanks, VeloBase)

Teledyne titanium axle with Campy cups and Ti bolts (I think not Teledyne mfr. they look rougher and grayer).

Campy dateless NR cranks with SR chainrings- I am definitely open to changing this out later, for weight or "best of" reasons

Bob Reedy pedals, ends profiled like track pedals. Chromed steel axles

Cinelli 1A stem

Shimano oversized cable clamps

Cables, housings, binder bolt



Swapping:
Wheels- 36h Weyless hubs/Wolber profil 18 tubular rims radial front, 3 cross rear -replacing unmarked American Classic(?) hubs/Campy omega tubular rims

Shifting- Suntour Cyclone RD,FD and FS -replacing Campy Record and NR components

Brakes
Calipers- Campy record, milled and modified with Al & Ti tuning parts
Levers- Modolo Flash- Plastic body, modest drilling, color matching W/AME Anatomic hoods
-replacing Gold anodized Universal CX calipers w/ milled & pantographed levers

Seatpost- Campy 2 bolt milled -replacing shortened 2 bolt. (Owned since 1975, and reduced from 27 mm to 26.8.)

Saddle- Avocet O2 -replacing damaged Unicanitor

Bars- Cinelli Giro crested -replacing blah specialized bars

Freewheel- NOS Suntour Winner Alloy -replacing ???

Chain Regina Superleggeri -replacing ???

Last edited by Last ride 76; 09-24-19 at 11:51 AM.
Last ride 76 is offline
Old 09-24-19, 03:32 PM
  #189
RobbieTunes
Half drunk? Finish!

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 26,884
Mentioned: 34 Post(s)
Tagged: 1 Thread(s)
Quoted: 373 Post(s)
Liked 717 Times in 463 Posts
Can't wait for another built Titan to grace the thread.
Coppi's show was probably one of few to show 2 Titans within about 60' of each other.

Scott's got all the attention, deservedly so, for a unique and perfect build to ride these hills.

Mine would have fractured, given the corncob freewheel, or I would have, on that first 18% climb.

I have 40 miles on mine, and will stick to flatter venues for it. I do like riding it. It is light and comfortable, and people tell me I should "shine up that paint." Ha!
__________________
Robbie ♪♫♪...☻
I have unfinished business.

RobbieTunes is online now
Old 12-28-19, 02:05 PM
  #190
crank_addict
Senior Member

crank_addict's Avatar

Join Date: Aug 2013
Posts: 6,990
Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 1269 Post(s)
Likes: 0
Liked 289 Times in 188 Posts
Talk time Teledyne

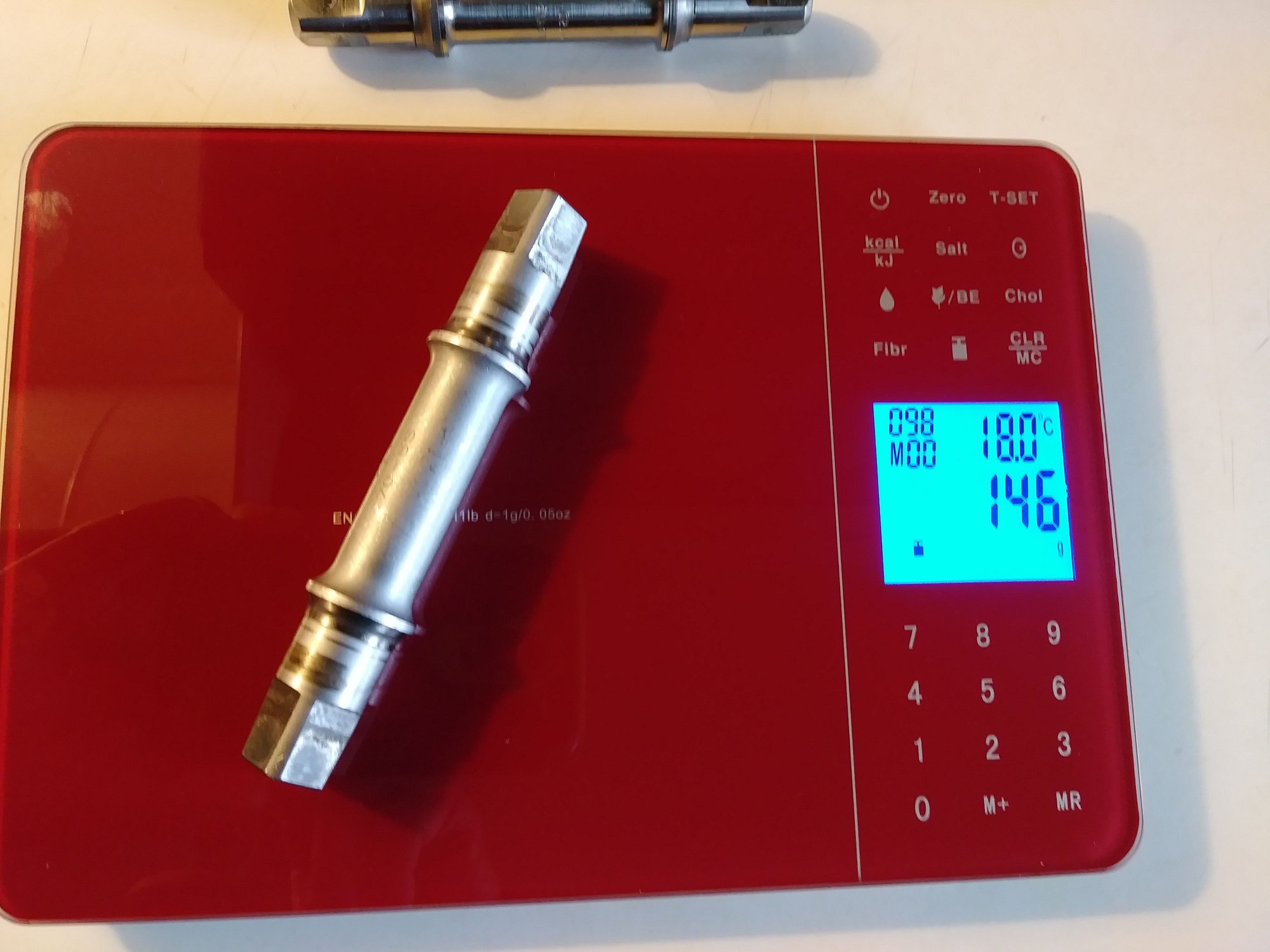

They offered a titanium bottom bracket spindle with steel bearing cones only, no cups. Part number I.D. -R- for road and -T- for track.

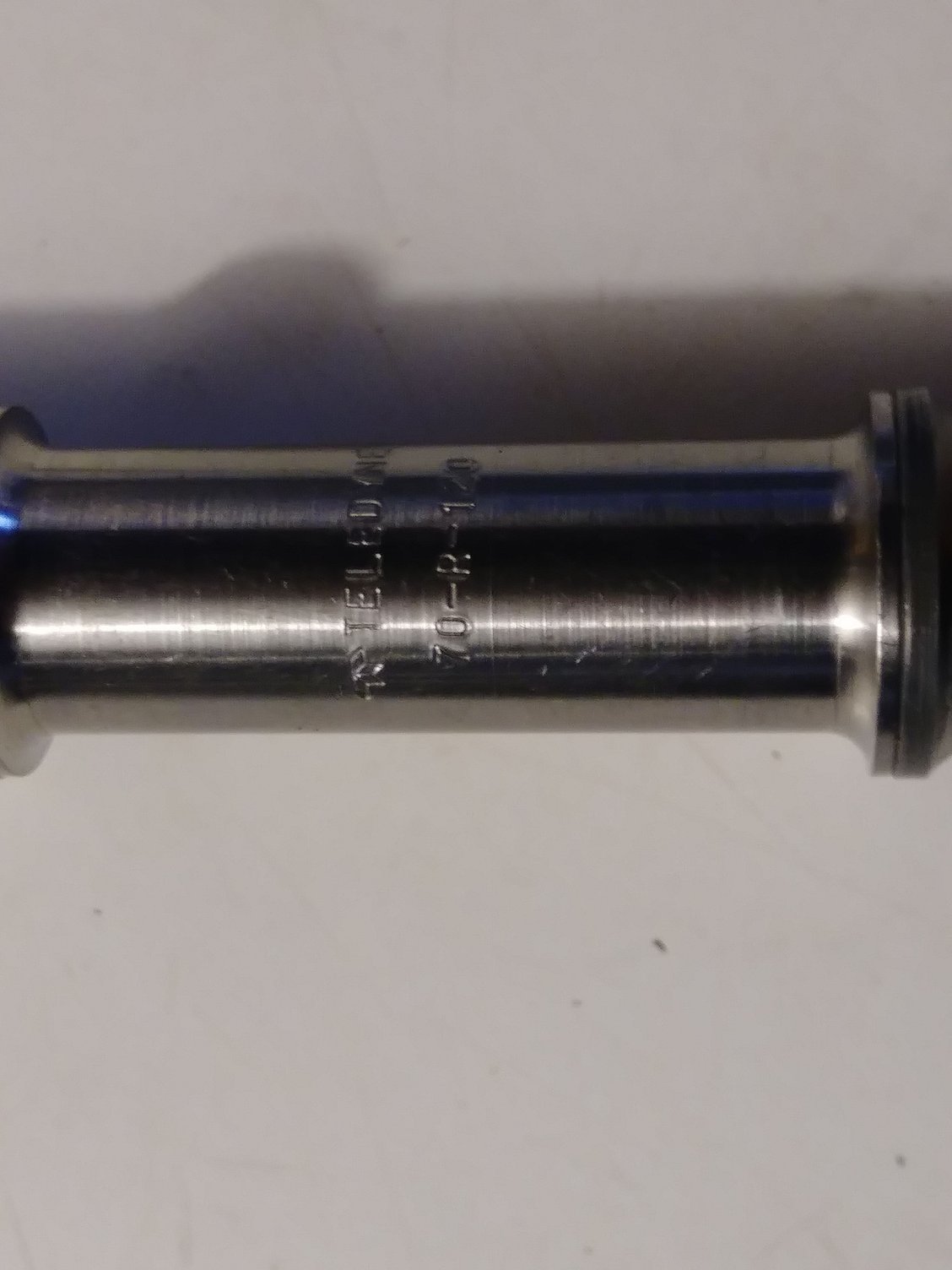

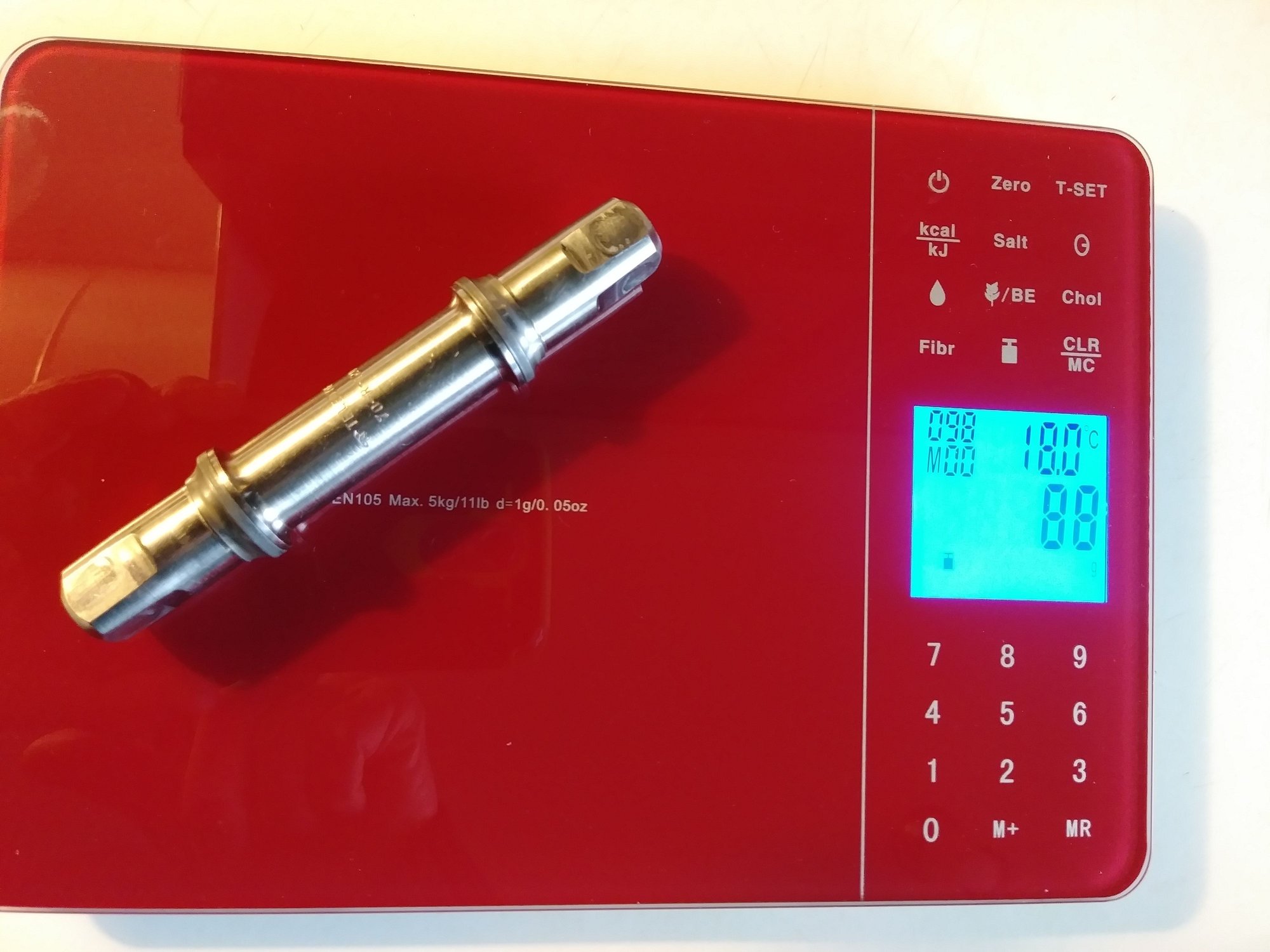

Teledyne spindle

Campagnolo spindle

Last edited by crank_addict; 12-28-19 at 05:21 PM.
crank_addict is offline
Old 12-28-19, 07:19 PM
  #191
Nemosengineer
Hair Ball
Thread Starter

Nemosengineer's Avatar

Join Date: Aug 2015
Location: Murrieta Ca.
Posts: 243

Bikes: Teledyne Titan, Bob Jackson World Tour

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 79 Post(s)
Liked 86 Times in 54 Posts
It's good to see all the Teledyne activity in this thread, I am sorry to say the teledyne hasn't made a lot of progress since the last photos were posted other than being hung in my office, the big hang up seems to be other projects getting in the way. I also must confess the worst bicycle build of my life... The Rusty Raleigh Pro, that bike was a bad idea from the start and has since been dismembered into component parts and the frame is hidden where I don't have to look at it for a long time...
The bright side of this is you will see the completed result of the cannibalized parts as the "Hattori Hanzo" project, a true metisse (a hybrid obtained from two different varieties of the same species) in a few days.

Happy Holidays: Mike
__________________
Booyah Hubba-Hubba!!!
Nemosengineer is offline
Old 12-28-19, 07:22 PM
  #192
Nemosengineer
Hair Ball
Thread Starter

Nemosengineer's Avatar

Join Date: Aug 2015
Location: Murrieta Ca.
Posts: 243

Bikes: Teledyne Titan, Bob Jackson World Tour

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 79 Post(s)
Liked 86 Times in 54 Posts
Double post... Woops

Mike
Nemosengineer is offline
Old 12-29-19, 10:29 AM
  #193
repechage
Senior Member

Join Date: Jun 2006
Posts: 14,040
Mentioned: 88 Post(s)
Tagged: 0 Thread(s)
Quoted: 1199 Post(s)
Liked 228 Times in 179 Posts
Originally Posted by crank_addict View Post
Talk time Teledyne

They offered a titanium bottom bracket spindle with steel bearing cones only, no cups. Part number I.D. -R- for road and -T- for track.





Teledyne spindle

Campagnolo spindle
There were at least four models- road and track for both 68 and 70 mm wide bottom brackets. Designed for Campagnolo pre CPSC cranks.
I have three of them, both types of road and an Italian track. They do flex. Less than the first version of the Super Record as they are not bored clear thru.
the Ti bolts were designed to retain the cranks, not install them. You were to use a steel bolt- remove then install the Ti bolt. ( similar to Arnold Industries gold anno aluminum bolts )
repechage is offline
Likes For repechage:
Old 12-29-19, 11:37 AM
  #194
'02 nrs
royaloaker

'02 nrs's Avatar

Join Date: Jan 2010
Location: se MIch.
Posts: 193

Bikes: 1938 claud butler,1983 Basso,teledyne titan,teocali super,nrs,1993 stumpjumper fsr,Paramountain,Paramount Buell,4 banger,Zaskar LE,Colnago Master Ibex MTB,1987ish,.etc....

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 70 Post(s)
Liked 60 Times in 35 Posts
ebay bargain/

$300. what was the seller thinking.

https://www.ebay.com/itm/1973-TELEDY...rdt=true&rt=nc
'02 nrs is offline
Old 12-29-19, 03:06 PM
  #195
repechage
Senior Member

Join Date: Jun 2006
Posts: 14,040
Mentioned: 88 Post(s)
Tagged: 0 Thread(s)
Quoted: 1199 Post(s)
Liked 228 Times in 179 Posts
That ebay titan that sold for $300 on 12/18 was well bought. Amazing that there was only one bid. Amazing.
Folk are not looking is the conclusion one can draw.
I won a different auction, different brand of bike this month- seller is balking at following through. Even stated that now due to "sentimental" reasons he thinks over double would the the correct sales price.
Can you spell extortion? There were multiple bids, it is not like it was missed.
The price of sentimentality.
Not sure how this will all pan out yet.
Another of a same brand, similar year, slightly bigger and better condition went for almost the same price as I paid. I will politely bring that to the balking seller's attention.
The buyers are hiding.
repechage is offline
Old 02-15-20, 12:50 AM
  #196
crank_addict
Senior Member

crank_addict's Avatar

Join Date: Aug 2013
Posts: 6,990
Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 1269 Post(s)
Likes: 0
Liked 289 Times in 188 Posts
crank_addict is offline
Likes For crank_addict:
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
alex jb
Cyclocross and Gravelbiking (Recreational)
54
01-22-18 04:38 PM
WheresWaldo
Road Cycling
71
01-23-14 01:31 AM
afilado
Classic & Vintage
26
06-20-13 12:52 PM
fa63
Road Cycling
56
02-13-12 12:04 PM
grafsk8er
Road Cycling
31
03-25-10 06:14 PM

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information

Copyright 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
