The Teledyne Titan Saloon.

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

The Teledyne Titan Saloon.

Reply

Old 02-09-19, 10:41 PM
  #1
Nemosengineer
Hair Ball
Thread Starter

Nemosengineer's Avatar

Join Date: Aug 2015
Location: Murrieta Ca.
Posts: 57

Bikes: Teledyne Titan, Bob Jackson World Tour

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 29 Post(s)
The Teledyne Titan Saloon.

This is the place for all things Teledyne Titan, If you own one please post photos, If you have one under construction please build it here so we can all follow your build and cheer you on. Great stories are always welcome and of course tips, tricks, and your experience with the Titan.

This is the story of S/N TL 000276 MOD A3U1R, the frame is NOS re-imported from Belgium in January of 2016. My best guess is this is late 1973 or early 1974 production as it also has 120 mm spacing. Production ended for this frame in 1976, so in keeping with my personal 3 year limit, no parts later than 1979.





So after 3 years of collecting parts and changing my mind on which direction I wanted to build it, the build started today. A Stronglight A9 needle bearing headset was pressed this morning, the installation was non eventful with the added bonus of having the stack up perfectly match the frame/fork.



The Bottom bracket is a Stronglight titanium model 650 with dual adjustable cups and titanium crank bolts (under 200 grams), awaiting final adjustment for chain line setting at 41.5 mm.
Shift cable management is handled by a Huret Jubilee clip that is a excellent fit for this frame.



Hubs are O.M.A.S. and the freewheel is a aluminum Suntour Microlite.



So at the end of the day this is what it looks like.



A old photo of coming attractions.



: Mike
__________________
Booyah Hubba-Hubba!!!
Nemosengineer is offline
Reply With Quote
Old 02-10-19, 12:17 AM
  #2
RobbieTunes
Old and in the way

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 24,829
Mentioned: 28 Post(s)
Tagged: 1 Thread(s)
Quoted: 315 Post(s)
I'll get some pics tomorrow. I was not quite so dedicated, I'm afraid.
__________________
Robbie ♪♫♪...☻

RobbieTunes is offline
Reply With Quote
Old 02-10-19, 12:58 AM
  #3
RiddleOfSteel
Lugged, Dura-Ace Glory

RiddleOfSteel's Avatar

Join Date: Mar 2015
Location: Seattle, WA
Posts: 2,141

Bikes: '87 Schwinn Prologue - '74 Schwinn Paramount P15 - '8X Davidson Impulse - '89 Cannondale SR800 - '88 Masi Nuova Strada - '15 Cannondale CAAD10 Disc - '81 Trek 710 - '90 Cannondale ST400

Mentioned: 131 Post(s)
Tagged: 0 Thread(s)
Quoted: 656 Post(s)
Wow. Stunning NOS level, well, everything! Really like the "cool" luster of the components (as opposed to a mirrored polish) as it works with the finish of the frame really well. Are you going to want to ride it after you put all that jewelry together? I mean, I would, because I don't do wall hangers, but I don't also have a pure NOS frame and component set (plenty of really nice condition stuff though).

There seems to have been an uptick in Teledyne Titan posts lately. Very cool.
RiddleOfSteel is offline
Reply With Quote
Old 02-10-19, 01:17 AM
  #4
Nemosengineer
Hair Ball
Thread Starter

Nemosengineer's Avatar

Join Date: Aug 2015
Location: Murrieta Ca.
Posts: 57

Bikes: Teledyne Titan, Bob Jackson World Tour

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 29 Post(s)
Originally Posted by RobbieTunes View Post
I'll get some pics tomorrow. I was not quite so dedicated, I'm afraid.
Thanks Robby, I'm looking forward to the photos.
__________________
Booyah Hubba-Hubba!!!
Nemosengineer is offline
Reply With Quote
Old 02-10-19, 02:10 AM
  #5
Nemosengineer
Hair Ball
Thread Starter

Nemosengineer's Avatar

Join Date: Aug 2015
Location: Murrieta Ca.
Posts: 57

Bikes: Teledyne Titan, Bob Jackson World Tour

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 29 Post(s)
Originally Posted by RiddleOfSteel View Post
Wow. Stunning NOS level, well, everything! Really like the "cool" luster of the components (as opposed to a mirrored polish) as it works with the finish of the frame really well. Are you going to want to ride it after you put all that jewelry together? I mean, I would, because I don't do wall hangers, but I don't also have a pure NOS frame and component set (plenty of really nice condition stuff though).

There seems to have been an uptick in Teledyne Titan posts lately. Very cool.
Hi RiddleOfSteel,
No wall hangers here, I do have a healthy dose of OCD though. The Titan is my "grail" bike and will be ridden, The component set was inspired by the time the frame set spent wandering around Belgium, so for the most part I tried to put together a French inspired bit of kit. The light weight French stuff is hard to find in nice condition so some of the components were built up from multiple examples. The goal was a French equivalent of Campy Super Record, The only NOS parts are the headset, bottom bracket cups, and the O.M.A.S. hubs. An example of salvage would be the Modolo brake set built from two brake sets, one set anodized red the other black, oven cleaner does a fine job of stripping anodize.



: Mke
__________________
Booyah Hubba-Hubba!!!
Nemosengineer is offline
Reply With Quote
Old 02-10-19, 02:23 AM
  #6
RiddleOfSteel
Lugged, Dura-Ace Glory

RiddleOfSteel's Avatar

Join Date: Mar 2015
Location: Seattle, WA
Posts: 2,141

Bikes: '87 Schwinn Prologue - '74 Schwinn Paramount P15 - '8X Davidson Impulse - '89 Cannondale SR800 - '88 Masi Nuova Strada - '15 Cannondale CAAD10 Disc - '81 Trek 710 - '90 Cannondale ST400

Mentioned: 131 Post(s)
Tagged: 0 Thread(s)
Quoted: 656 Post(s)
Originally Posted by Nemosengineer View Post
Hi RiddleOfSteel,
No wall hangers here, I do have a healthy dose of OCD though. The Titan is my "grail" bike and will be ridden, The component set was inspired by the time the frame set spent wandering around Belgium, so for the most part I tried to put together a French inspired bit of kit. The light weight French stuff is hard to find in nice condition so some of the components were built up from multiple examples. The goal was a French equivalent of Campy Super Record, The only NOS parts are the headset, bottom bracket cups, and the O.M.A.S. hubs. An example of salvage would be the Modolo brake set built from two brake sets, one set anodized red the other black, oven cleaner does a fine job of stripping anodize.



: Mke
Very cool, on all counts. I think the bike, when fully built, will be gorgeous!
RiddleOfSteel is offline
Reply With Quote
Old 02-10-19, 08:46 AM
  #7
TenGrainBread
Senior Member

TenGrainBread's Avatar

Join Date: Sep 2015
Location: Madison, WI
Posts: 1,247
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 466 Post(s)
I'm liking this build. Tubs?
TenGrainBread is offline
Reply With Quote
Old 02-10-19, 08:57 AM
  #8
steelbikeguy
Senior Member

steelbikeguy's Avatar

Join Date: Feb 2008
Location: Peoria, IL
Posts: 1,486
Mentioned: 47 Post(s)
Tagged: 0 Thread(s)
Quoted: 456 Post(s)
Really neat! The Titan was the cutting edge tech when I was just getting into 10 speeds back in the mid '70's, so it's occupied a special place in my heart ever since. Great to see one built up with the special components of the era... especially the more exotic French stuff (although the SunTour alloy freewheel is exotic too).

Steve in Peoria
steelbikeguy is offline
Reply With Quote
Old 02-10-19, 12:17 PM
  #9
repechage
Senior Member

Join Date: Jun 2006
Posts: 13,103
Mentioned: 72 Post(s)
Tagged: 0 Thread(s)
Quoted: 854 Post(s)
I will toss the notion of Hi-E hubs, and Pino skewers.
repechage is offline
Reply With Quote
Old 02-10-19, 12:23 PM
  #10
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 2,527
Mentioned: 83 Post(s)
Tagged: 0 Thread(s)
Quoted: 863 Post(s)

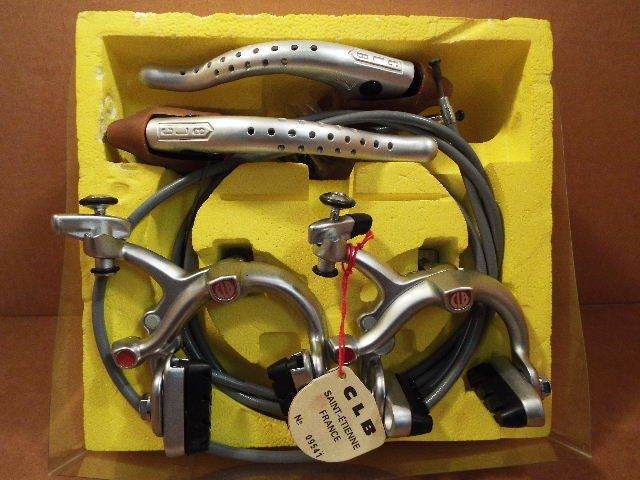

I was going to say, a CLB Professionel brakeset WITH CLB Dural brake cable casings.would be more in line with an ultimate weight weenie build. You can still find CLB Professionel brakesets for sale at eBay, but avoid getting the full NOS sets that are always overpriced. Buying the calipers separate from the levers will save you lots of money. Enough VGC condition calipers and levers also come up so that trying to find an NOS set for affordable prices, is not necessary.

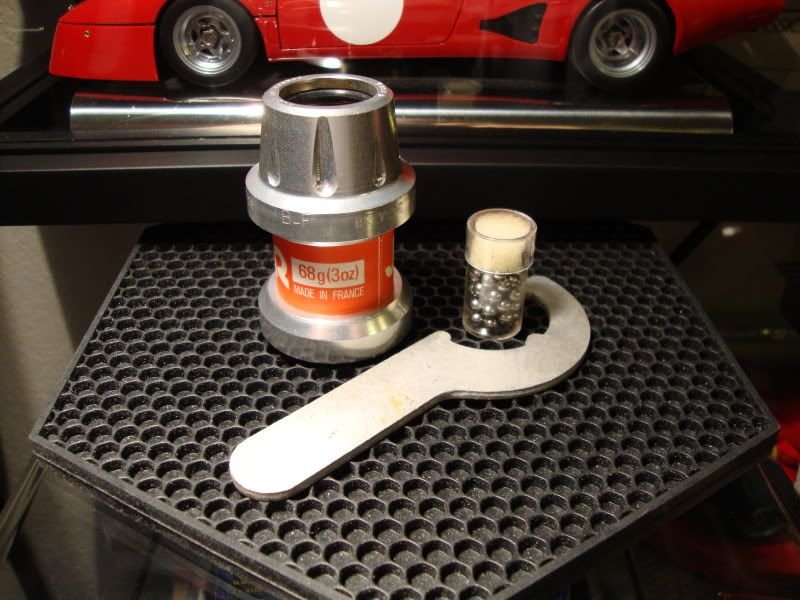

If you can believe it, you can actually also go lighter with a JPR headset. But they are hard to find in English threading and always cost a lot too, Plus, the bearings do not run on steel races, but roll directly on aluminum grooves cast or forged on the cups.

Here's mine in French threading....waiting for a Tout French weight weenie build....
__________________
72 Line Seeker
83 Davidson Signature
84 Peugeot PSV
84 Peugeot PY10FC
84 Gitane Tour de France.
85 Vitus Plus Carbone 7
86 ALAN Record Carbonio
86 Medici Aerodynamic (Project)
88 Pinarello Montello
89 Bottecchia Professional Chorus SL

Last edited by Chombi1; 02-10-19 at 01:09 PM.
Chombi1 is offline
Reply With Quote
Old 02-10-19, 12:31 PM
  #11
crank_addict
Senior Member

crank_addict's Avatar

Join Date: Aug 2013
Posts: 6,012
Mentioned: 69 Post(s)
Tagged: 0 Thread(s)
Quoted: 930 Post(s)
Originally Posted by Nemosengineer View Post
The Bottom bracket is a Stronglight titanium model 650 with dual adjustable cups and titanium crank bolts (under 200 grams), awaiting final adjustment for chain line setting at 41.5 mm.
Shift cable management is handled by a Huret Jubilee clip that is a excellent fit for this frame.



Mike
Awesome build and super selection of parts. Lots of thought into it. Dig how each Teledyne I've seen are so personalized.

I really like that Huret guide but leaves that down tube crimp glaring.

I'm still looking for a solution and currently have a Campagnolo guide. I might do some drillium on the clamp.

Fascinating piece of cycling history. The storyline, strategy why and how Teledyne acquired the Ti tubing plus they were raced with success.

Looking forward to seeing it done!

Last edited by crank_addict; 02-10-19 at 12:51 PM.
crank_addict is offline
Reply With Quote
Old 02-10-19, 12:35 PM
  #12
bertinjim
Senior Member

bertinjim's Avatar

Join Date: Mar 2012
Location: Niagara Region, Canada
Posts: 906

Bikes: 1960s Bertin C37, 1970s Bertin C 37

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 140 Post(s)
Nemosengineer -

The Modolos look really good but +1 for Chombi1's suggestion of the CLB Professional brakeset. Very stiff calipers, excellent braking and remarkably light especially with the alloy cable housing. The levers and calipers have a satin, grey finish that would go well with the Titan's titanium.
bertinjim is offline
Reply With Quote
Old 02-10-19, 12:47 PM
  #13
crank_addict
Senior Member

crank_addict's Avatar

Join Date: Aug 2013
Posts: 6,012
Mentioned: 69 Post(s)
Tagged: 0 Thread(s)
Quoted: 930 Post(s)
Agree with the remark of vintage French parts as some of the most lightweight of the period. There's also some unbranded French bars and stems that are absurdly light, far lighter than Cinelli.
crank_addict is offline
Reply With Quote
Old 02-10-19, 01:11 PM
  #14
crank_addict
Senior Member

crank_addict's Avatar

Join Date: Aug 2013
Posts: 6,012
Mentioned: 69 Post(s)
Tagged: 0 Thread(s)
Quoted: 930 Post(s)

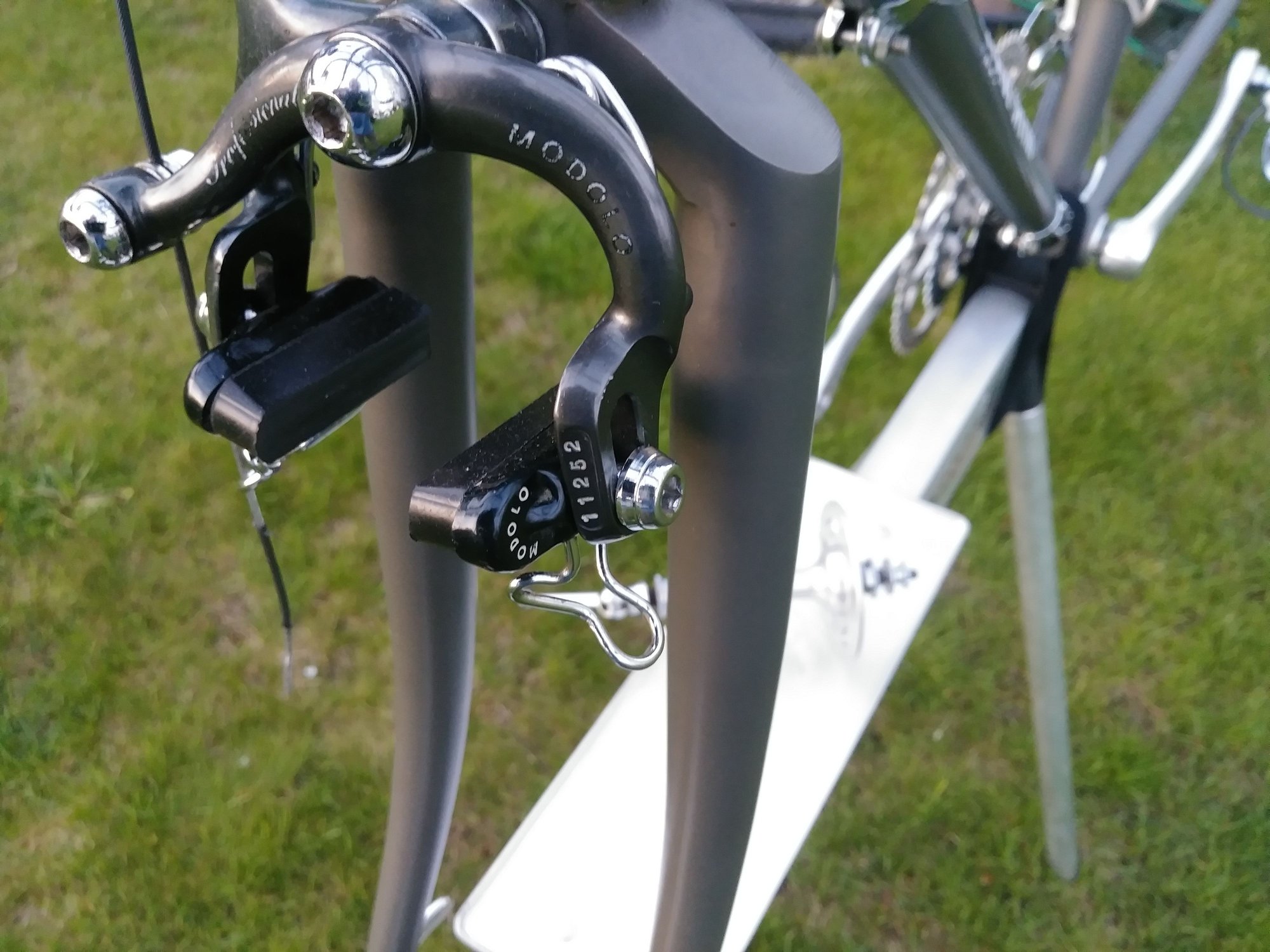

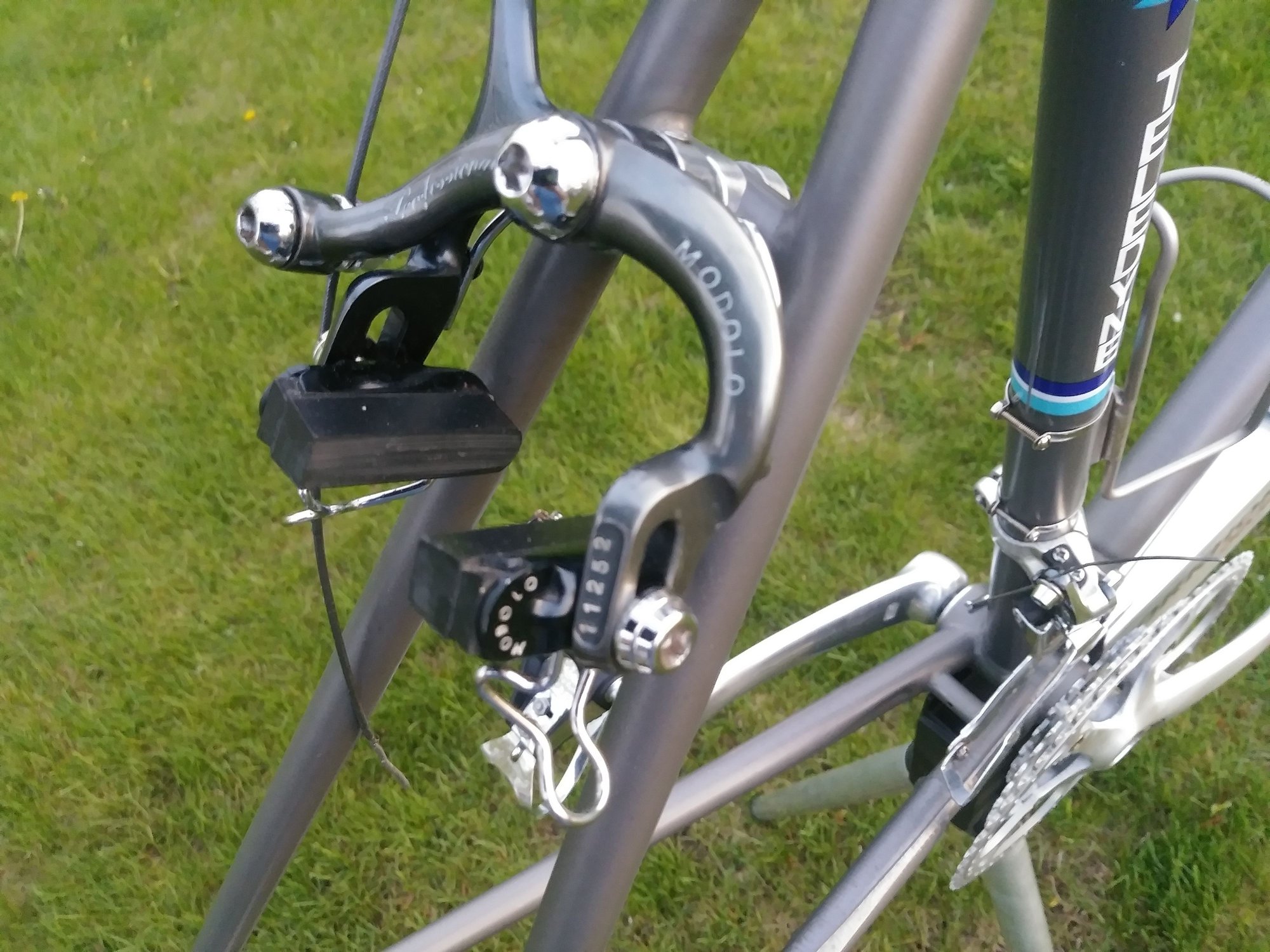

With restraining order, I went with 1st series Modolo Professional and levers. Replaced pads with Kool Stop.

More jewelry suggestions. I'm leaving the Modolo brake hardware as is but I've changed much of the other component parts screws with Ti and aluminum. Have to admit the Taiwan suppliers are super reasonable and top quality. The prices are FAR cheaper including shipping vs. steel replacements.



crank_addict is offline
Reply With Quote
Old 02-10-19, 01:23 PM
  #15
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 2,527
Mentioned: 83 Post(s)
Tagged: 0 Thread(s)
Quoted: 863 Post(s)
What about considering an American weight weenie crankset too??

Topline road crankset.
(Still looking for a proper small ring for it to complement the Vuelta big ring I have n it already.)
Not period correct (I believe, Toplines were from the early 90's(?)), but it looks like the build was not going that direction anyway and the Topline crankset has very classic lines....
__________________
72 Line Seeker
83 Davidson Signature
84 Peugeot PSV
84 Peugeot PY10FC
84 Gitane Tour de France.
85 Vitus Plus Carbone 7
86 ALAN Record Carbonio
86 Medici Aerodynamic (Project)
88 Pinarello Montello
89 Bottecchia Professional Chorus SL

Last edited by Chombi1; 02-10-19 at 01:27 PM.
Chombi1 is offline
Reply With Quote
Old 02-10-19, 01:49 PM
  #16
crank_addict
Senior Member

crank_addict's Avatar

Join Date: Aug 2013
Posts: 6,012
Mentioned: 69 Post(s)
Tagged: 0 Thread(s)
Quoted: 930 Post(s)
Originally Posted by Chombi1 View Post
What about considering an American weight weenie crankset too??
Topline road crankset.
(Still looking for a proper small ring for it to complement the Vuelta big ring I have n it already.)
Not period correct (I believe, Toplines were from the early 90's(?)), but it looks like the build was not going that direction anyway and the Topline crankset has very classic lines....
Man, we think alike! Regardless of period correct- I have a polished Topline as you posted and went back and forth whether it should go on the Teledyne. It looks perfect but ended up using it on a US made 84 Trek 760.

My Teledyne build is for riding with long day big climbs in mind. To save it, these frames require spinning with minimal mashing. I chose a Sugino XD600 compact triple. Changed all the rings. Tight q-factor with a very svelte 106mm Omni Racer bb. Square taper, Ti bolts. Ally chainring bolts.
crank_addict is offline
Reply With Quote
Old 02-10-19, 02:59 PM
  #17
due ruote
Senior Member

due ruote's Avatar

Join Date: Dec 2006
Posts: 6,536
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 429 Post(s)

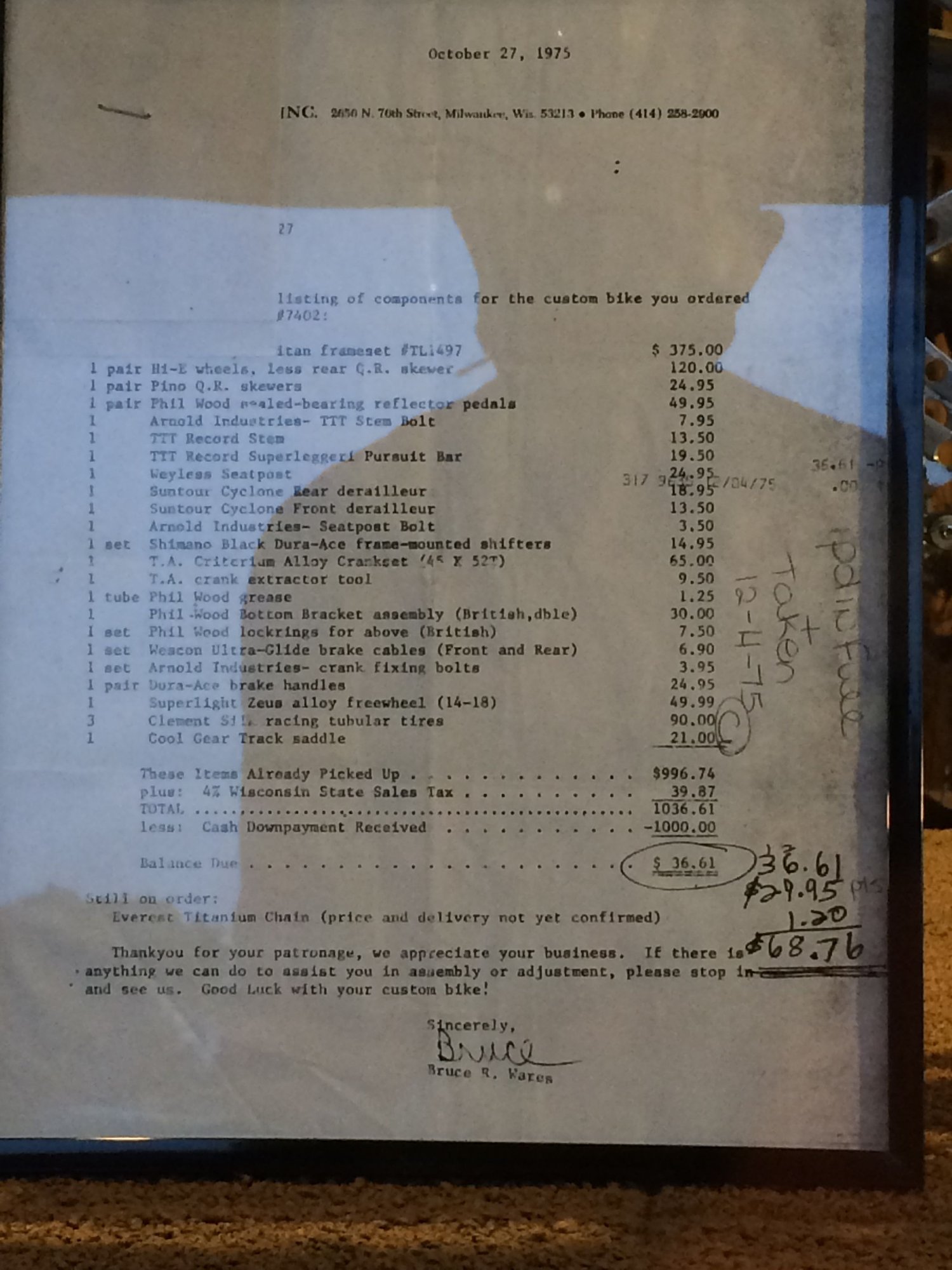

There was one in the window of an LBS last year. I shot this of the accompanying build sheet.

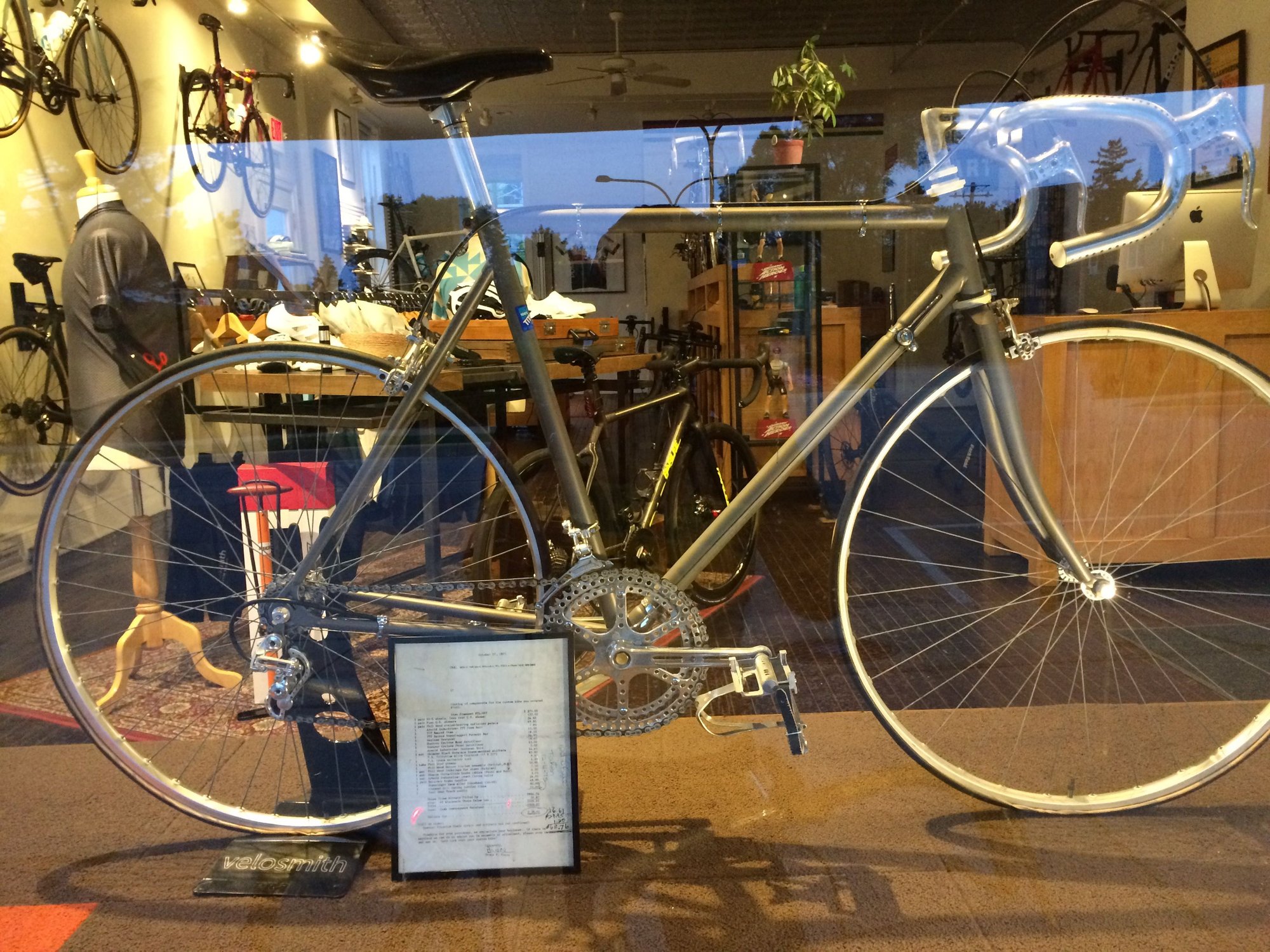

And the bike.

There was no discussion of the headset, which looked like it was milled from PVC.

Last edited by due ruote; 02-10-19 at 03:03 PM.
due ruote is offline
Reply With Quote
Old 02-10-19, 03:28 PM
  #18
repechage
Senior Member

Join Date: Jun 2006
Posts: 13,103
Mentioned: 72 Post(s)
Tagged: 0 Thread(s)
Quoted: 854 Post(s)
I sold two Titans back in the day working for a bike shop.
Both transactions were over the phone! for later pick up.
One full Campagnolo, retaining the Dura-Ace headset
The other "I want this bike as trick as possible"
So... Super Record. First generation hollow spindle, Save for the seat post that was milled and cross drilled at the pivot by Art Stump.
28 hole wheels, 3ttt superleggra bars, milled 3ttt stem, milled cranks and chainrings by Art Stump.
Clement 195 gram Seta Extra tires.
Titanium spokes for the front wheel.
Malliard alloy freewheel.
Cool Gear raw plastic saddle with alloy frame.
TA alloy water bottle cage. For a joke the water bottle was drilled and a plastic bag inserted.
Later the bike would get a ti chain, O.M.A.S. ti/alloy bolt kit. Weyless seat post. CLB alloy coil cable housing.
Whatever it took to be lighter.

Early on, Teledyne Linar was pretty careful on dealership placement and territory, so some of the sales were from clients out of town.
repechage is offline
Reply With Quote
Old 02-10-19, 03:34 PM
  #19
RobbieTunes
Old and in the way

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 24,829
Mentioned: 28 Post(s)
Tagged: 1 Thread(s)
Quoted: 315 Post(s)

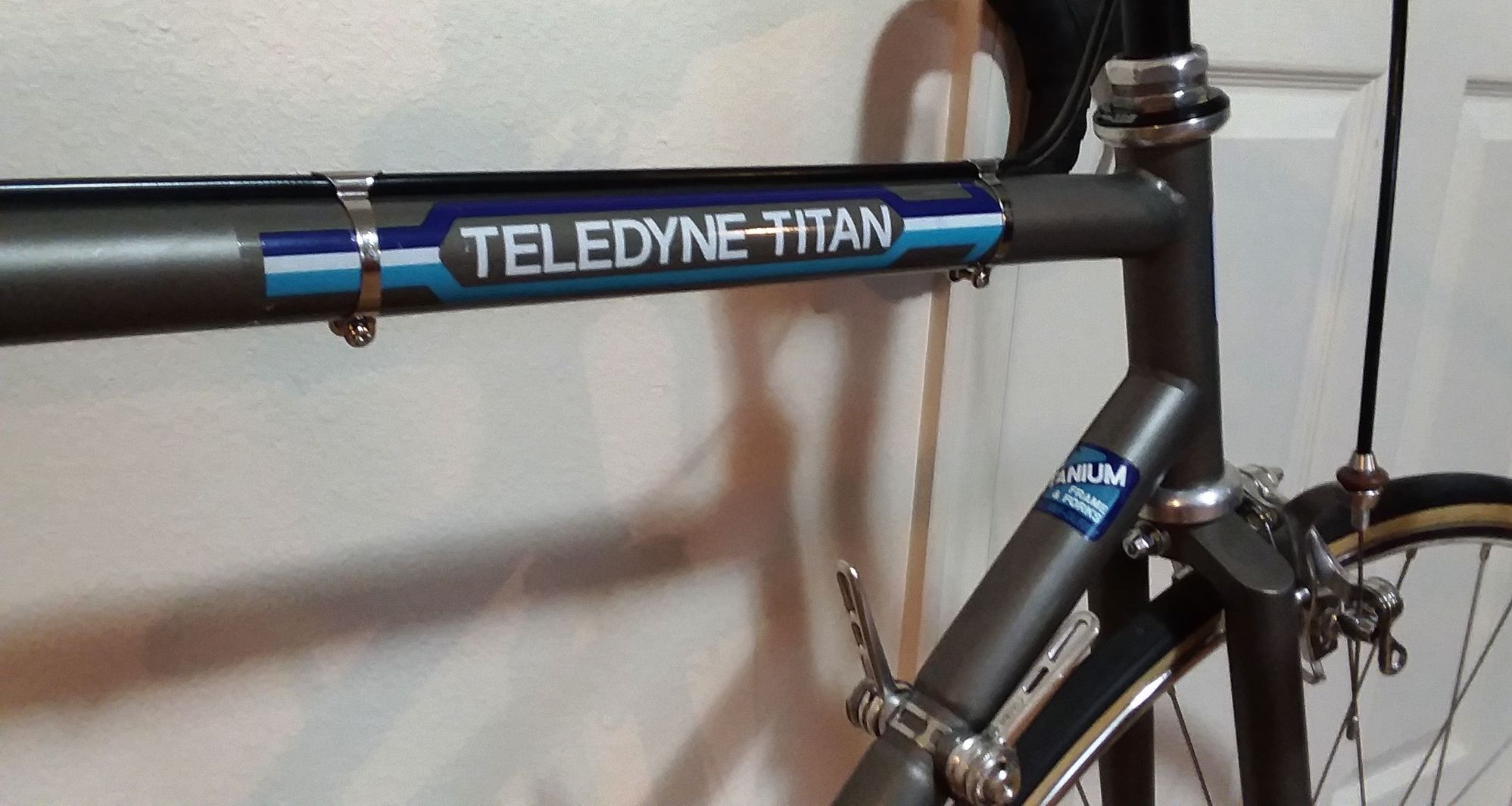

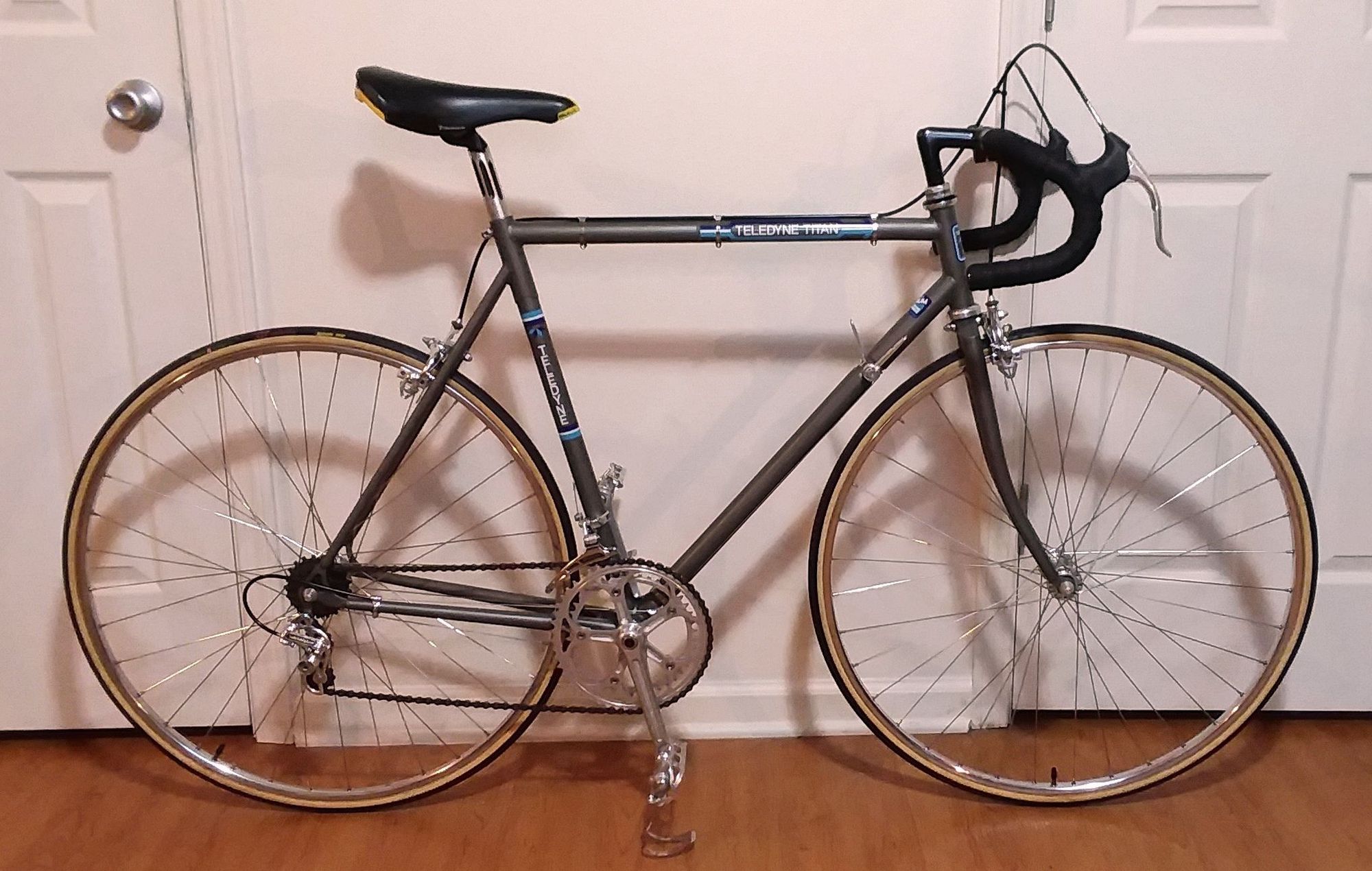

I looked for some light stuff, but did not go all gooey about it.
Advice from @steelbikeguy, @Steve Whitlatch, and @crank_addict.
Wheel build by @speedevil. Rides smoothly.

Year 1973-1976
Serial No. TL000357
Make Teledyne
Model Titan A3U1R
Size 56x56
Tubing Teledyne Pure Ti
Fork Teledyne Pure Ti
Headset Shimano 105
Stem Cinelli 80mm black
Bars Cinelli 64-40
Saddle Selle Italia TurboMatic
Seat Post ITM fluted 26.8
Brake Levers Dura Ace 7200 w/DiaCompe hoods
Calipers Suntour Superbe 4700
Shifters Suntour Superbe DT (banded)

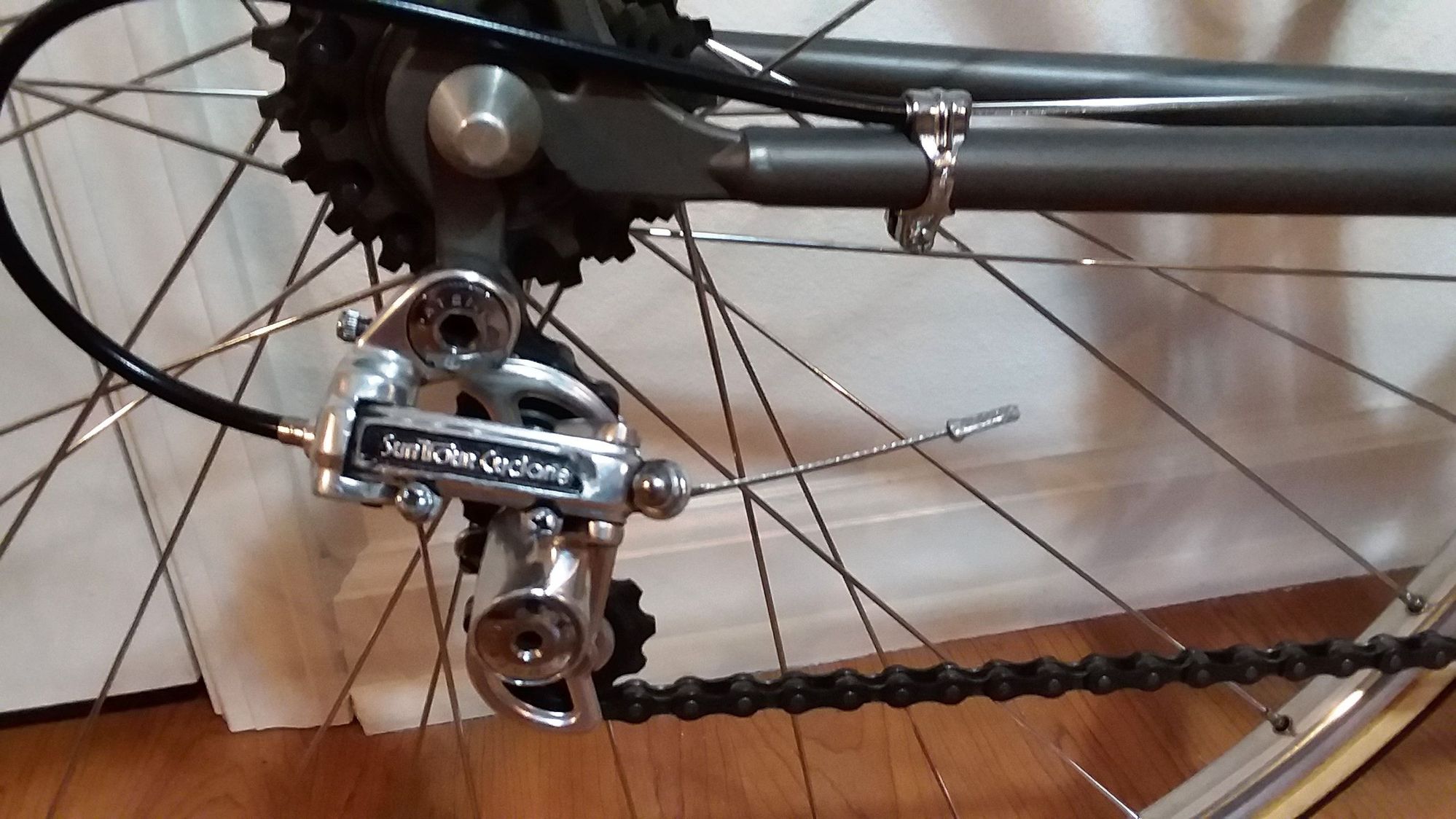

FD Suntour Cyclone
RD Suntour Cyclone
Cogs Suntour Winner Pro 13-21
Crankset Dura Ace 7200 165mm
Chain Rings Dura Ace 7200 52/42
Bottom Bracket Dura Ace 7200
Chain Sachs-Huret 8sp
Cables Jagwire stainless
Housing Jagwire black

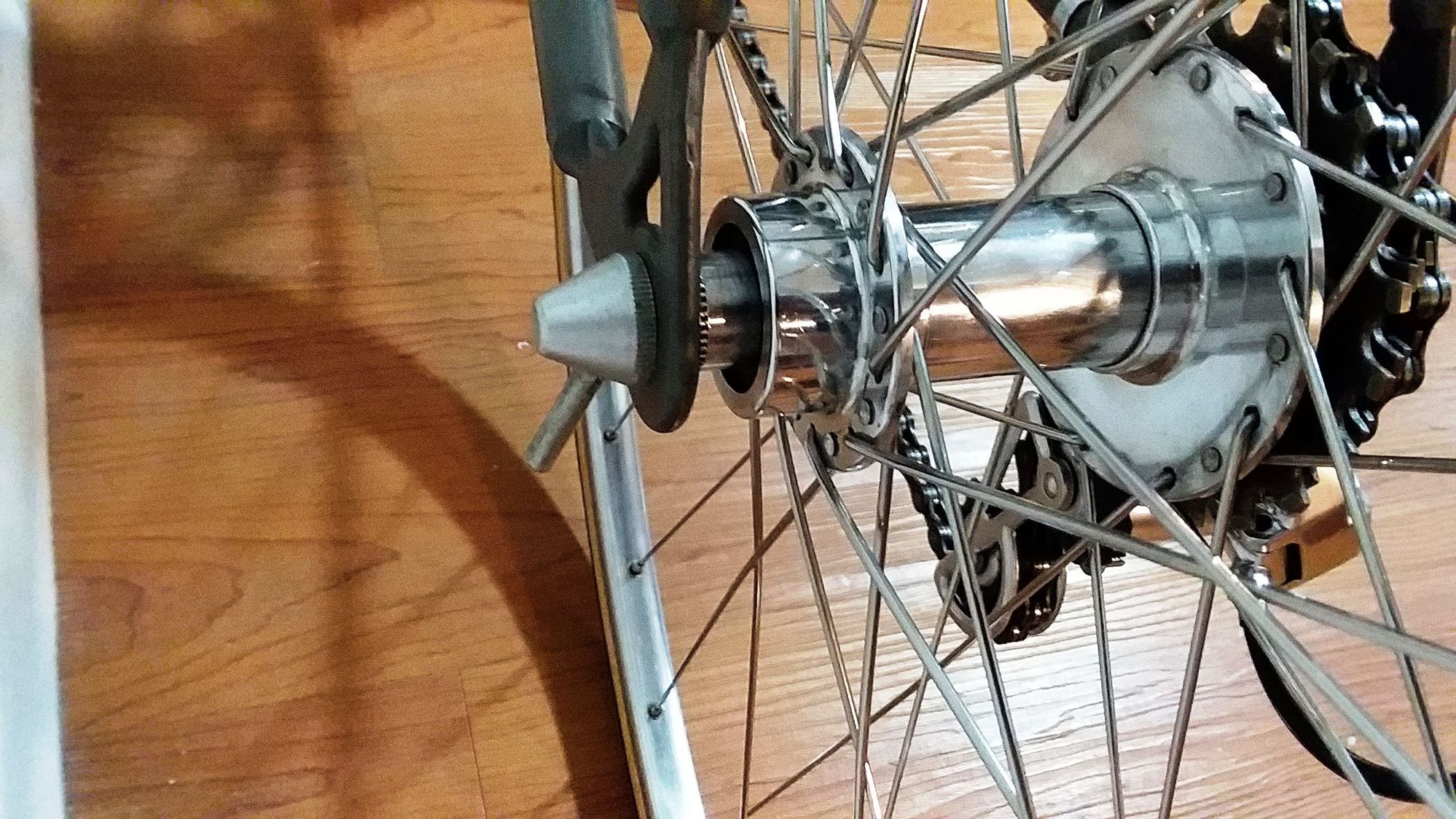

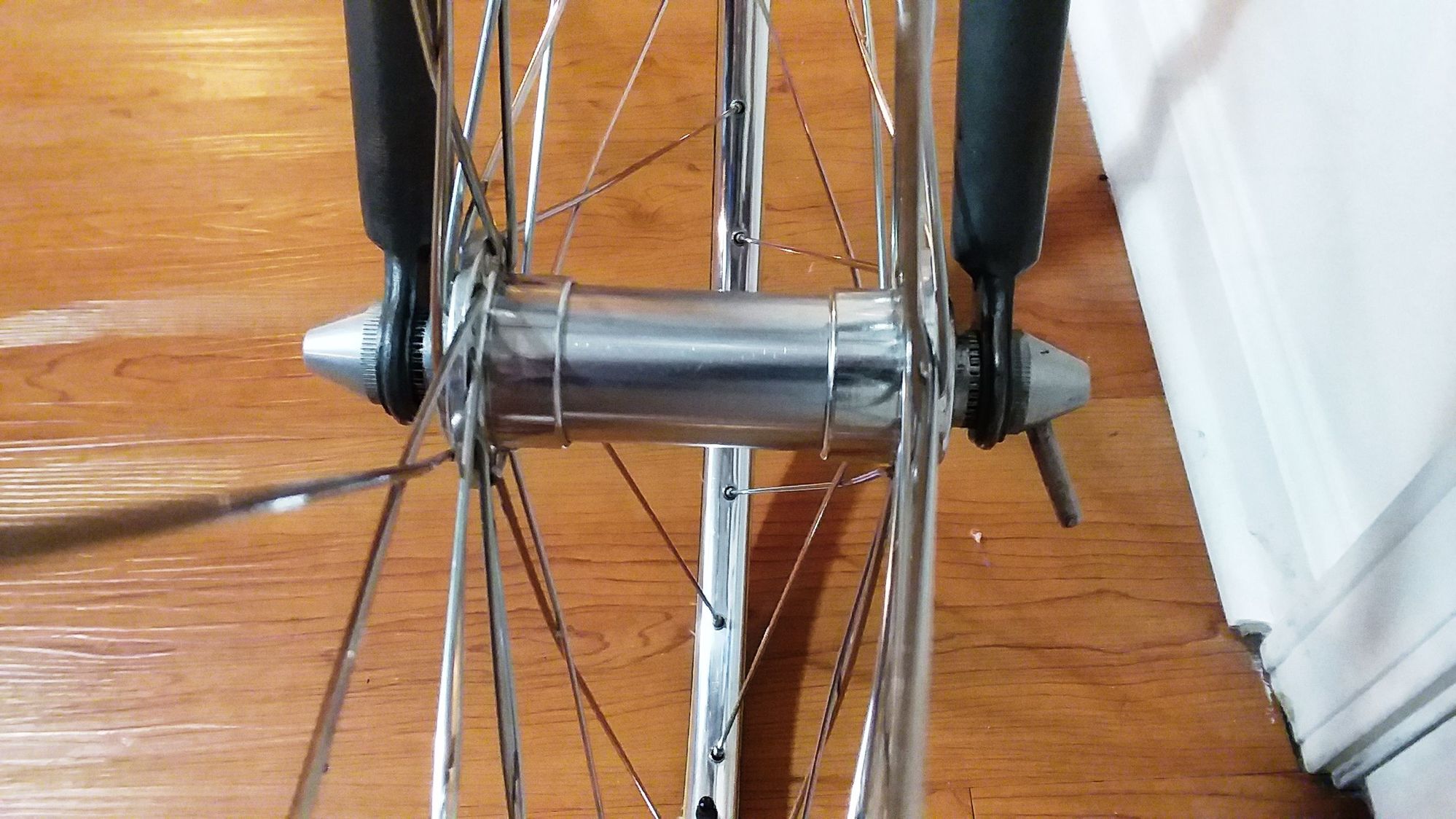

Hubs Hi-E

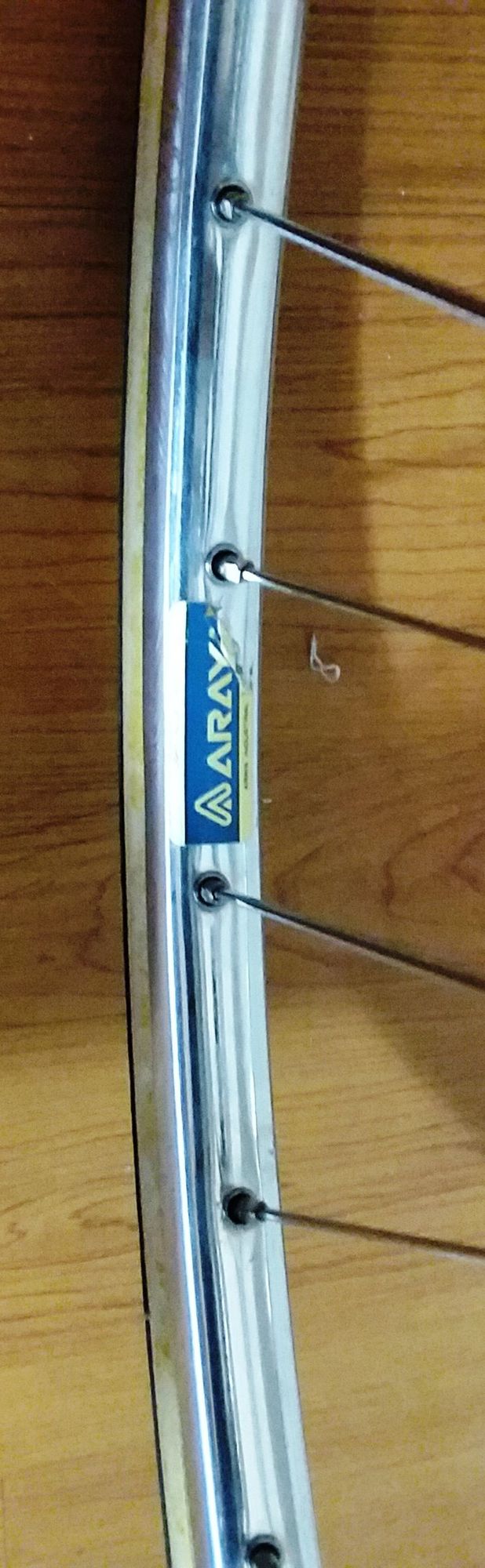

Rims Araya tubular polished

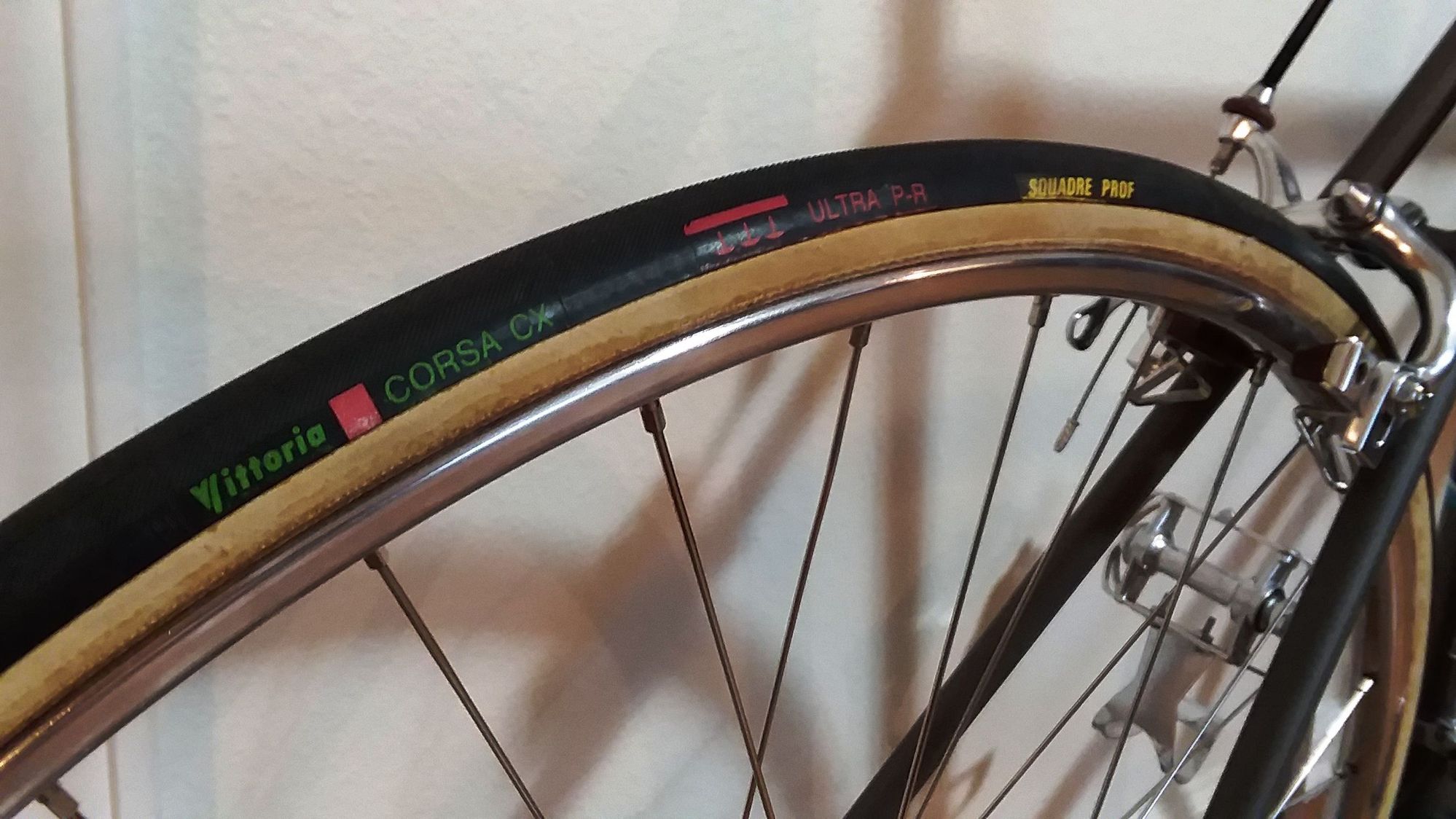

Tires Vittoria Corsa CX tubular
Wrap black cork
Color Scheme raw Ti
Pedals MKS Sylvan w/Christophe half-clips



Fork from @unterhausen


Bars from @Steve Whitlatch.


Frame from @Last ride 76. Shifters from @3speedslow.





Crankset/BB from @squirtdad. Campy BB cable guide with the points lopped off.


FD from @dea x jambe. Chain came on a bike from @cudak888.
__________________
Robbie ♪♫♪...☻


Last edited by RobbieTunes; 02-10-19 at 04:21 PM.
RobbieTunes is offline
Reply With Quote
Old 02-10-19, 03:41 PM
  #20
RobbieTunes
Old and in the way

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 24,829
Mentioned: 28 Post(s)
Tagged: 1 Thread(s)
Quoted: 315 Post(s)
RD from @deaux jamb. Freewheel from @krems81. Skewer from @smontanaro or @3speedslow. Huret RD cable guide.


Front hub from @3speed slow, skewer from him or @smontanaro.


Rims, Rear hub from @smontanaro


I think the tires came on a bike, or from a BF member with some rims, but I honestly can't remember.


Again, rims from @smontanaro.
Then again, maybe @Steve Whitlatch. It's been awhile.


Pedals from @dea. I had the Christophe half-clips sitting here.




__________________
Robbie ♪♫♪...☻


Last edited by RobbieTunes; 02-10-19 at 04:20 PM.
RobbieTunes is offline
Reply With Quote
Old 02-10-19, 03:43 PM
  #21
Nemosengineer
Hair Ball
Thread Starter

Nemosengineer's Avatar

Join Date: Aug 2015
Location: Murrieta Ca.
Posts: 57

Bikes: Teledyne Titan, Bob Jackson World Tour

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 29 Post(s)
There are so many great posts here, thanks I have read them all. At the moment I can say you are all a very bad influence and you must all share the blame for putting my wheel build off until next month... It's not like I wasn't considering this set



: Mike
__________________
Booyah Hubba-Hubba!!!
Nemosengineer is offline
Reply With Quote
Old 02-10-19, 04:26 PM
  #22
nomadmax
Senior Member

Join Date: Jun 2018
Location: SW Ohio
Posts: 449
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 188 Post(s)
Mike are you on HDF as well?
nomadmax is offline
Reply With Quote
Old 02-10-19, 05:00 PM
  #23
crank_addict
Senior Member

crank_addict's Avatar

Join Date: Aug 2013
Posts: 6,012
Mentioned: 69 Post(s)
Tagged: 0 Thread(s)
Quoted: 930 Post(s)
Fine, fine build, Robbie! Wheels are killa. No doubt it's very much a lightweight. Considering stock parts of the era. No carbon this time around for you- ha.

Interesting Campy cable guide mod. Might consider the same. Its the only Campagnolo part I have on mine. Though I have a Suntour DT and chainstay cable guide.

Shift department-
I was all in and had set aside Suntour Cyclone for my build but since already having enough others with Suntour, thought 'what the heck' and went off-tilt era Shimano.

By doing so, also compromised weight with early Shimano XT front and rear derailleur plus barends--- yet with extra lightening work. This to nicely play with super wide ratios and triple. 1976 era Dura Ace large flange hubs, found new. Swapped axles and skewers to titanium. A very greedy six speed in the narrow width frame. Mountain goat.

Regardless and as I keep juggling parts, its sub 18 lbs.. I machined and tweaked some parts, not really visible so it remains rather light. The handful of lightweight hardware surprisingly helps.

I was going to mention the period correct Cool Gear saddle and sure enough, that bill of sale above has it listed. But, I scored a NOS Brooks Swallow titanium railed. Not the lightest by any comparisons though think it fits the build and do like the feel especially on the drops.
crank_addict is offline
Reply With Quote
Old 02-10-19, 05:49 PM
  #24
nomadmax
Senior Member

Join Date: Jun 2018
Location: SW Ohio
Posts: 449
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 188 Post(s)
What about Simplex shifters Crank?
nomadmax is offline
Reply With Quote
Old 02-10-19, 06:08 PM
  #25
dparks
Member

dparks's Avatar

Join Date: Jan 2011
Location: Northwest Ohio
Posts: 34

Bikes: 1970 Gitane, 1989 Schwinn 564

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)


000263 - Dura Ace 1st gen components. Titanium fork was replaced with steel. It now has an aluminum fork. Purchased off Craigslist in 2017 ... $50! I have only ridden it about 6 times. Many more rides planned in 2019 - I am retiring!
dparks is offline
Reply With Quote

Thread Tools
Search this Thread

Contact Us Archive Advertising Cookie Policy Privacy Statement Terms of Service
