Dents in the top tube

Old 04-14-19, 06:54 PM
  #26
bark_eater
Senior Member

Join Date: Sep 2017
Location: Eastern Shore, MD
Posts: 415

Bikes: Road ready: 1989 Centurion Sport DLX, "I Blame GP" Bridgestone CB-1. Projects: Yea, I got a problem....

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 151 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Can a dent in an aluminum tube be rolled out?
bark_eater is offline
Old 04-14-19, 07:05 PM
  #27
riverdrifter
Senior Member

Join Date: Apr 2019
Posts: 107
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 31 Post(s)
Liked 17 Times in 9 Posts
I rode a Trek 6500 Alpha ZX as a daily, year-round commuter for about 8 years. It had a serious (big and deep) dent in the top tube that never affected anything. I remember being nervous about it for several months, than never thought about it again.
riverdrifter is offline
Old 04-21-19, 11:29 AM
  #28
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 9,023

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 1969 Atala Professional, 1970 Torpado Luxe, 1973 Peugeot PX10E, 1978 Norco Magnum SE, 1982 Bianchi Touring, 2000 Cyclops

Mentioned: 140 Post(s)
Tagged: 0 Thread(s)
Quoted: 546 Post(s)
Likes: 0
Liked 6 Times in 4 Posts

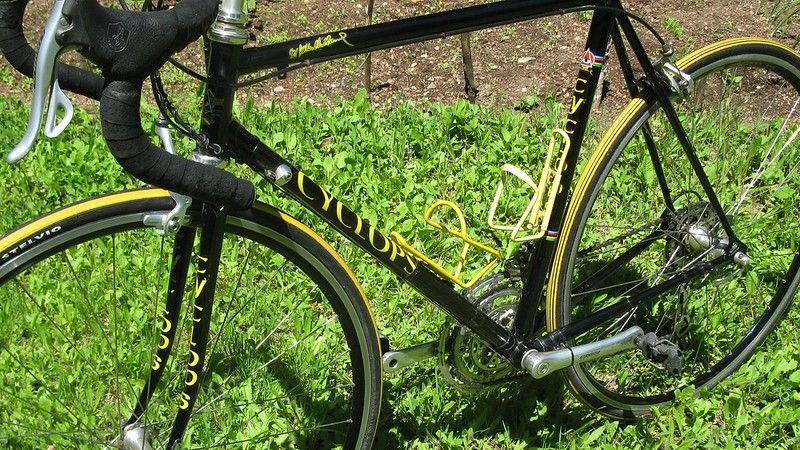

As mentioned, earlier, I am not a fan of a dented frame set, however; the seller dropped the price on my newest Cyclops from $1500.00 CND to $600.00 CND, when the dents were noticed. The dents (very small) do bother me but the bike is my Canadian rider and aesthetics come second on my riders...
__________________
Learn how to find, restore and maintain vintage road bicycles at... MY "TEN SPEEDS"
randyjawa is online now
Old 04-21-19, 11:45 AM
  #29
big chainring
Senior Member

Join Date: Sep 2007
Location: Wilmette, IL
Posts: 6,416
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 371 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Bikes with a dent or two are the fast ones.
big chainring is offline
Old 04-21-19, 02:35 PM
  #30
Slightspeed
Senior Member

Slightspeed's Avatar

Join Date: Apr 2017
Location: Los Angeles, CA
Posts: 1,372

Bikes: 1964 Legnano Roma, 1973 Raleigh Super Course, 1978 Raleigh Super Course, 1978 Peugeot PR10, 2002 Specialized Allez, 2007 Specialized Roubaix, 2013 Culprit Croz Blade

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 429 Post(s)
Likes: 0
Liked 9 Times in 6 Posts

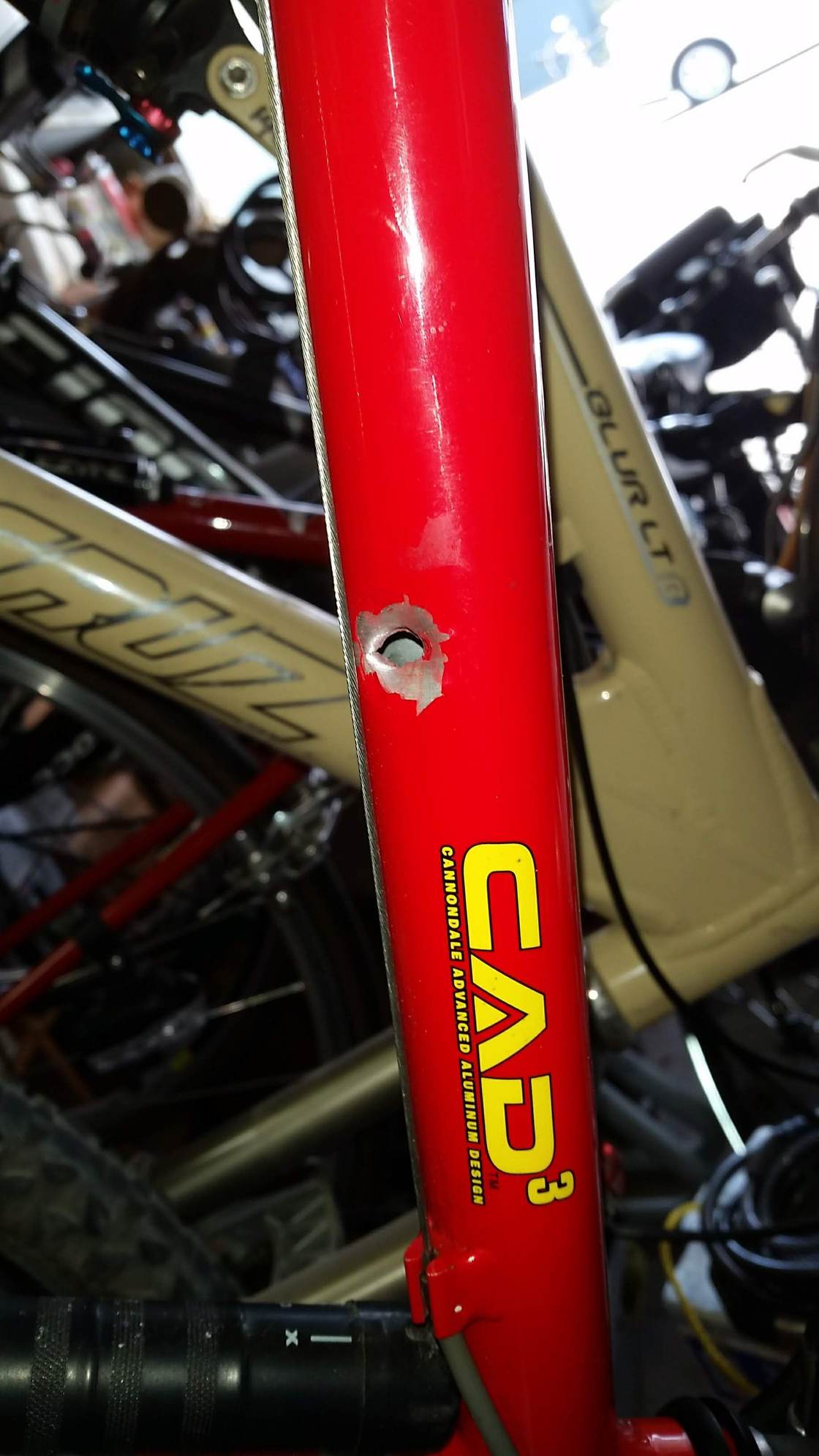

It needs a bullet hole for real street cred.
Slightspeed is offline
Old 04-21-19, 06:22 PM
  #31
gugie
Crapmaster Emeritus

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 7,183

Bikes: JP Weigle'd Raleigh Competition reconstruct, 73 Raleigh Competition 650b'ed, 96 Bike Friday NWT, 83 Lotus Classique, 78 Centurion ProTour, 73 Raleigh Grand Sports

Mentioned: 740 Post(s)
Tagged: 0 Thread(s)
Quoted: 2129 Post(s)
Likes: 0
Liked 10 Times in 10 Posts
Originally Posted by T-Mar View Post
The reliability of a dent is a function of the size of the dent, particularly the width and sharpness of any crease. Sharp creases significantly increase the probability of failure. It won't asplode but it may buckle under loads that normally wouldn't affect it. Of course, the thinner the tubing, the more susceptible it is. Frame blocks are a popular shop tool for removing dents because they reduce the size of the dents and crease, reducing the probability of failure, though at the expense of the paint finish.

As an extreme but easily demonstrable example of how a dent impacts the structural strength of a tube, get an undamaged aluminum soda pop can. Try to buckle it by pushing inwards on the ends. Or try bending it. It's not easy to do. However, if you use your thumb to put a small dent with a crease into the side of the can, the loads required to buckle the can drop significantly. Dents have the same effect on a bicycle tube. However, it's very hard to predict the new, reduced load limit. Moderate dents may be fine for everyday use but could cause the tube to buckle under a bigger impact, such as hitting a curb or pothole. It's impossible to predict.
The stress in the middle of a bicycle frame tube (where dents occur) is minimal. I've yet to see a frame buckle due to a dent. You're more likely to have a frame break from something you can't see, such as incomplete brazing at a lug or bottom bracket.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.

Last edited by gugie; 04-29-19 at 11:40 AM.
gugie is offline
Old 04-22-19, 06:33 AM
  #32
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,532
Mentioned: 407 Post(s)
Tagged: 1 Thread(s)
Quoted: 2365 Post(s)
Likes: 0
Liked 8 Times in 8 Posts
You may not have seen such failures but I have. While there is less stress in the non-butted, middle sections of the tube, dents lower the stress that the frame can tolerate without buckling. While it's impossible to predict the new load limit and when/if the frame will fail, it will fail at lower load than one with virgin condition tubes.

BTW, in my experience, the most common frame builder related failures are due to overheated joints.

Last edited by T-Mar; 04-22-19 at 06:38 AM.
T-Mar is offline
Old 04-29-19, 11:03 AM
  #33
game_player_s
Senior Member

Join Date: Jun 2016
Location: U.S.A.
Posts: 88

Bikes: Raliegh Technium 400, Schwinn Le Tour II, Giant Excursion, NEXT Avalon 22636

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
For the record, I stripped the seafoam green bike I asked about on April 7th. Felt rather uneasy about it, and not like I don't own other good bikes.
game_player_s is offline
Old 04-29-19, 11:19 AM
  #34
Reynolds
Passista

Reynolds's Avatar

Join Date: Jul 2005
Posts: 6,553

Bikes: 1998 Pinarello Asolo, 1992 KHS Montaña pro, 1980 Raleigh DL-1, IGH Hybrid, IGH Utility

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 443 Post(s)
Liked 7 Times in 7 Posts
Originally Posted by Slightspeed View Post
It needs a bullet hole for real street cred.
What was that, a .22? The HPx would have taken it, no problem.
Reynolds is offline
Old 04-29-19, 11:30 AM
  #35
gugie
Crapmaster Emeritus

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 7,183

Bikes: JP Weigle'd Raleigh Competition reconstruct, 73 Raleigh Competition 650b'ed, 96 Bike Friday NWT, 83 Lotus Classique, 78 Centurion ProTour, 73 Raleigh Grand Sports

Mentioned: 740 Post(s)
Tagged: 0 Thread(s)
Quoted: 2129 Post(s)
Likes: 0
Liked 10 Times in 10 Posts
Originally Posted by Gary Fountain View Post
I know you're not asking how to fix the dents but small dents can be repaired with bodyfiller and a file to bring it back to round but the best way to fill the hole is to remove the paint from the area and bronze fill the dent but this takes some nerve and skill so a hole isn't blown into the tube with the 'Oxy' torch. Either way, the tube will need re-painting.

I wouldn't use bronze to fill a dent. The temperatures you need to get to are significantly higher than silver-based filler, the tube is pretty thin right there to start with, and I'd be worried about putting a hole in it. I've had 100% success rounding the tube out using aluminum frame blocks and grease as best possible, cleaning and filling the remaining small dent with 50% silver with a tiny flame, and just melting the filler so it stays proud of the dent. Fine file and sand it smooth.



frame blocks and grease, roll it back and forth to remove most of the dent



Silver filled dents
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 04-29-19, 11:44 AM
  #36
gugie
Crapmaster Emeritus

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 7,183

Bikes: JP Weigle'd Raleigh Competition reconstruct, 73 Raleigh Competition 650b'ed, 96 Bike Friday NWT, 83 Lotus Classique, 78 Centurion ProTour, 73 Raleigh Grand Sports

Mentioned: 740 Post(s)
Tagged: 0 Thread(s)
Quoted: 2129 Post(s)
Likes: 0
Liked 10 Times in 10 Posts
Originally Posted by T-Mar View Post
You may not have seen such failures but I have. While there is less stress in the non-butted, middle sections of the tube, dents lower the stress that the frame can tolerate without buckling. While it's impossible to predict the new load limit and when/if the frame will fail, it will fail at lower load than one with virgin condition tubes.

BTW, in my experience, the most common frame builder related failures are due to overheated joints.
Pix or it didn't happen?

I've seen some crappy production frames where there's a signficant braze "miss". The relatively thick lugs used on a lot of them possibly make up for that. Thin tubing and lugs are more likely to have the "cooked tubes" syndrome.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 05-01-19, 08:09 AM
  #37
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,532
Mentioned: 407 Post(s)
Tagged: 1 Thread(s)
Quoted: 2365 Post(s)
Likes: 0
Liked 8 Times in 8 Posts
Originally Posted by gugie View Post
Pix or it didn't happen?
I figured the probability of your response invoking the "no pics" rebuttal would be about 99.7%.
T-Mar is offline
