New folder: Cinzia Elite 1972

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

New folder: Cinzia Elite 1972

Old 02-21-19, 05:35 PM
  #1
3speedslow
Senior Member
Thread Starter

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 7,152

Bikes: A few

Mentioned: 90 Post(s)
Tagged: 0 Thread(s)
Quoted: 1189 Post(s)
Likes: 0
Liked 10 Times in 9 Posts
New folder: Cinzia Elite 1972

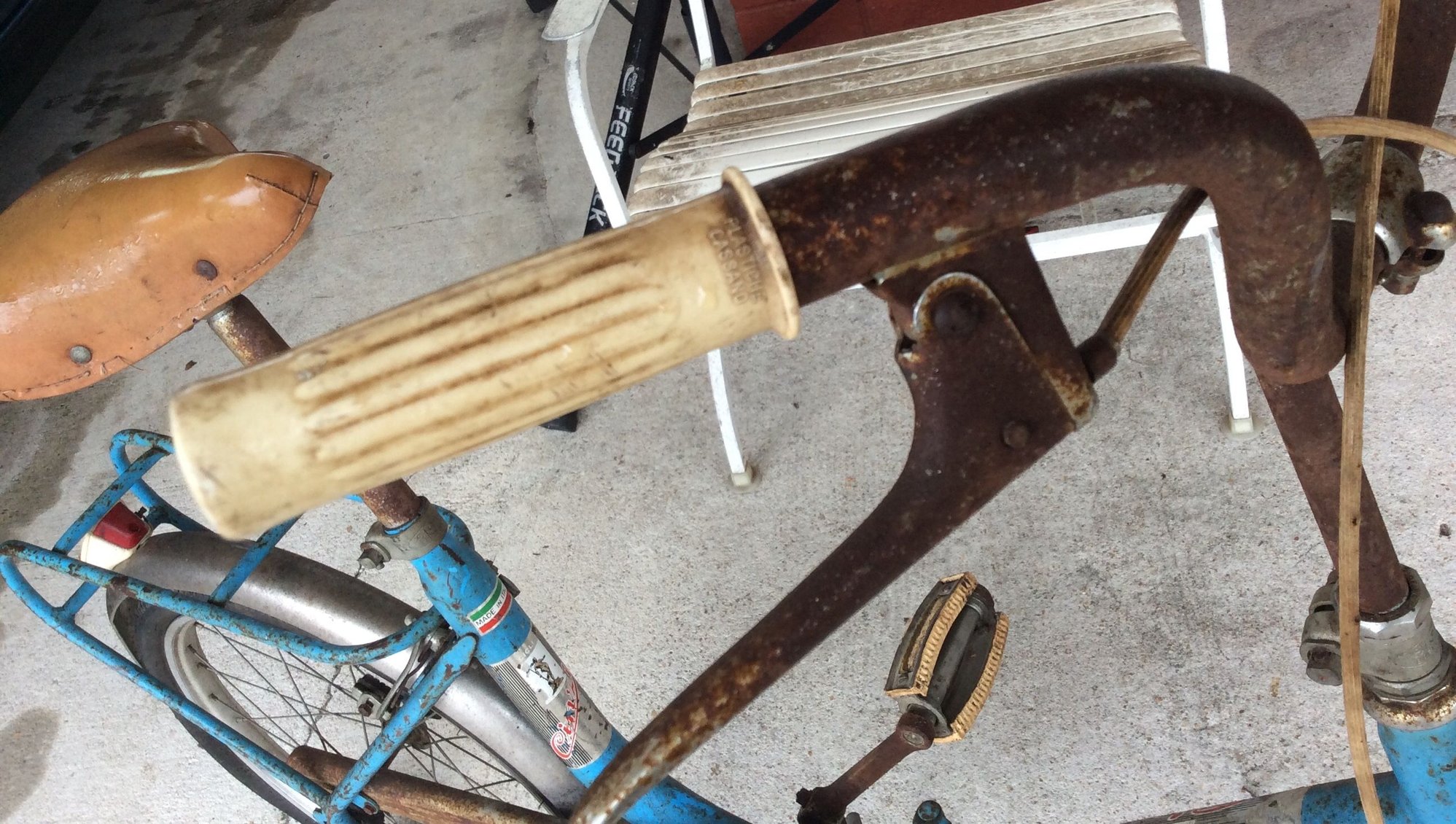

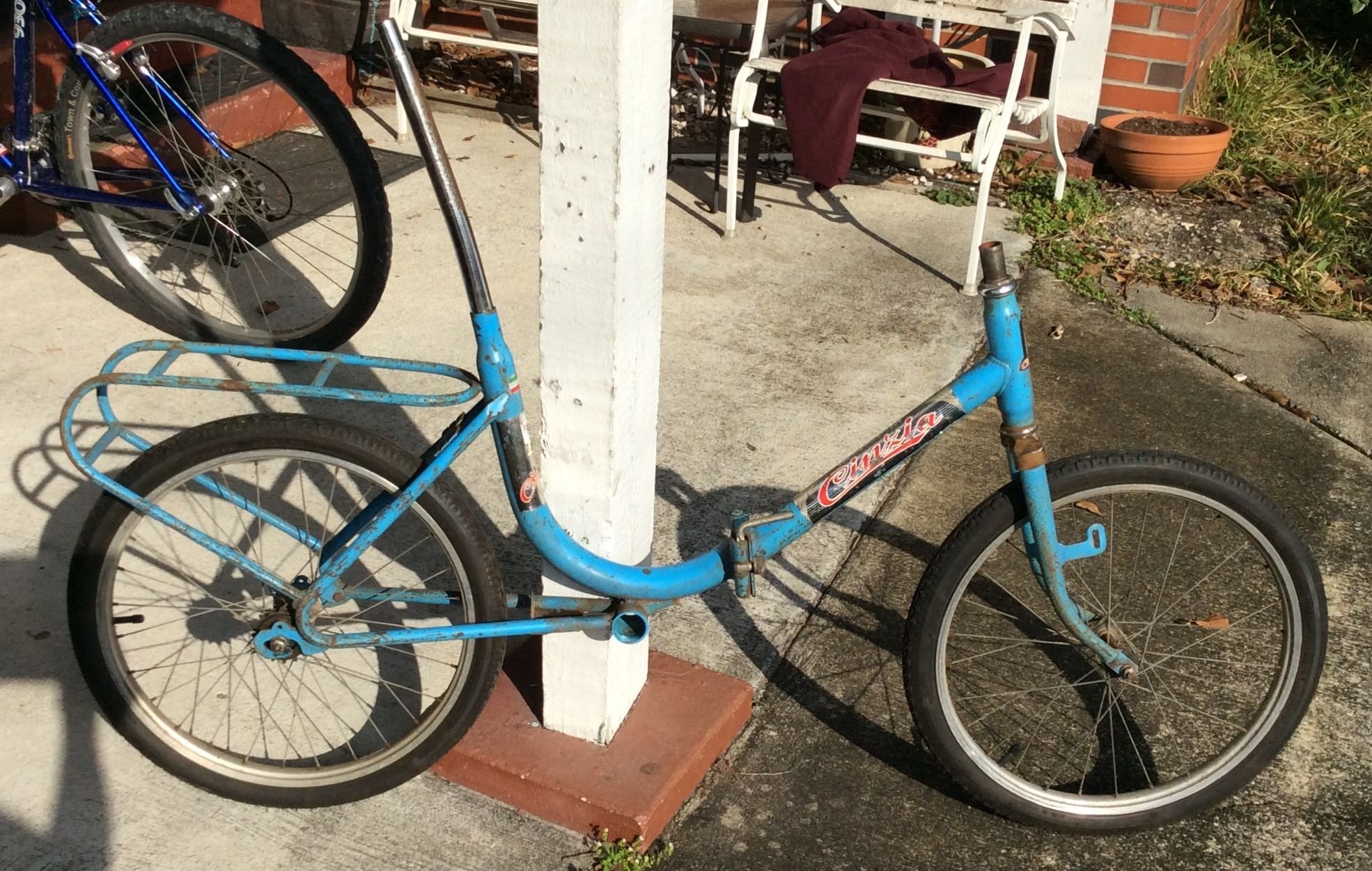

What I really want is a Raleigh Twenty. Has not happened and those seem to be a rare item around here. So the game plan is simple, get something else and a Twenty will suddenly show up!

Really, owner of the LBS was cleaning out the back room and this was heading out back. I asked him how much and free was the price. So I brought her home. Sheís not English but Italian. Probably a nice rider in her day but that ship has sailed! Plans so far are to strip, clean, lube and hopefully put it back together without running afoul of proprietary components or expensive buys.

i leave the thread for now with pics.







3speedslow is offline
Old 02-21-19, 06:57 PM
  #2
Deal4Fuji
Friction Fan

Deal4Fuji's Avatar

Join Date: Mar 2014
Location: North Carolina
Posts: 961

Bikes: '82 Fuji Supreme, '84 Team Fuji, '83 Raleigh Olympian, '87 Lotus Excelle, '85 Centurion Ironman, '12 Trek Alpha 1.1, '77 Schwinn Speedster, Schwinn Trailway, Ross Central Park

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 542 Post(s)
Liked 27 Times in 17 Posts
It needs a lot of work but I know you'll have it looking good Law. I really like the color and the branding decals ! Not big on the plastic headlight and it looks to have yellowed more than the rear...which I guess is just a reflector.
Deal4Fuji is offline
Old 02-21-19, 07:12 PM
  #3
crank_addict
Senior Member

crank_addict's Avatar

Join Date: Aug 2013
Posts: 6,357
Mentioned: 78 Post(s)
Tagged: 0 Thread(s)
Quoted: 1038 Post(s)
Likes: 0
Liked 1 Time in 1 Post
You sir, are brave!
(I'll keep a watch for a Twenty for you. I've acquired a few for near zero.)
crank_addict is offline
Old 02-21-19, 07:35 PM
  #4
3speedslow
Senior Member
Thread Starter

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 7,152

Bikes: A few

Mentioned: 90 Post(s)
Tagged: 0 Thread(s)
Quoted: 1189 Post(s)
Likes: 0
Liked 10 Times in 9 Posts





I had a whole list typed out and the dang site said I wasnít logged in! ARRHH!

before starting with the Cinzia breakdown I was hoping I could do this one right then transfer parts to a Raleigh. Not the case, these sizes are strange. Itís okay, Iím going to have fun with folder.

Some serious rust abatement tomorrow then a trip to Loweís for some chrome paint.
3speedslow is offline
Old 02-21-19, 08:42 PM
  #5
Jackontheroad
Senior Member

Jackontheroad's Avatar

Join Date: Sep 2012
Location: Washington, DC
Posts: 86

Bikes: 2015 Raleigh Tamland 2; 2018 Brompton S6

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
your new bike is a beauty.
Jackontheroad is offline
Old 02-21-19, 09:41 PM
  #6
Pompiere
Senior Member

Join Date: Nov 2005
Location: NW Ohio
Posts: 2,437

Bikes: 1984 Miyata 310, 1986 Schwinn Sierra, 2011 Jamis Quest, 1980 Peugeot TH8 Tandem, 1992 Performance Parabola, 1987 Ross Mt. Hood, 1988 Schwinn LeTour, 1988 Trek 400T

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 204 Post(s)
Liked 0 Times in 0 Posts
Those U frame folders were popular in the 1970s, maybe so you could put it in your trunk to break up your commute and store it at your workplace. They are not very practical to carry when folded. A few different companies made them, or at least put their names on them. I read somewhere that the Italian made frames had the integrated rack, while the others have a separate bolt-on rack. I have one made by Rog in Czechoslovakia. It has a bolt-on, mouse trap rack. The other features are similar, including the hinge.
Pompiere is offline
Old 02-22-19, 06:31 AM
  #7
pastorbobnlnh
Freewheel Medic

pastorbobnlnh's Avatar

Join Date: Oct 2005
Location: Ascending or Descending the NH Mountains NW of Concord!
Posts: 11,156

Bikes: Snazzy* Schwinns, Classy Cannondales, & a Lonely '83 Santana Tandem (* Ed.)

Mentioned: 82 Post(s)
Tagged: 0 Thread(s)
Quoted: 448 Post(s)
Liked 3 Times in 2 Posts
Smart not to post it in the Folding Bike Forum. They have little or no appreciation for vintage folders!

Great that you are rescuing it from the scrap heap and further corrosive degradation! I recently found this Catalogue page for a Graziella which appears to be similar in the front end and few other features such as the generator mount.

__________________
Bob
Dreaming about riding in NH's summertime!

Visit my websites:
FreeWheelSpa.com orpastorbobnlnh.com
pastorbobnlnh is offline
Old 02-22-19, 09:25 AM
  #8
3speedslow
Senior Member
Thread Starter

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 7,152

Bikes: A few

Mentioned: 90 Post(s)
Tagged: 0 Thread(s)
Quoted: 1189 Post(s)
Likes: 0
Liked 10 Times in 9 Posts
Thanks Bob,

It does look like the same frame and style at points. It’s encouraging to think there might be new replacement parts out there which would match the stem, handle bar and seatpost sizes. Those are going to be the rust monsters which get treated and chrome painted. But it’s raining again.

For now it’s clean up, pics for documentation.
3speedslow is offline
Old 02-22-19, 09:34 AM
  #9
3speedslow
Senior Member
Thread Starter

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 7,152

Bikes: A few

Mentioned: 90 Post(s)
Tagged: 0 Thread(s)
Quoted: 1189 Post(s)
Likes: 0
Liked 10 Times in 9 Posts
Originally Posted by Deal4Fuji View Post
It needs a lot of work but I know you'll have it looking good Law. I really like the color and the branding decals ! Not big on the plastic headlight and it looks to have yellowed more than the rear...which I guess is just a reflector.
being the ď Elite ď model, the front and rear were lights. They ran the wiring through the frame then up under the edge of the mudguard to the rear. I do like that the decals seemed to have survived intact.
3speedslow is offline
Old 02-22-19, 04:30 PM
  #10
3speedslow
Senior Member
Thread Starter

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 7,152

Bikes: A few

Mentioned: 90 Post(s)
Tagged: 0 Thread(s)
Quoted: 1189 Post(s)
Likes: 0
Liked 10 Times in 9 Posts

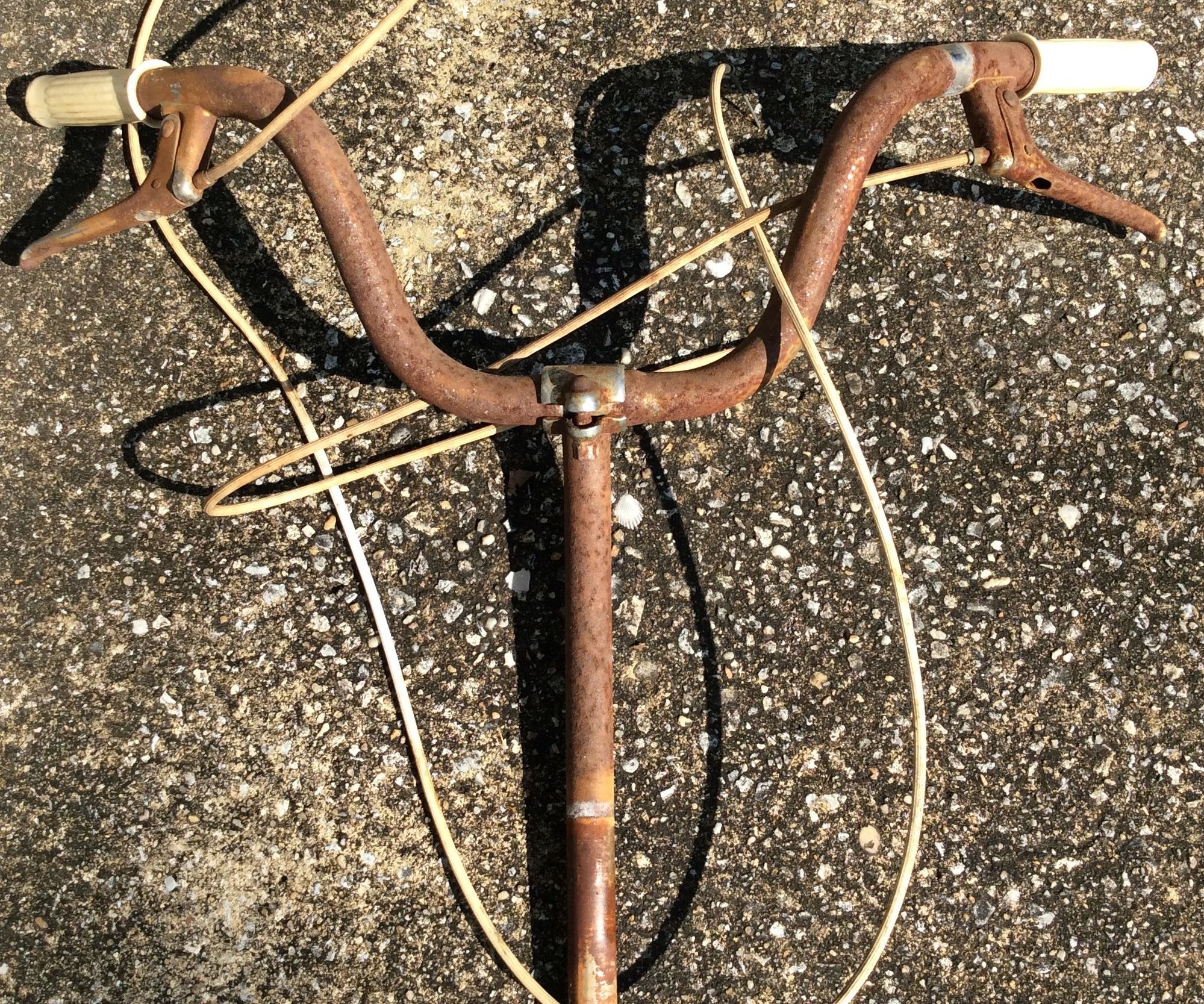

Todayís progress. Took a Drexel to the levers to separate them from the bars. Flimsy, solid rusty and was not going to use them. Now I could get the stem off. Have that soaking in a container of OX. The bars I went after with brass brush, sandpaper and files. Not much chrome left underneath, not too pretty.

Took the polish to the fender with nice results. Went back to the bins for levers, grips and seat choices. Both QR skewers on the handle bar and seatpost had sheared off so still looking for one more QR set up. I will reuse the original collars.

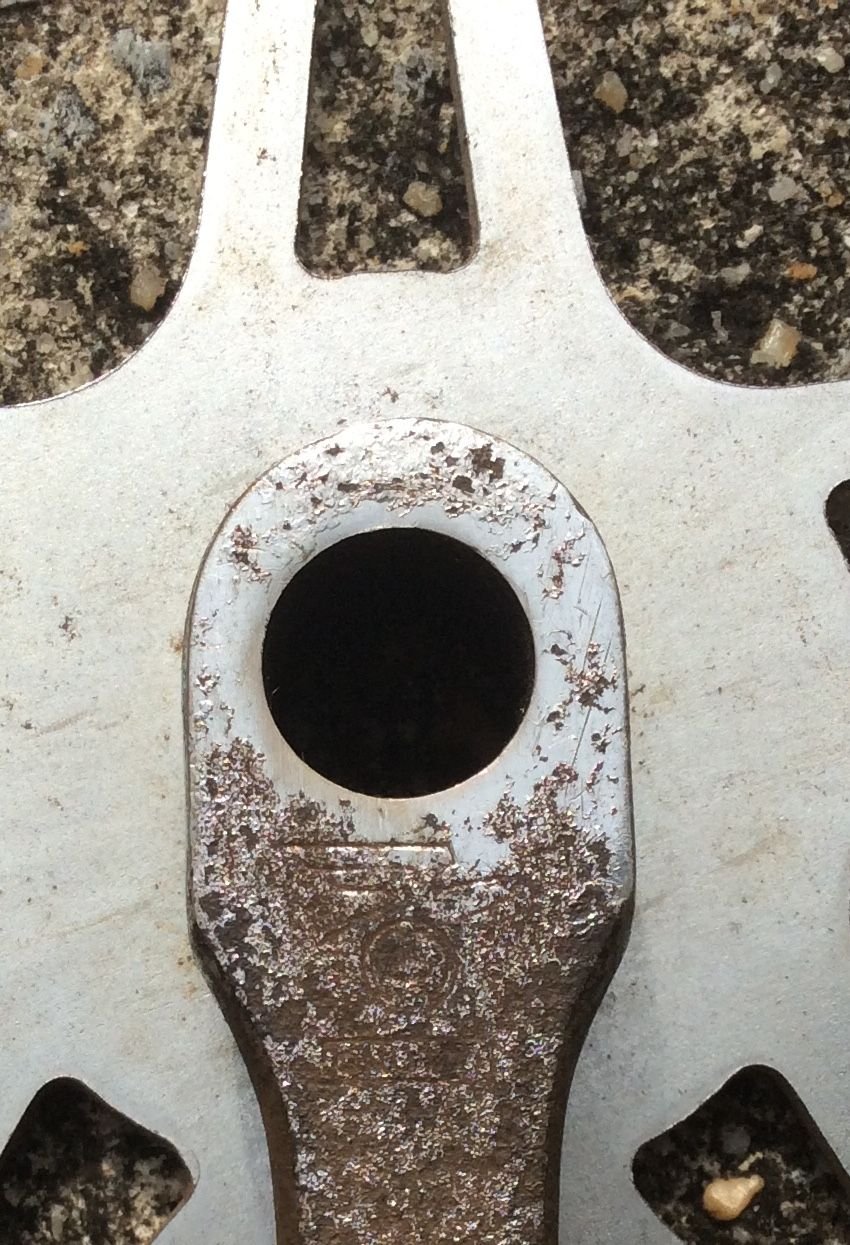

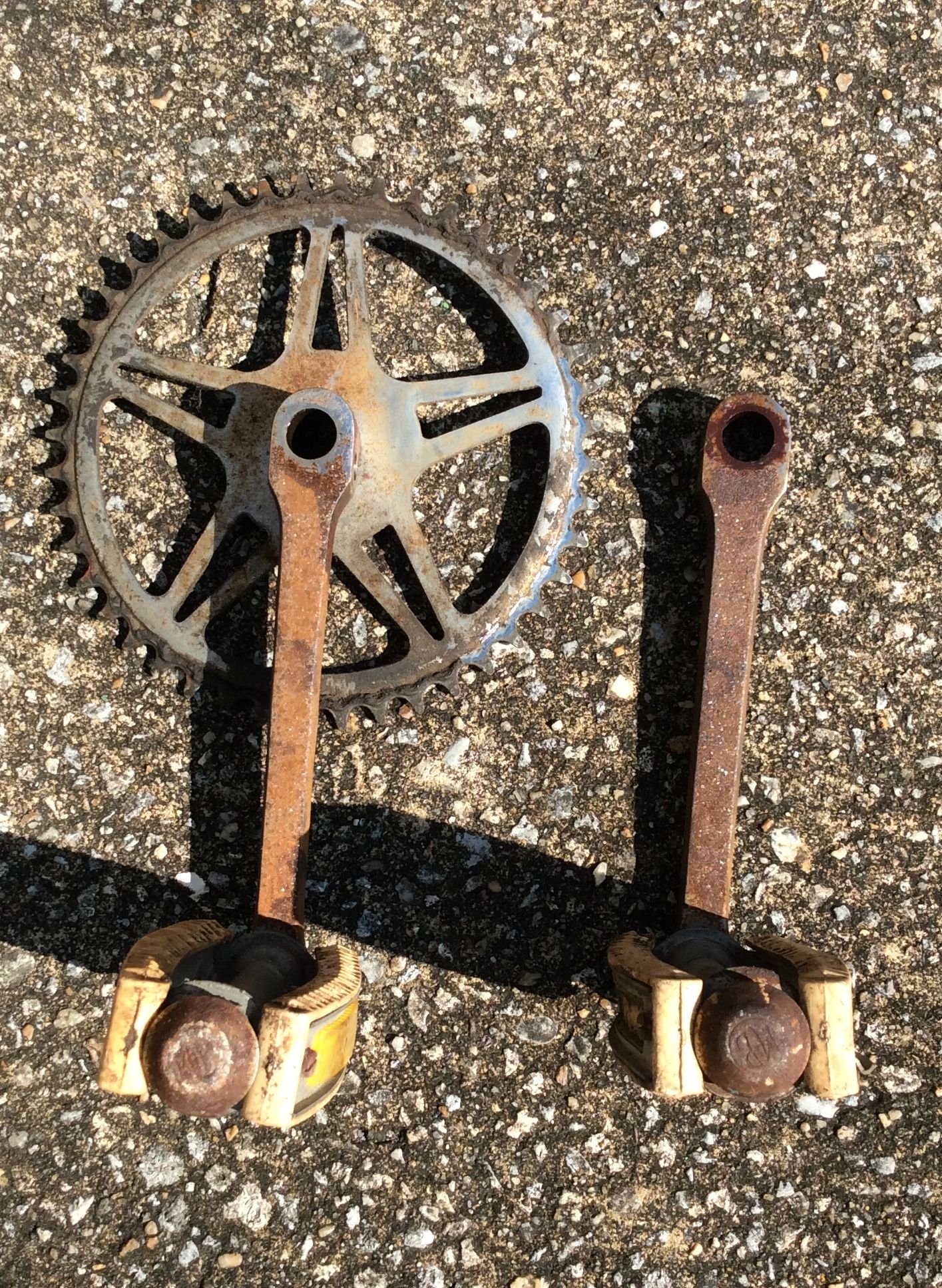

Hunted through my BBís and came up with a Shimano Italian BB 70 mm width like the Cinziaís shell. It screws right in! Thinking I will use a GS crankset 42t for a trial fit. Chainline and compat with the chaingaurd a consideration.
3speedslow is offline
Old 02-22-19, 04:50 PM
  #11
3speedslow
Senior Member
Thread Starter

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 7,152

Bikes: A few

Mentioned: 90 Post(s)
Tagged: 0 Thread(s)
Quoted: 1189 Post(s)
Likes: 0
Liked 10 Times in 9 Posts
Oh yeah, frame and fork weigh in right about 10 lbs.
3speedslow is offline
Old 02-23-19, 04:48 PM
  #12
3speedslow
Senior Member
Thread Starter

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 7,152

Bikes: A few

Mentioned: 90 Post(s)
Tagged: 0 Thread(s)
Quoted: 1189 Post(s)
Likes: 0
Liked 10 Times in 9 Posts
Another bit of info for future owners of these folders.

Wheels: both rims are 28 hole and aluminium. Sized 406, 20 X 1.75
frame: both where the stem and seatpost inter the frame there is no tube support. The frame tubing flairs out right after the clamp collars end.

Last edited by 3speedslow; 02-24-19 at 09:02 AM. Reason: add info
3speedslow is offline
Old 02-23-19, 05:35 PM
  #13
Bad Lag
Senior Member

Join Date: Jul 2013
Location: So Cal, for now
Posts: 926

Bikes: 1975 Bob Jackson - Nuovo Record, Brooks Pro, Clips & Straps

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 277 Post(s)
Likes: 0
Liked 6 Times in 4 Posts
Why are you doing this?
Bad Lag is offline
Old 02-24-19, 09:02 AM
  #14
3speedslow
Senior Member
Thread Starter

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 7,152

Bikes: A few

Mentioned: 90 Post(s)
Tagged: 0 Thread(s)
Quoted: 1189 Post(s)
Likes: 0
Liked 10 Times in 9 Posts
Originally Posted by Bad Lag View Post
Why are you doing this?
Because itís there, and in my care.
3speedslow is offline
Old 02-24-19, 12:09 PM
  #15
pastorbobnlnh
Freewheel Medic

pastorbobnlnh's Avatar

Join Date: Oct 2005
Location: Ascending or Descending the NH Mountains NW of Concord!
Posts: 11,156

Bikes: Snazzy* Schwinns, Classy Cannondales, & a Lonely '83 Santana Tandem (* Ed.)

Mentioned: 82 Post(s)
Tagged: 0 Thread(s)
Quoted: 448 Post(s)
Liked 3 Times in 2 Posts
Originally Posted by 3speedslow View Post


Because itís there, and in my care.
__________________
Bob
Dreaming about riding in NH's summertime!

Visit my websites:
FreeWheelSpa.com orpastorbobnlnh.com
pastorbobnlnh is offline
Old 02-24-19, 01:20 PM
  #16
3speedslow
Senior Member
Thread Starter

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 7,152

Bikes: A few

Mentioned: 90 Post(s)
Tagged: 0 Thread(s)
Quoted: 1189 Post(s)
Likes: 0
Liked 10 Times in 9 Posts

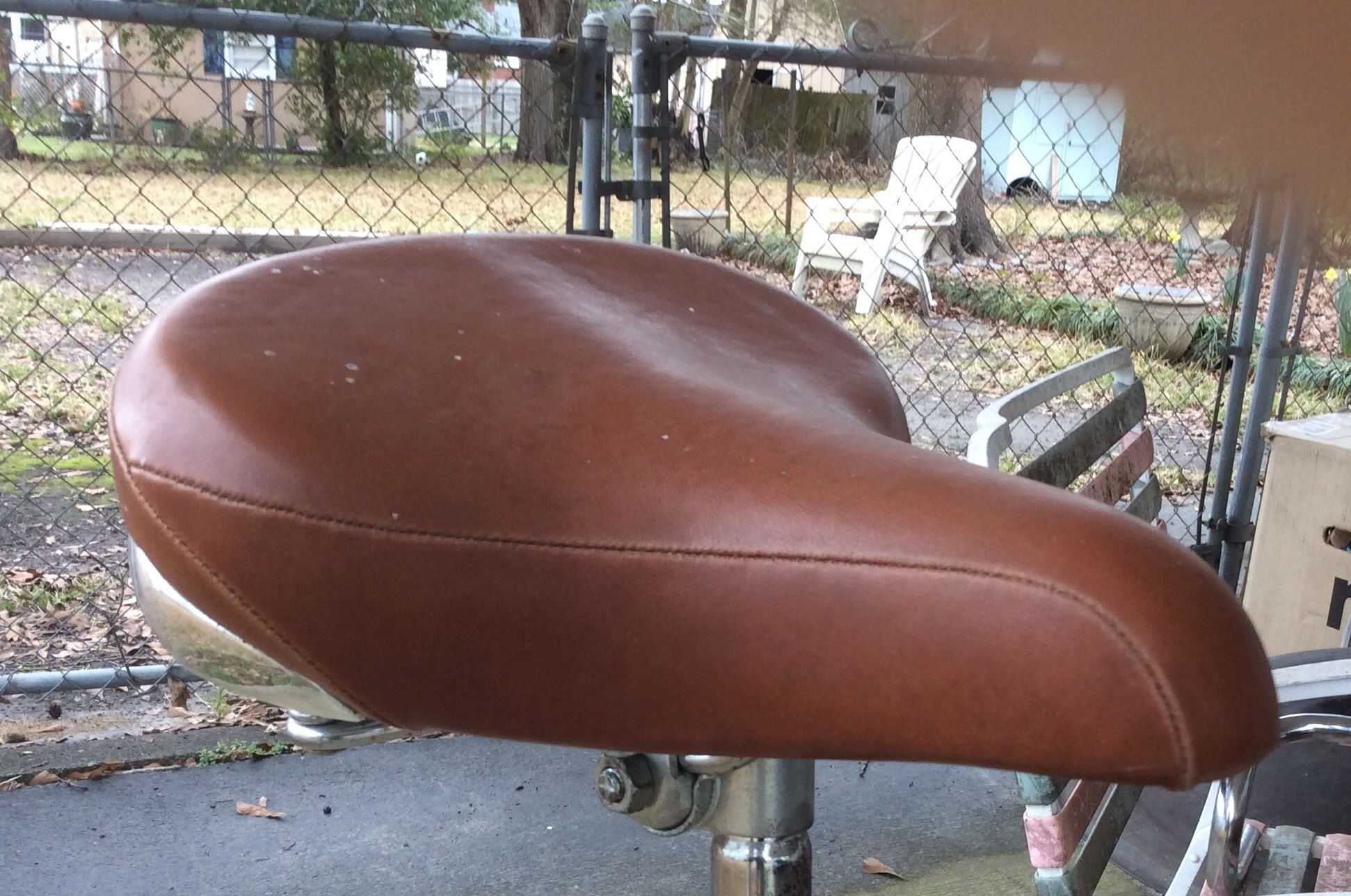

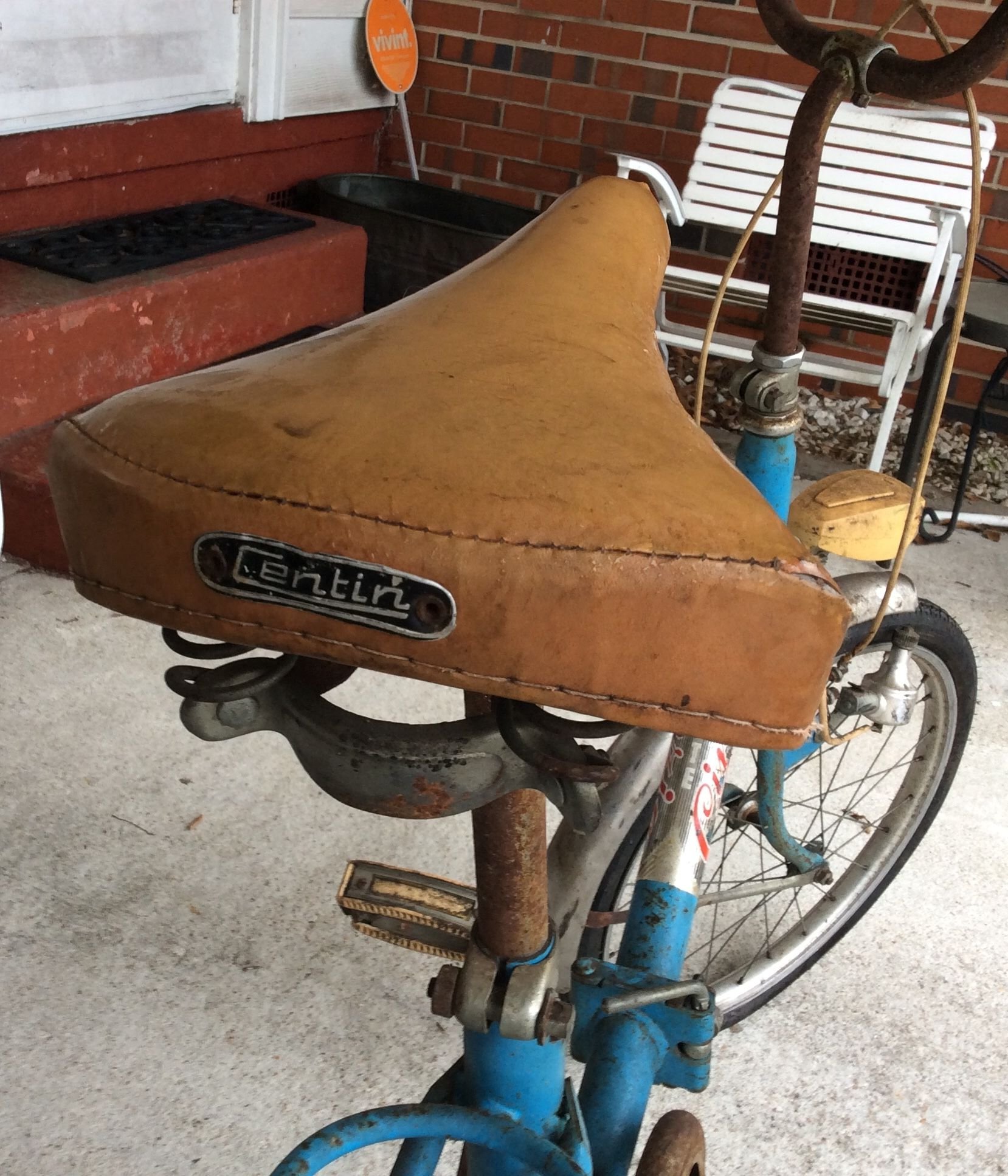

The seat that came on the bike was original but not going to see anymore riding. I pulled this other brown one I had from the bin and put it with the parts pile. Itís also quite tall so will help with the seatpost extension. With the saddle, I will use these early brown grips I have. The original white grips are in good shape but are so tiny, hard I decided otherwise.

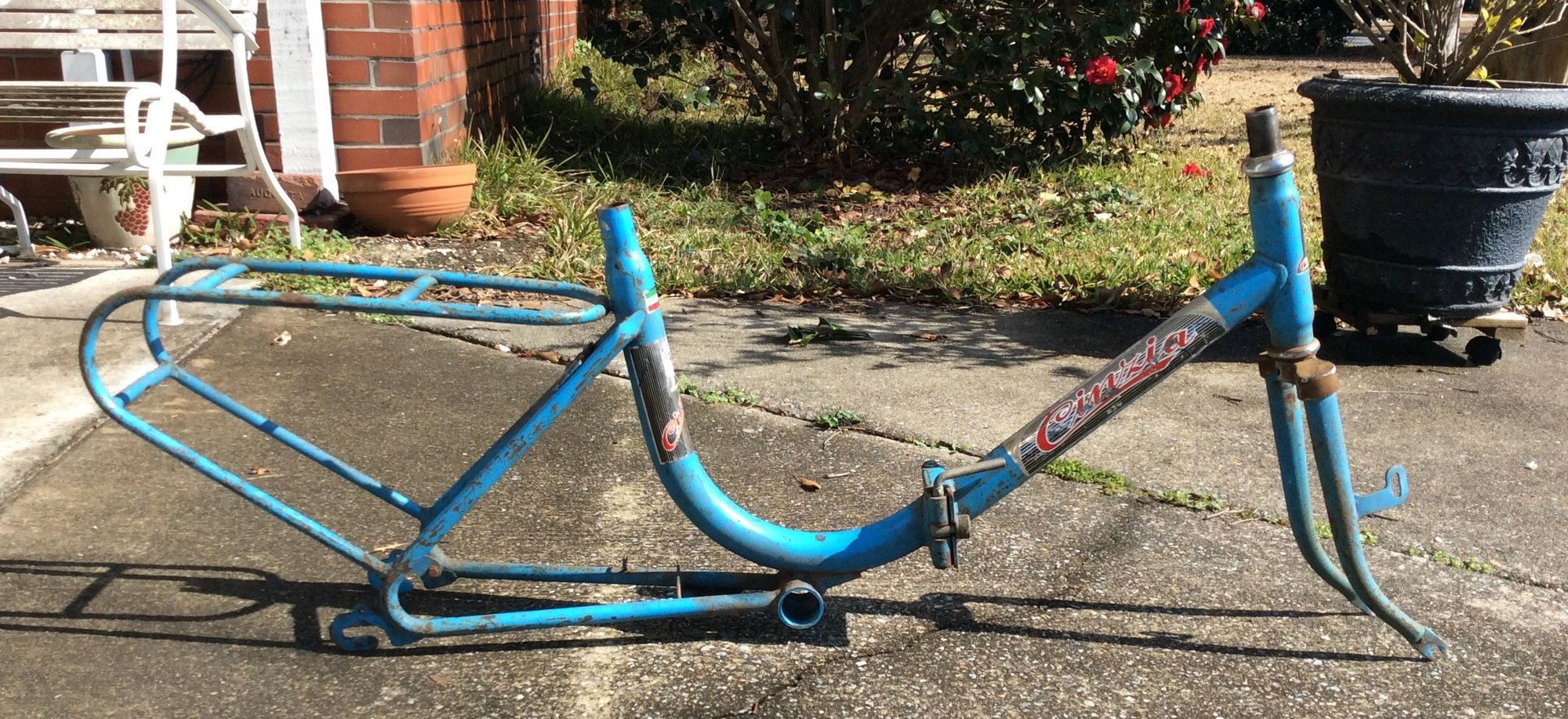

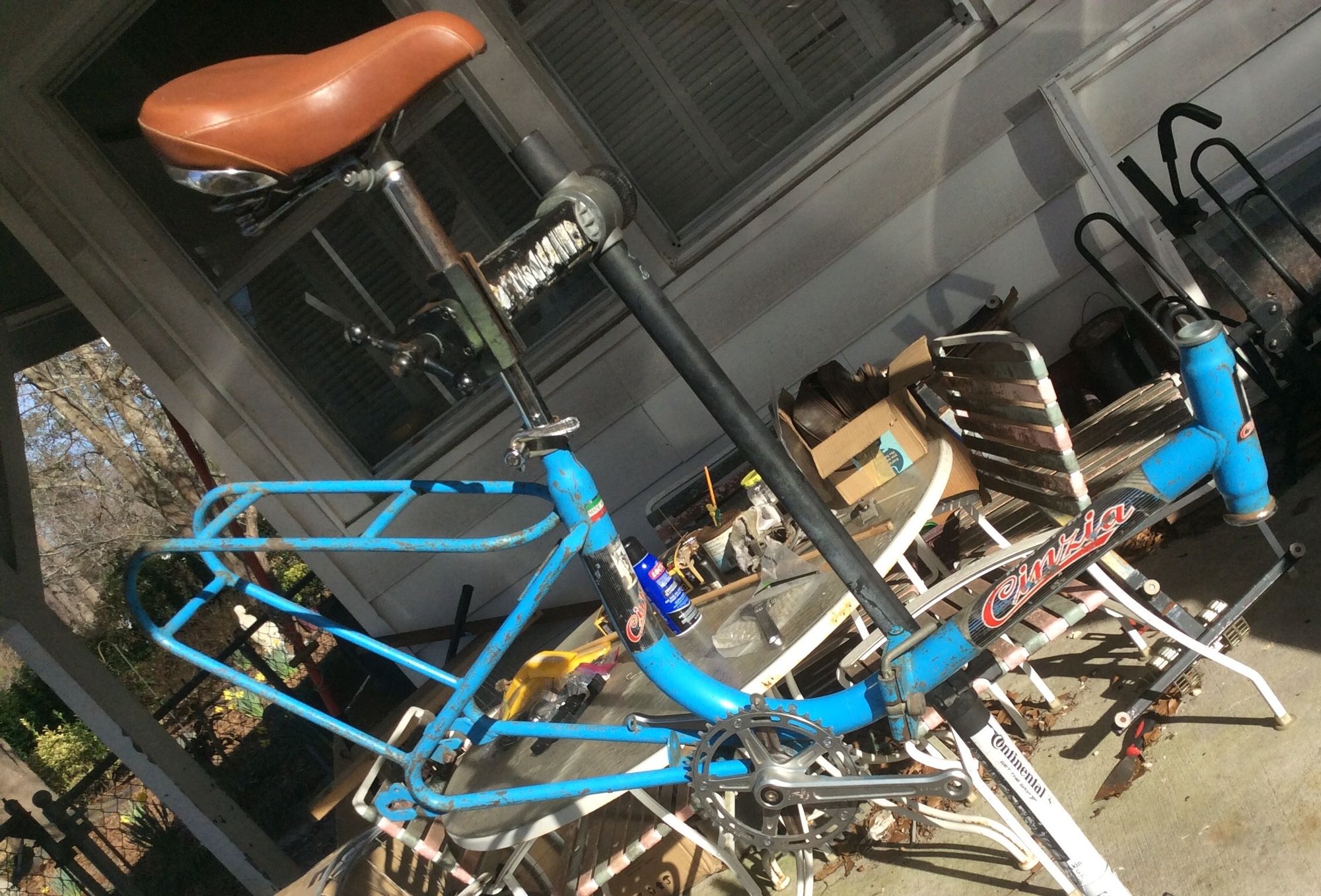

took the bare frame, opened the fold hinge up for a good rust conversion spray bomb inside. Also sanded the destroyed chrome cap on the fork crown and sprayed rust converter on that.

Wheels next. Tires are Kenda both and new, so are the tubes. I have the PO to thank for that. Brass wooled the rims and cleaned the spokes and outside of the hubs. This is a SS model with a 16t rear. Hubs spin well. Ran out of time so lube those tomorrow. Need to soak the chain, it still has life left and will put it back on.

Hopefully I get the final clean done to the frame and start putting parts back on tomorrow.
3speedslow is offline
Old 02-24-19, 06:49 PM
  #17
Bad Lag
Senior Member

Join Date: Jul 2013
Location: So Cal, for now
Posts: 926

Bikes: 1975 Bob Jackson - Nuovo Record, Brooks Pro, Clips & Straps

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 277 Post(s)
Likes: 0
Liked 6 Times in 4 Posts
Originally Posted by 3speedslow View Post
Because itís there, and in my care.
So, just for fun or for a gift or for resale or,...?
Bad Lag is offline
Old 02-24-19, 08:15 PM
  #18
3speedslow
Senior Member
Thread Starter

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 7,152

Bikes: A few

Mentioned: 90 Post(s)
Tagged: 0 Thread(s)
Quoted: 1189 Post(s)
Likes: 0
Liked 10 Times in 9 Posts
Originally Posted by Bad Lag View Post
So, just for fun or for a gift or for resale or,...?

just for build fun at the present. Iím looking forward to experiencing the ride of a 20Ē wheeled folder when Iím finished.

Do you have a folder?
3speedslow is offline
Old 02-24-19, 08:44 PM
  #19
RobbieTunes
Half drunk? Finish!

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 25,554
Mentioned: 32 Post(s)
Tagged: 1 Thread(s)
Quoted: 340 Post(s)
Liked 17 Times in 14 Posts
Originally Posted by Bad Lag View Post
Why are you doing this?
Because Stingrays are so yesterday.
__________________
Robbie ♪♫♪...☻
I have unfinished business.

RobbieTunes is offline
Old 02-24-19, 08:48 PM
  #20
RobbieTunes
Half drunk? Finish!

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 25,554
Mentioned: 32 Post(s)
Tagged: 1 Thread(s)
Quoted: 340 Post(s)
Liked 17 Times in 14 Posts
Law, if I can provide any parts, let me know. Not that I have one of those sitting around...
It would be cool if an IGH hub would fit in there.
__________________
Robbie ♪♫♪...☻
I have unfinished business.

RobbieTunes is offline
Old 02-25-19, 09:47 AM
  #21
3speedslow
Senior Member
Thread Starter

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 7,152

Bikes: A few

Mentioned: 90 Post(s)
Tagged: 0 Thread(s)
Quoted: 1189 Post(s)
Likes: 0
Liked 10 Times in 9 Posts
Thanks Rob!

i wish it would have come with an IGH. This one will stay SS AFAIK. I want to use the rim it came with and it is a 28 hole count. I would have to get another to mount the IGH I have and don’t want to right now.

If and and when I get a Raleigh Twenty, that’s when I’ll do the switch-a- roo.

How’s the 59 coming along?
3speedslow is offline
Old 02-25-19, 10:42 AM
  #22
RobbieTunes
Half drunk? Finish!

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 25,554
Mentioned: 32 Post(s)
Tagged: 1 Thread(s)
Quoted: 340 Post(s)
Liked 17 Times in 14 Posts
Originally Posted by 3speedslow View Post
How’s the 59 coming along?
Well, it's clean.
The guys on the 3-sp thread gave me "permission" to relace the wheels with stainless spokes, so I see a bright future for those wheels, pun intended.

I may rob my Schwinn Speedster for the SA shifter and a couple of parts.

I intend to have it ready for Coppi in September. The original owner will be there, and I want to please him. His parents bought it for him for his birthday in 1959. He's the only adult I can remember being a cyclist in my hometown, and he still rides a recumbent. I was born in '59, and graduated HS in '77, so I have the '59 for one and a '77 International for the other.

Some guy in NC got me thinking about Raleighs…. and it stuck.
__________________
Robbie ♪♫♪...☻
I have unfinished business.

RobbieTunes is offline
Old 02-25-19, 03:19 PM
  #23
3speedslow
Senior Member
Thread Starter

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 7,152

Bikes: A few

Mentioned: 90 Post(s)
Tagged: 0 Thread(s)
Quoted: 1189 Post(s)
Likes: 0
Liked 10 Times in 9 Posts



42T front and 16T in rear should make for good cruising speeds.

Some progress today.

after cleaning the rims, spokes and hub yesterday, it was clean, grease and rebuild the inside hub today. The tires and tubes are brand new so got a very nice break there. Both hubs spun fairly smooth before the new grease. Once inside I found both were in good shape. The old stuff had turned to a waxy material but kept it safe. Bit of a chore to clean out but went smoothly. New grease and a good adjust has them spinning fine. I did not try to remove the SS FW. I will save that for another day.i did put triflow down between the threads and hub and cleaned the exposed threads of the FW so good there.

buffed and polished both fenders again so now only need to spray the stays before mounting them.

crank: since the Italian Shimano BB fit so well I decided to use it. Found a nice Gran Sport Campy crank in my stash and on it went. Chain line good and looks to be a good fit for the chaingaurd.
3speedslow is offline
Old 02-27-19, 02:09 PM
  #24
3speedslow
Senior Member
Thread Starter

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 7,152

Bikes: A few

Mentioned: 90 Post(s)
Tagged: 0 Thread(s)
Quoted: 1189 Post(s)
Likes: 0
Liked 10 Times in 9 Posts




More progress but a lot of little stuff which never gets noticed but always holds a project up.

clean up of the original crankset. As the rust came off, the faint mark of Gnutti came out. Having second thoughts about the Campy crank on there. I like how the old cranks cleaned up but still show its age. The old BB is still in great shape so it sounds like I am talking myself into switching back. Man that Gnutti is heavy! Itís no wonder when we did survival training in Scouts, I used a cottered DS crank for chopping wood, digging holes and fending off any possible wild dogs!

i did a temp mock up of fit size for pics. The bottle bracket on the front fork will stay. Itís new function will be to hold a Serfas 750 lumen light for night runs. I am fabbing a knob to clamp it on from a piece of aluminium steerer and cap. The chain has been soaked for 2 days to loosen the hard mud, grease which has protected it all these years. I was surprised to find out it is silver colour.

Trying to envision a bottle cage placement other then the handle bar. The reflector bracket might get switched and a blink used. I definitely will be using a Carradice with this Cinzia.
3speedslow is offline
Old 02-27-19, 02:46 PM
  #25
squirtdad
Senior Member

squirtdad's Avatar

Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 6,011

Bikes: 90/91 De Rosa, '84 Team Miyata, '82 nishiski,

Mentioned: 52 Post(s)
Tagged: 0 Thread(s)
Quoted: 769 Post(s)
Liked 13 Times in 11 Posts

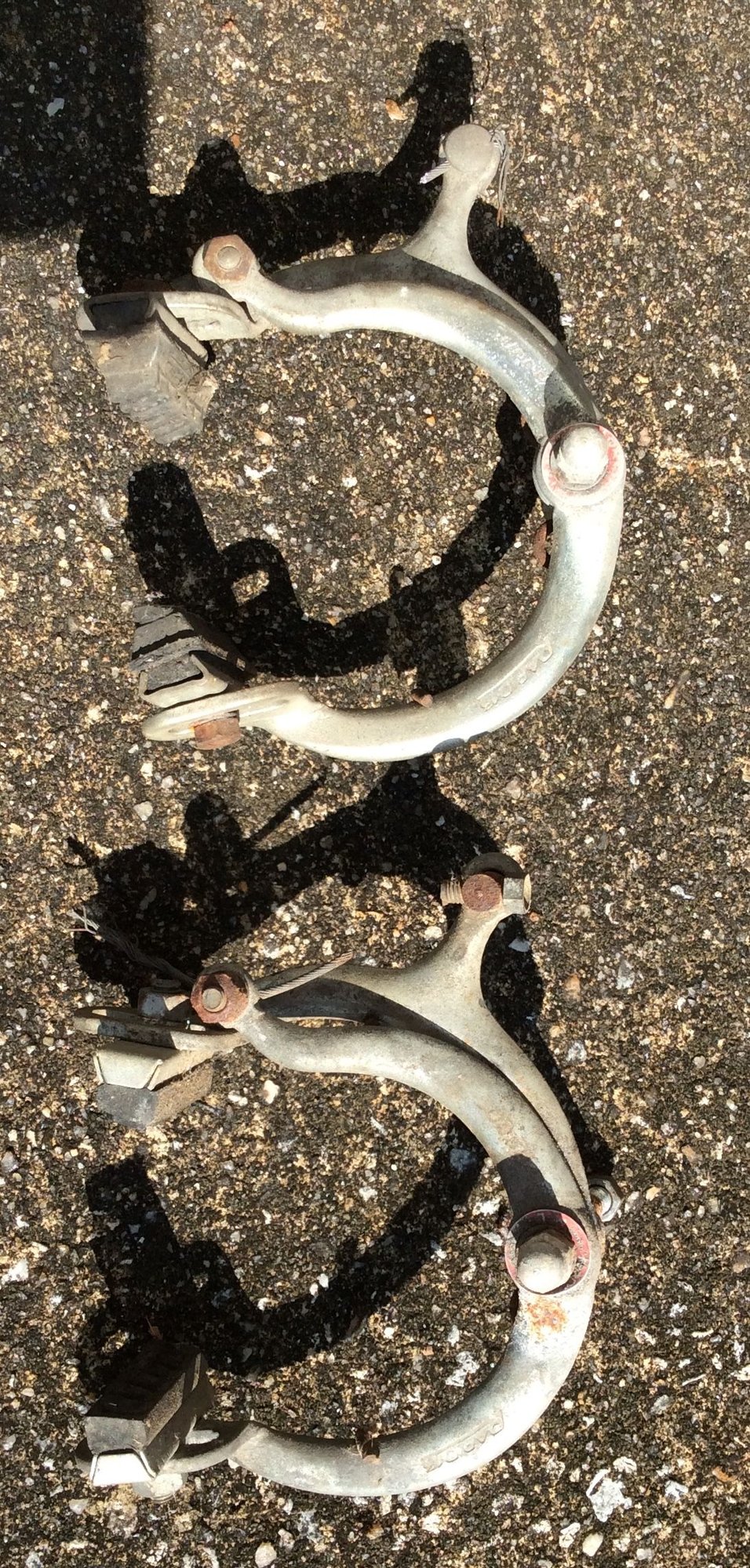

that is cleaning up nicely....like the crank upgrade. what is the thinking on brakes?
__________________
Looking for Team Miyata F&F 58cm
squirtdad is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
