Vintage looking 9, 10 and 11 speed cranksets

Last month we discussed New Derailleurs that Look Vintage: https://www.bikeforums.net/classic-vintage/1167152-new-derailleurs-look-vintage.html

Finding a modern crankset that looks vintage is also a challenge. The classic 130 bcd and larger standard cranksets for square taper cranks almost always are better looking than more modern compact cranksets for 9, 10 or 11 speed chains.

However, having a wide gear range and 18, 20 or 22 theoretical gearing combinations has its appeal.

What cranksets, from any era, are you using with 9, 10 or 11 speed chains?
Barrettscv is offline
Old 03-01-19, 12:25 PM
  #2
Giacomo 1
Senior Member

Giacomo 1's Avatar

Join Date: Aug 2011
Location: Queens NYC
Posts: 3,175

Bikes: Colnago Super, Basso Gap, Pogliaghi, Fabio Barecci, Torelli Pista, Miyata 1400A

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 315 Post(s)
Likes: 0
Liked 4 Times in 4 Posts

Here is a compact crankset that I really like from Velo Orange. This one is in black, but it comes in silver as well. Not cheap, but it looks very much the vintage part.



Giacomo 1 is offline
Old 03-01-19, 12:48 PM
  #3
ascherer
Senior Member

ascherer's Avatar

Join Date: Jul 2007
Location: Manhattan
Posts: 1,574

Bikes: 1987 Mercian Pro, 1970 Raleigh Pro Mk1, 1971 Raleigh International, 1971 Peugeot PX-10E, 1966 Raleigh Sports

Mentioned: 62 Post(s)
Tagged: 0 Thread(s)
Quoted: 445 Post(s)
Liked 518 Times in 251 Posts
Holdsworth-branded 48-34 looking like a drillium Campagnolo Record. Looks much like the VO above.

__________________
1987 Mercian Pro, 1971 Raleigh International, 1971 Peugeot PX-10E, 1970 Raleigh Professional Mk1, 1966 Raleigh Sports
ascherer is offline
Old 03-01-19, 12:59 PM
  #4
trainman999
Senior Member

Join Date: May 2016
Posts: 304

Bikes: 83 Schwinn Superior, 86 Paramount,86 Madison,87 Cimeron,86 Nishiki Linear

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 143 Post(s)
Liked 53 Times in 35 Posts

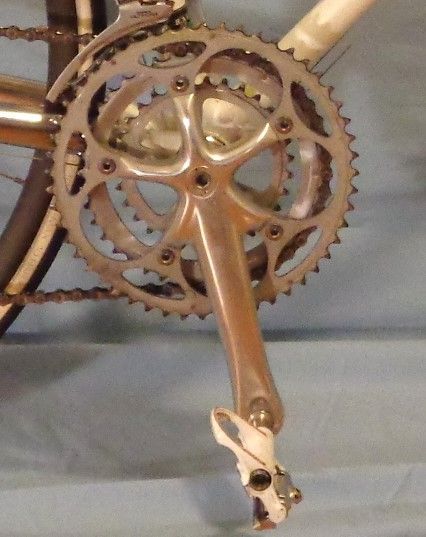

Pre 1973 Record tripple with a Campy Racing tripple and a 10 speed cassett

100_3868 by galon783, on Flickr
trainman999 is offline
Old 03-01-19, 01:01 PM
  #5
caloso
Senior Member

caloso's Avatar

Join Date: Jul 2002
Location: Sacramento, California, USA
Posts: 39,029

Bikes: Ridley Excalibur, Gazelle Champion Mondial, On-One Pompino, Specialized Rock Hopper

Mentioned: 62 Post(s)
Tagged: 0 Thread(s)
Quoted: 2246 Post(s)
Liked 942 Times in 489 Posts
I have a buddy who built up a '90 Lemond with an 11-speed Athena group. Looks really sharp. I should take a photo next time I see him and post it up here.
caloso is offline
Old 03-01-19, 01:04 PM
  #6
wgscott
Occam's Rotor

wgscott's Avatar

Join Date: Jul 2013
Posts: 6,165
Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 2366 Post(s)
Liked 1,243 Times in 654 Posts
11-Speed Athena triple group

Last edited by wgscott; 09-18-19 at 10:46 PM.
wgscott is offline
Old 03-01-19, 01:07 PM
  #7
wgscott
Occam's Rotor

wgscott's Avatar

Join Date: Jul 2013
Posts: 6,165
Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 2366 Post(s)
Liked 1,243 Times in 654 Posts
White Industries also makes a silver version of this crank, and you can go as low as you want (mine is 46/30T):





Last edited by wgscott; 09-18-19 at 10:46 PM.
wgscott is offline
Old 03-01-19, 02:17 PM
  #8
squirtdad
Senior Member

squirtdad's Avatar

Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 7,025

Bikes: 85 team Miyata (modern 5800 105) , '84 Team Miyata,(dura ace old school) '82 nishiski,

Mentioned: 70 Post(s)
Tagged: 0 Thread(s)
Quoted: 1162 Post(s)
Liked 368 Times in 283 Posts
ird



velo orange

__________________
Looking for more time to ride what I have
squirtdad is offline
Old 03-01-19, 03:40 PM
  #9
Spaghetti Legs
Senior Member

Join Date: Dec 2014
Location: Central Virginia
Posts: 3,743

Bikes: Numerous

Mentioned: 84 Post(s)
Tagged: 0 Thread(s)
Quoted: 1074 Post(s)
Liked 386 Times in 194 Posts

Sneak peak at my Eroica bike for this year. Currently using a 10 speed Chorus chain with flawless front shifting. Pretend like you donít see that camera on there. Thatís a VO 46-34 Grand Cru. The pic below is an older version VO 46-34 that as my legs get noodlier, might go on one of my C Record era equipped bikes.



__________________
N = '96 Colnago C40, '04 Wilier Alpe D'Huez, '10 Colnago EPS, '85 Merckx Pro, '89 Merckx Century, '85 Moser, '86 Tommasini Professional, '04 Teschner Aero FX Pro, '05 Alan Carbon Cross, '86 De Rosa Professional, '82 Colnago Super, '95 Gios Compact Pro, '95 Carrera Zeus, '84 Basso Gap, Ď89 Cinelli Supercorsa, Ď83 Bianchi Specialissima, Ď85 Pinarello Record
Spaghetti Legs is offline
Old 03-01-19, 03:53 PM
  #10
Andy_K
Senior Member

Andy_K's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 12,495

Bikes: Yes

Mentioned: 323 Post(s)
Tagged: 0 Thread(s)
Quoted: 1927 Post(s)
Liked 345 Times in 185 Posts
My go-to crank is some variation of the Campagnolo Racing T.





I've have not tried on of these with 11-speed, but they work great with 10-speed and I can't see a reason 11-speed wouldn't work. They have pins and ramps for clean shifting, and the inner ring is a standard size (74, I think) that lets you go super-granny if you want to. I think the one in my top picture was produced in 2010. Campy doesn't make these anymore, but they're readily available in very good condition on eBay. I got the top one NOS for around $80.
__________________
My Bikes
Andy_K is offline
Old 03-01-19, 04:04 PM
  #11
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 5,988

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 116 Post(s)
Tagged: 0 Thread(s)
Quoted: 2171 Post(s)
Liked 389 Times in 294 Posts
Sugino for me.

Mighty Tour 901D for the Mercian running 10 speed.
XD600 Triple on the Riv Clem Jr running 9 speed.


https://www.suginoltd.co.jp/us/produ...ng/mighty.html

If I wasn't talented at breaking cranksets, I'd consider the SunXCD or the nouveau Herse cranks. Both are beautiful.

Another modern crank that is very attractive is the TA Carmina. It seems to be the crank of choice for the current Alex Singer bicycles. The price is very high. Rumored to be forged by Sugino under contract.
Salamandrine is offline
Old 03-01-19, 04:18 PM
  #12
JaccoW
Tinkerer

JaccoW's Avatar

Join Date: Oct 2011
Location: Rotterdam, The Netherlands
Posts: 1,477

Bikes: Batavus Randonneur GL, Gazelle Orange Excellent, Gazelle Super Licht, Gazelle Grand Tourist

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 465 Post(s)
Liked 346 Times in 220 Posts
I have to say I quite like these thread about modern components that look like classic models. We have had the New Derailleurs that look Vintage-thread and my own Experiences with current High Flange Cassette hubs? - thread.

What about the Pro 5 Vis (Specialites TA, Stronglight 49D, Nervar and many others) cranks?
- SunXCD cranks
- Velo Orange Grand Cru
- And of course Grand Bois' Cinq Feuill rings with the SunXCD cranks 43/26T


As for the non-50.4mm ones; IRD makes several classic models, Sugino has the Mighty, XD and Alpina 2 and Strong;light still makes the Impact "E" Compact, Impact "E" triple
JaccoW is offline
Old 03-01-19, 04:49 PM
  #13
steelbikeguy
Senior Member

steelbikeguy's Avatar

Join Date: Feb 2008
Location: Peoria, IL
Posts: 1,939
Mentioned: 56 Post(s)
Tagged: 0 Thread(s)
Quoted: 652 Post(s)
Liked 174 Times in 107 Posts
Originally Posted by JaccoW View Post
I have to say I quite like these thread about modern components that look like classic models. We have had the New Derailleurs that look Vintage-thread and my own Experiences with current High Flange Cassette hubs? - thread.

What about the Pro 5 Vis (Specialites TA, Stronglight 49D, Nervar and many others) cranks?
- SunXCD cranks
.......
I've got the SunXCD clones of the TA Cyclotouriste on one bike. Seems to be doing quite nicely. Purchased from Veloduo. They offered various size TA chainrings and arm lengths.






Steve in Peoria
steelbikeguy is offline
Old 03-01-19, 05:17 PM
  #14
RobbieTunes
Half drunk? Finish!

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 26,370
Mentioned: 34 Post(s)
Tagged: 1 Thread(s)
Quoted: 378 Post(s)
Liked 941 Times in 595 Posts
9sp Ultegra on 9sp



10-speed running on RSX 7sp
__________________

I have unfinished business.

RobbieTunes is offline
Old 03-01-19, 05:29 PM
  #15
JaccoW
Tinkerer

JaccoW's Avatar

Join Date: Oct 2011
Location: Rotterdam, The Netherlands
Posts: 1,477

Bikes: Batavus Randonneur GL, Gazelle Orange Excellent, Gazelle Super Licht, Gazelle Grand Tourist

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 465 Post(s)
Liked 346 Times in 220 Posts
Originally Posted by steelbikeguy View Post
I've got the SunXCD clones of the TA Cyclotouriste on one bike. Seems to be doing quite nicely. Purchased from Veloduo. They offered various size TA chainrings and arm lengths.

Good looking cranks. If I ever manage to break my original cranks I'll probably replace them with these.
JaccoW is offline
Old 03-01-19, 06:44 PM
  #16
steelbikeguy
Senior Member

steelbikeguy's Avatar

Join Date: Feb 2008
Location: Peoria, IL
Posts: 1,939
Mentioned: 56 Post(s)
Tagged: 0 Thread(s)
Quoted: 652 Post(s)
Liked 174 Times in 107 Posts
Originally Posted by JaccoW View Post
.........
- And of course Grand Bois' Cinq Feuill rings with the SunXCD cranks 43/26T

dang.. that's impressive!
and if I read the website correctly, it's 32,000 yen? About $320?
That's a pretty good surcharge relative to the $150(?) I paid for the SunXCD cranks & TA rings, but possibly reasonable considering the big ring.
I'm guessing laser or water jet to cut the pattern in the big ring? ...or plasma? Certainly a fun and attractive design.
Not sure how I feel about attaching the small ring to the 50.4mm bolt circle, though.

Steve in Peoria
steelbikeguy is offline
Old 03-01-19, 06:48 PM
  #17
Kuromori
Senior Member

Join Date: Jan 2019
Posts: 528
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 237 Post(s)
Likes: 0
Liked 80 Times in 61 Posts
It's probably done on a CNC mill. There's other ways to do it, but that's how it would be done in small production batches. It's not flat like it would be if cut with a water jet or whatever other 2D CNC process.
Kuromori is offline
Old 03-01-19, 06:50 PM
  #18
steelbikeguy
Senior Member

steelbikeguy's Avatar

Join Date: Feb 2008
Location: Peoria, IL
Posts: 1,939
Mentioned: 56 Post(s)
Tagged: 0 Thread(s)
Quoted: 652 Post(s)
Liked 174 Times in 107 Posts
Originally Posted by Kuromori View Post
It's probably done on a CNC mill. ....... It's not flat like it would be if cut with a water jet or whatever other 2D CNC process.
good point! The "leaves" overlap each other. Hadn't noticed that until now. That's gotta add some cost for that touch.

Steve in Peoria
steelbikeguy is offline
Old 03-02-19, 08:28 AM
  #19
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 12,124

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 76 Post(s)
Tagged: 0 Thread(s)
Quoted: 2024 Post(s)
Liked 352 Times in 243 Posts
Originally Posted by Spaghetti Legs View Post
Pretend like you donít see that camera on there.
No matter if it's a spur of the moment vista that catches my attention, or a meticulously planned and an attempt made at a "perfect" shot- all my pix end up being "wrong" and woefully done.
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jiggliní huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Old 03-02-19, 11:07 AM
  #20
Cl904
Senior Member

Join Date: Aug 2018
Posts: 331
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 106 Post(s)
Likes: 0
Liked 34 Times in 22 Posts
10 speed veloce
Cl904 is offline
Old 03-02-19, 04:24 PM
  #21
MarcoBianchi
Senior Member

MarcoBianchi's Avatar

Join Date: Jul 2014
Location: Saragossa. Spain
Posts: 259

Bikes: Peugeot Mont Blanc . Bianchi 28c 1980. Coppi Giro di Lombardia. Vitoria Vintage 1990. Orbea Luarca 1977. Trek 950.

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 51 Post(s)
Likes: 0
Liked 11 Times in 9 Posts
Originally Posted by JaccoW View Post
I have to say I quite like these thread about modern components that look like classic models. We have had the New Derailleurs that look Vintage-thread and my own Experiences with current High Flange Cassette hubs? - thread.

What about the Pro 5 Vis (Specialites TA, Stronglight 49D, Nervar and many others) cranks?
- SunXCD cranks
- Velo Orange Grand Cru
- And of course Grand Bois' Cinq Feuill rings with the SunXCD cranks 43/26T


As for the non-50.4mm ones; IRD makes several classic models, Sugino has the Mighty, XD and Alpina 2 and Strong;light still makes the Impact "E" Compact, Impact "E" triple
https://www.bikeshop.es/stronglight-...hoC1xIQAvD_BwE
I can talk about this Stronglight Impact, nice and cheap 46/34 crankset I run in a now sold Surly Cross Check, specified 9/10 speeds it worked with 8s flawlessly.
IMHE actually this crankset is prettier than the picture shows.
MarcoBianchi is offline
Old 03-02-19, 07:26 PM
  #22
JaccoW
Tinkerer

JaccoW's Avatar

Join Date: Oct 2011
Location: Rotterdam, The Netherlands
Posts: 1,477

Bikes: Batavus Randonneur GL, Gazelle Orange Excellent, Gazelle Super Licht, Gazelle Grand Tourist

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 465 Post(s)
Liked 346 Times in 220 Posts
Originally Posted by MarcoBianchi View Post
https://www.bikeshop.es/stronglight-...hoC1xIQAvD_BwE
I can talk about this Stronglight Impact, nice and cheap 46/34 crankset I run in a now sold Surly Cross Check, specified 9/10 speeds it worked with 8s flawlessly.
IMHE actually this crankset is prettier than the picture shows.
Ä60 for a classic looking compact double is a steal.
JaccoW is offline
Old 03-02-19, 08:51 PM
  #23
Slightspeed
Senior Member

Slightspeed's Avatar

Join Date: Apr 2017
Location: Los Angeles, CA
Posts: 2,157

Bikes: 1964 Legnano Roma Olympiade, 1973 Raleigh Super Course, 1978 Raleigh Super Course, 1978 Peugeot PR10, 2002 Specialized Allez, 2007 Specialized Roubaix, 2013 Culprit Croz Blade

Mentioned: 63 Post(s)
Tagged: 0 Thread(s)
Quoted: 707 Post(s)
Liked 603 Times in 333 Posts

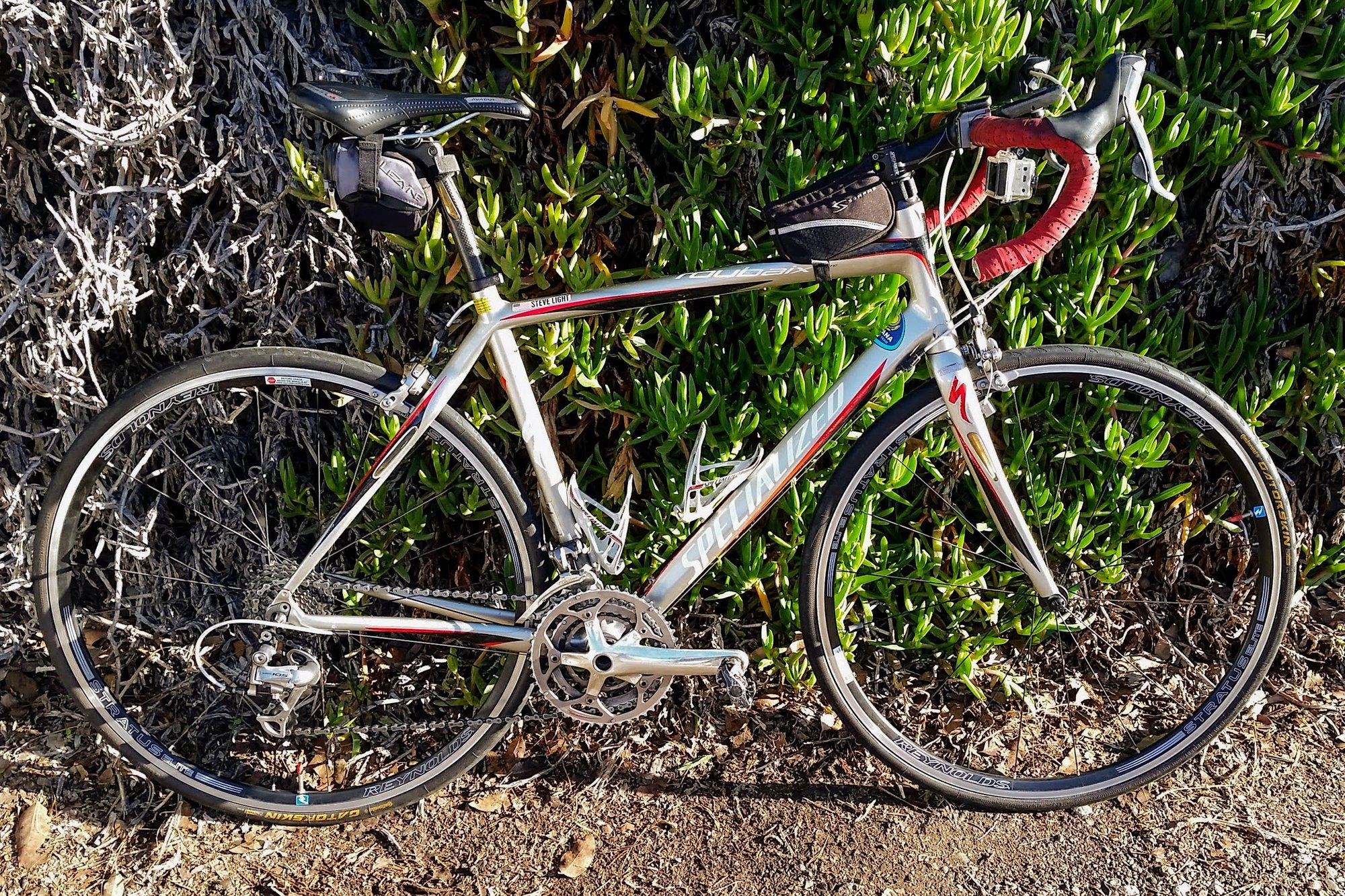

My 2007 Roubaix has a FSA Gossamer that's shiny, and kinda vintage looking, especially if you add shiny chain rings. This one is a triple. Its also Mega Exo BB, which may be a problem for vintage frames.
Slightspeed is offline
Old 03-02-19, 10:05 PM
  #24
crank_addict
Senior Member

crank_addict's Avatar

Join Date: Aug 2013
Posts: 7,144
Mentioned: 93 Post(s)
Tagged: 0 Thread(s)
Quoted: 1361 Post(s)
Likes: 0
Liked 369 Times in 241 Posts
Sugino XD350
XD2 600
XD 600
crank_addict is offline
Old 03-03-19, 04:07 AM
  #25
microcord
Senior Member

Join Date: Jul 2013
Location: Tokyo
Posts: 145
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 34 Post(s)
Likes: 0
Liked 11 Times in 8 Posts

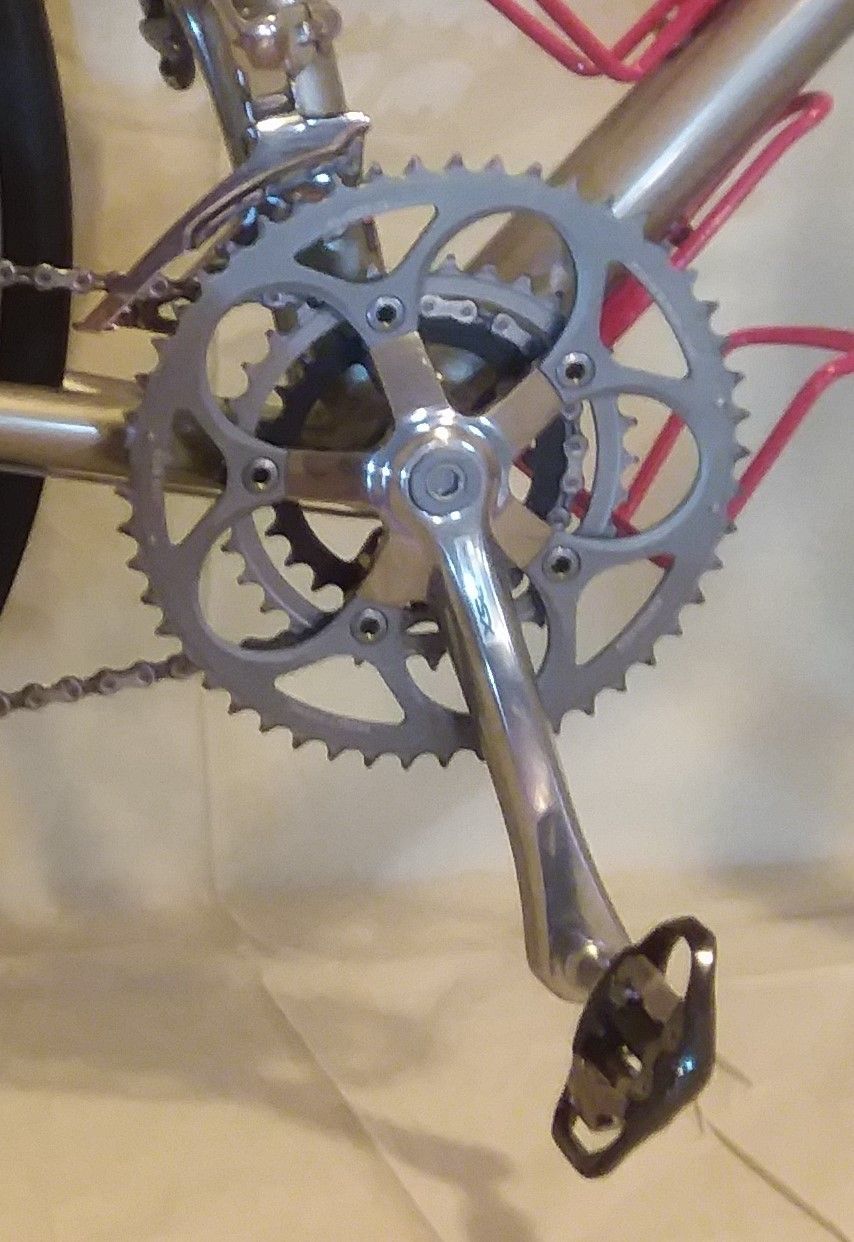

IRD (as mentioned above); Dixna; and (the most recent acquisition) a 54-40-30 crankset bought "used" at an auction but seemingly unused, about as vintagey/handsome as the IRD, and without any manufacturer's or brand name anywhere.
microcord is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
