Seat post binder bolt w/10mm head?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Seat post binder bolt w/10mm head?

Old 03-05-19, 03:45 PM
  #1
gearbasher
Senior Member
Thread Starter

gearbasher's Avatar

Join Date: May 2009
Location: Sitting on my butt in front of a computer
Posts: 962
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 212 Post(s)
Liked 85 Times in 59 Posts
Seat post binder bolt w/10mm head?

I'm working on a frame and the seat lug has a recess for the binder bolt.


I have a number of binder bolts. Campy, Simplex, Tange, Sugino and unbranded. All of them measure 12 to 12.5 mm heads.
I need one with a 10 mm head in order for it to fit the recess. When looking on-line, no place gives that measurement. Can anyone give me a brand with that size? Or, if anyone has one that size, are you willing to swap for one of mine?
gearbasher is offline
Old 03-05-19, 04:09 PM
  #2
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 9,363

Bikes: Yes, please.

Mentioned: 236 Post(s)
Tagged: 0 Thread(s)
Quoted: 1590 Post(s)
Liked 1,254 Times in 668 Posts

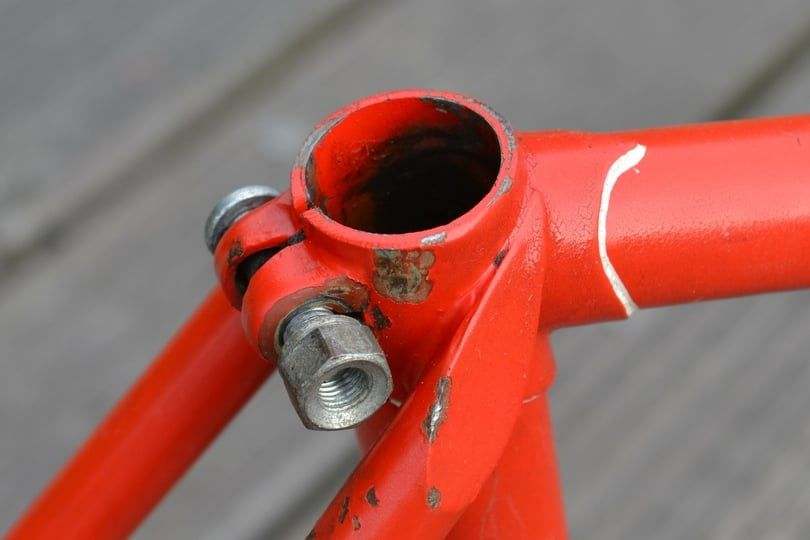

If it's a vintage frame, you might be looking for the wrong type of bolt. How about something like this?

EDIT: first pic now showing, my suggestion is off-target.



Disclaimer: I can't see your first pic, so I may be missing vital information.
__________________
It was the last one ...
non-fixie is offline
Old 03-05-19, 05:27 PM
  #3
SurferRosa
Seor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 4,007

Bikes: Old school lightweights

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 1636 Post(s)
Liked 1,669 Times in 948 Posts
I might try using a dremel tool on the bolt or nut.

Is the lug also keyed so the keyed nut will stop when tightening the bolt? Or is that an additional problem to consider?

I recently used jb weld on a nut that wasn't keyed, so I could avoid the need for two tools to tighten the bolt.
SurferRosa is offline
Old 03-05-19, 06:08 PM
  #4
gearbasher
Senior Member
Thread Starter

gearbasher's Avatar

Join Date: May 2009
Location: Sitting on my butt in front of a computer
Posts: 962
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 212 Post(s)
Liked 85 Times in 59 Posts
I forgot to say, it's not keyed. I don't mind using two Allens to tighten it up.
gearbasher is offline
Old 03-05-19, 09:03 PM
  #5
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 7,470

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 1535 Post(s)
Liked 1,048 Times in 719 Posts
Seems like 8mm is common.
https://problemsolversbike.com/produ..._bolts_-_29451

You could contact these guys and check OD.
https://framebuildersupply.com/colle...t-binder-bolts

Appears they are out there.
https://www.ebay.com/itm/Campagnolo-...oAAOSwAvpbrjE7
dedhed is offline
Likes For dedhed:
Old 03-05-19, 09:05 PM
  #6
gearbasher
Senior Member
Thread Starter

gearbasher's Avatar

Join Date: May 2009
Location: Sitting on my butt in front of a computer
Posts: 962
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 212 Post(s)
Liked 85 Times in 59 Posts
Those are the barrel sizes not the head sizes. Thanks anyhow.
gearbasher is offline
Old 03-05-19, 09:43 PM
  #7
Insidious C.
Crash Test Dummy

Join Date: Jan 2014
Location: PNW
Posts: 1,267

Bikes: One of everything and three of everything French

Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 312 Post(s)
Liked 151 Times in 93 Posts
The screw is just a standard M6 socket head. The nut you might be able to improvise. Check the link below.

Univega Super Strada
Insidious C. is offline
Old 03-06-19, 07:32 AM
  #8
gearbasher
Senior Member
Thread Starter

gearbasher's Avatar

Join Date: May 2009
Location: Sitting on my butt in front of a computer
Posts: 962
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 212 Post(s)
Liked 85 Times in 59 Posts
^^^^ That's an idea, but it's not gonna be pretty enough for me. I'm in no rush and will hunt around some more.
gearbasher is offline
Old 03-06-19, 09:31 AM
  #9
gearbasher
Senior Member
Thread Starter

gearbasher's Avatar

Join Date: May 2009
Location: Sitting on my butt in front of a computer
Posts: 962
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 212 Post(s)
Liked 85 Times in 59 Posts
I just had an epiphany. A recessed brake nut's head fits perfectly. Two of those, slightly trimmed down with a stud epoxied into one of them...done....homemade seatpost binder bolt. Any negative thoughts?
gearbasher is offline
Likes For gearbasher:
Old 03-06-19, 10:20 AM
  #10
Kabuki12
Senior Member

Kabuki12's Avatar

Join Date: Jan 2016
Location: Ventura County ,California
Posts: 1,576

Bikes: 1973 Windsor Profesional,1976 Kabuki diamond formula with full Campy, 1977 Raleigh Competition GS , 1971 Stella original Campy equip. 1978 Raleigh Super Grand Prix, 1972 Italvega Gran Rally ,1972 Super Mondia Special,Medici Pro Strada,Colnago

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 351 Post(s)
Liked 530 Times in 356 Posts
Originally Posted by gearbasher View Post
I just had an epiphany. A recessed brake nut's head fits perfectly. Two of those, slightly trimmed down with a stud epoxied into one of them...done....homemade seatpost binder bolt. Any negative thoughts?
If that doesn't work out I can grind one of your 12 or 12.5mm bolts to 10mm for you.I am a tool grinder with my own shop, it's what I do! I wouldn't charge anything , just helping a fellow KOF .Let me know, Joe
Kabuki12 is offline
Old 03-06-19, 10:50 AM
  #11
gearbasher
Senior Member
Thread Starter

gearbasher's Avatar

Join Date: May 2009
Location: Sitting on my butt in front of a computer
Posts: 962
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 212 Post(s)
Liked 85 Times in 59 Posts
Originally Posted by Kabuki12 View Post
If that doesn't work out I can grind one of your 12 or 12.5mm bolts to 10mm for you.I am a tool grinder with my own shop, it's what I do! I wouldn't charge anything , just helping a fellow KOF .Let me know, Joe
Thanks for the offer. That was going to be my last-ditch-effort plan. The main drawback being the removal of the chrome and rusting.
gearbasher is offline
Old 03-06-19, 10:53 AM
  #12
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,599

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,309 Times in 822 Posts
Most are 8, ( that's shaft diameter not head ) , but for the all aluminum AlAn , they used a 10*, even Campagnolo offered one, .. stock one not as shiny..

*chain ring bolts are also 10 mm shaft
fietsbob is offline
Old 12-25-20, 02:17 PM
  #13
Alphavillage
Member

Join Date: May 2015
Posts: 34
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

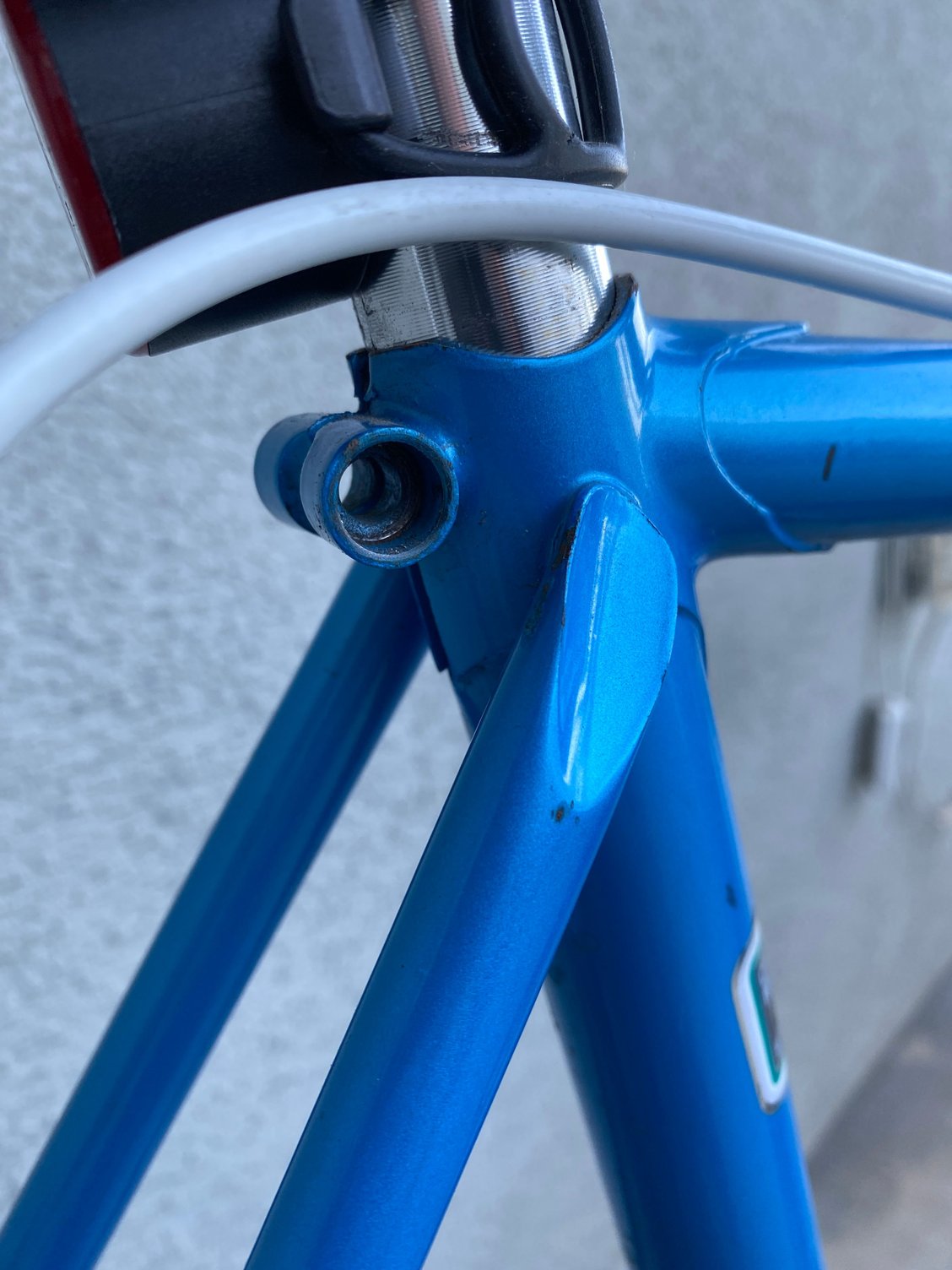

gearbasher Curious what you ended up doing.... I just acquited a SOMEC frame and i've run into the same problem! Not sure what to do. It looks so much better when I put in a brake bolt and it sits inside...
My campy one just sits on top. looks terrible. did you figure out a solution with something that fits into the brake bolt with the same size diameter? or were you able to put 2 together as you said? What would have to be done in my situation if i was to try that would be trimming the barrel length down. brake bolts do come in shorter sizes sometimes but the only one i have that's extra definitely takes up more than half the clamp length. I dont know what to do!
Alphavillage is offline
Old 12-25-20, 02:34 PM
  #14
gearbasher
Senior Member
Thread Starter

gearbasher's Avatar

Join Date: May 2009
Location: Sitting on my butt in front of a computer
Posts: 962
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 212 Post(s)
Liked 85 Times in 59 Posts
I took two recessed style brake nuts. I cut a threaded section off a bolt and threaded it into one of the brake nuts with epoxy (to keep it from spinning). Let the epoxy cure. I put that on one side and threaded the other brake bolt on. I use two allen keys to tighten it down. You just have to get the right size brake nuts (or file them shorter) so they don't bottom out.

Basically, description in post #9

Hope my description is clear, I've been using it for over a year with no problems.

Last edited by gearbasher; 12-25-20 at 02:37 PM.
gearbasher is offline
Old 12-25-20, 02:44 PM
  #15
Alphavillage
Member

Join Date: May 2015
Posts: 34
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by gearbasher View Post
I took two recessed style brake nuts. I cut a threaded section off a bolt and threaded it into one of the brake nuts with epoxy (to keep it from spinning). Let the epoxy cure. I put that on one side and threaded the other brake bolt on. I use two allen keys to tighten it down. You just have to get the right size brake nuts (or file them shorter) so they don't bottom out.

Basically, description in post #9

Hope my description is clear, I've been using it for over a year with no problems.

Yeah that's an option! There's gotta be something that's out there that will fit! damn. so crazy
Alphavillage is offline
Old 12-25-20, 04:48 PM
  #16
LibertyFLS
GDFTR

LibertyFLS's Avatar

Join Date: Dec 2020
Location: Torrance CA
Posts: 71

Bikes: '74 Falcon San Remo, '80 SR Semi Pro, '88 Trek 360

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked 35 Times in 19 Posts
Also interested because I am in the same boat with my SR frame its got to be 10mm max diameter to fit the recess and look clean.
LibertyFLS is offline
Old 12-25-20, 07:32 PM
  #17
seypat
Senior Member

Join Date: Oct 2010
Posts: 5,512
Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 1719 Post(s)
Liked 597 Times in 428 Posts
See this thread. Maybe I can help you.

FYI: DIY seatpost binder nut for 80s Japanese frames
seypat is online now
Likes For seypat:
Old 12-26-20, 03:28 AM
  #18
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 10,580

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 196? Torpado Professional, 2000 Marinoni Piuma

Mentioned: 182 Post(s)
Tagged: 0 Thread(s)
Quoted: 1020 Post(s)
Likes: 0
Liked 749 Times in 462 Posts
I am pretty sure that you need a splined, rather than a keyed, seat post binder bolt. Pretty sure that I have a couple at the lake cottage. Will look next time I go there, if you wish.
__________________
"98% of the bikes I buy are projects".
randyjawa is online now
Old 12-26-20, 03:37 AM
  #19
oneclick
Senior Member

Join Date: Feb 2020
Posts: 1,006
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 349 Post(s)
Likes: 0
Liked 336 Times in 216 Posts
What's the other side look like/need.

It'd be dead simple to turn a stainless socket-head or button-head capscrew to 9.9mm, can I assume the hole dia is 8mm.
oneclick is offline
