Vintage Cannondale A113 Top Tube Cable Guides

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Vintage Cannondale A113 Top Tube Cable Guides

Old 03-08-19, 03:33 AM
  #1
OutnBack
Full Member
Thread Starter

OutnBack's Avatar

Join Date: Jul 2013
Posts: 332
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 104 Post(s)
Liked 88 Times in 53 Posts
Vintage Cannondale A113 Top Tube Cable Guides

I'm sure this has been asked before, but does anyone have any recommendations on replacing damaged cable guides for a vintage "Dale"?

Author Doug Keeler - Author Doug Keeler
OutnBack is offline
Old 03-08-19, 05:02 AM
  #2
sdn40
Senior Member

Join Date: Sep 2016
Location: Green Bay, WI
Posts: 640

Bikes: 88 Cannondale Criterium

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 287 Post(s)
Liked 138 Times in 87 Posts
https://www.shapeways.com/product/DV...le-cable-guide
sdn40 is offline
Old 03-08-19, 05:11 AM
  #3
Whit51
Senior Member

Whit51's Avatar

Join Date: Sep 2007
Location: Reston VA
Posts: 532
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 77 Post(s)
Liked 58 Times in 45 Posts
The guides sold on on vintagecannondale.com are sold out. They are more expensive but easier to install in my opinion. But for now Shapeways may be the only adoption unless you can find some NOS guides at a dusty LBS.

https://shop.vintagecannondale.com/c...ant=3139324227
Whit51 is offline
Old 03-08-19, 05:49 AM
  #4
Lemond1985
Sophomore Member

Lemond1985's Avatar

Join Date: Jan 2019
Posts: 2,690
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1626 Post(s)
Liked 1,051 Times in 627 Posts
I used 34.9 mm clamps off Ebay, I got 4 less than $10, but 2 were the wrong size so I had to send for more, and they take weeks to arrive from China. Not the prettiest solution, but better than the painter's tape I was using before. Had to buy longer screws for the clamps too, the ones they came with were about 1 mm too short.

Lemond1985 is offline
Old 03-08-19, 08:11 AM
  #5
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 7,096

Bikes: Bob Jackson, Wizard, Pegoretti Duende, Merckx ProSLX, Pelizzoli, Cannondale ST, Schwinn Tempo, Schwinn Voyageur, Canyon Endurace, Richard Sachs, Davidson Discovery

Mentioned: 198 Post(s)
Tagged: 0 Thread(s)
Quoted: 1808 Post(s)
Liked 1,938 Times in 760 Posts
How many do you need?
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Old 03-08-19, 08:28 AM
  #6
OutnBack
Full Member
Thread Starter

OutnBack's Avatar

Join Date: Jul 2013
Posts: 332
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 104 Post(s)
Liked 88 Times in 53 Posts
Originally Posted by rccardr View Post
How many do you need?
I only need one. The closest one to the handlebars has cracked.

www.dougkeeler.com

Last edited by OutnBack; 03-08-19 at 12:11 PM.
OutnBack is offline
Old 03-08-19, 12:32 PM
  #7
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 7,096

Bikes: Bob Jackson, Wizard, Pegoretti Duende, Merckx ProSLX, Pelizzoli, Cannondale ST, Schwinn Tempo, Schwinn Voyageur, Canyon Endurace, Richard Sachs, Davidson Discovery

Mentioned: 198 Post(s)
Tagged: 0 Thread(s)
Quoted: 1808 Post(s)
Liked 1,938 Times in 760 Posts
I can mail you one of my spares for the cost of postage, figure $2 in a padded bag. Pins are gone but if you clean the top tube and mount with rubbing alcohol and glue it on with ShooGoo (nothing else does the job, I've tried several kinds of similar products), then allow to cure 24 hours, it will work just fine.

If interested, PM me your address and I'll drop it in the mail. My PPID is rccardr@cox.net
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Old 03-08-19, 02:57 PM
  #8
fleslider
Senior Member

fleslider's Avatar

Join Date: Feb 2014
Location: Fort Collins, CO
Posts: 1,497

Bikes: 1974 Paramount ~ 1974 Raleigh Pro ~ 1977 Pro-Tour ~ 1978 TX900 ~ IronMan 85,87:E/M,88:M/Pro,89:E ~ 98 Peugeot Festina Replica

Mentioned: 91 Post(s)
Tagged: 0 Thread(s)
Quoted: 469 Post(s)
Liked 129 Times in 73 Posts

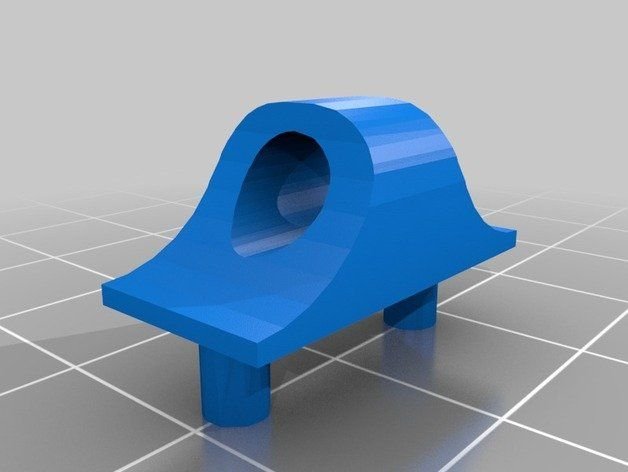

If you have access to a 3d printer .. you can make these

https://www.thingiverse.com/thing:811446




https://www.thingiverse.com/thing:3446663

Last edited by fleslider; 03-08-19 at 03:00 PM.
fleslider is offline
Old 03-08-19, 07:12 PM
  #9
Chr0m0ly
Senior Member

Chr0m0ly's Avatar

Join Date: Apr 2014
Location: Back in Lincoln Sq, Chicago...🙄
Posts: 1,609

Bikes: '84 Miyata 610 91 Cannondale ST600,'83 Trek 720 84 Trek 520, 620, 91 Miyata 1000LT, '79 Trek 514, '78 Trek 706, '73 Raleigh Int. frame.

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 638 Post(s)
Liked 277 Times in 169 Posts

https://www.google.com/search?client...GnqEQdcZ5ZjsM:

I always wondered if these would work.
Chr0m0ly is offline
Old 08-23-19, 01:57 PM
  #10
sixer
amateur

Join Date: Nov 2006
Location: Boston, MA
Posts: 88

Bikes: 1982 Mercian Vincitore, 2014 Fitwell DeGroot, 1999 Raleigh M80, 1968 Schwinn Stingray, 2002 Ibex Classic 3300, 1978 Kabuki Track

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 29 Post(s)
Liked 16 Times in 8 Posts
Along these same lines does anyone know of a source for the plastic pump peg that fits in the head tube and the plastic chain holder on the seat stay? Both are missing or broken on my ST1000. Cheers.
sixer is offline
Old 08-25-19, 10:20 PM
  #11
Iowegian
Senior Member

Iowegian's Avatar

Join Date: Dec 2005
Location: Boulder, Colo
Posts: 2,027
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 98 Post(s)
Liked 8 Times in 8 Posts
I have an OEM chain holder plus pins from a Criterium model. I assume they are the same but I can take a photo if needed. $5 shipped. Can't help on the pump peg.
Iowegian is offline
Old 08-26-19, 01:15 AM
  #12
Lascauxcaveman
Senior Member

Lascauxcaveman's Avatar

Join Date: Nov 2011
Location: Port Angeles, WA
Posts: 7,912

Bikes: A green one, "Ragleigh," or something.

Mentioned: 191 Post(s)
Tagged: 0 Thread(s)
Quoted: 1589 Post(s)
Liked 511 Times in 297 Posts
Originally Posted by rccardr View Post
I can mail you one of my spares for the cost of postage, figure $2 in a padded bag. Pins are gone but if you clean the top tube and mount with rubbing alcohol and glue it on with ShooGoo (nothing else does the job, I've tried several kinds of similar products), then allow to cure 24 hours, it will work just fine.

If interested, PM me your address and I'll drop it in the mail. My PPID is rccardr@cox.net
Doc, you are a patron saint, if nothing else.

I bought two sets of Shapeways (just OK) repro cable guides just so I could harvest the very precious, fragile Cannondale original cable guides for my personal "keeper" bikes. The repros do the job, but they're not the same thing.
