27" wheeled canti touring bike: wheel size prevent you from buying?

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

27" wheeled canti touring bike: wheel size prevent you from buying?

Old 03-15-19, 10:43 PM
  #26
WaterproofBanjo
Newbie

Join Date: Mar 2019
Posts: 1
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by arex View Post
I rebuilt a 1984 Univega Gran Turismo with 27" wheels. 700C wheels won't work at all, given the position of the canti posts..
That's funny, I also have a 1984 Gran Turismo, and it's happily running 700c with the original cantis.

Great bike. Clearance for 38mm in front, 32mm rear, with fenders.
WaterproofBanjo is offline
Old 03-16-19, 05:43 AM
  #27
Pompiere
Senior Member

Join Date: Nov 2005
Location: NW Ohio
Posts: 2,417

Bikes: 1984 Miyata 310, 1986 Schwinn Sierra, 2011 Jamis Quest, 1980 Peugeot TH8 Tandem, 1992 Performance Parabola, 1987 Ross Mt. Hood, 1988 Schwinn LeTour, 1988 Trek 400T

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 197 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
It shouldn't matter that there are only a few options, if most of them are good ones.
Pompiere is offline
Old 03-16-19, 05:52 AM
  #28
top506
Death fork? Naaaah!!

top506's Avatar

Join Date: Nov 2005
Location: The other Maine, north of RT 2
Posts: 4,528

Bikes: '71 Gitane Super Corsa, '73 Atala Giro d'Italia, '73 Schwinn Super Sport, '76 Viscount Aerospace Pro, '81 Miyata 710, '84 Ross Signature 290s, '85 Miele Gara, '87 Miyata 512, '89 Centurion Ironman, many more

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 259 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by aprieto28 View Post
The tubing decal leads me to believe that it's one on the Miyata-made Univegas, so I would say yes.

Top
__________________
You know it's going to be a good day when the stem and seatpost come right out.

(looking for a picture and not seeing it? Thank the Photobucket fiasco.PM me and I'll link it up.)
top506 is offline
Old 03-16-19, 03:36 PM
  #29
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 11,012

Bikes: 1977 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 67 Post(s)
Tagged: 0 Thread(s)
Quoted: 1556 Post(s)
Liked 0 Times in 0 Posts
To answer the premise of the thread- as most have said- No. 27" wheels are not a deal breaker, nor are most bikes that designed around 27" wheel sizes.

The great majority of an incompatibility with 700C wheels comes from the brakes, and whether they have the adjustability for overcoming both the difference in the size of the wheel combined with the mounting points for them on the frame. There are not just "a very few instances" of cantis working with 700C wheels- there are some brakes that are more adjustable than others- and it's mostly the "vintage" brakes that have more adjustment.

I have one bike that has 50mm between the bosses on the front. I actually do have to deflate a 1 1/4" Pasela TG to remove the wheel to get it between the body of the brakes.

As far as tires... Here's a GREAT thread about the availability of 27" tires: The ultimate 27" tire reference thread!

Tourers were the big ticket items back in the day- the flagship model tourers for a brand were often the flagship model of the company. It's absolutely worth the effort to find an upper level tourer and find the brakes that work best for it- the ride is fantastic- they're meant to be all-day long-distance load haulers. I always liken the ride to cruising in a 1972 Cadillac Eldorado. 455, front wheel drive, 3 city blocks long...

As far as brakes- The Deore XT medium profile cantilevers of the 80s have great adjustment and just happen to be some of the sharpest looking brakes ever.


MC70M732MT62 by Dave The Golden Boy, on Flickr


XT XTR1 by Dave The Golden Boy, on Flickr


Grail Brakes by Dave The Golden Boy, on Flickr
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

“I might have gotten away with it too, if it wasn't for these blasted kids and their dog.”

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Old 03-16-19, 11:14 PM
  #30
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 6,370

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 66 Post(s)
Tagged: 0 Thread(s)
Quoted: 470 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
A wider rim solves two problems, firstly the issue of removing the wheel with a fat tire.

A wider rim also improves the pad-dive angle at the rim, meaning that the 700c rim doesn't cause so much of an issue with the pad trajectory towards the rim versus a narrower rim. So the pad setup is easier, and with less upward motion toward the tire sidewalls as the canti or V-brake is released.
dddd is offline
Old 03-17-19, 12:39 AM
  #31
Chr0m0ly
Senior Member

Chr0m0ly's Avatar

Join Date: Apr 2014
Location: Lincoln Square, Chicago, IL
Posts: 1,058

Bikes: '84 Miyata 610 '85 Miyata 710, ‘86 Miyata 710, ‘91 Cannondale ST600, ‘84 Trek 610, 520, 620, ‘91 Miyata 1000LT, a few frames, some odds and ends....

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 385 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Plus 1 on the wider wheels. And as for 27" wheeled tourers I have....
1984 Miyata 610
1984 Trek 520
1984 Trek 620
1983 Trek 720
1985 Cannondale ST500
1991 Cannondale ST600

My wife has...
1986 Miyata 210
1988 Cannonde ST400

So far no problems with finding tires or fitting fenders. And several of them have had 700c wheels, the Miyata 610, 210, and Cannondales specifically. But I like the 27" size on my bikes, and have switched back. I think that size works better with 60/61cm bikes.

But don't let the OEM wheelsize be a deterrent, too many awesome bikes out there that predate the popularity of 700c wheels.
Chr0m0ly is offline
Old 03-17-19, 01:00 AM
  #32
hairnet
Fresh Garbage

hairnet's Avatar

Join Date: Apr 2009
Location: Los Angeles
Posts: 13,191

Bikes: N+1

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 339 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by WaterproofBanjo View Post


That's funny, I also have a 1984 Gran Turismo, and it's happily running 700c with the original cantis.

Great bike. Clearance for 38mm in front, 32mm rear, with fenders.
I'm also running 700c wheels on my Gran Turismo with Shimano Altus brakes. It was a rescue frame, no parts included. I did have trouble with other cantilever brakes I had around, new and old, which resulted in not so great performance (made for some rather exciting fire road descents) until I tried a pair of Deore cantis. The Altus brakes have been great though, easy to adjust as well.

Last edited by hairnet; 03-17-19 at 01:05 AM.
hairnet is offline
Old 03-18-19, 12:31 PM
  #33
steveridessteel
Junior Member

Join Date: May 2018
Location: Groton MA
Posts: 13

Bikes: Perter Mooney Campy SR, Centurion Pro Tour 15, Redline Conquest Cross

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
No Problem

Originally Posted by wrk101 View Post

Wrong premise imho. I’ve put 700c wheels on several vintage touring bikes without a problem. Yes there are some vintage tourers where that swap doesn’t work like the Raleigh Aleyeska (sp).
I agree. Last year I fully restored my 84 Centurion Pro Tour 15 to original condition. I still run it as a loaded touring bike (10 days in VT/NY last year) and on the occasional brevet. I have fitted it with 700s without a problem. It has the original Dia Comp 960 cantis and had no problem accommodating the 700s although I still run it with 27s. If you are going to want to bump up from a 5/6 speed rear you will most likely have to cold set the rear triangle but on a quality old steal frame that isn't going to be a problem with a little work.
steveridessteel is offline
Old 03-18-19, 04:10 PM
  #34
icepick_trotsky
Aspiring curmudgeon

icepick_trotsky's Avatar

Join Date: Aug 2014
Location: Saint Louis
Posts: 2,668

Bikes: Guerciotti, Serotta, Gaulzetti

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 103 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

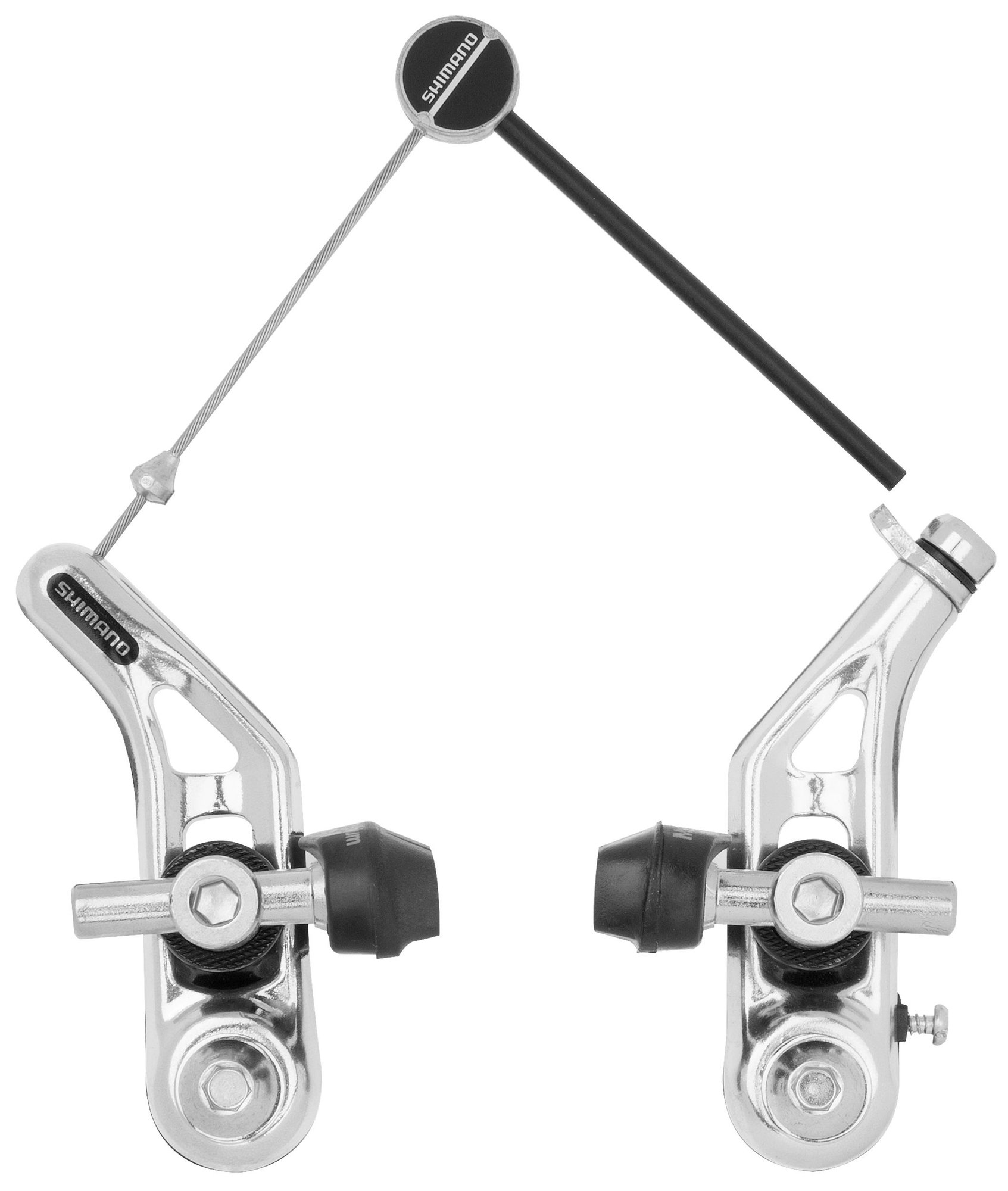

I will give a shout out to Shimano Altus cantis on this front. Currently in production and will cost you all of $10 a wheel. The greatest adjustability in pad clearance of any canti I've used. They look to be based on the higher end vintage cantis above, but easier to find cheaply. They worked for me for a 27 to 700c conversion where mini-vs failed. In general, post mount brakes are your friend for this, because the pads can be adjusted wide and low.
__________________
"Party on comrades" -- Lenin, probably
icepick_trotsky is offline
Old 03-18-19, 04:30 PM
  #35
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 21,947
Mentioned: 156 Post(s)
Tagged: 0 Thread(s)
Quoted: 8057 Post(s)
Likes: 0
Liked 1 Time in 1 Post
I'm glad to see that so many people get enough adjustment for swapping to 700c wheels.

One additional issue. There is another thread about someone who managed to bend his 27" canti fork. And, good replacements are rather rare.

It looks like one of the BF members will assist with repairs rather than replacement.

Crash, Trashed fork, a way forward?
CliffordK is online now
Old 03-18-19, 04:32 PM
  #36
Cycle Tourist
Senior Member

Join Date: Jan 2017
Posts: 84
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Center pull brakes.

Many of the touring bikes of that era used center pull brakes. I know they were typically found on the cheaper bikes but they work pretty well and we're often very adjustable for wheel size. Weinmann we're usually more adjustable than dia comp.
The tires are still very available. Aside from ordering good touring tires you can still walk to a Target and pick up a serviceable 27" tire in a pinch (no pun intended)😉

QUOTE=top506;20837960]27" tires didn't stop me:

It's nothing special, just exceptional.

Top[/QUOTE]
Cycle Tourist is offline
Old 03-19-19, 11:22 AM
  #37
Jeff Neese
Senior Member

Join Date: Jul 2014
Posts: 250
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 72 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
There's absolutely nothing wrong with 27" wheels. Yes, the tire selection is more limited, but there are a number of very good choices, including the Paselas you mentioned. 27" wheels wouldn't deter me one bit from buying a bike. In fact, my Fuji has them and I'm not even tempted to try to fit it with 700c. No reason. Maybe someday, if I break a rim or something.
Jeff Neese is offline
