Mondia or Juvela with stamped dropouts

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Mondia or Juvela with stamped dropouts

Old 03-16-19, 10:54 AM
  #1
unworthy1
Stop reading my posts!
Thread Starter

unworthy1's Avatar

Join Date: Sep 2004
Posts: 10,153
Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 317 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Mondia or Juvela with stamped dropouts

There's a re-painted bike i see parked near work every day that caught my attention cause it has Nervex Pro headlugs (with the "flanges") and a Vagner fork crown...and I loves a mystery! So I would glance at it (usually in hurry to get into work or grab quick lunch) so giving myself scant seconds to gather another clue and ponder...but a recent time I looked I caught the distinctive serial number stamped on a semi-wrap left-hand staycap and...mystery solved: that's a Mondia (well, could be a Juvela but splitting hairs).
Kind of a come-down cause I was hoping to draw the mystery out a little more (yeah, work can get boring) but then I saw something very unusual (to me, anyway): the dropouts were not a typical long-form Campy 1010 as expected, nor the thick stamped Campy Verticals you'd find if this was a Mondia/Juvela cyclocross frame, which I'd say it's not cause it's got no canti bosses.
What iit's got are stamped dropouts like you'd see on a cheepo bike-boom frame, horizontal and with one threaded hole for rack/fender mount, but...unusual, right?!
The rest of the package (Nervex Pro and Vagner) plus the careful craftsmanship sure doesn't make me think this is some "budget' model Mondia, and if they are replacement DO's ya gotta wonder who would opt for THAT instead of replacing with the (not hard to find) Campy 1010s this SHOULD have come with. To me everything points to a typical Mondia with 531DB full throughout, EXCEPT for those stamped dropouts.
So you Swiss experts: what gives?
Yes, I WILL take some pix next time I have a few minutes and as long as that doesn't get me in trouble with the owner...
unworthy1 is offline
Old 03-16-19, 11:11 AM
  #2
3alarmer
******

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 17,098

Bikes: old ones

Mentioned: 212 Post(s)
Tagged: 0 Thread(s)
Quoted: 13731 Post(s)
Liked 0 Times in 0 Posts
...I'm not a Swiss expert, but I have, over the years, had a couple of older bikes that were constructed from Reynolds or other high end tubing but with stamped dropouts on the rear. Apparently, the idea of using them on a well bulit frame was not always anathema. One I still have is a Gitane TdF. The other I can remember was some kind of Stella.
3alarmer is offline
Old 03-16-19, 11:16 AM
  #3
3alarmer
******

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 17,098

Bikes: old ones

Mentioned: 212 Post(s)
Tagged: 0 Thread(s)
Quoted: 13731 Post(s)
Liked 0 Times in 0 Posts

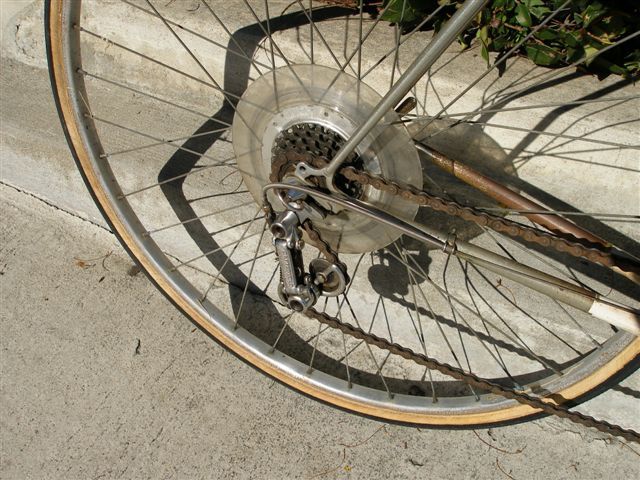

Here's one on a Falcon frame that was made from 531 that I repainted .

3alarmer is offline
Old 03-16-19, 11:20 AM
  #4
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 2,578

Bikes: Bob Jackson World Tour, 81 miyata 912 and 86 miyata 312.

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 798 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by 3alarmer View Post
my falcon has stamped dropouts with a derailleur hanger and straight gauge 531
52telecaster is offline
Old 03-16-19, 11:27 AM
  #5
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,393
Mentioned: 400 Post(s)
Tagged: 1 Thread(s)
Quoted: 2307 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
While we typically see the high end examples, my understanding has always been that Mondia was a full range manufacturer. Consequently, stamped dropouts would not surprise me. The other possibility is that it pre-dates forged dropouts, as they do date back to the inter-war period.
T-Mar is offline
Old 03-16-19, 03:57 PM
  #6
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 19,240

Bikes: 1959 Capo; 1980 Peugeot PKN-10; 1981 Bianchi; 1988 Schwinn KOM-10;

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 660 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

Circa 1960, Otto Cap used this trick ca. The top-of-the-line Sieger got full db 531 with stamped dropouts, with horseshoe-shaped braze-ons to give the appearance and thickness of forged dropouts. Midrange frames did not get the dropout overlays.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324
Capo: 1960 Sieger, S/N 42624
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1981 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Old 03-19-19, 05:02 PM
  #7
unworthy1
Stop reading my posts!
Thread Starter

unworthy1's Avatar

Join Date: Sep 2004
Posts: 10,153
Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 317 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

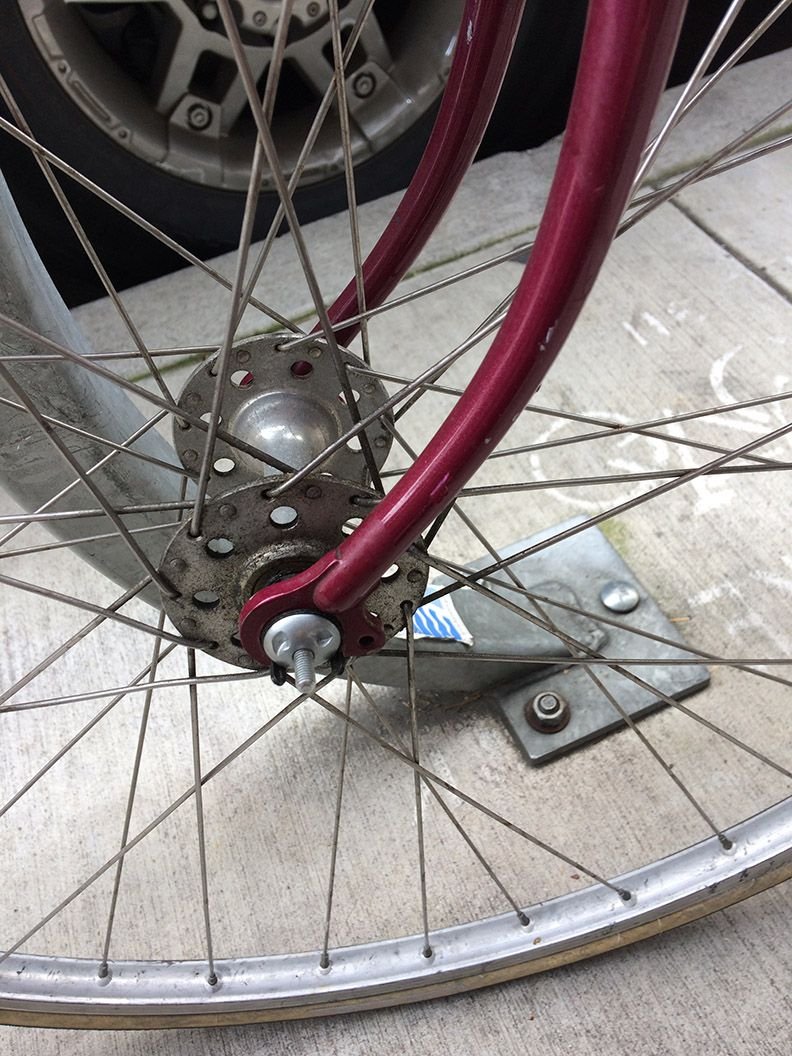

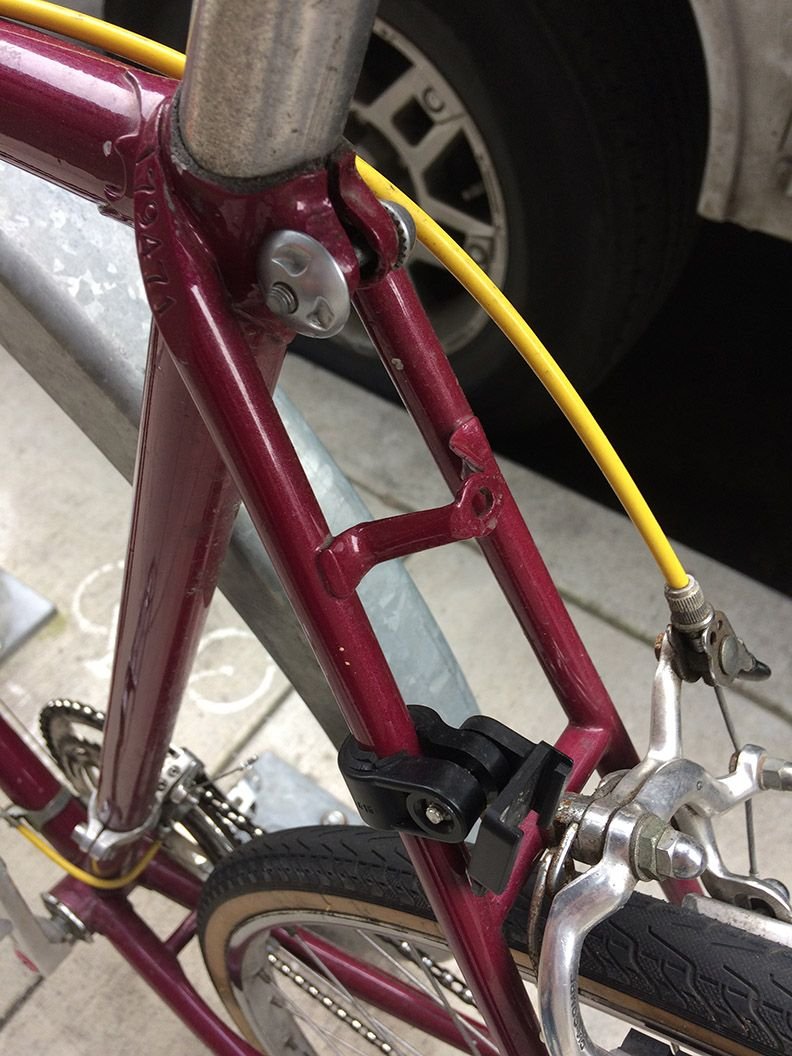

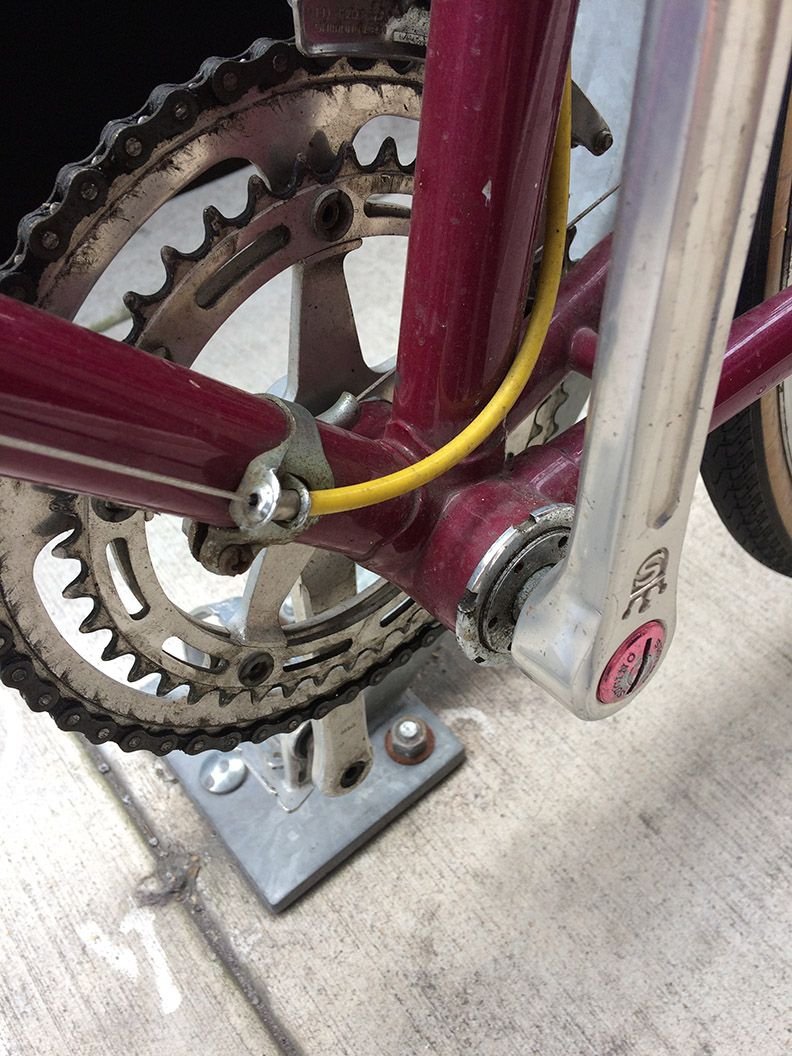

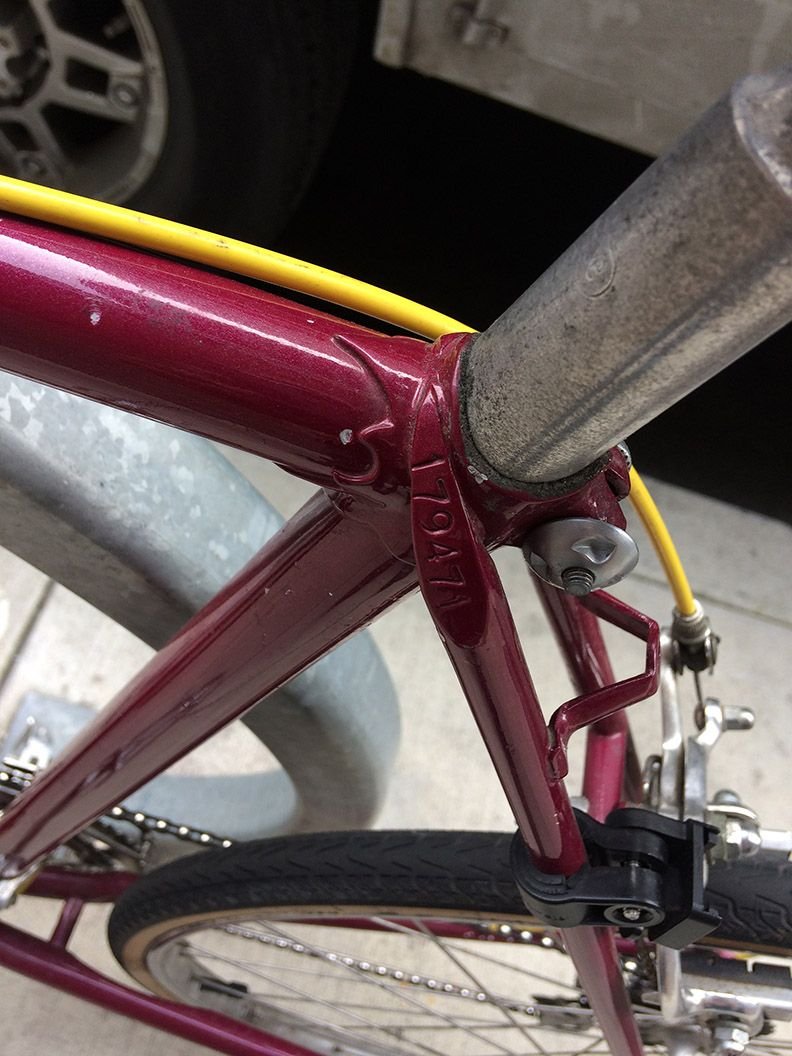

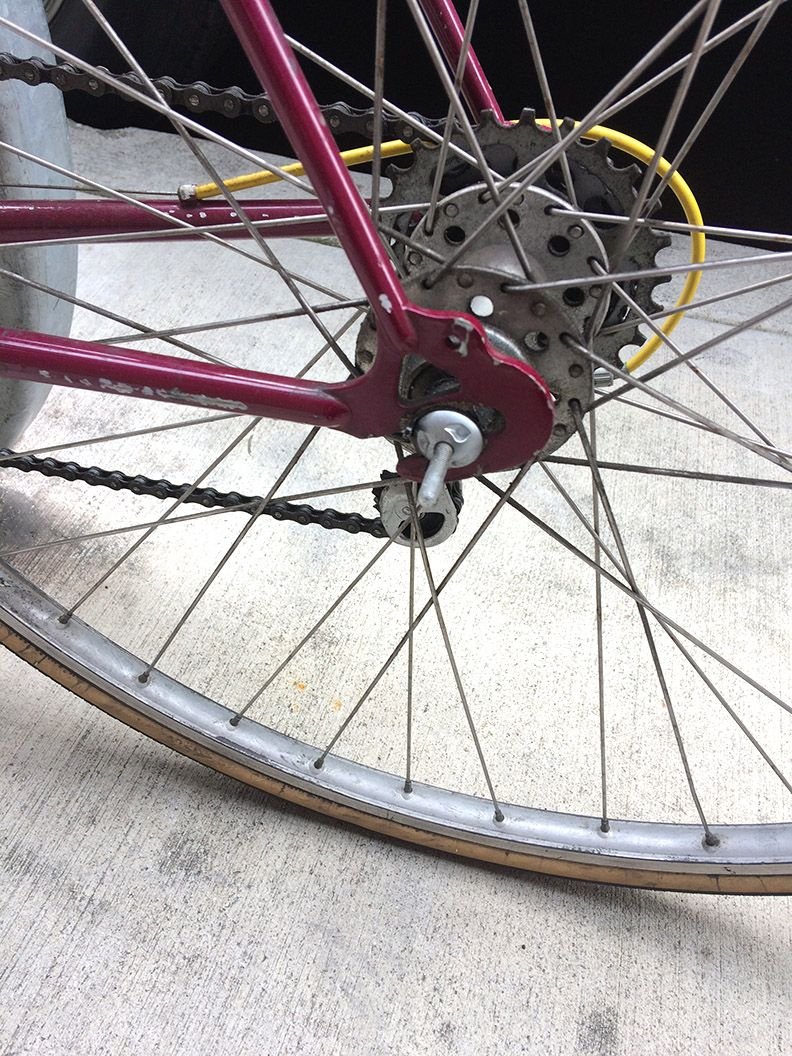

I promised some pix, and it took a day for the bike to show up in the usual spot, but here re some shots including the Stamped Drop-outs but other notable features too, and if somebody can decipher the year based on that serial number...fire away.
unworthy1 is offline
Old 03-20-19, 11:36 AM
  #8
unworthy1
Stop reading my posts!
Thread Starter

unworthy1's Avatar

Join Date: Sep 2004
Posts: 10,153
Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 317 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

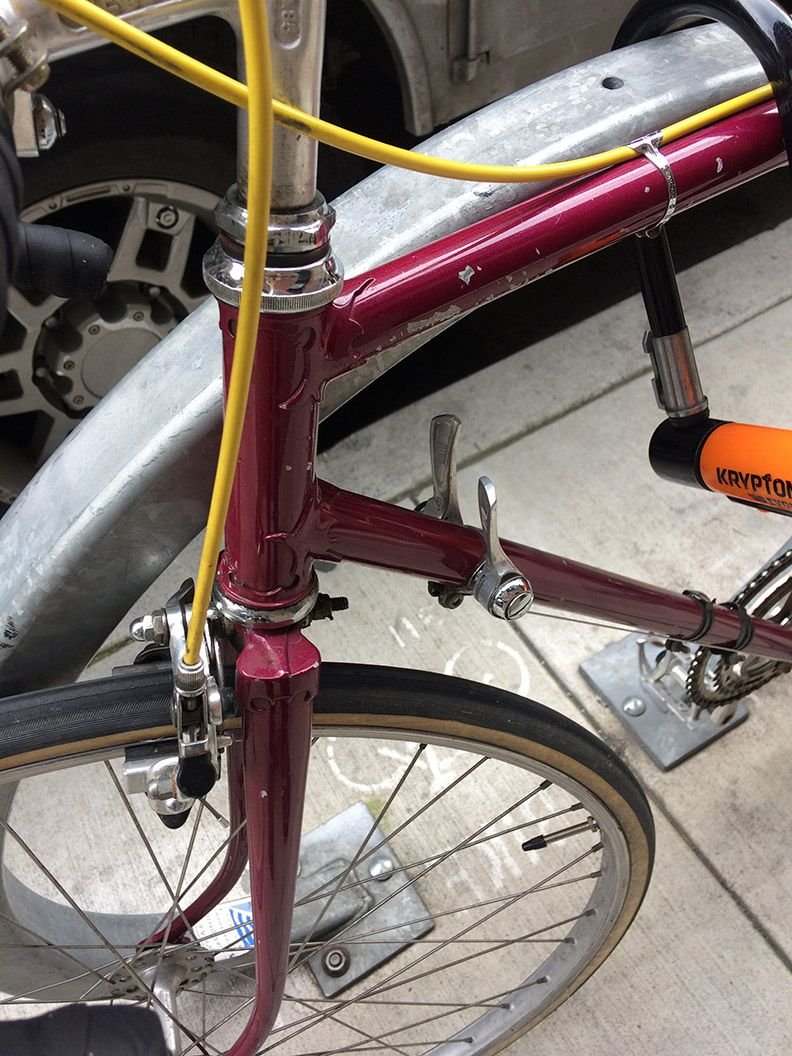

Also curious if anybody can ID that headset, which I assume is something French or possible cobbled from some bits that include FR threaded parts...? That stem looks to be a 3TTT or possibly Ambrosio, but did they make this RECORD model with a FR quill?
unworthy1 is offline
Old 03-26-19, 06:27 PM
  #9
unworthy1
Stop reading my posts!
Thread Starter

unworthy1's Avatar

Join Date: Sep 2004
Posts: 10,153
Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 317 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

Also curious if anybody can ID that headset, which I assume is something French or possible cobbled from some bits that include FR threaded parts...? That stem looks to be a 3TTT or possibly Ambrosio, but did they make this RECORD model with
unworthy1 is offline
Old 03-26-19, 06:33 PM
  #10
unworthy1
Stop reading my posts!
Thread Starter

unworthy1's Avatar

Join Date: Sep 2004
Posts: 10,153
Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 317 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
from a post in the CR list today:
"1973ish bike
SN174838.I believe mine to be nearly all original with the early Brooks Pro
saddle and..."
so 179XXX is later than 1973 assuming the Mondia owner with "174XXX" is correct about his.
Definitely in era for Campy 1010 dropouts so, would a 'budget model' just use cheaper dropouts and forkends but keep a Nervex Pro lugset? Guess I'll have to stalk the owner and ask about the seatpost size and other creepy questions
unworthy1 is offline
