Bar end shifters in Soma Sparrow handlebar

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Bar end shifters in Soma Sparrow handlebar

Old 03-16-19, 02:15 PM
  #1
hadwon717
Junior Member
Thread Starter

Join Date: May 2016
Posts: 20
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Bar end shifters in Soma Sparrow handlebar

I have a 10-speed mixte my daughter rides, currently has a Velo Orange Tourist handlebar and stem mounted friction shifters.
We have been talking about trying bar end friction shifters, but the Tourist is a 22.2 size bar, the openings at the ends aren't big enough for bar ends.
I have seen pictures of the Soma Sparrow handlebar, it is also 22.2 but the ends of the grips are bored to 20 mm to accept road stuff like reverse brakes or bar end shifters.

We could also stay with the Tourist and fit some thumb shifters to it, we have never tried those either. Or we could go to a full 23.8 bar
Just want to try something where you don't have to completely let go of the grip to shift gears

Has anyone tried bar ends in a Sparrow? Any issues? Looks interesting but I am wondering how robust the end of the bar is with the material removed. Can you tighten the bar end enough to start swelling out the handlebar? I imagine the handlebar end would still be okay, it is just a shifter after all
hadwon717 is offline
Old 03-16-19, 02:30 PM
  #2
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 2,567

Bikes: Bob Jackson World Tour, 81 miyata 912 and 86 miyata 312.

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 798 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I use their portuer bar with barends and cheap interrupter levers.
52telecaster is offline
Old 03-16-19, 02:31 PM
  #3
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 40,313

Bikes: 8

Mentioned: 179 Post(s)
Tagged: 0 Thread(s)
Quoted: 6357 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
a caution

Careful with the ends of the cable in those^^^ , they were not made to go on the end of the brake cable,
but the more flexible middle


a better scheme add some housing under the tape and put the stiff soldered end of the cable under the tape,
too ...
then you have ... the housing , the interrupter brake lever and the rest of the housing in that order..

levers made to be on the end of the cable always pull it straight , not bending it a little every time..

..........................................

Thick wall aluminum is Bored out to fit bar end shifters...

Nitto's Chromoly Steel handlebar (sold by Rivendell bikes as the Albatross )

takes advantage of the stronger steel alloy , by using a thin wall tubing
it takes a bar end shifter without boring it out..





.....

Last edited by fietsbob; 03-16-19 at 02:45 PM.
fietsbob is online now
Old 03-16-19, 06:11 PM
  #4
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 2,567

Bikes: Bob Jackson World Tour, 81 miyata 912 and 86 miyata 312.

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 798 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by fietsbob View Post
Careful with the ends of the cable in those^^^ , they were not made to go on the end of the brake cable,
but the more flexible middle


a better scheme add some housing under the tape and put the stiff soldered end of the cable under the tape,
too ...
then you have ... the housing , the interrupter brake lever and the rest of the housing in that order..

levers made to be on the end of the cable always pull it straight , not bending it a little every time..

..........................................

Thick wall aluminum is Bored out to fit bar end shifters...

Nitto's Chromoly Steel handlebar (sold by Rivendell bikes as the Albatross )

takes advantage of the stronger steel alloy , by using a thin wall tubing
it takes a bar end shifter without boring it out..





.....
its about a 3 degree bend and i have done it on 3 bikes for a while, one over 3 years. I appreciate your concern.

Last edited by 52telecaster; 03-16-19 at 06:14 PM.
52telecaster is offline
Old 03-16-19, 06:22 PM
  #5
hadwon717
Junior Member
Thread Starter

Join Date: May 2016
Posts: 20
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
The Velo Porteur is a 23.8 handlebar, bar ends slip right in. I could get a 23.8 bar, but I already have 22.2 brakes and handgrips I could re-use. That's why I was wondering if the bored holes in the 22.2 Sparrow cause anybody any issues
hadwon717 is offline
Old 03-16-19, 07:40 PM
  #6
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 2,567

Bikes: Bob Jackson World Tour, 81 miyata 912 and 86 miyata 312.

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 798 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by hadwon717 View Post
The Velo Porteur is a 23.8 handlebar, bar ends slip right in. I could get a 23.8 bar, but I already have 22.2 brakes and handgrips I could re-use. That's why I was wondering if the bored holes in the 22.2 Sparrow cause anybody any issues
i understand and was suggesting my solution because these levers are quite inexpensive.
52telecaster is offline
Old 03-16-19, 09:19 PM
  #7
wesmamyke
Senior Member

Join Date: Nov 2009
Posts: 838
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 137 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I have Ergon grips clamped to the outside of that thinned out section on sparrow bars. Mountain style bar ends are notorious for crimping thin bars, I figure it's pretty similar and no issues.

Not that it answers the question, but they seem like better than average construction/material. Don't recall if they claim it's heat treated or not.
wesmamyke is offline
Old 03-16-19, 10:13 PM
  #8
canklecat
Me duelen las nalgas

canklecat's Avatar

Join Date: Aug 2015
Location: Texas
Posts: 8,432

Bikes: Univega Via Carisma, Globe Carmel, Centurion Ironman Expert

Mentioned: 141 Post(s)
Tagged: 0 Thread(s)
Quoted: 2551 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Check out Nitto Albatross bars too. They'll work upright or flipped. No problems with Shimano bar end shifters. I just swapped over the brake levers from my mountain bike flat bars.

Nitto offers the albatross in steel and heat treated aluminum. The aluminum is so much lighter than the steel flat and riser bars I had on this bike, I have to be careful taking off from a stop on some uphill intersections -- the bike will wheelie unless I've attached the handlebar bag. It's surprising how much difference the bar made in the bike's front end weight, handling and comfort. More aero and more comfortable, with more hand positions.
canklecat is offline
Old 03-19-19, 10:20 AM
  #9
Squeeze
High Plains Luddite

Join Date: Jul 2013
Location: Colorado
Posts: 568

Bikes: '90s MTBs, '96 Allez

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 142 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Here's a picture of Soma Sparrow bars with bar-end shifters, courtesy of @simmonsgc.

Handlebars with Rise and Sweep

The internets never forgets...
Squeeze is offline
Old 03-19-19, 10:27 PM
  #10
hadwon717
Junior Member
Thread Starter

Join Date: May 2016
Posts: 20
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
That's a very good vantage point in that picture. The Sparrow appears to have a very nice shape, that North Road kind of geometry that makes the bike comfortable to drive, thanks for putting that up.
hadwon717 is offline
Old 03-19-19, 11:27 PM
  #11
mjac
Senior Member

Join Date: Oct 2018
Posts: 98
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 57 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Trouble

Originally Posted by hadwon717 View Post
I have a 10-speed mixte my daughter rides, currently has a Velo Orange Tourist handlebar and stem mounted friction shifters.
We have been talking about trying bar end friction shifters, but the Tourist is a 22.2 size bar, the openings at the ends aren't big enough for bar ends.
I have seen pictures of the Soma Sparrow handlebar, it is also 22.2 but the ends of the grips are bored to 20 mm to accept road stuff like reverse brakes or bar end shifters.

We could also stay with the Tourist and fit some thumb shifters to it, we have never tried those either. Or we could go to a full 23.8 bar
Just want to try something where you don't have to completely let go of the grip to shift gears

Has anyone tried bar ends in a Sparrow? Any issues? Looks interesting but I am wondering how robust the end of the bar is with the material removed. Can you tighten the bar end enough to start swelling out the handlebar? I imagine the handlebar end would still be okay, it is just a shifter after all
Dude, why would you want to go through all of that trouble and expense for such a small convenience. Get yourself a Shimano Acera SL-M310 Rapid Fire Index Shifter and shove it up the handle bar as close to the grips as possible. It is just as convenient as bar ends with the same amount of hand movement except it is forward which is safer because part of your hand is always on the bar. And it is all of $17. That at least takes care of the rear Derailler. I do not know if they make one for the Front Derailer but I would not be surprised if they do.
mjac is offline
Old 03-20-19, 03:28 AM
  #12
canklecat
Me duelen las nalgas

canklecat's Avatar

Join Date: Aug 2015
Location: Texas
Posts: 8,432

Bikes: Univega Via Carisma, Globe Carmel, Centurion Ironman Expert

Mentioned: 141 Post(s)
Tagged: 0 Thread(s)
Quoted: 2551 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Originally Posted by mjac View Post


Dude, why would you want to go through all of that trouble and expense for such a small convenience. Get yourself a Shimano Acera SL-M310 Rapid Fire Index Shifter and shove it up the handle bar as close to the grips as possible. It is just as convenient as bar ends with the same amount of hand movement except it is forward which is safer because part of your hand is always on the bar. And it is all of $17. That at least takes care of the rear Derailler. I do not know if they make one for the Front Derailer but I would not be surprised if they do.
My hands are always on the grips when shifting bar end shifters on my hybrid's albatross bar. The trick is to just use the base of the palm to push down, a hooked pinky to lift up. Works great, hands remain in position for handling and braking. The only time I shift my grip is for extreme lifts to get the front into the big ring on the triple, or rear to get into the 32T cog. I hardly ever get into the 50T big ring on the triple, and there are only a couple of hills where I'd need the 32T rear cog, since the front triple has a 30T small ring.

Also bar ends just look good on some bike/handlebar combinations, especially swoopy swept back bars. The only thing to watch for is knee clearance. Some folks with cut a bit off the ends of the swept back bars to offset the length of the bar end shifters. It's a tight squeeze on my Univega but the top tube is a bit longer relative to the frame size, and with a slightly longish wheelbase, so I haven't needed to trim the ends of my albatross bar. I might if I switched to narrower swept bars.

Thumb and trigger shifters are good. Had 'em, used 'em on other bikes. They still require shifting the hands a bit so we're rarely in the perfect position for shifting and braking without needing to move our hands. But I'm never in a situation when I'd routinely need to shift and brake quickly and often -- I don't race, don't ride singletrack or anything but fairly good gravel roads.

I would prefer brifters for fast group road bike rides but I'm accustomed enough to my downtube shifters that I can hold a line while shifting, no risk of making other folks nervous in a paceline. But just because we can do it doesn't make it ideal for that situation. I'd rather always have my hands on the bars.
canklecat is offline
Old 03-20-19, 06:48 AM
  #13
mjac
Senior Member

Join Date: Oct 2018
Posts: 98
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 57 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
And

Originally Posted by canklecat View Post
My hands are always on the grips when shifting bar end shifters on my hybrid's albatross bar. The trick is to just use the base of the palm to push down, a hooked pinky to lift up. Works great, hands remain in position for handling and braking. The only time I shift my grip is for extreme lifts to get the front into the big ring on the triple, or rear to get into the 32T cog. I hardly ever get into the 50T big ring on the triple, and there are only a couple of hills where I'd need the 32T rear cog, since the front triple has a 30T small ring.

Also bar ends just look good on some bike/handlebar combinations, especially swoopy swept back bars. The only thing to watch for is knee clearance. Some folks with cut a bit off the ends of the swept back bars to offset the length of the bar end shifters. It's a tight squeeze on my Univega but the top tube is a bit longer relative to the frame size, and with a slightly longish wheelbase, so I haven't needed to trim the ends of my albatross bar. I might if I switched to narrower swept bars.

Thumb and trigger shifters are good. Had 'em, used 'em on other bikes. They still require shifting the hands a bit so we're rarely in the perfect position for shifting and braking without needing to move our hands. But I'm never in a situation when I'd routinely need to shift and brake quickly and often -- I don't race, don't ride singletrack or anything but fairly good gravel roads.

I would prefer brifters for fast group road bike rides but I'm accustomed enough to my downtube shifters that I can hold a line while shifting, no risk of making other folks nervous in a paceline. But just because we can do it doesn't make it ideal for that situation. I'd rather always have my hands on the bars.
And how much are a set of Bar End Shifters and how much time and/or expense is there to install them?
mjac is offline
Old 03-20-19, 01:06 PM
  #14
hadwon717
Junior Member
Thread Starter

Join Date: May 2016
Posts: 20
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

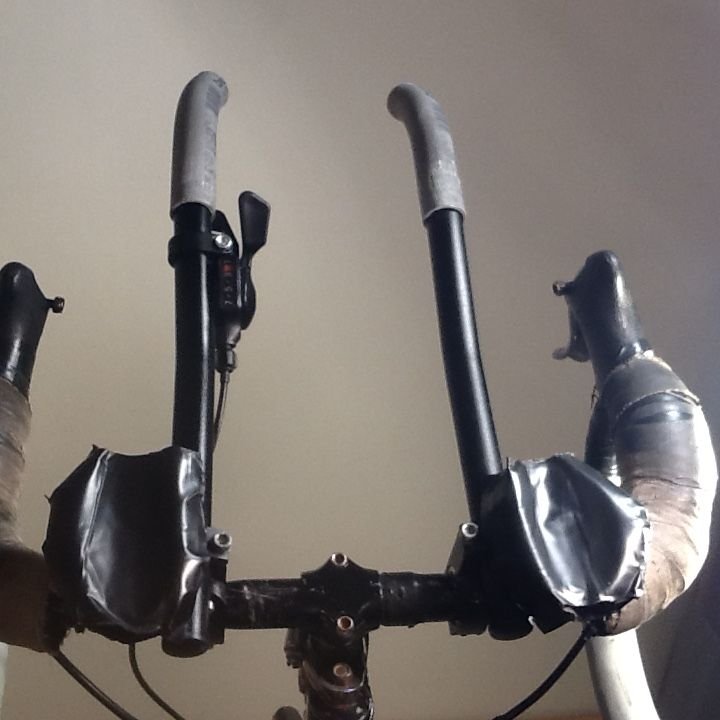

I am unfamiliar with these. Looks interesting, but I see paddles, this uses indexing, correct? (clue: the name of the part) Our bike doesn't have an indexed shift system, friction all the way.
Wouldn't we need a index-compatible rear derailer to make this work? Or not?

Had a discussion with a guy at work who has a mod I haven't seen, he had a triple in front, removed two rings and the front derailer. Still has the same crank and spider, just one ring with shorter bolts.
Also changed his freehub cassette to a single speed that felt right for his cadence and removed the RD, basically a fixie now, just didn't want the extra parts and wasn't using them much anyway

I don't want to go that far, but a single chain ring in front sounds like an advancement, eliminate FD, since big D doesn't shift the front anyway. Get rid of the dual lever stem shifters, single barcon on the right handlebar to do the RD

means I would have to swap the Tourist for the Sparrow
Or maybe this other thing if I don't need to get all new shifter components
hadwon717 is offline
Old 03-20-19, 03:17 PM
  #15
canklecat
Me duelen las nalgas

canklecat's Avatar

Join Date: Aug 2015
Location: Texas
Posts: 8,432

Bikes: Univega Via Carisma, Globe Carmel, Centurion Ironman Expert

Mentioned: 141 Post(s)
Tagged: 0 Thread(s)
Quoted: 2551 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Originally Posted by mjac View Post


And how much are a set of Bar End Shifters and how much time and/or expense is there to install them?
Prices vary from used bar end shifters for around $20, on up to nearly $100 for some new models. I got a set of the new Shimano bar end shifters for $50 with a generous return policy if I didn't like them or they didn't fit or work on my bike. But I liked 'em on the first ride on my Univega with albatross bars.

They're easy to install, no more complicated than the various thumbies, downtube, stem, friction and indexing shifters I've installed. I like 'em all about equally. The bar end shifters just seem right with swept back bars. For a mountain bike with flat or riser bars I'd rather have thumb/trigger shifters.

The new Shimanos are index/friction compatible. That option was helpful because my Univega is cobbled together from mismatched donor parts. The bar end shifters index with the original Shimano 7-speed freehub cassette, but not with the replacement wheel's 8-speed MicroShift cassette -- there was just enough difference in spacing to thwart index shifting. No problems, I can switch to a Shimano brand cassette, but meanwhile I'm satisfied with friction shifting.

I'm not sure I'd like them as well on drop bars since I'd still need to reach down to shift. I'm already accustomed to downtube shifting and reaching toward the center of the bike doesn't affect balance and handling with practice. I've seen photos of Eddy Merckx and other racers using bar end shifters in competition, but apparently they went back to downtube shifters after experimenting with bar ends. I suspect weight was more of a factor than balance concerns. Any successful racer will have superhuman reflexes and balance anyway. But bar end shifters will weigh more than downtuber -- longer cables and housing runs, and the bar end pods themselves are heavier. For the long climbs on the European grand tour, saving grams matters.
canklecat is offline
Old 03-20-19, 09:25 PM
  #16
mjac
Senior Member

Join Date: Oct 2018
Posts: 98
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 57 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by canklecat View Post
Prices vary from used bar end shifters for around $20, on up to nearly $100 for some new models. I got a set of the new Shimano bar end shifters for $50 with a generous return policy if I didn't like them or they didn't fit or work on my bike. But I liked 'em on the first ride on my Univega with albatross bars.

They're easy to install, no more complicated than the various thumbies, downtube, stem, friction and indexing shifters I've installed. I like 'em all about equally. The bar end shifters just seem right with swept back bars. For a mountain bike with flat or riser bars I'd rather have thumb/trigger shifters.

The new Shimanos are index/friction compatible. That option was helpful because my Univega is cobbled together from mismatched donor parts. The bar end shifters index with the original Shimano 7-speed freehub cassette, but not with the replacement wheel's 8-speed MicroShift cassette -- there was just enough difference in spacing to thwart index shifting. No problems, I can switch to a Shimano brand cassette, but meanwhile I'm satisfied with friction shifting.

I'm not sure I'd like them as well on drop bars since I'd still need to reach down to shift. I'm already accustomed to downtube shifting and reaching toward the center of the bike doesn't affect balance and handling with practice. I've seen photos of Eddy Merckx and other racers using bar end shifters in competition, but apparently they went back to downtube shifters after experimenting with bar ends. I suspect weight was more of a factor than balance concerns. Any successful racer will have superhuman reflexes and balance anyway. But bar end shifters will weigh more than downtuber -- longer cables and housing runs, and the bar end pods themselves are heavier. For the long climbs on the European grand tour, saving grams matters.
The main concern I have with Bar Ends besides the Instalation problems with different bars and the shifter toggles snagging your leg is that you have one shifter lever to handle both up and down shifts. That has to result in some searching and hesitation. With this two trigger rapid fire shifter you one lever for up shifts and one lever for down shifts. You just stab the lever even unconsciously and it shifts precisely every time. You stab it hard and it shifts two gears. It is clean, precise and effortless. I have this shifter installed up on the left Aero Bar and it works well and is a little cheaper. I think it would work well on swept backs without any of the problems.


mjac is offline
Old 03-29-19, 04:17 PM
  #17
simmonsgc
Senior Member

simmonsgc's Avatar

Join Date: Dec 2010
Location: NC High Country
Posts: 640
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 77 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by hadwon717 View Post
That's a very good vantage point in that picture. The Sparrow appears to have a very nice shape, that North Road kind of geometry that makes the bike comfortable to drive, thanks for putting that up.
No problem, happy to help. They are my wife's favorite bar.....bar none!
simmonsgc is offline
Old 03-29-19, 05:15 PM
  #18
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 11,012

Bikes: 1977 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 67 Post(s)
Tagged: 0 Thread(s)
Quoted: 1556 Post(s)
Liked 0 Times in 0 Posts
I love thumbshifters. The indexing M732/MT-60 thumbshifters are awesome, as are the Suntour ratcheting Power shifter thumb shifters.

I need to host some better pix of my High Sierra with the trekking bars- it’s just not “done” yet.
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

I might have gotten away with it too, if it wasn't for these blasted kids and their dog.

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
