Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Wheel rim clean-up

Old 03-16-19, 05:52 PM
  #1
horatio
Hump, what hump?
Thread Starter

horatio's Avatar

Join Date: Dec 2003
Location: SC midlands
Posts: 1,197

Bikes: See signature

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 84 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Wheel rim clean-up

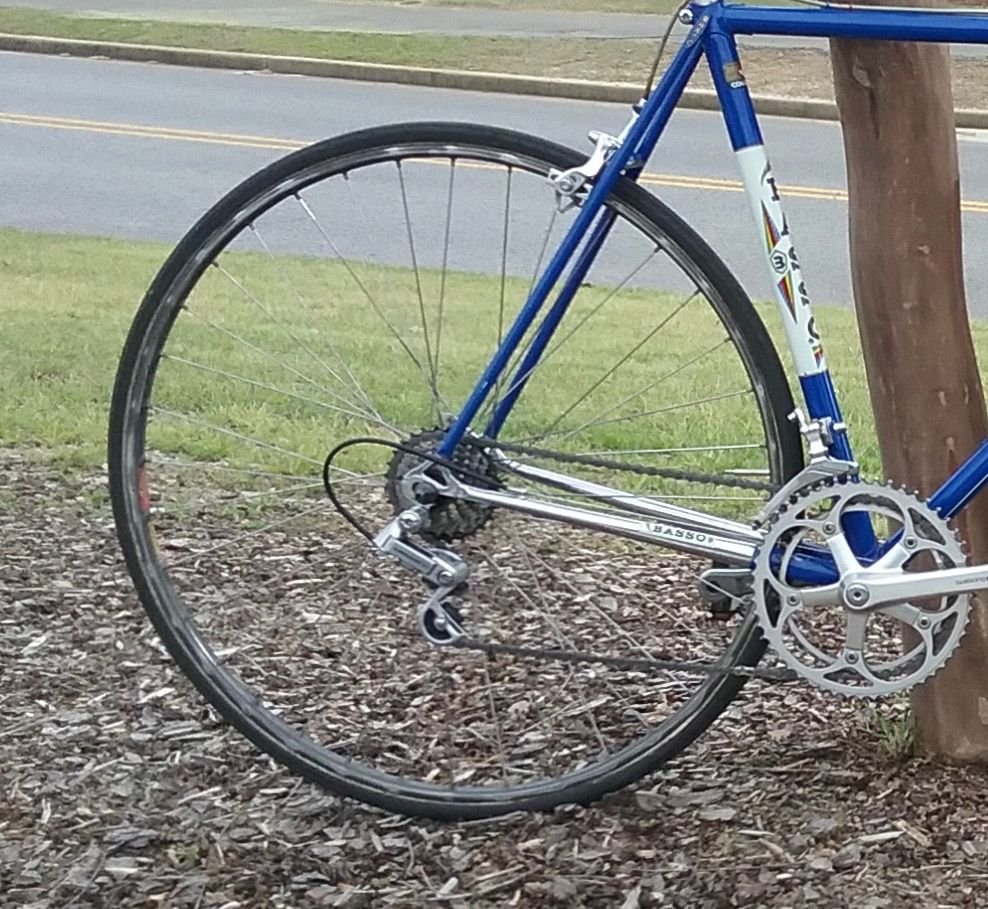

I love my tubular wheelset, but the rims are showing gaps, I guess where the anodizing has worn off. Any tips for polishing them to make the appearance more uniform? The rims are Mavic GP4s.

__________________
### 60cm Ciocc Designer '84 frameset to trade for something comparable in a 54-56 size ###

2010 AB T1X ** 2010 Cannondale SIX-5 ** 1989 Bianchi Brava ** 1988 Nishiki Olympic ** 1987 Centurion Ironman Expert(2) ** 1985 DeRosa Professional SLX ** 1982 Basso Gap ** 198? Ciocc Competition SL ** 19?? Roberts Audax ** 198? Brian Rourke ** 198? Mercian Olympic

Last edited by horatio; 03-16-19 at 05:56 PM.
horatio is offline
Old 03-16-19, 06:05 PM
  #2
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 2,686
Mentioned: 87 Post(s)
Tagged: 0 Thread(s)
Quoted: 934 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
No way to really clean it, other than maybe sanding off what is left on the brake tracks so you have it all silver just like they machined the tracks with later rims. The whole idea of anodizing the whole rim dark was just a bad idea on the part of rim makers, back in the 80's.
The uneven wear pattern on the sidewalls was just something we have to live with....
Chombi1 is offline
Old 03-16-19, 06:11 PM
  #3
horatio
Hump, what hump?
Thread Starter

horatio's Avatar

Join Date: Dec 2003
Location: SC midlands
Posts: 1,197

Bikes: See signature

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 84 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Chombi1 View Post
No way to really clean it, other than maybe sanding off what is left on the brake tracks so you have it all silver just like they machined the tracks with later rims. The whole idea of anodizing the whole rim dark was just a bad idea on the part of rim makers, back in the 80's.
The uneven wear pattern on the sidewalls was just something we have to live with....
Yeah. Kinda what I was thinking. The tires have a little life left in them. Guess I'll wait until it's time to replace them and then sand off the anodizing. Just don't want to compromise the rims.
__________________
### 60cm Ciocc Designer '84 frameset to trade for something comparable in a 54-56 size ###

2010 AB T1X ** 2010 Cannondale SIX-5 ** 1989 Bianchi Brava ** 1988 Nishiki Olympic ** 1987 Centurion Ironman Expert(2) ** 1985 DeRosa Professional SLX ** 1982 Basso Gap ** 198? Ciocc Competition SL ** 19?? Roberts Audax ** 198? Brian Rourke ** 198? Mercian Olympic
horatio is offline
Old 03-16-19, 07:21 PM
  #4
Cougrrcj
Over forty victim of Fate

Cougrrcj's Avatar

Join Date: Jul 2011
Location: NE Ohio
Posts: 2,967

Bikes: A few...

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 288 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

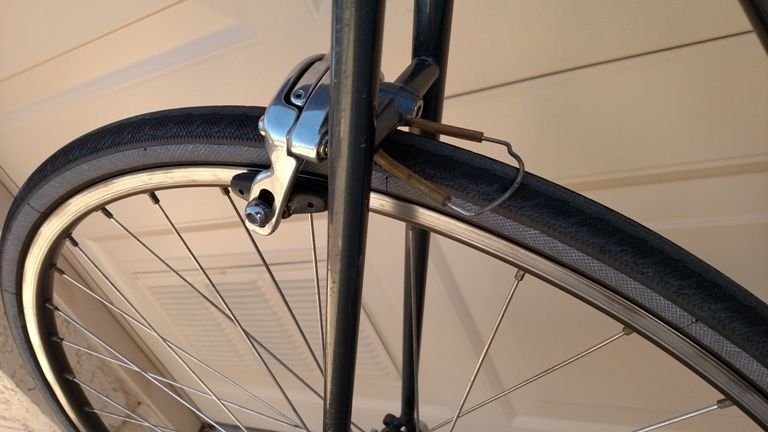

My '86 Miyata 710 has dark anodized rims as well.. They've worn the sides to a near-uniform silver in the 30+ years since. Do I miss the dark look? not at all. I prefer polished silver anyway...

__________________
'75 Fuji S-10S bought new, 52k+ miles and still going!
'84 Univega Gran Tourismo
'84 Univega Viva Sport
'86 Miyata 710
'90 Schwinn Woodlands
Huffy MTB - for trips to corner store
MTB of questionable lineage aka 'Mutt Trail Bike'
Cougrrcj is offline
Old 03-16-19, 07:29 PM
  #5
horatio
Hump, what hump?
Thread Starter

horatio's Avatar

Join Date: Dec 2003
Location: SC midlands
Posts: 1,197

Bikes: See signature

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 84 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Cougrrcj View Post
My '86 Miyata 710 has dark anodized rims as well.. They've worn the sides to a near-uniform silver in the 30+ years since. Do I miss the dark look? not at all. I prefer polished silver anyway...

Your rims look great, but I don't think I'll last another 30 years to wear mine in!
__________________
### 60cm Ciocc Designer '84 frameset to trade for something comparable in a 54-56 size ###

2010 AB T1X ** 2010 Cannondale SIX-5 ** 1989 Bianchi Brava ** 1988 Nishiki Olympic ** 1987 Centurion Ironman Expert(2) ** 1985 DeRosa Professional SLX ** 1982 Basso Gap ** 198? Ciocc Competition SL ** 19?? Roberts Audax ** 198? Brian Rourke ** 198? Mercian Olympic
horatio is offline
Old 03-16-19, 08:49 PM
  #6
ThermionicScott
hungry

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 17,938

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 63 Post(s)
Tagged: 0 Thread(s)
Quoted: 1812 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I don't think they look bad, honestly.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is online now
Old 03-16-19, 09:38 PM
  #7
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 6,370

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 66 Post(s)
Tagged: 0 Thread(s)
Quoted: 470 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

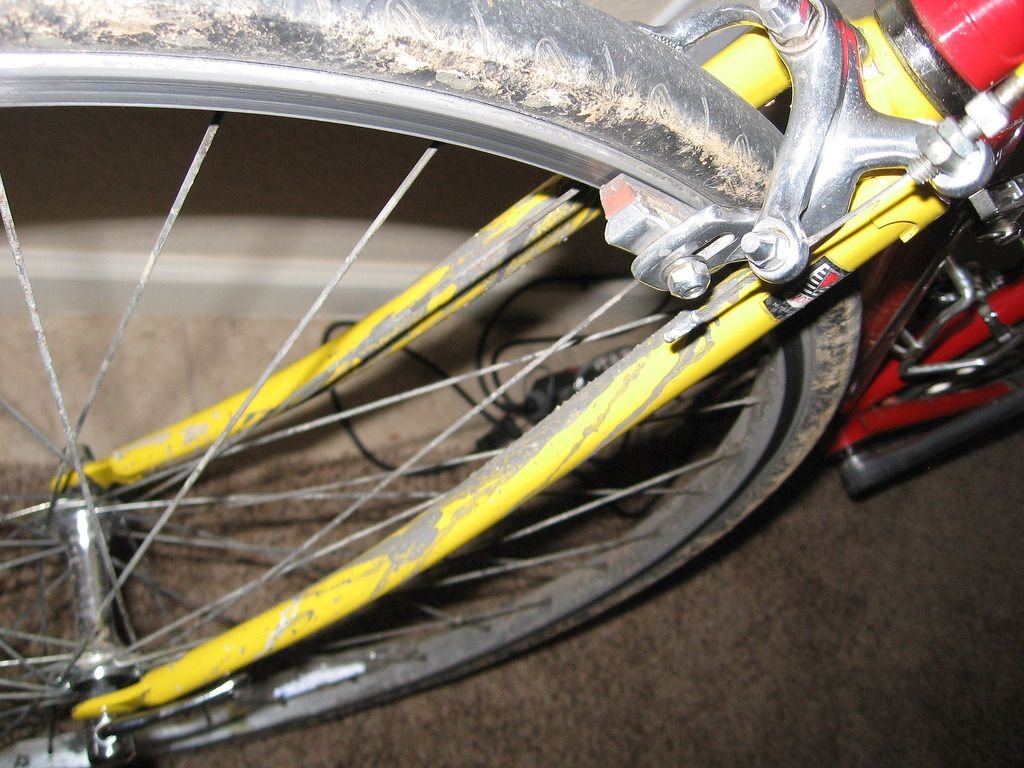

I've gone out riding in wet trail conditions to hasten the complete abrasion of rim surfaces, even adding some wet dirt to the rim sides and then braking while the rim is wet. It can go pretty quickly this way and the braking surface is left very uniform.
This rim suffered from uneven wear of the clear anodizing, which caused braking pulsation.

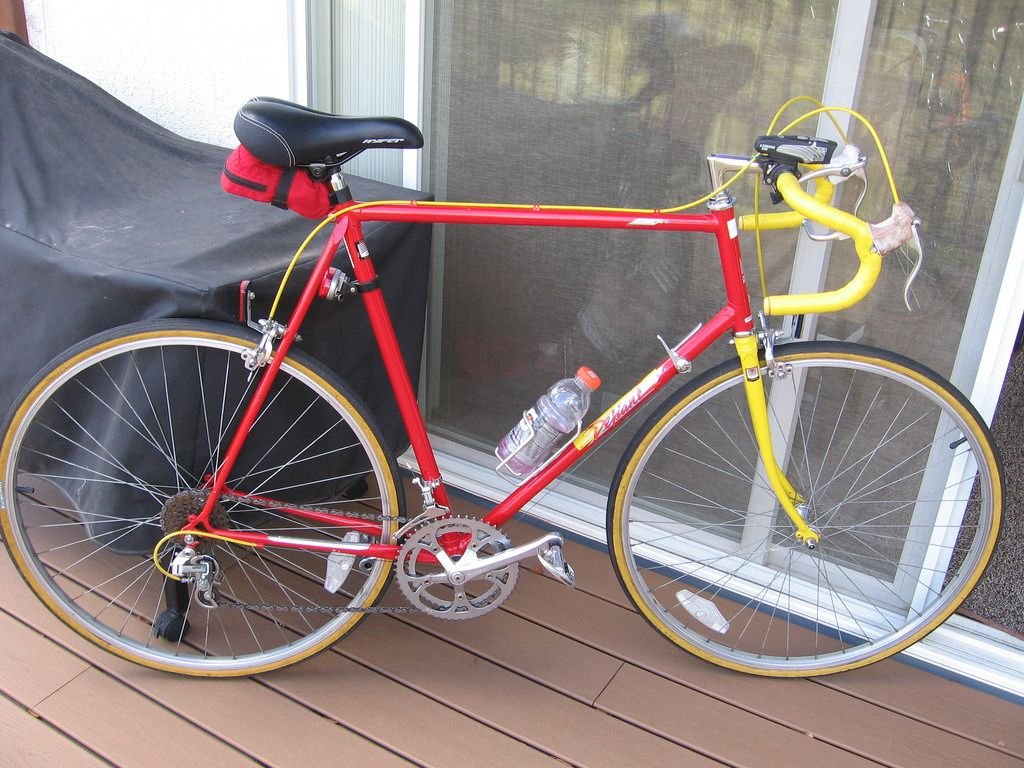

Not to worry, the bike cleaned up just fine (though in all honesty this is probably a "before" photo ).


Last edited by dddd; 03-16-19 at 09:48 PM.
dddd is offline
Old 03-16-19, 09:55 PM
  #8
nollo9871
Junior Member

nollo9871's Avatar

Join Date: Aug 2018
Location: NYC
Posts: 20

Bikes: 1987 Bianchi Super Leggera, 1986 Team Fuji, 1988 Trek 7000

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Try using fine steel wool and dishwashing soap to clean your rims, which is less abrasive than the steel wool you'd buy to scrub your pans. This also helps remove those unwanted water spots.
nollo9871 is offline
Old 03-16-19, 10:17 PM
  #9
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 6,370

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 66 Post(s)
Tagged: 0 Thread(s)
Quoted: 470 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by nollo9871 View Post
Try using fine steel wool and dishwashing soap to clean your rims, which is less abrasive than the steel wool you'd buy to scrub your pans. This also helps remove those unwanted water spots.
Steel wool is surprisingly ineffective at removing anodizing, I've used steel wool to remove logos from anodized stems and the anodizing itself shrugged off the steel wool attack without any hint that it was used. I believe that the O.P. wishes to remove what is left of the anodizing.
dddd is offline
Old 03-17-19, 04:55 AM
  #10
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 2,805

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 115 Post(s)
Tagged: 0 Thread(s)
Quoted: 458 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Steel wool will have NO effect of the anodized surface.

Anodizing is composed of Aluminum Oxide which is chemically and structurally the same as the Aluminum Oxide abrasive grit on sandpaper, sanding cloth and in grinding wheels.

The Knoop Hardness scale is used to measure very hard materials. Aluminum Oxide has a Knoop Hardness of ~2000.

Silicon Carbide the other common material used for sanding and grinding has a Knoop Hardness of ~2600. It's black or dark gray-green.

The crystals have sharp corners that break down in use to expose more sharp edges. It's used in applications that require a sharp grit that doesn't load up as much as Aluminum Oxide products do when used on soft materials like aluminum and other non-ferrous metals, wood, plastic etc. Also some hard materials.

Wet or Dry Silicon Carbide paper is available in a wide array of grit sizes. I'd start with 100 grit and concentrate on the anodized portions of the rim surface only. Use lots of water to flush away the swarf. It's going to be a lot of work.

BTW, as a comparison, the Knoop Hardness of Diamond ranges from 5000 to 10000. Vickers Hardness is another scale for testing hard materials.

@horatio I'd leave the rims go. The wear is testimony to years of pain!

verktyg
__________________
Things aren't always what they seem... Don't believe everything you think!

Chas. ;-)
verktyg is offline
Old 03-17-19, 05:37 AM
  #11
horatio
Hump, what hump?
Thread Starter

horatio's Avatar

Join Date: Dec 2003
Location: SC midlands
Posts: 1,197

Bikes: See signature

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 84 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by verktyg View Post
@horatio I'd leave the rims go. The wear is testimony to years of pain!

verktyg
So, I should wear them like a badge of honor?
__________________
### 60cm Ciocc Designer '84 frameset to trade for something comparable in a 54-56 size ###

2010 AB T1X ** 2010 Cannondale SIX-5 ** 1989 Bianchi Brava ** 1988 Nishiki Olympic ** 1987 Centurion Ironman Expert(2) ** 1985 DeRosa Professional SLX ** 1982 Basso Gap ** 198? Ciocc Competition SL ** 19?? Roberts Audax ** 198? Brian Rourke ** 198? Mercian Olympic
horatio is offline
Old 03-17-19, 06:23 AM
  #12
Shrevvy
Senior Member

Join Date: May 2017
Location: NE Ohio
Posts: 277

Bikes: 77 Trek TX900, 79 Trek 710, 81.5 Trek 950, 84 Schwinn Peloton, 88 Schwinn Premis, 85 Pinarello Montello, 88 Lemond Pro

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 109 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by verktyg View Post
Steel wool will have NO effect of the anodized surface.

Anodizing is composed of Aluminum Oxide which is chemically and structurally the same as the Aluminum Oxide abrasive grit on sandpaper, sanding cloth and in grinding wheels.

The Knoop Hardness scale is used to measure very hard materials. Aluminum Oxide has a Knoop Hardness of ~2000.

Silicon Carbide the other common material used for sanding and grinding has a Knoop Hardness of ~2600. It's black or dark gray-green.

The crystals have sharp corners that break down in use to expose more sharp edges. It's used in applications that require a sharp grit that doesn't load up as much as Aluminum Oxide products do when used on soft materials like aluminum and other non-ferrous metals, wood, plastic etc. Also some hard materials.

Wet or Dry Silicon Carbide paper is available in a wide array of grit sizes. I'd start with 100 grit and concentrate on the anodized portions of the rim surface only. Use lots of water to flush away the swarf. It's going to be a lot of work.

BTW, as a comparison, the Knoop Hardness of Diamond ranges from 5000 to 10000. Vickers Hardness is another scale for testing hard materials.

@horatio I'd leave the rims go. The wear is testimony to years of pain!

verktyg
This is taking the thread a bit off topic, but I am trying to clean up my first set of tubular rims. I was afraid of using something too abrasive for fear of damaging the rims. Sounds as if that is an unnecessary worry. Will steel wool take off the old dried glue? Is something else better? Iíve tried acetone and moneral spirits and neither have worked all that well.
Shrevvy is offline
Old 03-17-19, 07:50 AM
  #13
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 20,142

Bikes: Several, mostly not name brands.

Mentioned: 99 Post(s)
Tagged: 0 Thread(s)
Quoted: 1582 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by dddd View Post
I've gone out riding in wet trail conditions to hasten the complete abrasion of rim surfaces, even adding some wet dirt to the rim sides and then braking while the rim is wet. It can go pretty quickly this way and the braking surface is left very uniform.
The old Modolo "sinterized" brake pads can do this as well.
JohnDThompson is offline
Old 03-17-19, 08:27 AM
  #14
Dean51
Senior Member

Dean51's Avatar

Join Date: Feb 2016
Location: Olympic Peninsula, WA
Posts: 376

Bikes: '82 YKonno Allez, ~'80 Ron Cooper, '87 Ciocc Designer 84, '77 Schwinn Volare, '86 Tommasini Racing, Ciocc Mockba 80, '98 S-Works Hardtail Mtn., Nishiki Int'l Singlespeed

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 132 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I'm with @verktyg on this one....."The wear is testimony to years of pain!". It clearly demonstrates your bike is a rider, not a closet queen /wall hanger. I've got the same wear showing up on a set of Mavic Open 4CD's and I'm happy with it!

Dean
__________________
Roll Me Up and Smoke Me When I Die
Dean51 is offline
Old 03-17-19, 12:08 PM
  #15
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 6,370

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 66 Post(s)
Tagged: 0 Thread(s)
Quoted: 470 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by JohnDThompson View Post
The old Modolo "sinterized" brake pads can do this as well.
They must have had a quality-control issue, since my Sinterized pads repeatedly melted onto the Anodized sides of both MA40 and CTL370 rims.

Very frustrating, needed constant cleaning of the rims using wet Scotchbrite between the pad and rim as the bike was rolled forward with the brakes applied.

I coudn't throw those pads far enough away!

The wear pattern looks ok and indeed testifies to the rims getting a serious amount of use, though the rear rim looks like it gets most of the wear unless it is replaced more often than the front (as it often is).
dddd is offline
Old 03-17-19, 02:19 PM
  #16
stardognine
Turquoise gatherer.

stardognine's Avatar

Join Date: Jan 2016
Location: Arid Arizona, for now.
Posts: 1,328

Bikes: 1985 Cannondale ST400

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 260 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by horatio View Post
So, I should wear them like a badge of honor?
Also, depending on which way you look at them, they kinda sorta look tie-dyed, don't they? ✌️😁✌️
stardognine is offline
Old 03-18-19, 03:46 AM
  #17
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 2,805

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 115 Post(s)
Tagged: 0 Thread(s)
Quoted: 458 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Removing Rim Cement

Originally Posted by Shrevvy View Post
This is taking the thread a bit off topic, but I am trying to clean up my first set of tubular rims. I was afraid of using something too abrasive for fear of damaging the rims. Sounds as if that is an unnecessary worry. Will steel wool take off the old dried glue? Is something else better? Iíve tried acetone and moneral spirits and neither have worked all that well.
I saw a new product at a LBS last fall. It was about a 3" or 4" wheel that you mount on a drill or air grinder. It was supposed to work well. I'll check back with the LBS to see what the results were.

verktyg
__________________
Things aren't always what they seem... Don't believe everything you think!

Chas. ;-)
verktyg is offline
