Shimano Prototype Parts

Old 03-18-19, 08:23 PM
  #1
fleslider
Senior Member
Thread Starter

fleslider's Avatar

Join Date: Feb 2014
Location: Fort Collins, CO
Posts: 1,202

Bikes: 1974 Paramount ~ 1974 Raleigh Pro ~ 1977 Pro-Tour ~ 1978 TX900 ~ IronMan 85,87:E/M,88:M/Pro,89:E ~ 88/90/99 GT Avalanche~ 1992 Cannondale T1000 ~ 1992/94 Klein Pinnacle ~ 1998 Peugeot Festina Replica

Mentioned: 70 Post(s)
Tagged: 0 Thread(s)
Quoted: 340 Post(s)
Liked 0 Times in 0 Posts
Shimano Prototype Parts

I recently picked up a 1990 Diamond Back Expert TG, and the wheels are mismatched, the front was a Mavic rim with a Shimano RX100 Front hub, interestingly after i cleaned the hub enough, it has a prototype sticker on it, Looks old enough to be original , but got me thinking, how common is prototype parts out there in the wild.

Anybody have insight on how this happens and how common it is?

also if you have any post-em

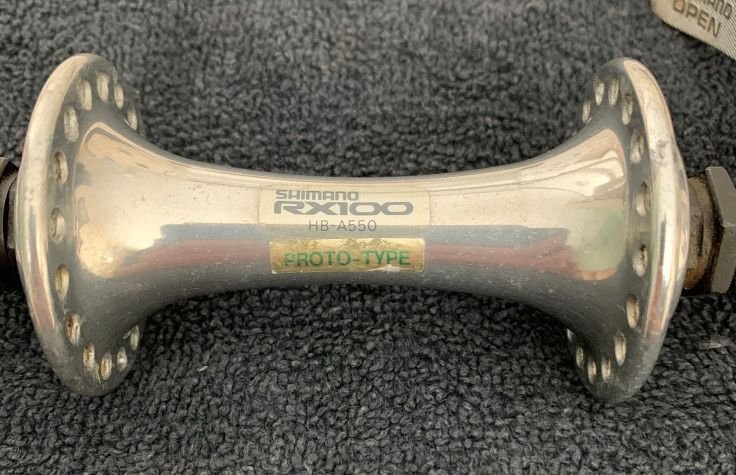

here is the RX100 f-hub

fleslider is offline
Old 03-18-19, 10:22 PM
  #2
RobbieTunes
Half drunk? Finish!

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 25,351
Mentioned: 32 Post(s)
Tagged: 1 Thread(s)
Quoted: 332 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I've never seen one.
__________________
Robbie ♪♫♪...☻
I have unfinished business.

RobbieTunes is offline
Old 03-18-19, 11:07 PM
  #3
Lascauxcaveman
Senior Member

Lascauxcaveman's Avatar

Join Date: Nov 2011
Location: Port Angeles, WA
Posts: 7,125

Bikes: A green one, "Ragleigh," or something.

Mentioned: 150 Post(s)
Tagged: 0 Thread(s)
Quoted: 1233 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Me neither. And the photo makes it look like the an "oyster" anodizing, which my RX100 components definitely do not have. Maybe it's an oyster clear coat, instead? I should check and see if I still have the rims that came with the 1990 Diamond Back Expert TG I flipped years ago.

Probably not anymore.
__________________
● 1971 Grandis SL ● 1972 Lambert Grand Prix frankenbike ● 1972 Raleigh Super Course fixie ● 1973 Nishiki Semi-Pro ● 1980 Apollo "Legnano" ● 1981 Miyata 1000 ● 1984 Bianchi Limited ● 1984 Nishiki Landau ● 1984 Peugeot Vagabond ● 1985 Trek 600 ● 1985 Shogun Prairie Breaker ● 1986 Univega Nuovo Sport ● 1986 Merckx Super Corsa ● 1987 Schwinn Tempo ● 1988 Schwinn Voyageur ● 1989 Trek 400 ● 1990 Cannondale ST600 ● 1993 Technium RT600 ● 1996 Kona Lava Dome ● And a Bike to Be Named Later ●
Lascauxcaveman is offline
Old 03-18-19, 11:15 PM
  #4
Mr. Spadoni
Senior Member

Join Date: Jan 2015
Posts: 217
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 84 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Likely came from a bike that was a sample for a trade show or other pre production use. Shimano would make parts available so bikes could be photographed or shown. Sometimes they were functional, some times not so much. If the hub is working after this long, you got a good prototype
Mr. Spadoni is offline
Old 03-18-19, 11:15 PM
  #5
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 6,370

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 66 Post(s)
Tagged: 0 Thread(s)
Quoted: 470 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I have an older style Shimano Hyperglide freehub body that has an aluminum outer shell. No, it's not anything like the 10s freehub bodies, this one mounts the normal way with the hollow bolt and shallow (Octalink?) type spline at the hubshell.
Came in a box of parts from a racer at a swapmeet in SoCal.
dddd is offline
Old 03-19-19, 10:46 AM
  #6
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,371
Mentioned: 400 Post(s)
Tagged: 1 Thread(s)
Quoted: 2297 Post(s)
Likes: 0
Liked 1 Time in 1 Post
In order to increase my confidence in a prototype, I would check for a date code stamp. It there isn't one it could be a prototype. If there is one, check to see if it pre-dates the first RX100 production runs, which would have been mid-1989. Around this time, Shimano typically stamped hub date codes on the spoke hole flanges.
T-Mar is offline
Old 03-19-19, 01:18 PM
  #7
Mr. Spadoni
Senior Member

Join Date: Jan 2015
Posts: 217
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 84 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

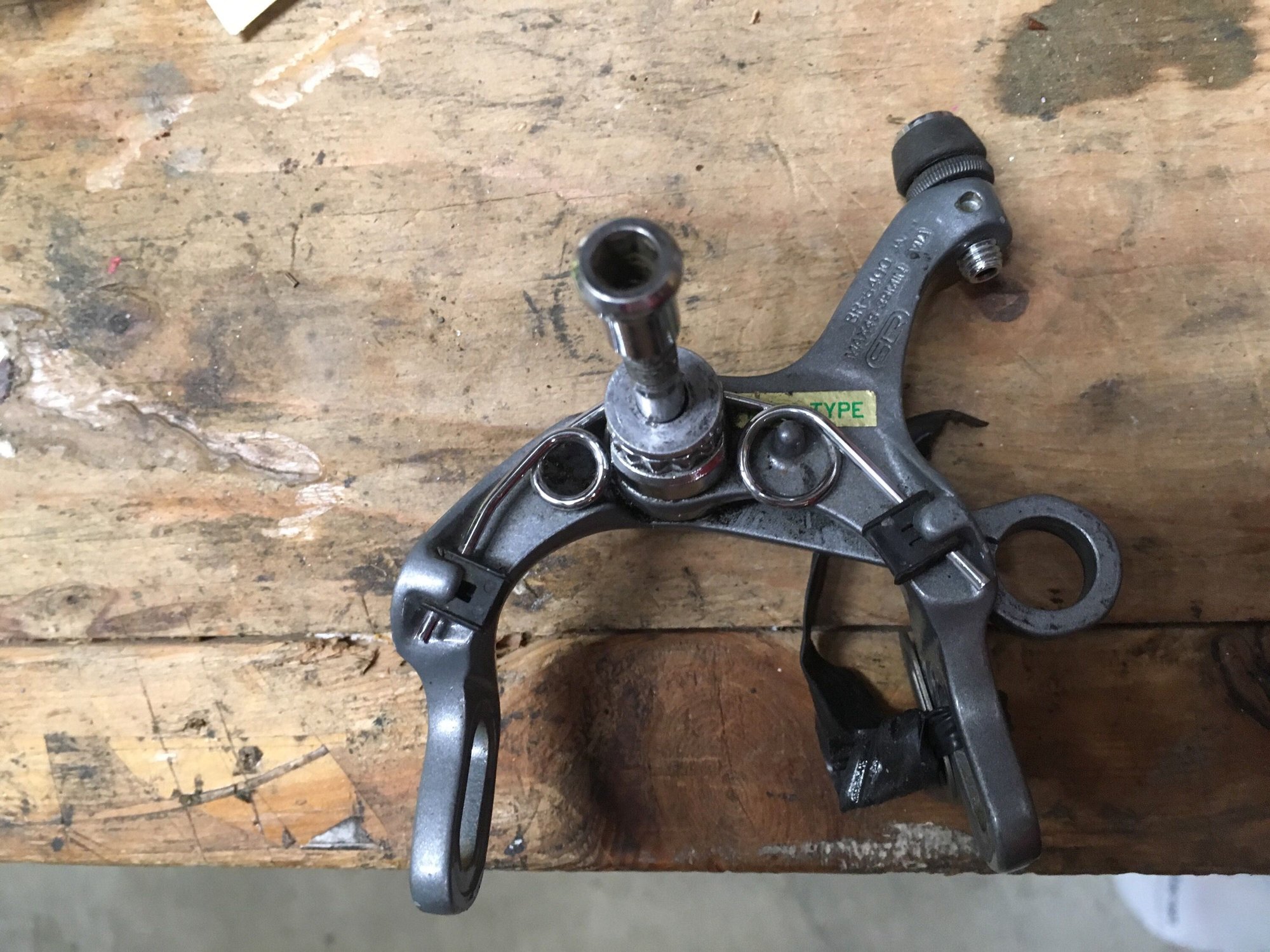

Here’s another proto part. Some bits are missing as they were used to repair other brakes, but I used these proto 6400s for years on my winter bike. These are painted. I think the production brakes are anodized?


Mr. Spadoni is offline
Old 03-19-19, 02:09 PM
  #8
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,371
Mentioned: 400 Post(s)
Tagged: 1 Thread(s)
Quoted: 2297 Post(s)
Likes: 0
Liked 1 Time in 1 Post
The subject caliper appears to have a JA date code, which would make it January 1985. 600 Ultegra didn't debut until the 1988 model year and wouldn't have been production prior to about mid-1987. So, a JA code on a BR-6400 caliper would be a legitimate prototype. However, my recollection is that the standard production finish was a grey electrostatic paint.
T-Mar is offline
Old 03-20-19, 11:03 PM
  #9
fleslider
Senior Member
Thread Starter

fleslider's Avatar

Join Date: Feb 2014
Location: Fort Collins, CO
Posts: 1,202

Bikes: 1974 Paramount ~ 1974 Raleigh Pro ~ 1977 Pro-Tour ~ 1978 TX900 ~ IronMan 85,87:E/M,88:M/Pro,89:E ~ 88/90/99 GT Avalanche~ 1992 Cannondale T1000 ~ 1992/94 Klein Pinnacle ~ 1998 Peugeot Festina Replica

Mentioned: 70 Post(s)
Tagged: 0 Thread(s)
Quoted: 340 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by T-Mar View Post
In order to increase my confidence in a prototype, I would check for a date code stamp. It there isn't one it could be a prototype. If there is one, check to see if it pre-dates the first RX100 production runs, which would have been mid-1989. Around this time, Shimano typically stamped hub date codes on the spoke hole flanges.
It looks like its NH, you were right it was on the outside of the hub flange.
N=1989
H-August
fleslider is offline
Old 03-21-19, 05:09 AM
  #10
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,371
Mentioned: 400 Post(s)
Tagged: 1 Thread(s)
Quoted: 2297 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by fleslider View Post
It looks like its NH, you were right it was on the outside of the hub flange.
N=1989
H-August
Typically, Shimano would have been into mass production of the 1990 model year components by August 1989. Consequently, the most likely scenario is that the label indicates a display item used at one of the trade shows. As such, it wouldn't be a true, pre-production prototype.
T-Mar is offline
Old 03-21-19, 10:29 AM
  #11
fleslider
Senior Member
Thread Starter

fleslider's Avatar

Join Date: Feb 2014
Location: Fort Collins, CO
Posts: 1,202

Bikes: 1974 Paramount ~ 1974 Raleigh Pro ~ 1977 Pro-Tour ~ 1978 TX900 ~ IronMan 85,87:E/M,88:M/Pro,89:E ~ 88/90/99 GT Avalanche~ 1992 Cannondale T1000 ~ 1992/94 Klein Pinnacle ~ 1998 Peugeot Festina Replica

Mentioned: 70 Post(s)
Tagged: 0 Thread(s)
Quoted: 340 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by T-Mar View Post
Typically, Shimano would have been into mass production of the 1990 model year components by August 1989. Consequently, the most likely scenario is that the label indicates a display item used at one of the trade shows. As such, it wouldn't be a true, pre-production prototype.
Makes sense, Thanks for the insight T-Mar!
