Record hubs: Is this the English groove?

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Record hubs: Is this the English groove?

Old 03-20-19, 08:32 PM
  #1
deux jambes
Senior Member
Thread Starter

deux jambes's Avatar

Join Date: Jul 2018
Location: Eugene, OR
Posts: 824
Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 299 Post(s)
Record hubs: Is this the English groove?

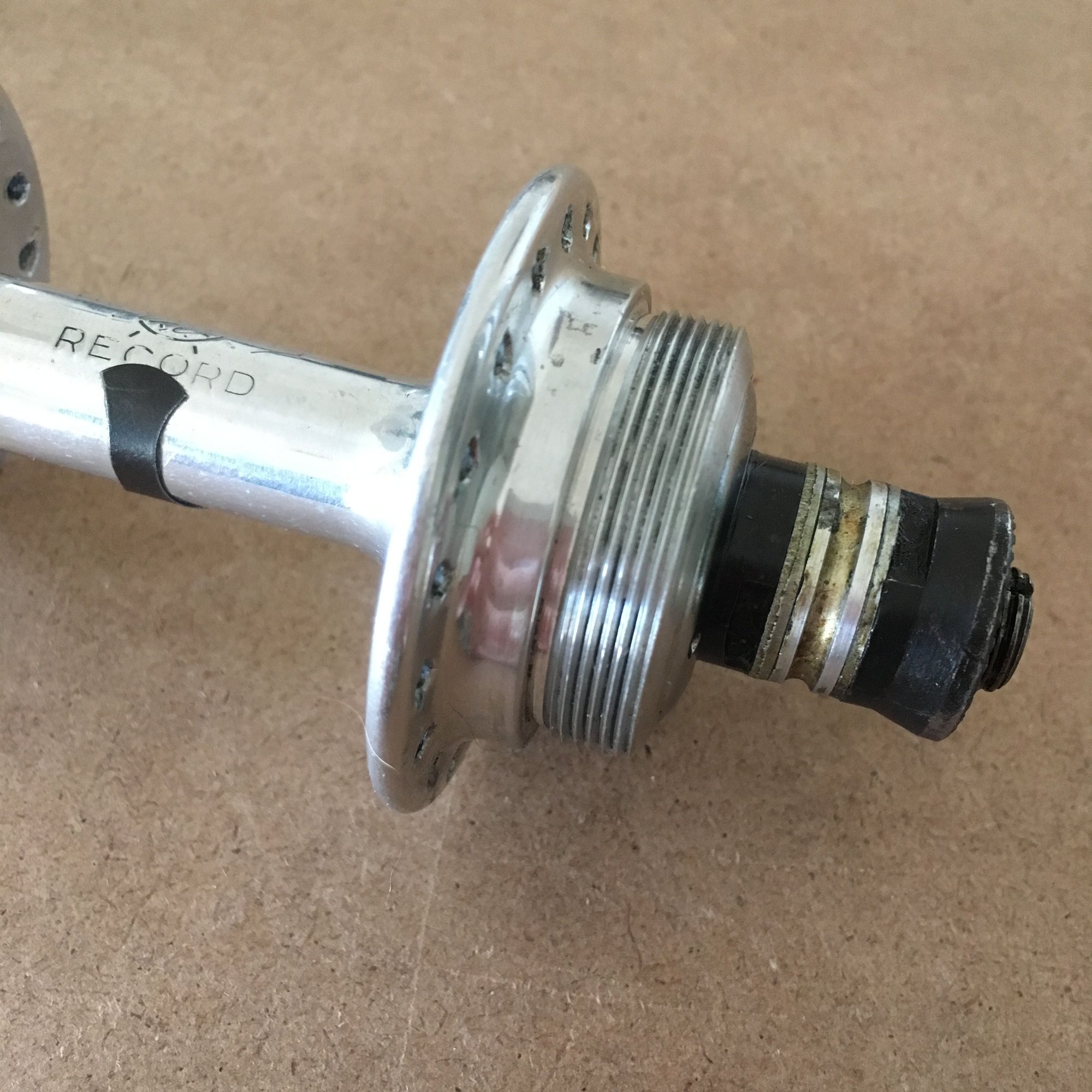

I hear that early hubs were without textual designation regarding thread pitch. And that in these cases no groove along the flange indicate either Italian or French threads while a single groove indicates English.

Just after the threading in the hub pictured here, is a groove. Is this the groove were talking about?


deux jambes is online now
Old 03-20-19, 08:45 PM
  #2
repechage
Senior Member

Join Date: Jun 2006
Posts: 13,245
Mentioned: 77 Post(s)
Tagged: 0 Thread(s)
Quoted: 900 Post(s)
That is Italian.
the grooves are machined beyond where the freewheel stops, between that and the spoke flange.
and yes the secret decoder is plain, Italian, one groove English, double groove French.
repechage is offline
Old 03-20-19, 08:46 PM
  #3
CV-6
If I own it, I ride it

CV-6's Avatar

Join Date: Nov 2005
Location: Cardinal Country
Posts: 4,745

Bikes: Lejeune, Raleigh, Raysport, Jan De Reus, Gazelle, Masi, B. Carr, Springfield, Motobecane, John Howard, Greg Lemond

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 289 Post(s)
Like this one...


20190320_214127 by L Travers, on Flickr
__________________
Lynn Travers

Photos
CV-6 is offline
Old 03-20-19, 08:57 PM
  #4
Hobbiano
Senior Member

Join Date: Sep 2014
Location: Baton Rouge La
Posts: 443
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 125 Post(s)
Another picture, borrowed from JohnDThompsons reply to a thread from 2009:

Hobbiano is offline
Old 03-20-19, 09:08 PM
  #5
deux jambes
Senior Member
Thread Starter

deux jambes's Avatar

Join Date: Jul 2018
Location: Eugene, OR
Posts: 824
Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 299 Post(s)
So... the recess directly behind the threads is a bit of machined relief in all versions. But further back from that, right at the base of the flange is where wed find a single narrow groove (English), two grooves (French), or no groove at all (Italian).

And while I was hoping that the hub I posted had English threading, a little detail I overlooked before buying, it turns out its Italian! No biggie. Ill make do with it...

Makes sense now. Thank you guys.

Last edited by deux jambes; 03-20-19 at 09:36 PM.
deux jambes is online now
Old 03-20-19, 09:37 PM
  #6
repechage
Senior Member

Join Date: Jun 2006
Posts: 13,245
Mentioned: 77 Post(s)
Tagged: 0 Thread(s)
Quoted: 900 Post(s)
Originally Posted by CV-6 View Post
Like this one...


20190320_214127 by L Travers, on Flickr
a correctly laced wheel too. Just the oil clip is on vacation.
repechage is offline
Old 03-21-19, 07:28 AM
  #7
nomadmax
Senior Member

Join Date: Jun 2018
Location: SW Ohio
Posts: 567
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 247 Post(s)
I've run English threaded freewheels on Campy Italian threaded hubs before with no problems.
nomadmax is offline
Old 03-21-19, 08:10 AM
  #8
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 20,134

Bikes: Several, mostly not name brands.

Mentioned: 99 Post(s)
Tagged: 0 Thread(s)
Quoted: 1580 Post(s)
Originally Posted by deux jambes View Post
[left]So... the recess directly behind the threads is a bit of machined relief in all versions. But further back from that, right at the base of the flange is where wed find a single narrow groove (English), two grooves (French), or no groove at all (Italian).
Almost. Both French and Italian thread hubs lack the incised groove:


Source: Sutherland's 4th Edition
JohnDThompson is offline
Old 03-21-19, 08:18 AM
  #9
SurferRosa
Senior Member

SurferRosa's Avatar

Join Date: Dec 2018
Posts: 596

Bikes: old school 531c & campy

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 250 Post(s)
Originally Posted by nomadmax View Post
I've run English threaded freewheels on Campy Italian threaded hubs before with no problems.
Me too, for the most part. With one italian threaded hub, I really had to work the standard freewheel back and forth the first time I threaded it. Had to use the park tool and a wrench to get it on. After I got it on the first time, it was fine.
