Switching to clinchers on the two C&V bikes

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Switching to clinchers on the two C&V bikes

Old 03-21-19, 02:57 PM
  #1
qcpmsame
Semper Fi
Thread Starter

qcpmsame's Avatar

Join Date: Jan 2008
Location: Barrineau Park, Florida
Posts: 12,318

Bikes: '80 Medici Pro Strada, '86 Tommasini Prestige, '12 CAAD 10 Ultegra

Mentioned: 81 Post(s)
Tagged: 0 Thread(s)
Quoted: 945 Post(s)
Switching to clinchers on the two C&V bikes

I'm giving in to old age and smaller income level with the two vintage rides I cherish. Both of my two steel wonders are going to be switched to clinchers from sew-ups. Looking for suggestions for rims to use, if you would please. Square profile, no v -type or deep alloy, much less a carbon fiber, is going on these two.

Details, No. 1, 1986 Tommasini Prestige, AiR chromed fork, pink colourway. No 2, 1980 Medici Pro Strada, no chrome socks, deep green colourway. Both are low flange Record hubs, 36 hole, 5- or 6-speed capable for both hub-sets, running five cog Regina Extra on both. Looking to use the hubs, and spokes if possible, with the new rims, but I will purchase fresh spokes to properly fit the right rims. Width wise I am planning to go no wider than 25 or possibly 28, if they fit stays and forks. 700c hoops, not looking to fall down the 650b or 27" rabbit holes for now. Silver colored, no black or anodized hoops desired.

Thanx in advance,

Semper Fi,
Bill
__________________
I Didn't Chose To Have Parkinson's Disease, I Have Chosen To Not Allow It To Define How I Live
Life Member "Hairy Eared Engineer's Society"
Semper Fi,! Its A Way Of Life.
qcpmsame is offline
Old 03-21-19, 03:06 PM
  #2
OTS
Senior Member

Join Date: Feb 2010
Location: Bloomington/Normal IL
Posts: 706
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 59 Post(s)
@qcpmsame
Hey Bill
Welcome back !
Good to hear from you
OTS is offline
Old 03-21-19, 03:54 PM
  #3
Choke
Disciple of St. Tullio

Choke's Avatar

Join Date: Jul 2008
Location: State of Jefferson
Posts: 458

Bikes: Ciöcc, Bianchi, DeRosa, Eddy Merckx, Frejus, Hampsten, Kondor, Losa, Magni, Pegoretti, Pelizzoli, Pogliaghi, Scapin

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 125 Post(s)
H+Son TB 14

Choke is offline
Old 03-21-19, 03:58 PM
  #4
SurferRosa
Senior Member

SurferRosa's Avatar

Join Date: Dec 2018
Posts: 596

Bikes: old school 531c & campy

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 250 Post(s)
Sun m13ii from ebay (or similar) and Sapim Race spokes from danscomp.

Use a razor to remove the ugly "m13ii" half from the rim label.
SurferRosa is offline
Old 03-21-19, 04:09 PM
  #5
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 21,917
Mentioned: 156 Post(s)
Tagged: 0 Thread(s)
Quoted: 8044 Post(s)
Keep an eye open for good used rims, or NOS rims or wheels. They pop up frequently, and could be much cheaper than buying/building new.

If you get whole wheels, then you can keep your original wheels (or sell them on).

Velo Orange sells a few rims that would match a vintage bike quite nicely.
https://velo-orange.com/collections/rims
CliffordK is offline
Old 03-21-19, 04:21 PM
  #6
retrofit
4.6692016090

retrofit's Avatar

Join Date: May 2007
Location: Monterey Peninsula, California
Posts: 1,579

Bikes: yes

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 18 Post(s)

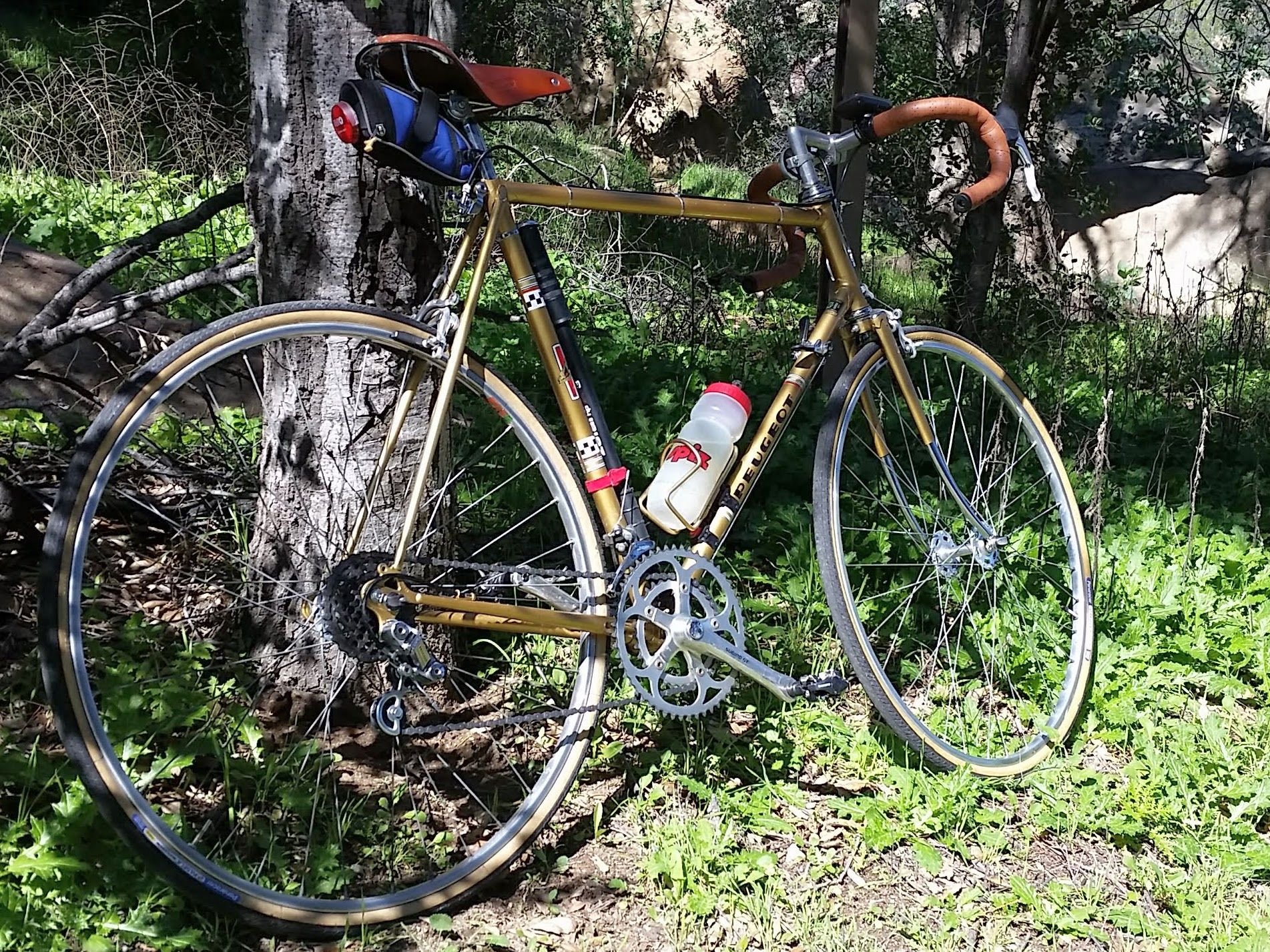

Second on the H+Son TB 14. Just had a pair built with Record 36H hubs:

retrofit is offline
Old 03-21-19, 04:23 PM
  #7
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Fort Wayne, In
Posts: 25,511

Bikes: Too many to list here check my signature.

Mentioned: 89 Post(s)
Tagged: 2 Thread(s)
Quoted: 1180 Post(s)
Hello and Welcome back!! Unless you want something fancy I'd just use some Sun CR-18 rims. They are just a good basic silver dual wall rim with eyelets. I had a pair built for my Hetchins and I thought they looked grand. The wheels now reside on my Volpe though



Lots of changes racks fenders, stem. I thought the Celeste fenders would be cool but then I didn't like them.
__________________
Bianchis '87 Sport SX, '90 Proto, '90 Campione del Fausto Giamondi Specialisma Italiano Mundo, '91 Boarala 'cross, '93 Project 3, '86 Volpe, '97 Ti Megatube, , '90 something Vento 603,

Others but still loved,; '80 RIGI, '80 Batavus Professional, '87 Cornelo, '09 Motobecane SOLD, '?? Jane Doe (still on the drawing board), '90ish Haro Escape
Bianchigirll is offline
Old 03-21-19, 04:48 PM
  #8
davester
Senior Member

davester's Avatar

Join Date: Oct 2012
Location: Berkeley CA
Posts: 1,453

Bikes: 1981 Ron Cooper, 1974 Cinelli Super Corsa, 2000 Gary Fisher Sugar 1, 1986 Miyata 710, 1983 Nishiki Cresta

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 363 Post(s)
I third the TB14s, especially if you're going to be building them yourself. They are very true and easy to work with.
davester is offline
Old 03-21-19, 05:15 PM
  #9
qcpmsame
Semper Fi
Thread Starter

qcpmsame's Avatar

Join Date: Jan 2008
Location: Barrineau Park, Florida
Posts: 12,318

Bikes: '80 Medici Pro Strada, '86 Tommasini Prestige, '12 CAAD 10 Ultegra

Mentioned: 81 Post(s)
Tagged: 0 Thread(s)
Quoted: 945 Post(s)
I'll be building them myself, thanks for these suggestions so far. I like those Sun that BG has posted, and the others look promising too. The thought about watching for some vintage rims was my first thought, its how all of my tubulars have been built to date. No problems with using some old rims, as long as they pass inspection of course.

Keep the ideas flowing, I appreciate the input muchlys y'all.

Semper Fi,
Bill
__________________
I Didn't Chose To Have Parkinson's Disease, I Have Chosen To Not Allow It To Define How I Live
Life Member "Hairy Eared Engineer's Society"
Semper Fi,! Its A Way Of Life.
qcpmsame is offline
Old 03-21-19, 07:11 PM
  #10
Slightspeed
Senior Member

Slightspeed's Avatar

Join Date: Apr 2017
Location: Los Angeles, CA
Posts: 1,298

Bikes: 1964 Legnano Roma, 1973 Raleigh Super Course, 1978 Raleigh Super Course, 1978 Peugeot PR10, 2002 Specialized Allez, 2007 Specialized Roubaix, 2013 Culprit Croz Blade

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 402 Post(s)

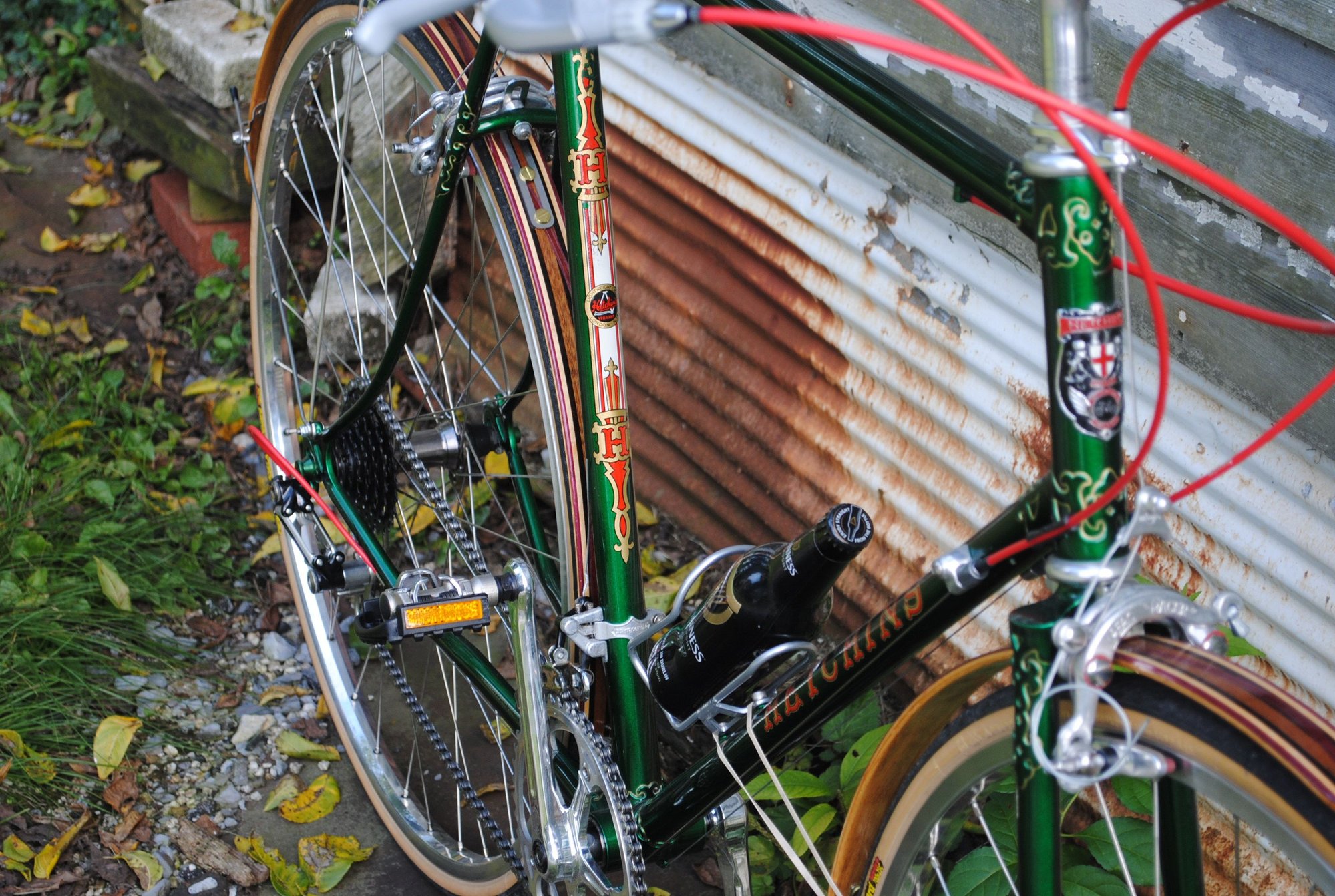

I just had a set of CR18s laced to a pair of Legnano branded high flange Campys. I did a 46 mile ride on Tuesday, even hit a 4 inch California pot hole, and the wheels are still round and true. The brake tracks are kind of tall compared to most vintage rims, but the improved braking from clean straight brake tracks is appreciated. At $71 per pair, shipped, I'm very happy. The logos are kind of big, but are easily removed stickers. They work very well with Pasela 28s.


Slightspeed is offline
Old 03-21-19, 07:40 PM
  #11
ThermionicScott
hungry

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 17,925

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 63 Post(s)
Tagged: 0 Thread(s)
Quoted: 1808 Post(s)
If you enjoyed the lightweight feel of tubular wheels, I think you might end up slightly disappointed if you got or built a wheelset around heavy rims. (This is not a knock on anyone's choices, just bringing it up as a consideration.)

Mavic still makes the Open Pro (not to be confused with the newer Open Pro UST), which are decently light and borderline C&V (introduced 1986, 435g.)

Pacenti's Brevet rims have a nice rounded box section and are clear anodized (look polished). They're around 450g. Their width allows skinnier clinchers to puff out and feel more cushy, much like the H+Son TB14.

The Sun M13II mentioned upstream are inexpensive but very much in the style of the Rigida 1320. So about the same weight as the above two, but narrower, especially between the bead hooks.

Of those, it's possible that the M13II would build up on the same spokes as your old tubular wheels, but I won't guarantee it!
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498

Last edited by ThermionicScott; 03-21-19 at 07:47 PM.
ThermionicScott is online now
Old 03-21-19, 08:26 PM
  #12
nomadmax
Senior Member

Join Date: Jun 2018
Location: SW Ohio
Posts: 567
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 247 Post(s)
I'm with him ^

490 grams per rim is wagon wheel territory.
nomadmax is offline
Old 03-21-19, 08:41 PM
  #13
Danbianchi881
Senior Member

Danbianchi881's Avatar

Join Date: Jan 2015
Location: Michigan
Posts: 486

Bikes: Too many to list

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 69 Post(s)
Welcome back!! I hope your doing well?
you have been a off BF for a bit
Danbianchi881 is offline
Old 03-21-19, 09:17 PM
  #14
squirtdad
Senior Member

squirtdad's Avatar

Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 5,936

Bikes: 90/91 De Rosa, '84 Team Miyata, '82 nishiski,

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 741 Post(s)
get good tires....... the uk bike shops have some deals like this

Vittoria 2 Corsa G+ Isotech Tyres & 2 Free Tubes $103

https://www.chainreactioncycles.com/us/en/vittoria-2-corsa-g-isotech-tyres-2-free-tubes/rp-prod172921

Vittoria Cors a G+ Graphene 23c Tyres - Pair $98

https://www.chainreactioncycles.com/us/en/vittoria-corsa-g-graphene-23c-tyres-pair/rp-prod183124

this is for 23's but have gotten 28's
__________________
Looking for Torpado Superlight 58cm
squirtdad is offline
Old 03-21-19, 11:45 PM
  #15
Lascauxcaveman
Senior Member

Lascauxcaveman's Avatar

Join Date: Nov 2011
Location: Port Angeles, WA
Posts: 7,123

Bikes: A green one, "Ragleigh," or something.

Mentioned: 150 Post(s)
Tagged: 0 Thread(s)
Quoted: 1233 Post(s)
Hi, Bill! Welcome back. Good to see you around again.
__________________
● 1971 Grandis SL ● 1972 Lambert Grand Prix frankenbike ● 1972 Raleigh Super Course fixie ● 1973 Nishiki Semi-Pro ● 1980 Apollo "Legnano" ● 1981 Miyata 1000 ● 1984 Bianchi Limited ● 1984 Nishiki Landau ● 1984 Peugeot Vagabond ● 1985 Trek 600 ● 1985 Shogun Prairie Breaker ● 1986 Univega Nuovo Sport ● 1986 Merckx Super Corsa ● 1987 Schwinn Tempo ● 1988 Schwinn Voyageur ● 1989 Trek 400 ● 1990 Cannondale ST600 ● 1993 Technium RT600 ● 1996 Kona Lava Dome ● And a Bike to Be Named Later ●
Lascauxcaveman is offline
Old 03-22-19, 06:59 AM
  #16
USAZorro
Señor Member

USAZorro's Avatar

Join Date: Oct 2004
Location: Florence, KY
Posts: 16,145

Bikes: Mostly English - predominantly Raleighs

Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 675 Post(s)
Welcome home.

CR-18s are great rims to put on a wheel that will be under a lot of stress (poor road surfaces, a heavy rider, or carrying an extra load).

The other, lighter choices are fine also. I've built one set each of the M-13's and the TB-14's, but haven't put a lot of mileage on them. Both were relatively easy to work with, and I didn't have any issues fitting relatively high-volume tires on them.
__________________
In search of what to search for.
USAZorro is offline
Old 03-22-19, 08:02 AM
  #17
jeirvine
Senior Member

jeirvine's Avatar

Join Date: Sep 2011
Location: Bethesda/Baltimore MD
Posts: 3,072

Bikes: '72 Moto Grand Record, '72 Gitane tandem, '72 Raleigh Super Course, '73 Raleigh Gran Sport, '73 and '76 Colnagos Super, '76 Fiorelli Coppi, '78 Raleigh SBDU Team Pro, '78 Trek 930, '81 Holdsworth Special 650B, '86 Masi GC, '87 Panasonic DX5000

Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 372 Post(s)
Vintage clincher rims (70's and before) will generally be weaker than modern rims, and often had no bead hook, so are not suitable for higher pressure tires. Used 80's clincher rims would probably be fine.
__________________
The man who dies with the most toys…is dead. - Rootboy
jeirvine is offline
Old 03-22-19, 09:17 AM
  #18
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 1,398

Bikes: 69 PX-10, 81 Medici, 84 Turbo, 87 IM, 2010 Milwaukee Road, 2011 RS

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 475 Post(s)
1.) My 81 Pro Strada won't fit 28s between the chain stays. So check first.
2.) Most any clincher rim will want shorter spokes than what you have (but you probably know that).

I vote for Open Pros or Ambrosio rims. Cerchio bici: Ambrosio Excellence - Ambrosio Wheels Excellights will be my next clincher rims. I suppose you can get used to wider rims on your 80s racing classics, but I think they are more appropriate on older or all purpose bikes for even wider tires.

Shouldn't we have pictures of this Tommasini and Medici?

Last edited by Classtime; 03-22-19 at 09:20 AM. Reason: added link
Classtime is offline
Old 03-22-19, 10:04 AM
  #19
Road Fan
Senior Member

Road Fan's Avatar

Join Date: Apr 2005
Location: Ann Arbor, MI
Posts: 13,984

Bikes: 1980 Masi, 1984 Mondonico, 1984 Trek 610, 1980 Woodrup Giro, 2005 Mondonico Futura Leggera ELOS, 1967 PX10E, 1971 Peugeot UO-8

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 714 Post(s)
Originally Posted by qcpmsame View Post
I'm giving in to old age and smaller income level with the two vintage rides I cherish. Both of my two steel wonders are going to be switched to clinchers from sew-ups. Looking for suggestions for rims to use, if you would please. Square profile, no v -type or deep alloy, much less a carbon fiber, is going on these two.

Details, No. 1, 1986 Tommasini Prestige, AiR chromed fork, pink colourway. No 2, 1980 Medici Pro Strada, no chrome socks, deep green colourway. Both are low flange Record hubs, 36 hole, 5- or 6-speed capable for both hub-sets, running five cog Regina Extra on both. Looking to use the hubs, and spokes if possible, with the new rims, but I will purchase fresh spokes to properly fit the right rims. Width wise I am planning to go no wider than 25 or possibly 28, if they fit stays and forks. 700c hoops, not looking to fall down the 650b or 27" rabbit holes for now. Silver colored, no black or anodized hoops desired.

Thanx in advance,

Semper Fi,
Bill
Bill! Welcome back, I didn't hear you come in! Usually the screen door slams

Except for some light consulting, I'm retired!

As far as rims go, I'd look for used Mavic GP4 if you like tubular or MA-40 if you like clinchers. I've had good durability with both types. They are both dark anodized, but are contemporary with your bikes. My experience in exchanging GP-4 wheels with MA-40 wheels is that the brakes do not even have to be re-adjusted. The GP-4s are very rugged, having been designed as training rims. Both weight about the same, 430 grams each give or take.

I have three frames of that vintage (or a little later), 1980 Masi, 1984 ish Mondonico, and 2005 Mondonico, and they can all accept 27 mm tubulars using those rims or compatible ones.

Careful with the "5/6" idea. 5-speeds with their standard chains were originally for 120 mm frame widths, and 126 mm was to accommodate making a 6-speed by just adding another cog with the same width of chain. You can put a 5 on a bike with 126 mm OLD, but not the other way unless you are using a so-called Ultra-6 type of cassette and a narrower chain. In Campy, the hubs were the same except or a longer axle and longer QR. The built wheels have more dish in the 126 mm configurations, but the same chainline specification (41.5 mm?).

They sound like good projects!
Road Fan is offline
Old 03-22-19, 10:07 AM
  #20
ThermionicScott
hungry

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 17,925

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 63 Post(s)
Tagged: 0 Thread(s)
Quoted: 1808 Post(s)
Originally Posted by Classtime View Post
1.) My 81 Pro Strada won't fit 28s between the chain stays. So check first.
2.) Most any clincher rim will want shorter spokes than what you have (but you probably know that).

I vote for Open Pros or Ambrosio rims. Cerchio bici: Ambrosio Excellence - Ambrosio Wheels Excellights will be my next clincher rims. I suppose you can get used to wider rims on your 80s racing classics, but I think they are more appropriate on older or all purpose bikes for even wider tires.
Those Excellights look very Open Pro-ish.

Shouldn't we have pictures of this Tommasini and Medici?
+1!
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is online now
Old 03-22-19, 10:08 AM
  #21
Road Fan
Senior Member

Road Fan's Avatar

Join Date: Apr 2005
Location: Ann Arbor, MI
Posts: 13,984

Bikes: 1980 Masi, 1984 Mondonico, 1984 Trek 610, 1980 Woodrup Giro, 2005 Mondonico Futura Leggera ELOS, 1967 PX10E, 1971 Peugeot UO-8

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 714 Post(s)
Originally Posted by Bianchigirll View Post
Hello and Welcome back!! Unless you want something fancy I'd just use some Sun CR-18 rims. They are just a good basic silver dual wall rim with eyelets. I had a pair built for my Hetchins and I thought they looked grand. The wheels now reside on my Volpe though



Lots of changes racks fenders, stem. I thought the Celeste fenders would be cool but then I didn't like them.
A dyed-in-the-wool Bianchi fan recognizes that as a color, Celeste does not go with everything!
Road Fan is offline
Old 03-22-19, 10:17 AM
  #22
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: West Village, New York City
Posts: 36,742

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1973 Raleigh Twenty, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 399 Post(s)
Tagged: 0 Thread(s)
Quoted: 5172 Post(s)
Good to see you here, Bill. CR18 rims are high quality but heavy. That may or may not matter to you.
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Old 03-22-19, 10:21 AM
  #23
Road Fan
Senior Member

Road Fan's Avatar

Join Date: Apr 2005
Location: Ann Arbor, MI
Posts: 13,984

Bikes: 1980 Masi, 1984 Mondonico, 1984 Trek 610, 1980 Woodrup Giro, 2005 Mondonico Futura Leggera ELOS, 1967 PX10E, 1971 Peugeot UO-8

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 714 Post(s)
Dooohhhh! I just read your title! So let me amend my recommendations, to: If you want vintage rims, look for the Mavic MA-40s. In new product I have good expereince as well with the Sun CR 18, though it is wider (18 mm rather than 14 mm). The newer Mavic Open Pro, Sun M13, and most other clincher road rims are 14 mm or 13 mm width. The CR-18s will require a wider brake setting. No experience here with the H Son products, but I do not prefer a heavy look on wispy-looking road frames.
Road Fan is offline
Old 03-22-19, 01:57 PM
  #24
Wileyone
Senior Member

Wileyone's Avatar

Join Date: Oct 2014
Location: GWN
Posts: 1,956
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 1038 Post(s)
For what your going to pay for a decent wheelset you could probably buy 3 sets of decent tubulars.
Merlin in the UK have the best prices. I would stick with the tubs.
You won't find a clincher that rides as well as these Veloflexes.

https://www.merlincycles.com/velofle...re-102404.html

Last edited by Wileyone; 03-22-19 at 02:40 PM.
Wileyone is offline
Old 03-22-19, 05:50 PM
  #25
Slightspeed
Senior Member

Slightspeed's Avatar

Join Date: Apr 2017
Location: Los Angeles, CA
Posts: 1,298

Bikes: 1964 Legnano Roma, 1973 Raleigh Super Course, 1978 Raleigh Super Course, 1978 Peugeot PR10, 2002 Specialized Allez, 2007 Specialized Roubaix, 2013 Culprit Croz Blade

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 402 Post(s)
Besides the CR18s on my blue Legnano above, I second the MA40 recommendation. I have the dark anodized ones on my Raleigh, and the red diamond labels on my Peugeot. I wasn't sure about the dark anodize, but got the wheels free from a good friend, so I couldn't refuse. They do look good with the dark bike and Paselas. I was leery of Mavic, having had cracks around spoke holes on a 2007 Roubaix with OEM Mavic Open Sports, but so far so good with the MA40s. I have over 2500 miles on the Raleigh including a couple of gravel rides with no issues.

Slightspeed is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
