Tell me about Cycles Bazou (old, French)

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Tell me about Cycles Bazou (old, French)

Old 03-26-19, 10:51 AM
  #1
TenGrainBread
Senior Member
Thread Starter

TenGrainBread's Avatar

Join Date: Sep 2015
Location: Madison, WI
Posts: 1,497
Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 551 Post(s)
Tell me about Cycles Bazou (old, French)

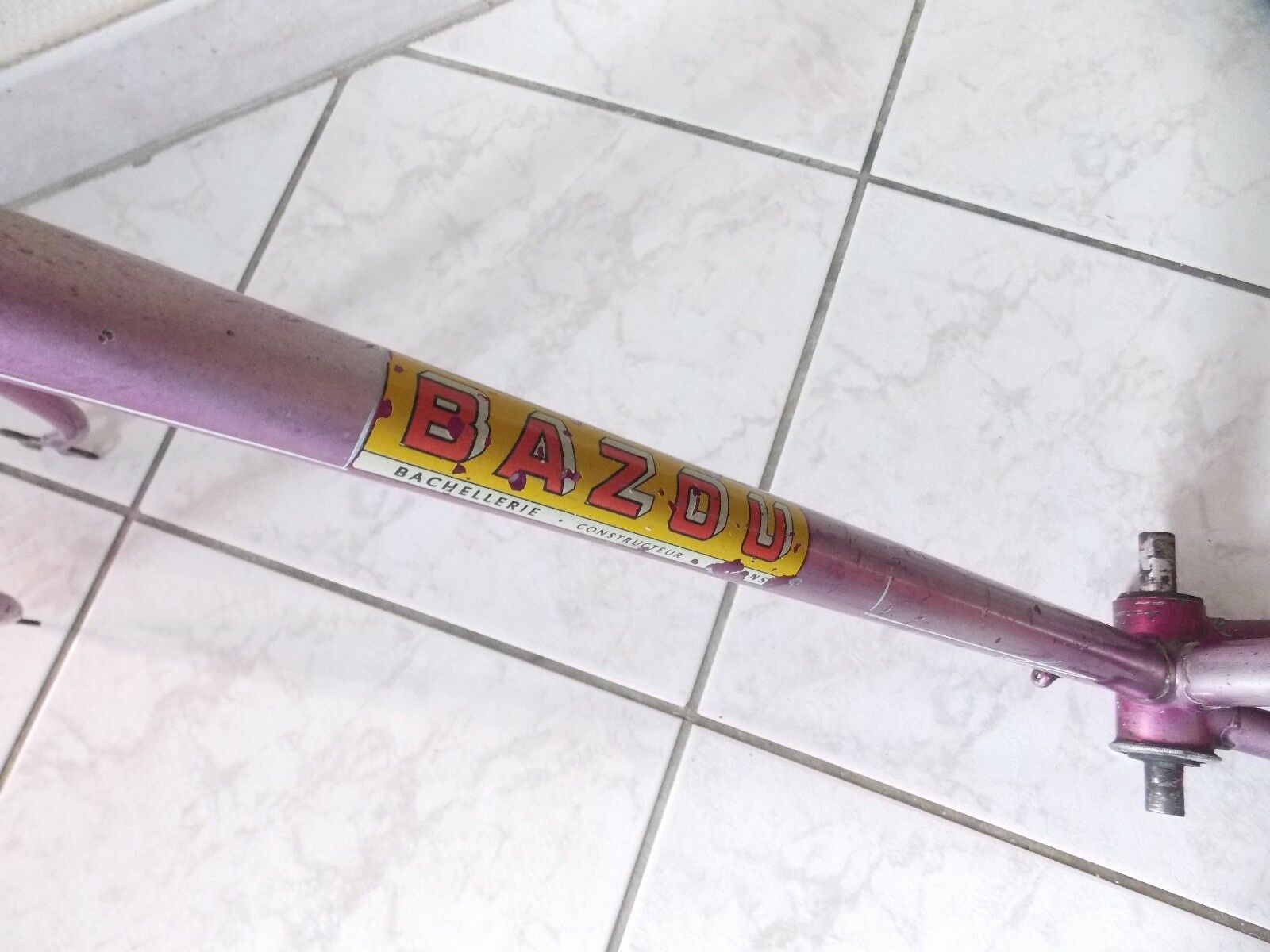

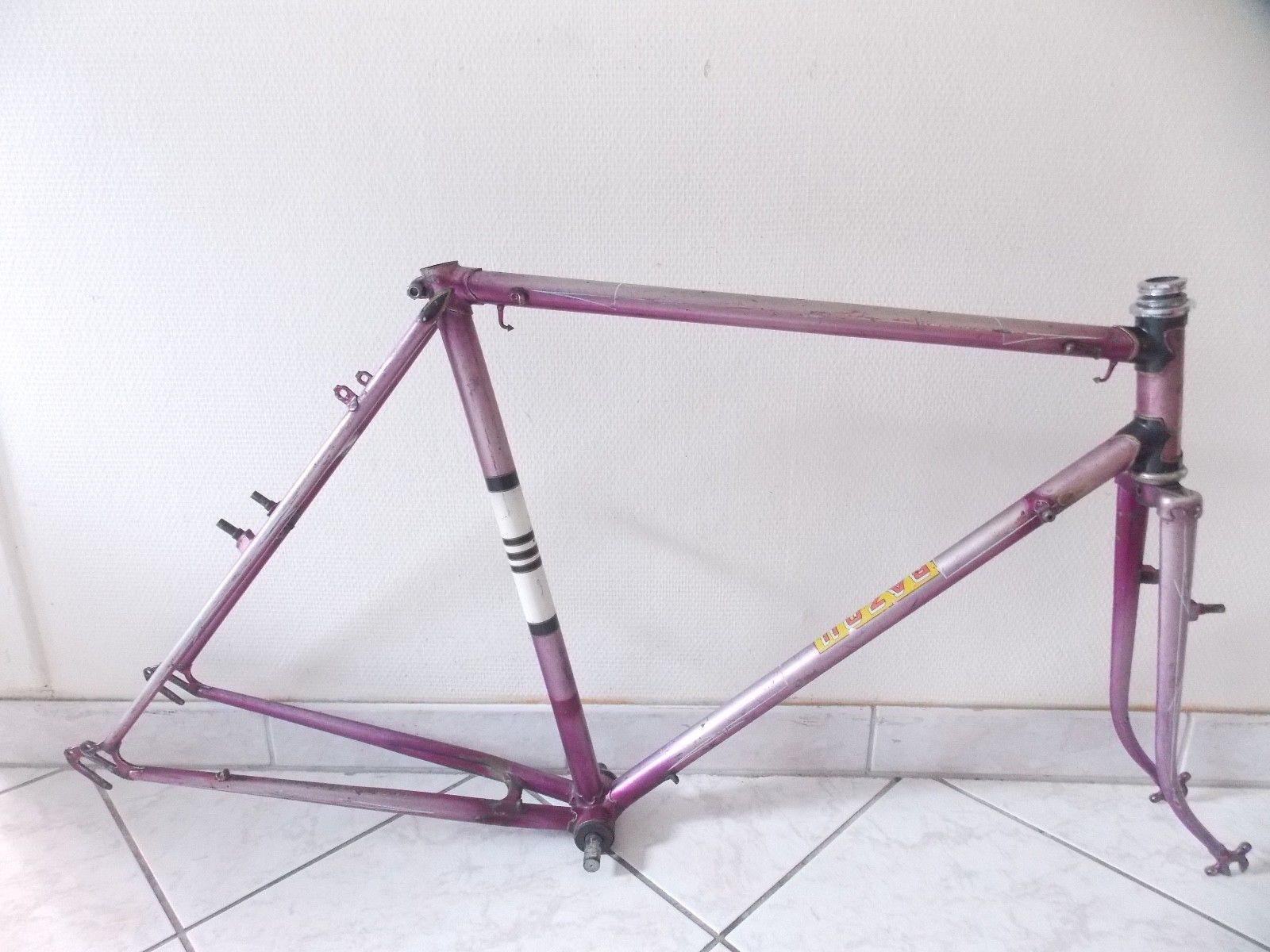

I wanted a pre-70s project so I picked up this frame for 50 euros on ebay.fr. The internet isn't telling me much about Bazou. From what I can tell Pierre Bachellerie was a former racer who owned a bike shop in Lyon, and this was the shop brand. No info from the seller.

Any idea who made these? And when it's from? This frame looks 50s/60s. Cantilever and rack mounts and what looks like wide clearances, so more on the cyclotouring side, possibly 650b. I'll have it in hand in a couple of weeks probably so I can measure dropout spacing, threading, wheel size, etc...



@juvela
TenGrainBread is offline
Old 03-26-19, 03:03 PM
  #2
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 7,814
Mentioned: 190 Post(s)
Tagged: 1 Thread(s)
Quoted: 1525 Post(s)
-----

Yes, it is certainly a contract build.

Have seen this paint scheme previously.

It is from one of the "big five" producers.

Curved chainstay bridge a clue. It is the open type. Both open and closed were produced with an option of a flange on the closed models.

Is seat stay bridge curved as well?

You mention "50's-'60's"; it is definitely '60's rather than '50's.

Ends set is NERVEX.

Shell looks Gargatte Freres.

Lug pattern looks to be BOCAMA 30-series. Would need to see view from front for a specific model. May be something like 30/I.

Pump pegs are NERVEX Nr. 845.

Tubeset will be metric dimension. Steerer and shell thread will be metric. Ex-works spacing would have been 96mm front and 120mm rear.

Pillar size likely 25.4mm...or if you are fortunate 25.8mm.

The black oxide bottom bracket set looks to be REWAX MD. You may find this marking on spindle ends.

Headset unlikely to bear marking. If you wish an ID you can compare it to those at VB with some of these names: Gourgaud, REWAX, RGF, BADOR

Seat binder appears ALGI or possibly EJAC (Etablissements Jeunehomme).

Currently leaning toward a Mercier heritage.

-----

Last edited by juvela; 03-28-19 at 04:52 PM. Reason: addition
juvela is online now
Old 03-26-19, 04:41 PM
  #3
TenGrainBread
Senior Member
Thread Starter

TenGrainBread's Avatar

Join Date: Sep 2015
Location: Madison, WI
Posts: 1,497
Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 551 Post(s)
@juvela More pictures from seller.


TenGrainBread is offline
Old 03-26-19, 05:00 PM
  #4
KenNC
Senior Member

KenNC's Avatar

Join Date: Oct 2013
Posts: 191
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
I think that is a really neat project, look forward to seeing what you do with it!
KenNC is offline
Old 04-15-19, 04:53 PM
  #5
TenGrainBread
Senior Member
Thread Starter

TenGrainBread's Avatar

Join Date: Sep 2015
Location: Madison, WI
Posts: 1,497
Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 551 Post(s)
Received the frameset today. Everything is straight and in good shape besides some paint nicks here and there.

123mm rear dropout spacing, 92 front spacing. Brazed on shift boss for a rear derailleur EDIT: looks like a normal Huret boss with French threads.

Headset is dirty but in great shape. No markings on steerer once fork was pulled. The frame isn't featherlight but no slouch either.
@juvela

Last edited by TenGrainBread; 04-15-19 at 06:56 PM.
TenGrainBread is offline
Old 04-15-19, 04:55 PM
  #6
TenGrainBread
Senior Member
Thread Starter

TenGrainBread's Avatar

Join Date: Sep 2015
Location: Madison, WI
Posts: 1,497
Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 551 Post(s)

TenGrainBread is offline
Old 04-15-19, 04:56 PM
  #7
TenGrainBread
Senior Member
Thread Starter

TenGrainBread's Avatar

Join Date: Sep 2015
Location: Madison, WI
Posts: 1,497
Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 551 Post(s)


TenGrainBread is offline
Old 04-16-19, 06:52 PM
  #8
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 7,814
Mentioned: 190 Post(s)
Tagged: 1 Thread(s)
Quoted: 1525 Post(s)
-----

Hello Again Grainy,

Thank you for the additional imagery and information.

The biggest clue for me as to actual manufacturer is the specific pattern of black and white bands on the seat tube.

Have seen it previously but am "fuzzy" as to the marque. Want to say it is one of those belonging to Mercier but am unsure.

Perhaps another reader will recognize it...

One avenue for exploration you may wish to pursue would be to look at as many different mid-1960's French machines as you can find to see if you can locate another with these bands.

Have not before seen this most distinctive seatstay bridge. NERVEX had a series which were somewhat similar but not matches.

---

Shift lever braze-on -

have not encountered one without threads.

frame has housing stop at south end of downtube for a cable operated front mech.

this tells us shift lever arrangement would have been one of those which is clamp-on for the front mech control paired with braze-on for the rear mech control.

both Juy and Freres Huret made shift lever sets of this pattern.

---

Some other examples found -

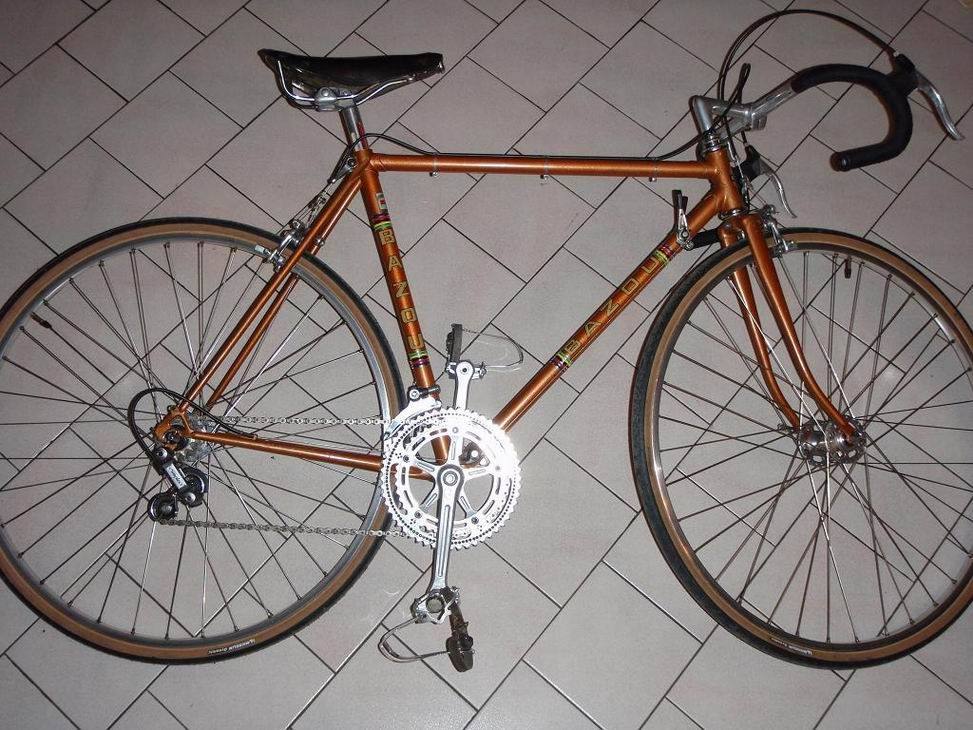

mid-1970's course -

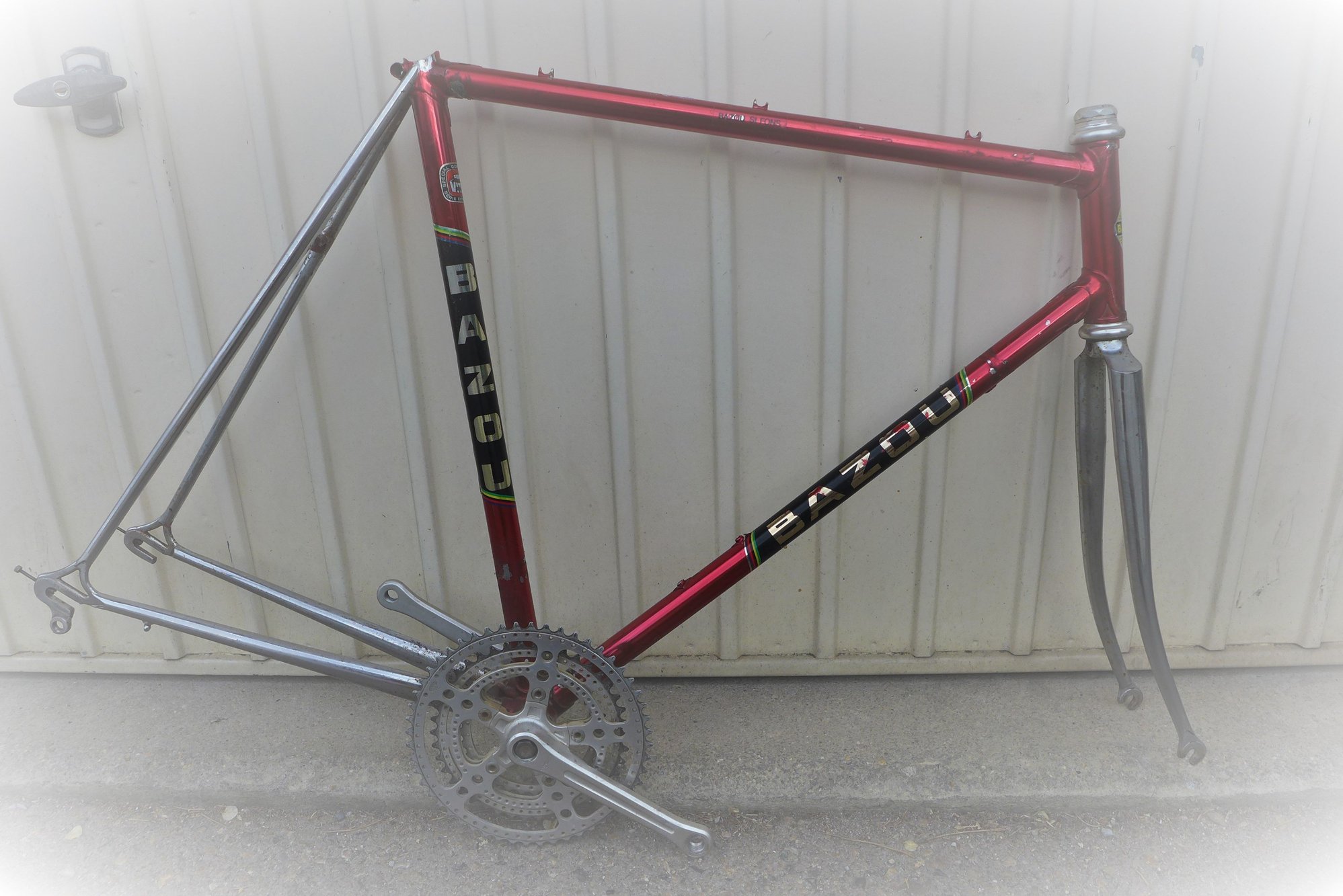

late 1970's course -

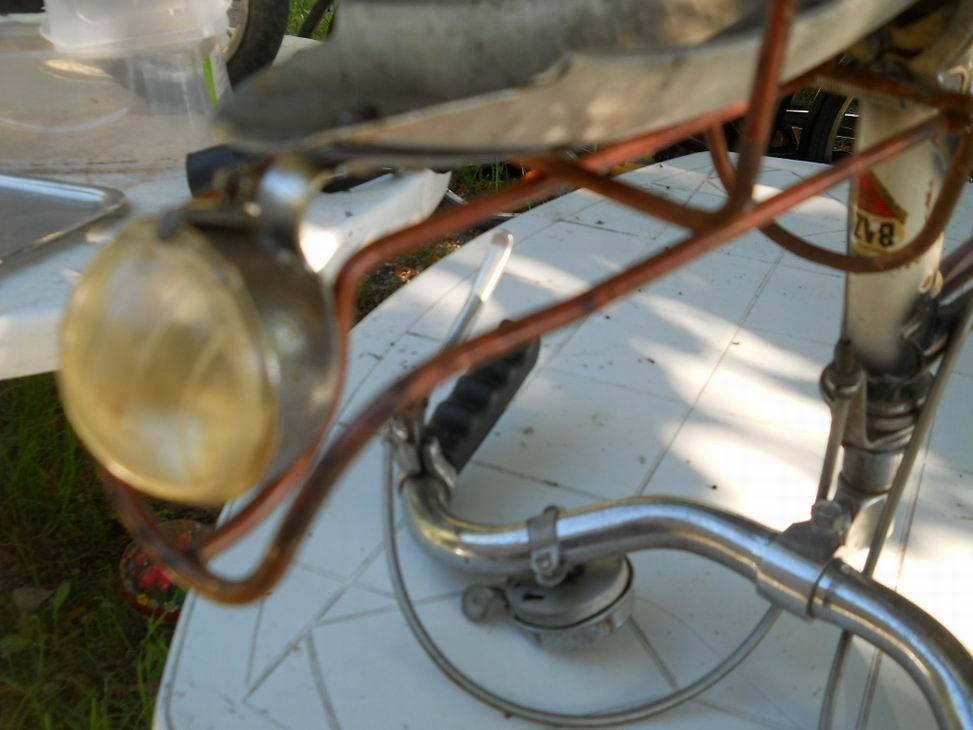

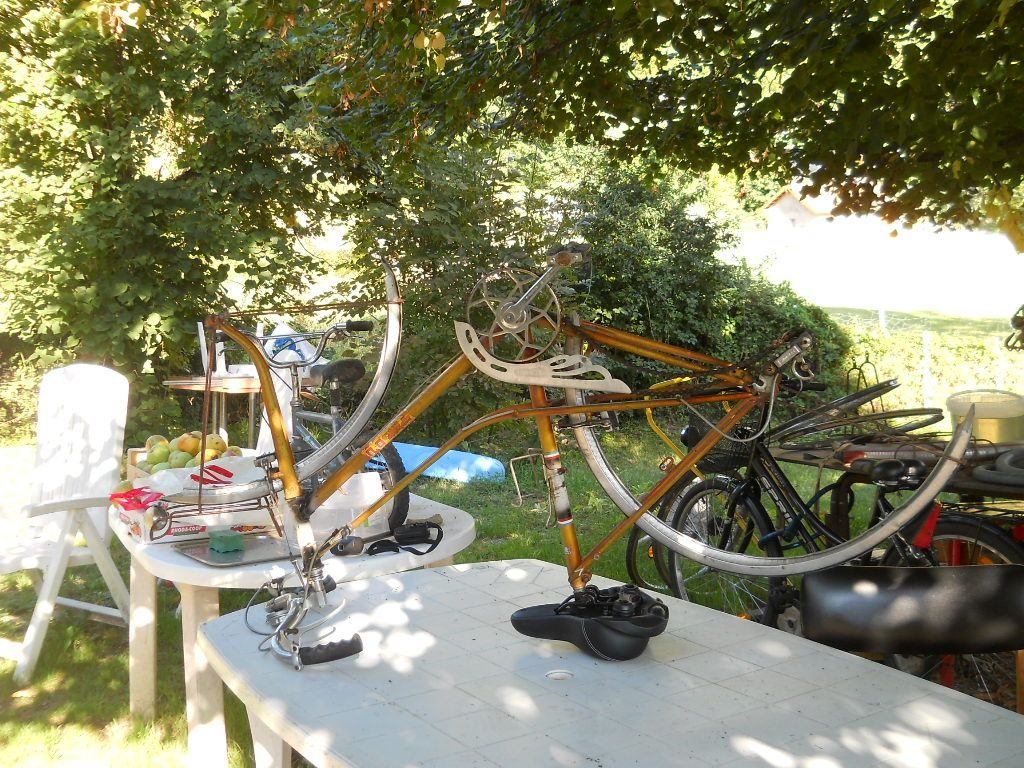

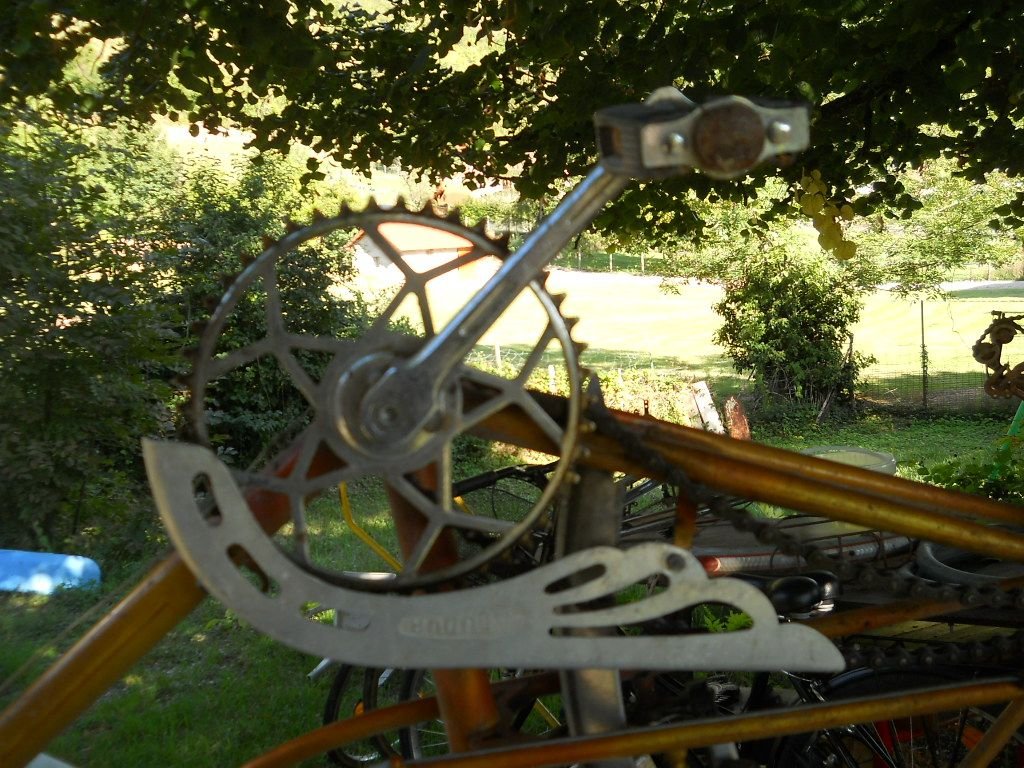

berceau which appears close in time to your example -

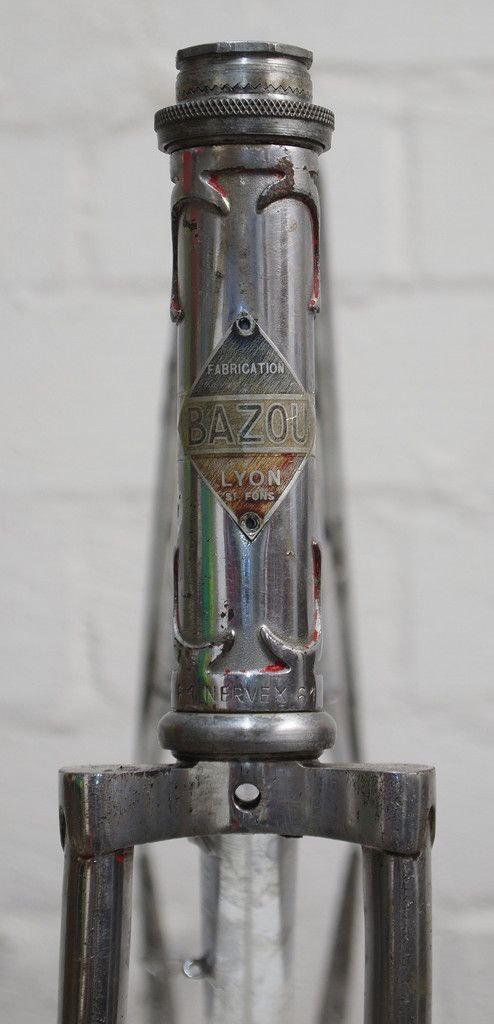

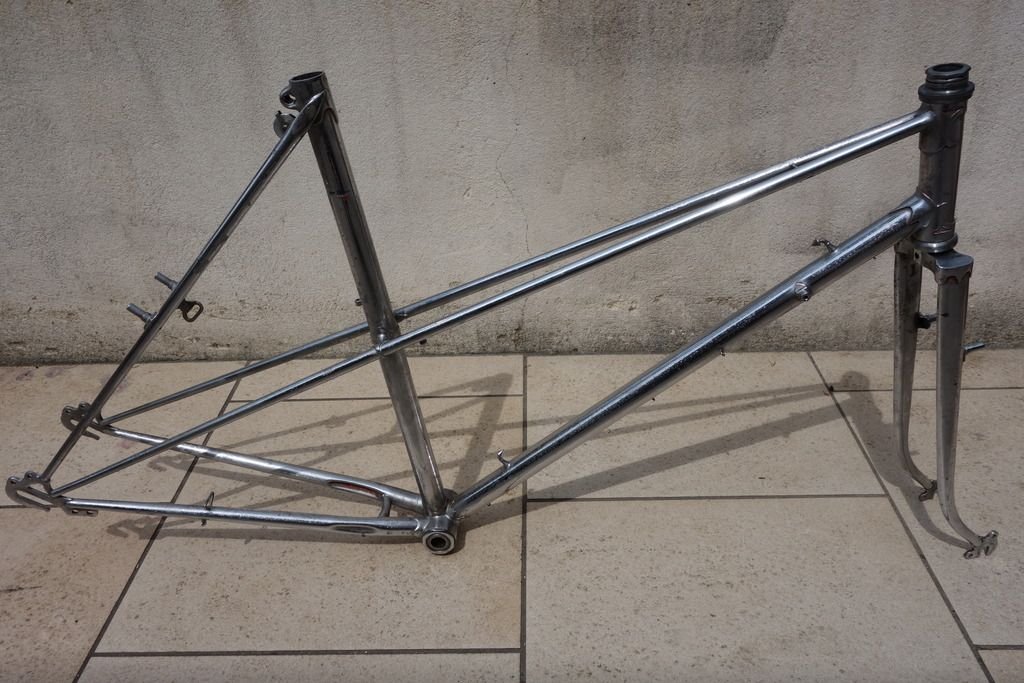

high quality mixte, 1950's era -






---

Name -

as you may have already discovered, BAZOU was affectionate nickname for the French professional racer Pierre Bachellerie -




https://fr.wikipedia.org/wiki/Pierre_Bachellerie

---

Group -

FB has a group for people interested in this marque. perhaps you would like to join and add photos of your example -

https://www.facebook.com/groups/cycles.bazou/

---

Sorry have not been able to be of greater assistance with your fascinating puzzle!

-----
juvela is online now
Old 04-17-19, 07:07 AM
  #9
TenGrainBread
Senior Member
Thread Starter

TenGrainBread's Avatar

Join Date: Sep 2015
Location: Madison, WI
Posts: 1,497
Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 551 Post(s)
Thanks @juvela 😁

The shifter boss is threaded, just not with M5x0.8. I suspect M5X1.0. Does the one-sided clamp you are referring to go over the braze-on? Or is it above or below it. The paint around the braze-on seem to indicate it goes over it.

I left facebook a while ago but I'll think about joining the group to see of there are any Bazou experts there.
TenGrainBread is offline
Old 04-17-19, 07:40 AM
  #10
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 7,814
Mentioned: 190 Post(s)
Tagged: 1 Thread(s)
Quoted: 1525 Post(s)
-----

Thank you for the clarification on the shift lever boss - had misunderstood.

Here are examples of the Juy and Freres Huret designs mentioned above.

In this arrangement the boss does double duty as it also serves as a no-slide.

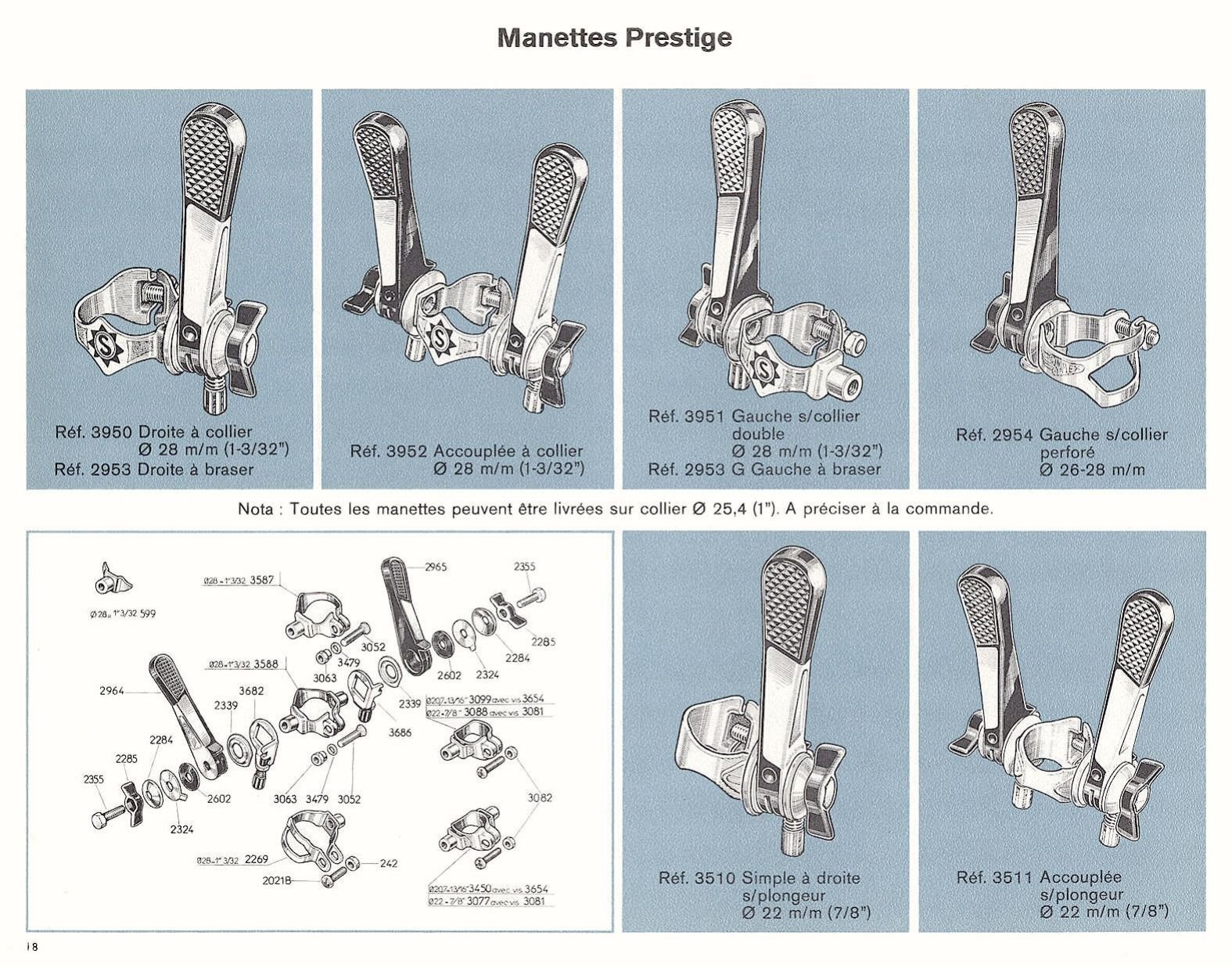

See items nrs. 2954 & 2269 in this Juy illustration -

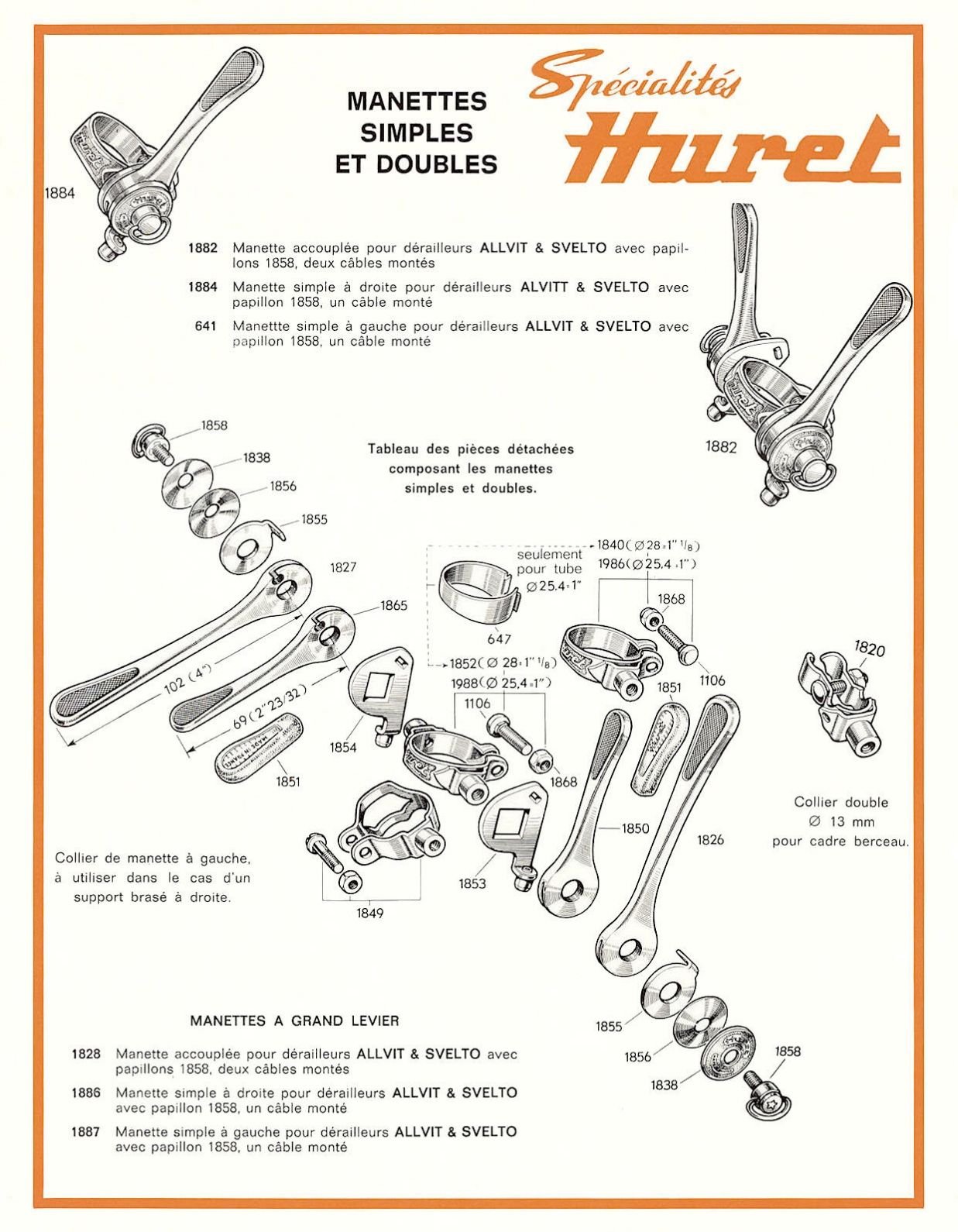

Here is the Freres Huret design. See item nr. 1849 -


This shift lever arrangement is commonly found on French cycles.

-----
juvela is online now
Old 04-17-19, 07:41 AM
  #11
TenGrainBread
Senior Member
Thread Starter

TenGrainBread's Avatar

Join Date: Sep 2015
Location: Madison, WI
Posts: 1,497
Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 551 Post(s)
Oh, here is one I found that looks like the correct clamp. Albeit it with a boss that has flats for Campag style lever.

TenGrainBread is offline
Old 04-17-19, 07:55 AM
  #12
Wileyone
Senior Member

Wileyone's Avatar

Join Date: Oct 2014
Location: GWN
Posts: 1,956
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 1038 Post(s)
Originally Posted by TenGrainBread View Post


That frame has to hold the record for brazeons.
