How to clean vintage bike frame & components?

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

How to clean vintage bike frame & components?

Old 04-14-19, 06:32 PM
  #26
mpetry912
experienced

Join Date: Jun 2009
Location: Bainbridge Island, WA
Posts: 70

Bikes: Sachs, Alex Singer, Serotta, Raleigh Pro, Hetchins

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
here's a little secret weapon on cleaning greasy stuff - Scrubbing bubbles bathroom cleanser ! works miracles.

you can replace the nipples only - not the spokes - but if the spokes are rusty they are not stainless - so you are probably into rebuilding the wheels. take a spoke out and measure the length.

Most shops are not willing to do restoration work of this type - even at shop labor rates it's not worth their time. So it's up to you. Nice project !

Mark Petry
Bainbridge Island, WA
mpetry912 is online now
Old 04-20-19, 02:00 PM
  #27
the sci guy
bill nyecycles
Thread Starter

the sci guy's Avatar

Join Date: Mar 2013
Location: Houston TX
Posts: 2,626
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 440 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
UPDATES:

1) I decided to buy new wheels & freewheel. I'd love to keep the Mallard hubs and the original freewheel but they are a mated pair and if anything happened the tools to fix or remove them are hard to come by and to buy a new set of very similar period-looking wheels, was about the same price and having a shop build new ones with the old hubs. I'm going to keep the hubs for now - who knows maybe down the road I'll have a little more $$ and can have them rebuilt to use. It's not a huge deal.

2) Some pics of the cleaning so far

-hoods:

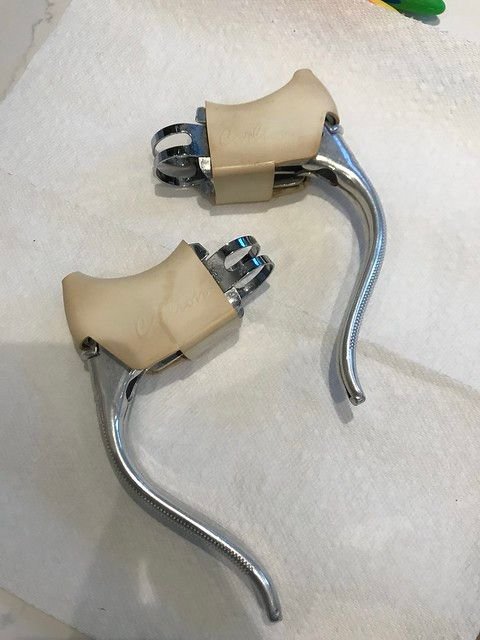

This is how they came to me on the bike:

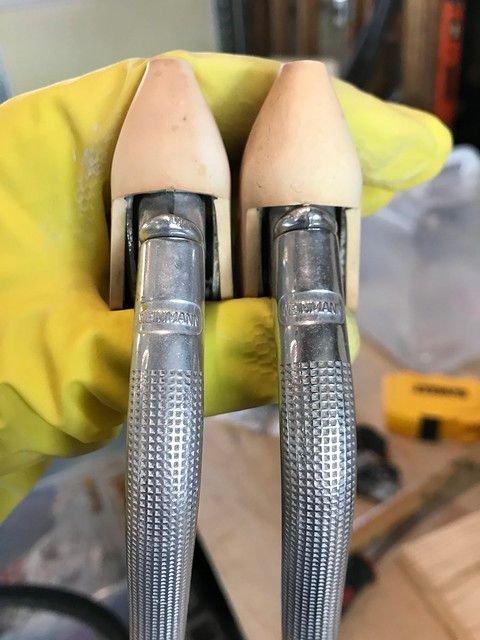

Here's how they look now:


And here's after polishing one of the levers, for comparison's sake:

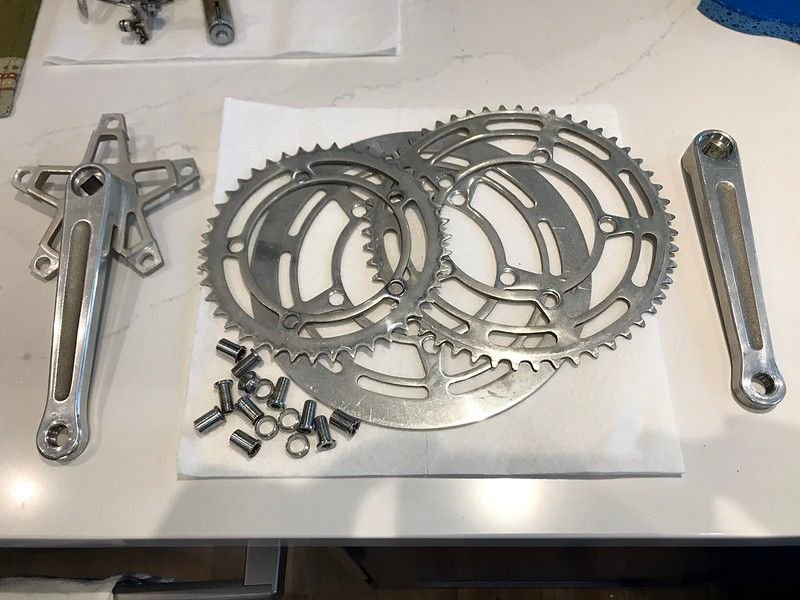

-Crank:
Before

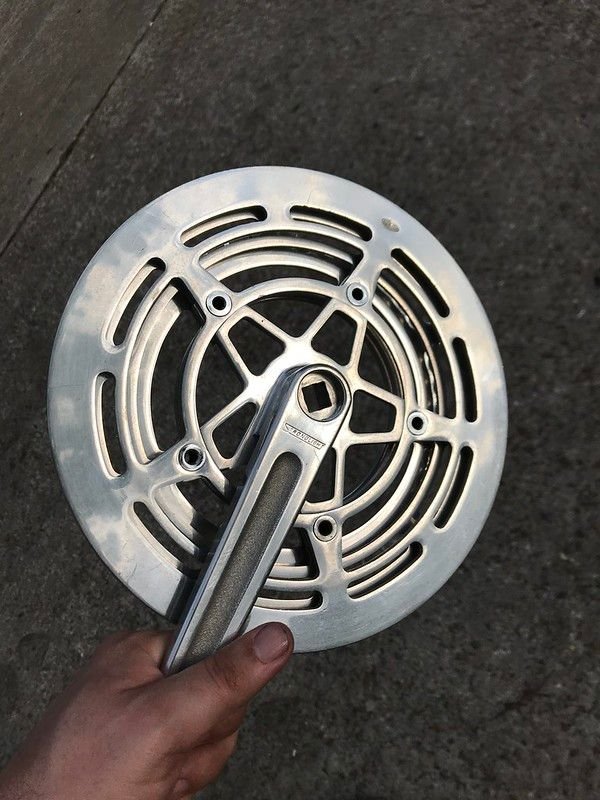

After:






-Stem
Before:


After:


More + a question in the next post
__________________
Twitter@theSurlyBiker
Instagram@theSurlyBiker
the sci guy is offline
Old 04-20-19, 02:08 PM
  #28
the sci guy
bill nyecycles
Thread Starter

the sci guy's Avatar

Join Date: Mar 2013
Location: Houston TX
Posts: 2,626
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 440 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Front derailleur:


The rear derailleur didn't come quite as clean as I was hoping, but it's magnitudes better. I didn't snap a pic yet.

So I'm on to the frame now and herein lies my next query...

I used the methods suggested to clean the chrome parts of the front fork of the rust spots, but now it seems to have left with just areas where the chrome is just gone. I'm assuming there really isn't anything to be done about this? The rust is gone, but the chrome has been damaged and it just is what it is now?

Front sides look ok:


It's the back sides I'm concerned about



Thoughts or recommendations?
__________________
Twitter@theSurlyBiker
Instagram@theSurlyBiker
the sci guy is offline
Old 04-20-19, 03:04 PM
  #29
OTS
Senior Member

Join Date: Feb 2010
Location: Bloomington/Normal IL
Posts: 710
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 59 Post(s)
Liked 1 Time in 1 Post
Originally Posted by the sci guy View Post

. I'm assuming there really isn't anything to be done about this? The rust is gone, but the chrome has been damaged and it just is what it is now?

Front sides look ok:


It's the back sides I'm concerned about



Thoughts or recommendations?
You are correct !

Periodically wax it and ride it like you stole it !
OTS is offline
Old 04-20-19, 08:45 PM
  #30
the sci guy
bill nyecycles
Thread Starter

the sci guy's Avatar

Join Date: Mar 2013
Location: Houston TX
Posts: 2,626
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 440 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I also need a new 5 speed freewheel. Suggestions?
__________________
Twitter@theSurlyBiker
Instagram@theSurlyBiker
the sci guy is offline
Old 04-20-19, 10:09 PM
  #31
bwilli88
Senior Member

bwilli88's Avatar

Join Date: Jan 2013
Location: Kampong Cham, Cambodia but I have quite a few in Lancaster, PA
Posts: 1,712

Bikes: Bikes in USA; 73 Raleigh Supercourse dingle speed, 74 Raleigh Grand Prix SS, 78 Raleigh Supercourse, 83 Centurion Pro-Tour, 82 Raleigh RRA.

Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 402 Post(s)
Likes: 0
Liked 1 Time in 1 Post
You could do 2 things for the back of the fork, polish the steel or a little silver paint. Polishing the steel leaves it open to the weather and potential rust later. Painting, covers the steel and prevents rust later. best is to polish the steel a bit and than a light coat of silver paint. There is also a chrome paint out there that looks ok.
__________________
My Cambodia bikes; ?? Zunow, 81 Centurion Pro Tour, 85 Gazelle Mens Market bike, ?? Maxwell Allroad, 12 Fuji Stratos.
bwilli88 is online now
Old 04-21-19, 12:09 PM
  #32
capnjonny
Senior Member

capnjonny's Avatar

Join Date: Nov 2014
Location: Saratoga calif.
Posts: 476

Bikes: Miyata 610(66cm), GT Vantara Hybrid (64cm), Nishiki International (64cm), Peugeot rat rod (62 cm), Trek 800 Burning Man helicopter bike, Bob Jackson frame (to be restored?) plus a never ending stream of neglected waifs from the Bike exchange.

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 162 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
When I am doing a rest on a bike the first thing I do is strip it down to the frame. Then I do the following:

Take all the shiny bits and throw them in a container of white vinegar( 5-6 bucks a gallon at safeway)

Wipe the frame and fork down with wd40 or mineral spirits

Get some rags and q tips and dig into all the nooks and crannies

using a brass cleaning brush and mineral spirits scrub all the grease off the chainrings and freewheel

If there is rust in the paint I coat the rusted areas with naval jelly then after 1/2 hr wash it off . If there ia crusted rust sometimes I rub the rust lightly with 1000 grit wet/ dry


This does not appear to harm the paint , just the rust.

using white polishing compound, rub out the frame and fork ( this will remove lots of marks and dirt that regular cleaning won't)

When I have the frame squeaky clean I often will Clear coat it with Rustoleum clear enamel or lacquer depending on the underlying paint type. If you aren't sure which type was used you can do a test . I usually use the fork steer tube if it is painted. This will make the paint really pop, bringing out the original color

Next, take all the shiny bits out of the vinegar and clean. Most if not all the rust will just wipe off. A brass brush followed with some metal polish should make them sparkle.

If you want to go to the next level get a polishing wheel ( I have one mounted on a grinder) and buff everything up .

With everything cleaned and polished , reassemble.




If you have any rubber parts such as grips, hoods or on old 3 speeds a rear reflector, judicious use of some acetone can make them bright white again . Be careful though as it will actually dissolve the rubber . A little will clean them , too much will ruin them.

Note
Chrome fork ends are often clear coated at the factory. You can remove the lacquer coating by wiping them down with Acetone and a scotch brite pad. Be sure to mask off the paint before you do this as acetone will also wipe off paint and decals

Last edited by capnjonny; 04-21-19 at 12:15 PM.
capnjonny is offline
Old 05-12-19, 04:02 PM
  #33
kc0yef
Senior Member

kc0yef's Avatar

Join Date: Aug 2011
Location: Olympia WA
Posts: 1,430
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 89 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Polishing the Steel would in fact lesson the rust and corrosion..
I would suggest polishing as best you can then spray clear coat on it after de-greasing... Less waxing but still regularly way your bike
__________________
riding
kc0yef is offline
Old 05-16-19, 08:02 PM
  #34
cromagnum
Junior Member

Join Date: Mar 2019
Location: Long guy land NY
Posts: 10

Bikes: a bunch of stuff partial list its becoming a disease 69 Drake 3 spd 87Lotus elan 75, Atala 1988 corsa professionista, Matsuri track kieran bike 1972 astra tour de france

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Wow I am going to try the suggestions from all of you to try and bring back my 1972 Astra tour de France. I am the original owner and have just recently gotten back into bikes. This bike was an off shoot of Motobecane and is worthless to anyone else but to me it is priceless and requires a full restoration however because I have looked for decals and have been unsuccessful as of this writing, I will attempt to clean it and do all the mechanical s and ride it until I can get the decals then fully restore it. As soon as I am permitted I will post pictures
cromagnum is offline
Old 05-17-19, 07:43 AM
  #35
USAZorro
Señor Member

USAZorro's Avatar

Join Date: Oct 2004
Location: Florence, KY
Posts: 16,184

Bikes: Mostly English - predominantly Raleighs

Mentioned: 46 Post(s)
Tagged: 0 Thread(s)
Quoted: 684 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Could you not use the freewheel that's on the original rear wheel?
__________________
In search of what to search for.
USAZorro is offline
Old 05-17-19, 09:25 AM
  #36
capnjonny
Senior Member

capnjonny's Avatar

Join Date: Nov 2014
Location: Saratoga calif.
Posts: 476

Bikes: Miyata 610(66cm), GT Vantara Hybrid (64cm), Nishiki International (64cm), Peugeot rat rod (62 cm), Trek 800 Burning Man helicopter bike, Bob Jackson frame (to be restored?) plus a never ending stream of neglected waifs from the Bike exchange.

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 162 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I just discovered a great product for cleaning grease off my bike. It is StarStuk ACR citrus adhesive cleaner /remover.

I had some in the shop for cleaning contact cement residue from formica projects and sprayed a little on a Raleigh frame to help remove an old sticker. I noticed it dissolves grease really well so sprayed it on a greasy chainring/crank I had on the bench and it dissolved the grease like magic. I wiped off the part and sprayed it once more and even more grease just dissolved.

I am looking at the can and see it is made by 3M, one of my favorite companies.
capnjonny is offline
Old 05-17-19, 02:18 PM
  #37
the sci guy
bill nyecycles
Thread Starter

the sci guy's Avatar

Join Date: Mar 2013
Location: Houston TX
Posts: 2,626
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 440 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by USAZorro View Post
Could you not use the freewheel that's on the original rear wheel?
What's this in reference to?
__________________
Twitter@theSurlyBiker
Instagram@theSurlyBiker
the sci guy is offline
Old 05-17-19, 04:10 PM
  #38
ryansu
Ride.Smile.Repeat

ryansu's Avatar

Join Date: May 2011
Location: Seattle WA
Posts: 1,514

Bikes: 2009 Handsome Devil, 1978 Motobecane Grand Touring, 1987 Nishiki Cresta GT, Former bikes; 1986 Miyata Trail Runner, 1979 Miyata 912, 2011 VO Rando, 1999 Cannondale R800, 2012 Soma Smoothie, 1986 Schwinn Passage

Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 401 Post(s)
Liked 9 Times in 7 Posts
Originally Posted by the sci guy View Post
What's this in reference to?
I think in response to your question about free wheels, btw this SunRace on Amazon should do the trick or if you are near a bike co-op you might find used one and more vintage cheaper. You will need a FW puller if you ever want to get it off again, they list one in the frequently bought together section. Be aware they are a number of different "standards" out there for FW pullers. I think I have about 8 different models floating around my tool box.
ryansu is offline
Old 05-17-19, 06:44 PM
  #39
bark_eater
Senior Member

Join Date: Sep 2017
Location: Eastern Shore, MD
Posts: 415

Bikes: Road ready: 1989 Centurion Sport DLX, "I Blame GP" Bridgestone CB-1. Projects: Yea, I got a problem....

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 151 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by qcpmsame View Post
Good advice all, I will add that its best to avoid Simple Green, it can and will pit aluminum surfaces. I understand that even the new formulation that claims to be safe for aluminum isn't up to snuff and can cause some pitting, There was an A/D issued for aircraft owners and A/P mechanics back in around 2000-2002 that warned, and then forbid its use. A line maintenance Master Chief for a Naval Training Airwing said that BuAir had forbid its use completely, at that time (Early 2003.)

One of our regulars @randyjawa, has a fantastic web site for anyone wanting to delve into C&V bikes, My Ten Speeds, he has some great tips on cleaning and disassembly, as well as restoration work. Great site that I use as a reference regularly, and a pretty good guy as well!!!

Bill
I've had spilled simple green eat the paint off stuff if left long enough. I've also heard that WD40 is acidic enough to etch surfaces. I believe that was a firearm concern. Never-the-less, my initial processing of a bike involves spraying with Simple Green, wiping with a "cleansing wipe", hosed off with water, dried in the sun for a bit and then liberally soaked down with WD40 from a hand pump bottle. I havent noticed any damage to aluminum parts, but most of the stuff I deal with would need a round of Mothers polish anyway.
bark_eater is offline
