Basic Tools-Stein Tool/Fixed Cup Wrench Clamp

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Basic Tools-Stein Tool/Fixed Cup Wrench Clamp

Old 04-07-19, 05:08 PM
  #1
since6
Senior Member
Thread Starter

Join Date: Nov 2015
Location: Lacey, WA
Posts: 1,358

Bikes: Stevenson Custom, Stevenson Custom Tandem, Nishiki Professional

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 271 Post(s)
Likes: 0
Liked 22 Times in 12 Posts
Basic Tools-Stein Tool/Fixed Cup Wrench Clamp

Some “do” and some “don’t” remove the fixed cup when servicing its bearings and the race surface of the fixed cup. The “don’t” I get from how difficult it is to use the oval wrench made for that purpose and get it to fit tight and not slip off damaging flat surfaces that provide the only grip you can get a tool on to extract the fixed cup. There is the solution of the press style fixed cup removal tool, but these can be quite pricey and then there is the Stein Tool-Fixed Cup Wrench Clamp.For much less cost than the press style fixed cup removal tool the Stein Tool-Fixed Cup Wrench Clamp solves the issue of the fixed cup wrench coming off and damaging the cups engagement flats, but unlike the press style removal tool where you have a high torque steel bar to budge the over tightened and rusted in place fixed cup (but penetrated with days of penetrating oil), the torque limit to the Stein Tool would seem to be that of the stamped steel fixed cup wrench which would seem substantially less? But maybe that’s all you need? Which is better, or, is there another tool I haven’t considered?Advice from those who own or have owned either of these tools and how well they have worked, or, a similar tool I haven’t considered is welcome.

Again my thanks for your advice.

Promise no more "Basic Tool" questions for a while.
since6 is offline
Old 04-07-19, 06:00 PM
  #2
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 3,882

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands, Gordon, Fuso/Moulton, Bornstein, Paisley, Paramounts, 3rensho, Moto TC, Raleigh Pro's, Marinoni, 1960 Cinelli SC, 1980 Bianchi SC and more

Mentioned: 84 Post(s)
Tagged: 0 Thread(s)
Quoted: 1064 Post(s)
Likes: 0
Liked 24 Times in 19 Posts
PM sent
merziac is offline
Old 04-09-19, 04:09 AM
  #3
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Fort Wayne, In
Posts: 25,584

Bikes: Too many to list here check my signature.

Mentioned: 93 Post(s)
Tagged: 2 Thread(s)
Quoted: 1244 Post(s)
Liked 24 Times in 18 Posts
I could be wrong but I always thought the term 'fixed cup' somewhat implied that it should not be removed for routine servicing.
__________________
Bianchis '87 Sport SX, '90 Proto, '90 Campione del Fausto Giamondi Specialisma Italiano Mundo, '91 Boarala 'cross, '93 Project 3, '86 Volpe, '97 Ti Megatube, , '90 something Vento 603,

Others but still loved,; '80 RIGI, '80 Batavus Professional, '87 Cornelo, '09 Motobecane SOLD, '?? Jane Doe (still on the drawing board), '90ish Haro Escape
Bianchigirll is offline
Old 04-09-19, 04:17 AM
  #4
Pompiere
Senior Member

Join Date: Nov 2005
Location: NW Ohio
Posts: 2,449

Bikes: 1984 Miyata 310, 1986 Schwinn Sierra, 2011 Jamis Quest, 1980 Peugeot TH8 Tandem, 1992 Performance Parabola, 1987 Ross Mt. Hood, 1988 Schwinn LeTour, 1988 Trek 400T

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 211 Post(s)
Liked 3 Times in 3 Posts
I could probably rig something similar with a bolt, washer, and a large socket. I have good luck with a squeeze clamp around the outside.

I thought "fixed cup" as opposed to "adjustable", not that it was meant to stay in place, once installed.
Pompiere is offline
Old 04-09-19, 05:55 AM
  #5
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 4,859

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 105 Post(s)
Tagged: 0 Thread(s)
Quoted: 1697 Post(s)
Likes: 0
Liked 24 Times in 16 Posts
Originally Posted by Bianchigirll View Post
I could be wrong but I always thought the term 'fixed cup' somewhat implied that it should not be removed for routine servicing.
Well you are correct, it does. Should not be removed for routine servicing. However, I'm tired of arguing about it with people that weren't around during the loose bearing era, when these racing bike things got ridden every day and serviced regularly.
Salamandrine is offline
Old 04-09-19, 06:02 AM
  #6
jlaw
Senior Member

Join Date: Mar 2018
Posts: 605

Bikes: 2015 Spec. AWOL Elite, 2007 Spec. Roubaix Elite, 2003 Spec. Big Hit 2, 1998 VooDoo Zobop, 1985 Trek 410, 1984 Trek 620

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 211 Post(s)
Likes: 0
Liked 34 Times in 20 Posts
I just hold the base of the wrench onto the cup with one hand and tap the end of the wrench with a dead blow hammer.

Or, a bolt and a block of wood with a hole drilled in it would do the same thing.
jlaw is offline
Old 04-09-19, 07:05 AM
  #7
kingston
Jedi Master

kingston's Avatar

Join Date: Sep 2014
Location: Lake Forest, IL
Posts: 2,625

Bikes: http://stinkston.blogspot.com/p/my-bikes.html

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 1067 Post(s)
Liked 15 Times in 13 Posts
Originally Posted by Pompiere View Post
I could probably rig something similar with a bolt, washer, and a large socket. I have good luck with a squeeze clamp around the outside.

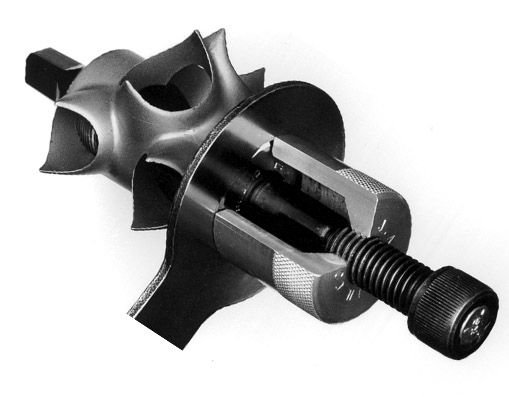

That's what I use, but the Stein tool looks like it could be used on either side which could come in handy if the adjustable side is stuck.

Sheldon has an old article on the topic



Originally Posted by Pompiere View Post
I thought "fixed cup" as opposed to "adjustable", not that it was meant to stay in place, once installed.
Correct. There is no lockring on the fixed cup so it's "fixed" to the bottom bracket shell as opposed to the "adjustable" cup that has a lockring.
kingston is offline
